Product type	Arched pergola
Brand	Vevor
Model	L10FTW10FT (also compatible with L12FTW10FT)
Frame dimensions	3048 x 3048 x 2438 mm (L x W x H)
Covered area	10 ft x 10 ft (approx. 9.3 m²)
Overall height	8 ft (2438 mm)
Frame color	Black
Canopy color	Brown
Frame material	Powder-coated steel
Roof material	Waterproof fabric (canopy)
Installation type	On hard surface (concrete) with expansion screws or on grass with ground nails
Assembly required	Yes, full assembly by user
Number of assembly steps	11 main steps
Maximum recommended load	Do not sit or stand on the structure. Roof has limited capacity
Maintenance	Remove canopy in case of snow to prevent collapse
Cleaning	Clean with a soft cloth and soapy water
Safety	Wear safety goggles and gloves during assembly. Secure firmly to the ground
Warranty	Electronic warranty certificate available at www.vevor.com/support
Technical support	www.vevor.com/support
Package contents	Frame, canopy, screws, nails, bases, sliding parts, etc. (see parts list)
Intended use	Outdoor, shading and decoration

Frequently Asked Questions - L10FT*W10FT Vevor

How to assemble the Vevor pergola L10FT*W10FT?

Follow the 11 main steps in the manual. Start by installing the top and cross bars, then the columns. Attach the reinforcement rods and mount the canopy. Use the supplied M6 screws. Wear safety goggles and gloves.

What safety precautions should be taken?

Do not sit or stand on the pergola. The fabric roof has limited load capacity. Assemble on a flat, hard surface. Secure the structure firmly to the ground to prevent it from being blown away by the wind.

How to fix the pergola to the ground?

Two methods: use expansion screws for concrete ground, or ground nails for grass or soft ground. Both are supplied.

What to do in case of snow?

Remove the canopy to prevent the weight of snow from damaging the structure. The canopy is not designed to bear snow load.

Is the canopy waterproof?

The manual indicates the roof is fabric, but does not specify waterproofness. It is advisable to treat it with a waterproofing spray if necessary.

Can I leave the pergola assembled all year round?

Yes, but you must remove the canopy in case of snow and regularly check the fixings. Store the canopy during winter to prolong its life.

What tools are needed for assembly?

A screwdriver (Phillips), an Allen key (not supplied), and possibly a drill for expansion screws. The manual recommends safety goggles and gloves.

How to clean the pergola?

Clean the frame with a soft cloth and soapy water. For the canopy, use a damp sponge and mild detergent. Rinse with clean water.

Is the pergola wind-resistant?

It withstands normal wind if properly fixed to the ground with the supplied expansion screws or ground nails. In strong wind, it is recommended to remove the canopy to reduce wind resistance.

Where to find spare parts or assistance?

Visit www.vevor.com/support for technical support and the electronic warranty certificate. Spare parts are available on request.

User questions about L10FT*W10FT Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Pergola in PDF format for free! Find your manual L10FT*W10FT - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. L10FT*W10FT by Vevor.

USER MANUAL L10FT*W10FT Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ARCHED PERGOLA

USER MANUAL

MODEL: L10FTW10FT / L12FTW10FT

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ARCHED PERGOLA

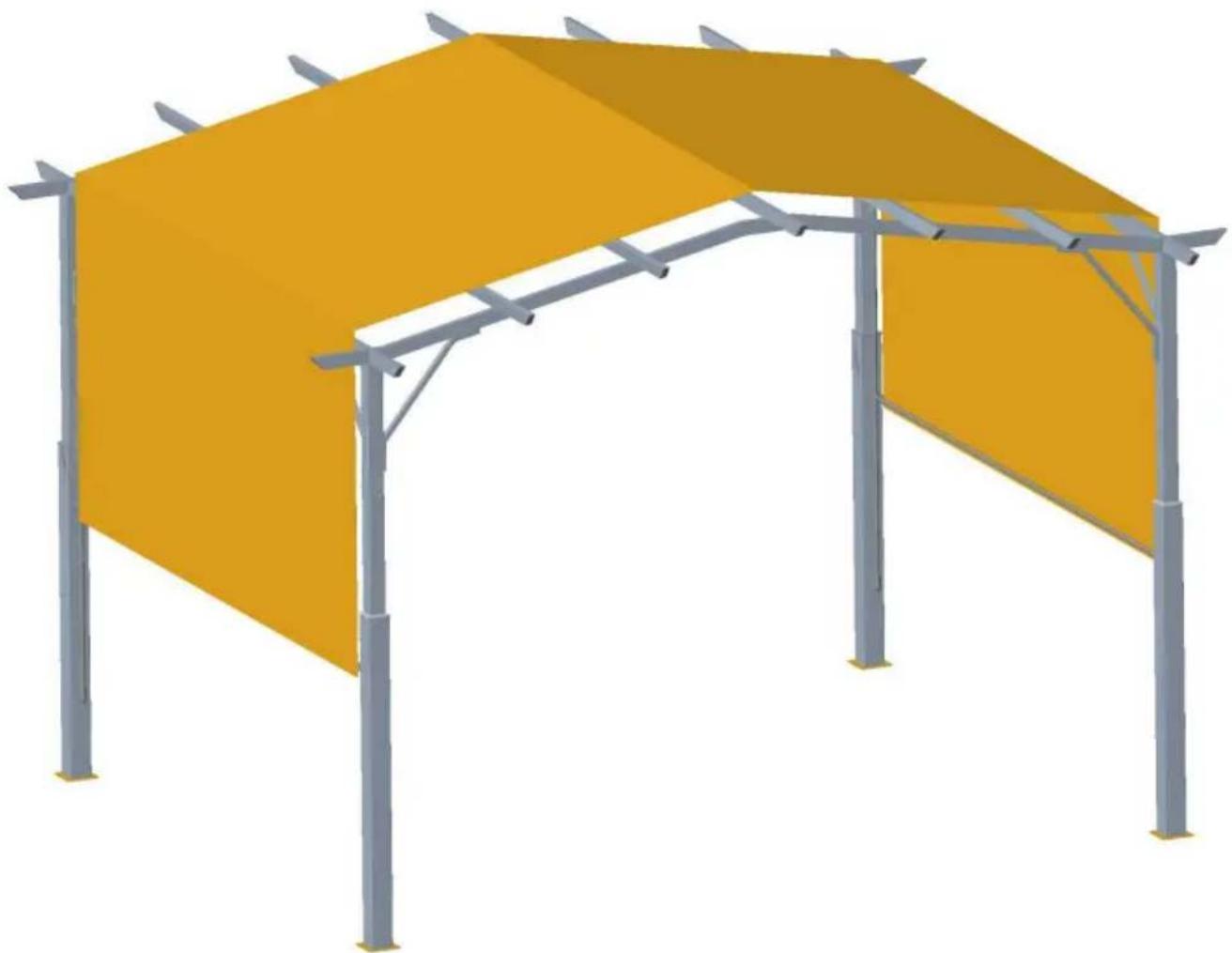

MODEL: L10FT*W10FT / L12FT*W10FT 3D rendering of a yellow canopy structure with metal supports and support pillars (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

Assemble only according to these instructions. Improper assembly can create hazards.
Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
Keep the assembly area clean and well-lit.
Keep bystanders out of the area during assembly.
Do not assemble if tired or when under the influence of alcohol, drugs, or medication.
The product capabilities apply to properly and completely assembled products only.
Assemble on a flat, level, hard, and smooth surface capable of safely supporting the Arched pergola.
For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.

Use precautions

DO NOT SIT OR STAND ON THIS ITEM.
The roof is made of cloth and has a limited load-bearing capacity. When it snows, store the tarpaulin to prevent it from collapsing or being crushed by the snow.
Do not exceed specified weight capacities.
Use only on a flat, level, hard, and smooth surface that can safely support a fully Arched pergola.
Use as intended only.
Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

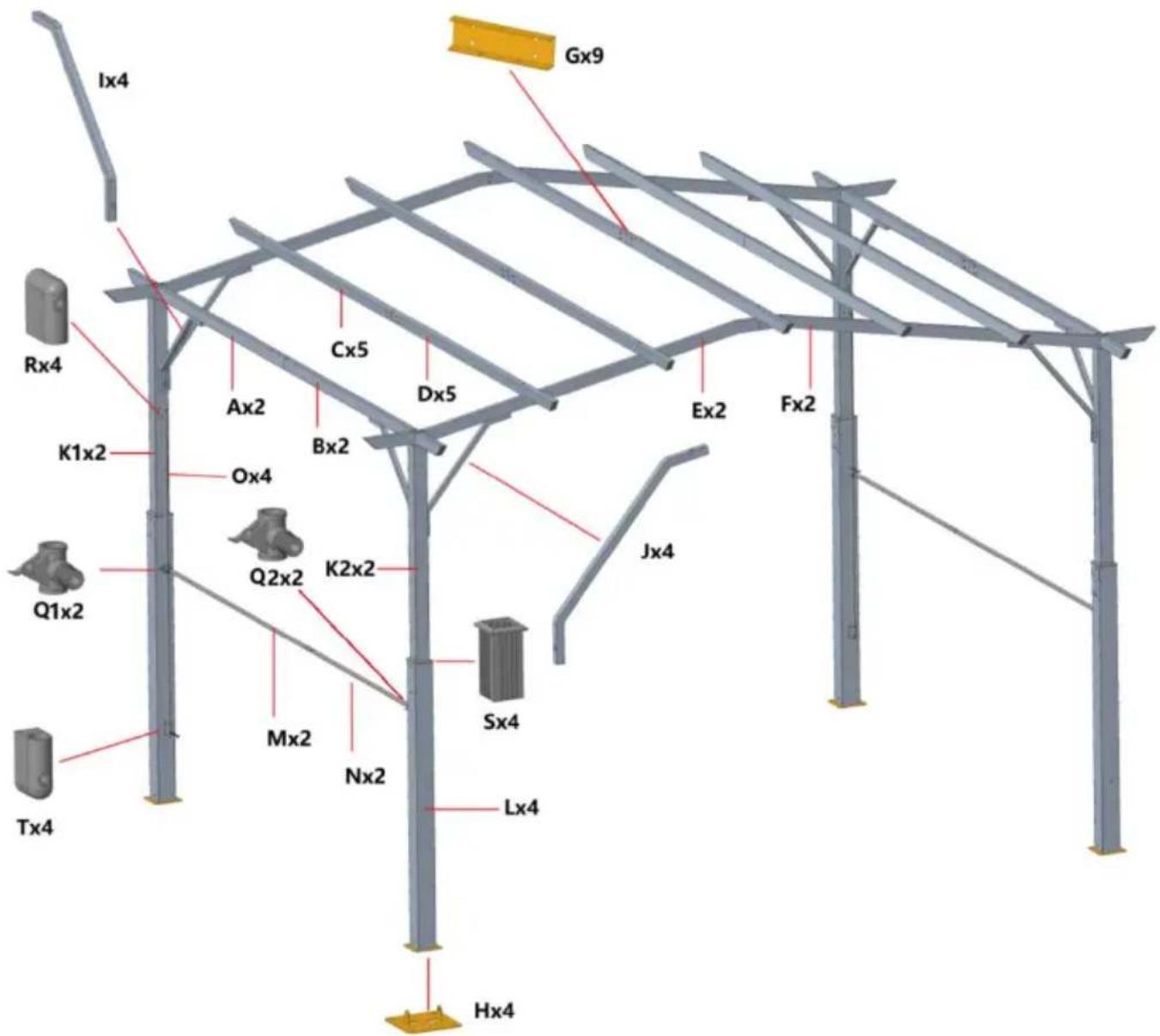

PARTS LIST

Ax2 (Crossbar)	Bx2 (Crossbar)
Cx5 (Crossbar)	Dx5 (Crossbar)
Ex2 (Top bar)	Fx2 (Top bar)
Gx9 (Internal connector)	Hx4 (Base)
Ix4 (Reinforcement rod)	Jx4 (Reinforcement rod)
K1x2 K2x2 (Upper column)	Lx4 (Lower column)
Mx2 (Round tube)	Nx2 (Round tube)
Ox4 (Round tube)	Px1 (Tarpaulin)
Q1x2 Q2x2 (Sliding plastic parts)	Rx4 (Sliding plug)
Sx4 (Plastic sleeve)	Tx4 (Sliding plug)
Ux62+1 (Screw M6*16mm)	Vx8 (Ground nails)
Wx32+1 (Screw M6*30mm)	Xx34+1 (Screw M6*60mm)
Yx8 (Expansion screws)	Zx4 (Sandbag)

Ix4, Rx4, K1x2, Q1x2, Tx4, Cx5, Ax2, Ox4, Bx2, Q2x2, Mx2, Nx2, Dx5, Jx4, Sx4, Lx4, Hx4, Gx9, Ex2, Fx2

ASSEMBLY STEP

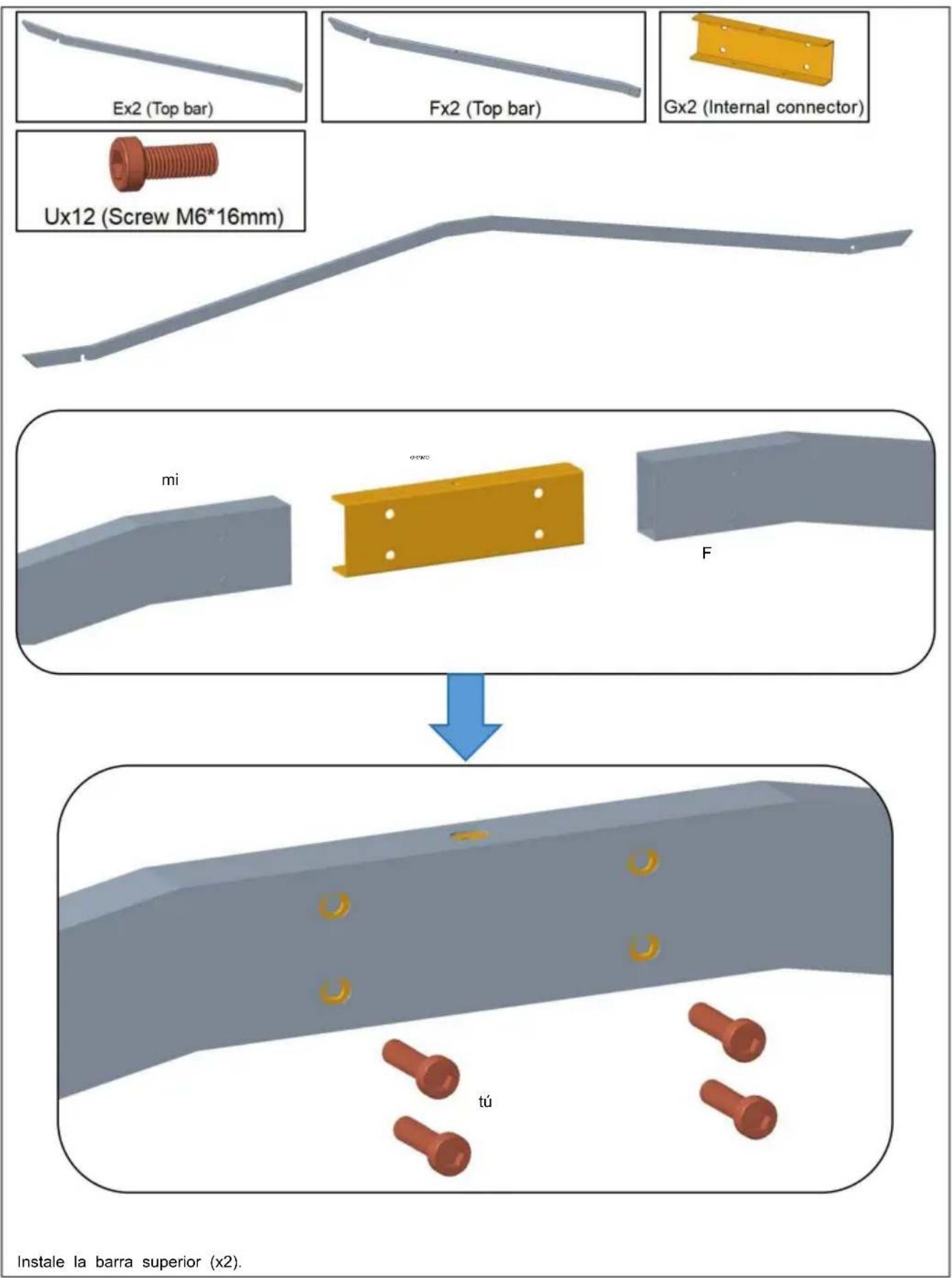

Install the top bar (x2). Vevor L10FT*W10FT - ASSEMBLY STEP - 1

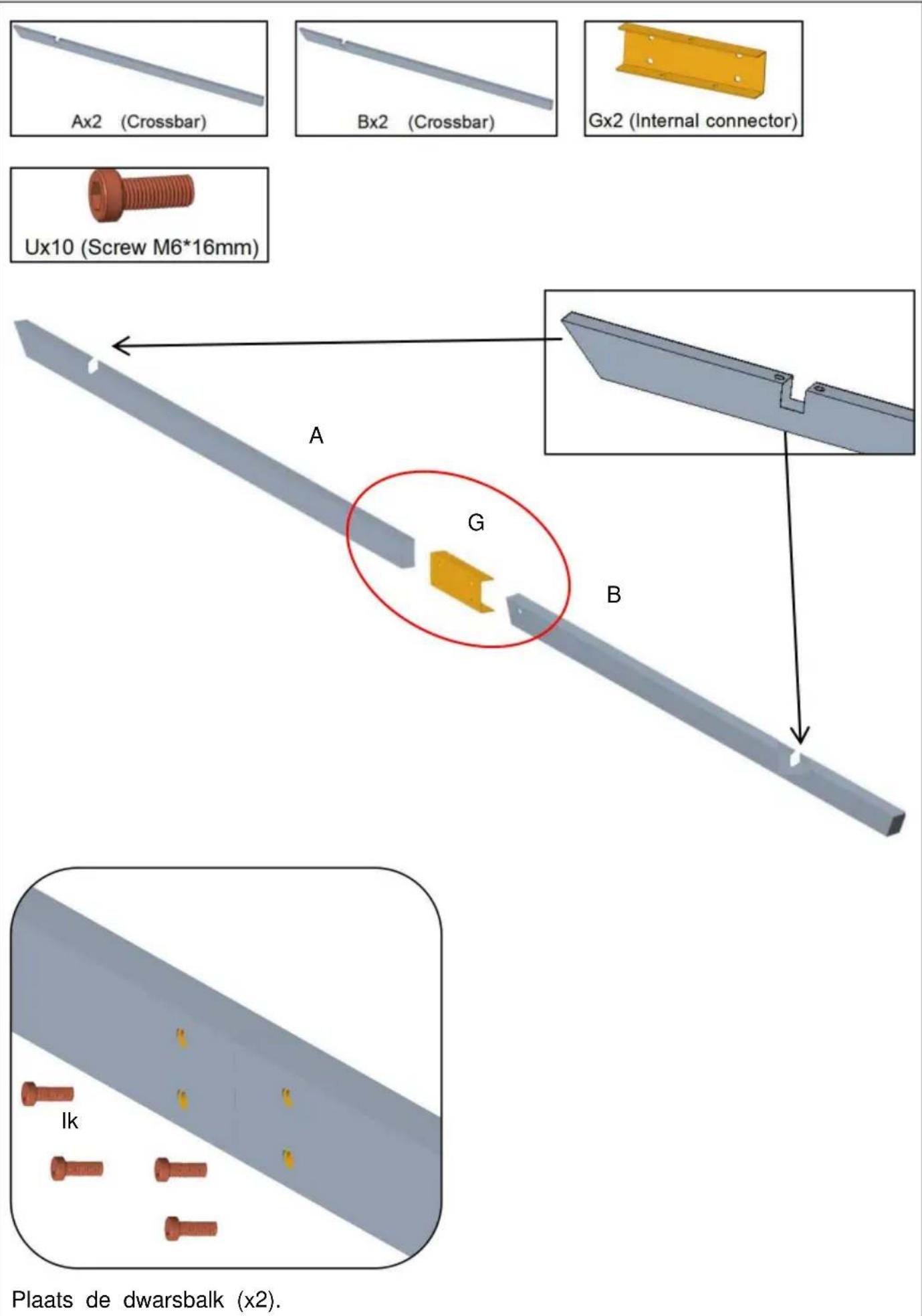

Install the crossbar (x2). Vevor L10FT*W10FT - ASSEMBLY STEP - 2

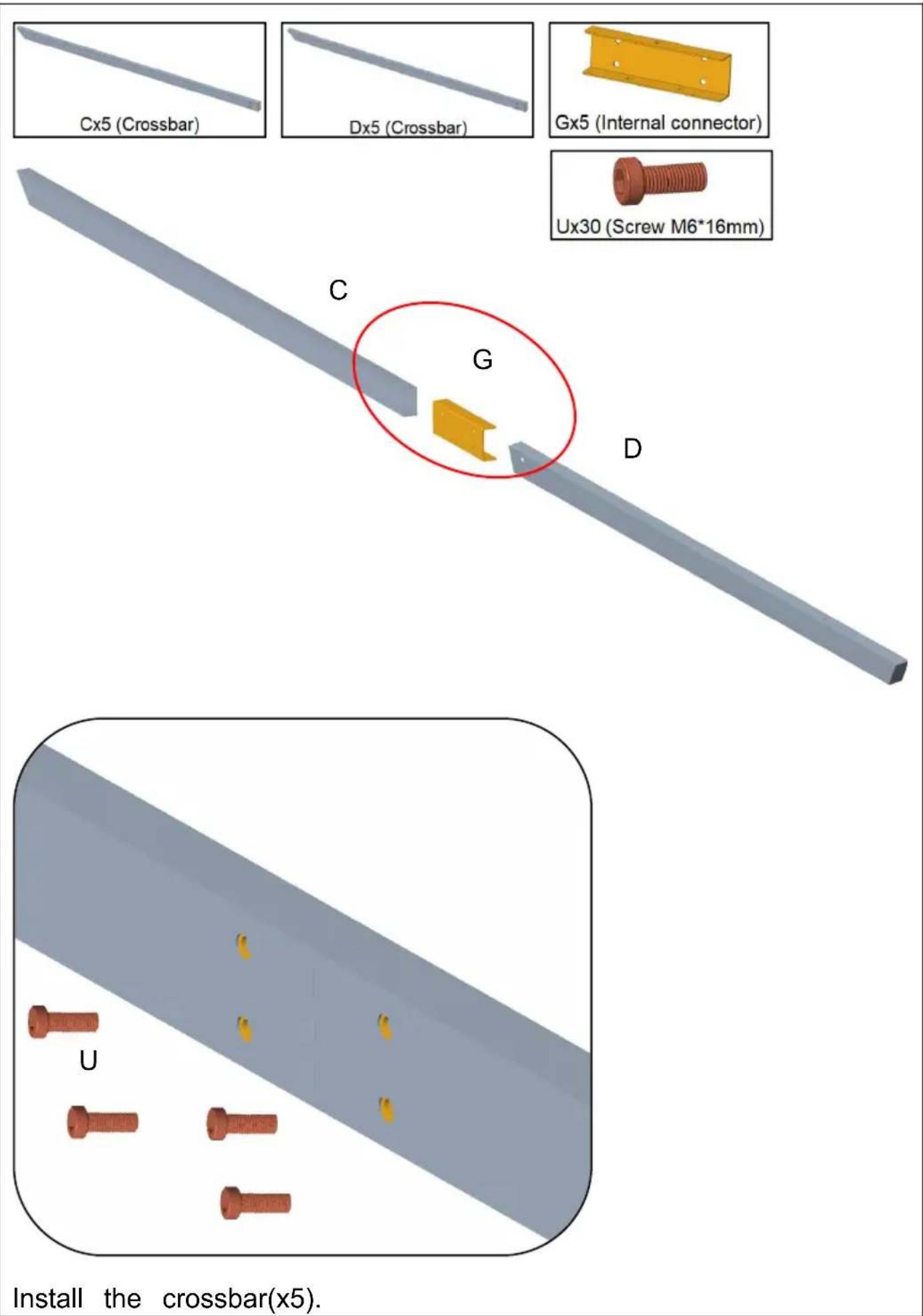

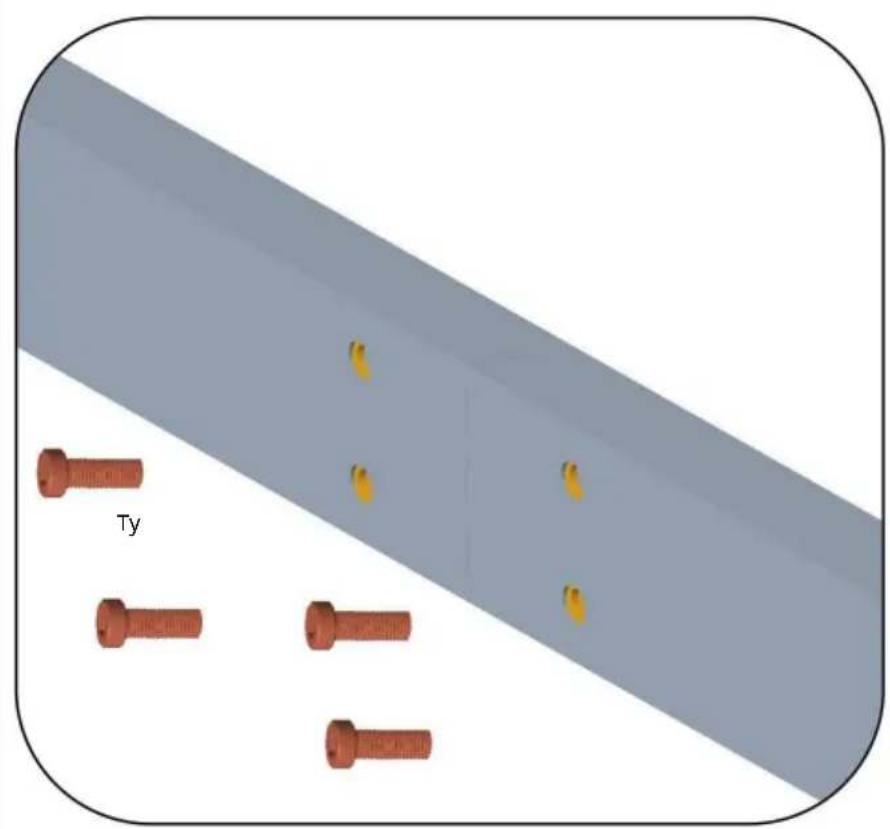

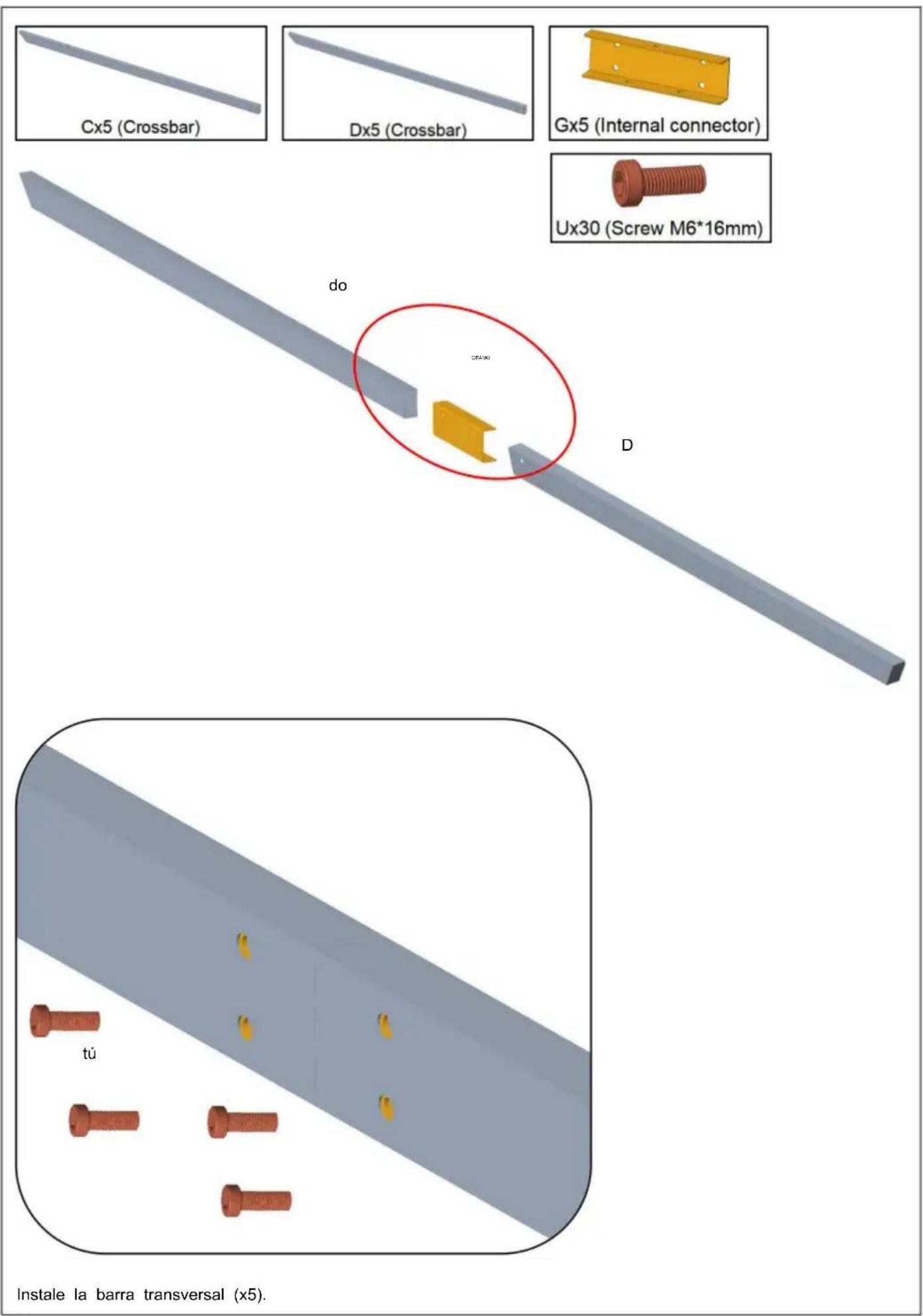

Install the crossbar (x5). Vevor L10FT*W10FT - ASSEMBLY STEP - 3

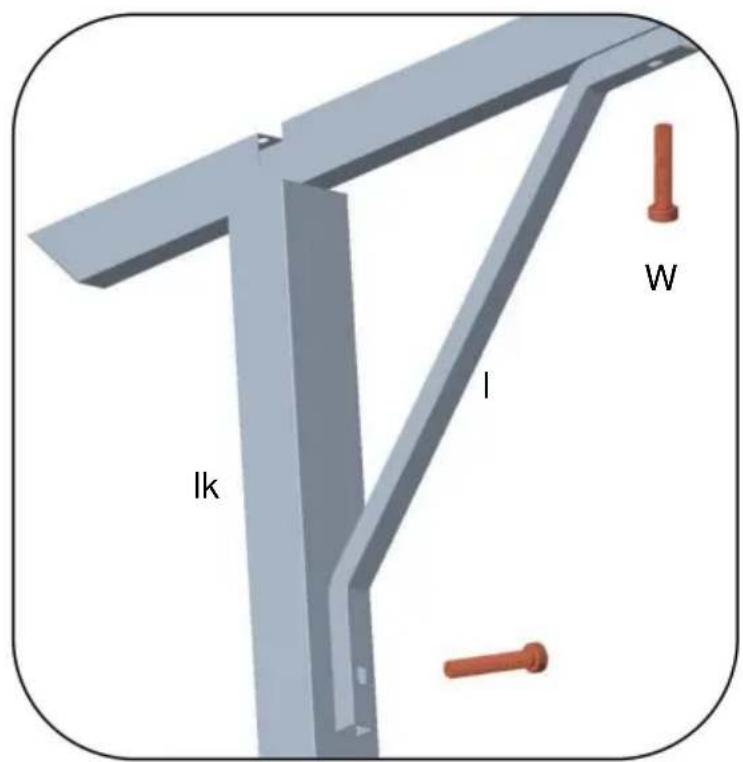

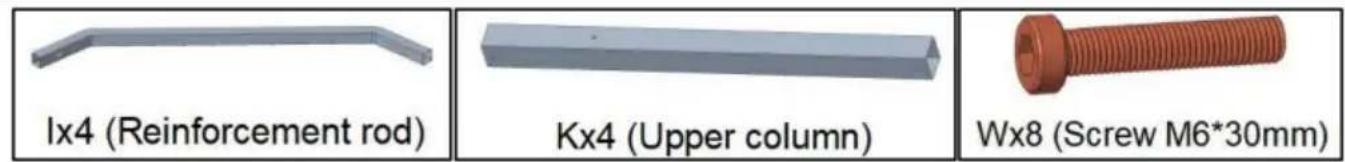

lx4 (Reinforcement rod)

Kx4 (Upper column)

Wx8 (Screw M6*30mm)

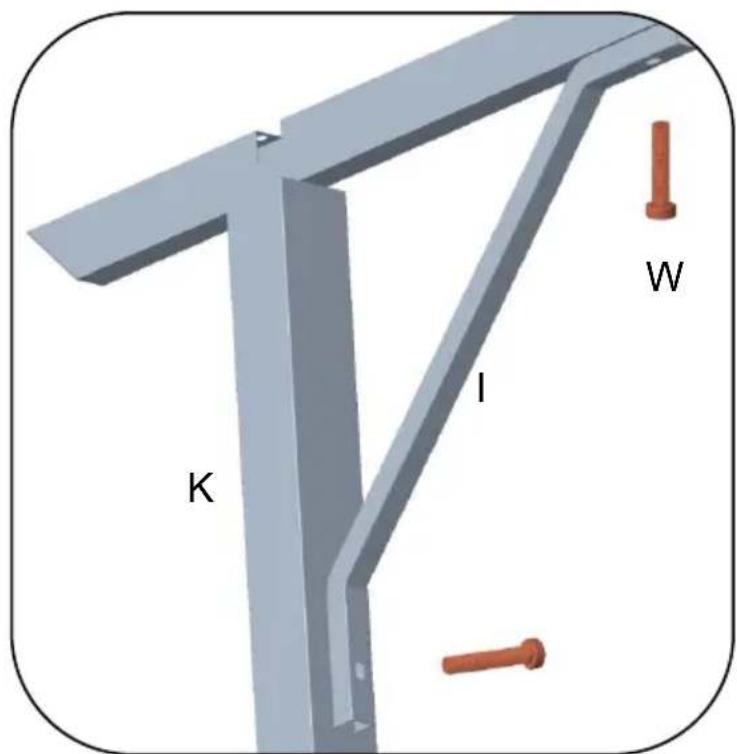

3D structural diagram of a metal frame with support legs and a highlighted angle, showing no text or symbols.

K, I, W

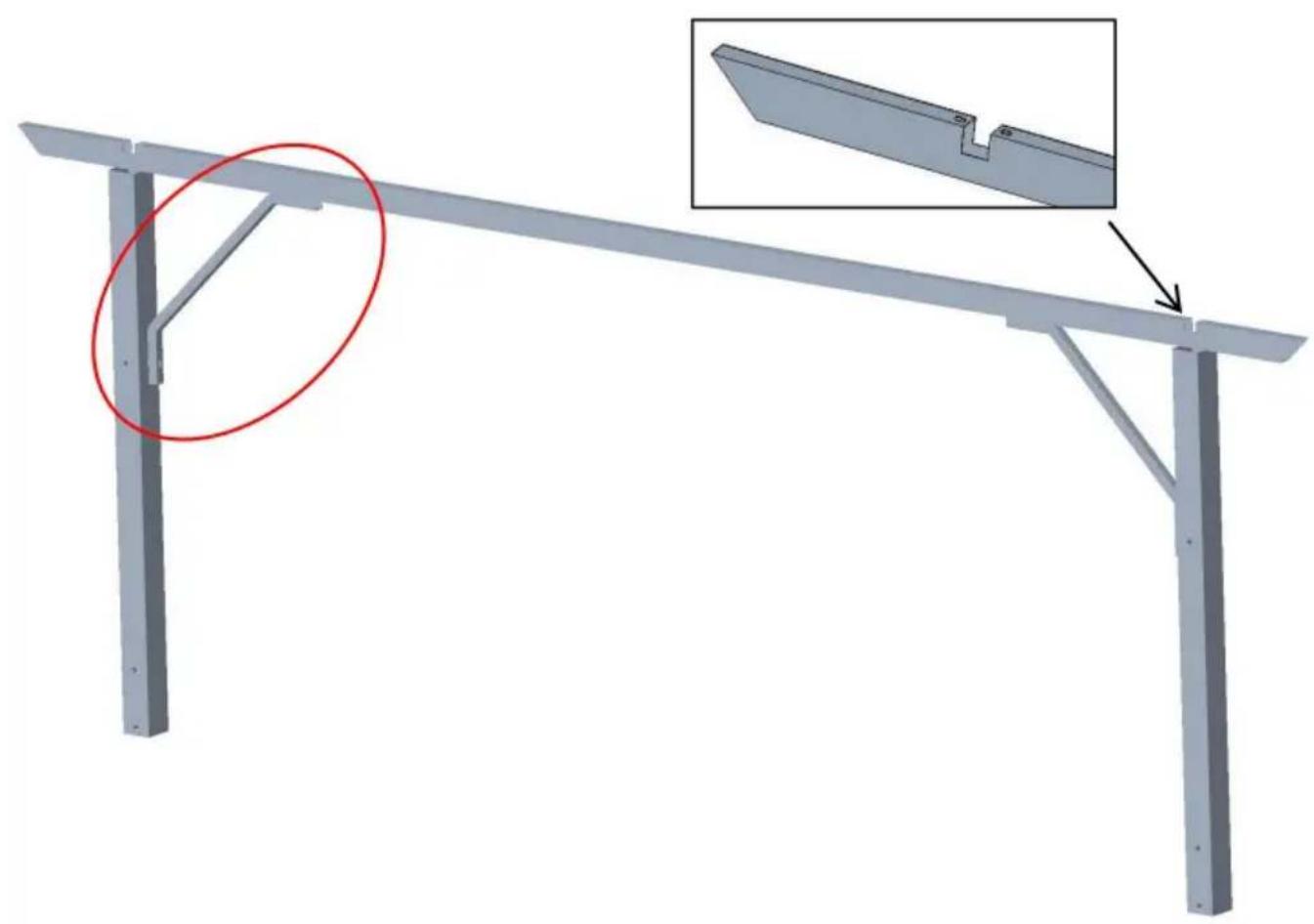

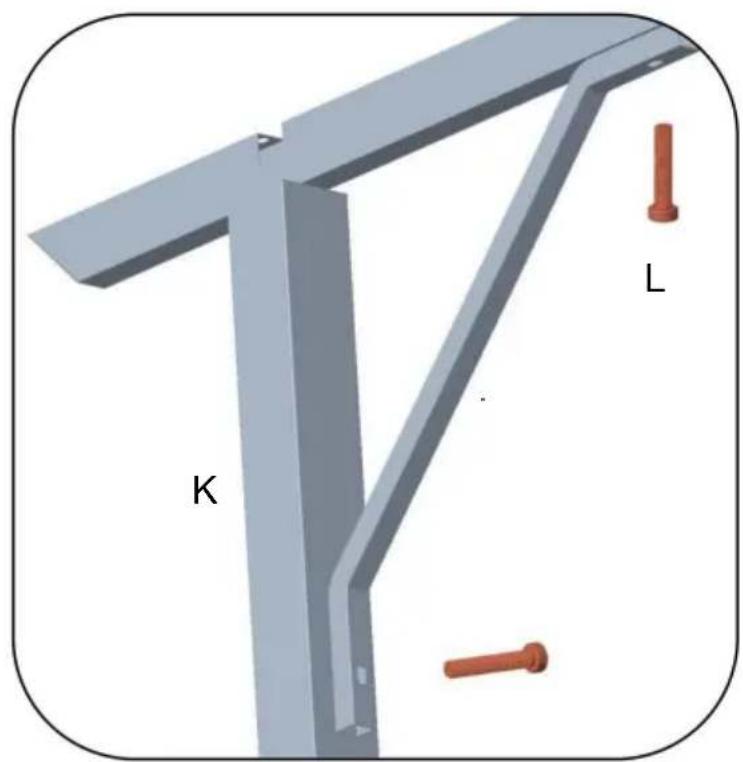

Install the crossbar onto the upper column (x2).

Close-up of a red bolt with threaded end, labeled 'Xx16 (Screw M6*60mm)' below (no other text or symbols)

3D structural diagram of a truss structure with support beams and a highlighted connection point (no text or symbols)

3D rendering of a metal bracket with four red bolt holes and a separate close-up of the top section (no text or symbols)

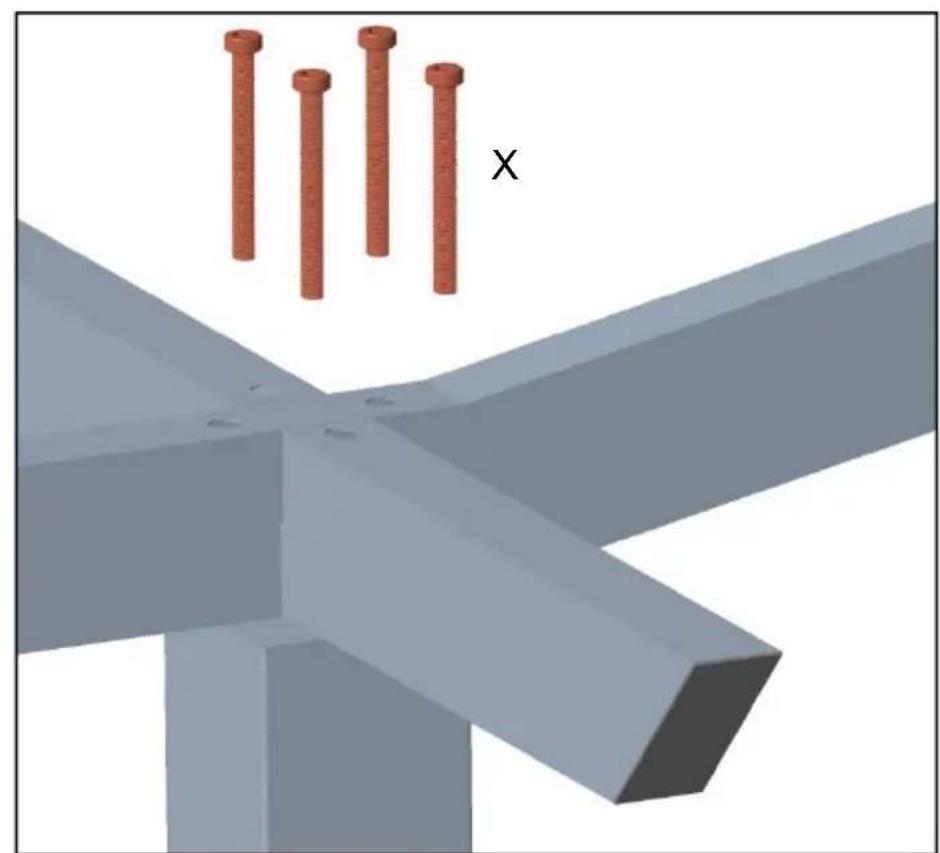

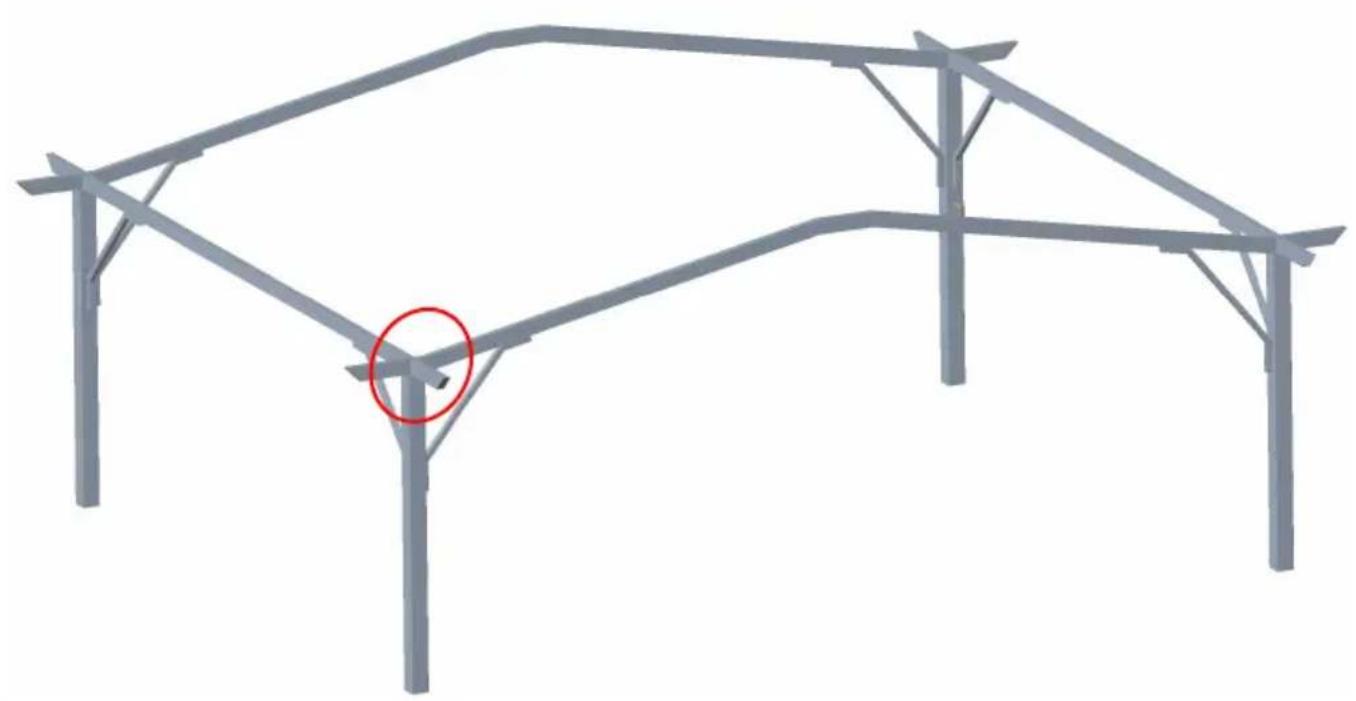

Install the top bar onto the upper column (x2).

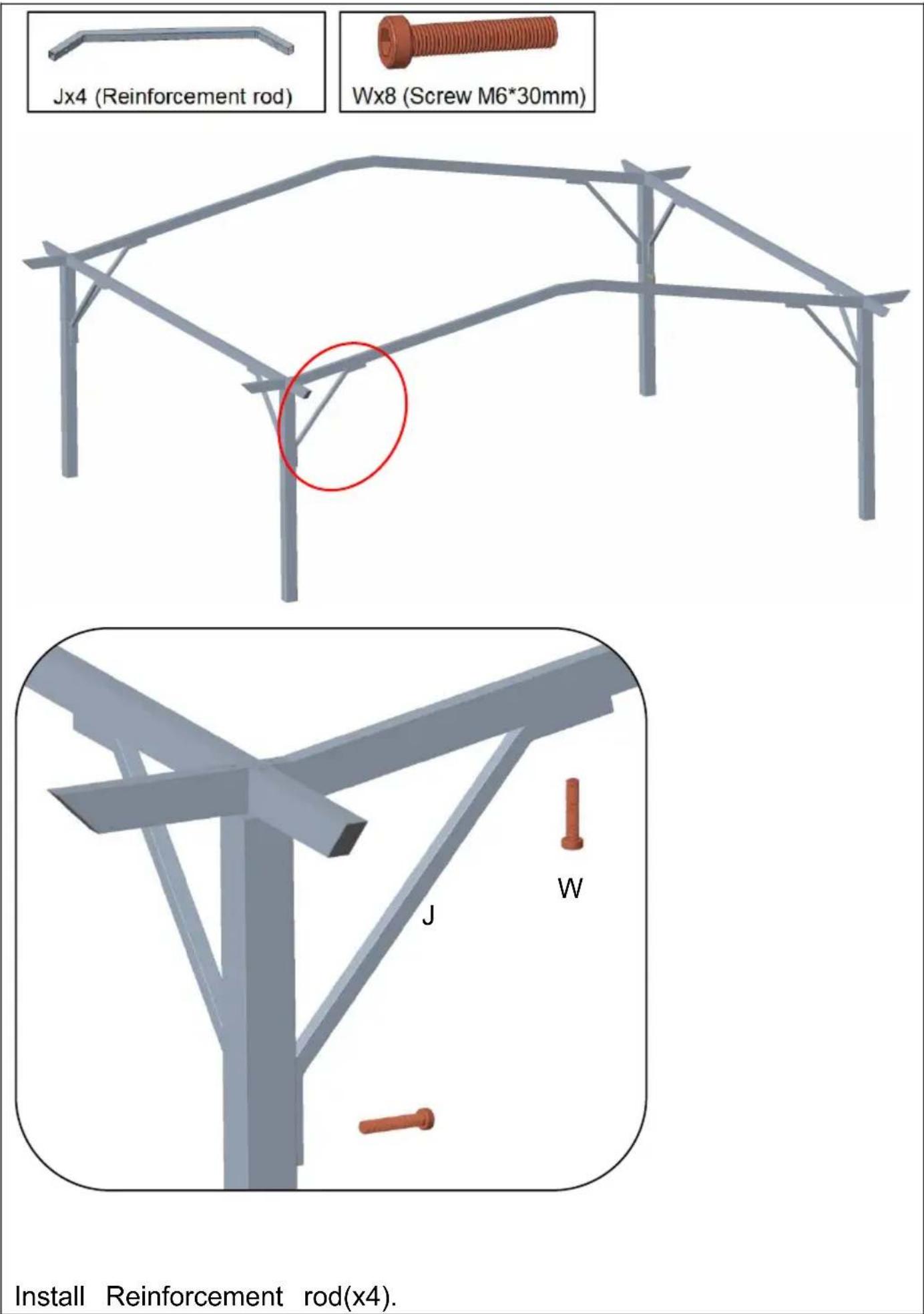

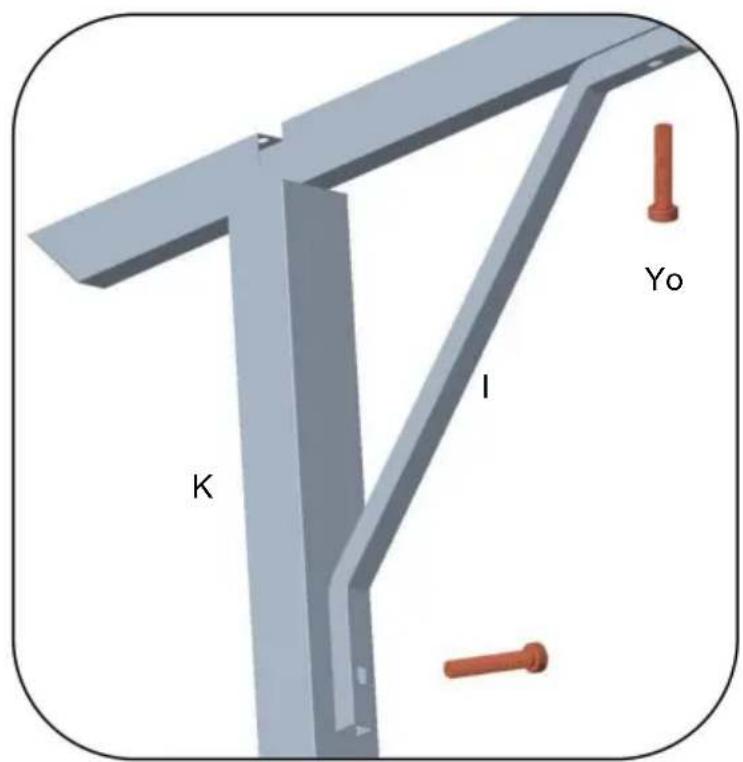

Install reinforcement rod (x4). Vevor L10FT*W10FT - ASSEMBLY STEP - 12

Close-up of a brown threaded bolt (Xx12) with screw specification M6*60mm, no other text or symbols visible.

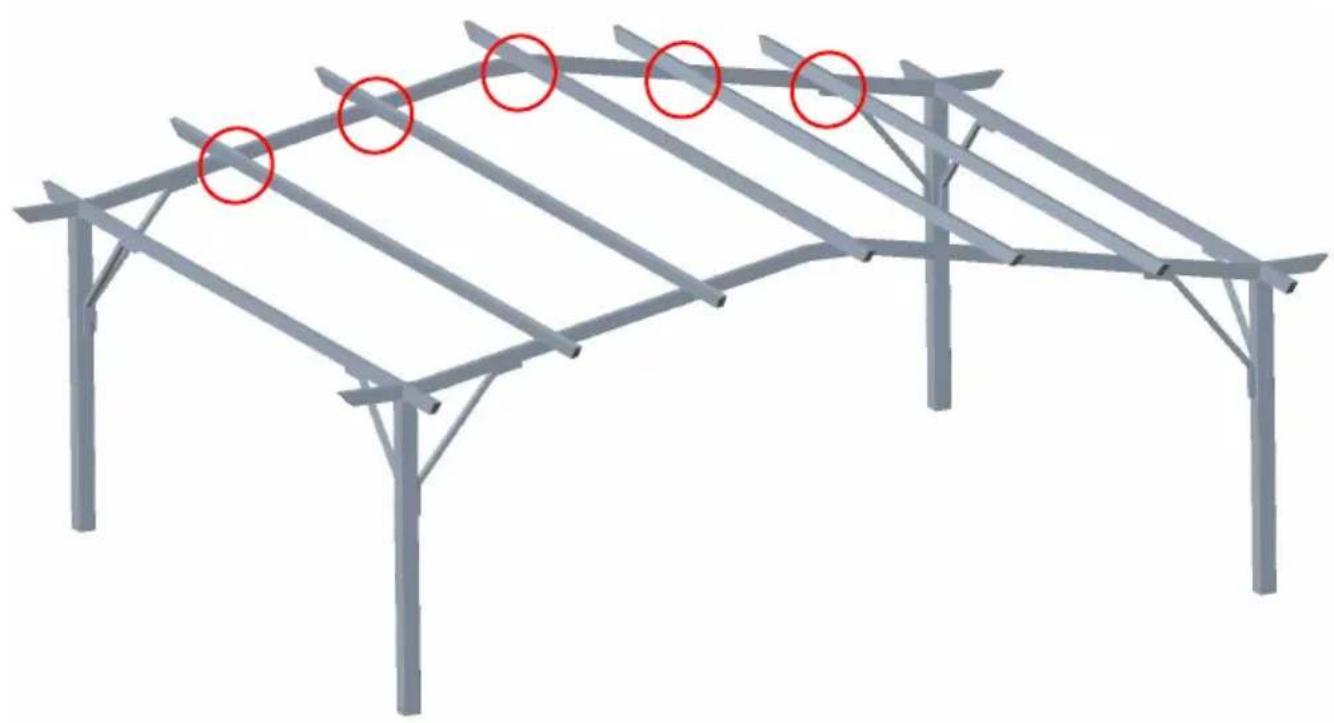

Structural framework diagram with five red circles marking specific points on the roof (no text or symbols present)

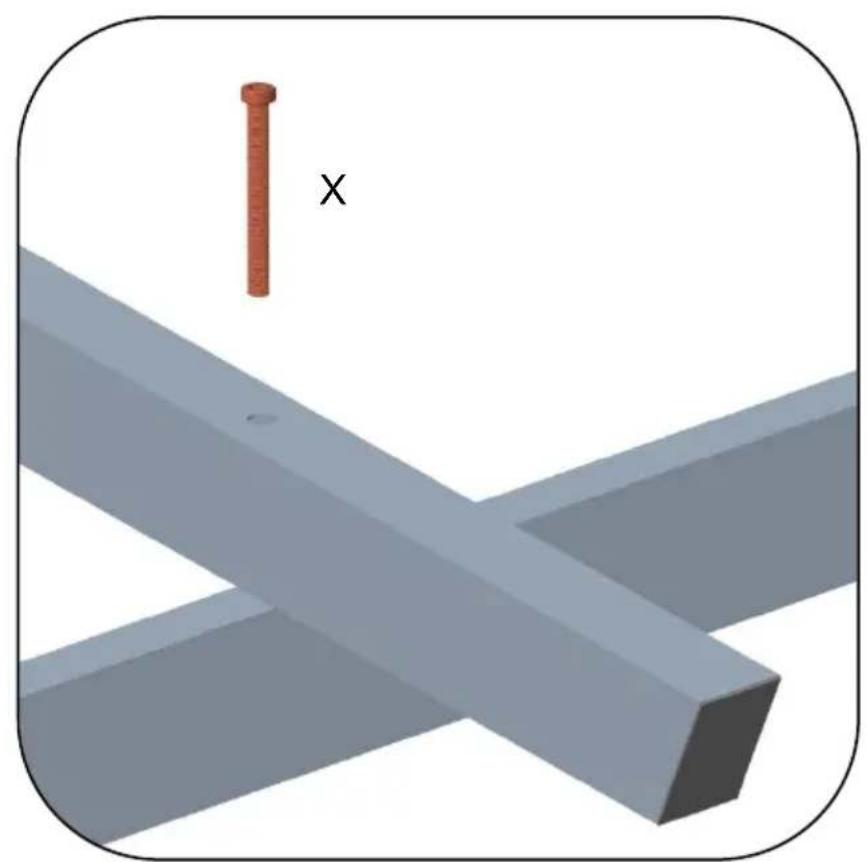

3D diagram of two gray metal beams with a red nail labeled 'X' above, no text or symbols present

Install the crossbar to the rack (x5).

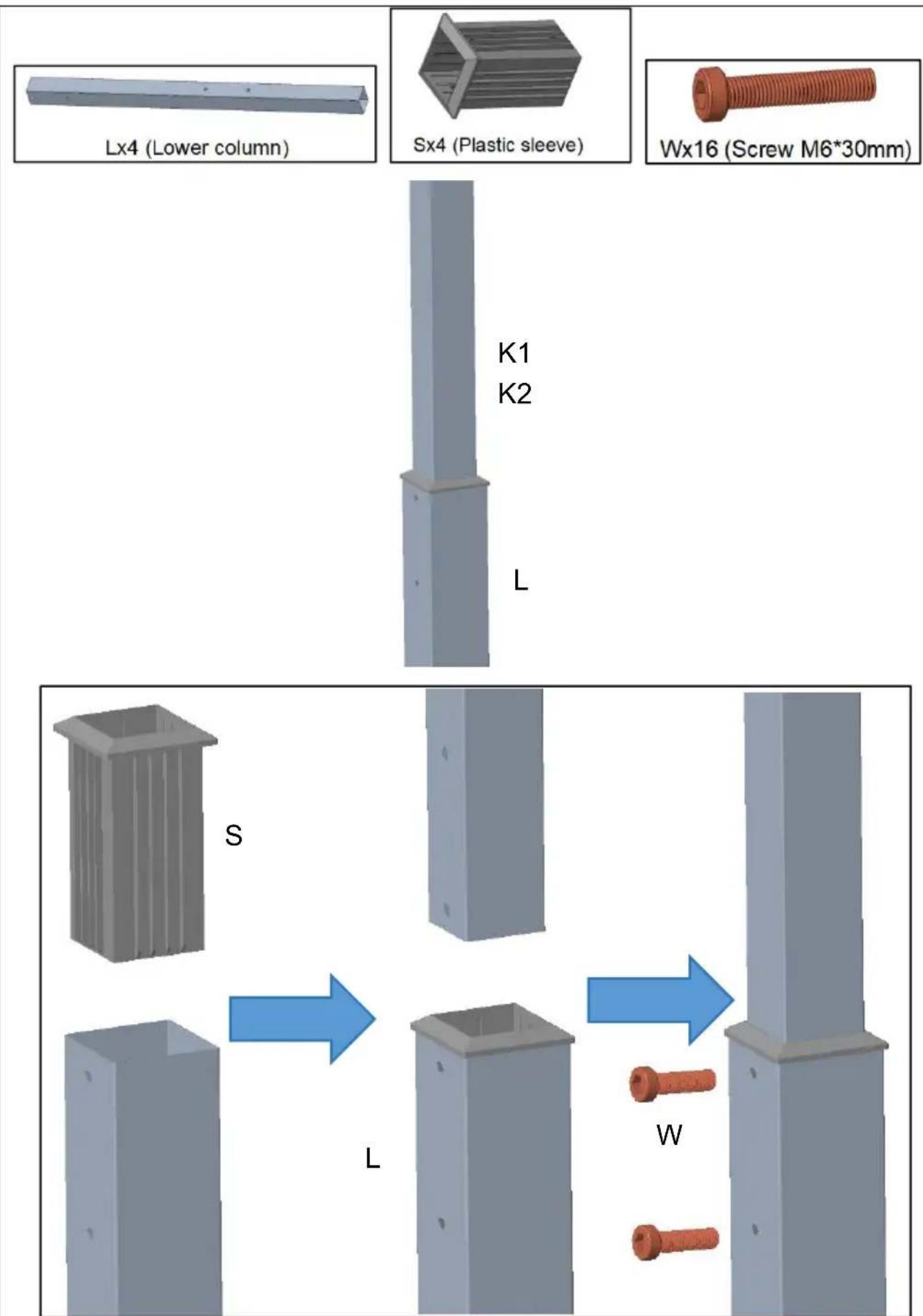

Lx4 (Lower column), Sx4 (Plastic sleeve), Wx16 (Screw M6*30mm), K1, K2, L, S, L, W

Install the lower column to the rack (x4).

Mx2 (Round tube)

Nx2 (Round tube)

3D rendered image of a plastic valve component (no text or symbols on the object itself)

Ox4 (Round tube)

Px1 (Tarpaulin)

3D rendering of a yellow canopy structure with metal supports and a red square marker (no text or symbols)

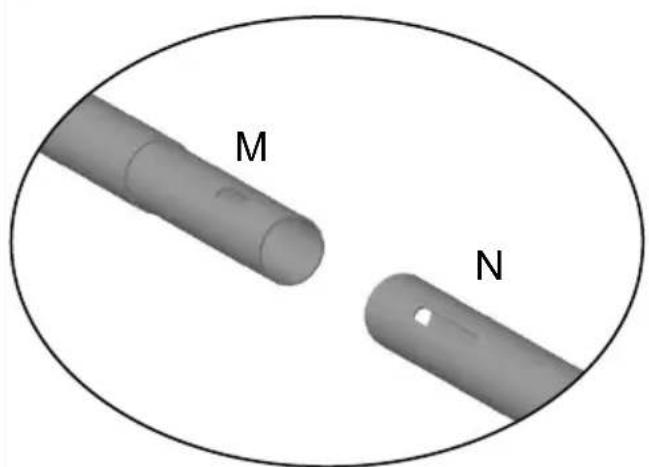

M N

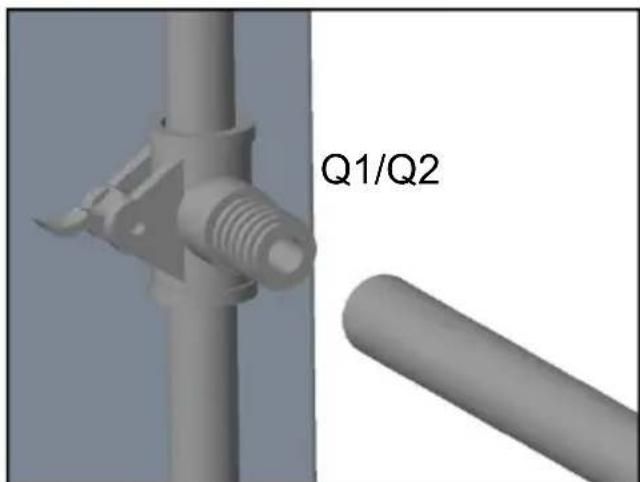

Close-up of a mechanical component with a threaded connector and a cylindrical shaft, labeled Q1/Q2 (no text or symbols on the main subject)

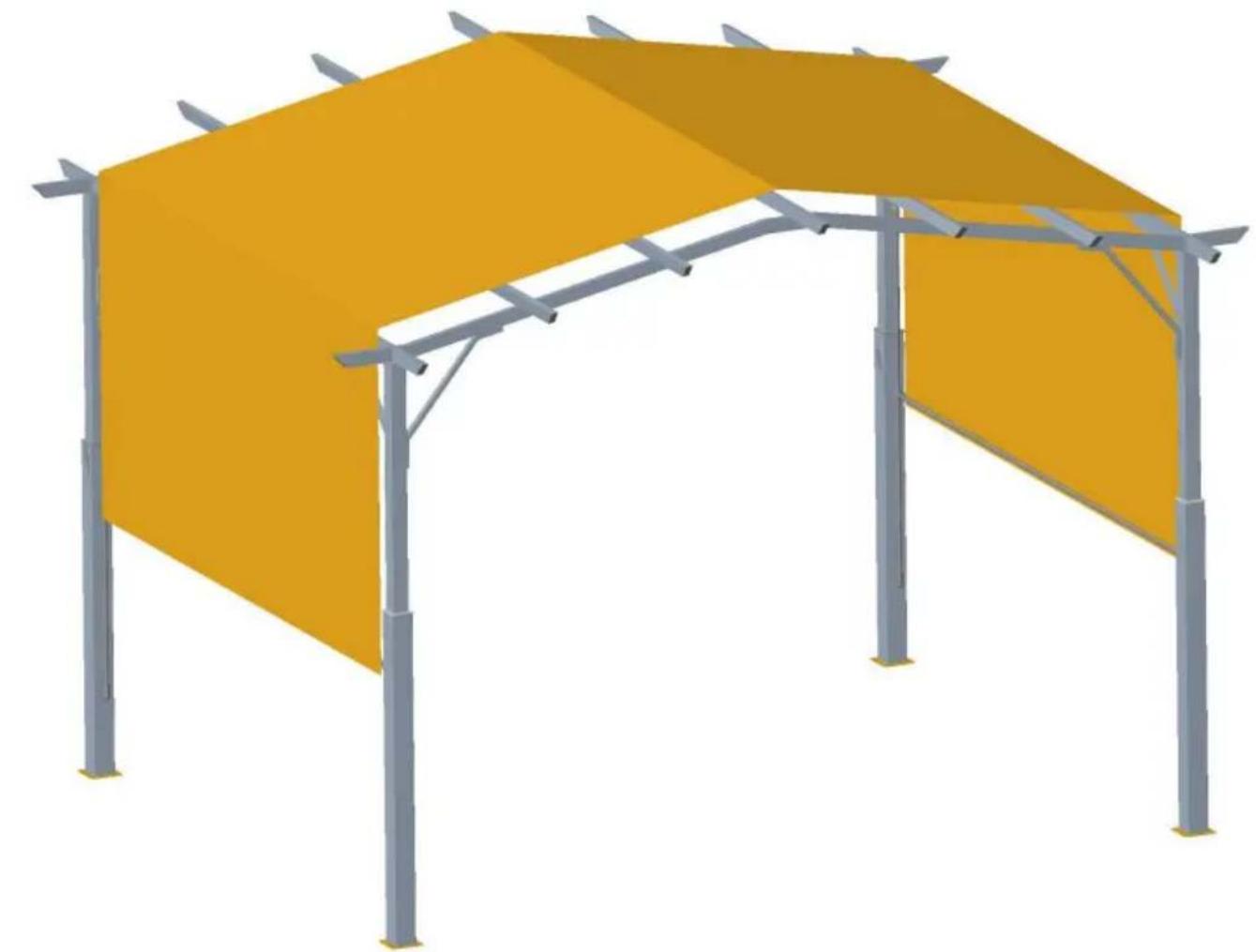

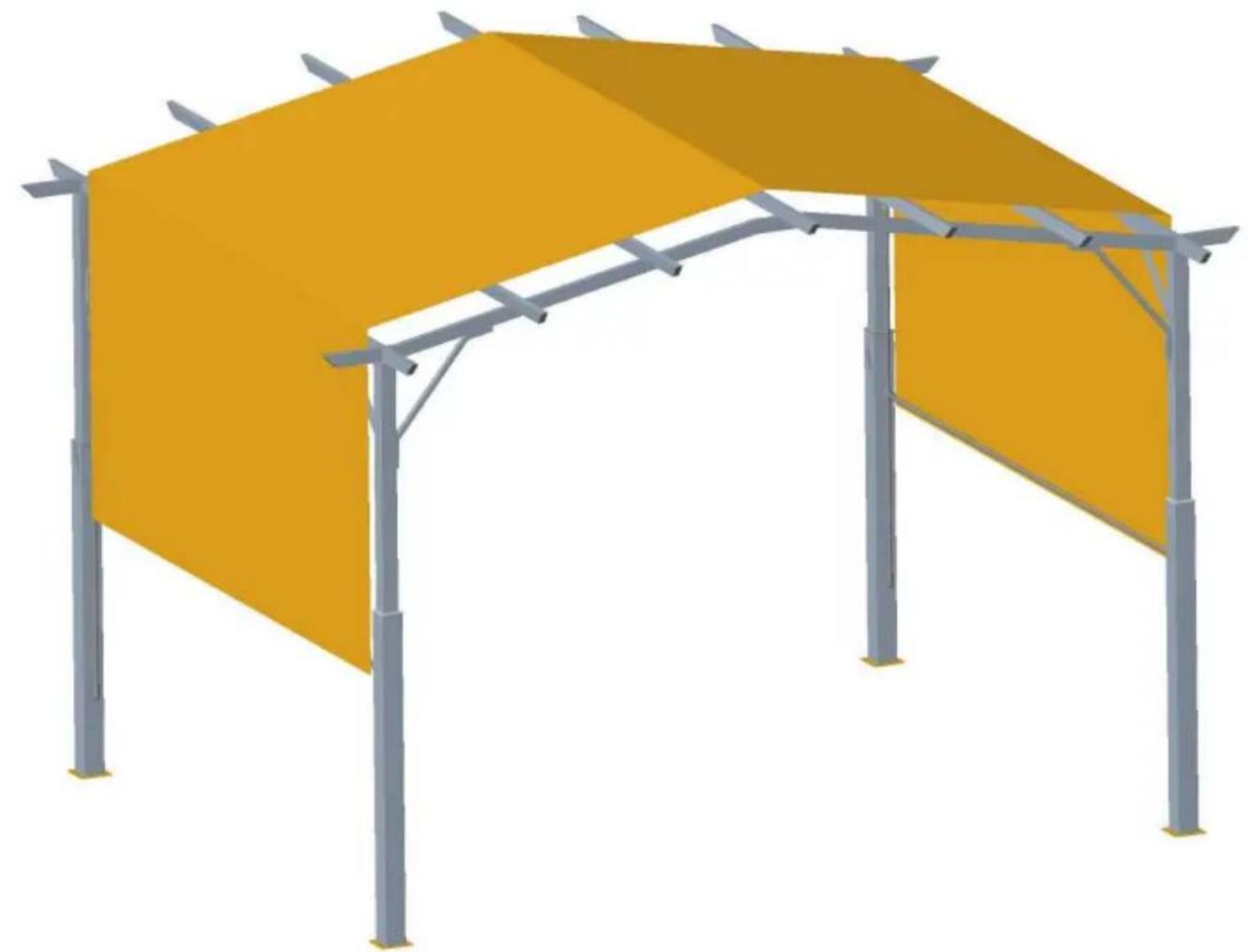

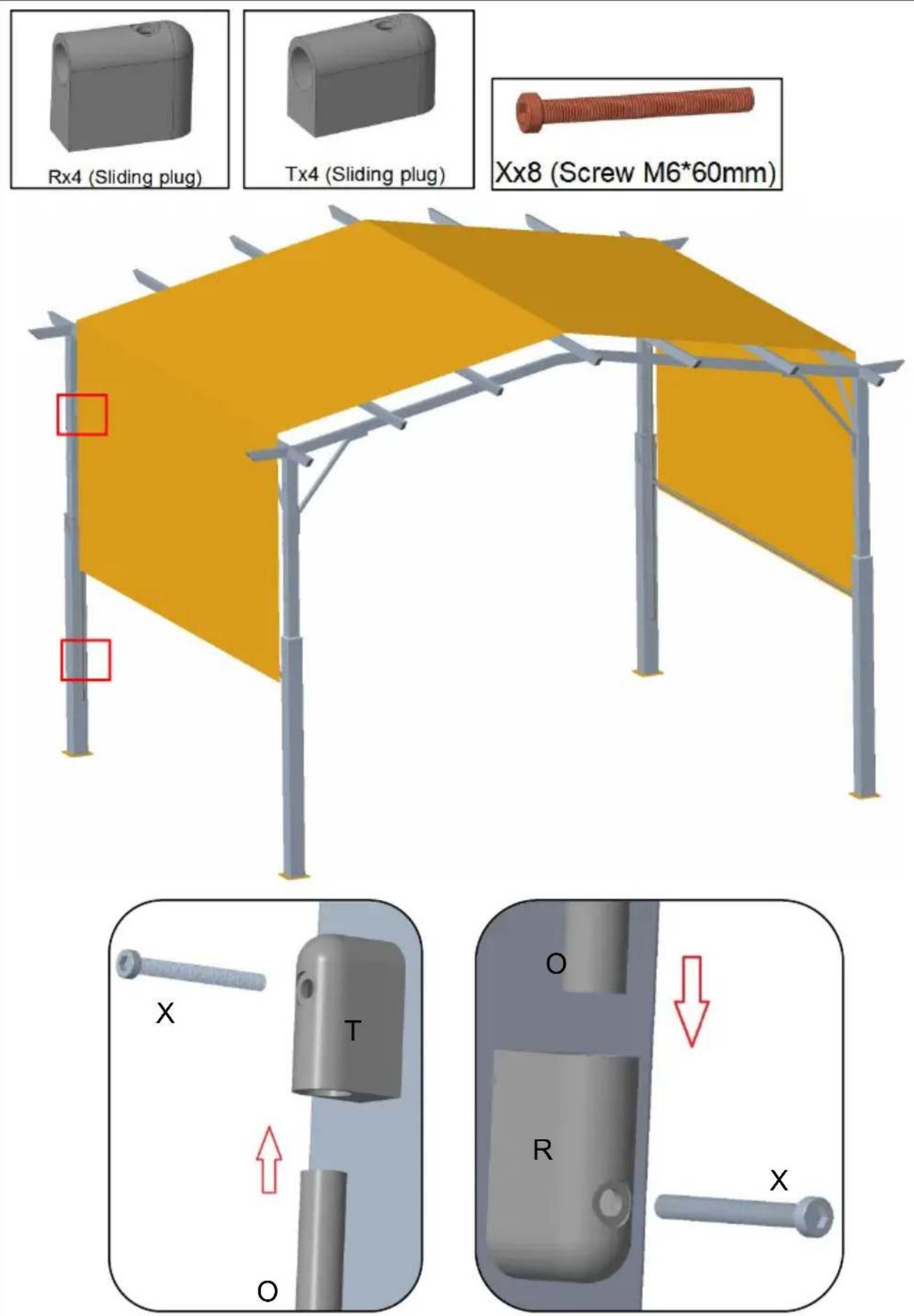

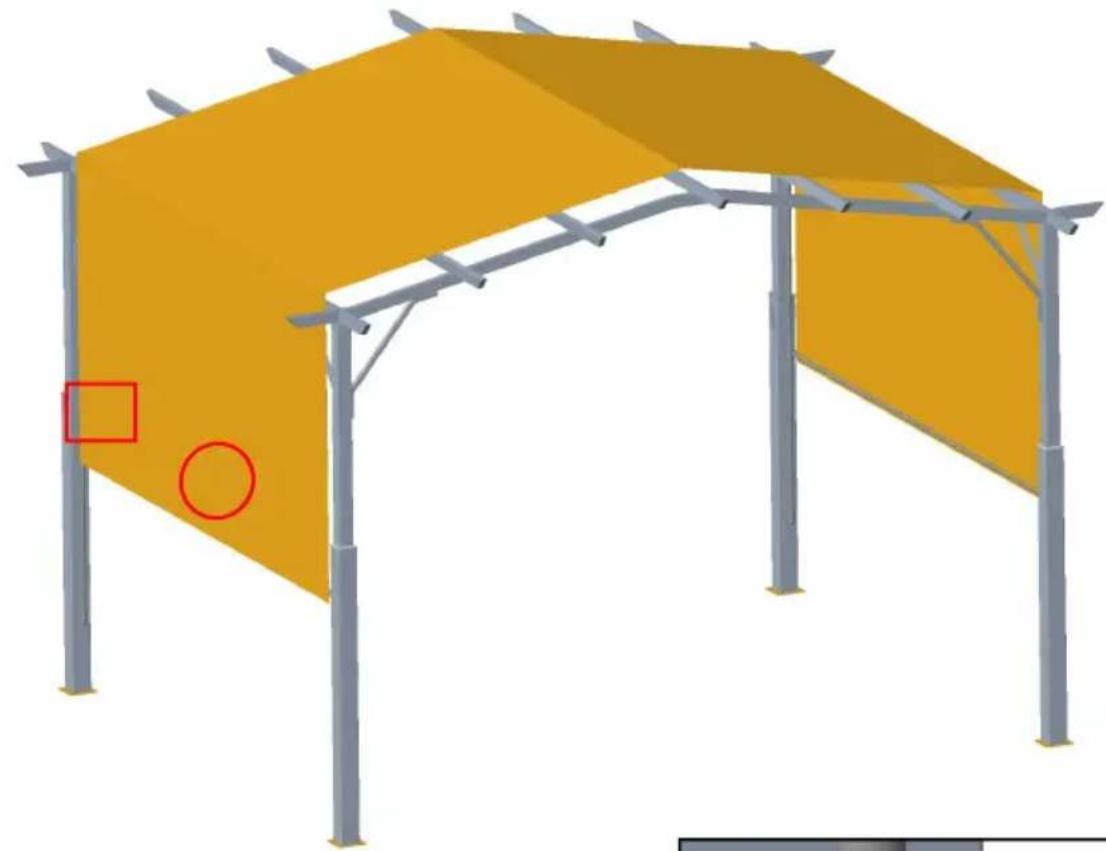

Mount the tarpaulin to the rack.

Install the round tube on the rack. Vevor L10FT*W10FT - ASSEMBLY STEP - 25

Yellow metal bracket component labeled Hx4 (Base), no other text or symbols visible

Close-up of a brown hexagonal bolt with threaded shaft, labeled Ux8 (Screw M6*16mm) below (no other text or symbols)

3D rendering of a yellow and gray outdoor structure with vertical supports (no text or symbols)

L U H

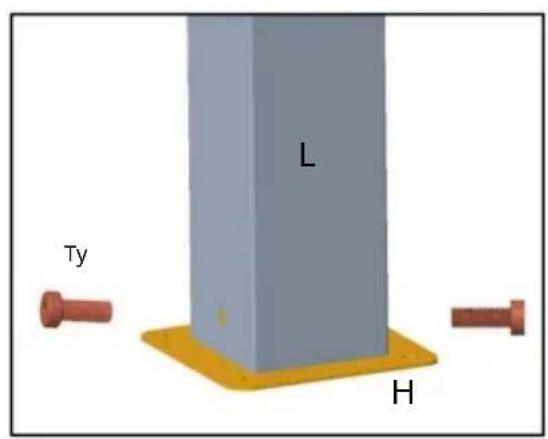

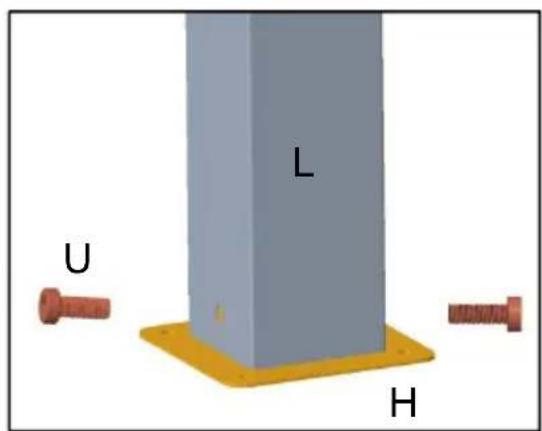

Install the base (H) on the rack.

Y L H

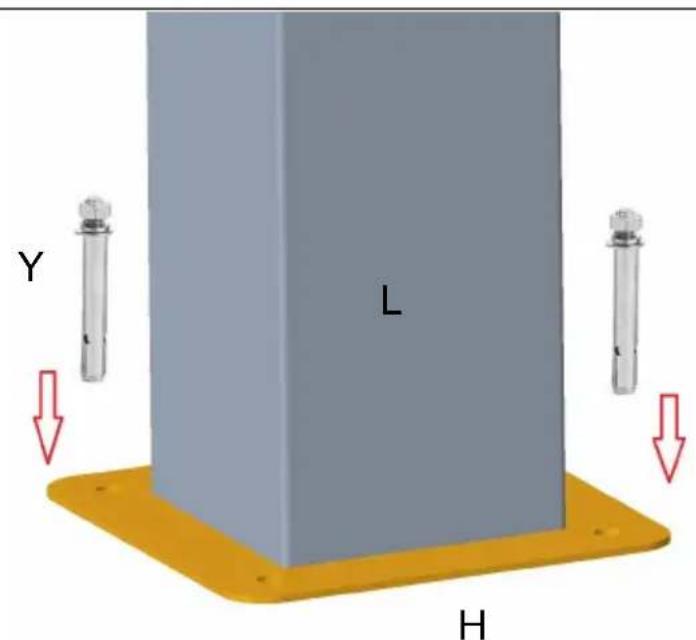

Installation method A: Expansion screw is suitable for installation on cement floor.

V L H

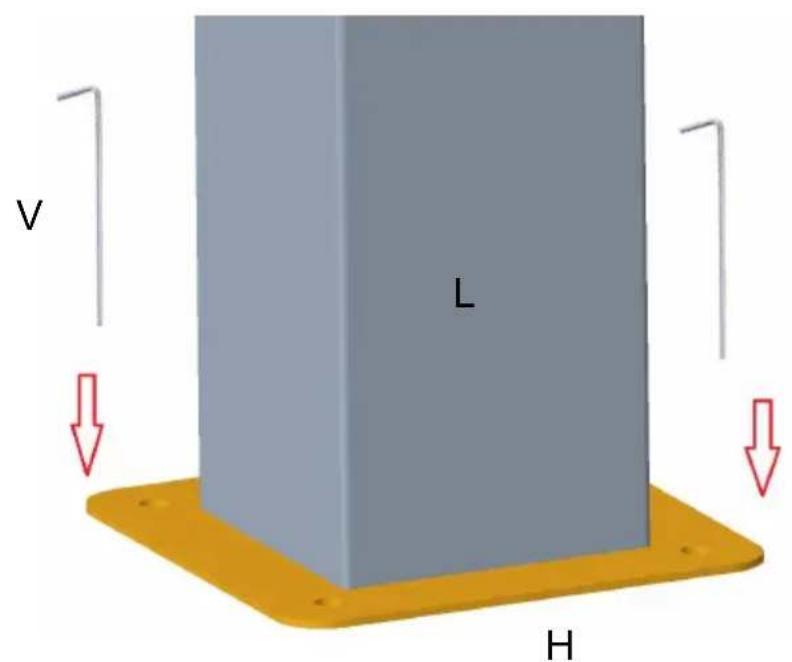

Installation method B: Ground nails are suitable for installation on grass and soft land.

NOTE: Please make sure to secure the pergola to the ground to prevent it from being blown away by the wind.

PRODUCT PARAMETER

Model	L10ft*W10ft
Colour	Frame:Black ; Tarpaulin:Brown
Product Size	L10W10H8ft(L3048W3048H2438mm)

Model	L20ft*W10ft
Colour	Frame:Black ; Tarpaulin:Brown
Product Size	L10W10H8ft(L3650W3048H2438mm)

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangchenglu 803 nong 11 hao 1602A-1609 shi, Baoshan Qu, Shanghai 200000 CN.

EC REP: E-CrossStu GmbH.

Mainzer Landstr. 69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

ASSEMBLY STEP

Yellow Gx5 internal connector component (no text or symbols on the diagram itself)

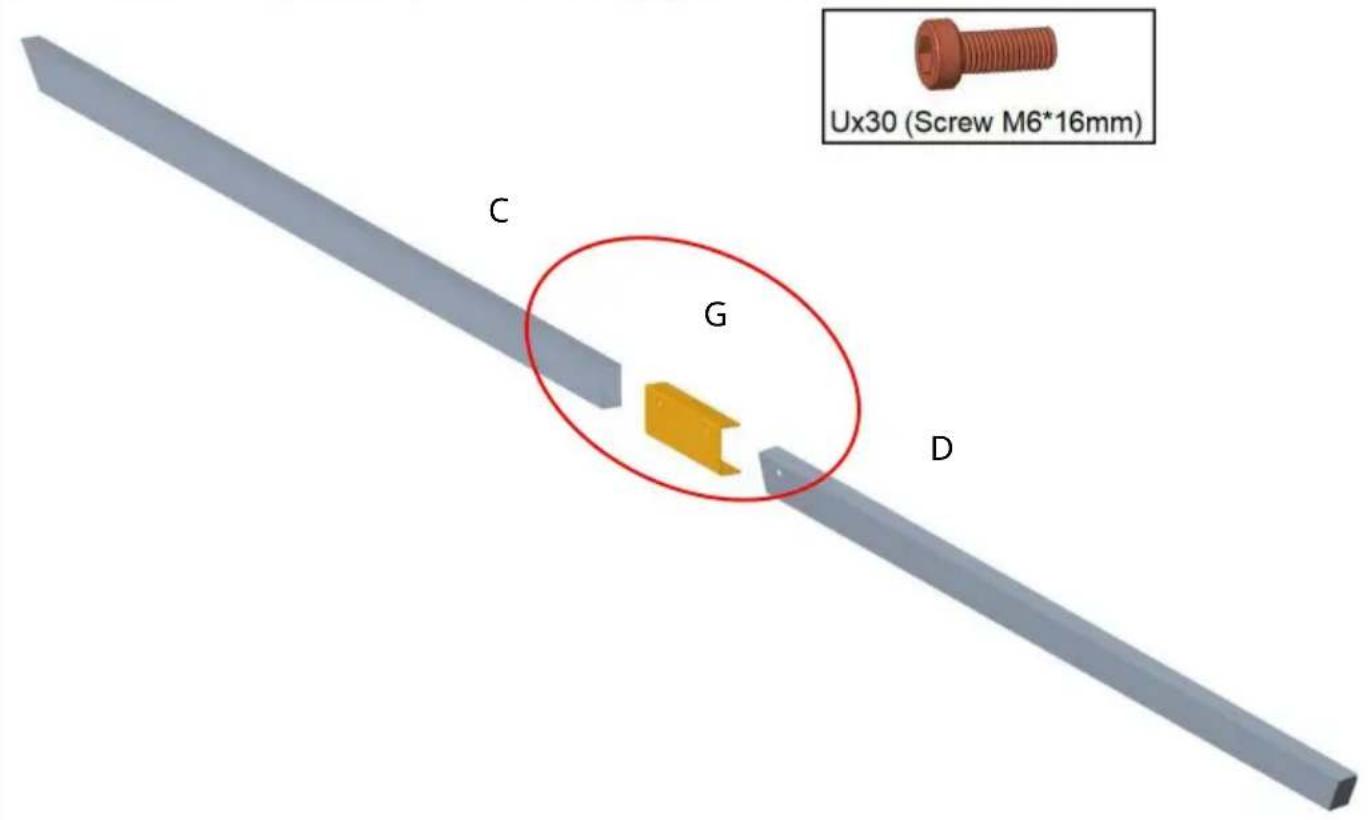

C, G, D, Ux30 (Screw M6*16mm)

Diagram showing red bolt holes and yellow screw marks on a gray diagonal surface, labeled 'Ty' (no text or symbols beyond labels)

Technical diagram of a metal frame structure with a red circle highlighting a specific component, and an inset showing a detailed view of the structural detail (no text or symbols present)

K, W, 1

Close-up of a brown hexagonal bolt with threaded shaft, labeled Ux8 (Screw M6*16mm) below (no other text or symbols)

3D rendering of a yellow canopy structure with metal supports and support columns (no text or symbols)

L, Ty, H

C/OYHConsultingLimitedOffice147, CenturionHouse, LondonRoad, Staines-upon-

Thames, Surrey, TW184AX

Imported to AUS: SIHAOPTYLTD.

1ROKEVASTREETEASTWOODNSW2122Australia

Imported to USA: Sanven Technology Ltd.

Suite250,9166AnaheimPlace,RanchoCucamonga,CA91730

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL: L10FTW10FT / L12FTW10FT

Technical diagram of a metal frame structure with a red circle highlighting a specific component, and an inset showing a bracket detail (no text or symbols present)

E L'

Close-up of a brown hexagonal bolt with threaded shaft, labeled Ux8 (Screw M6*16mm) below (no other text or symbols)

3D rendering of a yellow and gray outdoor structure with support poles (no text or symbols)

L lo H

C/OYH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-

Thames, Surrey, TW18 4AX

Imported into AUS: SIHAO PTY LTD.

1 ROKEVA STREET, WOOD NSW 2122, Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL: L10 FT*W10 FT / L12 FT*W10 FT

3D rendering of a yellow and gray outdoor structure with support poles (no text or symbols)

ASSEMBLY STEPS: Install the top bar (x2). Vevor L10FT*W10FT - VEVOR® - 2

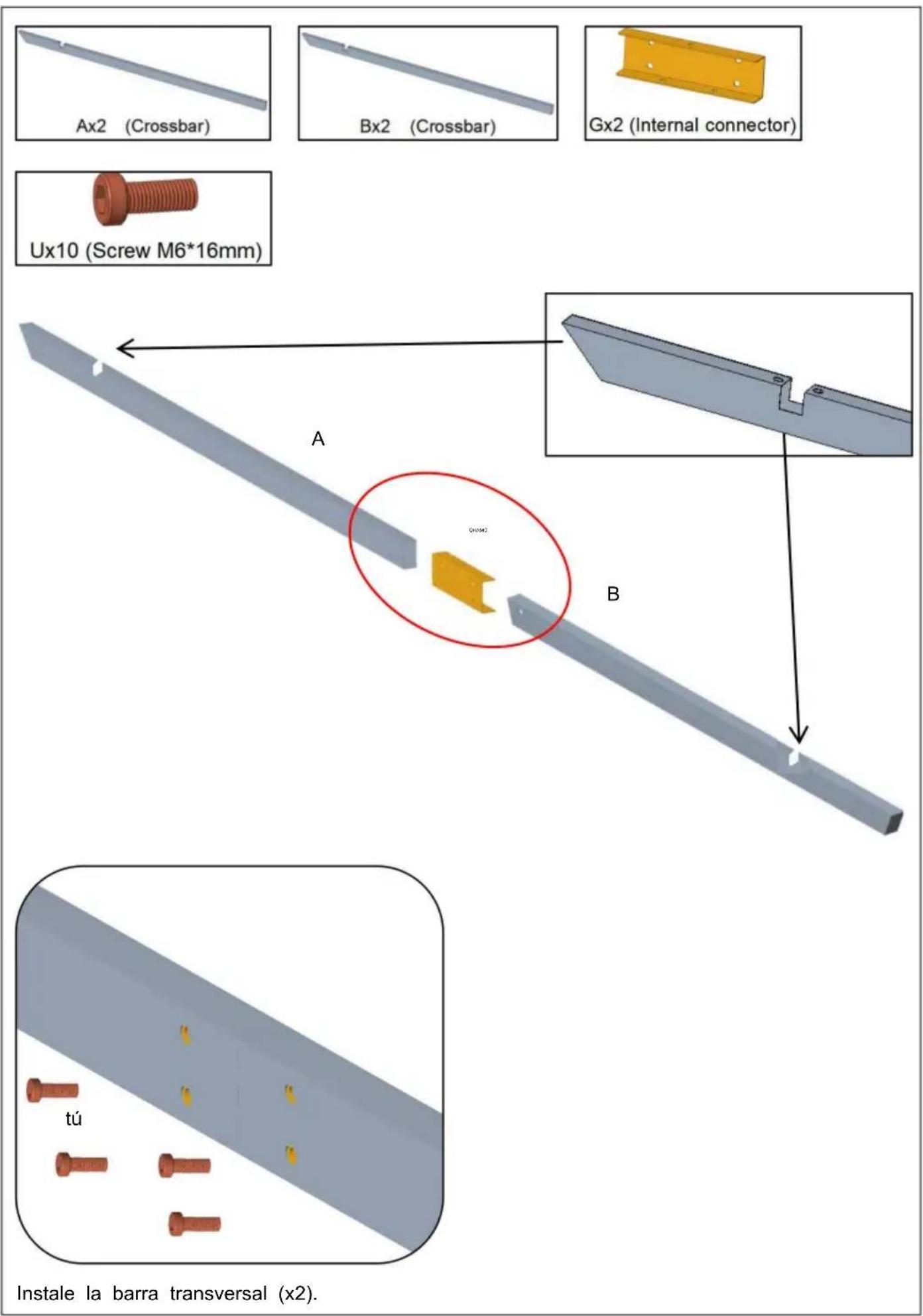

Install the crossbar (x2). Vevor L10FT*W10FT - VEVOR® - 3

Install the crossbar (x5). Vevor L10FT*W10FT - VEVOR® - 4

Ix4 (Reinforcement rod), Kx4 (Upper column), Wx8 (Screw M6*30mm)

Technical diagram of a metal frame structure with a red circle highlighting a specific component, and an inset showing a bracket detail (no text or symbols present)

K I Y₀

Close-up of a brown hexagonal bolt with threaded shaft, labeled Ux8 (Screw M6*16mm) below (no other text or symbols)

3D rendering of a yellow canopy structure with metal supports and support columns (no text or symbols)

tú yo yo

Office of C/OYH Consulting Limited, 147, Centurion House, London Road, Staines-upon-

Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL: L10FT*W10FT / L12FT*W10FT

MODEL: L10FTW10FT / L12FTW10FT

3D rendering of a yellow and gray outdoor structure with support poles (no text or symbols)

NEED HELP? CONTACT US!

ASSEMBLY STEPS

K, W

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-

Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

ASSEMBLY STEP

Mount the top beam (x2). Vevor L10FT*W10FT - ASSEMBLY STEP - 1

Ix4 (Reinforcement rod), Kx4 (Upper column), Wx8 (Screw M6*30mm)

Technical diagram of a metal frame structure with a red circle highlighting a specific component, and an inset showing a bracket detail (no text or symbols present)

I, W, Ik

Close-up of a brown hexagonal bolt with threaded shaft, labeled Ux8 (Screw M6*16mm) below (no other text or symbols)

3D rendering of a yellow and gray outdoor structure with support poles (no text or symbols)

Ik, Ik, H

Thames, Surrey, TW184AX

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical support and e-warranty certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

Technical diagram of a metal frame structure with a red circle highlighting a specific component, and an inset showing a bracket detail (no text or symbols present)

K L

C/O YH Consulting Limited, Bureau 147, Centurion House, London Road, Staines-upon-

Thames, Surrey, TW184AX

1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL: L10FTW10FT / L12FTW10FT

ASSEMBLY STEPS

Technical diagram of a metal frame structure with a red circle highlighting a specific component, and an inset showing a detailed view of the structural detail (no text or symbols present)

3D diagram of a metal bracket with two red bolt holes and labeled points K and B (no text or symbols beyond labels)

C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-

Thames, Surrey, TW18 4AX

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Table of contents Click a title to access it

ARCHED PERGOLA
USER MANUAL
MODEL: L10FT*W10FT / L12FT*W10FT
VEVOR®
NEED HELP? CONTACT US
WARNING
ASSEMBLY PRECAUTIONS
USE PRECAUTIONS
SAVE THIS MANUAL
PARTS LIST
ASSEMBLY STEP
PRODUCT PARAMETER
TOUGH TOOLS, HALF PRICE
ASSEMBLY STEPS

Manual assistant

Waiting for your message

Product information

Brand : Vevor

Model : L10FT*W10FT

Category : Pergola
