Product Type	Arched Pergola
Brand	Vevor
Model	L12FT*W10FT
Dimensions (L x W x H)	12 x 10 x 8 feet (3650 x 3048 x 2438 mm)
Frame Color	Black
Canopy Color	Brown
Frame Material	Steel (unspecified, estimate)
Canopy Material	Fabric (unspecified, estimate)
Main Function	Sun protection and outdoor decoration
Recommended Use	Flat, hard, level surface (concrete, compacted grass)
Load Capacity	Do not sit or climb on; limited roof capacity
Maintenance	Clean with a soft cloth and soapy water; store canopy in case of snow
Anchoring	Expansion screws (concrete) or ground nails (grass) included
Sandbags Included	Yes, 4 pieces
Number of Parts	More than 100 pieces (screws, bars, connectors, etc.)
Technical Support	www.vevor.com/support
Warranty	Electronic warranty certificate available online

Frequently Asked Questions - L12FT*W10FT Vevor

What are the exact dimensions of the Vevor L12FT*W10FT pergola?

The dimensions are 12 feet long, 10 feet wide, and 8 feet high, approximately 3650 x 3048 x 2438 mm.

Is the pergola difficult to assemble?

Assembly requires several steps and two people. It is recommended to read the manual carefully and follow safety instructions. Parts are pre-drilled and screws are included.

How to anchor the pergola to the ground?

Two methods are provided: for concrete, use expansion screws (8 pieces); for grass or soft ground, use ground nails (8 pieces). Sandbags are also included for added stability.

Can I leave the canopy in place during winter?

It is not recommended to leave the canopy in case of snow, as the weight could damage the structure. Store the canopy indoors during snowfall.

Is the pergola wind-resistant?

The pergola must be firmly anchored to the ground to withstand wind. Use the provided fasteners (expansion screws or nails) and sandbags to reinforce stability.

What are the frame and canopy materials?

The frame is painted steel (black) and the canopy is brown waterproof fabric. Exact details are in the manual.

Can I purchase spare parts?

Yes, contact customer service at www.vevor.com/support to order spare parts.

How many people are needed for assembly?

It is recommended to have at least two people to assemble the pergola safely, especially for the lifting steps.

What tools are needed for assembly?

Screws and wrenches are provided. You will need a Phillips screwdriver and possibly a wrench. Wear gloves and safety glasses.

Is the pergola under warranty?

Yes, a warranty is included. You can obtain an electronic warranty certificate at www.vevor.com/support.

User questions about L12FT*W10FT Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Pergola in PDF format for free! Find your manual L12FT*W10FT - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. L12FT*W10FT by Vevor.

USER MANUAL L12FT*W10FT Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ARCHED PERGOLA

USER MANUAL

MODEL: L10FTW10FT / L12FTW10FT

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ARCHED PERGOLA

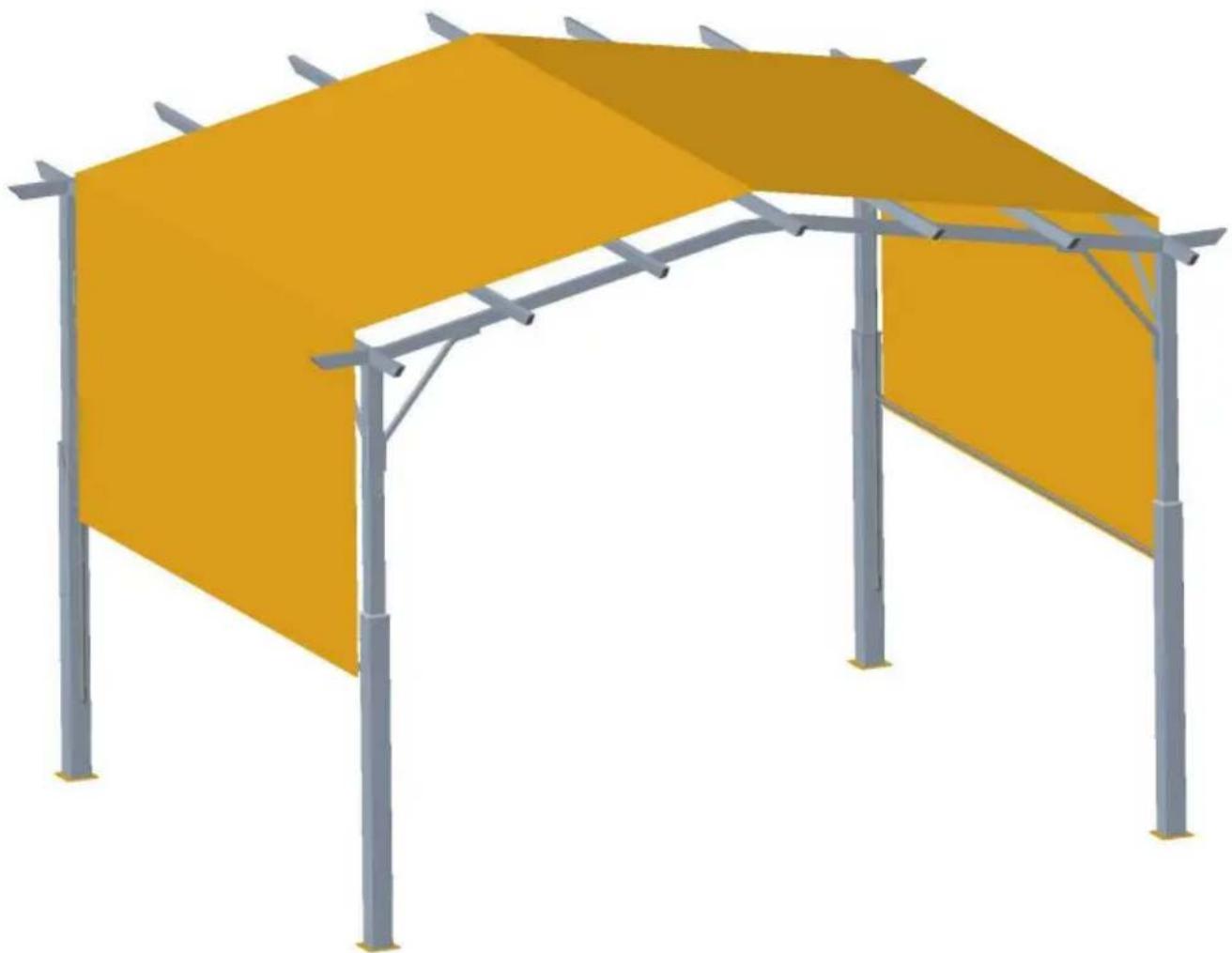

MODEL: L10FT*W10FT / L12FT*W10FT 3D rendering of a yellow canopy structure with metal supports and support pillars (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

Assemble only according to these instructions. Improper assembly can create hazards.
Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
Keep the assembly area clean and well-lit.
Keep bystanders out of the area during assembly.
Do not assemble if tired or when under the influence of alcohol, or medication.
The product capabilities apply to properly and completely assembled products only.
Assemble on a flat, level, hard and smooth surface capable of safely supporting the Arched pergola.
For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.

Use precautions

DO NOT SIT OR STAND ON THIS ITEM.
The roof is made of cloth and has a limited load-bearing capacity. When it snows, store the tarpaulin to prevent it from collapsing from being crushed by the snow.
Do not exceed specified weight capacities.
Use only on a flat, level, hard, and smooth surface that can safely support a fully Arched pergola.
Use as intended only.
Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

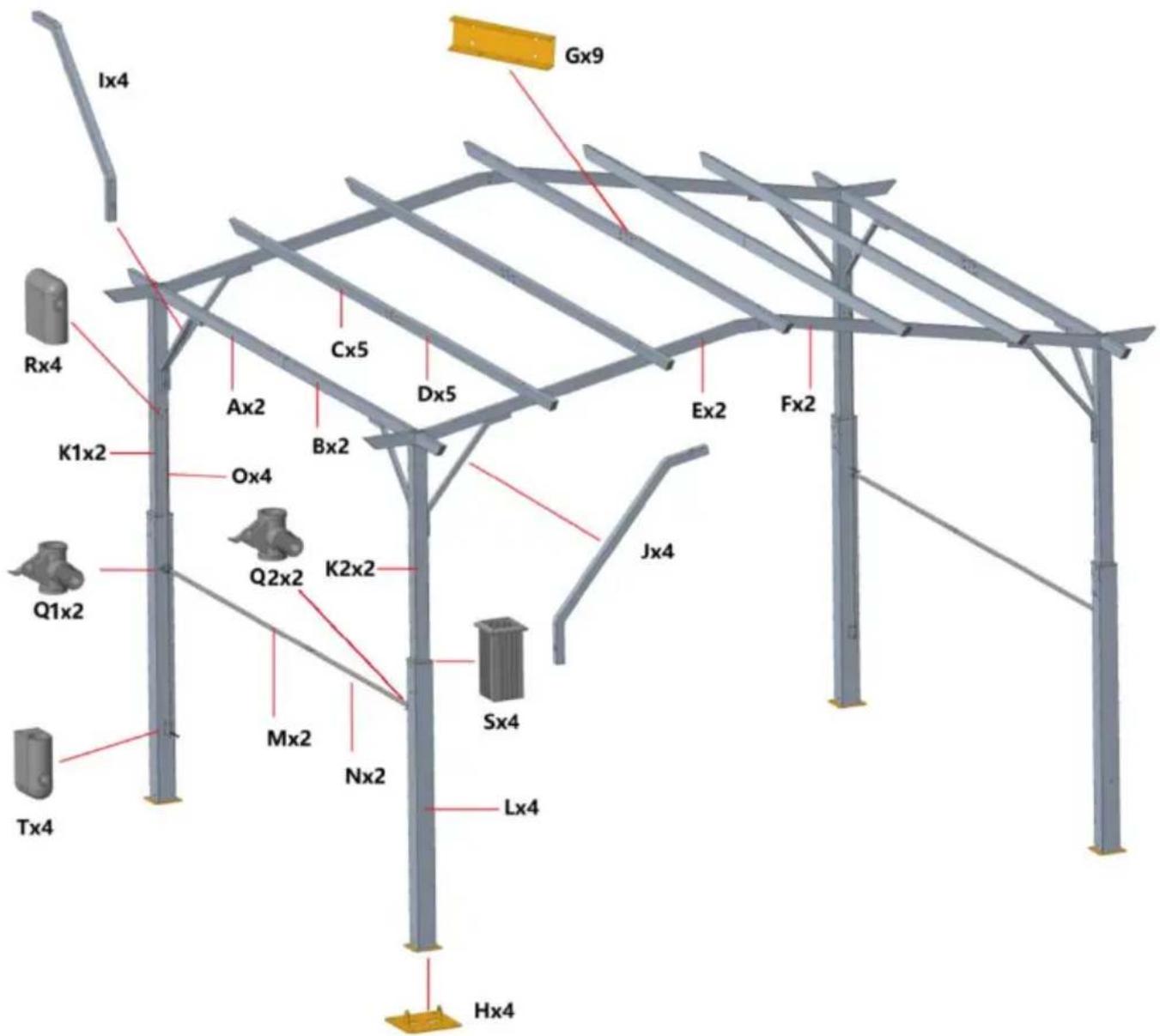

PARTS LIST

Ax2 (Crossbar)	Bx2 (Crossbar)
Cx5 (Crossbar)	Dx5 (Crossbar)
Ex2 (Top bar)	Fx2 (Top bar)
Gx9 (Internal connector)	Hx4 (Base)
Ix4 (Reinforcement rod)	Jx4 (Reinforcement rod)
K1x2 K2x2 (Upper column)	Lx4 (Lower column)
Mx2 (Round tube)	Nx2 (Round tube)
Ox4 (Round tube)	Px1 (Tarpaulin)

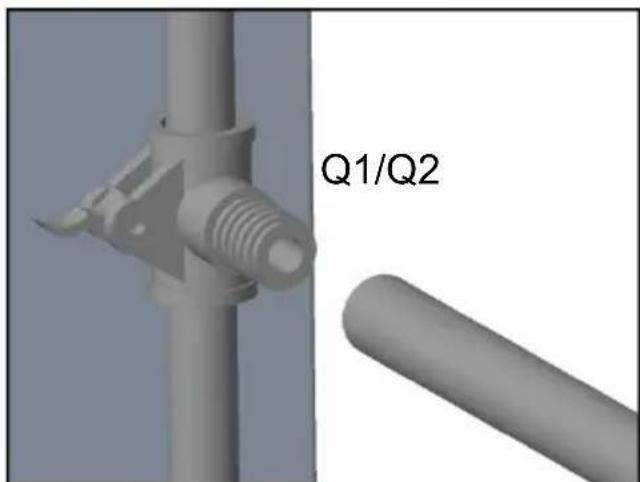

Q1x2 Q2x2 (Sliding plastic parts)	Rx4 (Sliding plug)
Sx4 (Plastic sleeve)	Tx4 (Sliding plug)
Ux62+1 (Screw M6*16mm)	Vx8 (Ground nails)
Wx32+1 (Screw M6*30mm)	Xx34+1 (Screw M6*60mm)
Yx8 (Expansion screws)	Zx4 (Sandbag)

Ix4, Rx4, K1x2, Q1x2, Tx4, Cx5, Ax2, Ox4, Bx2, Dx5, Ex2, Fx2, Jx4, Q2x2, K2x2, Mx2, Nx2, Sx4, Lx4, Hx4, Gx9

ASSEMBLY STEP

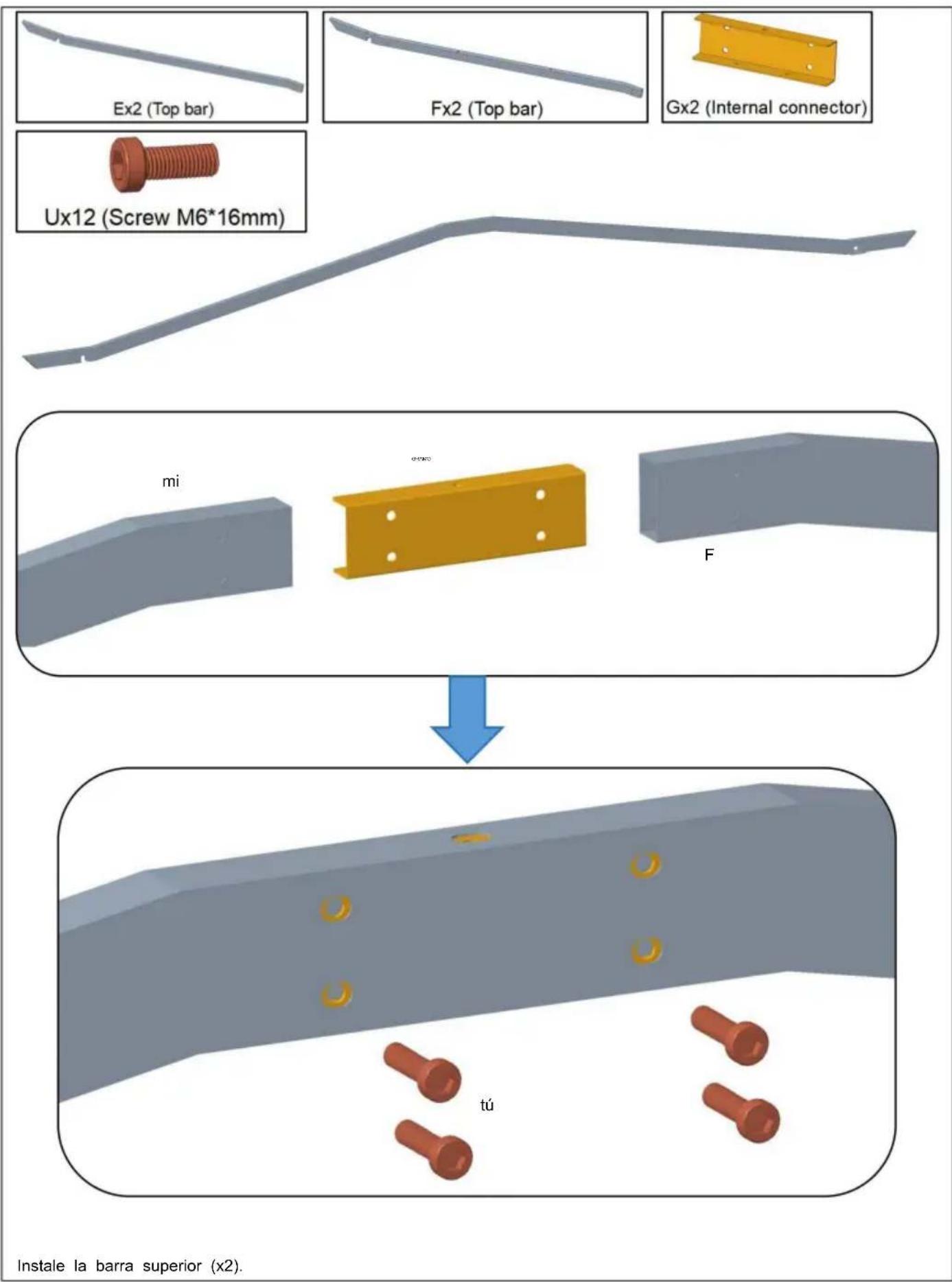

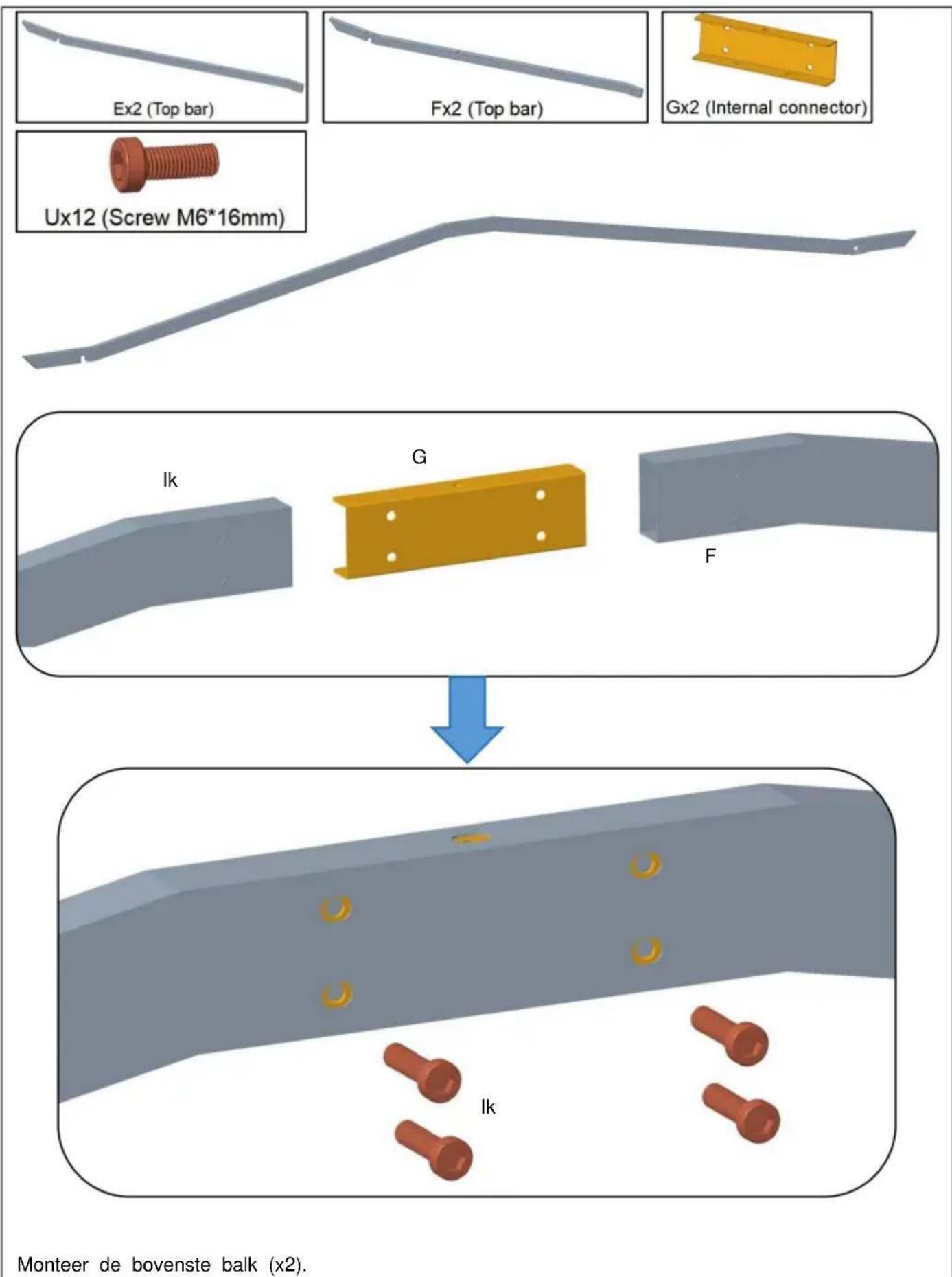

Install the top bar (x2). Vevor L12FT*W10FT - ASSEMBLY STEP - 1

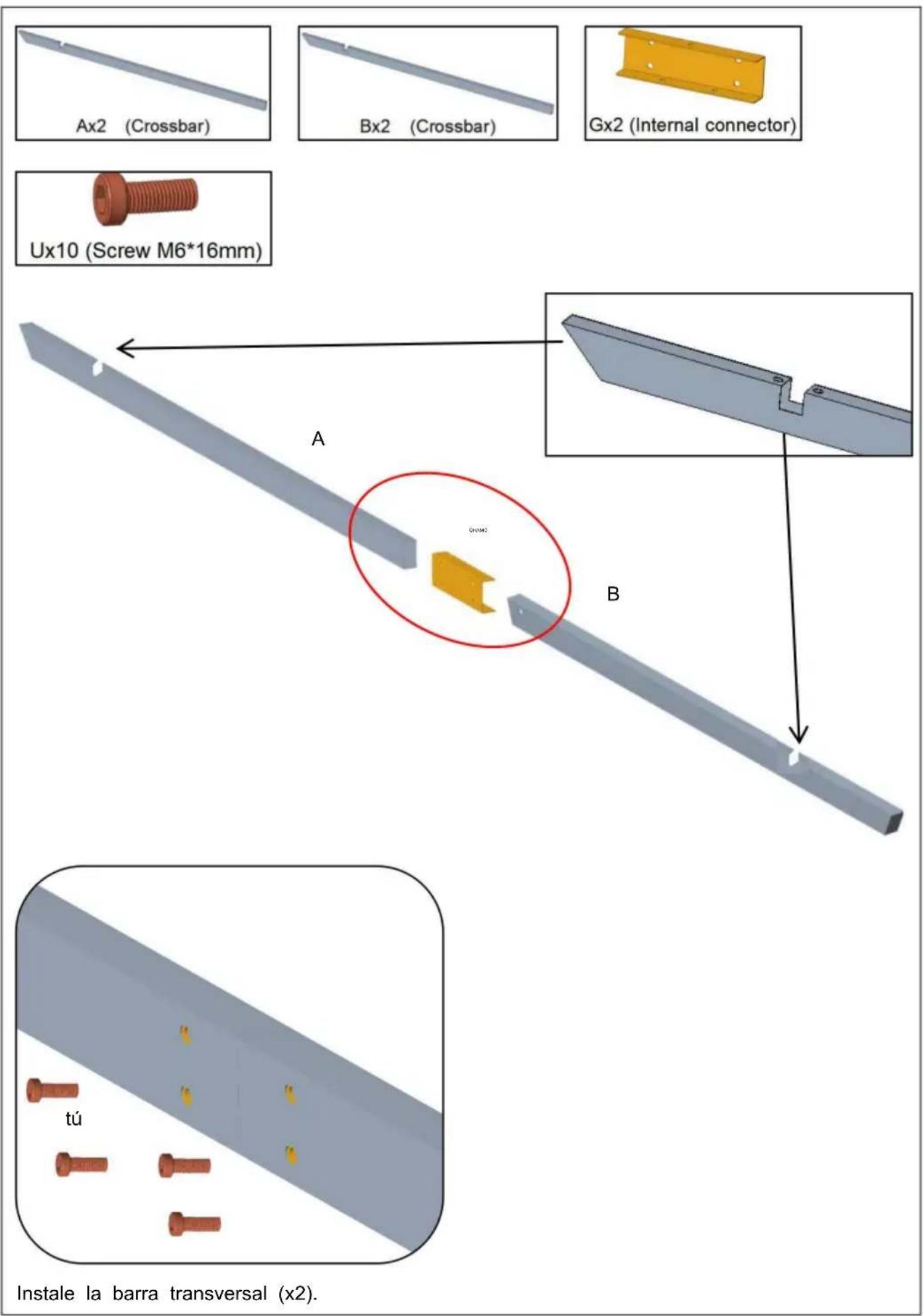

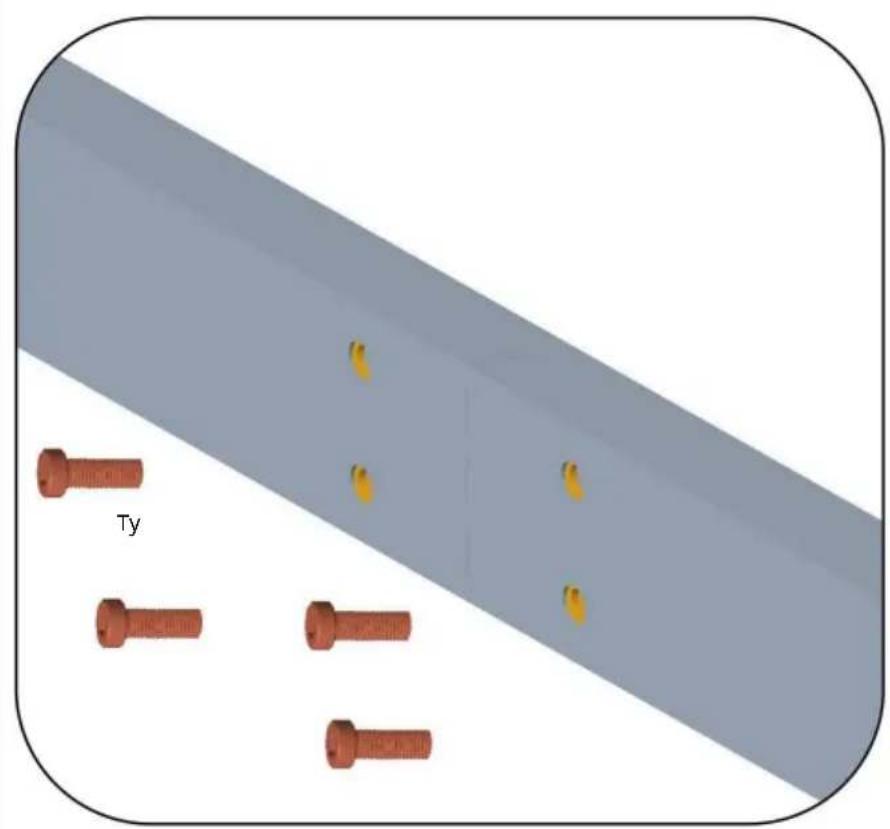

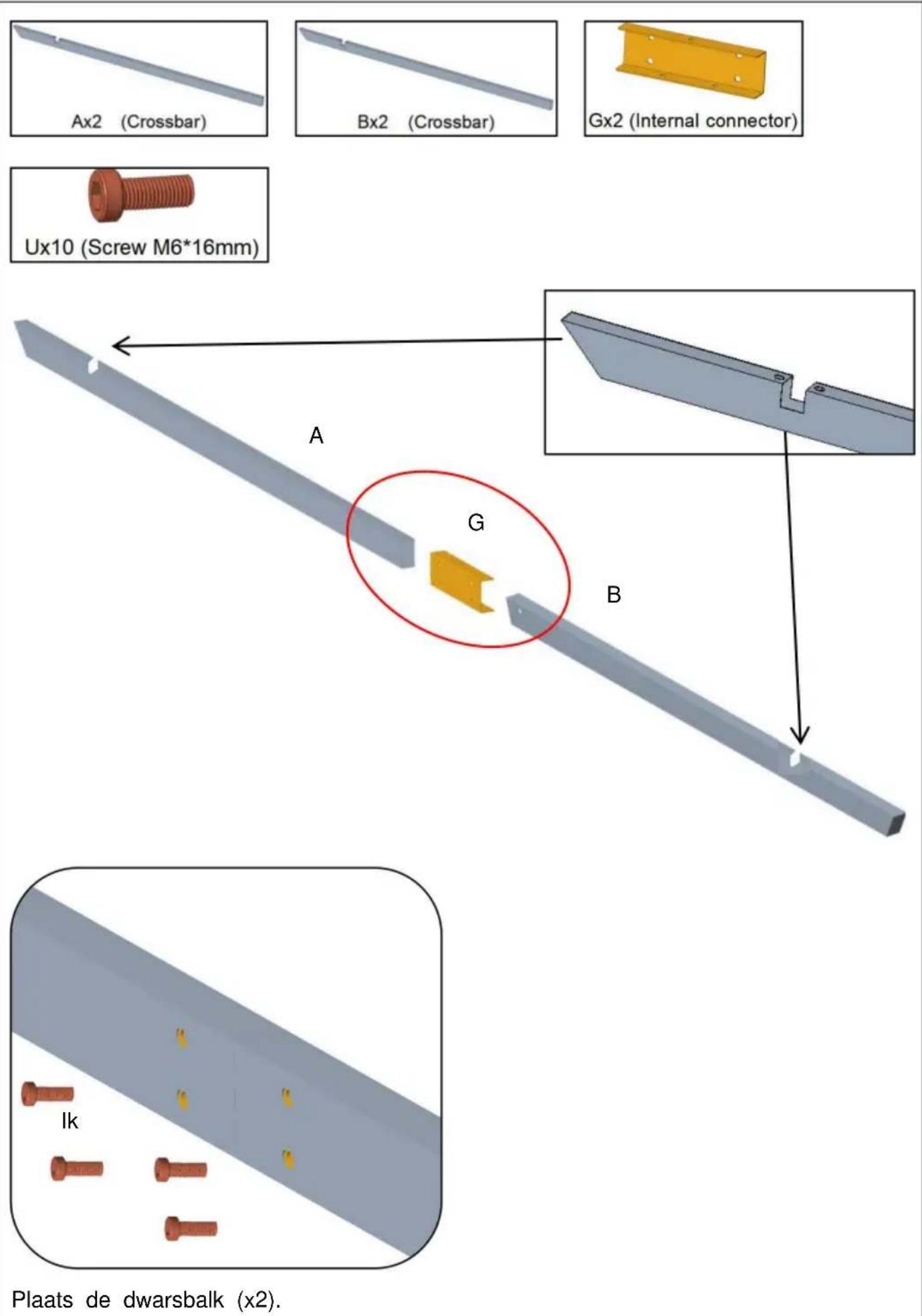

Install the crossbar (x2). Vevor L12FT*W10FT - ASSEMBLY STEP - 2

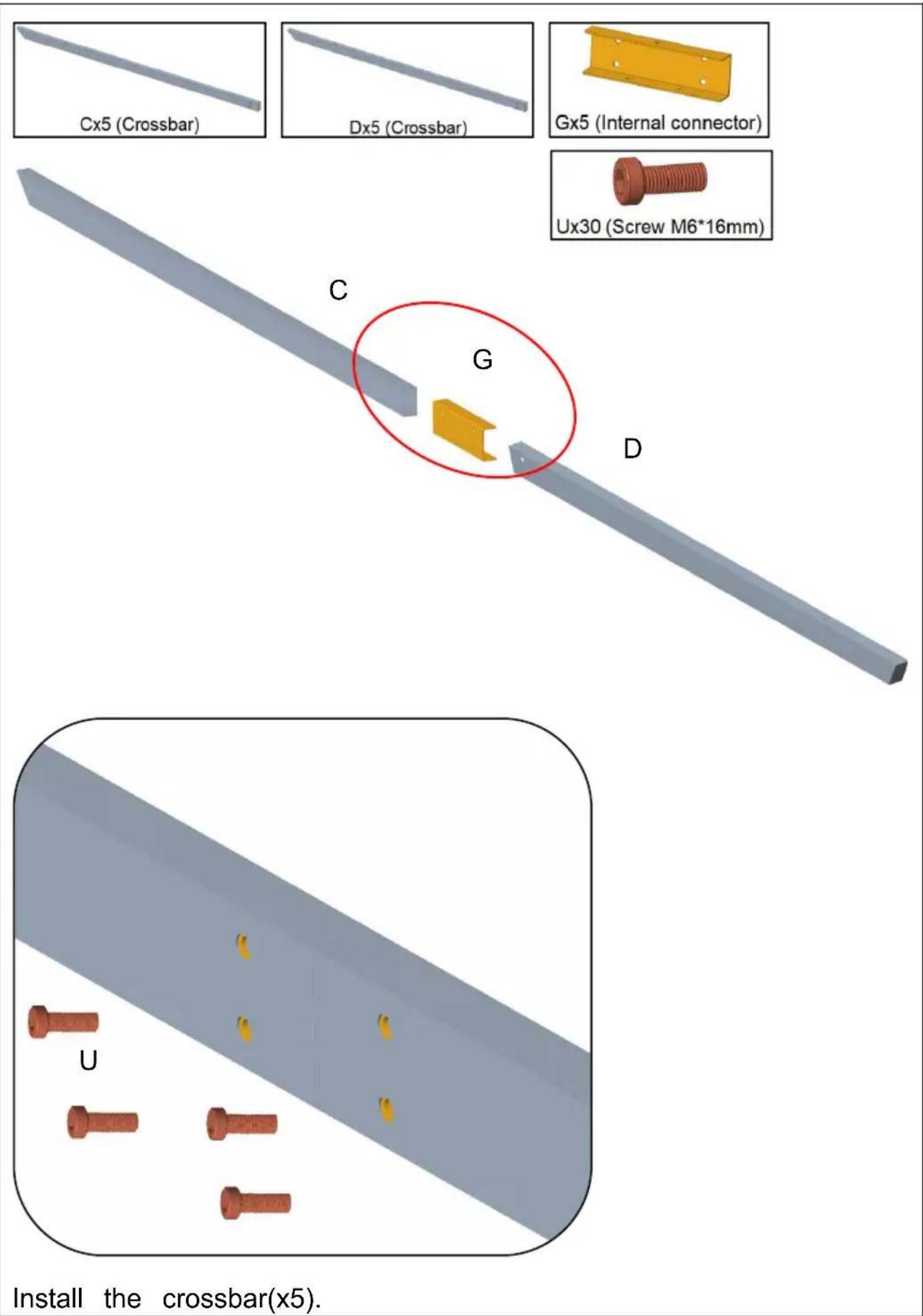

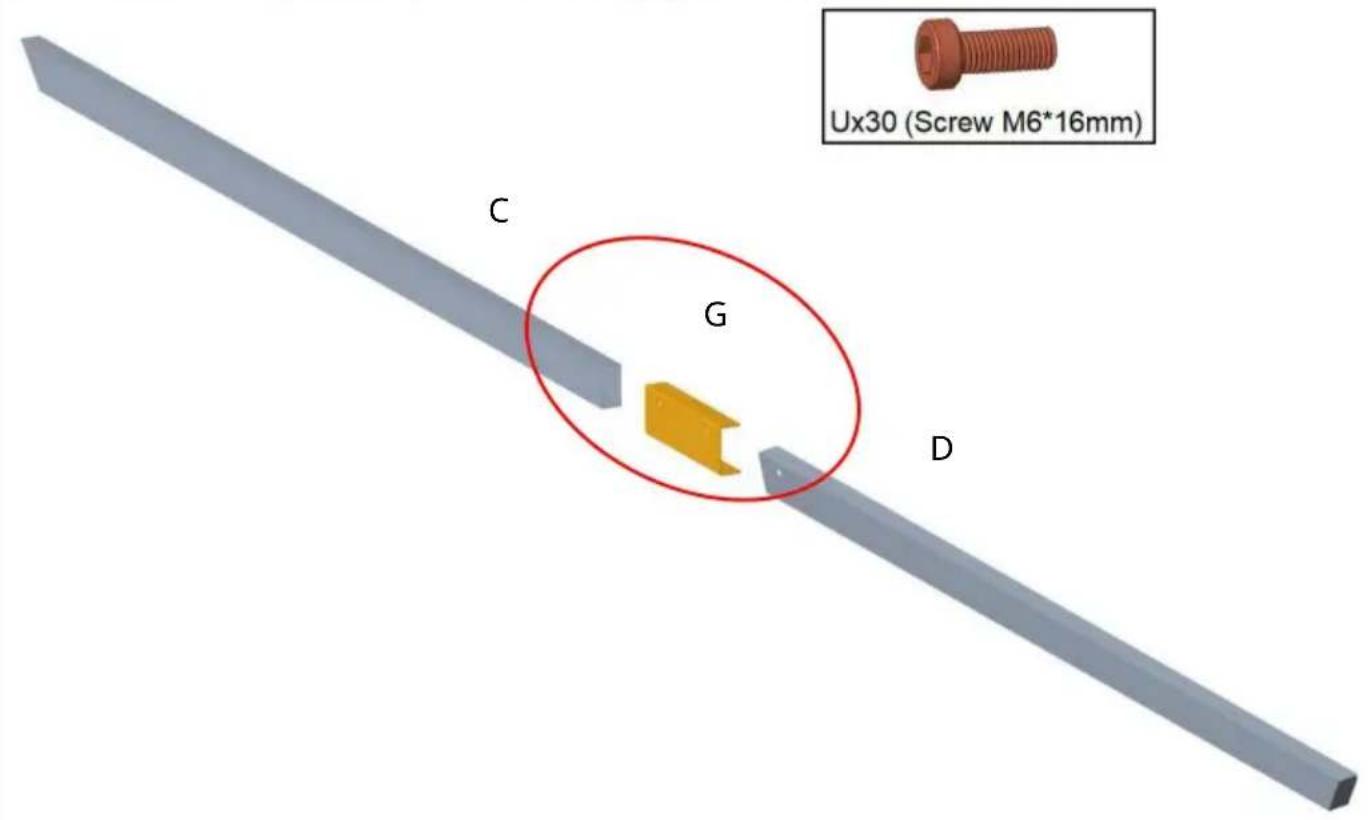

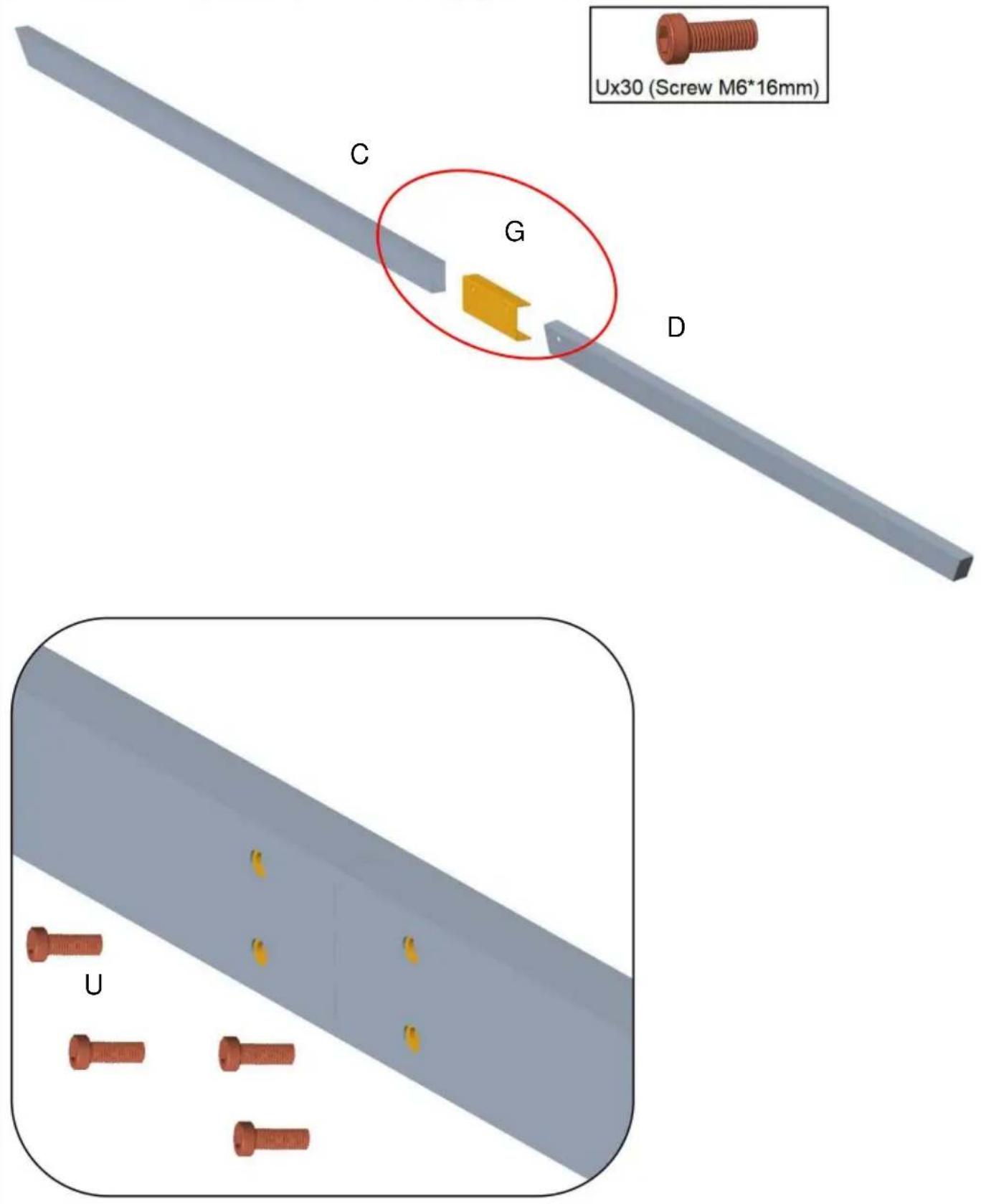

Install the crossbar (x5). Vevor L12FT*W10FT - ASSEMBLY STEP - 3

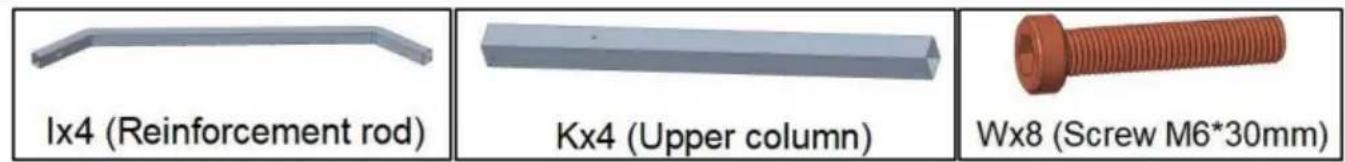

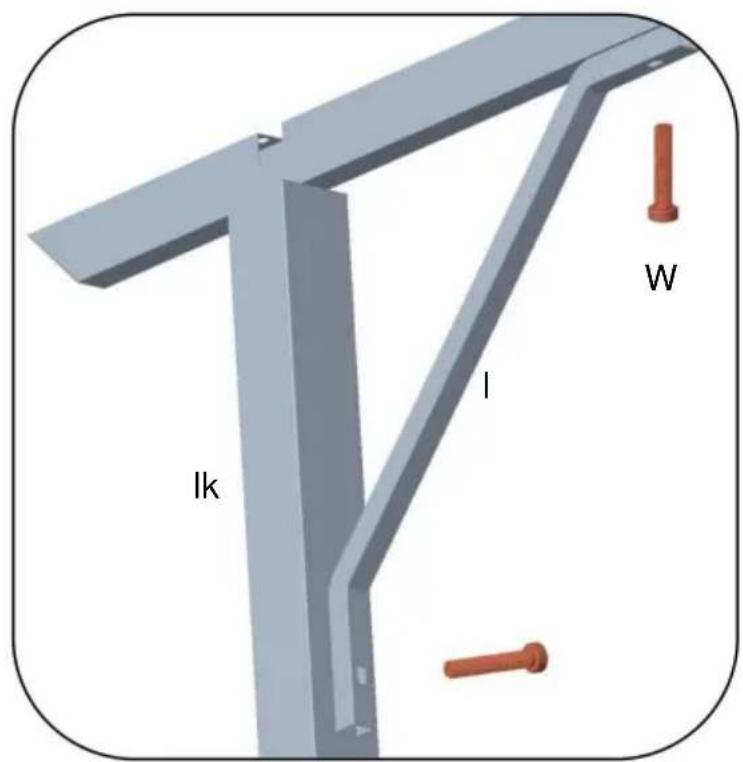

lx4 (Reinforcement rod)

Kx4 (Upper column)

Wx8 (Screw M6*30mm)

3D structural diagram of a metal frame with support legs and a highlighted angle, showing no text or symbols.

K, I, W

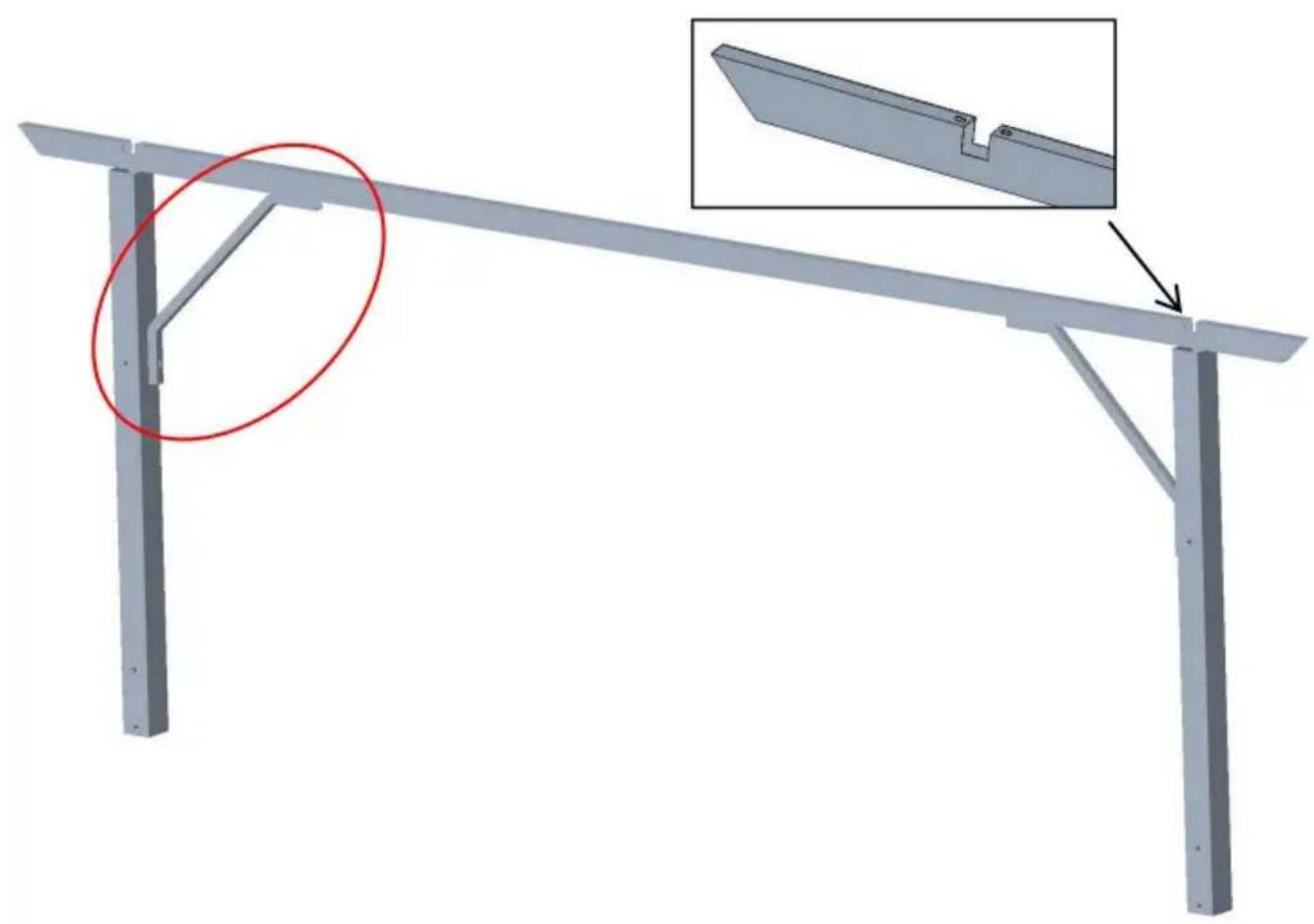

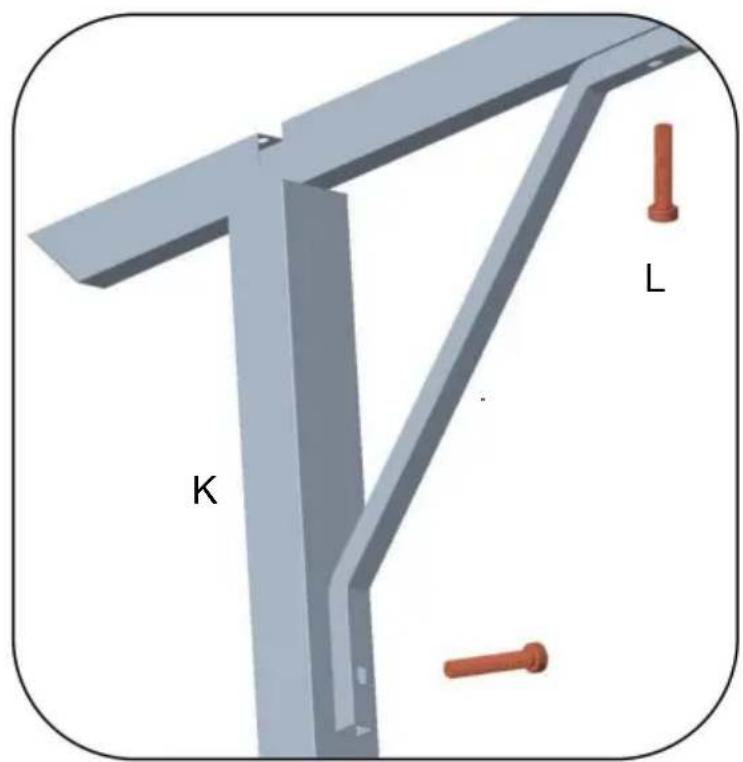

Install the crossbar onto the upper column (x2).

Close-up of a red bolt with hexagonal end, labeled 'Xx16 (Screw M6*60mm)' below (no other text or symbols)

3D structural diagram of a truss structure with support beams and a highlighted connection point (no text or symbols)

3D rendering of a metal bracket with four red bolt holes and a separate close-up of the top section (no text or symbols)

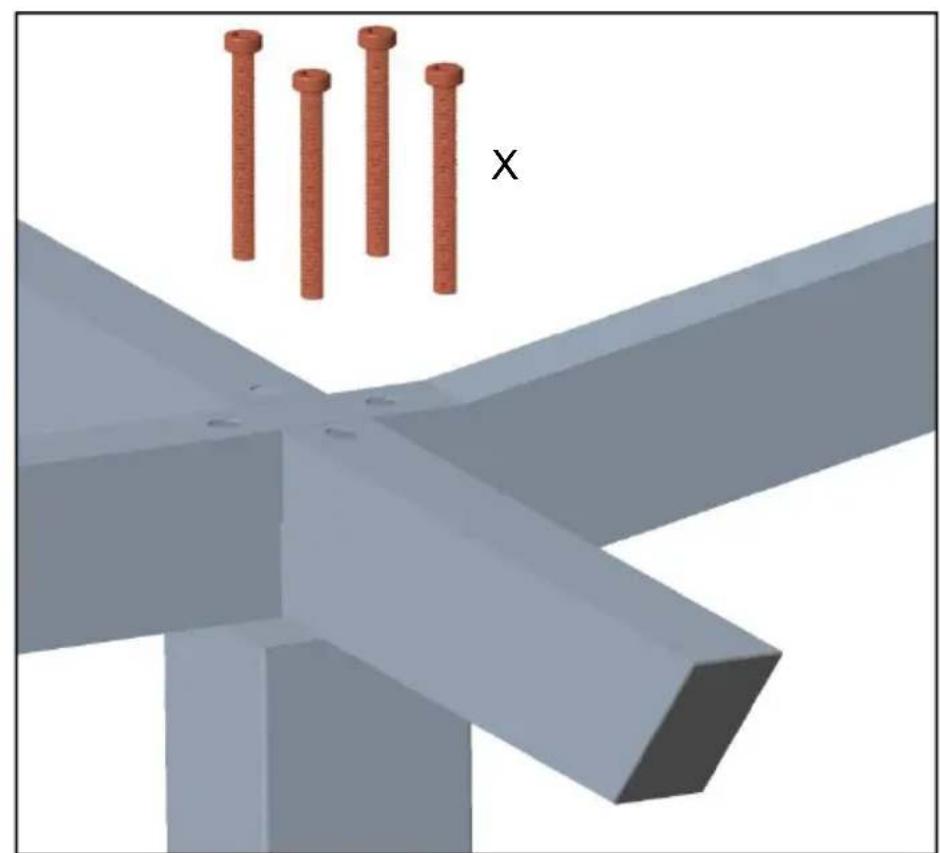

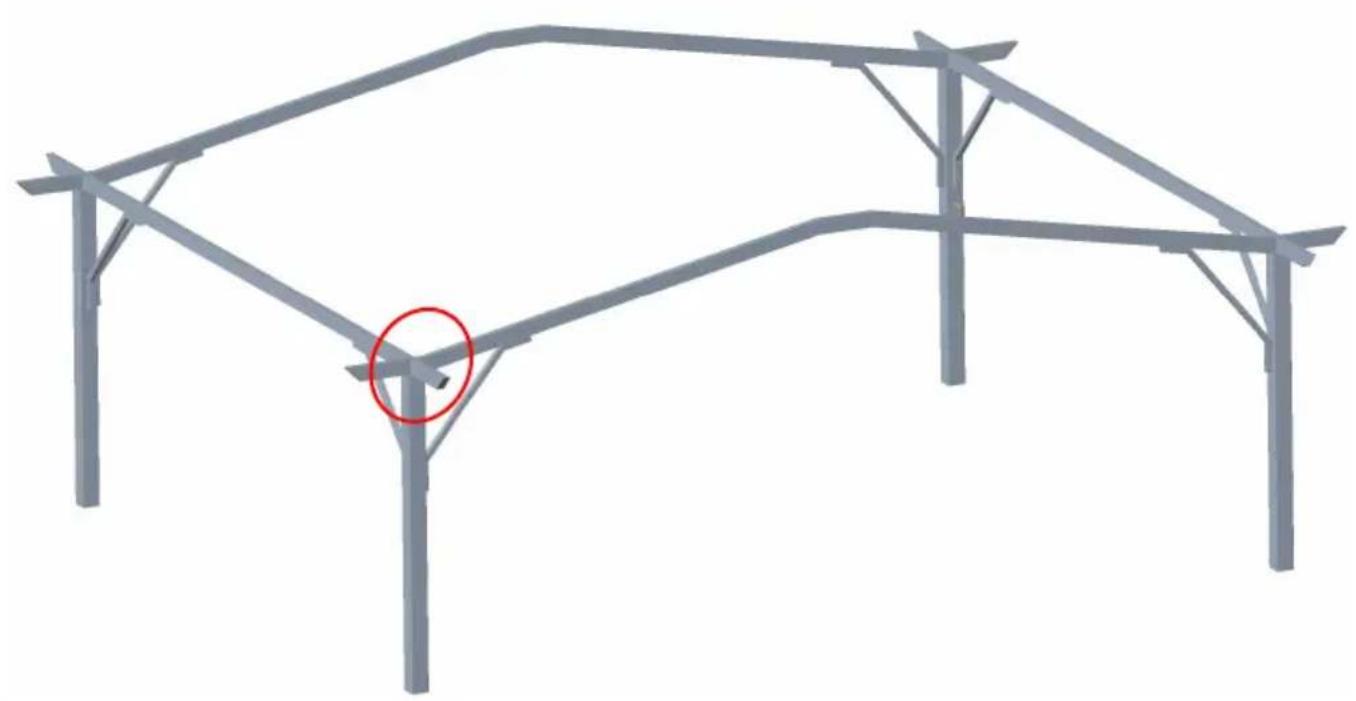

Install the top bar onto the upper column (x2).

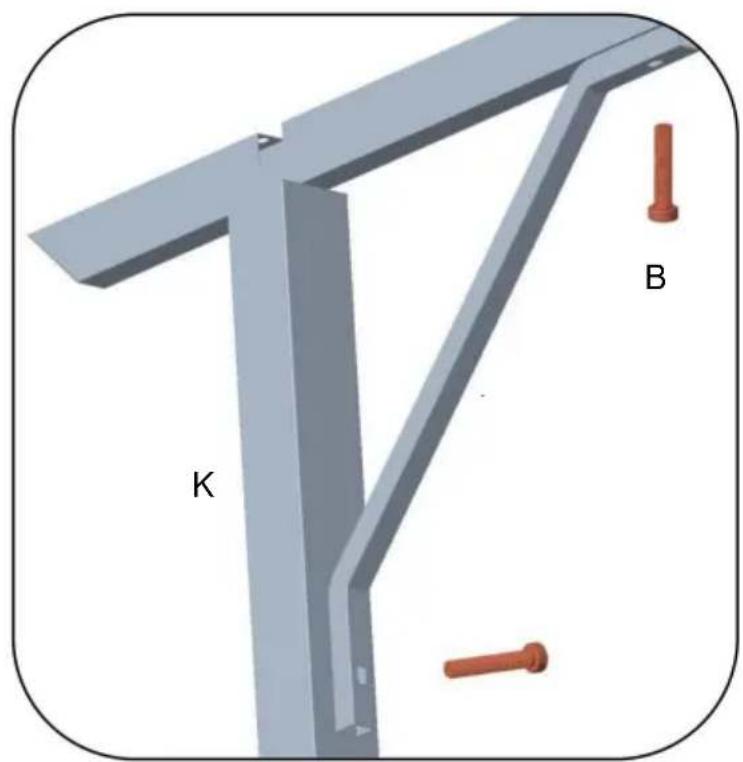

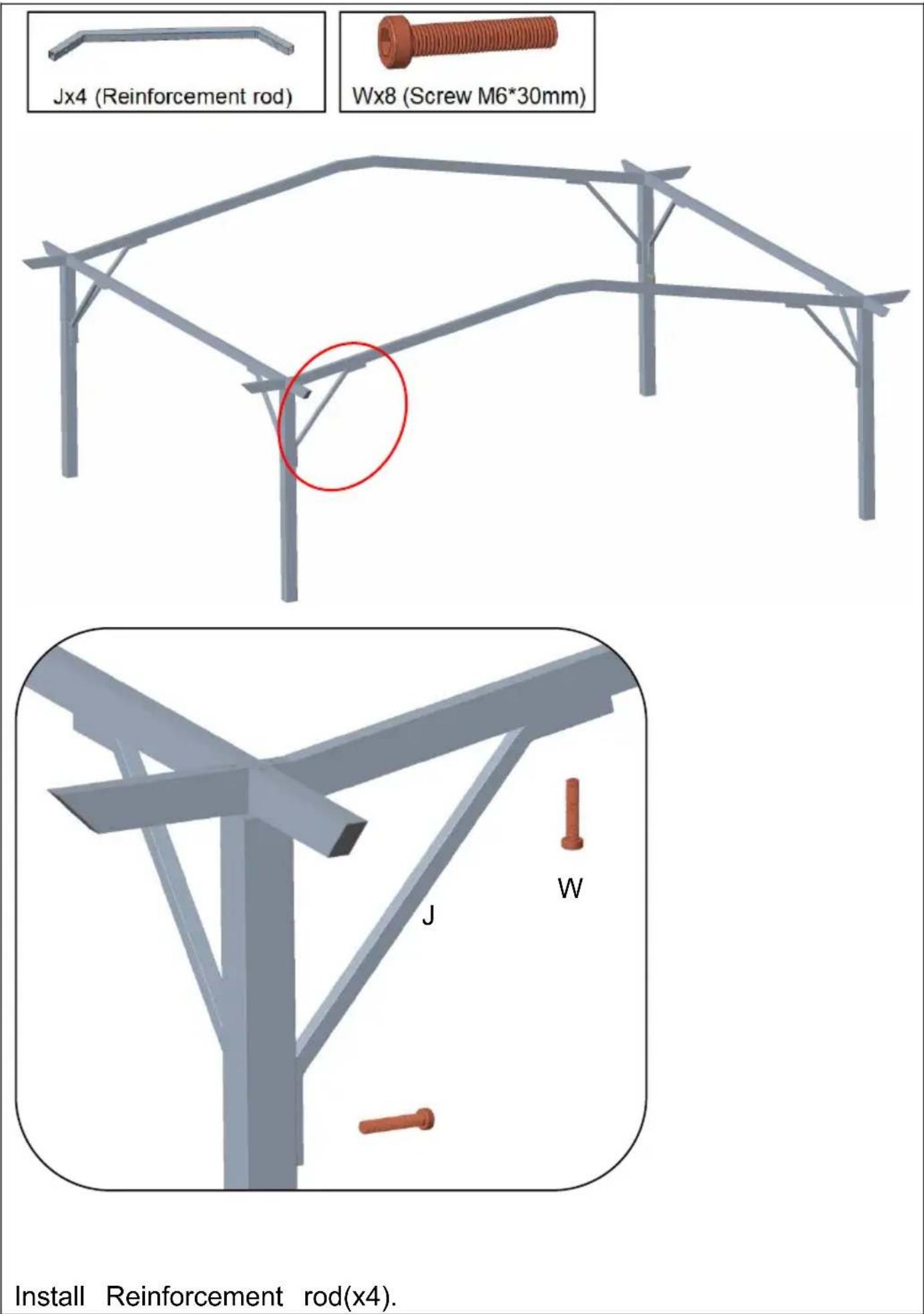

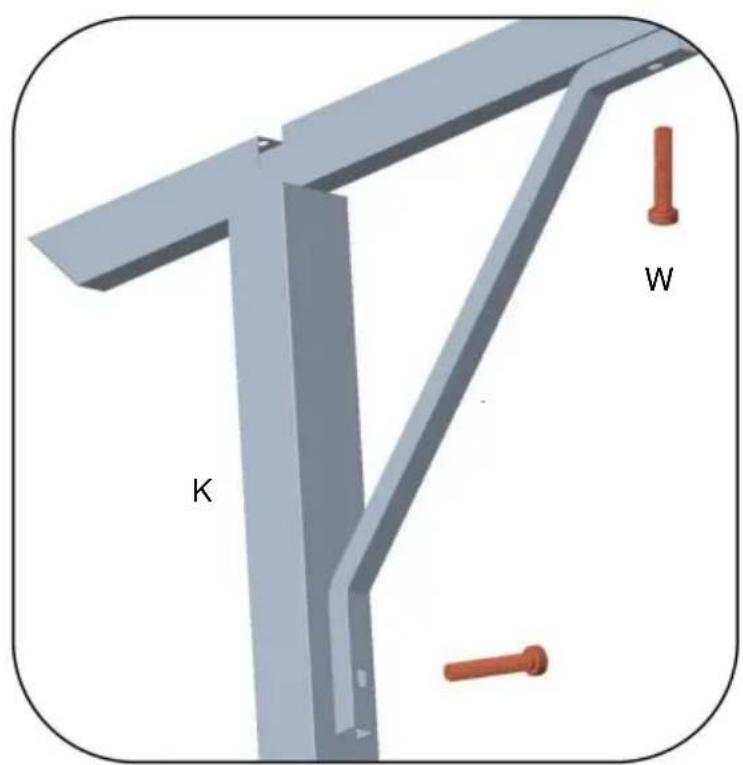

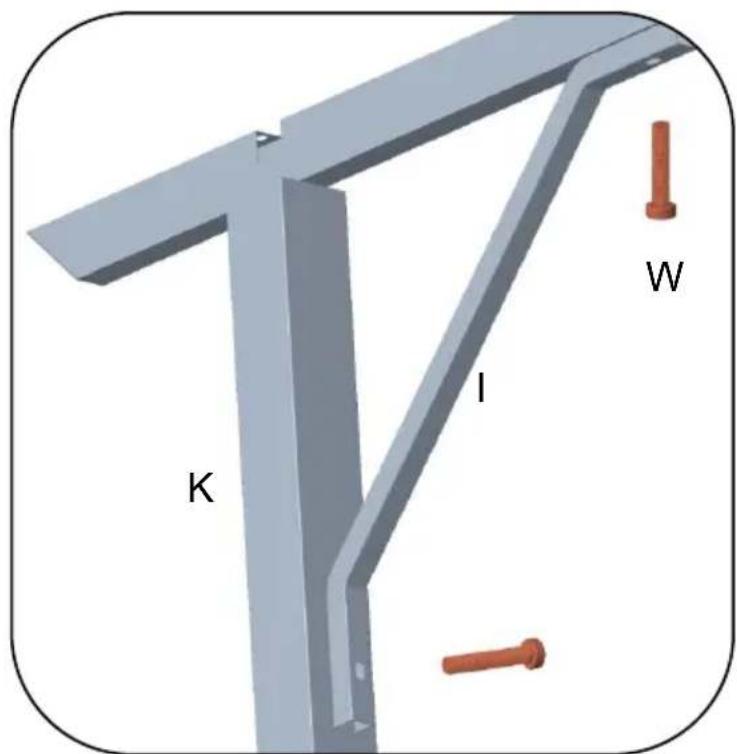

Install reinforcement rod (x4). Vevor L12FT*W10FT - ASSEMBLY STEP - 12

Close-up of a brown threaded bolt (Xx12) with screw specification M6*60mm, no other text or symbols visible.

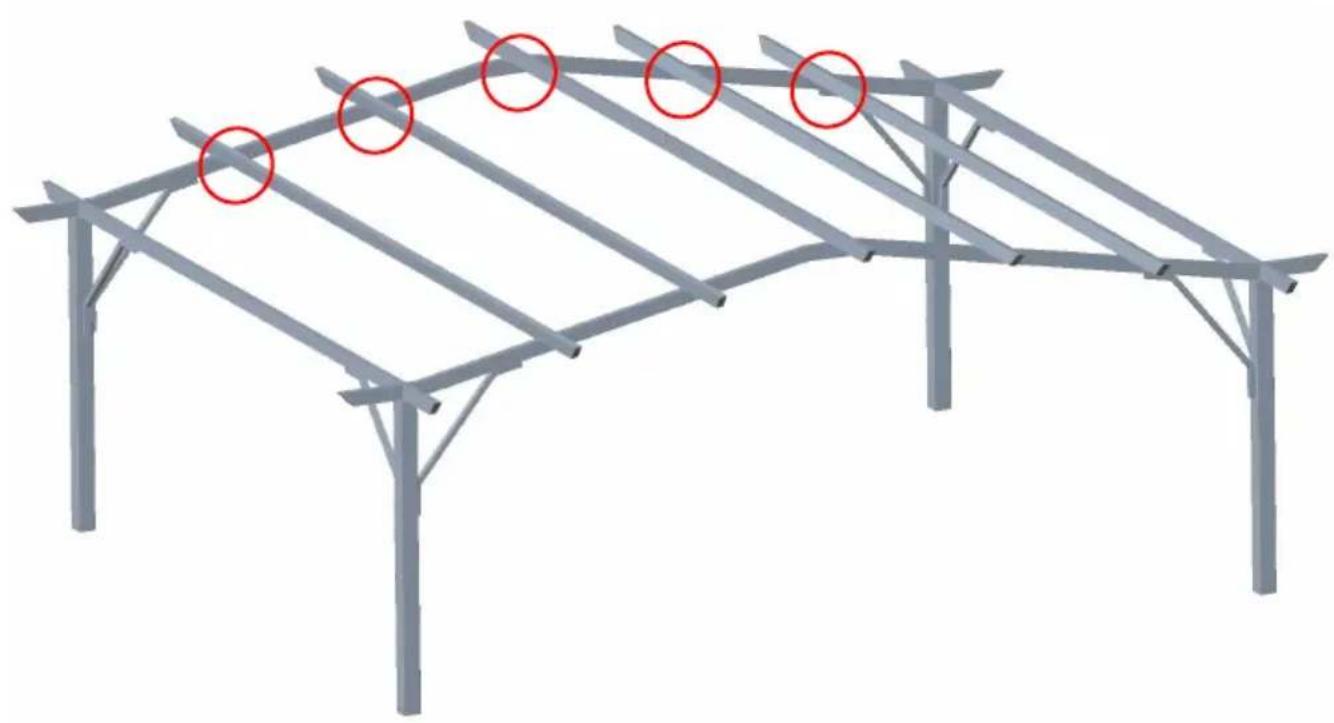

3D structural diagram of a metal frame structure with five red circles marking specific points on the roof (no text or symbols present)

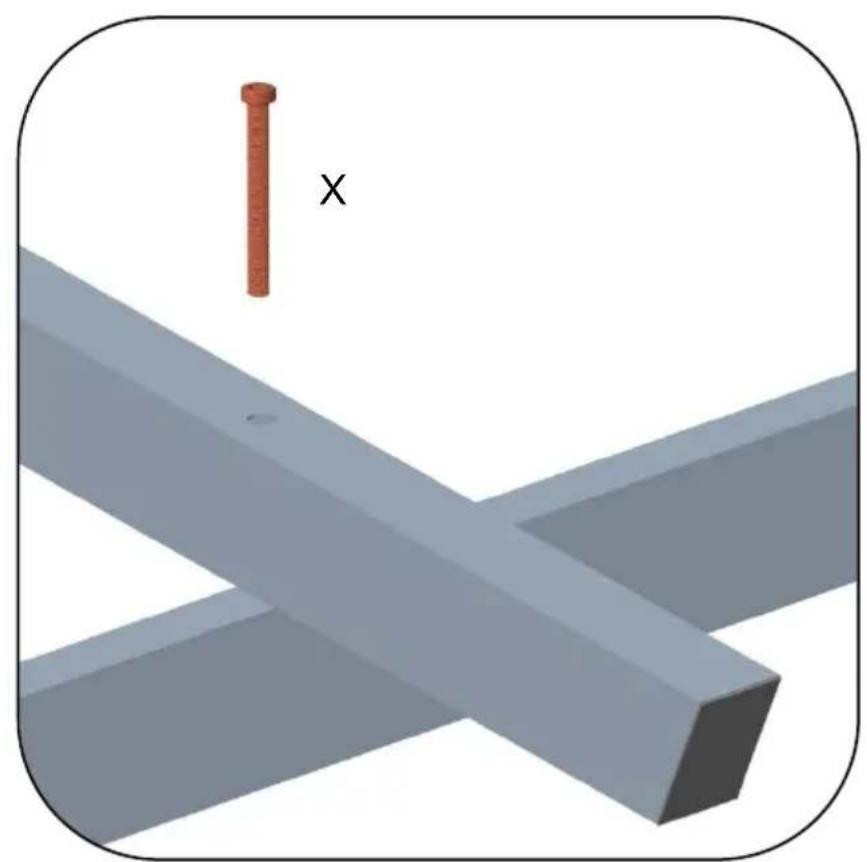

3D diagram of two gray metal beams with a red nail labeled 'X' above, no text or symbols present

Install the crossbar to the rack (x5).

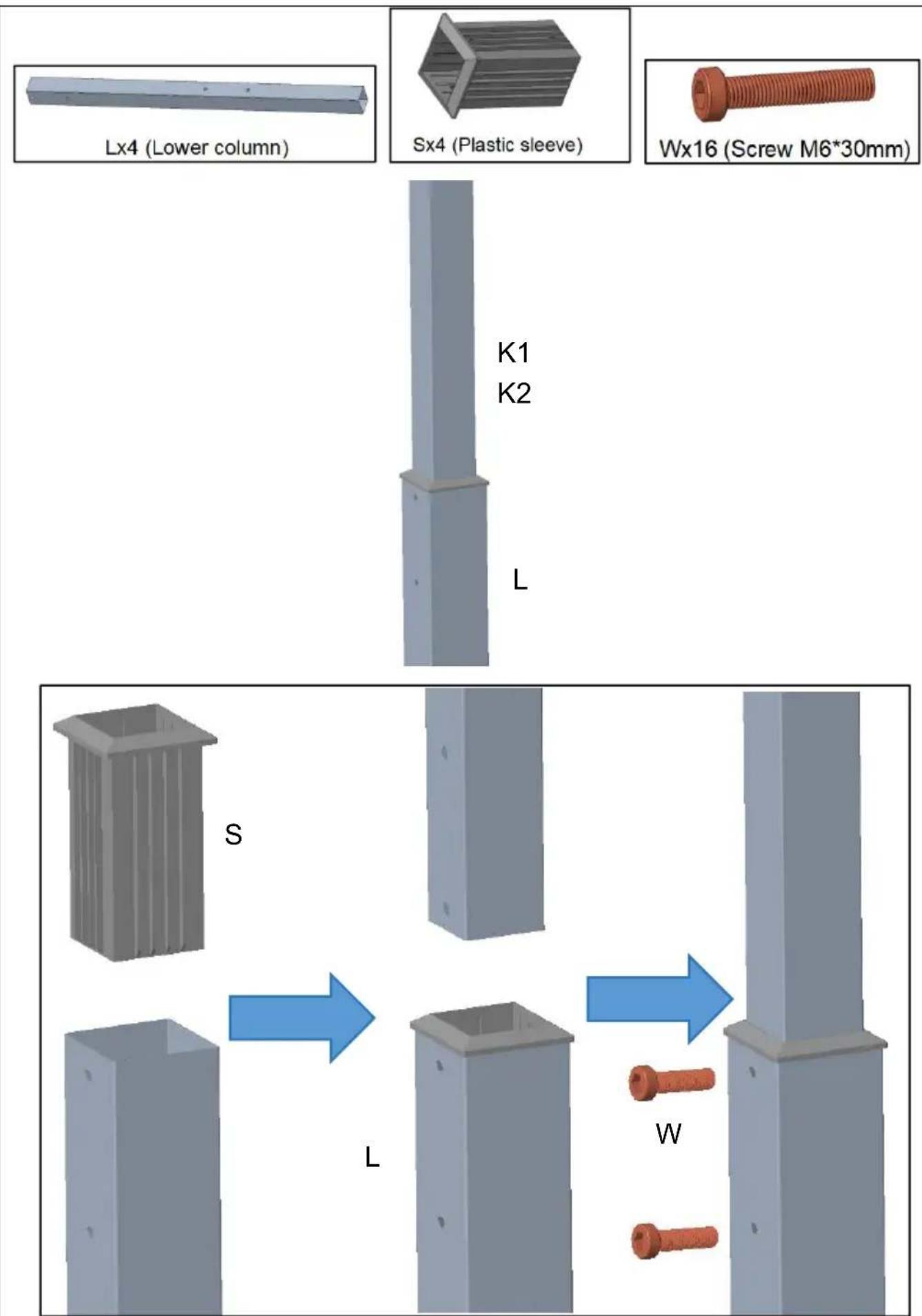

Lx4 (Lower column), Sx4 (Plastic sleeve), Wx16 (Screw M6*30mm), K1, K2, L, S, L, W

Install the lower column to the rack (x4).

Mx2 (Round tube)

Nx2 (Round tube)

3D rendered mechanical component with threaded end and flange, labeled Q1x2 and Q2x2 (sliding plastic parts). No other text or symbols.

Ox4 (Round tube)

Px1 (Tarpaulin)

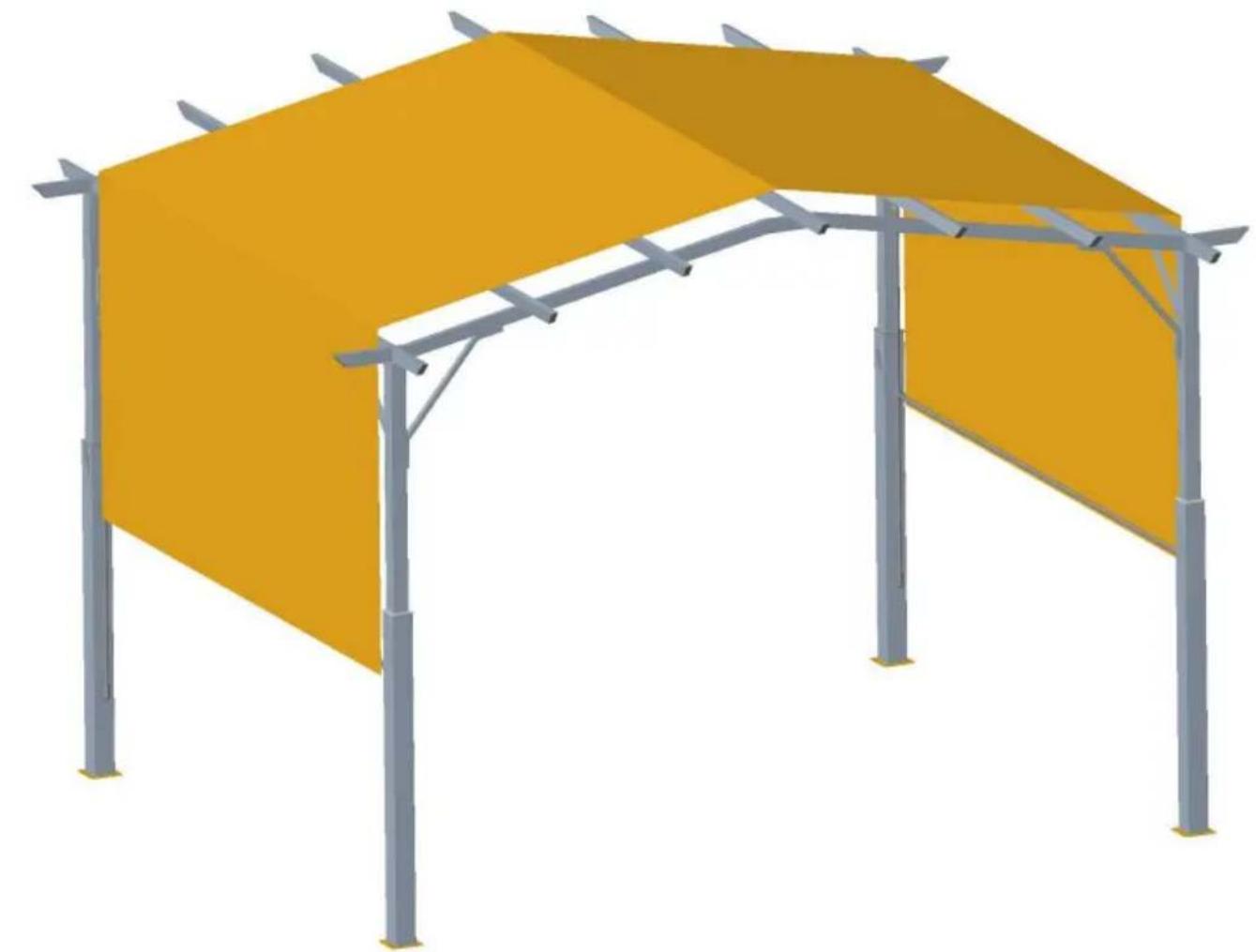

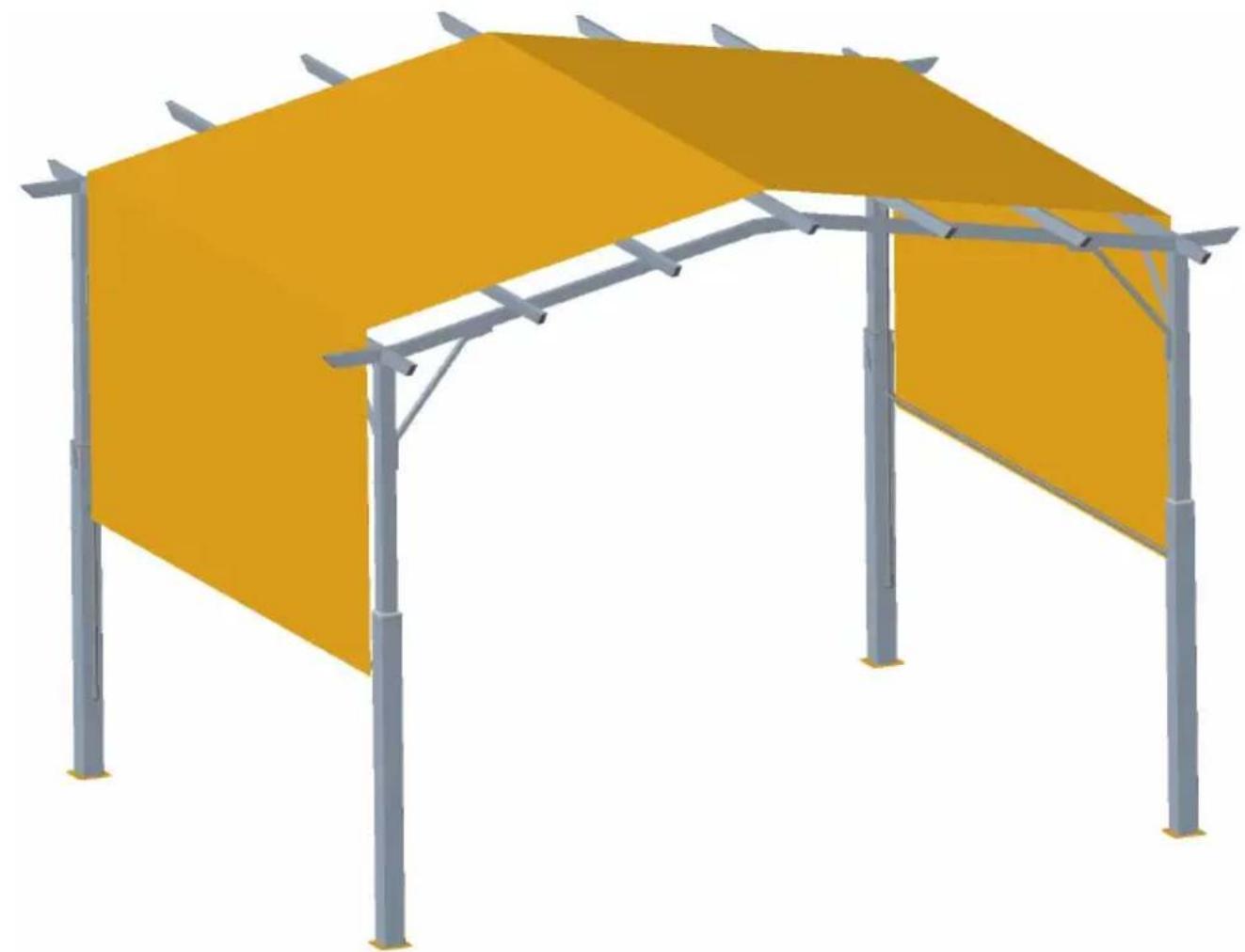

3D rendering of a yellow canopy structure with metal supports and a red square marker. No text or symbols.

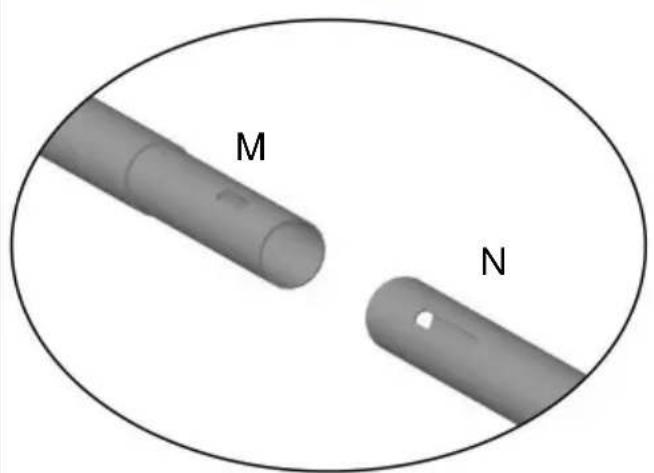

M N

Close-up of a mechanical component with threaded end and cylindrical shaft, labeled Q1/Q2. No other text or symbols.

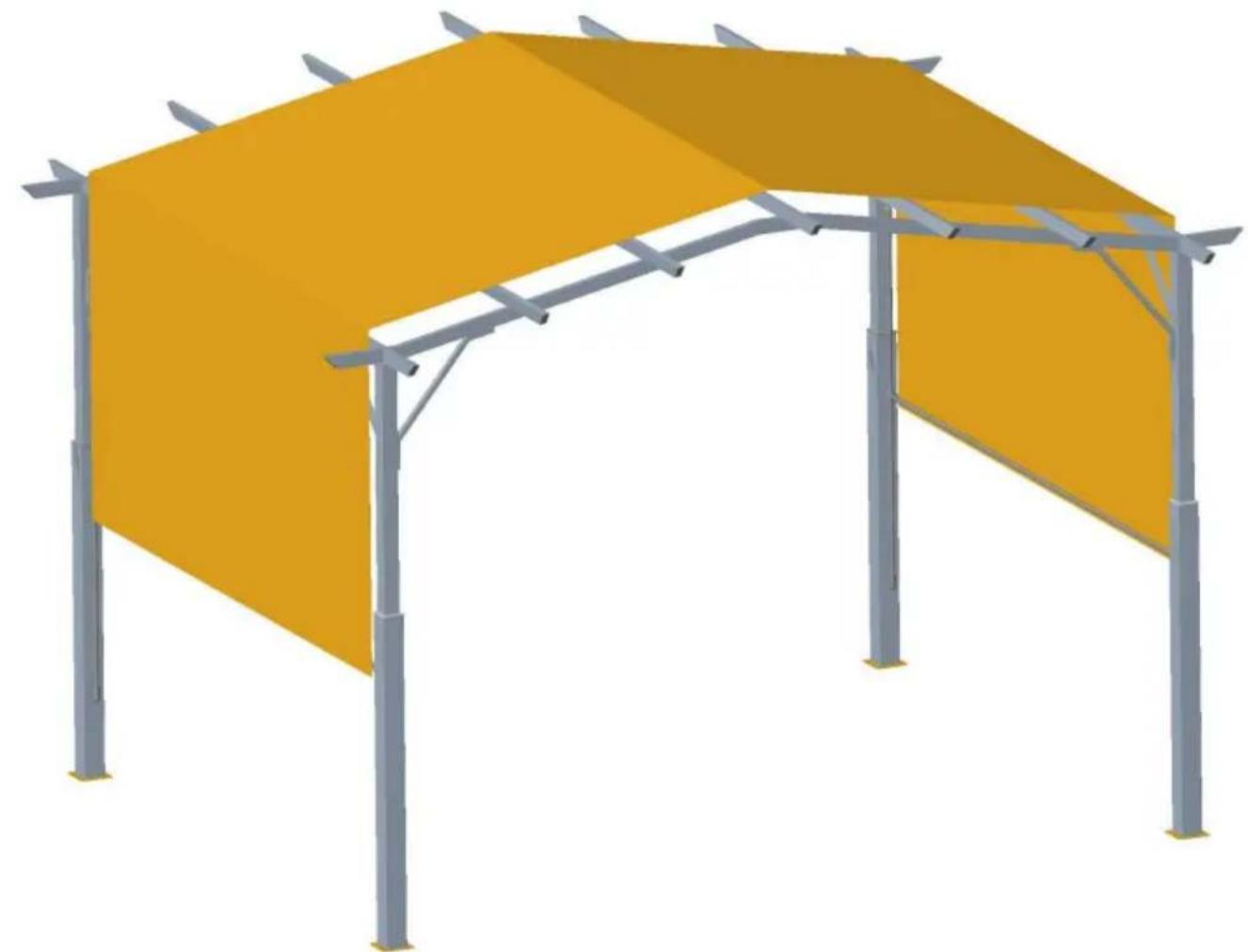

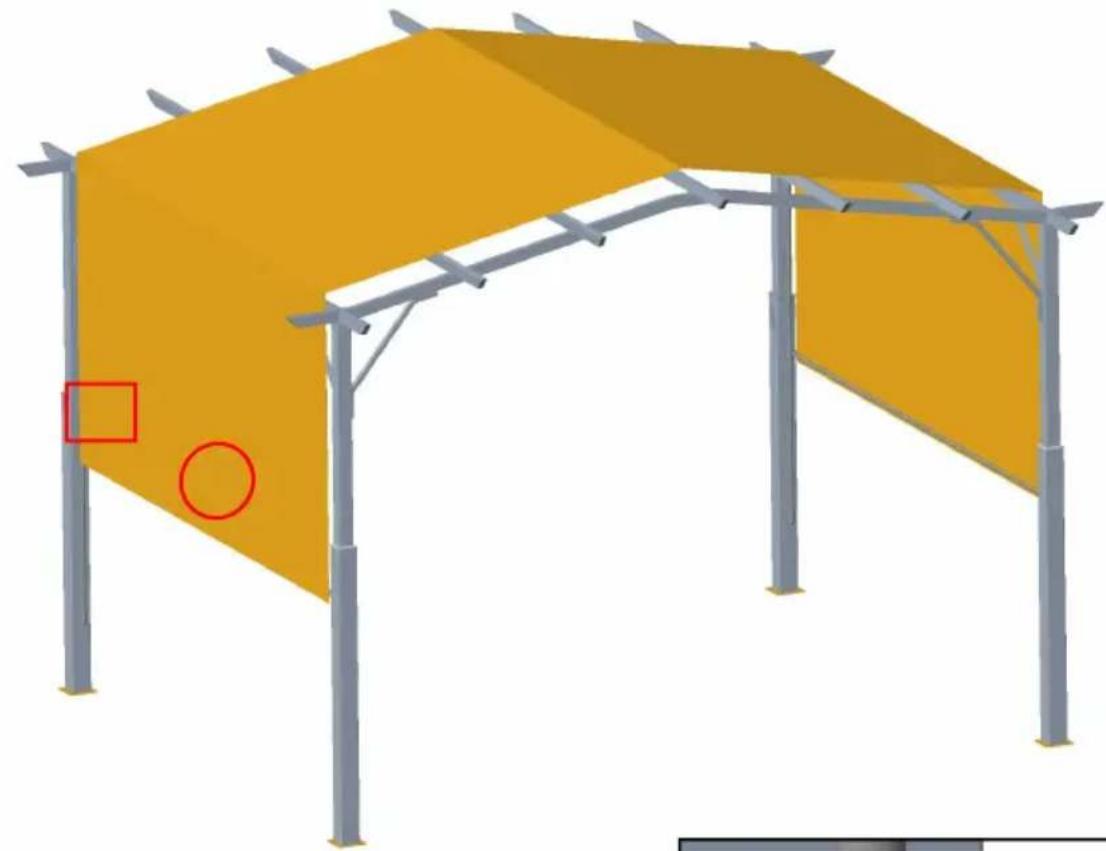

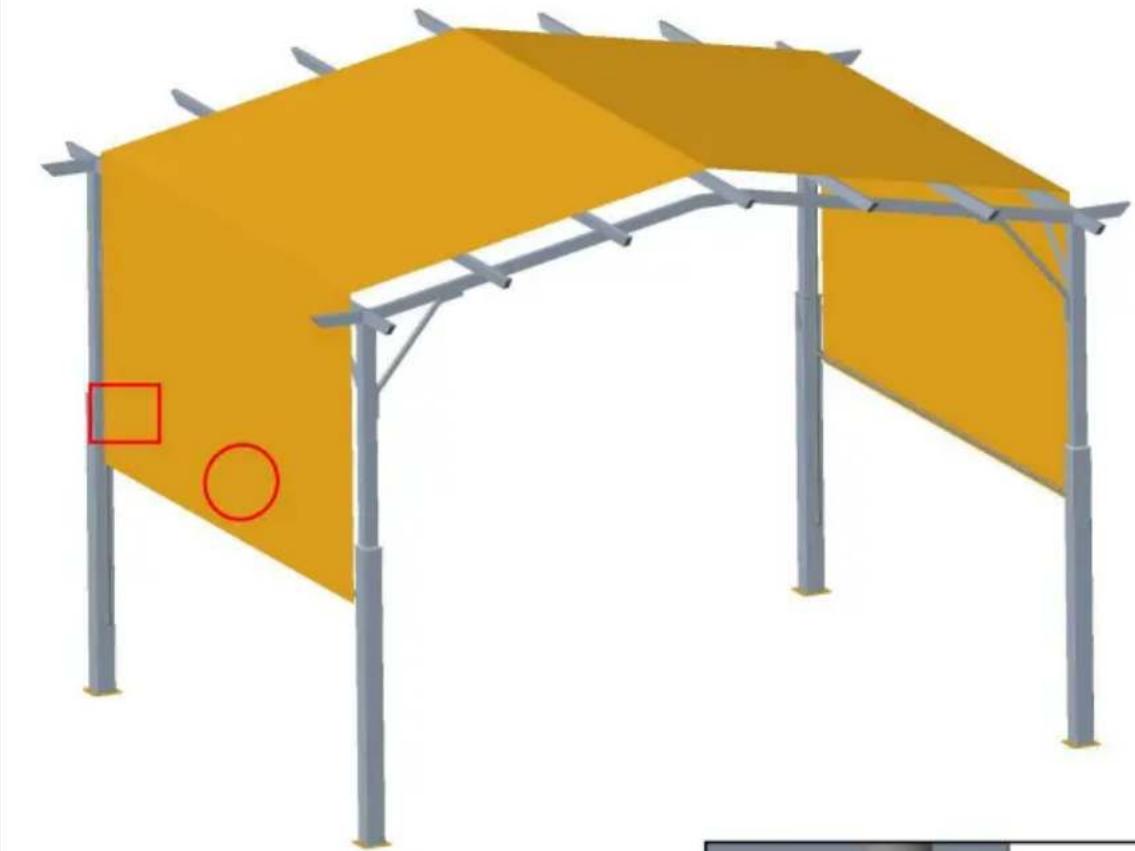

Mount the tarpaulin to the rack.

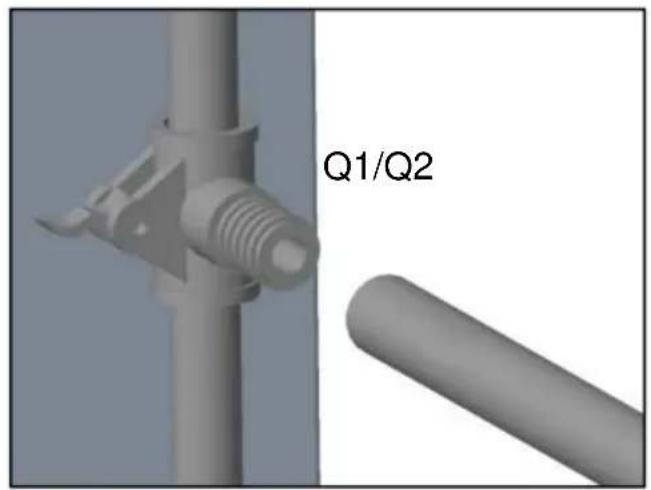

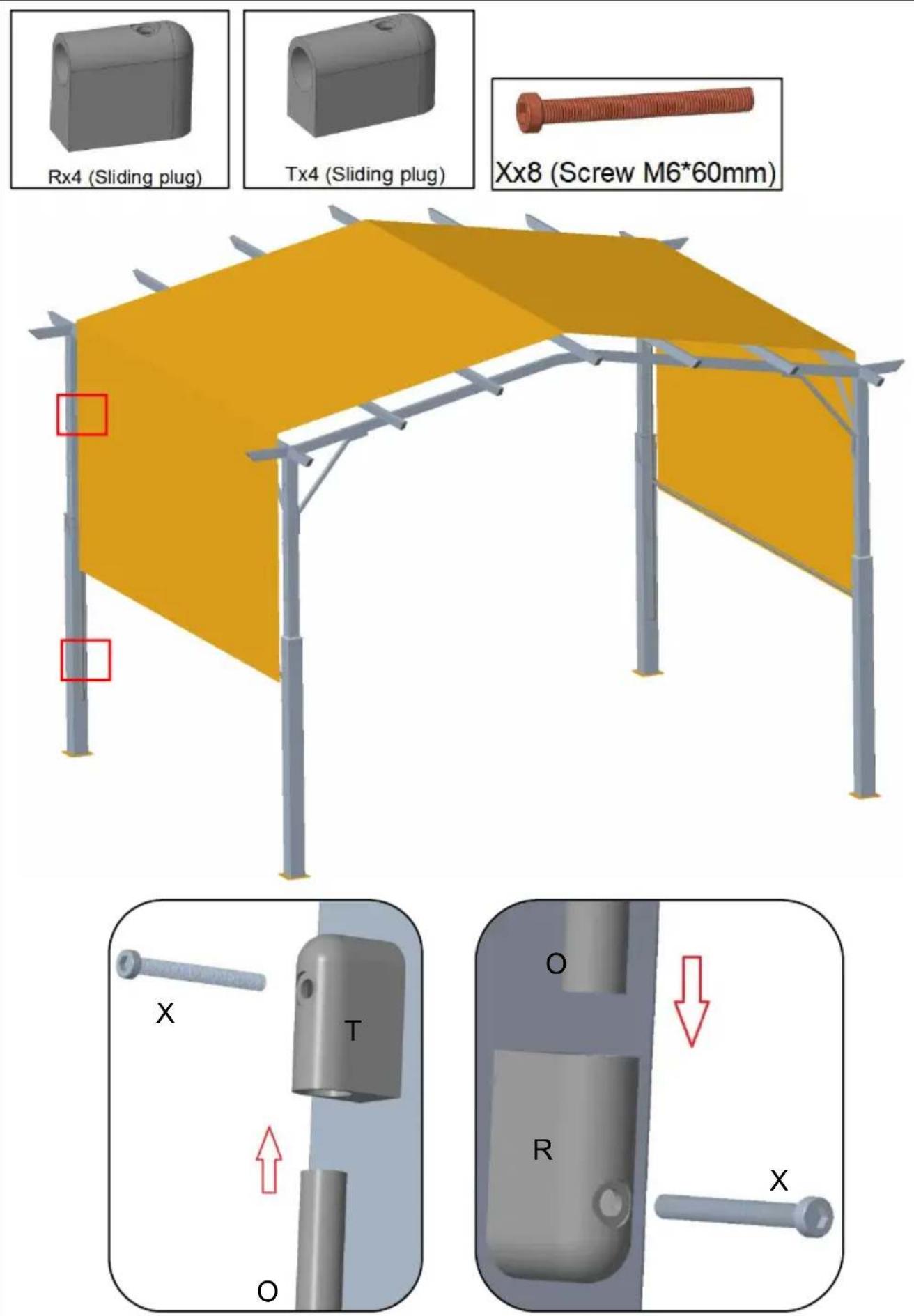

Install the round tube on the rack. Vevor L12FT*W10FT - ASSEMBLY STEP - 25

Yellow metal bracket component labeled Hx4 (Base). No other text or symbols visible.

Close-up of a brown hexagonal bolt with threaded shaft, labeled Ux8 (Screw M6*16mm) below. No other text or symbols.

3D rendering of a yellow and gray outdoor structure with metal supports. No text or symbols.

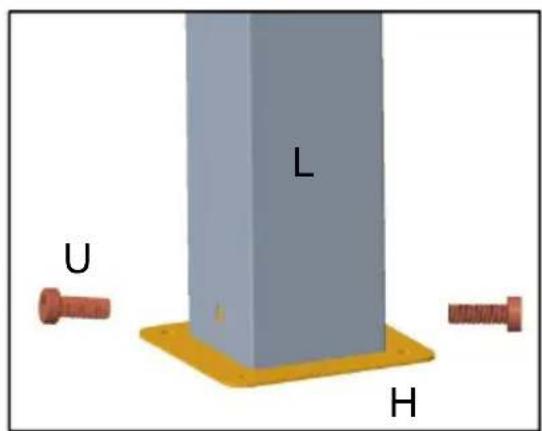

L U H

Install the base (H) on the rack.

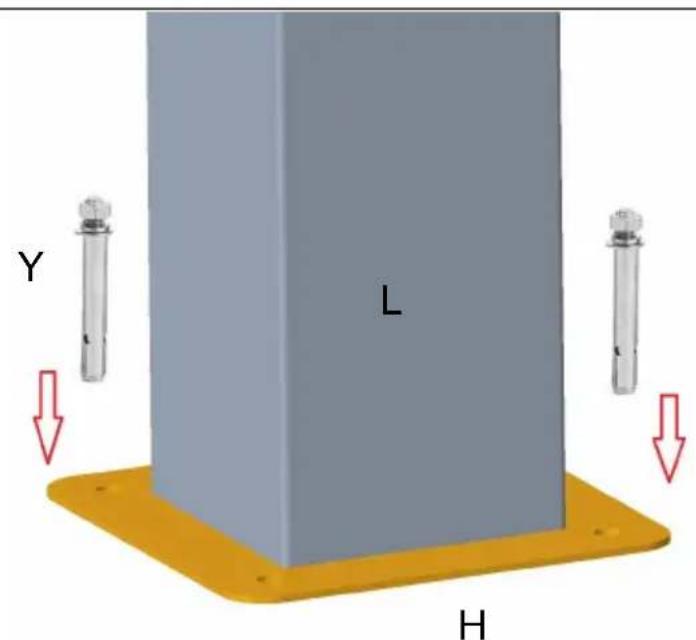

Y L H

Installation method A: Expansion screw is suitable for installation on cement floor.

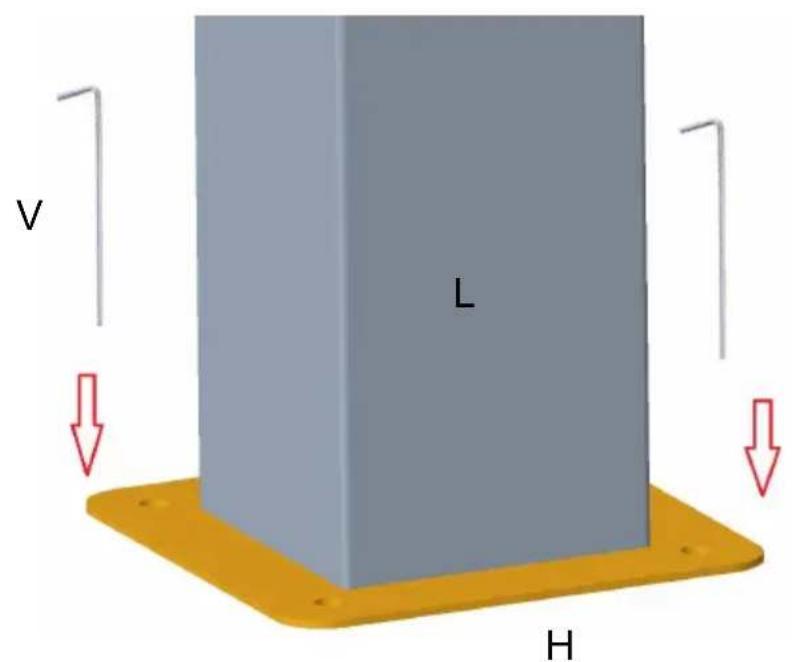

V L H

Installation method B: Ground nails are suitable for installation on grass and soft land.

NOTE: Please make sure to secure the pergola to the ground to prevent it from being blown away by the wind.

PRODUCT PARAMETER

Model	L10ft*W10ft
Colour	Frame:Black ; Tarpaulin:Brown
Product Size	L10W10H8ft(L3048W3048H2438mm)

Model	L20ft*W10ft
Colour	Frame:Black ; Tarpaulin:Brown
Product Size	L10W10H8ft(L3650W3048H2438mm)

Manufacturer: Shanghai Muxin Muye Youxiangongsi

Address: Shuangchenglu 803 nong 11 hao 1602A-1609 shi, Baoshanqu, Shanghai 200000 CN.

EC REP: E-CrossStu GmbH.

Mainzer Landstr. 69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
