BD-505JA - Refrigerator Vevor - Free user manual and instructions

Product type	Chest freezer
Brand	Vevor
Model	BD-505JA
Power supply	230 V / 50 Hz
Refrigerant	R290/R600a (class A3, flammable)
Approximate capacity	505 liters
Temperature setting	Rotary thermostat (recommended position: 4)
Indicator lights	Power (on) and Run (compressor running)
Maximum load per basket	8 kg
Climate class	Suitable for ambient temperature up to 38 °C
Defrosting	Manual (defrost when frost > 5 mm)
Cleaning	Unplug, wipe with a soft cloth and mild detergent
Safety	Flammable refrigerant – do not puncture, do not use mechanical tools to defrost
Installation	Ventilation space >10 cm, stable surface, avoid heat sources
First use	Wait 4 hours before plugging in, run empty for 1 hour
Intended use	Storage of packaged frozen foods (domestic and light commercial use)
Country of manufacture	China

Frequently Asked Questions - BD-505JA Vevor

How to set the temperature of the Vevor BD-505JA freezer?

Turn the temperature control knob located at the bottom right. The higher the number, the lower the temperature. Position 4 is usually suitable. For quick freezing, use position Max/7/HI (the compressor runs continuously).

What type of refrigerant does this appliance use?

The freezer uses R290/R600a, a class A3 flammable refrigerant. Only a qualified technician should perform repairs.

How to defrost the freezer?

Unplug the appliance, remove the food, and open the lid to let the frost melt. Do not use metal tools or electrical appliances. Wipe the water with a soft cloth and replace the drain plug after defrosting.

Why doesn't the compressor start even though the indicator light is on?

Check the power supply voltage. If it is below 98 V, use a 1000 W power regulator. If it exceeds 132 V, the compressor may stop for safety.

How to maintain the door gasket?

Clean the gasket with slightly soapy water, dry it, and apply some talc to prolong its life.

What to do if the freezer is too noisy?

Make sure the appliance is placed on a stable surface and the fixings are tight. Avoid any contact between pipes. A refrigerant flow noise is normal.

Can you store bottled drinks in the freezer?

No, do not put bottled or canned drinks whose freezing point is higher than the internal temperature, as they could explode.

What ventilation space is needed around the freezer?

Leave a space of at least 10 cm between the front/back wall and the wall to ensure good air circulation.

How to save energy with this freezer?

Avoid opening the lid frequently and for long periods. Do not overload the appliance and leave space between foods for cold air circulation.

What to do in case of a power outage?

Wait at least 5 minutes before reconnecting the appliance to avoid damaging the compressor.

USER MANUAL BD-505JA Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

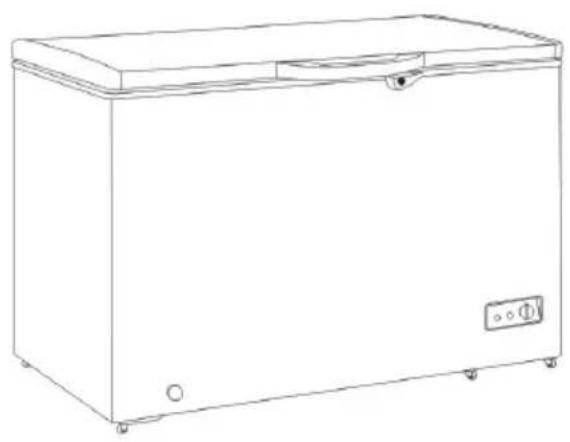

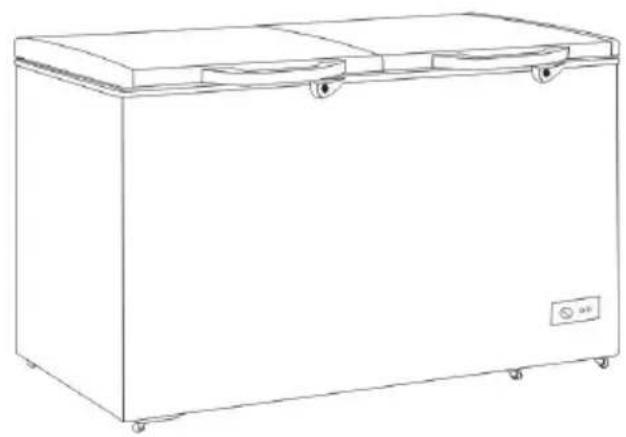

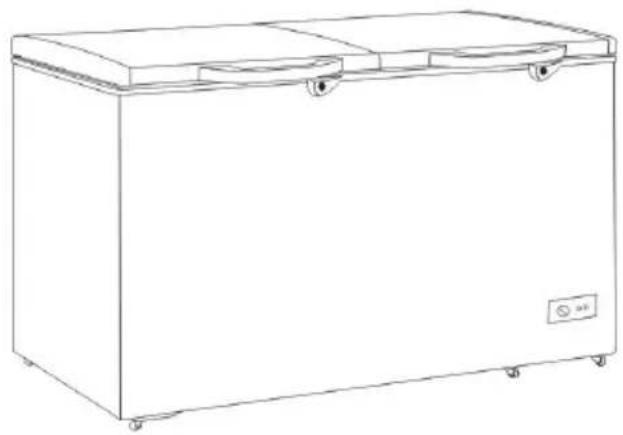

CHEST FREEZER

MODEL: BD-355JA/BD-505JA/BD-600

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: BD-355JA/BD-505JA/BD-600

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

0

Warning-To reduce the risk of injury, user must re instructions manual carefully.

CORRECT DISPOSALThis product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

Dear Consumers:

Thank you very much for purchasing our products. In order to ensure safety and achieve the best out of this freezer, please read this instruction carefully.

• The products are commercial chest freezers. These products are intended solely for the storage and/or display of packaged products that are not potentially hazardous foods.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person in order to avoid a hazard.

Please dispose of the appliance according to local regulations regarding its flammable blowing gas. Before you scrap the appliance, take off the doors to prevent children from being trapped.

WARNING – Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING – Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING – Do not damage the refrigerant circuit.

WARNING – Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices, and other working environments; farm houses; and by clients in hotels, motels, and other residential type environments; catering and similar non-retail applications.

The appliance shall not be installed in public corridors or lobbies. Please dispose of the appliance according to local regulations regarding its flammable gas. Before you scrap the appliance, take off the doors to prevent children from being trapped.

Warning: The appliance shall be installed in accordance with national wiring regulations.

The appliance is to be installed in accordance with the Safety Standard for Refrigeration Systems, ANSI/ASHRAE 15.

Notice: Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of a person competent in the use of flammable refrigerants.

Notice: Component parts shall be replaced with like components to minimize the risk of possible ignition due to incorrect parts.

The appliance is to be installed in accordance with the Safety

WARNING: Do not use means to accelerate the defrosting process

clean, other than those recommended by the manufacturer. The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).

• Do not pierce or burn.
• Be aware that refrigerants may not contain an odour.
• Warning: The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.
• Warning: The appliance shall be stored in a room without continuously operating open flames (for example an operating gas appliance) and ignition sources (for example an operating electric heater).
• Warning: The appliance shall be stored so as to prevent mechanical damage

from occurring.

• Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges, or any other adverse environmental effects. The check shall also take into account the effects of aging and continual vibration from sources such as compressors or fans.
• Before carrying out the decommissioning procedure, it is essential that the technician is completely familiar with the equipment and all its details. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of recovered refrigerant. It is essential that electrical power is available before the task is commenced.
• When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely.
• The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be used for the recovery of all appropriate refrigerants including, when applicable, flammable refrigerants.
• The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant waste transfer note

arranged. Do not mix refrigerants in recovery units and especially not in cylinders.

Details of Product

• It uses a quality, effective and hermetic compressor with a broad range starting voltage, suitable ambient temperature: not higher than 38°C / 10°C.
• Reasonable matching of the freezer system guarantees its powerful refrigerant ability and energy saving.
• A good choice for storage of your variety of frozen food products. Lift up the lid to get your frozen food and close the lid to seal it in.

Caution for Using

• Unpack all packages before using the freezer. Don't bend it over more than 60 degrees while moving it.
• The freezer should be installed in an environment of good ventilation, cool and dry, and without corrosive gas. It should not be installed close to heat sources or directly under sunlight. The space more than 10 cm between the wall and the front and back of the freezer should be maintained. When installing, the wheels should be padded well so as to make the freezer level and stable, or it will cause vibration and too much noise.
• If power is cut off, wait at least 5 minutes before turning on again to avoid damage to the compressor. To save energy, the door should not be frequently opened for a long time.
• The surface and the inside of the freezer should be dry and clean. Long-term moisture will cause the freezer to rust slowly. (There will be some on
• the surface.)
• Periodical cleaning is suggested for your reference. Generally, 30-45 days once is best. When cleaning, it is best to wipe the inside and surface of the showcase with a soft cloth with neutral soap or detergent.

Refrigerant class A3 per ANSI/ASHRAE 34

The maximum loading of each type of basket is 8 kg.

The ambient temperature and humidity conditions of the climate class following the table below

Test room climate class	Dry bulb temperature °C	Relative humidity %	Dew point °C	Water vapour mass in dry air g/kg
0	20	50	9.3	7.3
1	16	80	12.6	9.1
8	23.9	55	14.3	10.2
2	22	65	15.2	10.8
3	25	60	16.7	12.0
4	30	55	20.0	14.8
6	27	70	21.1	15.8
5	40	40	23.9	18.8
7	35	75	30.0	27.3
NOTE: the water vapour mass dry air is one of the main point influencing the performance and the energy consumption of the cabinets. Therefore, the order of the climate class in the table on the water vapour mass column. See also Annex B to comp store conditions.

Attention: To ensure safety, the power plug must be pulled out before cleaning. All safety precautions must be followed. Dispose of properly in accordance with Federal or local regulations. Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling instructions carefully.

DANGER: Risk of fire or explosion. Flammable refrigerant R290/R600a used. To be repaired only by trained service personnel. Do not use mechanical devices to defrost refrigerator. Do not puncture refrigerant tubing.

Allow to stand for a minimum of 4 hours before plugging in. The temperature is controlled by the temperature control knob located on the front face, at the bottom right hand side. Rotate the control knob right to regulate the temperature inside the freezer.

When initially operating, the freezer should run empty for about one hour before storing food in it.

Before placing food into the freezer, adjust the temperature control to the lowest point (highest number) and let it run until the temperature of the cabinet decreases to 0°Fahrenheit. Put the food in, and after 12 hours adjust

the temperature control to the normal point.

The thermostat adjusts the temperature inside the freezer. When you turn the knob clockwise, the bigger the figure, the lower the temperature. Generally, the position '4' is suitable. At the "Max/7/HI" position, the compressor will run constantly to reach the coldest temperature as quickly as possible without stopping (no cycle). Turn the temperature control to "4" or "5" when the temperature inside is stable for ice cream and similar products.

Indicator lights

"Power" indicates the freezer is switched on.

"Run" indicates the compressor is working.

Food Storage

• Do not fill the freezer full of products. You should leave space between items and the inner surface of the cabinet to ensure good ventilation, cold air circulation, and even freezing. Do not put in any bottled or canned beverages with a freezing point above the temperature in the cabinet when it is below zero.
• For foods that should be moisture-free or lose water easily, wrap them in hermetically sealed food bags or fresh film before putting them in the cabinet to avoid smell mixing and reduce frosting.
• Storage of volatile and combustible gases, liquids such as strong acids, petrol, etc. is forbidden.
• Never put hot food directly in the freezer. Food should be cold or at room temperature before placing it inside.
• The cabinet is intended exclusively for the storage and/or display of packaged foods only.

Maintenance

• The freezer should be cleaned regularly. When cleaning, turn off the power, take out the foods in the cabinet, and clean the inside using water with a little neutral detergent.
• Do not use boiling water, acid, chemical diluent, petrol, oil, or removing powder.
• Dry it after cleaning.
• Use light soap water when cleaning the door seal, apply a little powder on it after natural drying to extend its service life.
• Use a soft cloth with water or a little detergent to clean the outer surface, keeping the power supply and lower part of connecting wires away from water to avoid electricity leakage.
• Except for common breakdowns, those who are not service technicians should not take apart and repair the freezer on their own to avoid worsening the trouble. Unauthorized repair of electrical parts such as compressor, temperature controller is forbidden.
• All maintenance staff and others working in the local area shall be

instructed on the nature of work being carried out. Work in confined spaces shall be avoided.

- If any hot work is to be conducted on the refrigerating equipment or associated parts, appropriate fire extinguishing equipment shall be available on hand. A dry chemical or CO2 fire extinguisher should be adjacent to the charging area.

- Notice: Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification.

- Notice: Servicing shall only be performed as recommended by the equipment

- manufacturer. Maintenance and repair requiring the assistance of other skilled

- personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.

- No person carrying out work in relation to a REFRIGERATING SYSTEM which involves exposing any pipe work shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All ignition sources, including cigarette smoking, should be kept sufficiently away from the site of installation, repairing, removing and disposal, due to which refrigerant can possibly be released to the surrounding space. For any work taking place, the area around the equipment shall be surveyed to make sure that there are no flammable hazards or ignition risks. "No Smoking" signs shall be displayed.

- Checking for presence of refrigerant, the area shall be checked with appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially toxic or flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with applicable refrigerants, i.e., non-sparking, adequately sealed, or intrinsically safe.

- Ensure that the area is in the open or that it is adequately ventilated.

before breaking into the system or conducting any hot work. Adequate ventilation shall continue during the period that the work is carried out. Ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

- Where electrical components are being changed, they shall be fit for purpose and to the correct specification. At all times, the manufacturer's maintenance and service guidelines shall be followed. If in doubt, consult the manufacturer's technical department for assistance.

- Detection of flammable refrigerants: Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.

Defrosting

Defrost for better freezing efficiency when the frost film in the cabinet is 5mm (1/5") thick.

When defrosting, turn off the power, take out the frozen foods, open the door for warming and melting. Use a soft cloth to absorb water and clean up.

Extract the water conduit and put it in a water container.

Do not use sharp metal tools such as a steel brush to clean the frost when defrosting, so as to avoid evaporator damage.

Never use hairdryers, electrical heaters, or other such electrical appliances for defrosting.

When defrosting has finished, drain the water in the bottom of the freezer by removing the cap, as illustrated below.

There is a water conduit at the bottom of the freezer. When defrosting, extract the rubber cover; the defrosted water will drip into the hole and out.

NOTES: PLEASE KEEP THE RUBBER COVER SAFE DURING THE DEFROSTING AND PUT IT BACK AFTER THE DEFROSTING IS COMPLETE.

Trouble Shooting

Breakdown	Case	Removal method
The indicator is not on.The compressor doses n start.	The plug isn't connected to the socket really.	Replug it.
	no power	Connect the sockewith power.
The indicator is on ,but com- pressor doesn't w or and buzzes only	The power voltage <98V.	Put a power-regulater more than 1000W powertogether.
The compressor stops a minute after start, and restart after a few minut and so repeatedly.	The power voltage >132V.
The compressor works normally,but the temperature in th cabinetlowers too slowly.	The door is opened too frequently.	Reduce open times.
	The food in the cabinet is too much, and placed improperly.	Place foods properly keep plac between them for ventilation of cold air.
	The frost film is too thick.	Take out foods are defrost.
	The surface of the condenser is too dirty.	Stop and clean the condenser.
	The door seals bad	Adjust the door seal.
The noise is too loud	The freezer is place unstably.	Place it stably.
	The fixing of the freezer is loose.	Tighten the fixing.
	there's contact between pipes.	Separate them.

The following are not faults:

• When the freezer is working or after stopping for a while, the refrigerant in the pipes is cycling and gives 'routing water' sounds.
• The surface temperature of the compressor may be up to 70~80°C/158~176°F when it is working.
• The back side of the step freezer gives out heat.
• In rainy season, the outer surface of the cabinet may have dew, which makes no defects on normal use. Just dry it with a piece of cloth.

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: BD-355JA/BD-505JA/BD-600

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: BD-355JA/BD-505JA/BD-600

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: BD-355JA/BD-505JA/BD-600

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: BD-355JA/BD-505JA/BD-600

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from when buying certain tools from us compared to top brands, and do not necessarily mean that all categories of tools offered will actually save you half in comparison with the top major brands. We kindly remind you to verify carefully when placing an order with us.

MODEL: BD-355JA/BD-505JA/BD-600

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

CHEST FREEZER

MODEL: BD-355JA/BD-505JA/BD-600

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from when buying certain tools from us compared to top brands, and do not necessarily mean that all categories of tools offered will actually save you half in comparison with the top major brands. We kindly remind you to verify carefully when placing an order with us.

MODEL: BD-355JA/BD-505JA/BD-600

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: BD-355JA/BD-505JA/BD-600

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

www.vevor.com/support
