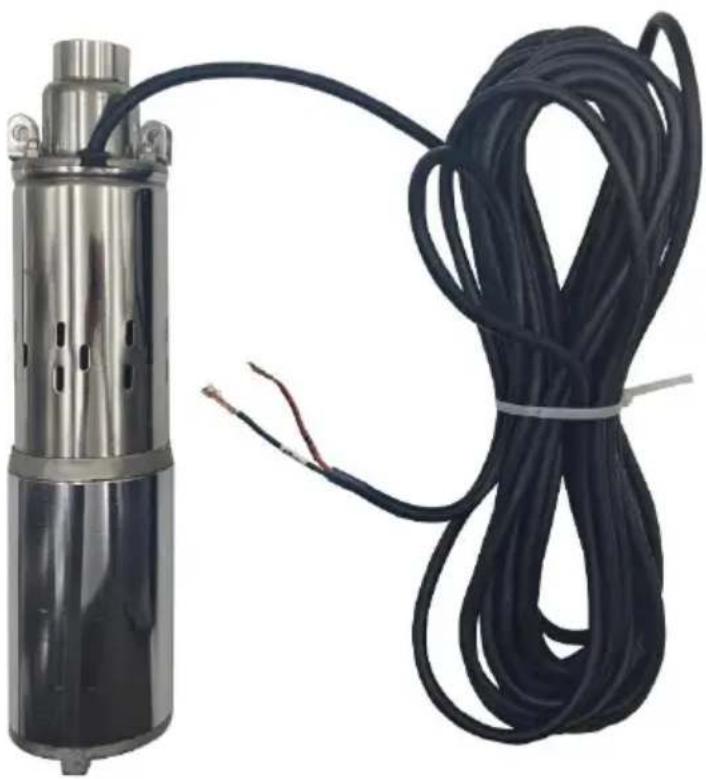

Electric water pump with attached black cable and wire, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	This device complies with Part 15 of the FCC Rules. Operat subject to the following two conditions:(1)This device may not harmful interference, and (2)this device must accept any inter received, including interference that may cause undesired oper
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electri electronic devices

WARNING

DO NOT use any Submersible pump for petrol/gasoline, petroleum products.solvents, thinners or ANY other flammable liquid with flash point below 82°(180°F). NOT FOR USE where flammable vapors are present.

BEFORE CONNECTING OR OPERATING THIS PRODUCT, PLEASE READ THESE INSTRUCTIONS COMPLETELY.

PRODUCT OVERVIEW

- DC deep well electric pump 12V, 24V, 36V, 48V, 60V, 72V adopts brush DC motor; Since the DC carbon brush motor has the structure ac motor, it can run By, easy to maintain a series of advantages, the dc motor running power Many advantages, such as high rate, no excitation loss and good speed regulation performance, are increasing popular in various fields of the national economy.

- The electric pump is made of high-quality screw or impeller and stable steel, which has the characteristics of low power consumption high large flow, compact structure, novel advanced light and durable, easy maintain and so on. Dc 12v,24V, 36V 48V 60V,72Velectric pump is suitable for power supply with corresponding voltage, All kinds of sh and aquaculture. The water supply and drainage of grassland anima husbandry and mining enterprises is portable ideal water carrier.

INSTRUCTIONS FOR USE

• Before use, check that the supply voltage is consistent with the pur the voltage tolerance is 5%.
• When using additional cables, the wire diameter of the drawer wire should be thick enough.
• Before use, check whether the bolts are loose and whether there is damage or bad contact at the power cord and the insertion cord.
  ●The lift and release of the electric pump should be tied to the lift hand put, do not pull the cable.
  ●Water if there are sand and other sundries, the electric pump should placed in a basket or with prevention Dirt and sundries are set an to prevent water pump from blocking.
  ●After 500 hours of power operation, the pump shall be removed For maintenance, the seals shall be checked, the brush powder of commutator shall be cleaned, and the bearing butter and carbon brush shall be replaced.
• Before use, please determine the positive and negative poles of the water pump and the power supply, and the positive and negative pole the water pump should correspond to the positive and negative pole the power supply. (Connect the positive and negative electrodes, and press the screws on the inside of the outlet to fix the screws and them forward).
• Check the voltage of the solar photovoltaic panel/battery before use, voltage of the water pump needs to be matched with the voltage of solar photovoltaic panel/battery.
  ●The water depth of the pump shall not exceed 20 meters, otherwise water pressure is too high and the oil seal cannot bear it, which to the water inflow of the motor (Household electricity is strictly prohibited)!

TECHNICAL SPECIFICATIONS

Voltage range	24V-42V DC 5%
Optimum operating voltage	24V-36VDC 5%
Rated power	277W
Maximum head	272FT
Maximum flow rate	9.25GPM
Outlet thread specifications	1-inch (Barbed) BSPP(BSW)
Rated speed	4000 rpm
Pump body material	Iron + stainless steel

Voltage range	48V-82V DC 5%
Optimum operating voltage	48V-72V 5%
Rated power	369W
Maximum head	275FT
Maximum flow rate	8.4GPM
Outlet thread specifications	1-inch (Barbed) BSPP(BSW)
Rated speed	4000 rpm
Pump body material	Iron + stainless steel

ACCESSORIES LIST

1. Solar water pump *1
2. Barb interface *1
3. Rubber seals *1
4. Manual book *1

INSTALLATION

- You may need combinations of panels, especially for the larger pump. During connection of solar panels, you have to get the solar panel series in a line to reach the rated voltage of the pump. Then get lines mentioned in parallel to reach the rated current of the pump.

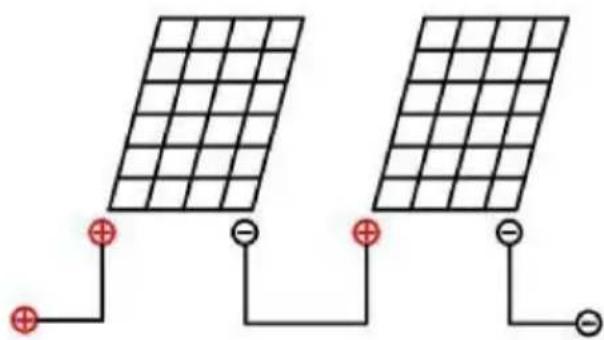

series

Two solar panels connected by lines with red and black symbols, no text or labels present

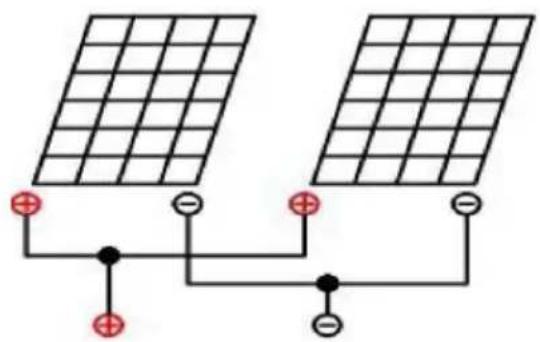

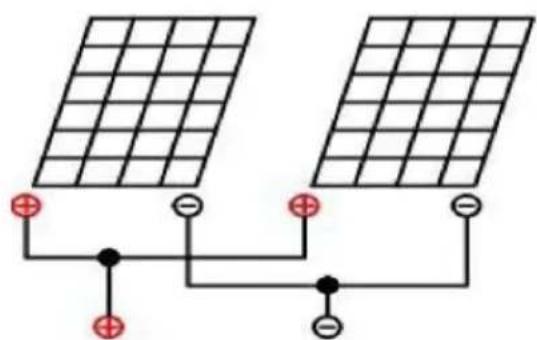

parallel

Two solar panels connected in series with power sources and measurement points (no text or symbols)

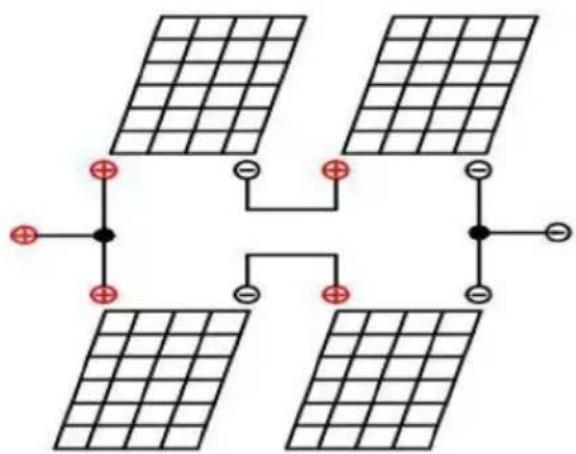

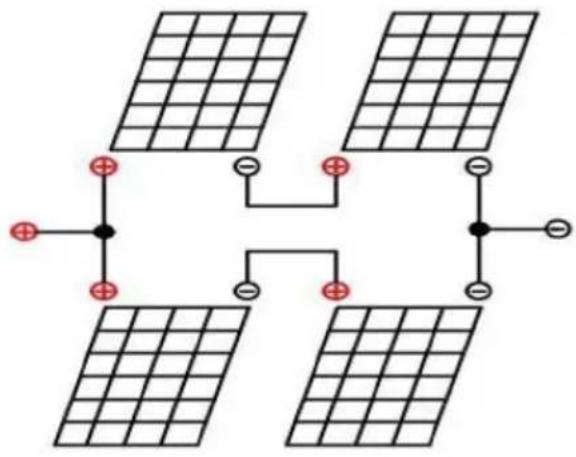

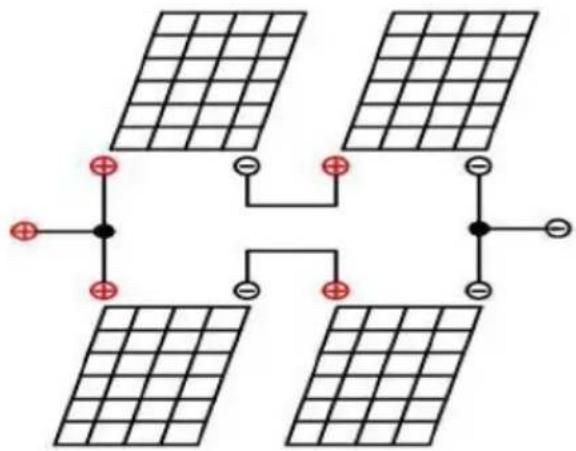

series and parallel

Diagram of solar panel array with red and black components, no text or symbols present

Tips:

- Panels in series, add the voltage current remains unchanged

- Panels in parallel, add the current the voltage remains unchanged

- You will need to buy battery if you want to pump water when it is sunny.

- You must use deep cycle batteries not car batteries. Deep cycle battery are designed to take much lower continual discharges than regular batteries.

- Please note even with a deep cycle battery discharging it to a low will shorten its life, this is why we use 60% as a discharge level

● 24V Solar water pump

Solar panel: each panel working voltage/power >30V/250W

Battery: 12V battery x 2pcs

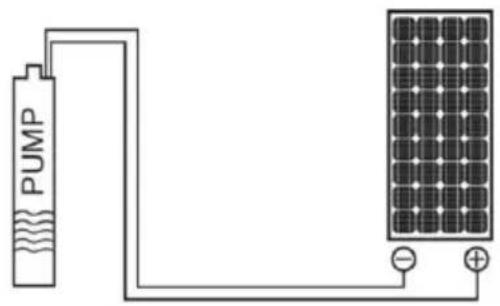

PUMP

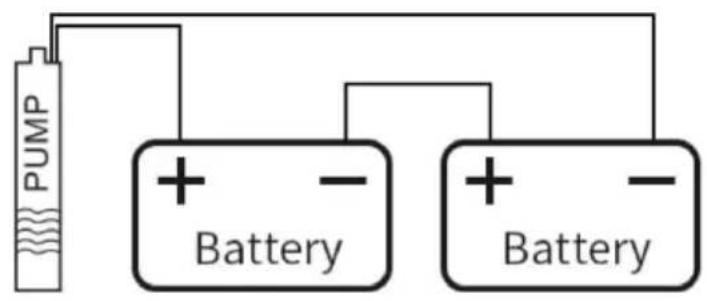

PUMP Battery Battery

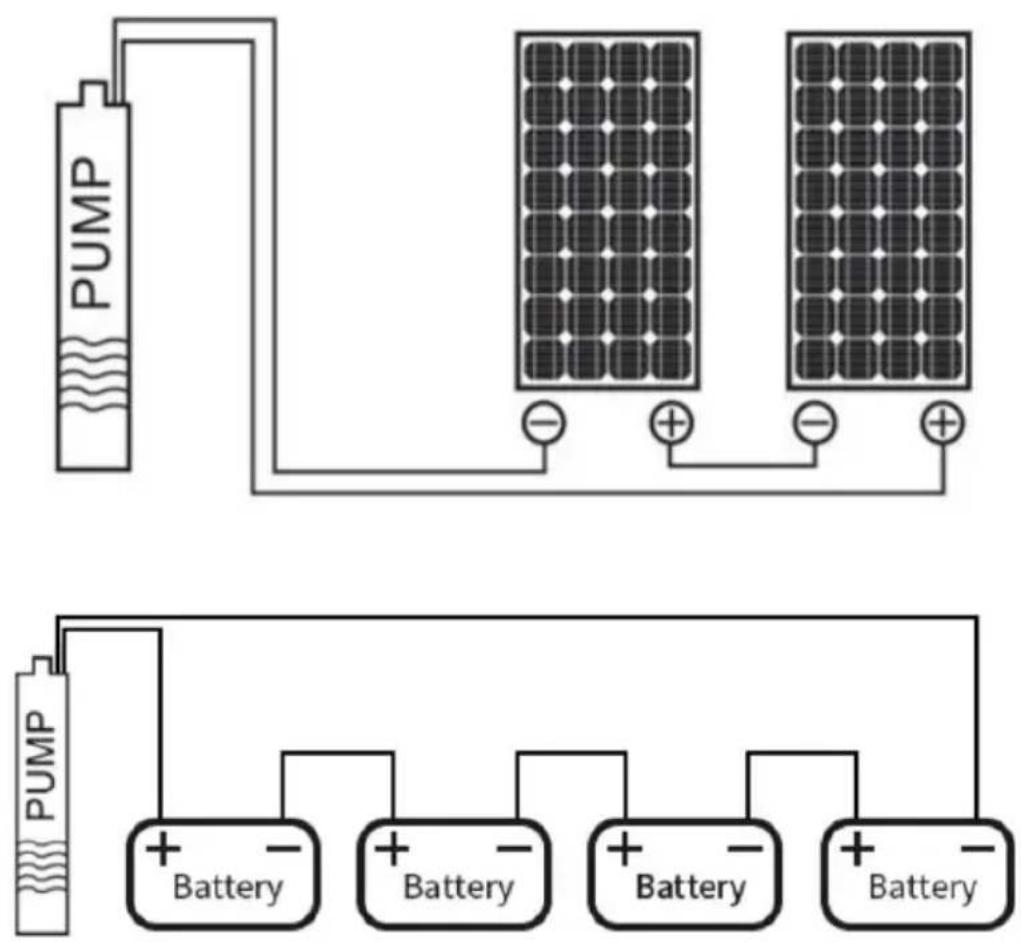

●48V Solar water pump

Solar panel: each panel working voltage/power

Battery: 12V battery x 4pcs

PUMP PUMP Battery Battery Battery Battery

TROUBLESHOOTING

The fault Phenomenor	The cause of the Problem	Fault elimination
The electric pump won give water	1.Power supply cut off or bad contact.2.The impeller or screw is stuck Debris3.Low inlet water level	1.Check whether the line socke is in good contact.2.Remove impurities in the filter screen and pump3.Put the pump in water with water level higher than the fi screen
Reduced water output	1.Low power supply, not up to ra Speed.2.The filter screen or impeller or screw Is obstructed by sundries.3.the additional wire diameter is t small.the resistance is too large.4.The water outlet is higher than maximum head of the pump.5.impeller or screw wear.6.carbon brush wear, spring elastis insufficient.	1.improve the power supply.2.Remove debris from the inside of the filter impeller or screw.3.Replace the cable with a thio enough diameter, but not more than the diameter of the inlet the pump.4.Lower the discharge head of water pipe.5.adjust the impeller or screw pump body clearance or repla impeller or screw blade.6.Replace the carbon brush.
Abnormal sound	bearing wear clearance is too long	Update the internal bearings
