USER MANUAL DTDB-10L-U Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ALCOHOL STILL

MODEL:

DTD-10L-U, DTD-10L-E, DTD-10L-A, DTD-20L-U, DTD-20L-E,

DTD-20L-A, DTD-30L-U, DTD-30L-E, DTD-30L-A,

DTD-50L-U, DTD-50L-E, DTD-50L-A

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:

DTD-10L-U, DTD-10L-E, DTD-10L-A, DTD-20L-U, DTD-20L-E, DTD-20L-A,

DTD-30L-U, DTD-30L-E, DTD-30L-A, DTD-50L-U, DTD-50L-E, DTD-50L-A

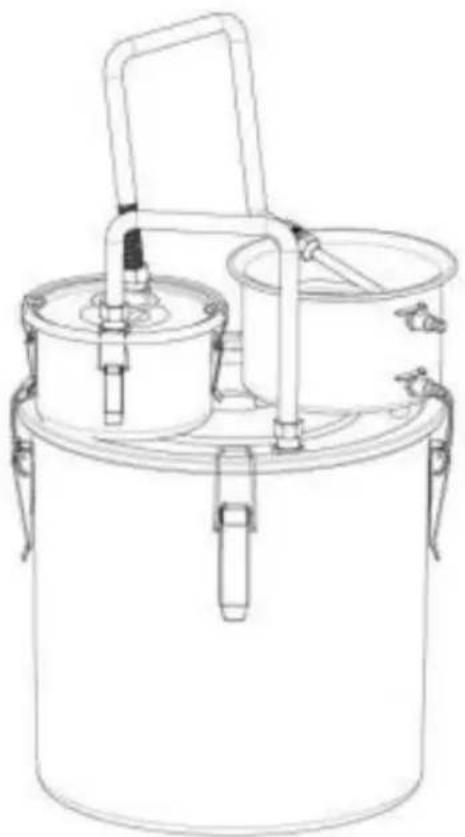

Line drawing of a cylindrical container with two internal compartments and a handle, no text or symbols present

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

safety instructions of the submersible aquarium pum

The manipulation and utilization of our pump are very simple and convenient. The user just needs to pour a suitable height level of water and link the pump with the outlet water pipe and then connect the pump with power supply in accordance with the mark on the lab Thus, the pump can run well.

Technical data

Model	JYC- 1100
Rating voltage	110 - 120V~	220 -240V~
Rating Frequency	60Hz	50Hz
Rating power	8W	8W
protection type	IPX8	IPX8
Max. supply height	110cm	110cm
Max. conveying amou	450L/h	450L/h

To reduce risk of electric shock

• Always unplug the pump from the electric outlet before cleaning and handling.
- use with clean water only. Do not place it in other liquid. Never let pump run dry.
- Option -The pump is supplied with ground in conductor and a grounding type attachment plug, and must be connected only to a ground outlet to reduce the risk of electric shock (Europe standard only).
- The use of liquid temperature can not be higher than 35^ .

• prevent the water from running into the electrical outlet down the c
• Do not lift, carry, or pull the pump by the power cord.
• Do not replace the pump cord. stop using the pump if it sustains (option for pump with safe low voltage).
  • Always use the transformer provided to run the water pump or con with your electrician before other transformer is connected.
• Do not connect the transformer provided to other appliance.
• Always unplug the power transformer from the electrical outlet before cleaning and handling.
• Indoor use only. place the transformer away from fire, moisture & sunlight. (option for pump with light)
• The supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped.

To clean the pump

- unplug the pump from electrical outlet. use a small soft brush or p underwater stream to remove debris.

To keep water clean

• periodically change water to prevent water from becoming sticky and forming microorganisms.

Troubleshooting

if the pump fails to run, the following should be checked, check the breaker, or try a different outlet to make sure that the pump is getting electrical power. NOTE-Always disconnect the pump from electrical outlet before checking.

- check the pump discharge and tubing for kinks and obstructions. buildup can be flushed out with a garden hose.

WARNING !!! the water pump must be fully soaked or it will be dar

Disposal information

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European union. This applies to the product and all accessories marks with this symbol. products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

compressor wine cooler 10L/20L/30L/50L

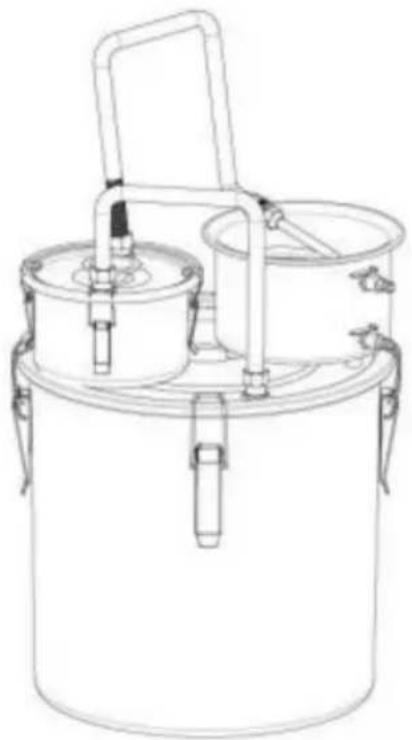

Line drawing of a cylindrical industrial container with two internal chambers and a handle (no text or symbols)

Model Number:

DTD-10L-U, DTD-10L-E, DTD-10L-A, DTD-20L-U, DTD-20L-E, DTD-20L-A, DTD-30L-U, DTD-30L-E, DTD-30L-A, DTD-50L-U, DTD-50L-E, DTD-50L-A,

ALCOHOL STILL

please read this manual carefully before using the product.

BOM

Item	Part Name	QTY	Picture
1	Boiler Lid	1PCS
2	Boiler pot	1PCS
3	cooling bucket	1PCS

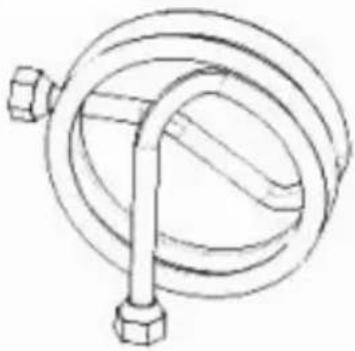

4	copper coil cooling pi	1PCS
5	Filter bucket lid	1PCS
6	Filter bucket	1PCS
7	silicone Tubes	2PCS
8	stainless steel connection pipe	2PCS
9	wine copper pipe	1PCS
10	Nut	1PCS
11	short silicone Tube	1PCS
12	copper Extension Tub	1PCS
13	Thermometer	1PCS
14	Brass Nut	1PCS
15	Bubble Airlock	1PCS
16	stopper	1PCS
17	silicone Gasket	4PCS
18	silicone washer	2PCS
19	Gasket	2PCS
20	pump	1PCS
21	user Manual	1PCS

Product Introduction

- stainless steel fermenters concentrate steam by heating to boiling and then cooling. In addition, the entire alcohol distillation unit is made of food-

grade stainless steel, which is durable and easy to clean.

- Efficient condensation Treatment: The alcohol distiller adopts stainless steel spiral tube, which has fast thermal conductivity and ensures gc cooling

performance. At the same time, it has a large contact area with the condenser keg and provides a relatively low distillation temperature.

- Full set of Accessories: The set comes with a thermometer (0 - 15 -302°F) for easy real-time monitoring of alcohol temperature. Also include a one-way vent valve and adds 2/3 water to it to help release air (out) when the grain is fermented. Our distillation kits also include an meter kit for accurate measurement of wine strength.

- Multiple Heating Methods: This wine boiler is compatible with various stoves including gas stove, coal stove, and firewood. It's perfect fo fermented liquors such as beer, brandy, whiskey, wine, and seasoning such as Soy sauce and vinegar.

The following are the reference data, the yield is mainly determined fermentation, distillate time and fire power.

Volume	Model No	Dimension(mm)
		wine barrel	cooling bucke	Filter barrel
3 Gal11.4L(±10%)	DTD- 1 0L-I	Φ250XH250	Φ200XH110	Φ180XH100
	DTD- 1 0L-I	Φ250XH250	Φ200XH110	Φ180XH100
	DTD- 1 0L-A	Φ250XH250	Φ200XH110	Φ180XH100
5 Gal19L(±10%)	DTD-20L-U	Φ300XH300	Φ200XH110	Φ180XH100
	DTD-20L-E	Φ300XH300	Φ200XH110	Φ180XH100
	DTD-20L-A	Φ300XH300	Φ200XH110	Φ180XH100
8 Gal30L(±10%)	DTD-30L-U	Φ350XH350	Φ200XH110	Φ180XH100
	DTD-30L-E	Φ350XH350	Φ200XH110	Φ180XH100
	DTD-30L-A	Φ350XH350	Φ200XH110	Φ180XH100
13.2 050L(±10%)	DTD-50L-U	Φ400XH400	Φ200XH110	Φ180XH100
	DTD-50L-E	Φ400XH400	Φ200XH110	Φ180XH100
	DTD-50L-A	Φ400XH400	Φ200XH110	Φ180XH100

Warning To reduce the risk of injury, user must read instructions manual carefully.

BEFORE YOU START

please read all instructions carefully.

Retain instructions for future reference. separate and count all and hardware.

Read through each step carefully and follow the proper order.

We recommend that, where possible, all items are assembled near area in which they will be placed in use, to avoid moving the process necessarily once assembled.

Always place the product on a flat , steady and stable surface.

keep all small parts and packaging materials for this product awa from babies and children as they potentially pose a serious choking hazard.

OWNER'S MANUAL

!ATTENTION! PLEASE READ THESE INTRUCIONS BEFORE USING THIS DEVICE

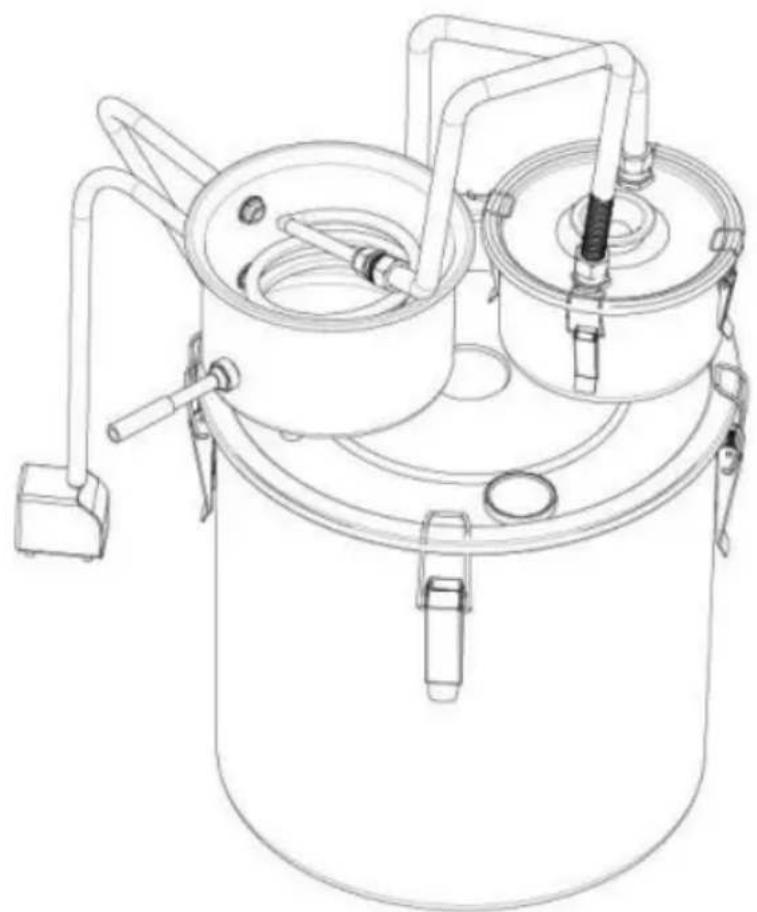

Line drawing of a cylindrical industrial vessel with internal components and piping (no text or symbols)

NOTICE:

If your package is missing parts or you are having issues with asser our customer service team will address any questions or concerns you may have . please have this manual open and ready for reference.

SAFETY

To reduce the risk of fire or injury when using your distiller follow tr precautions:

- If the water/Alcohol Distiller is to be used for making distilled alcohol beverages, it must be used only by adults of legal drinking age. No attempt to operate distiller while under the influence of alcohol, etc.

• consult federal and state laws and obtain any permits required for distilling alcohol.
  • Distilling outdoors is always preferred.
• Never use distiller over an open-flame heat source indoors. An electric heat source is preferred.
• Never leave hot or boiling liquids on a heat source unattended .
• keep distiller and any heating unit out of reach and away from chi o use caution when removing Boiler Lid while heating any liquid within the Boiler.
• To avoid affecting the normal operation of the distiller, it is recom not to exceed 70% of the rated volume during distillation.
• Do not heat or boil liquids in the distiller if all openings are blocked closed. steam and heat must be allowed to escape through the
• Condenser unit or one of the holes in the Boiler Lid for safe open Failure to do So may result high pressure and explosion.
• Prevent alcohol vapor from leaking from the Distiller Alcohol vapor is highly explosive.
  • Always check for, and address any leaks during the alcohol distilling process.
• To prevent liquid/mash contents of the boiler pot from overflowing c being forced up into the condenser copper tube or into the bubble a always leave approximately4" of airspace above the top of contents of boiler pot.
• RISK OF METHANOL POISONING: Avoid consumption of Methanol (Methyl Alcohol)!

Methanol can cause blindness and be fatal . carefully follow precaution recipes for distilled beverages. Discard the first 4- 7 oz (100 -200ml) liquid as it comes out of the condenser Distillate outlet , for of each gallons (20L) of fermented "mash " . These first ounces are often re to as " heads" or fore-shots". DO NOT CONSUME THEM .

PARTS & FEATURES

SETTING UP FOR DISTILLING

- Wash all parts with dish soap and hot water before assembling.

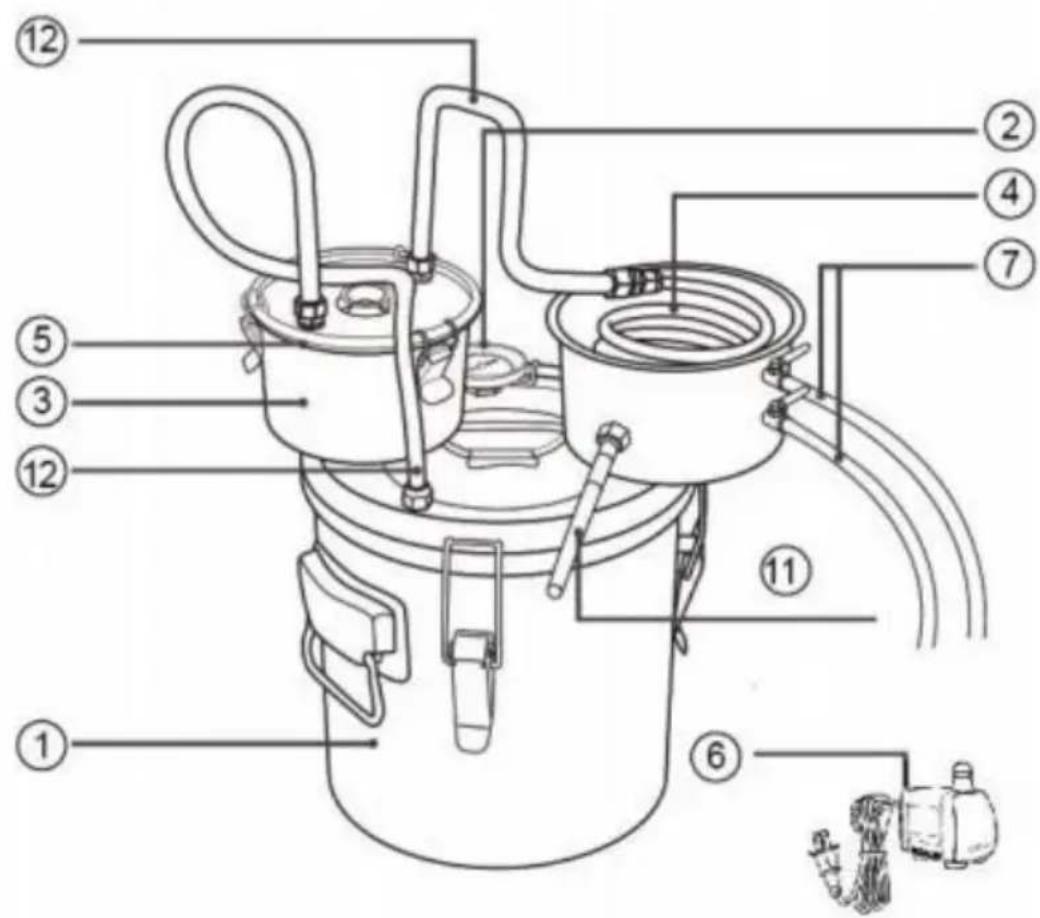

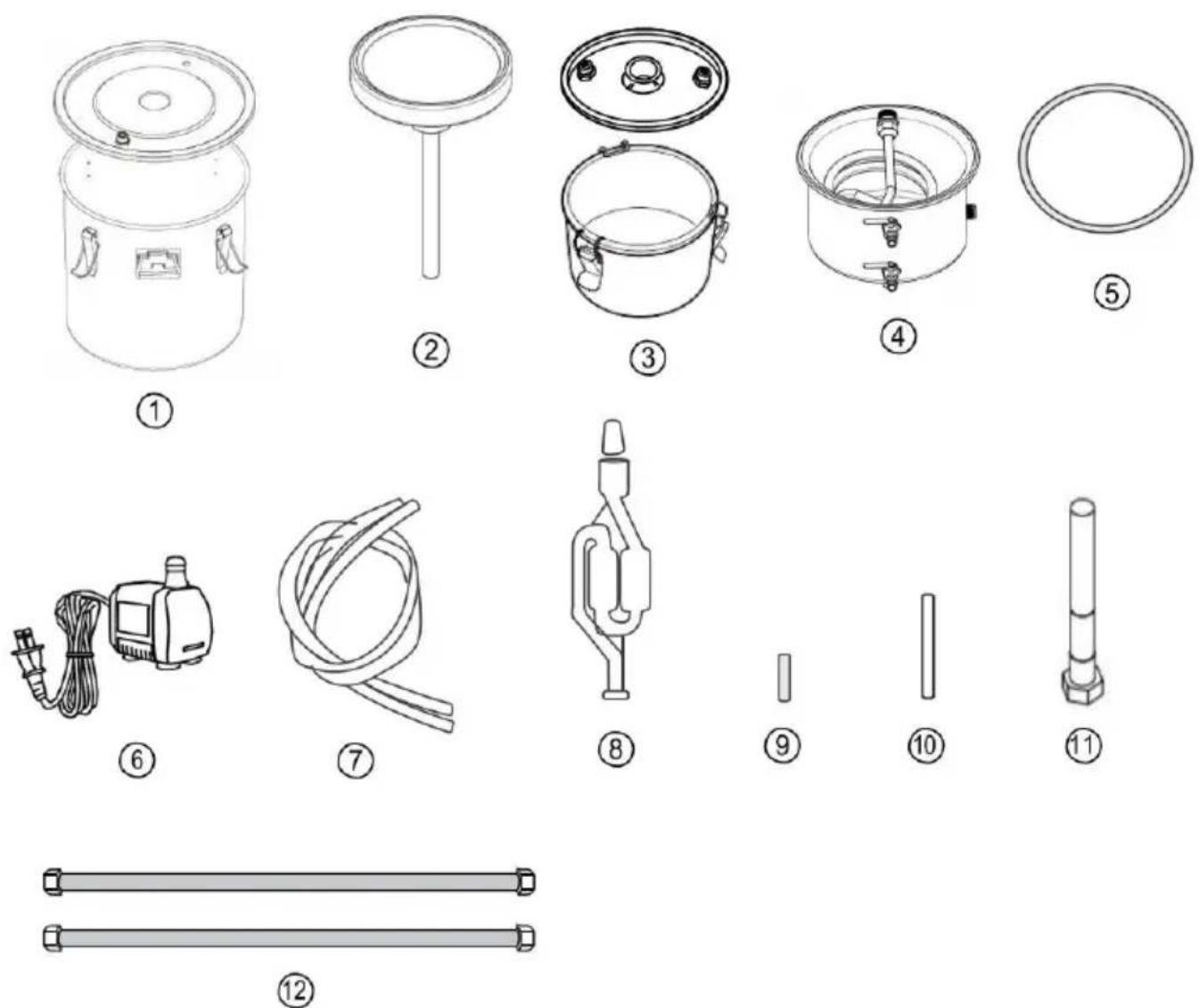

PARTS & FEATURES

1 Fermenter pot	X1	7water outlet/inlet	X1
2Metal thermometer	X1	8Exhaust valve	X1
3Thumper keg	X1	9Extension silicone tube	X1
4copper coil cooling pipe	X1	10Extension copper pipe	X1
5seal O-ring	X1	11wine out	X1
6pump	X1	12stainless steel	X2

Labeled diagram of a mechanical device with numbered components for identification

Equipment cleaning and Maintenance

The distiller needs to clean the inside of its pot, condenser and other components before or after each use , and drain all the impurities in. After we have used the distilled water dispenser, we need to clean it once in a while. pay attention to cleaning the inner wall of its evaporator pot, the inner wall of the condenser, the surface of the condenser tufthe scale in the outlet pipe of the condenser. Avoid affecting its use. For some newly purchased stills , we need to clean them first and then them on for more than 2 hours to evaporate until the obtained distillation water meets the requirements. Remember not to cut off the water duve use .

Note that when the distilled device is working , its surface temperature will be very high , So be careful not to touch it to prevent being s please wait until the temperature drops to normal temperature before cleaning.

USING YOUR WATER/ALCOHOL DISTILLER

Before making your first fermented and distilled beverages, or distillin water, perform the followings:

• wash all parts of your distiller with hot water and dish soap and completely.
  • perform a "vinegar Run" described in the Distilling section.
• If distilling water only, perform a "water Run" by distilling 1 gallon of clean water, which will be discarded.
• Your Distiller can be used for the fermentation process, and then the addition process.
• For fermenting, use the Fermenting configuration, for Distilling use. Distilling configuration.
• This product manual is not a complete guide to fermenting and dis order to produce a satisfying and safe product suitable for adult consumption, please consult books, recipes, and how-to resources videos on-line, in bookstores and libraries.
• Caution: RISK OF METHANOL POISONING
• Avoid consumption of Methanol (Methyl Alcohol)! Methanol can cause blindness and be fatal.
• Carefully follow precautions in recipes for distilled beverages. Discard the first4-7 oz (100 - 200ml) of liquid as it comes out of the condel. Distillate outlet, for of each 5 gallons (20L) of fermented "mash" first ounces are often referred to as "heads" or "foreshots". DO NO CONSUME THEM.

MAKING DISTILLED SPIRITS:

A2 stage process: Fermenting & Distilling STAGE1 : FERMENTATION

• Fermenting beverages into wine or beer is the first step to then play brandy, whiskey origin.
• The next step is distilling the results of fermentation, resulting in concentrations of alcohol, and refinement of color and flavors. Distillir

result a second time further concentrates alcohol and clarity.

• Fermentation is the process of microorganisms, usually yeast,
• converting (metabolizing) sugars into carbon dioxide and alcohol. TI carbon dioxide bubbles out of the beverage, leaving behind alcohol
• Beer, Ale and wine are fermented beverages which are complete a stage. They do not need to go through the second stage: distillation
• A wide variety of foods can be fermented. Grains such as corn, barley, or rye, are used for many beverages, such as beer and v Fruits, sugars, rice, and molasses are most often used to make wine, brandy, rum, and other spirits. potatoes are used to create vod
• You can use a separate large container for fermenting The ferment process happens over several days or weeks. You may wish to keep Distiller available for distilling only. use clean glass, stainless steel of food-safe ceramic or plastic containers. It's helpful to have 2 or more containers available.

SETTING UP FOR FERMENTING

- Wash all parts with dish soap and hot water before assembling.

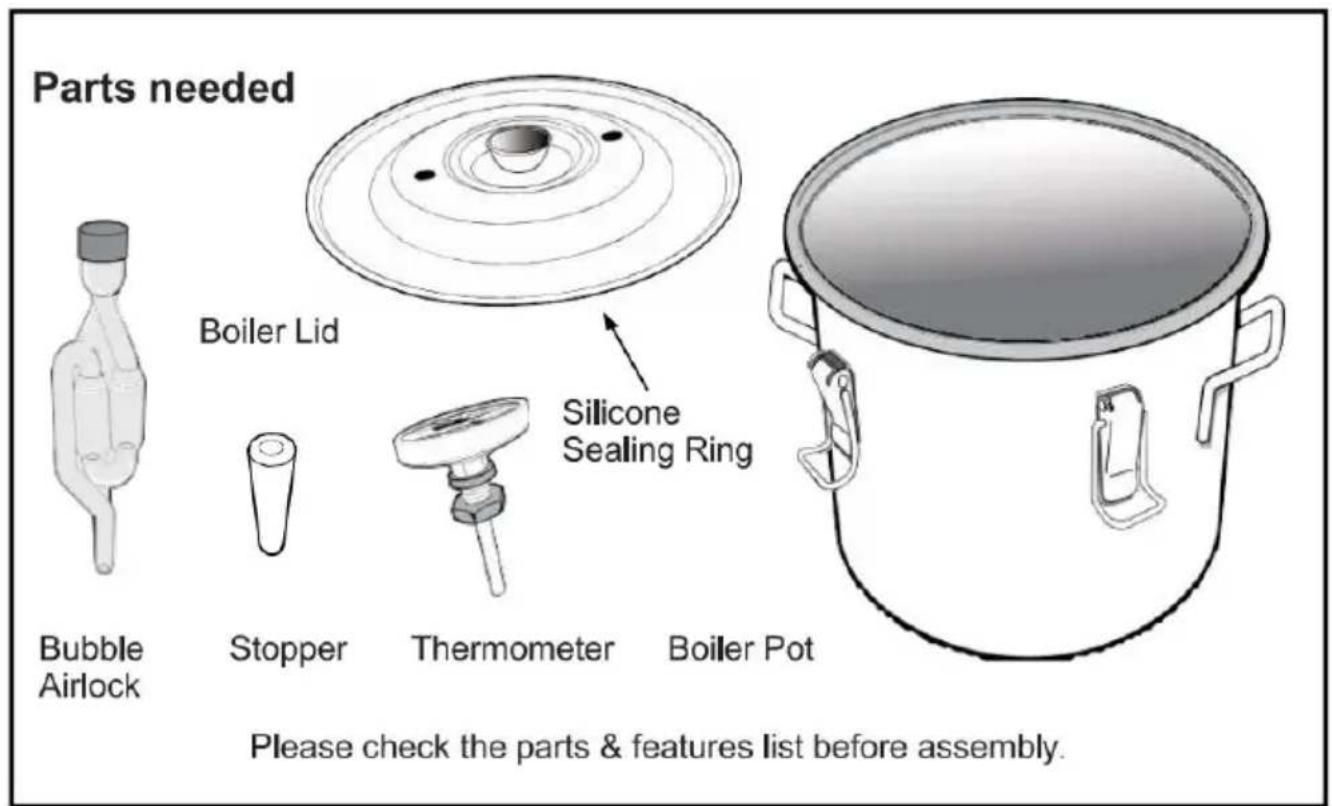

Parts needed Boiler Lid Silicone Sealing Ring Bubble Airlock Stopper Thermometer Boiler Pot Please check the parts & features list before assembly.

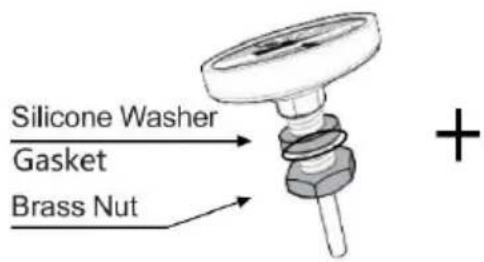

Attach Thermometer to Boiler Lid

Silicone Washer Gasket Brass Nut

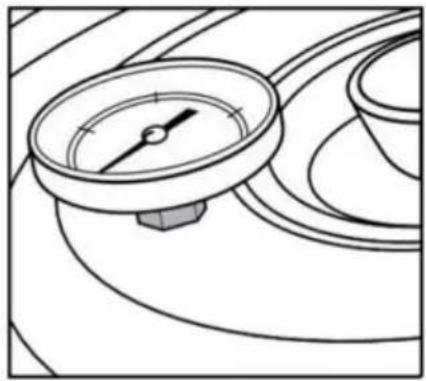

Step 1. Slide silicone washer and Gasket onto thermometer stem. Slide thermometer into either hole in boiler lid.

Diagram of the solar system showing concentric orbits around a central body (no text or labels)

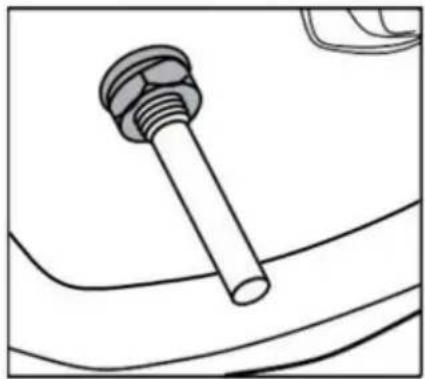

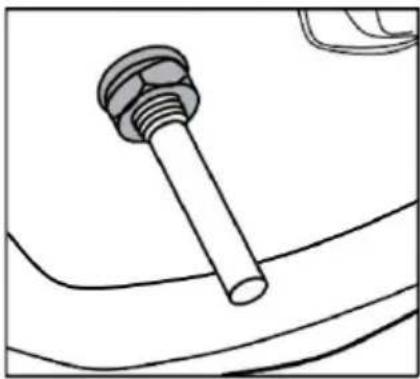

Step 2. Thread brass nut on thermometer stem under the boiler lid. Firmly tighten but avoid over-tightening.

Line drawing of a pressure gauge with attached tubing (no text or symbols)

Line drawing of a mechanical component with a cylindrical shaft and threaded end (no text or symbols)

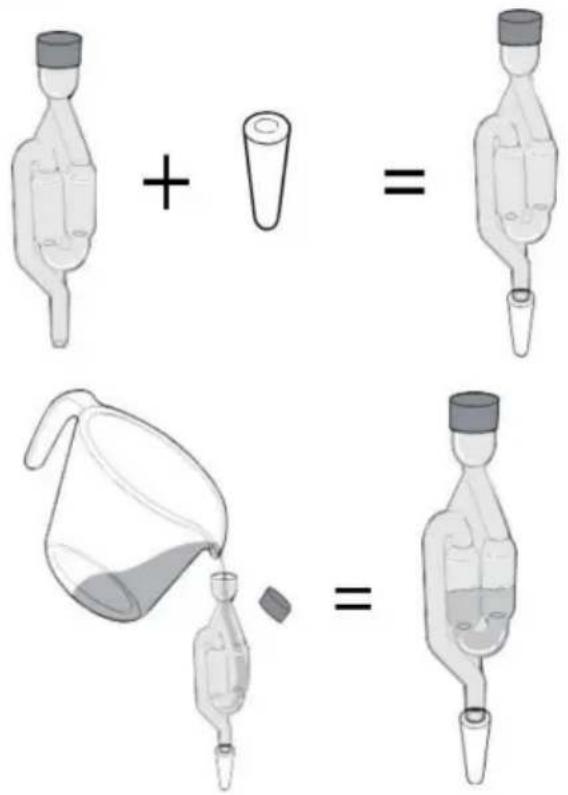

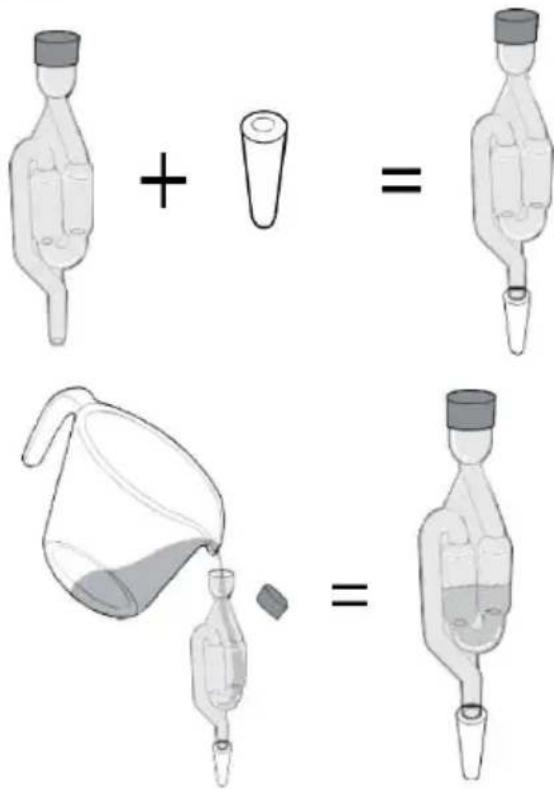

Preparing the Bubble Airlock

Step 1. Insert bottom end of Bubble Airlock into stopper.

Diagram illustrating the preparation and mixing of a laboratory flask using pipette and liquid, with labeled steps and formulas.

Step 2. Add a small amount of water or sanitizing solution to half fill the bubble airlock cavities.

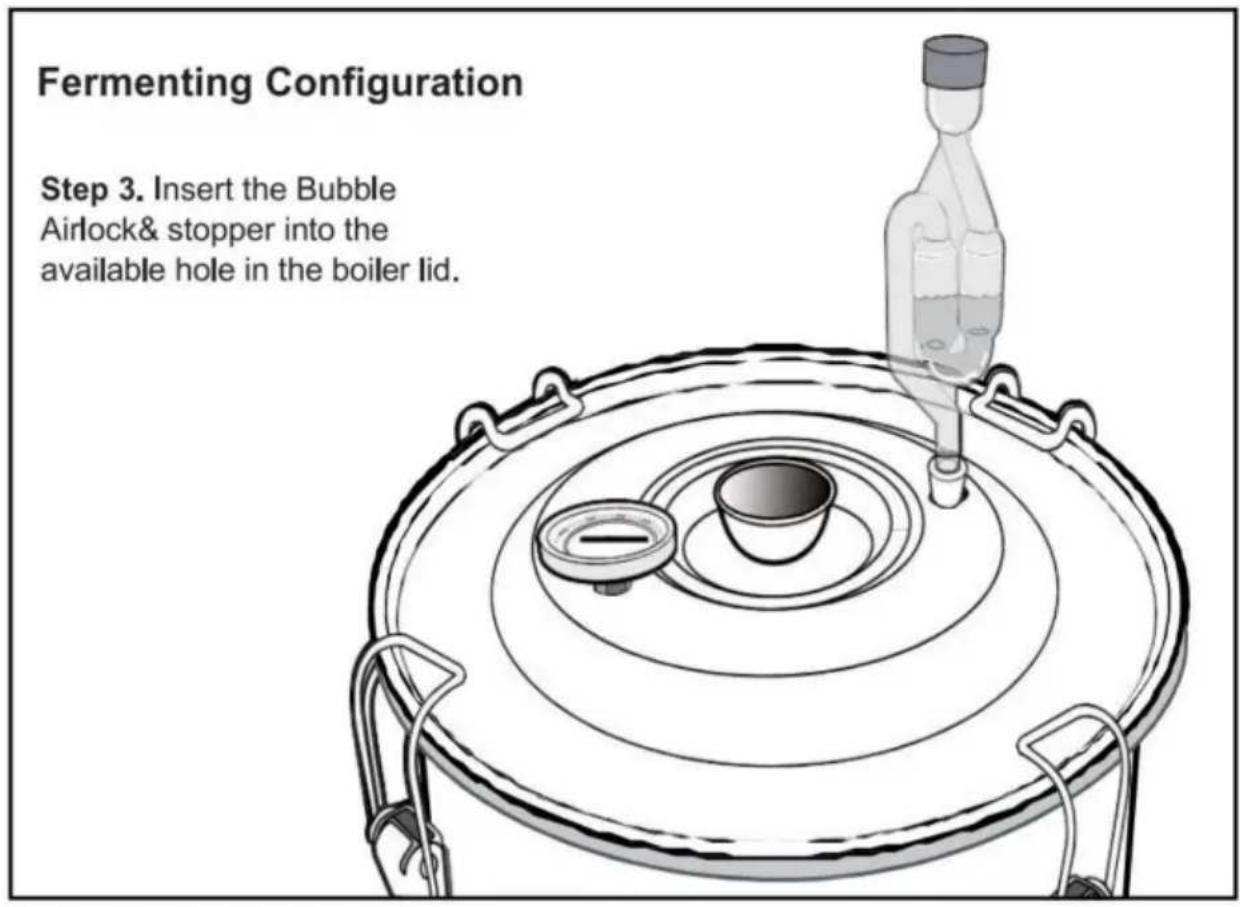

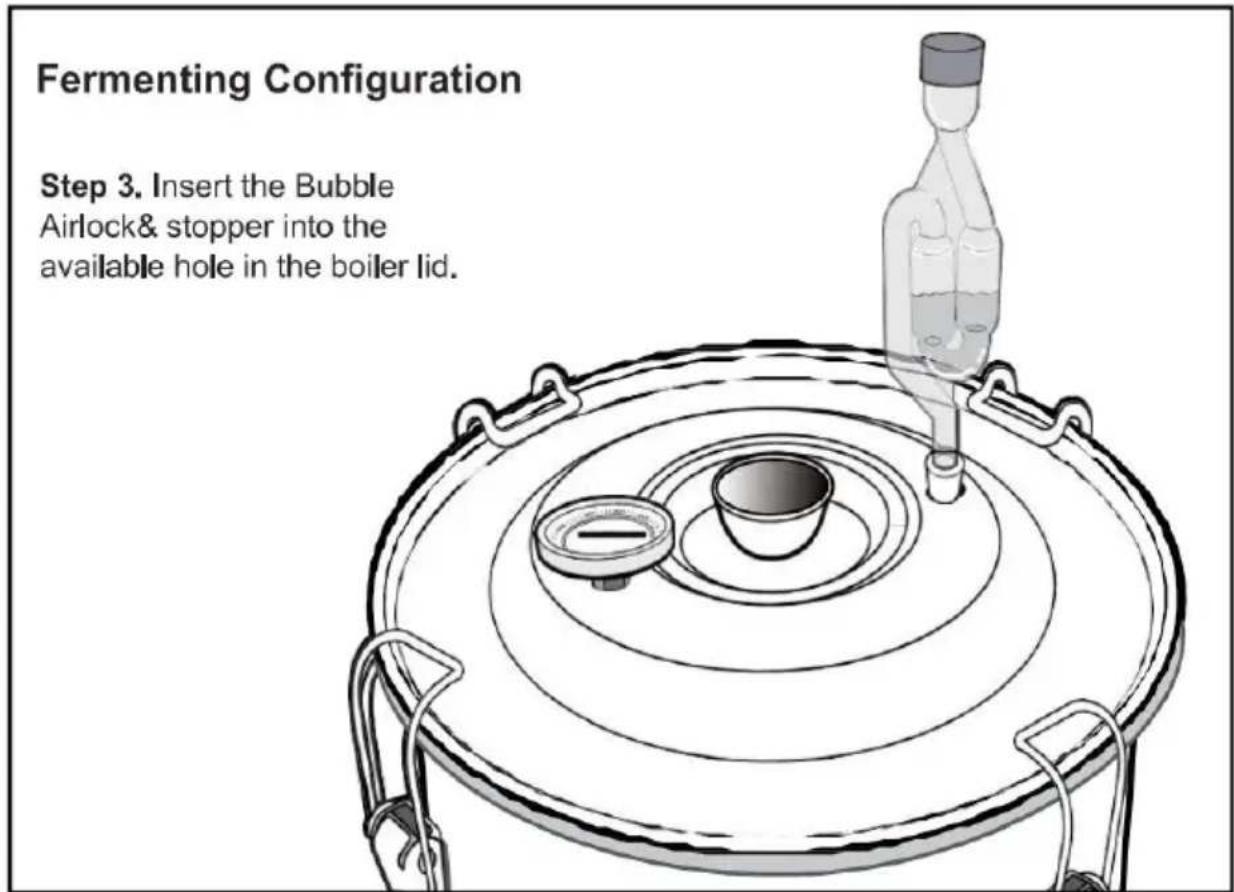

Fermenting Configuration Step 3. Insert the Bubble Airlock& stopper into the available hole in the boiler lid.

STAGE 2: DISTILLING

Distillation of fermented beverages is the process of concentrating the alcoholic content by separating much of the alcohol from the fermented product. slowly heating the fermented beverage in the Distillation causes the alcohol to vaporize, rise into the copper coil; then be cooled as it travels through the condenser. The alcohol in the fermented beverage turns to vapor at about 173^ , before the water content of the beverage turns to steam at 212^ . As the alcohol cools, it drips from the condenser Distillate outlet.

This more pure form of alcohol dipping from the Distillate outlet (afterinitial 4- 7 oz) is ethanol .

Read the caution about methanol(see Distillation configuration)

SET UP WATER FLOW TO CONDENSER

Provide a continuous source of cold water to the condenser pot.

cold water flowing into the condenser pot cools the distillate flow through the copper coil. There are two methods:

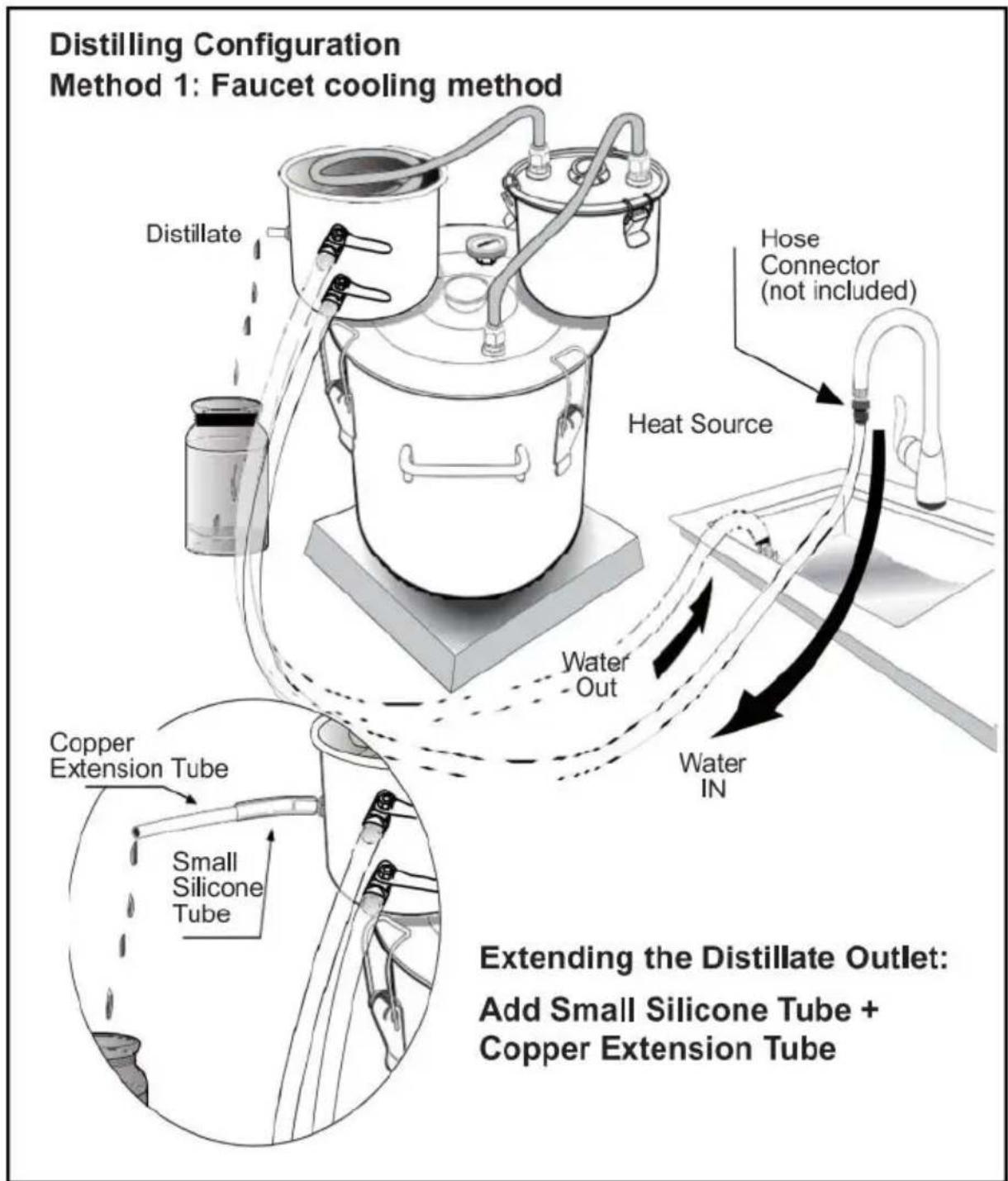

Method 1. Home faucet method:

Locate lose end of the condenser's "water out" tube. Attach a hose connector (not included) to it.

Attach hose connector your home faucet.

place the loose end of the "water out" tube to drain into sink basin

Distilling Configuration Method 1: Faucet cooling method Distillate Hose Connector (not included) Heat Source Water Out Water IN Copper Extension Tube Small Silicone Tube Extending the Distillate Outlet: Add Small Silicone Tube + Copper Extension Tube

BEFORE DISTILLING:

The preliminary Runs

Vinegar Run (using the Distilling configuration)

The vinegar Run cleans the parts of the distiller more thoroughly than and water. perform this before your first use of your Distiller.

step 1. combine 1/2 gallon white vinegar and 1/2 gallon tap water Boiler pot.

step 2. Latch in place the Distiller Lid with the condenser and Thermometer attached.

step 3. start cold water flow to the condenser.

step4. Heat on medium to high heat until steaming. and liquid drips the distillate outlet.

step 5. Turn off heat, allow to cool Dispose of the distilled vinegar water mixture.

step 6. Follow this by performing the "sacrificial Run".

Sacrificial Run (Final cleaning Run &christening of your still)

- The sacrificial Run clears the distiller pats of anything which might the purity of favors of your distilled beverages or distilled water. This is considered a "rite of passage".

- Follow instructions for making your first batch of a distilled beverage. Distill the first batch, but discard and do not drink it.

Caution about the output of Distilled Beverages:

• RISK OF METHANOL POISONING

Avoid consumption of Methanol (Methyl Alcohol)! Methanol can cause blindness and be fatal.

carefully follow precautions in recipes for distilled beverages Discard the first 4 -7 oz (100- 200ml) of liquid as it comes out of the condense. Distillate outlet , for of each 5 gallons (20L) of fermented " mash " first ounces are often referred to as " heads" or "foreshots". DO NO CONSUME THEM.

How to use

Distill Liquor

1. choose good common rice for steaming, add the steamed rice in ratio of 500g grain, 1kg water and 5g distilled yeast, mix well and carry out liquid fermentation.
2. Fermentation temperature of 20 -25°C, stirring once a day, fermentation 10 -20 days.
3. Fill the fermented grain into the matching filter bag and pour the produced during the fermentation process directly into the barrel. The place the bag containing the grain directly on the grate (to prevent gumming up the pot). After installation, the distillation starts, the pre-prepared submersible pump is connected to the power supply for cooling water circulation when there is heat at the outlet.

Distill Hydrolat

1. choose the petals or other plants you like.
2. soak the petals in pure water for 3-5 cm for 8 hours (only for d petals).
3. Take out the petals and place them in a matching strainer bag. Place the filter bag with the petals on the grate, pour the soaked water the bucket, install it and start distilling.

Distill Brandy

1. crush grapes, and add ingredients such as pectinase, yeast, fermentation promoter and tannin in proper order.
2. Add white sugar in the next day of fermentation, and generally speaks and residues after fermentation for 7 - 10 days.
3. Add bentonite into the separated wine for ageing and clarification.
4. put the separated peel and residue into a filter bag, put the bag grate and add water at the bottom of the barrel. The distilled spirit is brandy.

Ferment wine

1. crush grapes, and add sulfur regulating tablets to prevent microbial contamination.
2. Add pectinase to decompose pectin and increase juice yield. 3 . / yeast, ferment for 7- 10 days , and increase juice yield.
3. Add bentonite for clarification after filtration, brew for about 1 mo and put the wine in a bottle.
4. store the wine in a cool place after bottling.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

DTD-10L-U, DTD-10L-E, DTD-10L-A, DTD-20L-U, DTD-20L-E,

DTD-20L-A, DTD-30L-U, DTD-30L-E, DTD-30L-A,

DTD-50L-U, DTD-50L-E, DTD-50L-A

DTD-10L-U, DTD-10L-E, DTD-10L-A, DTD-20L-U, DTD-20L-E, DTD-20L-A,

DTD-30L-U, DTD-30L-E, DTD-30L-A, DTD-50L-U, DTD-50L-E, DTD-50L-A

Line drawing of a cylindrical industrial vessel with two tanks and a handle (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Line drawing of a cylindrical industrial container with two tanks and a handle (no text or symbols)

Numéro de modèle :

DTD-10L-U, DTD-10L-E, DTD-10L-A, DTD-20L-U, DTD-20L-E, DTD-20L-A, DTD-30L-U, DTD-30L-E, DTD-30L-A, DTD-50L-U, DTD-50L-E, DTD-50L-A,

ALCOOLISÉ

Line drawing of a cylindrical industrial vessel with two internal chambers and piping (no text or symbols)

AVIS:

Labeled diagram of a mechanical device with numbered components for identification

Parts needed Boiler Lid Silicone Sealing Ring Bubble Airlock Stopper Thermometer Boiler Pot Please check the parts & features list before assembly.

Attach Thermometer to Boiler Lid

Silicone Washer Gasket Brass Nut

+

Diagram of the solar system showing concentric orbits around a central body (no text or labels)

Step 2. Thread brass nut on thermometer stem under the boiler lid. Firmly tighten but avoid over-tightening.

Step 1. Slide silicone washer and Gasket onto thermometer stem. Slide thermometer into either hole in boiler lid.

Line drawing of a pressure gauge with attached tubing (no text or symbols)

Line drawing of a mechanical component with a cylindrical shaft and threaded end (no text or symbols)

Preparing the Bubble Airlock

Step 1. Insert bottom end of Bubble Airlock into stopper.

Diagram illustrating the equivalence between two laboratory glassware setups, showing addition of a test tube and pouring liquid into a container.

Step 2. Add a small amount of water or sanitizing solution to half fill the bubble airlock cavities.

Fermenting Configuration Step 3. Insert the Bubble Airlock& stopper into the available hole in the boiler lid.

ÉTAPE 2 : DISTILLATION

Distilling Configuration Method 1: Faucet cooling method Distillate Hose Connector (not included) Heat Source Water Out Water IN Copper Extension Tube Small Silicone Tube Extending the Distillate Outlet: Add Small Silicone Tube + Copper Extension Tube

AVANT LA DISTILLATION :

DTD-10L-U, DTD-10L-E, DTD-10L-A, DTD-20L-U, DTD-20L-E,

DTD-20L-A, DTD-30L-U, DTD-30L-E, DTD-30L-A,

DTD-50L-U, DTD-50L-E, DTD-50L-A

DTD-10L-U, DTD-10L-E, DTD-10L-A, DTD-20L-U, DTD-20L-E, DTD-20L-A,

DTD-30L-U, DTD-30L-E, DTD-30L-A, DTD-50L-U, DTD-50L-E, DTD-50L-A

Line drawing of a cylindrical industrial vessel with two tanks and a handle, no text or symbols present

Line drawing of a cylindrical industrial vessel with two circular chambers and a handle (no text or symbols)

Modellnummer:

DTD-10L-U, DTD-10L-E, DTD-10L-A, DTD-20L-U, DTD-20L-E, DTD-20L-A, DTD-30L-U, DTD-30L-E, DTD-30L-A, DTD-50L-U, DTD-50L-E, DTD-50L-A,

ALKOHOL-DESTILLE

Line drawing of a cylindrical industrial vessel with two internal chambers and piping (no text or symbols)

BEACHTEN:

Labeled diagram of a mechanical device with numbered components for identification

Parts needed Boiler Lid Silicone Sealing Ring Bubble Airlock Stopper Thermometer Boiler Pot Please check the parts & features list before assembly.

Attach Thermometer to Boiler Lid

Silicone Washer Gasket Brass Nut

+

Diagram of the solar system showing concentric orbits around a central body (no text or labels)

Step 2. Thread brass nut on thermometer stem under the boiler lid. Firmly tighten but avoid over-tightening.

Step 1. Slide silicone washer and Gasket onto thermometer stem. Slide thermometer into either hole in boiler lid.

Line drawing of a pressure gauge with attached tubing (no text or symbols)

Line drawing of a mechanical component with a cylindrical shaft and threaded end (no text or symbols)

Preparing the Bubble Airlock

Step 1. Insert bottom end of Bubble Airlock into stopper.

Diagram illustrating the equivalence between two laboratory glassware setups, showing addition of a test tube and pouring liquid into a container.

Step 2. Add a small amount of water or sanitizing solution to half fill the bubble airlock cavities.

Fermenting Configuration Step 3. Insert the Bubble Airlock& stopper into the available hole in the boiler lid.

STUFE 2: DESTILLIEREN

Distilling Configuration Method 1: Faucet cooling method Distillate Hose Connector (not included) Heat Source Water Out Water IN Copper Extension Tube Small Silicone Tube Extending the Distillate Outlet: Add Small Silicone Tube + Copper Extension Tube

VOR DEM DESTILLIEREN:

Die Vorläufe

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Modello DTD-10L-U, DTD-10L-E, DTD-10L-A, DTD-20L-U, DTD-20L-E,

Modello DTD-20L-A, DTD-30L-U, DTD-30L-E, DTD-30L-A,

Modello DTD-50L-U, DTD-50L-E, DTD-50L-A

Line drawing of a cylindrical industrial vessel with two tanks and a handle (no text or symbols)

Line drawing of a cylindrical industrial vessel with two circular chambers and a handle (no text or symbols)

Numero modello:

Modello DTD-10L-U, DTD-10L-E, DTD-10L-A, DTD-20L-U, DTD-20L-E, DTD-20L-A, D Modello TD-30L-U, DTD-30L-E, DTD-30L-A, DTD-50L-U, DTD-50L-E, DTD-50L-A,

ALCOOL ALambicco

Line drawing of a cylindrical industrial vessel with two internal chambers and piping (no text or symbols)

AVVISO:

Labeled diagram of a mechanical device with numbered components for identification

Parts needed Boiler Lid Silicone Sealing Ring Bubble Airlock Stopper Thermometer Boiler Pot Please check the parts & features list before assembly.

Attach Thermometer to Boiler Lid

Silicone Washer Gasket Brass Nut

+

Diagram of the solar system showing concentric orbits around a central body (no text or labels)

Step 2. Thread brass nut on thermometer stem under the boiler lid. Firmly tighten but avoid over-tightening.

Step 1. Slide silicone washer and Gasket onto thermometer stem. Slide thermometer into either hole in boiler lid.

Line drawing of a pressure gauge with attached tubing (no text or symbols)

Line drawing of a mechanical component with a cylindrical shaft and threaded end (no text or symbols)

Preparing the Bubble Airlock

Step 1. Insert bottom end of Bubble Airlock into stopper.

Diagram illustrating the equivalence between two laboratory glassware setups, showing addition of a test tube and pouring liquid into a container.

Step 2. Add a small amount of water or sanitizing solution to half fill the bubble airlock cavities.

Fermenting Configuration Step 3. Insert the Bubble Airlock& stopper into the available hole in the boiler lid.

Distilling Configuration Method 1: Faucet cooling method Distillate Hose Connector (not included) Heat Source Water Out Water IN Copper Extension Tube Small Silicone Tube Extending the Distillate Outlet: Add Small Silicone Tube + Copper Extension Tube

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

DTD-10L-U, DTD-10L-E, DTD-10L-A, DTD-20L-U, DTD-20L-E,

DTD-20L-A, DTD-30L-U, DTD-30L-E, DTD-30L-A,

DTD-50L-U, DTD-50L-E, DTD-50L-A

DTD-10L-U, DTD-10L-E, DTD-10L-A, DTD-20L-U, DTD-20L-E, DTD-20L-A,

DTD-30L-U, DTD-30L-E, DTD-30L-A, DTD-50L-U, DTD-50L-E, DTD-50L-A

Line drawing of a cylindrical industrial vessel with two tanks and a handle (no text or symbols)

Line drawing of a cylindrical industrial container with two tanks and a handle (no text or symbols)

Número de modelo:

DTD-10L-U, DTD-10L-E, DTD-10L-A, DTD-20L-U, DTD-20L-E, DTD-20L-A, DTD-30L-U, DTD-30L-E, DTD-30L-A, DTD-50L-U, DTD-50L-E, DTD-50L-A,

ALCOHOL AL DESCUBIERTO

Line drawing of a cylindrical industrial vessel with two internal chambers and piping (no text or symbols)

AVISO:

Labeled diagram of a mechanical device with numbered components for identification

Parts needed Boiler Lid Silicone Sealing Ring Bubble Airlock Stopper Thermometer Boiler Pot Please check the parts & features list before assembly.

Attach Thermometer to Boiler Lid

Silicone Washer Gasket Brass Nut

+

Diagram of the solar system showing concentric orbits around a central body (no text or labels)

Step 2. Thread brass nut on thermometer stem under the boiler lid. Firmly tighten but avoid over-tightening.

Step 1. Slide silicone washer and Gasket onto thermometer stem. Slide thermometer into either hole in boiler lid.

Line drawing of a pressure gauge with attached tubing (no text or symbols)

Line drawing of a mechanical component with a cylindrical shaft and threaded end (no text or symbols)

Preparing the Bubble Airlock

Step 1. Insert bottom end of Bubble Airlock into stopper.

Diagram illustrating the equivalence between two laboratory glassware setups, showing addition of a test tube and pouring liquid into a container.

Step 2. Add a small amount of water or sanitizing solution to half fill the bubble airlock cavities.

Fermenting Configuration Step 3. Insert the Bubble Airlock& stopper into the available hole in the boiler lid.

Distilling Configuration Method 1: Faucet cooling method Distillate Hose Connector (not included) Heat Source Water Out Water IN Copper Extension Tube Small Silicone Tube Extending the Distillate Outlet: Add Small Silicone Tube + Copper Extension Tube

ANTES DE DESTILAR:

DTD-10L-U, DTD-10L-E, DTD-10L-A, DTD-20L-U, DTD-20L-E, DTD-20L-A,

DTD-30L-U, DTD-30L-E, DTD-30L-A, DTD-50L-U, DTD-50L-E, DTD-50L-A

Line drawing of a cylindrical industrial vessel with two tanks and a handle, no text or symbols present

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Line drawing of a cylindrical industrial vessel with two circular tanks and a handle (no text or symbols)

Numer modelu:

DTD-10L-U, DTD-10L-E, DTD-10L-A, DTD-20L-U, DTD-20L-E, DTD-20L-A, DTD-30L-U, DTD-30L-E, DTD-30L-A, DTD-50L-U, DTD-50L-E, DTD-50L-A,

ALKOHOL NIEZWYKŁY

Line drawing of a cylindrical industrial vessel with two internal chambers and piping (no text or symbols)

OGŁOSZENIE:

Labeled diagram of a mechanical device with numbered components for identification

PRODUKCJA DESTYLOWANYCH ALKOHOLI:

Parts needed Boiler Lid Silicone Sealing Ring Bubble Airlock Stopper Thermometer Boiler Pot Please check the parts & features list before assembly.

Attach Thermometer to Boiler Lid

Silicone Washer Gasket Brass Nut

+

Diagram of the solar system showing concentric orbits around a central body (no text or labels)

Step 2. Thread brass nut on thermometer stem under the boiler lid. Firmly tighten but avoid over-tightening.

Step 1. Slide silicone washer and Gasket onto thermometer stem. Slide thermometer into either hole in boiler lid.

Line drawing of a pressure gauge with attached tubing (no text or symbols)

Line drawing of a mechanical component with a cylindrical shaft and threaded end (no text or symbols)

Preparing the Bubble Airlock

Step 1. Insert bottom end of Bubble Airlock into stopper.

Diagram illustrating the equivalence between two laboratory glassware setups, showing addition of a test tube and pouring liquid into a container.

Step 2. Add a small amount of water or sanitizing solution to half fill the bubble airlock cavities.

Fermenting Configuration Step 3. Insert the Bubble Airlock& stopper into the available hole in the boiler lid.

ETAP 2: DESTYLACJA

Distilling Configuration Method 1: Faucet cooling method Distillate Hose Connector (not included) Heat Source Water Out Water IN Copper Extension Tube Small Silicone Tube Extending the Distillate Outlet: Add Small Silicone Tube + Copper Extension Tube

PRZED DESTYLACJA:

Wstępne biegi

DTD-10L-U, DTD-10L-E, DTD-10L-A, DTD-20L-U, DTD-20L-E, DTD-20L-A,

DTD-30L-U, DTD-30L-E, DTD-30L-A, DTD-50L-U, DTD-50L-E, DTD-50L-A

Line drawing of a cylindrical industrial vessel with two tanks and a handle, no text or symbols present

HULP NODIG? NEEM CONTACT MET ONS OP!

Line drawing of a cylindrical industrial container with two tanks and a handle (no text or symbols)

Modelnummer:

DTD-10L-U, DTD-10L-E, DTD-10L-A, DTD-20L-U, DTD-20L-E, DTD-20L-A, DTD-30L-U, DTD-30L-E, DTD-30L-A, DTD-50L-U, DTD-50L-E, DTD-50L-A,

ALCOHOL NOG STEEDS

Line drawing of a cylindrical industrial vessel with two internal chambers and piping (no text or symbols)

KENNISGEVING:

Labeled diagram of a mechanical device with numbered components for identification

Parts needed Boiler Lid Silicone Sealing Ring Bubble Airlock Stopper Thermometer Boiler Pot Please check the parts & features list before assembly.

Attach Thermometer to Boiler Lid

Silicone Washer Gasket Brass Nut

+

Diagram of the solar system showing concentric orbits around a central body (no text or labels)

Step 2. Thread brass nut on thermometer stem under the boiler lid. Firmly tighten but avoid over-tightening.

Step 1. Slide silicone washer and Gasket onto thermometer stem. Slide thermometer into either hole in boiler lid.

Line drawing of a pressure gauge with a central pointer and flange (no text or symbols)

Line drawing of a mechanical component with a cylindrical shaft and threaded end (no text or symbols)

Preparing the Bubble Airlock

Step 1. Insert bottom end of Bubble Airlock into stopper.

Diagram illustrating the equivalence between two laboratory glassware setups, showing addition of a test tube and pouring liquid into a container.

Step 2. Add a small amount of water or sanitizing solution to half fill the bubble airlock cavities.

Fermenting Configuration Step 3. Insert the Bubble Airlock& stopper into the available hole in the boiler lid.

FASE 2: DISTILLEREN

Distilling Configuration Method 1: Faucet cooling method Distillate Hose Connector (not included) Heat Source Water Out Water IN Copper Extension Tube Small Silicone Tube Extending the Distillate Outlet: Add Small Silicone Tube + Copper Extension Tube

VOOR HET DESTILLEREN:

De voorrondes

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

DTD-10L-U, DTD-10L-E, DTD-10L-A, DTD-20L-U, DTD-20L-E,

DTD-20L-A, DTD-30L-U, DTD-30L-E, DTD-30L-A,

DTD-50L-U, DTD-50L-E, DTD-50L-A

Line drawing of a cylindrical industrial vessel with two tanks and a handle, no text or symbols present

BEHÖVER HJÄLP? KONTAKTA OSS!

Line drawing of a cylindrical industrial container with two internal chambers and a handle (no text or symbols)

Modellnummer:

DTD-10L-U, DTD-10L-E, DTD-10L-A, DTD-20L-U, DTD-20L-E, DTD-20L-A, DTD-30L-U, DTD-30L-E, DTD-30L-A, DTD-50L-U, DTD-50L-E, DTD-50L-A,

ALKOHOL ÄNDÅ

Line drawing of a cylindrical industrial vessel with two internal chambers and piping (no text or symbols)

VARSEL:

Labeled diagram of a mechanical device with numbered components for identification

Parts needed Boiler Lid Silicone Sealing Ring Bubble Airlock Stopper Thermometer Boiler Pot Please check the parts & features list before assembly.

Attach Thermometer to Boiler Lid

Silicone Washer Gasket Brass Nut

+

Diagram of the solar system showing concentric orbits around a central body (no text or labels)

Step 2. Thread brass nut on thermometer stem under the boiler lid. Firmly tighten but avoid over-tightening.

Step 1. Slide silicone washer and Gasket onto thermometer stem. Slide thermometer into either hole in boiler lid.

Line drawing of a pressure gauge with handle and dial (no text or symbols)

Line drawing of a mechanical component with a cylindrical shaft and threaded end (no text or symbols)

Preparing the Bubble Airlock

Step 1. Insert bottom end of Bubble Airlock into stopper.

Diagram illustrating the equivalence between two laboratory glassware setups, showing addition of a test tube and pouring liquid into a container.

Step 2. Add a small amount of water or sanitizing solution to half fill the bubble airlock cavities.

Fermenting Configuration Step 3. Insert the Bubble Airlock& stopper into the available hole in the boiler lid.

STEG 2: DESTILLERING

Distilling Configuration Method 1: Faucet cooling method Distillate Hose Connector (not included) Heat Source Water Out Water IN Copper Extension Tube Small Silicone Tube Extending the Distillate Outlet: Add Small Silicone Tube + Copper Extension Tube

INNAN DESTILLERING:

www.vevor.com/support
