USER MANUAL 5030 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

No chair Roman chair

MODEL:5030

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

No chair Roman chair

MODEL:5030

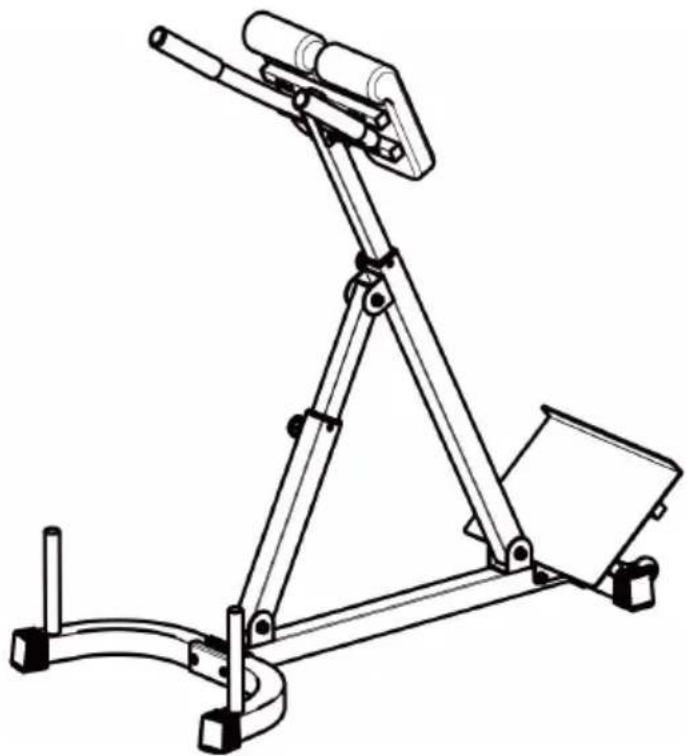

Line drawing of a treadmill exercise setup with adjustable arms and legs (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Thank you very much for choosing this product.

Please read all of the instructions before using it. The information will you achieve the best possible results.

Operation safety

WARNING:

Please read all instructions before using this product It is the Owner's responsibility to ensure that all users of this product are fully aware of all warnings and precautions.

·Do not use it if you are pregnant

·Before beginning any exercise program consult your physician.

- Read all instruction before using this product.

- Keep children and pets away from product while in use. Children shot not use. The product. without adult supervision.

- Inspect and tighten all parts each time before using this sit-up bench

- Please clean this machine using damped wipes only.Do not use any cleansers.Please Consult with customer service if you have any question

- This product should be placed on a flat surface when using. Place an anti-slippery mat under the machine if needed.

- Please wear proper clothes when using this product.

·Do not use it if it is not functional or parts are not well-assembled.

·If you feel any chest pains, nausea, dizziness, or short of breadth, you should stop exercising immediately and consult your physician before continuing.

·Before use, always ensure that your product is positioned on a solid hard-flat surface.

- Store idle equipment out of reach of children and do not allow any unfamiliar with the equipment to use it. This tool is dangerous in the of untrained users.

- When using the product, the crowd of onlookers must keep adistan meters to avoid accidental injury.

Prohibition sign showing a pictogram of a person crossed out by a diagonal line, enclosed in a circle (no text or symbols)

At NO time should pets or children under the age closer to the product than 3 m (10 feet). At NO tin children under the age of 12 use the product. Child the age of 12 should not use the product without a supervision.

Exercise Plans

1. Beginners are recommended to start with less reps, 5 reps as 1 set example and add reps as goes.
2. Please do not exercise half an hour before /after meals or 1 hour sleep.
3. Please make exercise plans.

Part List

No.	Description	Qty	No.	Description	Qty
1.	U-shaped foot tube	1PC	10.	Elbow pad	2PC
2.	footing	1PC	11.	Barbell placement tube	2PC
3.	Front foot	1PC	12.	M10*70 screw	2PC
4.	Foot pedal	1PC	13.	Pin of pull	2PC
5.	Front riser	1PC	14.	M8*40 screw	4PC
6.	Rear riser	1PC	15.	Φ10*20Flat pad	11PC
7.	Rear regulating tube	1PC	16.	Lock nut	11PC
8.	Adjusting bracket	1PC	17.	M10*70 Hexagon sockescrew	11PC
9.	Left armrest	1PC	18.	Right armrest	1PC

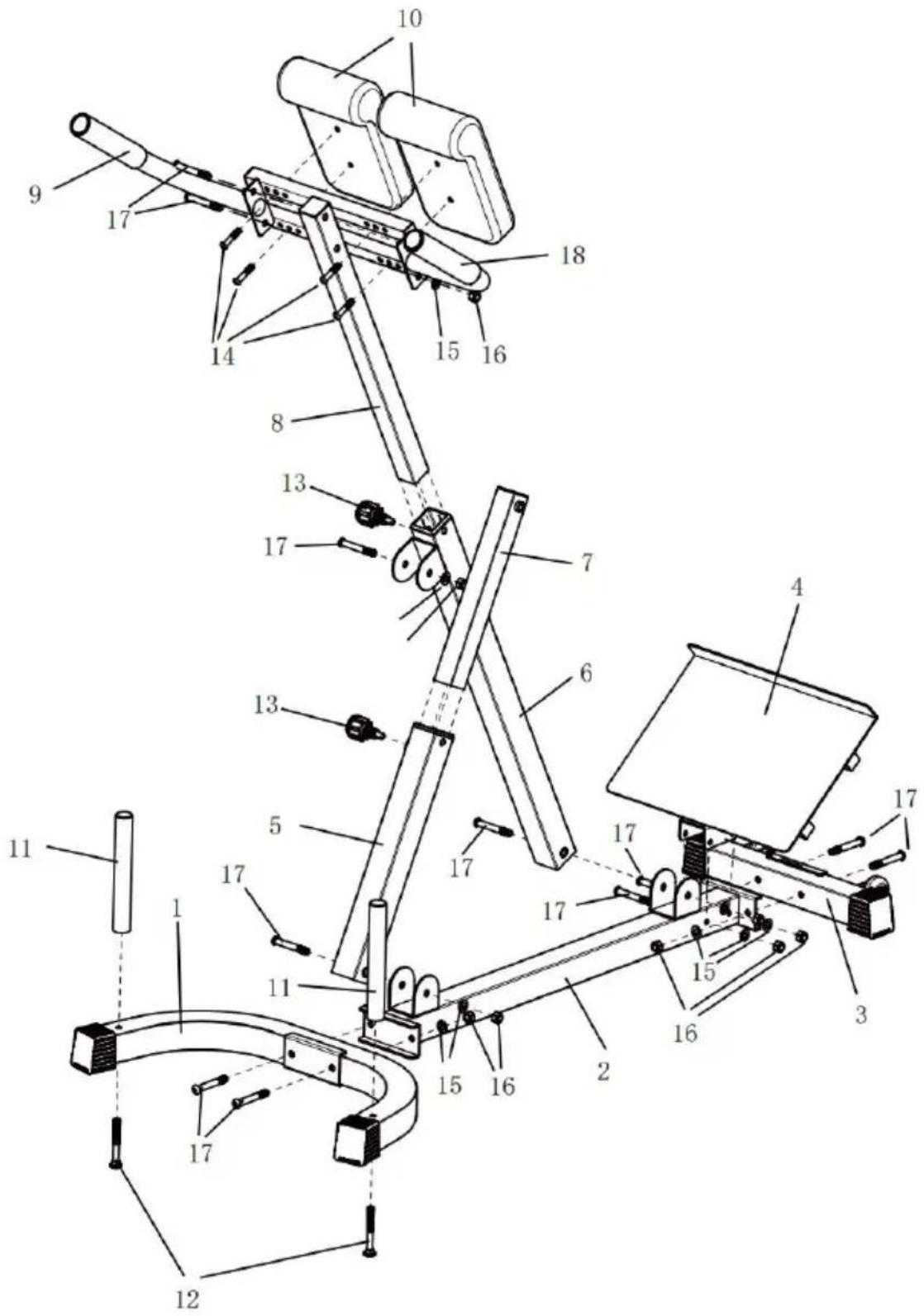

Exploded Diagram

Please note that not all of the parts and hardware you see here will used while you are

assembling the machine because some of these are already pre-install

Technical diagram of a mechanical assembly with numbered components for identification

Part List

11pc	21pc	31pc	41pc
-GAY4]1pc	61pc	1pc
9-1pcs	102pcs	11-2pcs	122pcs
132pcs	144pcs	1511pcs	1611pcs
1711pcs	181pcs

NOTE: To avoid misalignment due to over-tightening, please do not use wrench at this time.

Hand-tightening for now will help ensure easy assembly.

Wrench-tightening should be performed after all parts are assembled to ensure all nuts, bolts, and parts are tightly secured before use.

With the help of an assistant.

Assembly

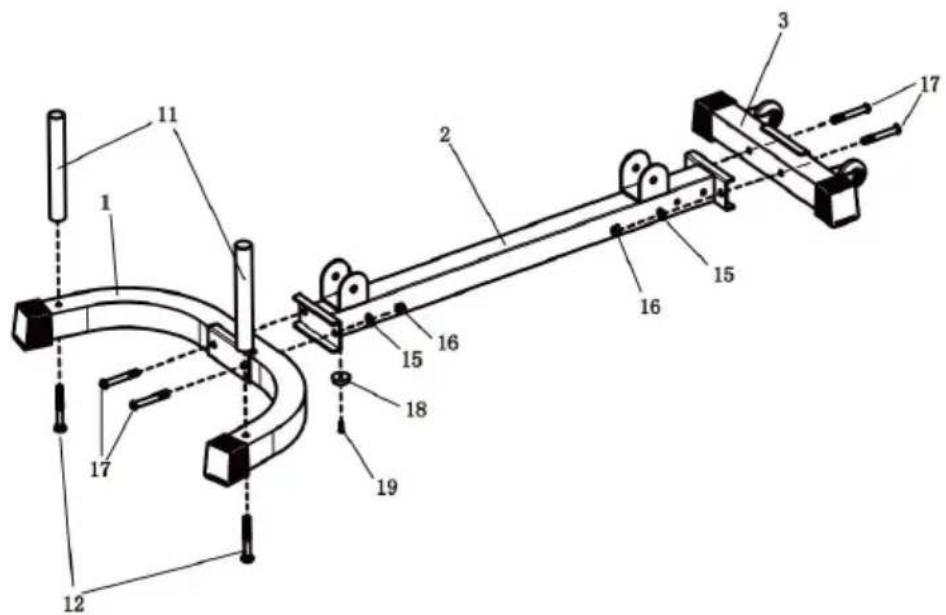

Step 1:

A) Attach the barbell placement tube (11) to the U-pin tube (1) with M10X70 screws (12).
B) Fix the U-shaped foot tube (1) on the bottom beam (2) through 1 of screws :M10X70 hex socket screws (17), 10X20 flat gasket (15)

M10 locknut (16). Install in the corner without the foot pedal fixing holes (C) by two sets of screws: M10X70 hex socket screws (17), 10X20 flanges (15), M10 locknut (16), fix the front ground sticking tube (3) or bottom beam (2), install in the place where the foot pedal fixing holes are provided

Technical diagram of a mechanical assembly with numbered components, likely a conveyor or transmission system.

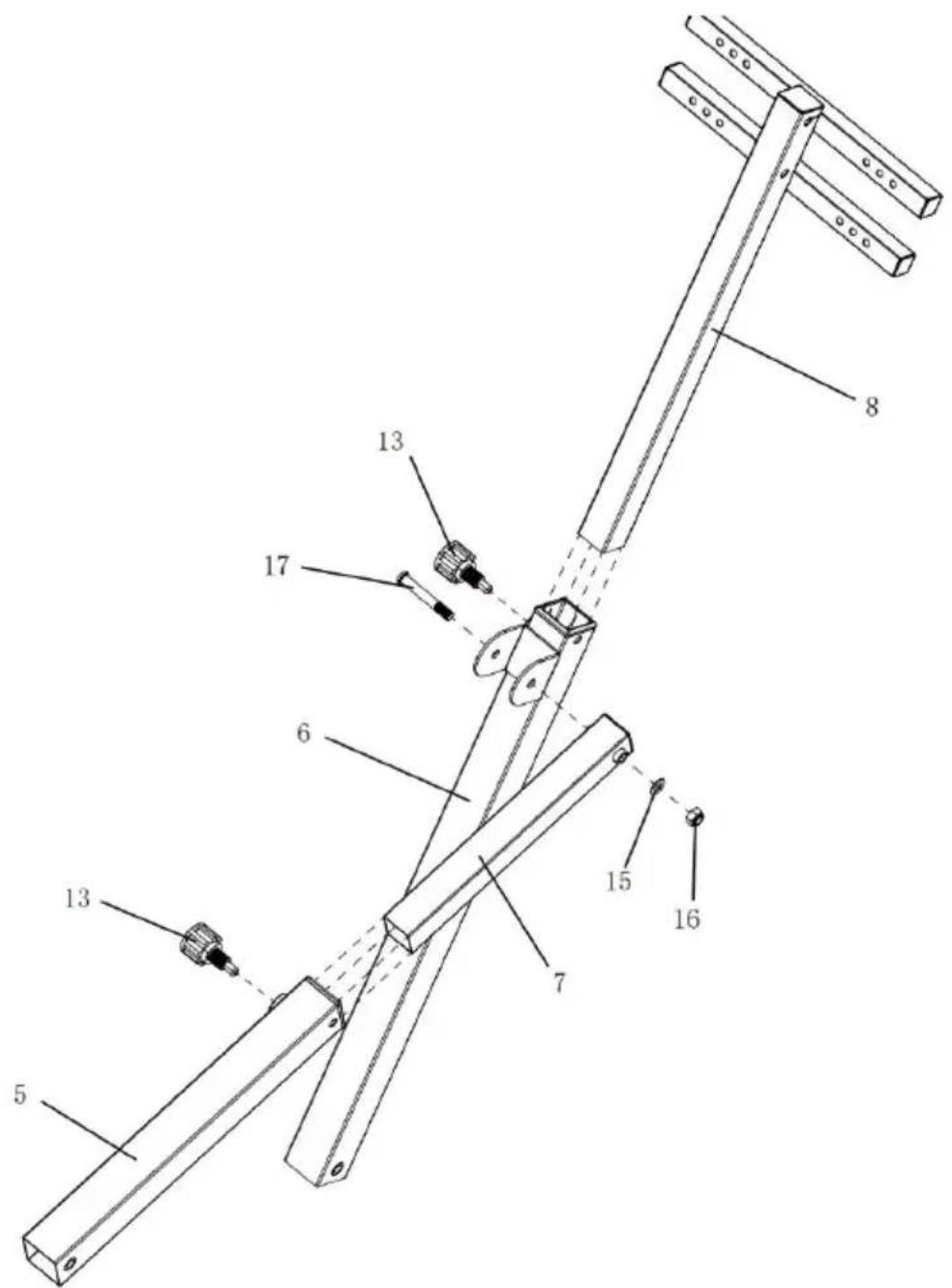

Step 2:

A) Assemble the rear riser (5) with the rear regulating tube (7) and it with a pull pin (13).
B) Assemble the front riser (6) with the adjusting frame (8) and secu with a pull pin (13).
C) Assemble the two assembled support tubes with a set of screws hex socket screws (17), 10X20 flat gaskets (15), and M10 lock nut (

Technical diagram of a mechanical assembly with numbered components, likely a ladder or support structure.

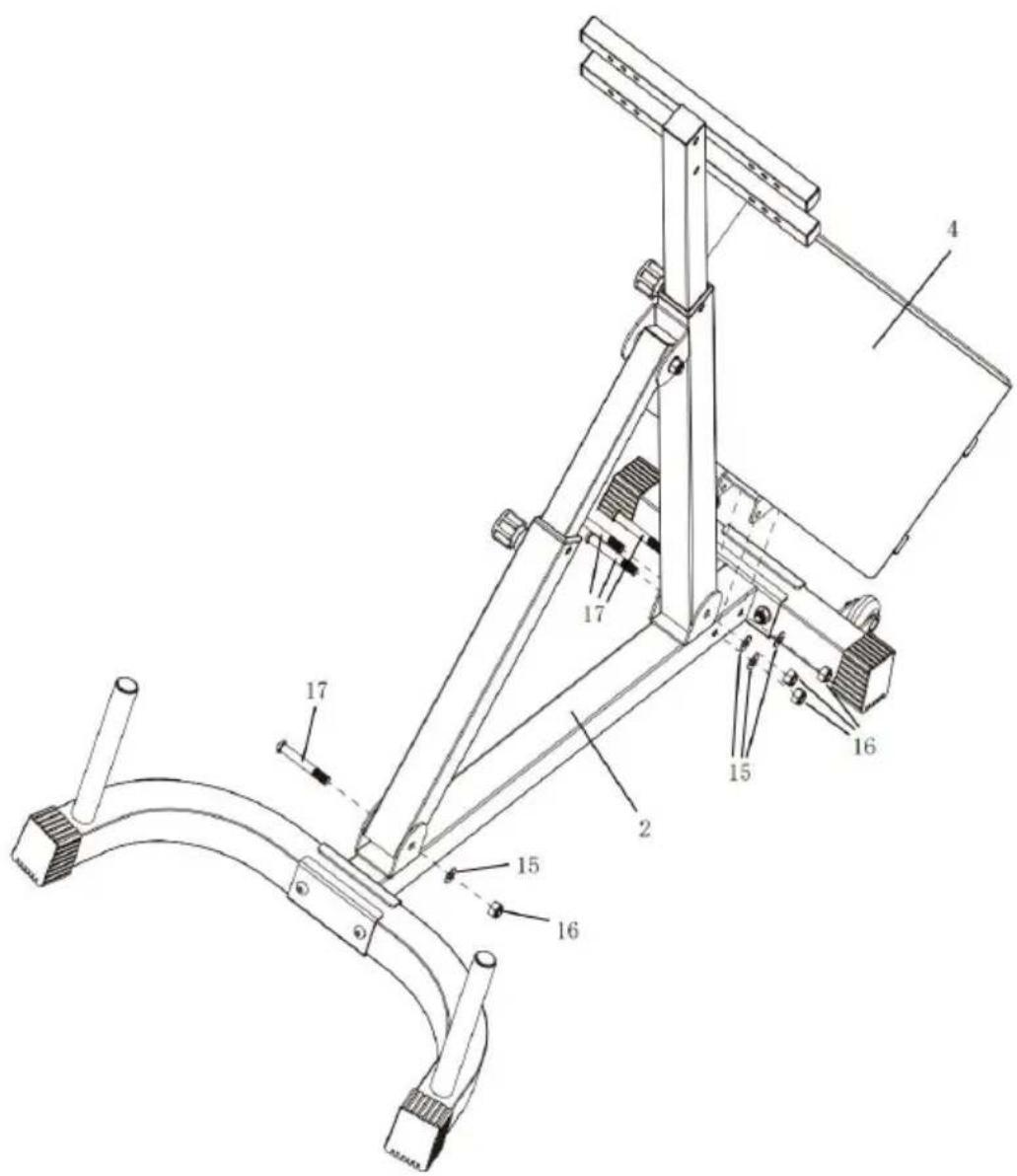

Step 3:

A) Through two sets of screws :M10X70 hex socket screws (17), 10; flat gasket (15), M10 lock nut Fix the support tube assembled in the previous step to the bottom beam (2)

B) through two sets of screws :10X70 hex socket screws (17), 10X20 gasket (15) and M10 lock nut (16), fix the foot pedal (4) on the bo beam (2).

Technical diagram of a mechanical device with numbered components, likely a robotic or mechanical assembly.

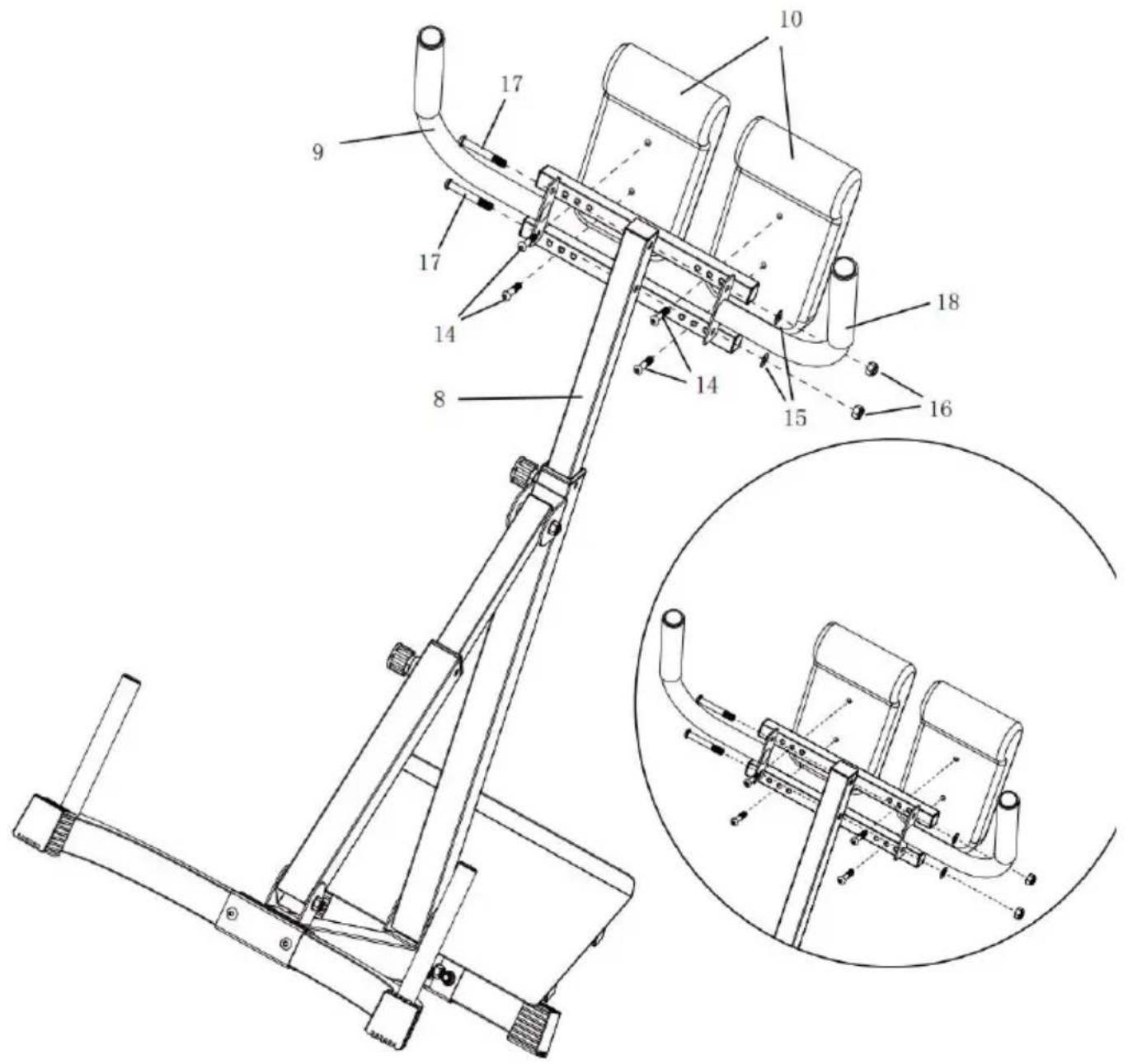

Step 4:

A) Secure the two handrails (9 and 18) to the adjustment rack (8) b sets of screws :M10X70 hex socket screws (17), M10X20 flat gaskets and M10 lock nut (16).
B) Secure the elbow pad (10) to the transverse tube of the adjustment frame (8) with four M8X40 screws (14).

Technical diagram of a mechanical device with numbered components and an inset close-up view showing internal assembly details.

THE ASSEMBLY PROCESS IS NOW COMPLETE.

For your safety, Please tighten the screw and adjust it to the appropriate position.

Please visually and functionally inspect and test the unit after assemb complete.

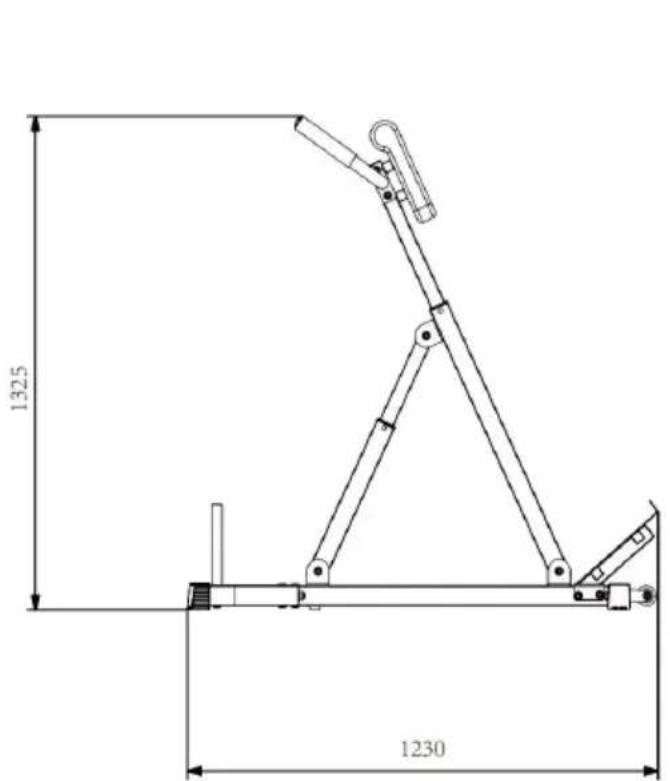

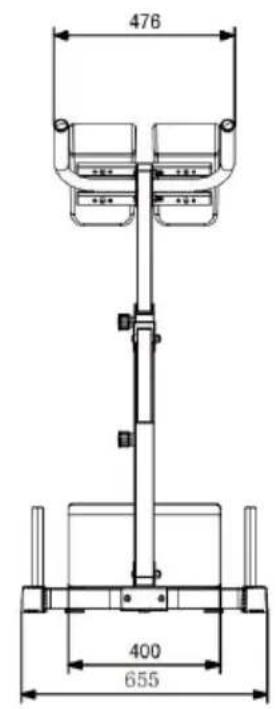

Product size chart

1325 1230

476 400 655

NOTE : The Maximum Weight Capacity for this product is 350 lbs o158kgs. Only one person should use this piece of equipment at one

Cleaning and disinfection

1. Wipe the surface with a wet cotton cloth.
2. Check the screws regularly every 3 months for loosening and tight the screws
