THE ARBOR PRESS
MODEL:AP-1/APR-1/AP-0/AP-3
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
THE ARBOR PRESS
MODEL:AP-1/APR-1/AP-0/AP-3

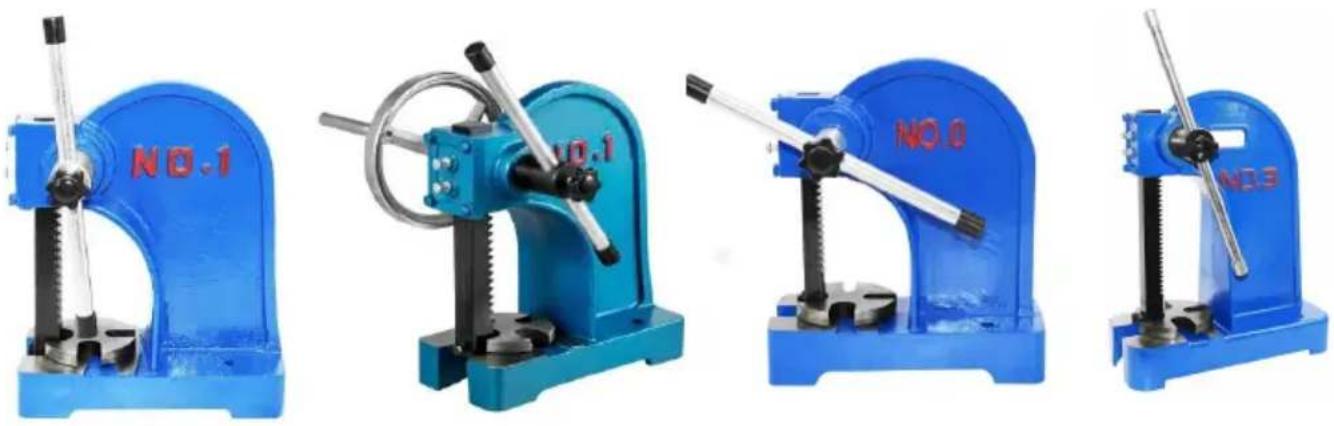

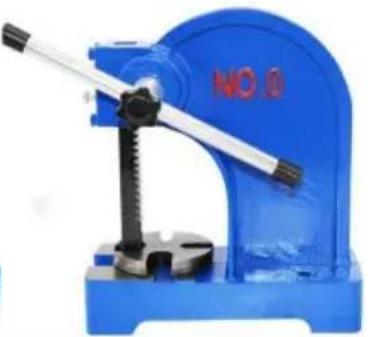

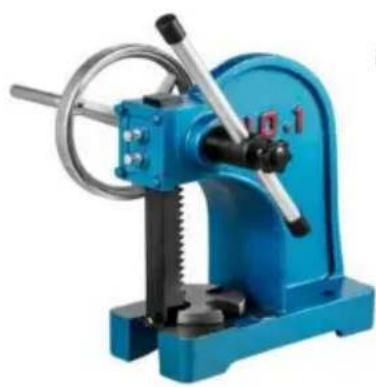

AP-1 APR-1 AP-0 AP-3
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel f
contact us: Technical Support and E-Warranty Certificate
www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
| Warning-To reduce the risk of injury, the user must re instructions manual carefully. |
| Warning- Be sure to wear eye protectors when using product. |
| This symbol, placed before a safety comment, indicates of precaution, warning, or danger. Ignoring this warning lead to an accident. |
SAFETY PRECAUTIONS
Warnings
- Read and understand the entire owner's manual before attempting assembly or operation.
- Read and understand the warnings in this manual. Failure to comply with of these warnings may cause serious injury.
- Replace the warning labels if they become obscured or removed.
- This arbor press is designed and intended for use by properly trained and experienced personnel only. If you are not familiar with the proper and safe operation of an arbor press, do not use until proper training and knowledge been obtained.
- Do not use this arbor press for other than its intended use. If used for purposes, Vevor disclaims any real or implied warranty and holds itself harmless from any injury that may result from that use.
-
Always wear approved safety glasses/face shields while using this arbor press. Everyday eyeglasses only have impact-resistant lenses; they are not safety glasses.
-
Do not operate this arbor press while tired or under the influence of drug alcohol or any medication.
- Make sure this arbor press is firmly secured to the floor or bench before
- Check damaged parts. Before further use of the arbor press, a part that damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced.
- Provide adequate space surrounding the work area and non-glare, overhead lighting.
- Keep the floor around the arbor press clean and free of scrap material, and grease.
- Keep visitors a safe distance from the work area. Keep children away.
- Give your work undivided attention. Looking around, carrying on a conversation and "horse-play" are careless acts that can result in serious inj
- Maintain a balanced stance at all times so that you do not fall into the press. Do not overreach or use excessive force to perform any machine operation.
- Use recommended accessories; improper accessories may be hazardous.
- Make sure the workpiece is securely attached or clamped to the table.
- Remove loose items and unnecessary workpieces from the area before starting the machine.
- Do not overload the arbor press by using extension (cheater) bars.
- Use steel collars to support parts when pressing on bearings to prevent damage to the bearings.
Familiarize yourself with the following safety notices used in this manual
This means that if precautions are not heeded, it may result in a possible machine damage.
This means that if precautions are not heeded, it may result in even death possibly.
TECHNICAL PARAMETERS
| Model | AP-1 | APR-1 | AP-0 | AP-3 |
| Max Pressure (t) | 1 | 1 | 0.5 | 3 |
| Product Weight (kg) | 10.2 | 11.8 | 7.5 | 39 |
| Product Size (mm) | 248*174*295 | 248*260*305 | 235*160*263 | 460*240*560 |

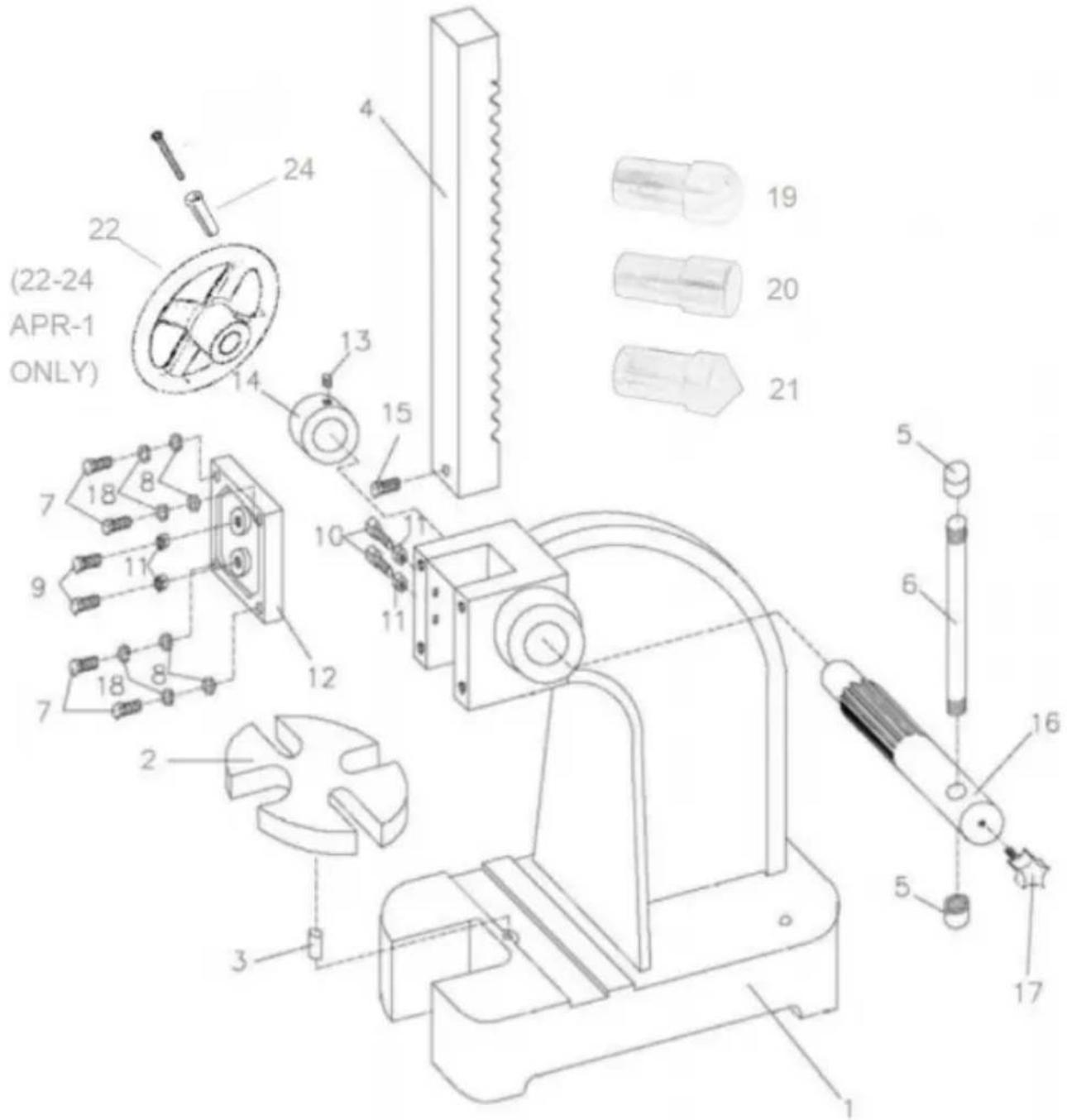

PRODUCT STRUCTURE DIAGRAM
| Item | Description | AP-1 | APR-1 | AP-0 | AP-3 |
| 1 | Base | 1 | 1 | 1 | 1 |
| 2 | Anvil | 1 | 1 | 1 | 1 |
| 3 | Spring Pin | 1 | 1 | 1 | 1 |
| 4 | Ram | 1 | 1 | 1 | 1 |
| 5 | Cap | 2 | 2 | 2 | 2 |
| 6 | Handle | 1 | 1 | 1 | 1 |
| 7 | Bolt | 4 | 4 | 4 | 4 |
| 8 | Washer | 4 | 4 | 4 | 4 |
| 9 | Bolt | 2 | 2 | 2 | 2 |
| 10 | Bolt | 2 | 2 | 2 | 2 |
| 11 | Nut | 4 | 4 | 4 | 4 |
| 12 | Plate | 1 | 1 | 1 | 1 |
| 13 | SHSS | 1 | 1 | 1 | 1 |
| 14 | Pinion Retainer | 1 | 1 | 1 | 1 |
| 15 | Bolt | 1 | 1 | 1 | 1 |
| Item | Description | AP-1 | APR-1 | AP-0 | AP-3 | ||
| 16 | Pinion | 1 | 1 1 1 | ||||
| 17 | Knob | 1 | 1 1 1 | ||||
| 18 | Lock Washer | 4 | 4 4 4 | ||||
| 19 | Round Drift | 1 | 1 1 1 | ||||
| 20 | Flat Drift | 1 1 | |||||
| 21 | Pointed | Drift | 1 1 | 1 1 | |||
| 22 | Handwheel | 1 | |||||
| 23 | Handle | 1 | |||||
OPERATION
Arbor Press Features

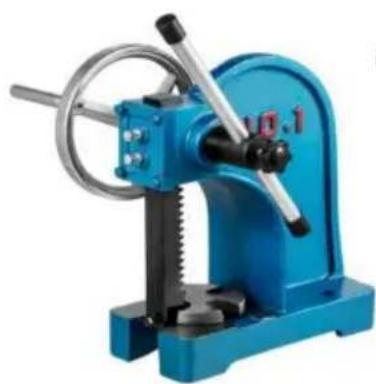

The arbor press (see Exploded view on page 8) consists of a cast iron bas anvil, a pressing handle with a lock knob, and a rack-type ram.
The removable anvil has four cutouts that can be used for pressing off or pin on bearings or bushings of various sizes.
Set-up and Operation
Note: The item numbers provided in the procedures that follow correspond with item numbers in the exploded view in the replacement Parts section; see pag
Do not use the arbor press without first securing the arbor press to the wall and anchoring the workbench to the floor.
Mount the arbor press to the workbench or stand and secure it with bolts or holes in the base (1). Also, secure the workbench or stand on the floor.
Changing Ram Position
The ram has a flat surface on one end and a hole on the other end. The used to accept the punch inserts. Change out the ram as follows:
A. Remove the handle by loosening the knob (17). Then remove one cap (5) the handle assembly. Remove the handle (6) from the pinion (16).
B. Remove the pinion retainer (14) by backing off the Set Screw (13). Now the pinion retainer (14) off of the pinion (16).
C. Pull up the ram (4) enough to provide slack to remove the pinion (16) for arbor press.
D. Pull the ram (4) out the top of the arbor press body. Turn the ram (4) end-for-end.
Hint: If the ram does not freely come out of the arbor press body, loosen the hex nuts (11) on the side of the arbor press body and the two hex nuts (12) front plate (12).
E. Repeat steps A - D in reverse.
Maintenance
A. Periodically lubricate the arbor press with light machine oil.
B. Wipe off or vacuum the accumulated debris and dust after using the arbor press.
C. Periodically check the ram for side-to-side and front-to-back play. If the play is excessive, loosen the hex nuts (11) and adjust (tighten) the screws (10 on the side, 9 in front) just enough to eliminate the excess play. Tighten them equally to ensure even contact with the ram (4).
D. Once the play is eliminated, hold the screw (10 or 9) in position and tighten the hex nut (11). Check to make sure the amount of play is acceptable.
Manufacturer: Shanghaiimuxinmuyeyouxiangongsi Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN. Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
