RS-6 - Pumps Vevor - Free user manual and instructions

Product Type	Vacuum Pump
Brand	Vevor
Model	RS-6
Dimensions (L x W x H)	430 x 140 x 250 mm
Weight	16.5 kg
Power Supply	120 V / 60 Hz or 220-240 V / 50 Hz
Free Air Displacement	12 CFM (ft³/min)
Ultimate Vacuum	5 Pa
Rotation Speed	1720 rpm (120 V) / 1440 rpm (220 V)
Power	1 HP
Oil Capacity	450 ml
Recommended Oil Type	High-performance vacuum pump oil
Housing Material	Die-cast aluminum
Vane Type	Rotary vane
Intended Use	Household use only
Switch	On/Off
Maintenance	Regular oil drain and change
Safety Points	Hot surface, risk of electric shock, risk of injury
Spare Parts Available	Seals, vanes, oil, caps, drain plug
Technical Support	www.vevor.com/support
Warranty	Electronic warranty certificate

Frequently Asked Questions - RS-6 Vevor

How to start the RS-6 pump?

Before starting, make sure the pump is filled with oil to the level indicated on the sight glass. Plug in the pump, remove the exhaust cap, and set the switch to ON. The pump should run smoothly after a few seconds.

What type of oil to use for the Vevor RS-6 pump?

Use a high-performance vacuum pump oil specially formulated to maintain optimal viscosity and improve cold weather starting.

How to drain the oil from the RS-6 pump?

Warm up the pump by running it, then remove the oil drain plug. Tilt the pump to drain the used oil into a suitable container. Do not run the pump for more than 20 seconds during draining.

What to do if the pump is not pulling a good vacuum?

First check that the vacuum gauge and connections are airtight. Make sure the oil is clean and at the proper level. If the oil is contaminated, replace it. Also check that the inlet cap is tightly closed and the rubber gasket is not damaged.

Why is there an oil leak?

An oil leak can be due to a damaged oil seal or a loose reservoir fitting. Replace the seal or tighten the screws and replace the O-ring if necessary.

How to clean the RS-6 pump?

To clean the pump, wipe the exterior with a dry cloth. If the oil is contaminated with sludge, remove the oil reservoir cover and clean the inside. Avoid using harsh solvents.

What to do if the pump does not start?

Check the supply voltage (must be within ±10% of the rated value). If the pump is cold, let it warm up or toggle the switch several times. If the motor is defective, contact customer service.

What is the oil capacity of the RS-6 pump?

The oil capacity of the RS-6 pump is 450 ml. Fill until oil appears at the bottom of the sight glass, then adjust to the level when the pump is running.

Can I use the RS-6 pump continuously?

The pump is designed for intermittent use. To extend its life, follow the shutdown procedures: close the manifold valve, remove the inlet hose, and plug the inlet port.

Where to find spare parts for the Vevor RS-6 pump?

Spare parts (seals, vanes, oil, etc.) are available from your dealer or at www.vevor.com. Refer to the detailed component list in the manual.

USER MANUAL RS-6 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

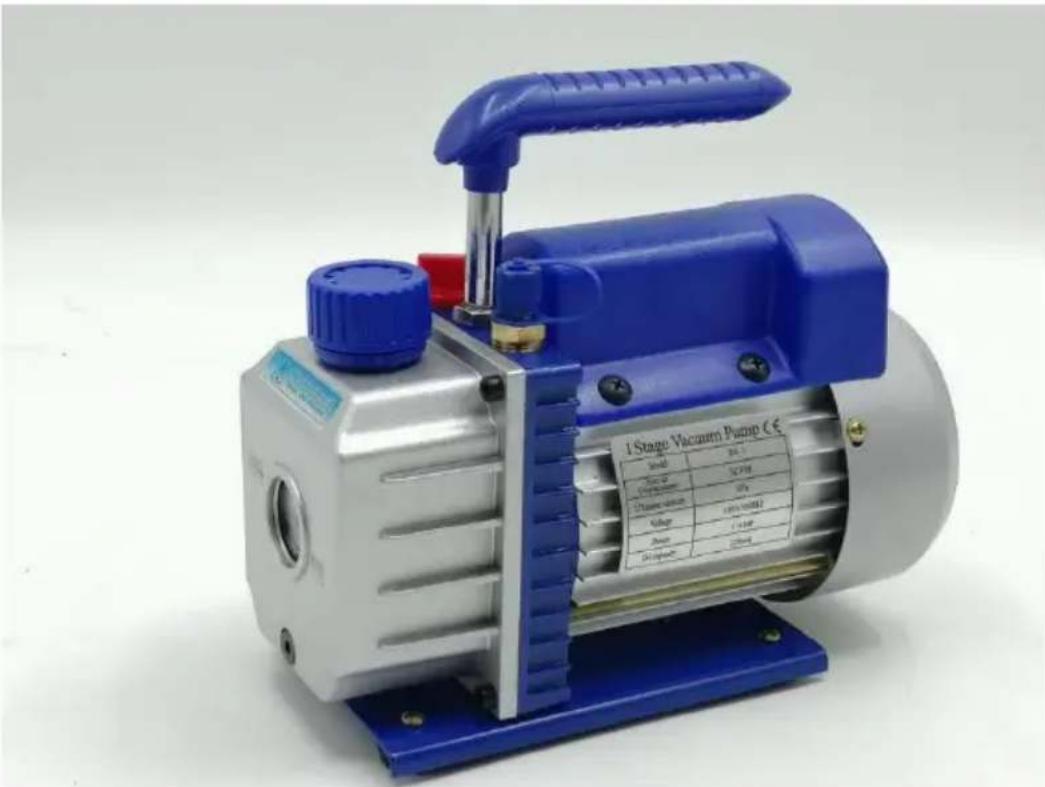

VACUUM PUMP

MODEL: RS-1 / RS-1.5 / RS-2 / RS-3 / RS-6 / 2RS-2 / 2RS-3 / 2RS-4 / VP280

We continue to be committed to provide you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to major top brands, and does not necessarily mean to cover all categories of tools. You are kindly reminded to verify carefully when placing an order that you are actually saving half in comparison with the top major brands.

MODEL: RS-1 / RS-1.5 / RS-2 / RS-3 / RS-6 / 2RS-2 / 2RS-3 / 2RS-4 / VP280

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

SAFETY INSTRUCTION

Before operating this appliance, please read the instructions manual carefully and save these instructions. Basic safety precautions should always be followed, including the following:

Warning - To reduce the risk of injury, the user must read the instructions manual carefully.

This symbol, placed before a safety comment, indicates precaution, warning, or danger. Ignoring this warning may cause an accident. To reduce the risk of injury, fire, or electric shock, please always follow the recommendations shown below.

WARNING

Household Use Only.

WARNING: Hot Surface - To reduce the risk of burns, do not touch.

CAUTION: To reduce the risk of electric shock, do not expose to rain. Store

CAUTION: To reduce the risk of electric shock, use indoors only.

WARNING: Risk of injury - Do not direct air steam at the body.

OPERATING MANUAL

1. Before using your vacuum pump

In all cases, motors are designed for operating voltages plus or minus 10% of the normal rating. Single voltage motors are supplied fully connected and ready to operate.

(1) Check to be sure the voltage and frequency at the outlet match the specifications on the pump motor decal. Check the ON-OFF switch to be sure it is in the OFF position before you plug the pump into an outlet. Remove and discard the exhaust cap from the end of the pump's handle. (2) The pump is shipped without oil in the reservoir. Before starting the pump, fill it with oil. Remove the Exhaust Fitting cap and add oil until the oil just shows in the bottom of the sight glass. The approximate oil capacity of the pump is 180 to 800 ml (reference the technical data). (3) Replace the Exhaust Fitting cap and remove the cap from one of the inlet ports. Turn the motor switch to ON. When the pump runs smoothly, replace the cap on the inlet port. This may take from two to 30 seconds, depending on the ambient temperature. After the pump runs for approximately one minute, check the sight glass for the proper oil level. The level should be even with the sight glass oil level line. Add oil if necessary.

Note: When the pump is running, the oil level should be even with the line on the sight glass. Underfilling will result in poor vacuum performance. Overfilling can result in oil blowing from the exhaust.

2. To shut down your pump after use

To help prolong pump life and promote easy starting. Follow these procedures for shut down.

(1) Close the manifold valve between the pump and the system. (2) Remove the hose from the pump inlet. (3) Cap the inlet port to prevent any contamination or loose particles from entering the port.

TO MAINTAIN YOUR HIGH VACUUM PUMP

1. Vacuum pump oil:

The condition and type of oil used in any high vacuum pump are important in determining the ultimate attainable vacuum. We recommend that High Vacuum Pump Oil. This oil has been specifically blended to maintain viscosity at normal running temperatures and to improve cold weather starting.

2. Oil Change Procedure

(1) Be sure the pump is warmed up. (2) Remove the OIL DRAIN cap. Drain contaminated oil into a suitable container and dispose of it properly. Oil can be forced from the pump by opening and partially blocking the exhaust with a cloth while the pump is running. Do not operate the pump for more than 20 seconds using this method. (3) When the flow of oil has stopped, tilt the pump forward to drain residual oil. (4) Replace the OIL DRAIN cap. Remove the exhaust fitting and fill the reservoir with new vacuum pump oil until the oil just shows at the bottom of the sight glass. The approximate oil capacity of the pump is 180-800ml (reference the data). (5) Be sure the inlet ports are capped, then turn on the pump. Allow it one minute, then check the oil level space. If the oil is below the sight (LEVEL line, add oil slowly (with the pump running) until the oil reaches LEVEL line. Replace the exhaust fitting, making sure the inlet is

(6)

a) If the oil is badly contaminated with sludge that forms when water is allowed to collect in the oil, you may need to remove the oil reservoir cover and wipe it out. b) Another method of dealing with heavily contaminated oil is to force the pump reservoir. To do this, allow the pump to run until it is warmed up. While the pump is still running, remove the oil drain cap. Slightly restrict the exhaust. This will back-pressure the oil reservoir and force the oil from it, carrying more contamination.

When the oil ceases to flow, turn off the pump.

Repeat this procedure as required until the contamination is removed.

Replace the OIL DRAIN cap and refill the reservoir to the proper level with fresh pump oil.

TROUBLESHOOTING GUIDE

Your pump has been designed for dependable use and has a long life. If something goes wrong, the following guide will help you get the pump back into service as soon as possible.

If the disassembly of the pump is required, please check your warranty. The warranty may be voided by misuse or customer tampering, which results in the pump being inoperable.

1. Failure To Start

Check the line voltage. The pump needs to start at ±10% line voltage (load at 320F). At extremes, switching between the standard run windings may occur.

2. Oil leakage

(1) Be sure the oil is not a residual accumulation from spillage, etc. (2) If leakage exists, the module cover gasket or the shaft seal may need replacement. If leakage exists in the area of the oil drain plug, you may need to reseal using a commercial pipe thread sealer.

3. Failure To Pull A Good Vacuum

(1) Be sure the vacuum gauge and all connections are in good condition and free of leaks. You can confirm leakage by monitoring the vacuum with a thermistor while applying vacuum pump oil at connections or suspected leak points. The vacuum will improve briefly while the oil is sealing the leak. (2) Be sure the pump oil is clean. A badly contaminated pump may require oil flushes. (3) Be sure the oil is at the proper level. For maximum pump operation, the oil should be even with the OIL LEVEL line on the sight glass when the pump is not running. Overfilling is not recommended because operating temperatures will cause the oil to expand, so it will be at a higher level than when the pump is not running. To check the oil level, run the pump with the inlet capped. Check the oil level in the sight glass. Add oil as needed.

COMMON TROUBLESHOOTING

FailureDescription	FaultCause	Solution
LowVacuum	1.Theair inlet cap on the sp side ofthe air inlet port is I	Tighten the air inlet cap
	2. The rubberring inside the inletcapon the spare port si the air inlet port is damage	Replacetherubber ring
	3. Insufficient oil	Refuel to the centerline of the gauge
	4. Thepumpoil is emulsified andunclean	Replacewith new oil
	5. The oil inlethole of the isblockedorthe oil supply is insufficient	Clean the oil inlet hole and mesh
	6. Leakageof pipe container connected to the pump	Checkthe connected pipe container to prevent leakage
	7. Improper pumpselection	Check the size of the pump container, recalculate and sele the appropriate pump model
	8. The pump has been used long, and the clearance is increaseddue to the wear o	Check, repair,orreplacethe pump witha new one
OilLeakage	1. The oil sealis damaged	Replacethe oil seal
	2.The oil tank connection is looseor damaged	Tightenthescrews andreplace the O-ring
Oil Injection	1.Toomuchoil	Drain theoil to the oil level
	2.The inletpressure is too h for a long time	Selecttheappropriatepump to increase thepumping speed
Hard Starting	1. The oil temperature is too	Theair inlet is ventilated, repeatedly starts the motor heats the pump oil
	2. The motororpower supply faulty	Check and repair
	3.Foreign objects fall into th pump	Checkand eliminate
	4. The power supply voltage too low	Check the powersupply volta

Note: If the above solutions do not solve your problem, please contact the nearest dealer or send your pump to a professional repair center, and we will do our best to serve you.

TECHNICAL PARAMETER

SKU	3CFM1-3HPZKBOC001V23CFMZKB0000000001V3
Model	RS-1
Voltage	220-240V 50Hz
Free Air Displacement	3CFM
Ultimate Vacuum	5PA
Rotating Speed	1440
Power (HP)	1/4
Oil Capacity (ml)	220
Dimension (mm)	240*110*220
Weight (Kg)	5

SKU	QCKTZKB2.5CFM1-4HV2
Model	RS-1
Voltage	220-240V 50Hz
Free Air Displacement	2.5CFM
Ultimate Vacuum	5PA
Rotating Speed	1440
Power (HP)	1/4
Oil Capacity (ml)	220
Dimension (mm)	240*110*220
Weight (Kg)	5

SKU	4.5CFM1-3HPZKB001V1
Model	RS-1.5
Voltage	120V/60HZ
Free Air Displacement	4.5CFM
Ultimate Vacuum	5PA
Rotating Speed	1720
Power (HP)	1/3
Oil Capacity (ml)	225
Dimension (mm)	270*110*220
Weight (Kg)	6
SKU	QCKTZKB5CFM1-3HPDV1
Model	RS-2
Voltage	120V/60HZ
Free Air Displacement	5CFM
Ultimate Vacuum	5PA
Rotating Speed	1720
Power (HP)	1/3
Oil Capacity (ml)	250
Dimension (mm)	290*120*240
Weight (Kg)	7

SKU	7CFM1-2HPZKB00001V1
Model	RS-3
Voltage	120V/60HZ
Free Air Displacement	7CFM
Ultimate Vacuum	5PA
Rotating Speed	1720
Power (HP)	1/2
Oil Capacity (ml)	250
Dimension (mm)	310*125*255
Weight (Kg)	7.5

SKU	7CFM1-2HPZKB00001V2
Model	RS-3
Voltage	220-240V 50Hz
Free Air Displacement	7CFM
Ultimate Vacuum	5PA
Rotating Speed	1440
Power (HP)	1/3
Oil Capacity (ml)	250
Dimension (mm)	310*125*255
Weight (Kg)	6.5

SKU	QCKTZKB6CFM1-2HP1V2
Model	2RS-2
Voltage	220-240V 50Hz
Free Air Displacement	6CFM
Ultimate Vacuum	0.3PA
Rotating Speed	2800
Power (HP)	1/2
Oil Capacity (ml)	330
Dimension (mm)	290*115*225
Weight (Kg)	10
SKU	QCKTZKB6CFM1-2HP1V1
Model	2RS-2
Voltage	120V/60HZ
Free Air Displacement	6CFM
Ultimate Vacuum	0.3PA
Rotating Speed	1400
Power (HP)	1/2
Oil Capacity (ml)	330
Dimension (mm)	290*115*225
Weight (Kg)	10

SKU	8CFM1HPZKB0000001V1
Model	2RS-3
Voltage	120V/60HZ
Free Air Displacement	8CFM
Ultimate Vacuum	0.3PA
Rotating Speed	3500
Power (HP)	3/4
Oil Capacity (ml)	370
Dimension (mm)	360*135*275
Weight (Kg)	11

SKU	8CFM1HPZKB0000001V2
Model	2RS-3
Voltage	220-240V 50Hz
Free Air Displacement	8CFM
Ultimate Vacuum	0.3PA
Rotating Speed	2800
Power (HP)	3/4
Oil Capacity (ml)	370
Dimension (mm)	360*135*275
Weight (Kg)	10

SKU	QCKTZKB7CFM1-2HPSV1
Model	2RS-3
Voltage	120V/60HZ
Free Air Displacement	7CFM
Ultimate Vacuum	0.3PA
Rotating Speed	3500
Power (HP)	3/4
Oil Capacity (ml)	370
Dimension (mm)	360*135*275
Weight (Kg)	10
SKU	9CF1HPZKBJB000001V39CF1HPZKBJB000001V2
Model	2RS-3
Voltage	220-240V 50Hz
Free Air Displacement	9CFM
Ultimate Vacuum	0.3PA
Rotating Speed	3500
Power (HP)	1
Oil Capacity (ml)	370
Dimension (mm)	360*135*275
Weight (Kg)	11

SKU	VP280ZKB000000001V3VP280ZKB000000001V2
Model	VP280
Voltage	220-240V 50Hz
Free Air Displacement	10CFM
Ultimate Vacuum	0.3PA
Rotating Speed	2800
Power (HP)	1
Oil Capacity (ml)	550
Dimension (mm)	430*142*280
Weight (Kg)	19

SKU	VP280ZKB000000001V1
Model	VP280
Voltage	120V/60HZ
Free Air Displacement	12CFM
Ultimate Vacuum	0.3PA
Rotating Speed	3500
Power (HP)	1
Oil Capacity (ml)	550
Dimension (mm)	430*142*280
Weight (Kg)	19

SKU	QCK10CFM-220V9FSXV2
Model	2RS-4
Voltage	220-240V 50Hz
Free Air Displacement	10CFM
Ultimate Vacuum	0.3PA
Rotating Speed	2800
Power (HP)	1
Oil Capacity (ml)	550
Dimension (mm)	430*142*280
Weight (Kg)	19
SKU	12CFM1HPDJZKB0001V1
Model	RS-6
Voltage	120V/60HZ
Free Air Displacement	12CFM
Ultimate Vacuum	5PA
Rotating Speed	1720
Power (HP)	1
Oil Capacity (ml)	450
Dimension (mm)	430*140*250
Weight (Kg)	16.5

SKU	12CFM1HPSJZKB0001V2
Model	RS-6
Voltage	220-240V 50Hz
Free Air Displacement	12CFM
Ultimate Vacuum	5PA
Rotating Speed	1440
Power (HP)	1
Oil Capacity (ml)	450
Dimension (mm)	430*140*250
Weight (Kg)	16.5

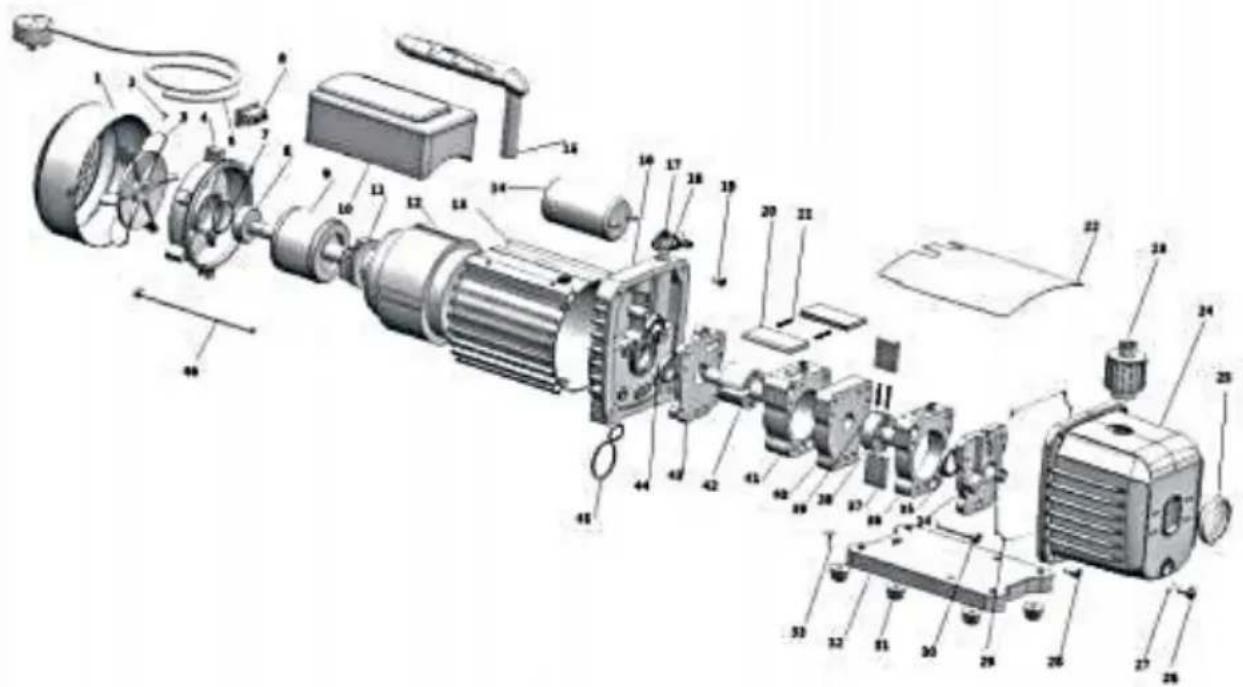

EXPLODED DRAWING

1	Fancover	24	Die-cast aluminum housing
2	Crossscrew	25	Sight glass
3	Fan	26	Oil drain
4	Motor cover	27	Oil drain screw O- ring
5	Power supply cords	28	Screw
6	Power switch	29	Sealing ring
7	Washer	30	Screw
8	Bearing	31	Rubber foot
9	Motor rotor	32	Base plate
10	Capacitor box	33	Self-tapping screw
11	Centrifugal switch	34	Back-pumpcover
12	Motor stator	35	Oil seal
13	Casing	36	Back-pump body
14	Capacitor	37	Back-rotary -vane
15	Handle	38	Back-pump rotor
16	Trestle	39	Spring
17	Gas cap	40	Middle fence
18	The air inlet nozzle	41	Front-pump body
19	Screw	42	Front- pump rotor
20	Front rotary-vane	43	Front cover
21	Spring	44	Oil seal
22	Cap board	45	O type ring
23	Exhaust and oil inlet fitting	46	Screw

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to major top brands and does not necessarily mean to cover all categories of tools we offer. You are kindly reminded to verify carefully when placing an order to ensure you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

VACUUM PUMP

MODEL: RS-1 / RS-1.5 / RS-2 / RS-3 / RS-6 / 2RS-2 / 2RS-3 / VP280

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

OPERATING MANUAL

1. Before using your vacuum pump

TROUBLESHOOTING GUIDE

We continue to be committed to providing you tools with competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to major top brands and does not necessarily mean to cover all categories of tools from us. You are kindly reminded to verify carefully when you are placing an order whether you are actually saving half in comparison with the top major brands.

MODEL: RS-1 / RS-1.5 / RS-2 / RS-3 / RS-6 / 2RS-2 / 2RS-3 / VP280

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

OPERATING MANUAL

TROUBLESHOOTING GUIDE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to major top brands and does not necessarily mean to cover all categories of tools. You are kindly reminded to verify carefully when placing an order to see if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

VACUUM PUMP

MODEL: RS-1 / RS-1.5 / RS-2 / RS-3 / RS-6 / 2RS-2 / 2RS-3 / VP280

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

OPERATING MANUAL

TROUBLESHOOTING GUIDE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared major top brands and does not necessarily mean to cover all categories of tools us. You are kindly reminded to verify carefully when you are placing an order where are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

VACUUM PUMP

MODELO: RS-1 / RS-1.5 / RS-2 / RS-3 / RS-6 / 2RS-2 / 2RS-3 / VP280

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform y there are any technology or software updates on our product.

OPERATING MANUAL

1.B antes usando su vacío bomba

TROUBLESHOOTING GUIDE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to major top brands, and do not necessarily mean to cover all categories of tools. You are kindly reminded to verify carefully when placing an order to see if you are actually saving half in comparison with the top major brands.

MODEL: RS-1 / RS-1.5 / RS-2 / RS-3 / RS-6 / 2RS-2 / 2RS-3 / 2I VP280

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

OPERATING MANUAL

TROUBLESHOOTING GUIDE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VACUUM PUMP

MODELS: RS-1 / RS-1.5 / RS-2 / RS-3 / RS-6 / 2RS-2 / 2RS-3 / 2RS-4 / VP280

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to major top brands and does not necessarily mean to cover all categories of tools. You are kindly reminded to verify carefully when you are placing an order where you are actually saving half in comparison with the top major brands.

MODELS: RS-1 / RS-1.5 / RS-2 / RS-3 / RS-6 / 2RS-2 / 2RS-3 / VP280

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

OPERATING MANUAL

TROUBLESHOOTING GUIDE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to major top brands and does not necessarily mean to cover all categories of tools. You are kindly reminded to verify carefully when you are placing an order where you are actually saving half in comparison with the top major brands.

MODEL: RS-1 / RS-1.5 / RS-2 / RS-3 / RS-6 / 2RS-2 / 2RS-3 / VP280

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

OPERATING MANUAL

TROUBLESHOOTING GUIDE

www.vevor.com/support
