USER MANUAL WA13-1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Rice Cooker

Model: WA8-1/WA10-1/WA13-1

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: WA8-1/WA10-1/WA13-1

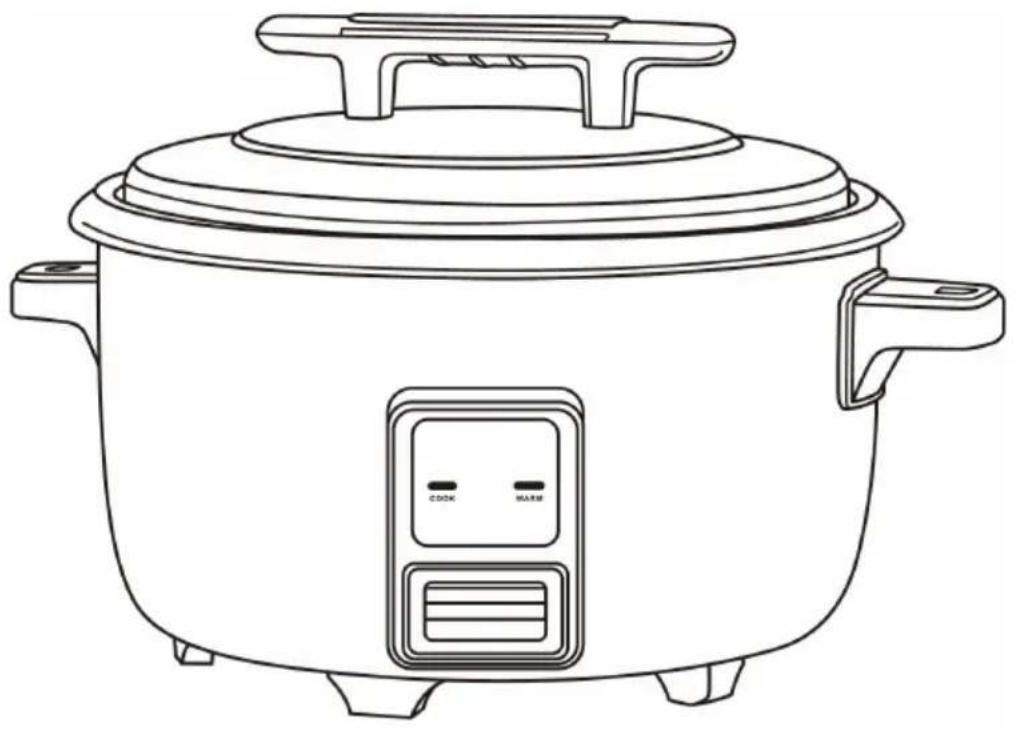

Line drawing of a rice cooker with lid and side legs (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Technical Data

Model No	Power Supply	Power Consumption	Protection class	Filling quantity
WA8-1	120V~60Hz	1200W	I	3.6L(raw rice)
WA10-1	120V~60Hz	1450W	I	4.2L(raw rice)
WA13-1	120V~60Hz	1650W	I	5.6L(raw rice)

General notes:

• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never immerse it into any liquid) and sharp edges. Do n use the appliance with wet hands. If the appliance is humid or wet, un immediately.
• When cleaning or putting it away, switch off the appliance and always out the plug from the socket (pull the plug itself not the lead) if the a is not being used and remove the attached accessories.
• Use only original spare parts.

Special Safety Instructions for this Machine

• During operation and afterwards, the temperature of the accessible surfaces will be very high. Always hold the appliance by the handle.
• Use the appliance only on a level work surface.
• Do not move the device and do not touch it when it is working.
• Before inserting the plug into the socket, make sure that the mains to be used matches that of the device. You can find this information nameplate.
• Connect the device to a duly installed protective contact socket.

• This appliance can be used by children aged from 8 years and at they have been given supervision or instruction concerning the safe use of the appliance understand the hazards involved.

• Cleaning and maintenance by the user shall not be made by children unless they are older 8 years and supervised.

• Keep the appliance and its cord out of reach of children less than
  • Children shall not play with the appliance.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have give supervision or instruction concerning use of the appliance if a way and if they understand the hazards involved.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, our customer service by a qualified person and with a cable of the same type.
• Only use the appliance in a dry, indoor area.
• If the supply cord is damaged, it must be replaced by a special assembly available from the manufacturer or its service agent.

SAVE THESE INSTRUCTIONS Scope of Supply

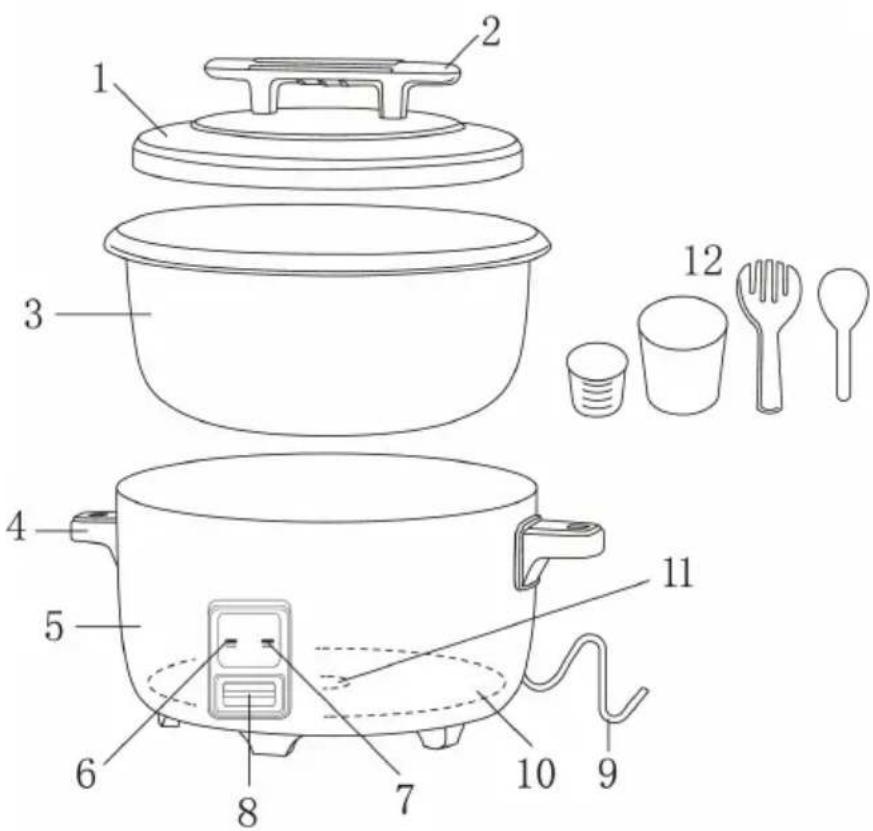

Labeled diagram of a rice cooker with numbered parts and corresponding food items including a fork, spoon, and cup.

1.Lid with steam vent2. Lid handle3. Rice pot4. Carrying handles5.Housing cooker6. “Cook “ light

7. “Warm” light8.Switch9. Power cord and plug10. Heating plate11.Sensor12.Spoon & measuring cup

How to use

1. Before initial use, remove the packaging and check the scope of delivery. We recommend cleaning the appliance as described under "cleaning".
   2.Open the lid.
2. Make sure the bottom surface of rice pot and heating plate in the are clean enough .Proper care should be taken to avoid any deform rice pot, otherwise the heating plate may be destroyed or cooking performance may be destroyed.
3. Wash through the rice and put them into the rice pot, make the rice flat, then add certain amount of water. A proportion is advised to be 1: (raw rice vs water), For example, if you wish to cook 15 cups of rice small measuring cups of rice to the pot and fill with water to the rice (CUP) mark, e.g. 15. After some experiments, the bigger measuring cup is optional to make measuring much faster.

Tips: Cooking performance will vary depending on rice type.

You can regulate the proportion after some experiments for best taste

Uncook rice:(short rice)	Water:Using the water lin(inner pot)	Approached yield:
15 Cups	White rice:Line 15	2.6L
20 Cups	White rice:Line 20	3.4L

1. Place the rice pot into the cooker well, rotate the rice pot to make the pot is level and connecting well with the sensor.
2. Close the lid.
3. Connect the plug to the mains supply, the "COOK" indicator lights up, press the switch down, the "WARM" indicator lights up and "COOK" goes out. The rice cooker is cooking.

8.Once the water has evaporated in the rice pot,the appliance switches automatically to"Warm",ending the cooking process.The "Warm" is lit a "Cook" light goes out.

Tip: Leave the rice for a further 5 minutes prior to draining it from 9.Disconnect the power plug from the socket.

10.Open the lid and stir up the rice.Now the rice is ready to serve.

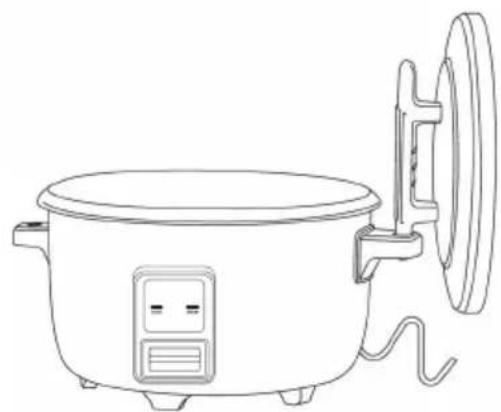

1. The lid can be hanged on the carrying handle, referred as below ir

Line drawing of a rice cooker with a side panel and control panel (no text or symbols)

Insert the lid handle into the hole at carrying handle.

Cautions when using

• Always fill the rice pot with water, never fill the housing cooker.
- Use the rice pot as an insert in this device only. It is not suitable cookers!
- A safety mechanism prevents the device from cooking if the rice p not been inserted properly.
• Hot steam escapes during cooking, be cautious of the steam.

Cleaning

1. Pour out the contents of rice pot after it has cooled down.
2. Clean the lid, rice pot, steamer, spoon and measuring cup by hand in warm rinsing bath.
3. Rinse the parts thoroughly with clear water and allow them to dry.
4. Wipe off the inside and outside of the housing cooker with a damp cloth, then wipe it with a dry cloth.

Cautions when cleaning

• Always pull out the plug from the mains socket before cleaning and

until the unit has cooled down.

• Never immerse the housing cooker, the line cord and the mains plug water, as otherwise this might result in an electric shock or fire.
• Do not use any wire brushes or other abrasive objects.
• Do not use any acidic or scouring agents.
• Do not clean the attachments in the dishwasher. The surfaces could become dull.

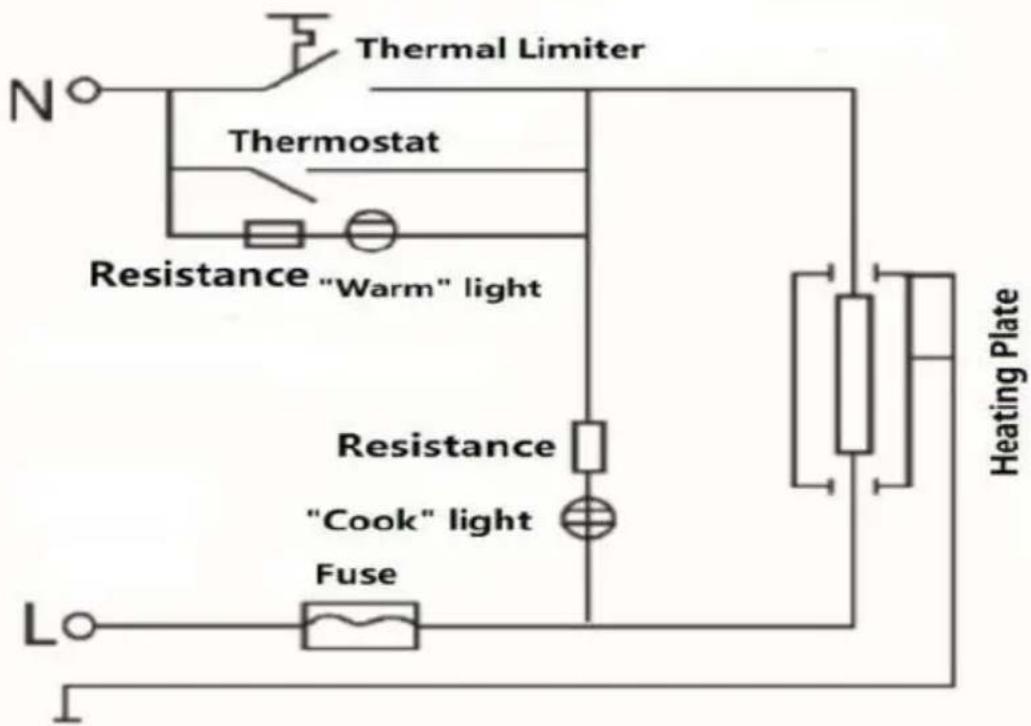

Electric Diagram

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a rice cooker with a digital display and side legs (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Labeled diagram of a rice cooker with numbered parts and corresponding food items including a cup, fork, spoon, and kitchen appliance.

Line drawing of a rice cooker with a side panel and control panel (no text or symbols)

Insert the lid handle into the hole at carrying handle.

Line drawing of a rice cooker with lid and side legs (no text or symbols)

Labeled diagram of a rice cooker with numbered parts and corresponding food items including a fork, spoon, and cup.

Line drawing of a rice cooker with a side panel and cooling fan (no text or symbols)

Insert the lid handle into the hole at carrying handle.

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a rice cooker with lid and side legs (no text or symbols)

HO BISOGNO DI AIUTO? CONTATTACI!

Labeled diagram of a rice cooker with numbered parts and corresponding food items including a cup, fork, spoon, and kitchen appliance.

Line drawing of a rice cooker with a side-mounted fan and control panel (no text or symbols)

Insert the lid handle into the hole at carrying handle.

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a rice cooker with a digital display and side legs (no text or symbols)

Labeled diagram of a rice cooker with numbered parts and corresponding food items including a cup, fork, spoon, and kitchen appliance.

Line drawing of a rice cooker with a side panel and cooling fan (no text or symbols)

Insert the lid handle into the hole at carrying handle.

Line drawing of a rice cooker with a digital display and side legs (no text or symbols)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Labeled diagram of a rice cooker with numbered parts and corresponding food items including a cup, fork, spoon, and kitchen appliance.

Line drawing of a rice cooker with a side-mounted fan and control panel (no text or symbols)

Insert the lid handle into the hole at carrying handle.

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

Rijstkoker

Model: WA8-1/WA10-1/WA13-1

Line drawing of a rice cooker with lid and side legs (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Labeled diagram of a rice cooker with numbered parts and corresponding food items including a cup, fork, spoon, and kitchen appliance.

Line drawing of a rice cooker with a side panel and cooling fan (no text or symbols)

Insert the lid handle into the hole at carrying handle.

Line drawing of a rice cooker with lid and side legs (no text or symbols)

BEHÖVS HJÄLP? KONTAKTA OSS!

Labeled diagram of a rice cooker with numbered parts and corresponding food items including a cup, fork, spoon, and kitchen appliance.

Line drawing of a rice cooker with a side panel and cooling fan (no text or symbols)

Insert the lid handle into the hole at carrying handle.

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

Rice Cooker

Model: WA8-1/WA10-1/WA13-1

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: WA8-1/WA10-1/WA13-1

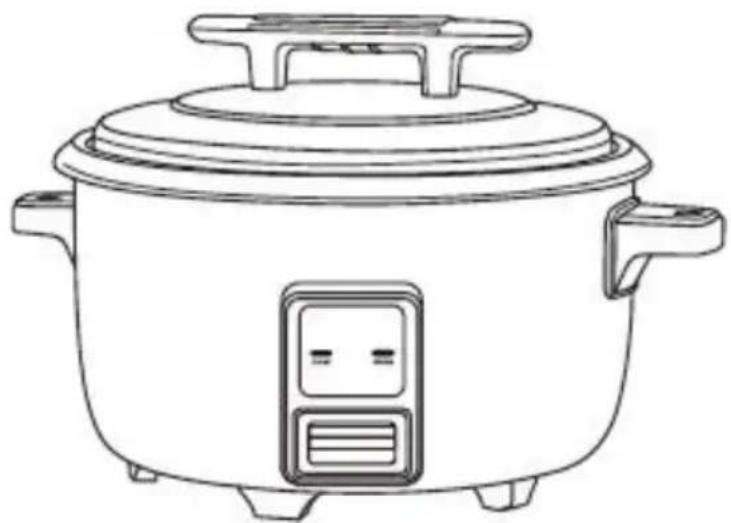

Line drawing of a rice cooker with control panel and side legs (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

CORRECT DISPOSALThis product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

Technical Data

Model No	Power Supply	Power Consumption	Protection class	Filling quantity
WA8-1	220-240V~50 -60Hz	1300W	I	3.6L(raw rice)
WA10-1	220V-240~50 -60Hz	1600W	I	4.2L(raw rice)
WA13-1	220V-240~50 -60Hz	2000W	I	5.6L(raw rice)

General notes:

• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never immerse it into any liquid) and sharp edges. Do n use the appliance with wet hands. If the appliance is humid or wet, un immediately.
• When cleaning or putting it away, switch off the appliance and always out the plug from the socket (pull the plug itself not the lead) if the a is not being used and remove the attached accessories.
• Use only original spare parts.

Special Safety Instructions for this Machine

• During operation and afterwards, the temperature of the accessible surfaces will be very high. Always hold the appliance by the handle.
• Use the appliance only on a level work surface.
• Do not move the device and do not touch it when it is working.
• Before inserting the plug into the socket, make sure that the mains to be used matches that of the device. You can find this information nameplate.
• Connect the device to a duly installed protective contact socket.
• This appliance can be used by children aged from 8 years and at they have been given supervision or instruction concerning the safe use of the appliance understand the hazards involved.
• Cleaning and maintenance by the user shall not be made by children unless they are older 8 years and supervised.
• Keep the appliance and its cord out of reach of children less than
  • Children shall not play with the appliance.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have give supervision or instruction concerning use of the appliance if a sa way and if they understand the hazards involved.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, our customer service by a qualified person and with a cable of the same type.
• Only use the appliance in a dry, indoor area.
• If the supply cord is damaged, it must be replaced by a special assembly available from the manufacturer or its service agent.

Scope of Supply

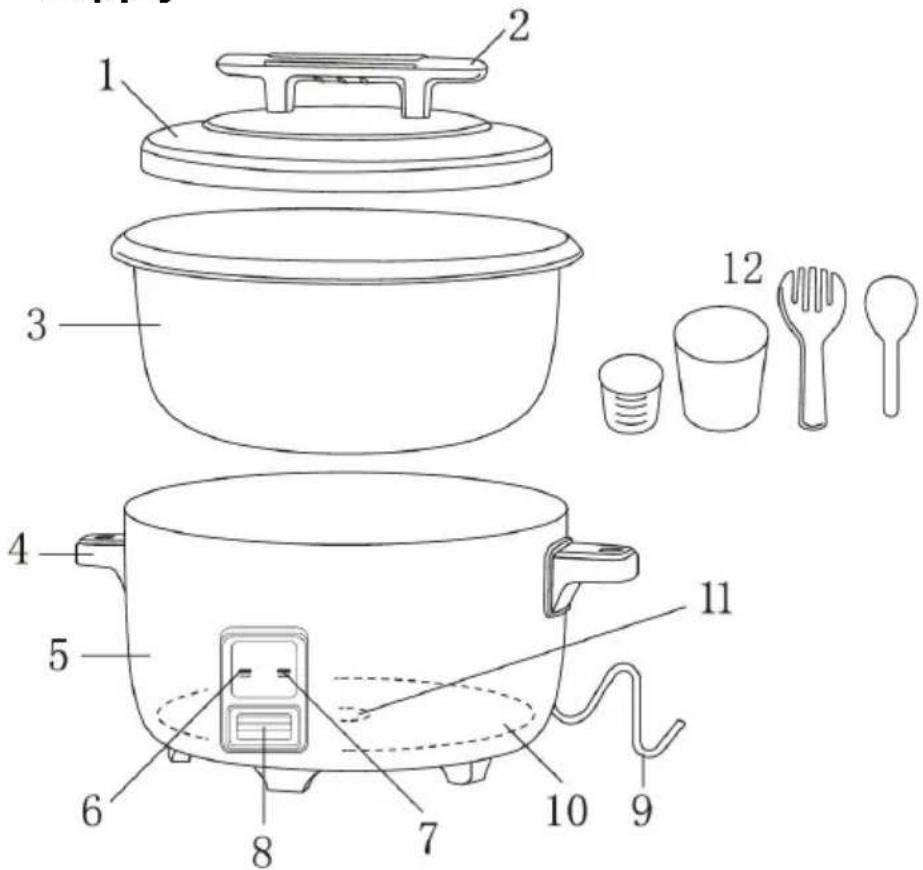

Labeled diagram of a cooking pot with numbered parts and food items including a fork, spoon, and cup.

1.Lid with steam vent2. Lid handle3. Rice pot4. Carrying handles5.Housing cooker6. “Cook “ light

7. “Warm” light8.Switch9. Power cord and plug10. Heating plate11.Sensor12.Spoon & measuring cup

How to use

1. Before initial use, remove the packaging and check the scope of delivery. We recommend cleaning the appliance as described under "cleaning".

2.Open the lid.

1. Make sure the bottom surface of rice pot and heating plate in the are clean enough .Proper care should be taken to avoid any deform rice pot, otherwise the heating plate may be destroyed or cooking performance may be destroyed.

4.Wash through the rice and put them into the rice pot,make the rice flat,then add certain amount of water.A proportion is advised to be 1:

(raw rice vs water ),For example,if you wish to cook 15 cups of rice small measuring cups of rice to the pot and fill with water to the re (CUP) mark,e.g.15.After some experiments,the bigger measuring cup is optional to make measuring much faster.

Tips: Cooking performance will vary depending on rice type.

You can regulate the proportion after some experiments for best taste

Uncook rice: (short rice)	Water:Using the water lin (inner pot)	Approached yield:
15 Cups	White rice:Line 15	2.6L
20 Cups	White rice:Line 20	3.4L

1. Place the rice pot into the cooker well, rotate the rice pot to make the pot is level and connecting well with the sensor.

2. Close the lid.

3. Connect the plug to the mains supply, the "COOK" indicator lights up, press the switch down, the "WARM" indicator lights up and "COOK" goes out. The rice cooker is cooking.

8.Once the water has evaporated in the rice pot,the appliance switches automatically to"Warm",ending the cooking process.The "Warm" is lit at "Cook" light goes out.

Tip: Leave the rice for a further 5 minutes prior to draining it from 9.Disconnect the power plug from the socket.

10.Open the lid and stir up the rice.Now the rice is ready to serve.

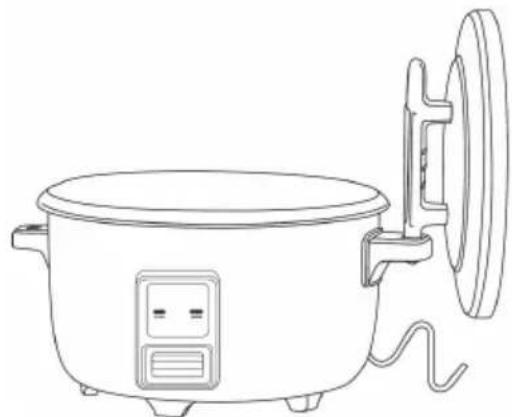

1. The lid can be hanged on the carrying handle, referred as below ir

Line drawing of a rice cooker with a side panel and control panel (no text or symbols)

Insert the lid handle into the hole at carrying handle.

Cautions when using

• Always fill the rice pot with water, never fill the housing cooker.

• Use the rice pot as an insert in this device only. It is not suitable cookers!
• A safety mechanism prevents the device from cooking if the rice p not been inserted properly.
• Hot steam escapes during cooking, be cautious of the steam.

Cleaning

1. Pour out the contents of rice pot after it has cooled down.
2. Clean the lid, rice pot, steamer, spoon and measuring cup by hand in warm rinsing bath.
3. Rinse the parts thoroughly with clear water and allow them to dry.
4. Wipe off the inside and outside of the housing cooker with a damp cloth, then wipe it with a dry cloth.

Cautions when cleaning

• Always pull out the plug from the mains socket before cleaning and until the unit has cooled down.
- Never immerse the housing cooker, the line cord and the mains plug water, as otherwise this might result in an electric shock or fire.
- Do not use any wire brushes or other abrasive objects.
- Do not use any acidic or scouring agents.
- Do not clean the attachments in the dishwasher. The surfaces could become dull.

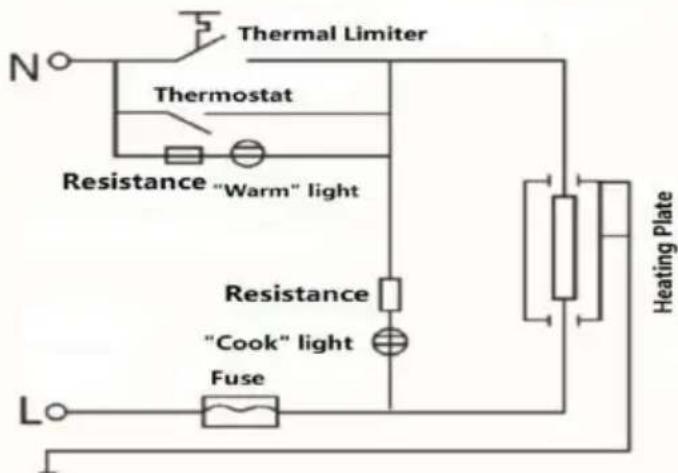

Electric Diagram

N Thermal Limiter Thermostat Resistance "Warm" light Resistance "Cook" light Fuse L Heating Plate

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a rice cooker with control panel and side buttons (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Labeled diagram of a rice cooker showing internal components and food items including a pot, cup, fork, spoon, and cooker.

Line drawing of a rice cooker with a side-mounted fan and control panel (no text or symbols)

Insert the lid handle into the hole at carrying handle.

N° Thermal Limiter Thermostat Resistance "Warm" light Resistance "Cook" light Fuse L Heating Plate

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a rice cooker with control panel and side buttons (no text or symbols)

Labeled diagram of a rice cooker showing internal components and food items including a pot, cup, fork, spoon, and cooker.

Line drawing of a rice cooker with a side panel and control panel (no text or symbols)

Insert the lid handle into the hole at carrying handle.

N° Thermal Limiter Thermostat Resistance "Warm" light Resistance "Cook" light Fuse L Heating Plate

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a rice cooker with control panel and side buttons (no text or symbols)

HO BISOGNO DI AIUTO? CONTATTACI!

Labeled diagram of a rice cooker showing internal components and food items including a pot, cup, fork, spoon, and cooker.

Line drawing of a rice cooker with a side-mounted fan and control panel (no text or symbols)

Insert the lid handle into the hole at carrying handle.

N° Thermal Limiter Thermostat Resistance "Warm" light Resistance "Cook" light Fuse L Heating Plate

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a rice cooker with control panel and side buttons (no text or symbols)

Labeled diagram of a rice cooker with numbered parts and corresponding food items including a fork, spoon, and cup.

Line drawing of a rice cooker with a side-mounted fan and control panel (no text or symbols)

Insert the lid handle into the hole at carrying handle.

N° Thermal Limiter Thermostat Resistance "Warm" light Resistance "Cook" light Fuse L Heating Plate

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a rice cooker with control panel and side buttons (no text or symbols)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Labeled diagram of a rice cooker showing internal components and food items including a pot, cup, fork, spoon, and cooker.

Line drawing of a rice cooker with a side panel and control panel (no text or symbols)

Insert the lid handle into the hole at carrying handle.

N° Thermal Limiter Thermostat Resistance "Warm" light Resistance "Cook" light Fuse L Heating Plate

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

Rijstkoker

Model: WA8-1/WA10-1/WA13-1

Line drawing of a rice cooker with control panel and side buttons (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Labeled diagram of a rice cooker showing internal components and food items including a pot, cup, fork, spoon, and cooker.

Line drawing of a rice cooker with a side panel and control panel (no text or symbols)

Insert the lid handle into the hole at carrying handle.

N° Thermal Limiter Thermostat Resistance "Warm" light Resistance "Cook" light Fuse L Heating Plate

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a rice cooker with control panel and side buttons (no text or symbols)

BEHÖVS HJÄLP? KONTAKTA OSS!

Labeled diagram of a rice cooker showing internal components and food items including a pot, cup, fork, spoon, and cooker.

Line drawing of a rice cooker with a side panel and control panel (no text or symbols)

Insert the lid handle into the hole at carrying handle.

N° Thermal Limiter Thermostat Resistance "Warm" light Resistance "Cook" light Fuse L Heating Plate

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
