USER MANUAL X1301 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Rice Cooker

Model: X901/X1301/X1501

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: X901/X1301/X1501

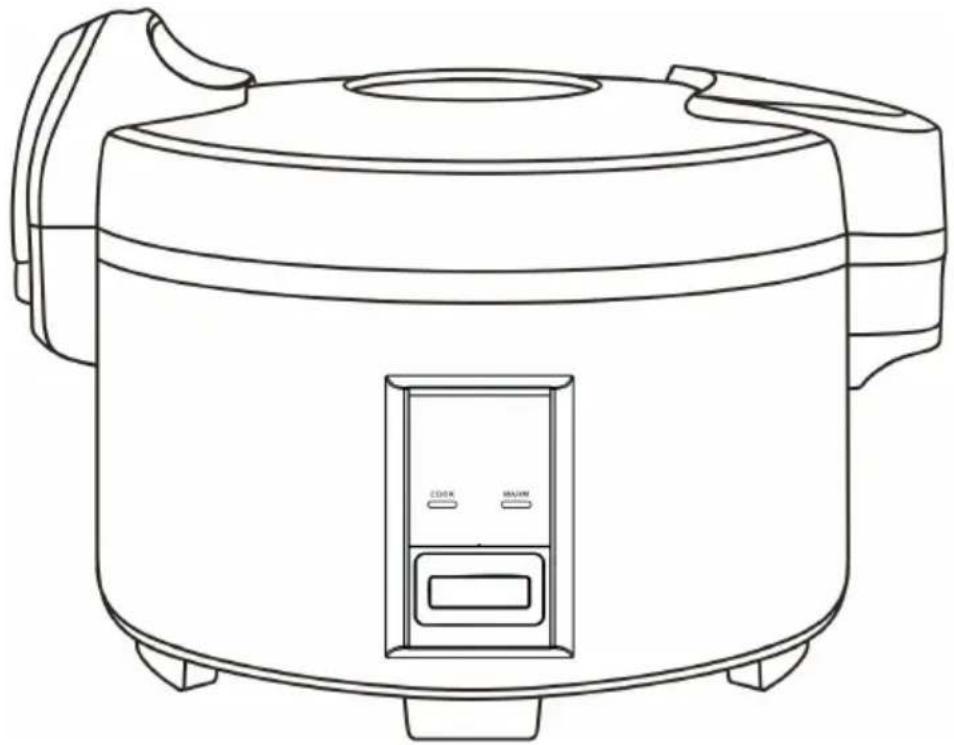

Line drawing of a rice cooker with control panel and side buttons (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Technical Data

Model No	Power Supply	Power Consumption	Protection class	Filling quantity
X901	120V~60Hz	1200W	I	3.6L/20cups (raw rice)
X1301	120V~60Hz	1350W	I	5.2L/28cups (raw rice)
X1501	120V~60Hz	1350W	I	6.0L/32cups (raw rice)

IMPORTANT SAFEGUARDS

• Read the operating instructions carefully before putting the appliance operation and keep the instructions.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never immerse it into any liquid) and sharp edges.
• When cleaning or putting it away, switch off the appliance and always out the plug from the socket (pull the plug itself not the lead) if the a is not being used and remove the attached accessories.
• Do not let cord touch hot surfaces or hang over the edge of a c table.
• Do not use the appliance for other than its intended use.
• Extreme caution must be used when moving the appliance containing water or other liquids.
• Use only with a 120V AC power outlet.
• Use only original spare parts provided. To reduce the risk of electric shock, cook only in the removable container provided.
• During operation and afterwards, the temperature of the accessible surfaces may be hot. Always hold the appliance by the handle.
• Use the appliance only on a level ,dry and heat-resistant work surf

- Do not move the device and do not touch it when it is working.

- Before inserting the plug into the socket, make sure that the mains to be used matches that of the device. You can find this information nameplate.

- Connect the device to a duly installed protective contact socket.

- This appliance should be operated on a separate electrical circuit from other operating appliances. If the electrical circuit is overloaded with other appliances, the appliance may not operate properly.

- Close supervision is necessary when the appliance is used by or r children.

- Keep the appliance and its cord out of reach of children less than

• Children shall not play with the appliance.

- Unplug from outlet when not in use and before cleaning.Allow unit before putting on or taking off parts and before cleaning the appliance

- Extreme caution must be taken when moving the appliance containing hot water or other liquids, foods.

- Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, our customer service by a qualified person and with a cable of the same type.

- Only use the appliance in a dry, indoor area.

- If the supply cord is damaged, it must be replaced by a special assembly available from the manufacturer or its service agent.

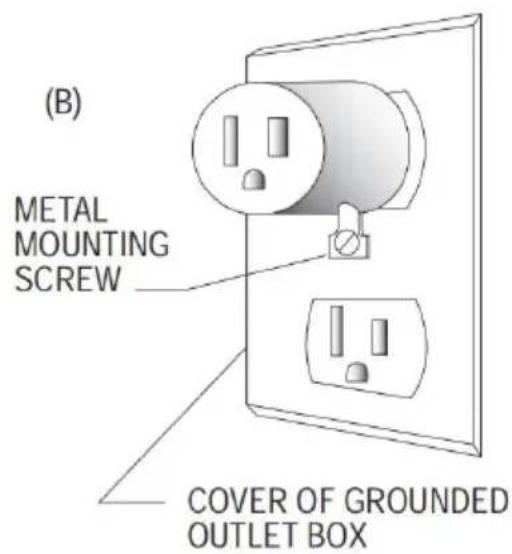

GROUDING INSTRUCTIONS

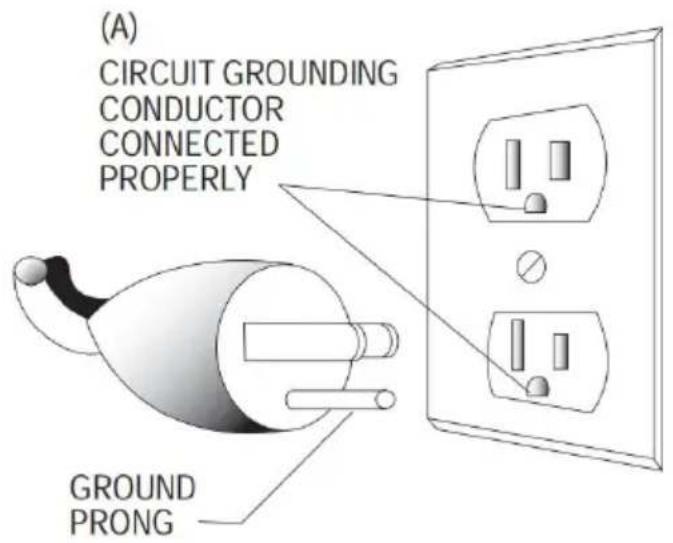

(A) CIRCUIT GROUNDING CONDUCTOR CONNECTED PROPERLY GROUND PRONG

(B) METAL MOUNTING SCREW COVER OF GROUNDED OUTLET BOX

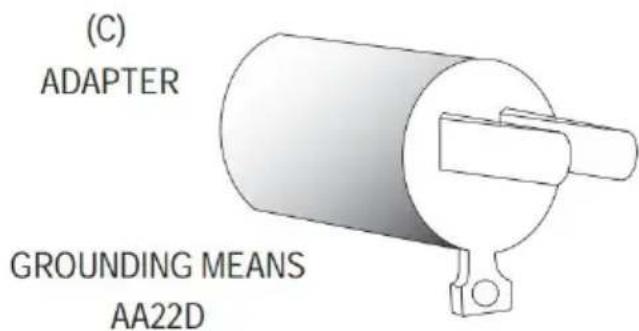

(C) ADAPTER GROUNDING MEANS AA22D

This appliance must be grounded while in use to protect the operator electrical shock. The appliance is equipped with a 3-conductor cord and 3-prong grounding-type plug to fit the proper grounding-type receptacle. T appliance has a plug that looks like sketch A. An adapter, sketch B, sho be used for connecting sketch-A plugs to two-plug or two-prong receptacles. The grounding tab, which extends from the adapter, must be connected to a permanent ground such as a properly grounded outlet as shown in sketch C using a metal screw.

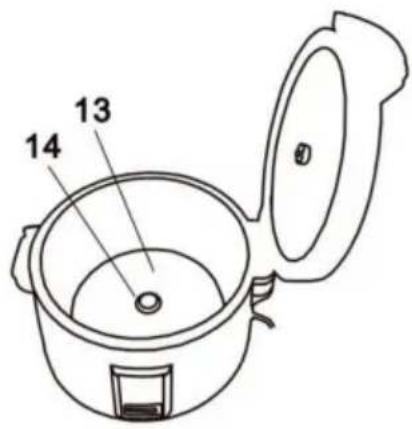

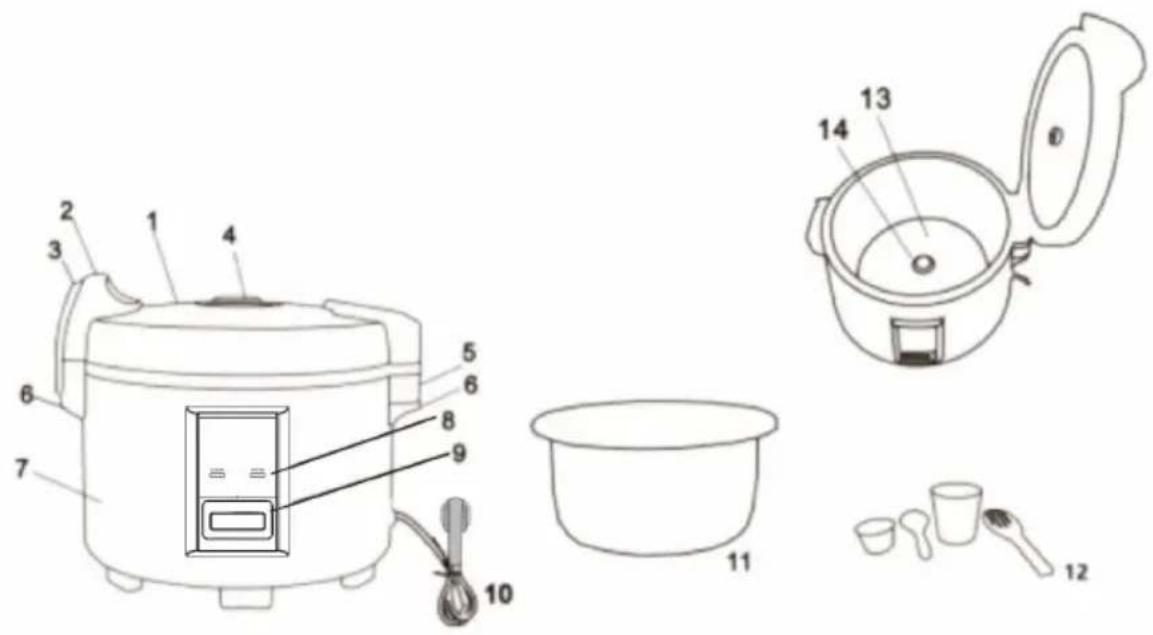

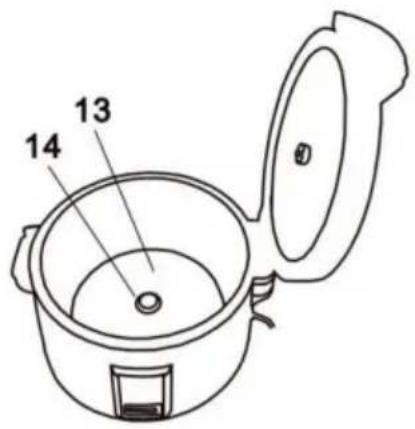

PARTS IDENTIFICATION

1.Lid2.Lid handle3.Lock at handle4. Steam vent in lid	8.“COOK” & “WARM” lights9. Cooking button10.Power cord & plug11.Rice pot
5.Water tank6.Carrying handles7.Housing cooker	12.Spoons & measuring cups13.Heating plate14.Thermal limiter

Labeled diagram of a rice cooker with numbered parts for identification and assembly reference.

HOW TO USE

1. Before initial use, remove the packaging and check the scope of delivery. We recommend cleaning the appliance as described under "cleaning".

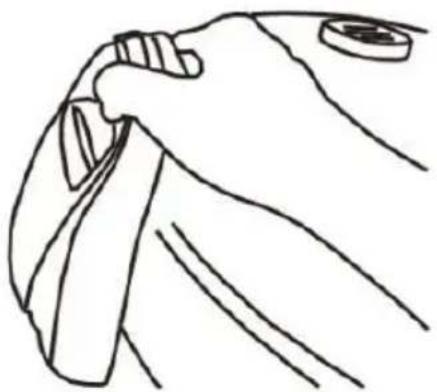

Line drawing of a hand holding a cloth or towel, with no text or symbols present

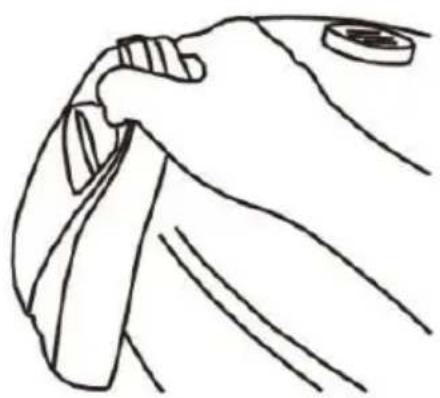

1. Push the lock at the handle to open the lid.
2. Make sure the bottom surface of rice pot and heating plate in the are clean enough .Proper care should be taken to avoid any deform

rice pot, otherwise the heating plate may be destroyed or cooking performance may be destroyed.

1. Wash thoroughly the rice and put them into the rice pot, make the flat, then add certain amount of water. A proportion is advised to be 1: (raw rice vs water). But you may need to adjust this proportion to experiment some times because best cooking performance varies depending on type of rice.

2. Make sure the outside of the rice pot is dry prior to cooking. If the is returned to cooker when wet, it may damage or cause the product malfunction.

3. Place the rice pot into the cooker well and make sure the pot is connecting well with the thermal limiter.

4. Push down the lid until a click sound is heard, now the lid is locke

5. Connect the plug to the mains supply, the “Warm” indicator lights up, press the cooking button down, the “Cook” indicator lights up and “\light goes out. The rice cooker is now cooking.

6. Once the water has evaporated in the rice pot, the appliance switches automatically to "Warm", ending the cooking process. The "Warm" is lit at "Cook" light goes out.

Tip: Leave the rice for a further 5-10 minutes prior to draining it from pot.

1. Disconnect the power plug from the socket.

2. This appliance is uniquely designed to keep the rice or food war over 12 hours. Therefore, if you need to keep the rice warm for hours, leave the rice in the pot, the "Warm" light remains on until you plug from the socket.

Rice should not be left in the rice pot with “KEEP WARM” function 24 hours.

Always disconnect the power plug from the socket whenever the rice pot is empty.

CAUTIONS WHEN USING

• Always fill the rice pot with water, never fill the housing cooker.

- Use the rice pot as an insert in this device only. It is not suitable cookers!

- A safety mechanism prevents the device from cooking if the rice p not been inserted properly.

- Do not touch ,cover or obstruct the steam vent on the top of the cooker as it is extremely hot and may cause scalding. Hot steam wi escape,be cautious of the steam.

HOW TO CLEAN

Pour out the contents of rice pot after it has cooled down.

1. Clean the rice pot, spoon and measuring cup by hand in a warm ri bath.

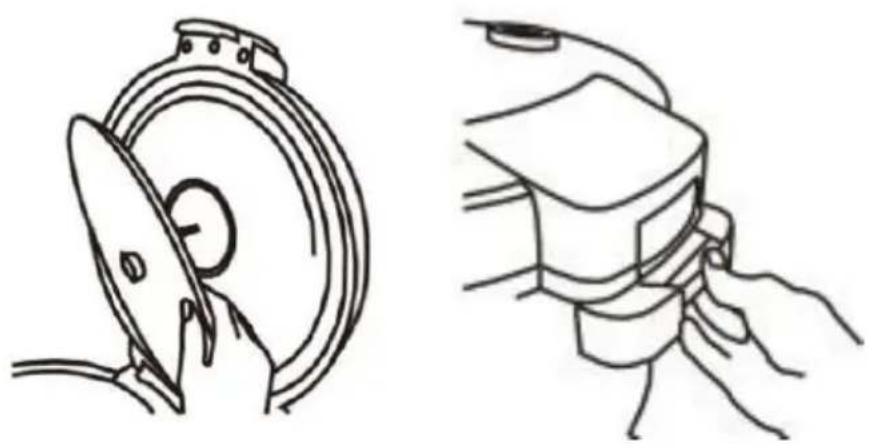

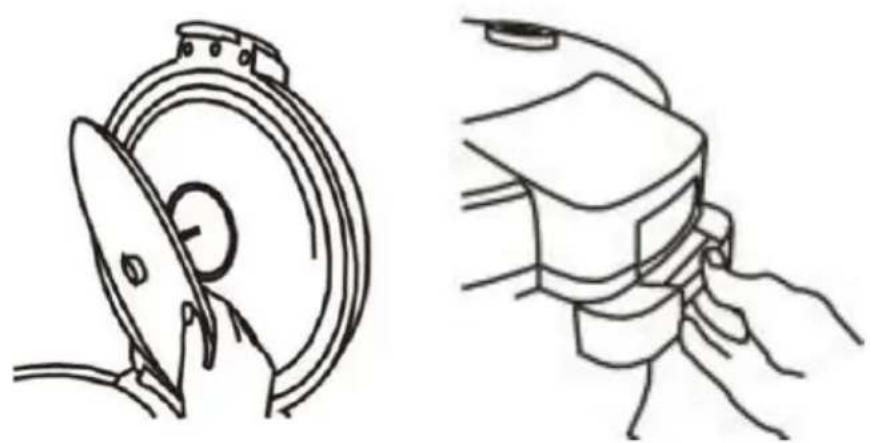

2.There is a detachable sheet in the lid, remove it from the lid ,clear rinse,then replace it well in the lid.

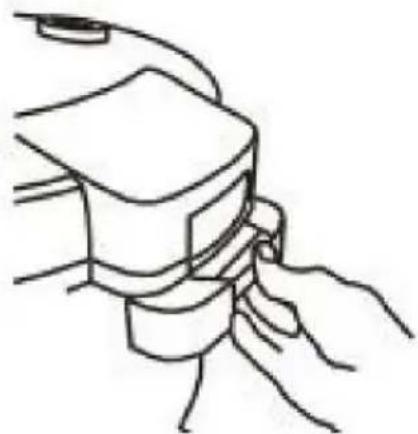

1. Remove the water tank, clean and rinse, then replace it well in the appliance.

2. Allow all parts to dry and replace them well.

3. Wipe off the inside and outside of the housing cooker with a damp cloth, then wipe it with a dry cloth.

Line drawings of a car wheel and its hand holding a car (no text or symbols)

CAUTIONS WHEN CLEANING

• Always pull out the plug from the mains socket before cleaning and until the unit has cooled down.

- Never immerse the housing cooker, the line cord and the mains plug water, as otherwise this might result in an electric shock or fire.

• Do not use any wire brushes or other abrasive objects.
• Do not use any acidic or scouring agents.
• Do not clean the accessories in the dishwasher. The surfaces could become dull.

TOUBLESHOOTING

Because rice variations differ in their make-up, results may vary depend upon the type of rice being used. Below are some troubleshooting tips help you achieve the desired consistency.

PROBLEM	SOLUTION
Rice is too dry/hard after cooking.	If rice is dry or hard/chewy when the rice cooker to “WARM” mode, additional water and cooking time soften the rice. Depending on how dry the rice is, a to 1 cup of water and stir through. Close the lid down the cook switch to “COOK” mode. When the cooker switches to “WARM” mode, open the lid and the rice to check the consistency. Repeat as neces until rice is soft and moist.
Rice is too moist/soggy after cooking.	If rice is still too wet or soggy when the rice co switches to “WARM” mode, use the serving spatula the rice. This will redistribute the bottom(moistest) p the rice as well as release excess moisture. Close and allow the rice cooker to remain on “WARM” 10-30 minutes as needed, opening the lid and stirri periodically to release excess moisture.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODÈLE : X901/X1301/X1501

Line drawing of a rice cooker with control panel and side legs (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Labeled diagram of a rice cooker with numbered parts for identification and assembly reference.

COMMENT UTILISER

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Technical line drawing showing a car wheel and its mechanical assembly (no text or symbols)

PRÉCAUTIONS LORS DU NETTOYAGE

MODELL: X901/X1301/X1501

Line drawing of a rice cooker with control panel and side legs (no text or symbols)

Labeled diagram of a rice cooker with numbered parts for identification and assembly reference.

VERWENDUNG 1.

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Technical line drawing showing a car wheel and a hand holding a car tire (no text or symbols)

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELLO: X901/X1301/X1501

Line drawing of a rice cooker with control panel and side legs (no text or symbols)

HO BISOGNO DI AIUTO? CONTATTACI!

Labeled diagram of a rice cooker with numbered parts for identification and assembly reference.

COME USARE 1.

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Technical line drawing showing a car wheel and a hand holding a car (no text or symbols)

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELO: X901/X1301/X1501

Line drawing of a rice cooker with control panel and side legs (no text or symbols)

Labeled diagram of a rice cooker with numbered parts for identification and assembly reference.

CÓMO UTILIZAR 1.

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Technical line drawing showing a car wheel and a hand holding a car tire (no text or symbols)

PRECAUCIONES AL LIMPIAR

Model: X901/X1301/X1501

Line drawing of a rice cooker with control panel and side legs (no text or symbols)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Labeled diagram of a rice cooker with numbered parts for identification and assembly reference.

SPOSÓB UŻYCIA

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Technical line drawing showing a car wheel and a hand holding a car (no text or symbols)

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

Rijstkoker

Model: X901/X1301/X1501

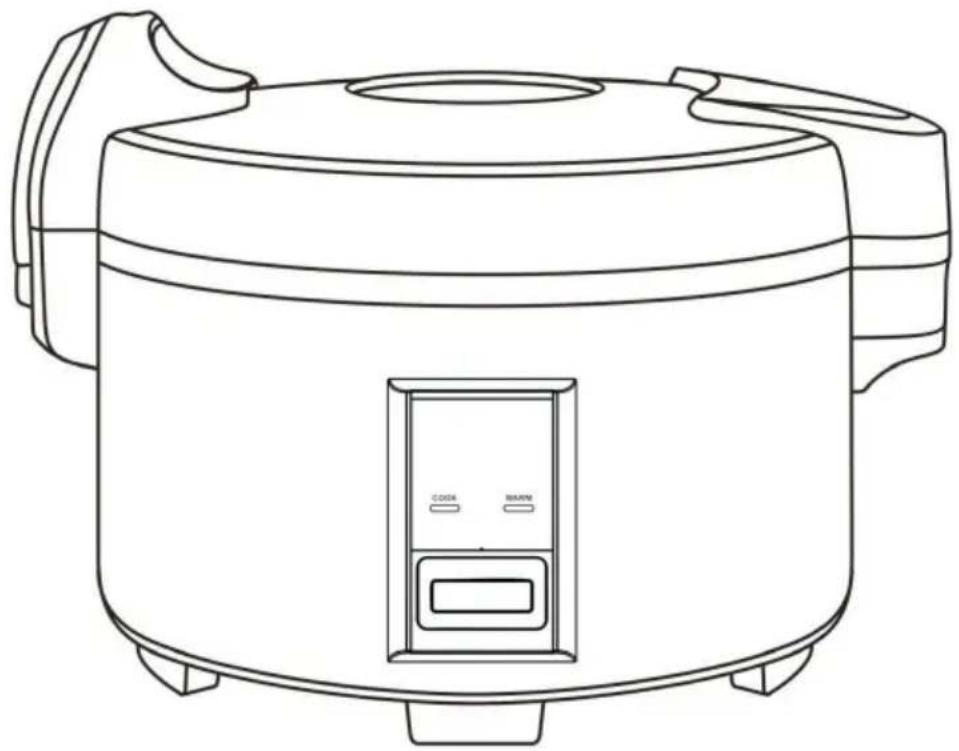

Line drawing of a rice cooker with control panel and side legs (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Labeled diagram of a rice cooker with numbered parts for identification and assembly reference.

GEBRUIKSAANWIJZING

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Technical line drawing showing a car wheel and its mechanical assembly (no text or symbols)

VOORZORGSMAATREGELEN BIJ HET REINIGEN

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELL: X901/X1301/X1501

Line drawing of a rice cooker with control panel (no text or symbols)

BEHÖVS HJÄLP? KONTAKTA OSS!

Labeled diagram of a rice cooker with numbered parts for identification and assembly reference.

HUR MAN

Line drawing of a hand gripping a garment with a circular button (no text or symbols)

Line drawing of a hand holding a circular object with a ring, no text or symbols present

Line drawing of a mechanical component with hands operating it (no text or symbols)

FÖRSIKTIGHET VID RENGÖRING

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

Rice Cooker

Model: X901/X1301/X1501

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: X901/X1301/X1501

Line drawing of a rice cooker with front panel and side legs (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

CORRECT DISPOSALThis product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

Technical Data

Model No	Power Supply	Power Consumption	Protection class	Filling quantity
X901	220-240V ~ 50/60Hz	1300W	I	3.6L/20cups (raw rice)
X1301	220-240V ~ 50/60Hz	1600W	I	5.2L/28cups (raw rice)
X1501	220-240V ~ 50/60Hz	1800W	I	6.0L/32cups (raw rice)

• Read the operating instructions carefully before putting the appliance operation and keep the instructions.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never immerse it into any liquid) and sharp edges.
• When cleaning or putting it away, switch off the appliance and always out the plug from the socket (pull the plug itself not the lead) if the a is not being used and remove the attached accessories.
• Do not let cord touch hot surfaces or hang over the edge of a c table.
• Do not use the appliance for other than its intended use.

- Extreme caution must be used when moving the appliance containing water or other liquids.

- Use only original spare parts provided. To reduce the risk of electric shock, cook only in the removable container provided.

- During operation and afterwards, the temperature of the accessible surfaces may be hot. Always hold the appliance by the handle.

- Use the appliance only on a level, dry and heat-resistant work surf

- Do not move the device and do not touch it when it is working.

- Before inserting the plug into the socket, make sure that the mains to be used matches that of the device. You can find this information nameplate.

- Connect the device to a duly installed protective contact socket.

- This appliance should be operated on a separate electrical circuit from other operating appliances. If the electrical circuit is overloaded with other appliances, the appliance may not operate properly.

- Close supervision is necessary when the appliance is used by or r children.

- Keep the appliance and its cord out of reach of children less than

• Children shall not play with the appliance.

- Unplug from outlet when not in use and before cleaning.Allow unit before putting on or taking off parts and before cleaning the applianc

- Extreme caution must be taken when moving the appliance contain hot water or other liquids, foods.

- Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, our customer service by a qualified person and with a cable of the same type.

- Only use the appliance in a dry, indoor area.

- If the supply cord is damaged, it must be replaced by a special assembly available from the manufacturer or its service agent.

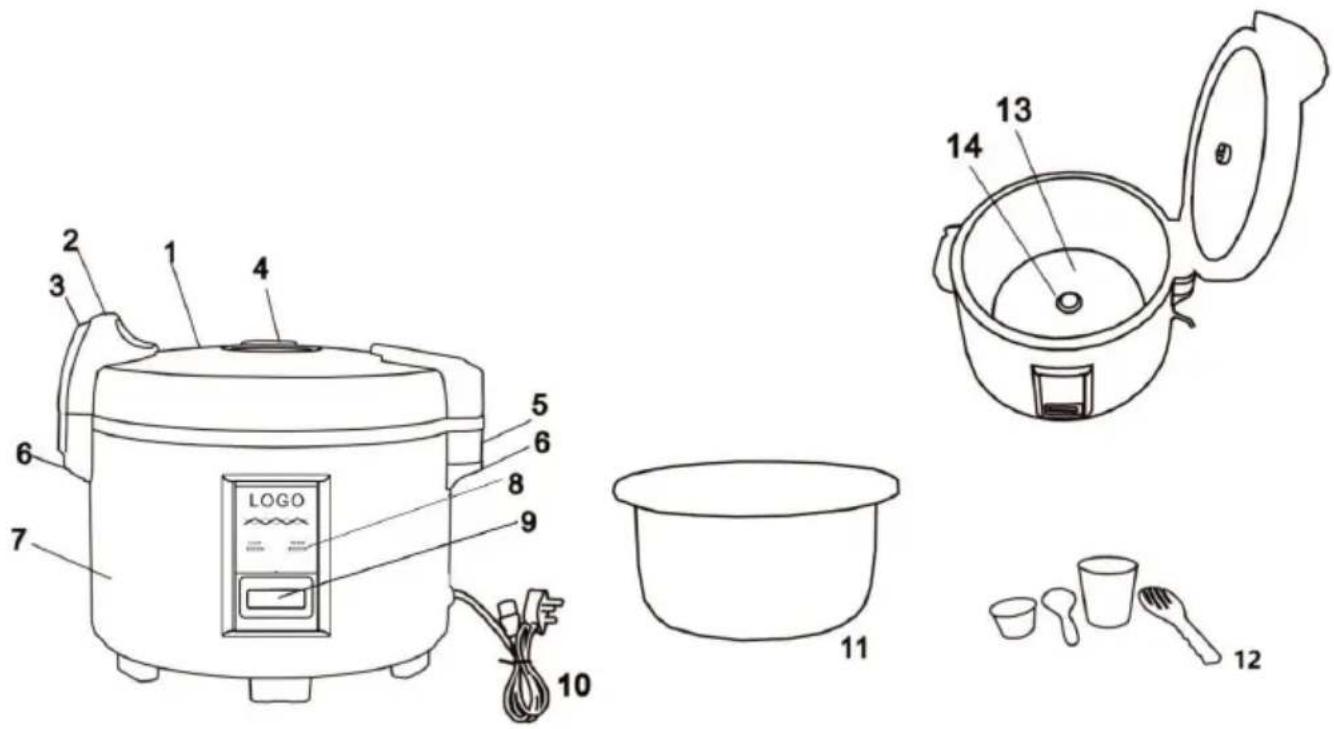

PARTS IDENTIFICATION

1.Lid2.Lid handle3.Lock at handle4. Steam vent in lid5.Water tank6.Carrying handles7.Housing cooker

8.“COOK” & “WARM” lights9. Cooking button10.Power cord & plug11.Rice pot12.Spoons & measuring cups13.Heating plate14.Thermal limiter

Labeled line drawings of a rice cooker with numbered parts including a digital display, cooking bowl, and food items.

HOW TO USE

1. Before initial use, remove the packaging and check the scope of delivery. We recommend cleaning the appliance as described under "cleaning".

Line drawing of a hand holding a cloth or towel, with no text or symbols present

1. Push the lock at the handle to open the lid.

2. Make sure the bottom surface of rice pot and heating plate in the are clean enough .Proper care should be taken to avoid any deform rice pot, otherwise the heating plate may be destroyed or cooking performance may be destroyed.

3. Wash thoroughly the rice and put them into the rice pot, make the flat, then add certain amount of water. A proportion is advised to be 1: (raw rice vs water). But you may need to adjust this proportion to experiment some times because best cooking performance varies depending on type of rice.

4. Make sure the outside of the rice pot is dry prior to cooking. If the is returned to cooker when wet, it may damage or cause the product malfunction.

5. Place the rice pot into the cooker well and make sure the pot is connecting well with the thermal limiter.

7.Push down the lid until a click sound is heard, now the lid is locke

1. Connect the plug to the mains supply, the “Warm” indicator lights up, press the cooking button down, the “Cook” indicator lights up and “\light goes out. The rice cooker is now cooking.

9.Once the water has evaporated in the rice pot,the appliance switches automatically to"Warm",ending the cooking process.The "Warm" is lit a "Cook" light goes out.

Tip: Leave the rice for a further 5-10 minutes prior to draining it from pot.

1. Disconnect the power plug from the socket.

2. This appliance is uniquely designed to keep the rice or food war over 12 hours. Therefore, if you need to keep the rice warm for hours, leave the rice in the pot, the "Warm" light remains on until you plug from the socket.

Rice should not be left in the rice pot with “KEEP WARM” function 24 hours.

Always disconnect the power plug from the socket whenever the pot is empty.

CAUTIONS WHEN USING

• Always fill the rice pot with water, never fill the housing cooker.

- Use the rice pot as an insert in this device only. It is not suitable cookers!

- A safety mechanism prevents the device from cooking if the rice p not been inserted properly.

- Do not touch ,cover or obstruct the steam vent on the top of the cooker as it is extremely hot and may cause scalding. Hot steam wi escape,be cautious of the steam.

HOW TO CLEAN

Pour out the contents of rice pot after it has cooled down.

1. Clean the rice pot, spoon and measuring cup by hand in a warm ri bath.

2.There is a detachable sheet in the lid, remove it from the lid ,clear rinse,then replace it well in the lid.

1. Remove the water tank, clean and rinse, then replace it well in the appliance.

2. Allow all parts to dry and replace them well.

3. Wipe off the inside and outside of the housing cooker with a damp cloth, then wipe it with a dry cloth.

Technical line drawing showing a car wheel and its mechanical assembly (no text or symbols)

CAUTIONS WHEN CLEANING

• Always pull out the plug from the mains socket before cleaning and until the unit has cooled down.

- Never immerse the housing cooker, the line cord and the mains plug water, as otherwise this might result in an electric shock or fire.

- Do not use any wire brushes or other abrasive objects.

- Do not use any acidic or scouring agents.

- Do not clean the accessories in the dishwasher. The surfaces could become dull.

TOUBLESHOOTING

Because rice variations differ in their make-up, results may vary depend upon the type of rice being used. Below are some troubleshooting tips help you achieve the deisred consistency.

PROBLEM	SOLUTION
Rice is too dry/hard after cooking.	If rice is dry or hard/chewy when the rice cooker to “WARM” mode, additional water and cooking time soften the rice. Depending on how dry the rice is, a to 1 cup of water and stir through. Close the lid down the cook switch to “COOK” mode. When the cooker switches to “WARM” mode, open the lid and the rice to check the consistency. Repeat as neces until rice is soft and moist.
Rice is too moist/soggy after cooking.	If rice is still too wet or soggy when the rice co switches to “WARM” mode,use the serving spatula the rice.This will redistribute the bottom(moistest) p the rice as well as release excess moisture.Close and allow the rice cooker to remain on “WARM” 10-30 minutes as needed,opening the lid and stirri periodically to release excess moisture.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODÈLE : X901/X1301/X1501

Line drawing of a rice cooker with control panel (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Simple line drawing of a bowl with no text or symbols

13 14

COMMENT

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Technical line drawing showing a car wheel and its mechanical assembly (no text or symbols)

PRÉCAUTIONS LORS DU NETTOYAGE

MODELL: X901/X1301/X1501

Line drawing of a rice cooker with control panel (no text or symbols)

Simple line drawing of a bowl with no text or symbols

13 14

VERWENDUNG 1.

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Technical line drawing showing a car wheel and its mechanical assembly (no text or symbols)

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELLO: X901/X1301/X1501

Line drawing of a rice cooker with control panel (no text or symbols)

HO BISOGNO DI AIUTO? CONTATTACI!

Simple line drawing of a bowl with no text or symbols

13 14

COME USARE 1.

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Technical line drawing showing a car wheel and its mechanical assembly (no text or symbols)

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELO: X901/X1301/X1501

Line drawing of a rice cooker with control panel (no text or symbols)

Labeled line drawings of a rice cooker with numbered parts including a digital display, cooking bowl, and kitchen utensils.

CÓMO UTILIZAR 1.

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Technical line drawing showing a car wheel and its mechanical assembly (no text or symbols)

PRECAUCIONES AL LIMPIAR

Model: X901/X1301/X1501

Line drawing of a rice cooker with control panel (no text or symbols)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Simple line drawing of a bowl with no text or symbols

13 14

SPOSÓB UŻYCIA

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Technical line drawing showing a car wheel and its mechanical assembly (no text or symbols)

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

Rijstkoker

Model: X901/X1301/X1501

Line drawing of a rice cooker with control panel (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Labeled line drawings of a rice cooker with numbered parts including a digital display, cooking bowl, and food items.

Line drawing of a hand holding a cloth or towel, no text or symbols present

Technical line drawing showing a car wheel and its mechanical assembly (no text or symbols)

VOORZORGSMAATREGELEN BIJ HET REINIGEN

MODELL: X901/X1301/X1501

Line drawing of a rice cooker with control panel (no text or symbols)

BEHÖVS HJÄLP? KONTAKTA OSS!

Labeled line drawings of a rice cooker with numbered parts including a digital display, cooking bowl, and kitchen utensils.

HUR MAN

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Technical line drawing showing a car wheel and its mechanical assembly (no text or symbols)

FÖRSIKTIGHET VID RENGÖRING

www.vevor.com/support
