Product Type	Commercial Rice Cooker
Brand	Vevor
Model	WA10-1
Power Supply	120 V ~ 60 Hz (1450 W) or 220-240 V ~ 50-60 Hz (1600 W)
Power Consumption	1450 W (120 V) / 1600 W (220-240 V)
Capacity (Raw Rice)	4.2 L
Protection Class	I
Functions	Automatic cooking and keep warm
Indicator Lights	"Cook" and "Keep Warm" indicators
Safety	Automatic shut-off after cooking, overheat protection, mechanism preventing cooking without the inner pot
Package Contents	Lid with steam vent, inner pot, spoon, measuring cup
Maintenance	Hand wash accessories with warm water; never immerse the housing; do not use metal brushes or abrasive products
Repairability	Do not repair yourself; contact a qualified technician or the manufacturer for cord replacement
General Information	Suitable for indoor dry use; do not use outdoors; keep out of reach of children under 8 years

Frequently Asked Questions - WA10-1 Vevor

How to use the Vevor WA10-1 rice cooker?

Before first use, clean the appliance. Open the lid, place washed rice in the inner pot, add water (recommended ratio 1:1.3 for white rice). Close the lid, plug in the appliance, the "Cook" light turns on. Press the switch to start cooking. Once the water has evaporated, the appliance automatically switches to "Keep Warm" mode. Let it rest for 5 minutes before serving.

How much water should I add for cooking rice?

Use the provided measuring cup. For white rice, the recommended ratio is 1 volume of rice to 1.3 volumes of water. You can also use the graduated marks inside the pot. For example, for 15 cups of rice, fill water to the 15 line. Adjust according to your preferences after a few uses.

How to clean the rice cooker?

Unplug the appliance and let it cool. Hand wash the inner pot, lid and accessories in warm soapy water. Rinse and dry. Wipe the housing with a damp cloth then dry. Never immerse the housing, cord or plug. Do not use metal brushes or abrasive products.

What to do if the rice is not cooked properly?

First check the water amount: lack of water can leave rice hard. Ensure the pot is in good contact with the heating plate and the sensor works. You can add a little water and restart a cooking cycle manually. The rice type also affects the result; adjust the ratio after a few tries.

Can I cook other foods besides rice?

This appliance is primarily designed for cooking rice. You can cook other grains (quinoa, barley) by adjusting water ratios. However, do not use it for very liquid or greasy foods that could damage the sensor or heating plate.

Why doesn't the appliance turn on?

Check that the inner pot is properly inserted and in good contact with the sensor. The appliance has a safety mechanism that prevents cooking if the pot is not in place. Also ensure the plug is fully inserted and the outlet works.

What are the important safety instructions?

Do not use outdoors. Keep away from heat sources, moisture and sharp edges. Do not immerse in water. Do not touch hot surfaces during and after cooking. Use only on a flat surface. Unplug before cleaning. Do not leave children unattended.

How to maintain the heating plate?

The heating plate is at the bottom of the housing. To maintain it, wipe with a dry cloth after the appliance has cooled. Never pour water or liquid directly on the plate. Avoid deforming the inner pot as it could damage the plate.

Can I use metal utensils in the pot?

It is not recommended to use metal utensils as they can scratch the pot coating. Prefer wooden, silicone or heat-resistant plastic utensils to preserve the non-stick surface.

Where to find technical support for the Vevor rice cooker?

Technical support and the electronic warranty certificate are available on the website www.vevor.com/support. You can ask questions there or request assistance for spare parts or repairs.

USER MANUAL WA10-1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

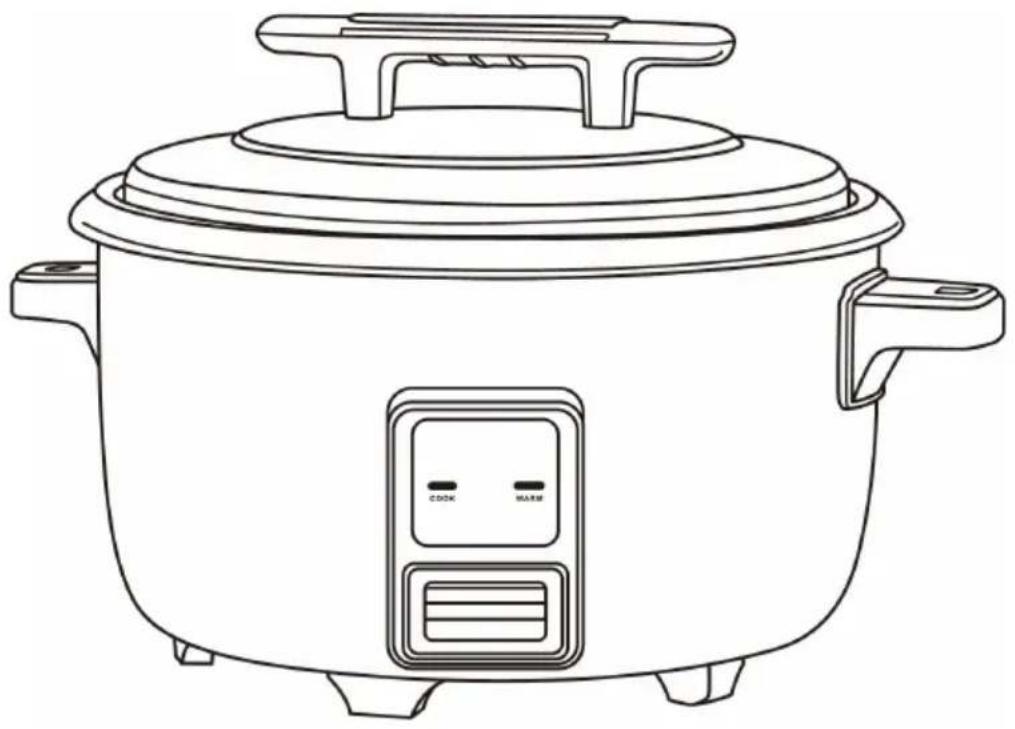

Rice Cooker

Model: WA8-1/WA10-1/WA13-1

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: WA8-1/WA10-1/WA13-1

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Technical Data

Model No	Power Supply	Power Consumption	Protection class	Filling quantity
WA8-1	120V~60Hz	1200W	I	3.6L(raw rice)
WA10-1	120V~60Hz	1450W	I	4.2L(raw rice)
WA13-1	120V~60Hz	1650W	I	5.6L(raw rice)

General notes:

• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never immerse it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself not the lead) if the appliance is not being used and remove the attached accessories.
• Use only original spare parts.

Special Safety Instructions for this Machine

• During operation and afterwards, the temperature of the accessible surfaces will be very high. Always hold the appliance by the handle.
• Use the appliance only on a level work surface.
• Do not move the device and do not touch it when it is working.
• Before inserting the plug into the socket, make sure that the mains to be used matches that of the device. You can find this information on the nameplate.
• Connect the device to a duly installed protective contact socket.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved.
• Cleaning and maintenance by the user shall not be made by children unless they are older than 8 years and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years old. Children shall not play with the appliance.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable replaced only by the manufacturer, our customer service, or a qualified person, and with a cable of the same type.
• Only use the appliance in a dry, indoor area.
• If the supply cord is damaged, it must be replaced by a special assembly available from the manufacturer or its service agent.

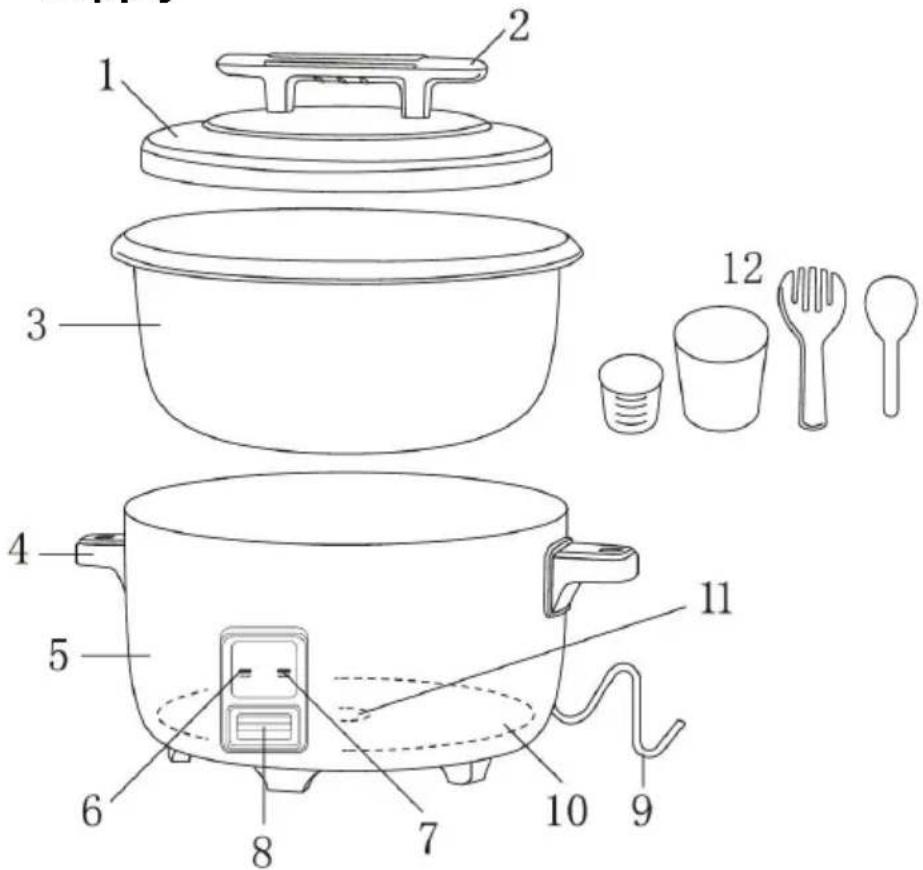

SAVE THESE INSTRUCTIONS Scope of Supply

1.Lid with steam vent2. Lid handle3. Rice pot4. Carrying handles5.Housing cooker6. “Cook “ light

7. “Warm” light8.Switch9. Power cord and plug10. Heating plate11.Sensor12.Spoon & measuring cup

How to use

1. Before initial use, remove the packaging and check the scope of delivery. We recommend cleaning the appliance as described under "Cleaning". 2. Open the lid.
2. Make sure the bottom surface of the rice pot and the heating plate in the cooker are clean enough. Proper care should be taken to avoid any deformation of the rice pot, otherwise the heating plate may be damaged or cooking performance may be impaired.
3. Wash the rice thoroughly and put it into the rice pot, making the rice level, then add a certain amount of water. A proportion is advised to be 1: (raw rice vs water). For example, if you wish to cook 15 cups of rice, add 15 small measuring cups of rice to the pot and fill with water to the rice (CUP) mark, e.g., 15. After some experiments, the bigger measuring cup is optional to make measuring much faster.

Tips: Cooking performance will vary depending on rice type.

You can regulate the proportion after some experiments for best taste.

Uncook rice:(short rice)	Water:Using the water lin(inner pot)	Approached yield:
15 Cups	White rice:Line 15	2.6L
20 Cups	White rice:Line 20	3.4L

1. Place the rice pot into the cooker well, rotate the rice pot to make the pot level and connecting well with the sensor.
2. Close the lid.
3. Connect the plug to the mains supply, the "COOK" indicator lights up. Press the switch down, the "WARM" indicator lights up and "COOK" goes out. The rice cooker is cooking.

8. Once the water has evaporated in the rice pot, the appliance switches automatically to "Warm", ending the cooking process. The "Warm" light is lit and the "Cook" light goes out.

Tip: Leave the rice for a further 5 minutes prior to serving. 9. Disconnect the power plug from the socket.

10. Open the lid and stir up the rice. Now the rice is ready to serve.

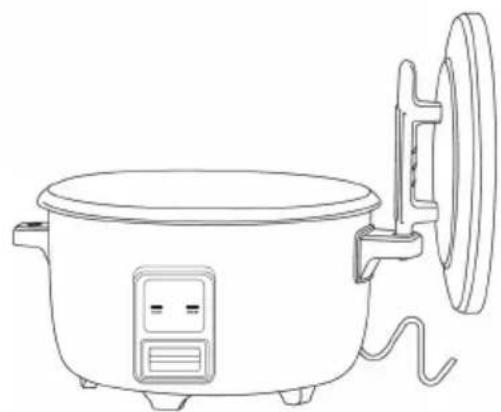

1. The lid can be hanged on the carrying handle, referred as below.

Insert the lid handle into the hole at the carrying handle.

Cautions when using

• Always fill the rice pot with water, never fill the housing cooker. - Use the rice pot as an insert in this device only. It is not suitable for other cookers! - A safety mechanism prevents the device from cooking if the rice pot has not been inserted properly. - Hot steam escapes during cooking, be cautious of the steam.

Cleaning

1. Pour out the contents of the rice pot after it has cooled down.
2. Clean the lid, rice pot, steamer, spoon, and measuring cup by hand in a warm rinsing bath.
3. Rinse the parts thoroughly with clear water and allow them to dry.
4. Wipe off the inside and outside of the housing cooker with a damp cloth, then wipe it with a dry cloth.

Cautions when cleaning

• Always pull out the plug from the mains socket before cleaning and

until the unit has cooled down.

• Never immerse the housing cooker, the line cord, and the mains plug in water, as otherwise this might result in an electric shock or fire.
• Do not use any wire brushes or other abrasive objects.
• Do not use any acidic or scouring agents.
• Do not clean the attachments in the dishwasher. The surfaces could become dull.

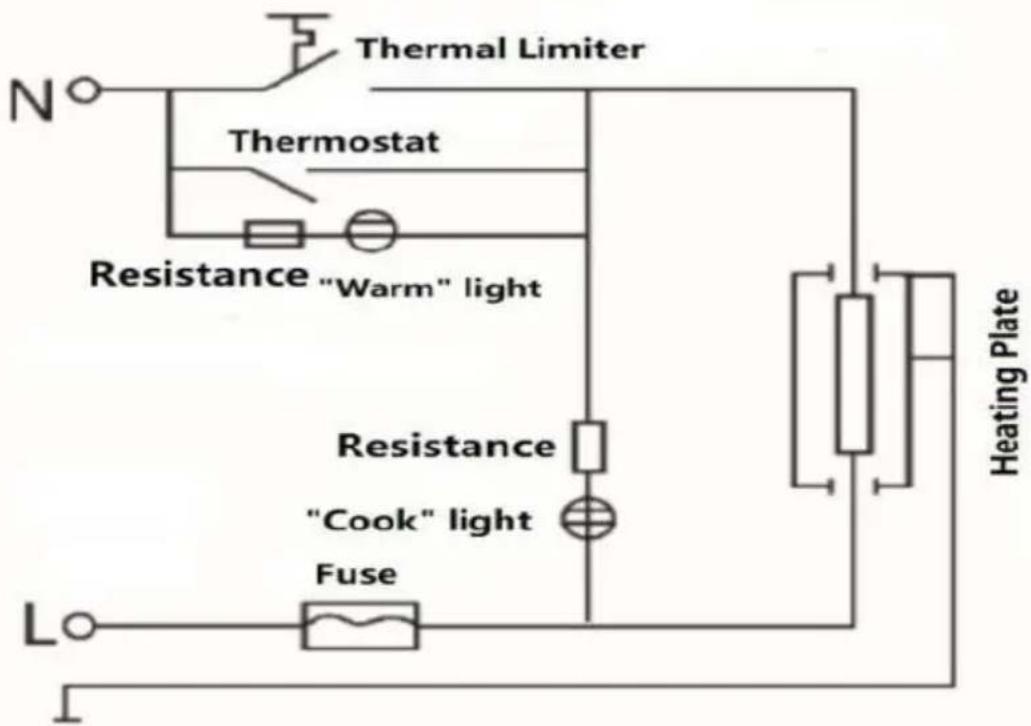

Electric Diagram

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

Insert the lid handle into the hole at carrying handle.

Insert the lid handle into the hole at carrying handle.

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

Insert the lid handle into the hole at carrying handle.

electronics www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Insert the lid handle into the hole at carrying handle.

NEED HELP? CONTACT US!

Insert the lid handle into the hole at carrying handle.

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical support and e-warranty certificate www.vevor.com/support

Rice cooker

Model: WA8-1/WA10-1/WA13-1

NEED HELP? CONTACT US!

Insert the lid handle into the hole at carrying handle.

NEED HELP? CONTACT US!

Insert the lid handle into the hole at carrying handle.

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

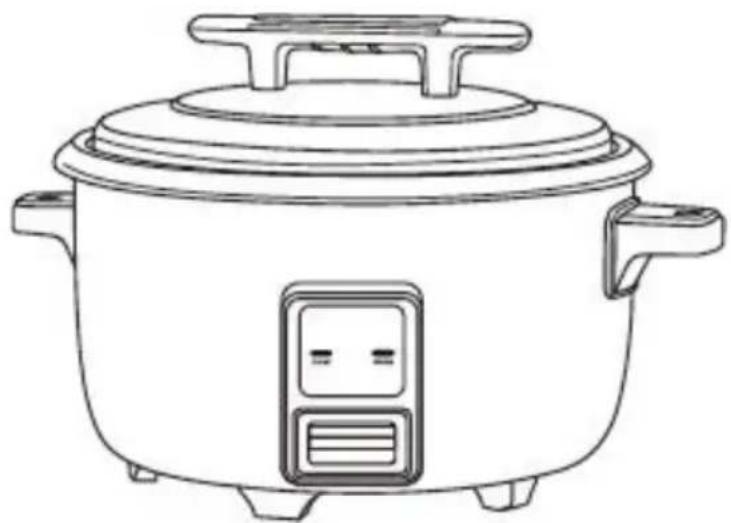

Rice Cooker

Model: WA8-1/WA10-1/WA13-1

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands, and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

MODEL: WA8-1/WA10-1/WA13-1

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

CORRECT DISPOSALThis product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

Technical Data

Model No	Power Supply	Power Consumption	Protection class	Filling quantity
WA8-1	220-240V~50 -60Hz	1300W	I	3.6L(raw rice)
WA10-1	220V-240~50 -60Hz	1600W	I	4.2L(raw rice)
WA13-1	220V-240~50 -60Hz	2000W	I	5.6L(raw rice)

General notes:

• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never immerse it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Use only original spare parts.

Special Safety Instructions for this Machine

• During operation and afterwards, the temperature of the accessible surfaces will be very high. Always hold the appliance by the handle.
• Use the appliance only on a level work surface.
• Do not move the device and do not touch it when it is working.
• Before inserting the plug into the socket, make sure that the mains to be used matches that of the device. You can find this information on the nameplate.
• Connect the device to a duly installed protective contact socket.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved.
• Cleaning and maintenance by the user shall not be made by children unless they are older than 8 years and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years. Children shall not play with the appliance.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid exposure to danger, always have a faulty cable replaced only by the manufacturer, our customer service, or a qualified person, and with a cable of the same type.
• Only use the appliance in a dry, indoor area.
• If the supply cord is damaged, it must be replaced by a special assembly available from the manufacturer or its service agent.

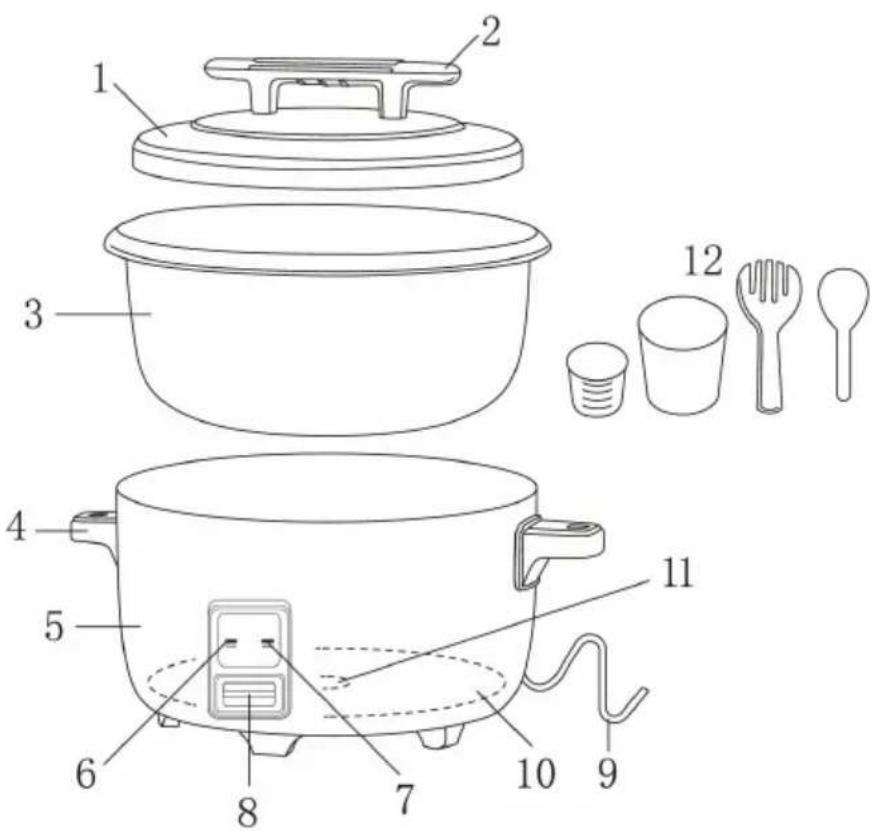

Scope of Supply

1.Lid with steam vent2. Lid handle3. Rice pot4. Carrying handles5.Housing cooker6. “Cook “ light

7. “Warm” light8.Switch9. Power cord and plug10. Heating plate11.Sensor12.Spoon & measuring cup

How to use

1. Before initial use, remove the packaging and check the scope of delivery. We recommend cleaning the appliance as described under "cleaning".

2. Open the lid.

1. Make sure the bottom surface of the rice pot and the heating plate in the cooker are clean enough. Proper care should be taken to avoid any deformation of the rice pot, otherwise the heating plate may be destroyed or cooking performance may be degraded.

4. Wash the rice thoroughly and put it into the rice pot, making the rice flat, then add a certain amount of water. A proportion is advised to be 1:

(raw rice vs water). For example, if you wish to cook 15 cups of rice, add 15 small measuring cups of rice to the pot and fill with water to the corresponding (CUP) mark, e.g., 15. After some experiments, the bigger measuring cup is optional to make measuring much faster.

Tips: Cooking performance will vary depending on rice type.

You can regulate the proportion after some experiments for best taste.

Uncook rice: (short rice)	Water:Using the water lin (inner pot)	Approached yield:
15 Cups	White rice:Line 15	2.6L
20 Cups	White rice:Line 20	3.4L

1. Place the rice pot into the cooker well, rotate the rice pot to make the pot level and connecting well with the sensor.
2. Close the lid.
3. Connect the plug to the mains supply, the "COOK" indicator lights up, press the switch down, the "WARM" indicator lights up and "COOK" goes out. The rice cooker is cooking.

8. Once the water has evaporated in the rice pot, the appliance switches automatically to "Warm", ending the cooking process. The "Warm" light is lit and the "Cook" light goes out.

Tip: Leave the rice for a further 5 minutes prior to draining it. 9. Disconnect the power plug from the socket.

10. Open the lid and stir up the rice. Now the rice is ready to serve.

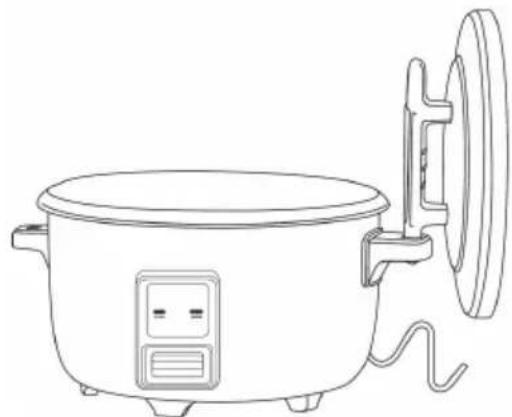

1. The lid can be hanged on the carrying handle, as referred below.

Insert the lid handle into the hole at the carrying handle.

Cautions when using

• Always fill the rice pot with water, never fill the housing cooker.

• Use the rice pot as an insert in this device only. It is not suitable for other cookers!
• A safety mechanism prevents the device from cooking if the rice pot has not been inserted properly.
• Hot steam escapes during cooking, be cautious of the steam.

Cleaning

1. Pour out the contents of the rice pot after it has cooled down.
2. Clean the lid, rice pot, steamer, spoon, and measuring cup by hand in a warm rinsing bath.
3. Rinse the parts thoroughly with clear water and allow them to dry.
4. Wipe off the inside and outside of the housing cooker with a damp cloth, then wipe it with a dry cloth.

Cautions when cleaning

• Always pull out the plug from the mains socket before cleaning and until the unit has cooled down. - Never immerse the housing, cooker, the line cord and the mains plug in water, as otherwise this might result in an electric shock or fire. - Do not use any wire brushes or other abrasive objects. - Do not use any acidic or scouring agents. - Do not clean the attachments in the dishwasher. The surfaces could become dull.

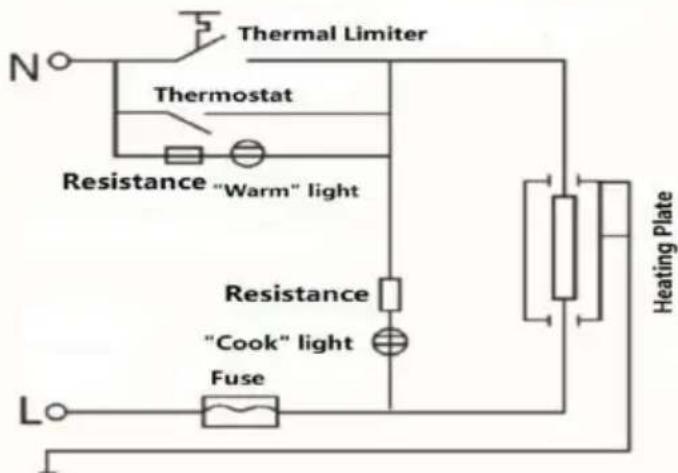

Electric Diagram

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

Insert the lid handle into the hole at carrying handle.

VEVOR®

TOUGH TOOLS, HALF PRICE

Insert the lid handle into the hole at carrying handle.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

Insert the lid handle into the hole at carrying handle.

VEVOR®

TOUGH TOOLS, HALF PRICE

electronics www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Insert the lid handle into the hole at carrying handle.

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

Insert the lid handle into the hole at carrying handle.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical support and e-warranty certificate www.vevor.com/support

Rice cooker

Model: WA8-1/WA10-1/WA13-1

NEED HELP? CONTACT US!

Insert the lid handle into the hole at carrying handle.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical support and e-warranty certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Insert the lid handle into the hole at carrying handle.
