USER MANUAL SC-7310 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FOOD CHOPPER

MODEL:SC-7304/SC-7306/SC-7310/SC-7315

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

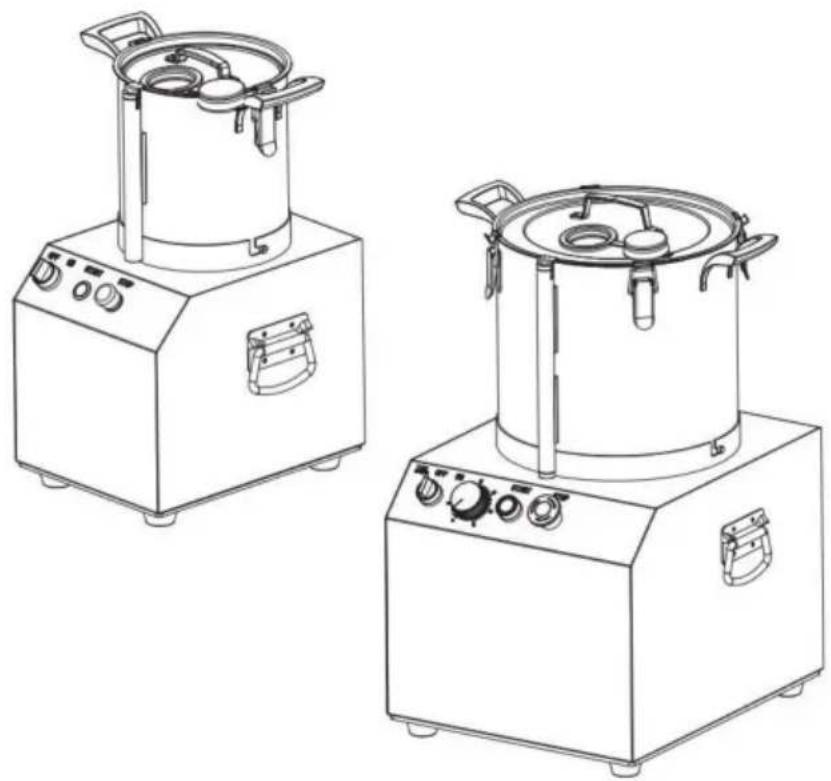

MODEL:SC-7304/SC-7306/SC-7310/SC-7315

Line drawings of two laboratory equipment cases with control knobs and gauges (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, the user must re instructions manual carefully.
	CORRECT DISPOSALThis product is subject to the provision of european D 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to acollection point for recycling electrica electronic devices.
	FCC Information:CAUTION: Changes or modifications not expressly appro by the party responsible for compliance could void the authority to operate the equipment!This device complies with Part 15 of the FCC Rules. is subject to the following two conditions:1) This product may cause harmful interference.2)This product must accept any interference received, including interference that may cause undesired operatio WARNING: Changes or modifications to this product no expressly approved by the party.responsible for compliar could void the user's authority to operate the product. Note: This product has been tested and found to com the limits for a Class B digital device pursuant to Par FCC Rules, These limits are designed to provide reasoprotection against harmful interference in a residential installation.This product generates, uses and can radiate radio fre energy, and if not installed and used in accordance wi instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Ifproduct does cause harmful interference to radio or tele reception,which can be determined by turning the produ and on, the user is encouraged to try to correct the interference by one or more of the following measures.Reorient or relocate the receiving antenna.Increase the distance between the product and receivConnect the product to an outlet on a circuit differer that to which the receiver is connected.Consult the dealer or an experienced radio/TV technic assistance.

Please read this manual carefully before connecting the appliance in order to prevent damage due to incorrect use.

Important Safety Instructions

- The AUTOMATIC FOOD CHOPPER can chop,grind and puree differ vegetables such as meat,peppers,carrots,garlic,mushrooms,onions, peanuts,etc.Widely used in restaurants,canteens,hotels,food processing plants and other places.

- This machine should be operated and installed by specialized train personnel in the kitchen of the food industry such as catering, restaura bar, etc.

- Check for damaged parts.Before using the machine,check that all p are included in the package,and that any moving parts are operating properly for performing the intended functions.Check for alignment of moving parts,binding of moving parts,and any other conditions that may affect the operation.

- In case of incomplete delivery or damages, contact the supplier and not use the appliance. Do not place the machine on a heating object (gasoline, electric, charcoal cooker, etc.)

- Keep the machine away from any hot surfaces and open flames. All operate the cutter on a level, stable, clean, heat-resistant and dry surface. - Read all instructions on how to assemble and use this machine, better attempting to use or clean.

- Beware! Keep fingers and loose clothing away from moving parts! may result!

- The machine has an emergency stop function to prevent accidental damage to the machine in the event of a problem. Both the machine material bucket and blade are removable, and they can be taken apart cleaning after batching is completed.

- This appliance can be used by children aged from 8 years and a and persons with reduced physical, sensory or mental capabilities or I of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and unders the hazards involved. Children shall not play with the appliance. Clear and user maintenance shall not be made by children without supervisi

• Keep children away from the machine.
• Clean the cutter before and after each use.
• If the supply cord is damaged, it must be replaced by the manufac service agent or similarly qualified persons in order to avoid a hazard

Technical Parameters

Model	Capacity	Motor Power	Speed
SC-7304	4L	550W	1400r/min
SC-7306	6L	750W	1400r/min
SC-7310	10L	1100W	1400r/min
SC-7315	15L	1400W	1400r/min

Use

1. Put machine on table or floor stable. Connect the power supply base safety standard. For the wire without plug, must be connect to fix position which at least 3mm distance from al-pole disconnection. And electric current of disconnection device need to be over or equal to 15A.
2. Check if the voltage is the same as label, and the ground wire is

before using.

1. Open the cover take the blade out very carefully and avoid touching drum, as not to damage the blade.
2. Hold the handle and press, rotate in clockwise. Can remove the bowl
3. Clean the stainless steel bowl, cutter, cover, and dry them
4. Install the bowl--Position the bowl, and then turn the bowl by counterclockwise until the handle is aligning to the location point.
5. Install well the cutter, close the cover. The safety lock of the cover m fixed well with the handle, and lock the car well, If not, can't start the machine.
6. Adjust the red "stop" switch to make it bounce, and then adjust the b switch into "on", press the round switch "on". You can

check the running direction of the cutter from the cover's transparent the cutter must be running by counterclockwise

1. Make sure the machine is running in the right direction, then open the cover, put in the food, and close the cover (Attention: Please make sure the cutter completely stop running before open the cover!)
2. Adjust the knob into "off, the machine will stop cutting. Normally it can make most food into small in 10-20 seconds. If you find the food is enough, you can cut one more time.
3. If finish all job, you must clean all the parts which touch the food, stainless steel bowl, cutter, cover etc. Keep the machine clean.

Cutting time reference for some food, you can control based on requests

Cutting type	Pork	Garlic	Chili	Pea nut	Tomato
Cutting time	13s	35s	15s	18s	15s

Attention: Big material must be cut into small pieces before put into a bowl. Such as meat it should be cut into 0.15kg/pc.

CAUTION: CAN'T CLEAN THE MACHINE BYWATER JET

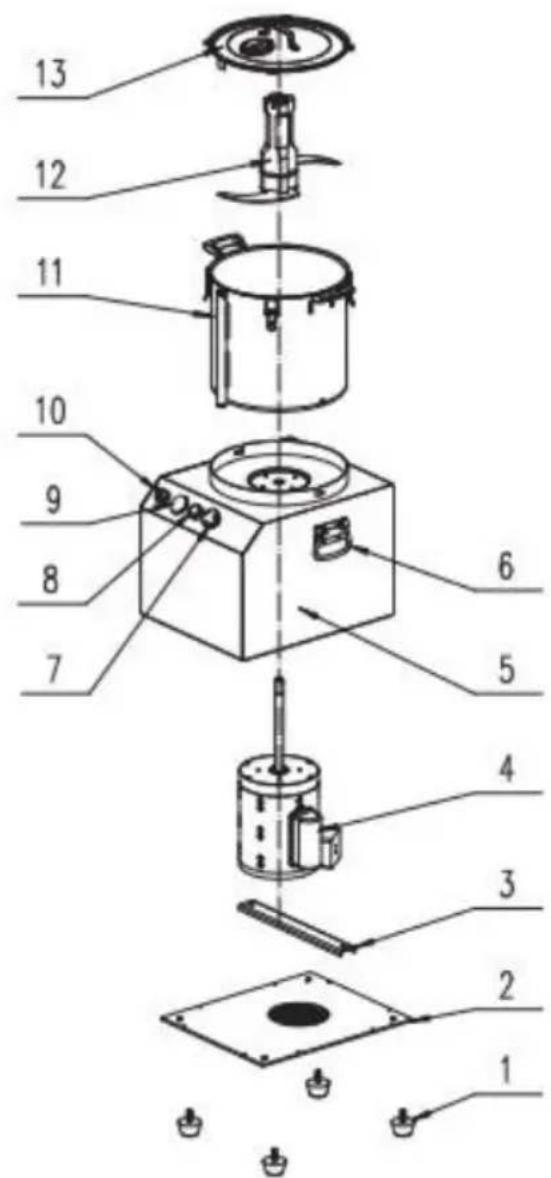

Parts list

Exploded view diagram of a mechanical device with numbered parts for identification

1.Feet2.Bottom panel3.Motor bracket4.Motor5.Host6.Host handle7.Emergency stop switch

8.Start switch9.Timer (only SC15 hvae it)10.Power switch11.Bowl12.Knife set13.Cover

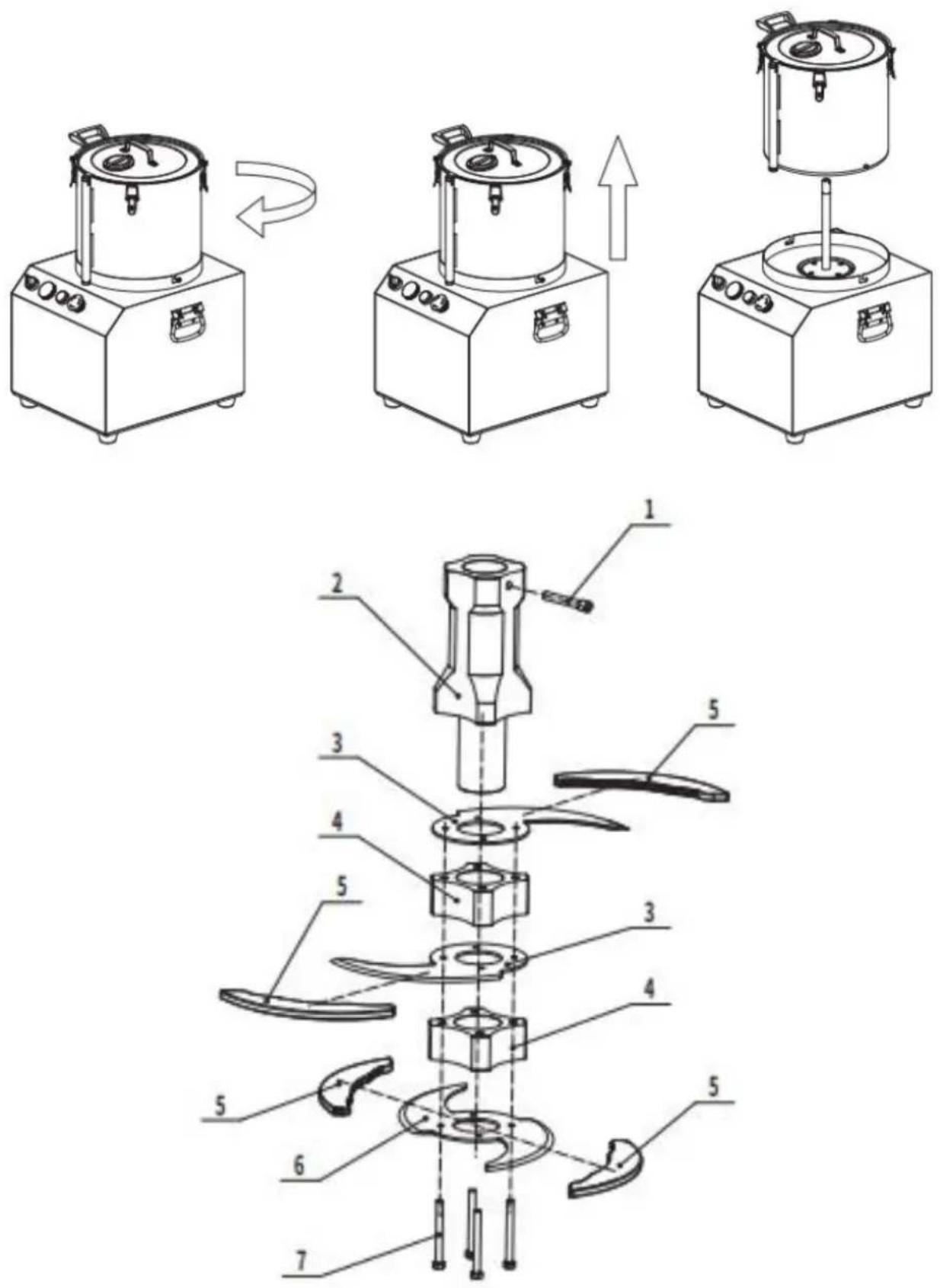

Disassembly

After chopping the material, catch the handle of the bowl, turn it clock and lift it up with force.

Attention: Please do not take out the blade separately. Keep it still

bowl. lift up the bowl, and the blade will also loosen. After that, you out the blade more easily. If you process pasty food, you may pour ou food first, then take out the knife. Otherwise, the food flow out from the middle hole.

Parts list of blade set

1.Axle pin
2. Aluminum axle
3.Blade
4.Spacer sleeve
5. Sheath
6.double-edged blade
7.Bolt M5X70

How to replace the blade.

1 Remove 4 pcs Bolts
2. Remove the original blade
3. in turn(from top to bottom):
double-edged Blade; Spacer sleeve; Blade; Spacer sleeve; Blade
4. Tighten the Bolt
5.remove the Sheath before put the blade set into the bowl

Warning!

1 Never put food over 2/3 of bowl.

Recommended minimal volume is not lower than the blade level. Lackir food leads to

vibration. If food is too big, cut it for suitable size before feeding.

1. The appliance is not allowed no-load running over than 30 min.

2. The over current protection switch belongs to non automatic reset. After the over current

protection switch is working, you need to press it to reset it

TROUBLE SHOOTING

Potential Problem	Probable Cause	Solution
The machine does not operate after power on	The top cover is lock in place or not	Putin the top cover good
The machine stop during use	1.Voltage is too low2. the over current protection switch is working	1.Check power supply for compliance with rated voltage2.press the over curre protection switch to reset it
The machine is unusually vibrating or noisy	1.The blade not put place2.The machine not pu or stable place3 Voltage is too high4 The ingredients is exceed over the max filling level	1.Take out all the ingredients, and put blade in place2.Put the machine on stable place3.Check power supply for compliance with rated voltage4.Remove the power plug from he power outlet then take out t extra ingredients

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate www.vevor.com/support
