Brand	Vevor
Model	SC-7304
Product Type	Electric Food Chopper
Bowl Capacity	4 liters
Motor Power	550 W
Rotation Speed	1400 rpm
Bowl Material	Stainless Steel
Main Functions	Chop, grind, puree (meat, vegetables, dried fruits, etc.)
Blade Type	Double-edged stainless steel blade, removable knife set
Power Supply	220-240 V, 50/60 Hz
Protection	Emergency stop, overcurrent switch (manual reset), safety lid lock
Dimensions (approx.)	Not specified, but suitable for standard countertop
Weight (approx.)	Approximately 5 kg
Maintenance and Cleaning	Bowl, lid and blades removable for cleaning with soapy water. Do not immerse the motor block.
Safety	Do not exceed 2/3 of the bowl, do not run empty for more than 30 s, emergency stop, lid lock
Spare Parts	Complete blade set available, user-replaceable
Warranty	Technical support and electronic warranty certificate at www.vevor.com/support

Frequently Asked Questions - SC-7304 Vevor

How to use the Vevor SC-7304 chopper?

Place the machine on a stable surface. Assemble the bowl, blade and lid, ensuring the lid lock is engaged. Plug in the appliance, set the red 'stop' switch to the initial position, then turn the black switch to 'on' and press the round start button. The blade should rotate counterclockwise. Add food through the transparent lid.

How to clean the chopper?

Unplug the appliance. Remove the bowl by turning the handle clockwise and lifting. Disassemble the blade and lid. Wash all food-contact parts with soapy water, rinse and dry. Never immerse the motor block in water.

What to do if the machine does not start?

Check that the lid is properly locked (the safety lock must align with the handle). Make sure the emergency stop switch is not engaged. Check the power supply.

The machine stops during use, what to do?

This may be due to low voltage or overcurrent. Check the voltage (must match the rated value). If the overcurrent protection switch has tripped, press it to reset.

How to replace the blade?

Remove the 4 bolts from the knife set. Replace the blades in order (from top to bottom): double-edged blade, spacer sleeve, blade, spacer sleeve, blade. Tighten the central bolt. Remove the sheath before placing the set back into the bowl.

How much food can I chop at once?

Do not fill the bowl beyond 2/3 of its capacity. The recommended minimum volume is at least the blade level to avoid vibration. For meat, cut into pieces of about 0.15 kg before adding.

What types of food can be chopped?

This appliance can chop, grind and puree many foods: meat, peppers, carrots, garlic, mushrooms, onions, peanuts, tomatoes, etc. Suitable for restaurants, canteens, hotels.

Can I let the machine run for a long time?

Do not run the machine empty for more than 30 seconds. For normal chopping, 10 to 20 seconds are enough for most foods. If necessary, you can repeat the operation.

Is the device compliant with safety standards?

Yes, it complies with European Directive 2012/19/EU (WEEE) and FCC Part 15 rules. It has an emergency stop, lid lock and overcurrent protection.

Where to find the complete manual?

Download the PDF manual for free at notice-facile.com or on the Vevor manufacturer's website. You can also request a translation in your language by providing your email.

USER MANUAL SC-7304 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FOOD CHOPPER

MODEL:SC-7304/SC-7306/SC-7310/SC-7315

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL:SC-7304/SC-7306/SC-7310/SC-7315

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, the user must re instructions manual carefully.
	CORRECT DISPOSALThis product is subject to the provision of european D 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to acollection point for recycling electrica electronic devices.
	FCC Information:CAUTION: Changes or modifications not expressly appro by the party responsible for compliance could void the authority to operate the equipment!This device complies with Part 15 of the FCC Rules. is subject to the following two conditions:1) This product may cause harmful interference.2)This product must accept any interference received, including interference that may cause undesired operatio WARNING: Changes or modifications to this product no expressly approved by the party.responsible for compliar could void the user's authority to operate the product. Note: This product has been tested and found to com the limits for a Class B digital device pursuant to Par FCC Rules, These limits are designed to provide reasoprotection against harmful interference in a residential installation.This product generates, uses and can radiate radio fre energy, and if not installed and used in accordance wi instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Ifproduct does cause harmful interference to radio or tele reception,which can be determined by turning the produ and on, the user is encouraged to try to correct the interference by one or more of the following measures.Reorient or relocate the receiving antenna.Increase the distance between the product and receivConnect the product to an outlet on a circuit differer that to which the receiver is connected.Consult the dealer or an experienced radio/TV technic assistance.

Please read this manual carefully before connecting the appliance in order to prevent damage due to incorrect use.

Important Safety Instructions

- The AUTOMATIC FOOD CHOPPER can chop, grind and puree different vegetables such as meat, peppers, carrots, garlic, mushrooms, onions, peanuts, etc. Widely used in restaurants, canteens, hotels, food processing plants and other places.

- This machine should be operated and installed by specialized trained personnel in the kitchen of the food industry such as catering, restaurant, bar, etc.

- Check for damaged parts. Before using the machine, check that all parts are included in the package, and that any moving parts are operating properly for performing the intended functions. Check for alignment of moving parts, binding of moving parts, and any other conditions that may affect the operation.

- In case of incomplete delivery or damages, contact the supplier and do not use the appliance. Do not place the machine on a heating object (gasoline, electric, charcoal cooker, etc.)

- Keep the machine away from any hot surfaces and open flames. Always operate the cutter on a level, stable, clean, heat-resistant, and dry surface. - Read all instructions on how to assemble and use this machine before attempting to use or clean it.

- Beware! Keep fingers and loose clothing away from moving parts! Failure to do so may result in injury!

- The machine has an emergency stop function to prevent accidental damage to the machine in the event of a problem. Both the machine's material bucket and blade are removable, and they can be taken apart for cleaning after batching is completed.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Keep children away from the machine.
• Clean the cutter before and after each use.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Technical Parameters

Model	Capacity	Motor Power	Speed
SC-7304	4L	550W	1400r/min
SC-7306	6L	750W	1400r/min
SC-7310	10L	1100W	1400r/min
SC-7315	15L	1400W	1400r/min

Use

1. Place the machine on a stable table or floor. Connect the power supply according to safety standards. For the wire without a plug, it must be connected to a fixed position which has at least 3mm distance from all-pole disconnection. And the electric current of the disconnection device needs to be over or equal to 15A.
2. Check if the voltage is the same as the label, and the ground wire is

before using.

1. Open the cover, take the blade out very carefully, and avoid touching the drum so as not to damage the blade.
2. Hold the handle and press, rotate in a clockwise direction. Can remove the bowl.
3. Clean the stainless steel bowl, cutter, cover, and dry them.
4. Install the bowl: position the bowl, then turn it counterclockwise until the handle aligns with the locating point.
5. Install the cutter properly and close the cover. The safety lock of the cover must fit well with the handle, and lock the cover securely. If not, the machine cannot start.
6. Adjust the red "stop" switch to make it bounce, then set the switch to "on" and press the round switch "on".

Check the running direction of the cutter through the transparent cover. The cutter must run counterclockwise.

1. Make sure the machine is running in the correct direction, then open the cover, add the food, and close the cover. (Attention: Make sure the cutter has completely stopped before opening the cover!)
2. Turn the knob to "off" to stop cutting. Normally, most food can be chopped into small pieces in 10-20 seconds. If the food is not chopped enough, you can cut it again.
3. After finishing, clean all parts that come into contact with food, such as the stainless steel bowl, cutter, and cover. Keep the machine clean.

Cutting time reference for some foods; adjust according to your needs.

Cutting type	Pork	Garlic	Chili	Pea nut	Tomato
Cutting time	13s	35s	15s	18s	15s

Attention: Large pieces must be cut into small pieces before placing them in the bowl. For example, meat should be cut into pieces of about 0.15 kg each.

CAUTION: DO NOT CLEAN THE MACHINE WITH A WATER JET.

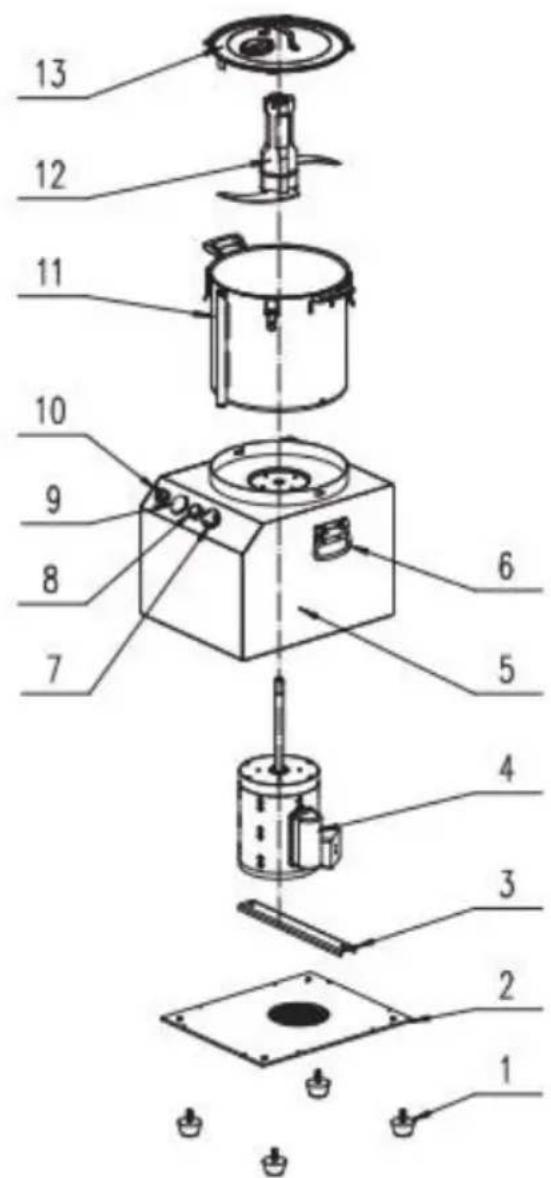

Parts list

1.Feet2.Bottom panel3.Motor bracket4.Motor5.Host6.Host handle7.Emergency stop switch

8.Start switch9.Timer (only SC15 hvae it)10.Power switch11.Bowl12.Knife set13.Cover

Disassembly

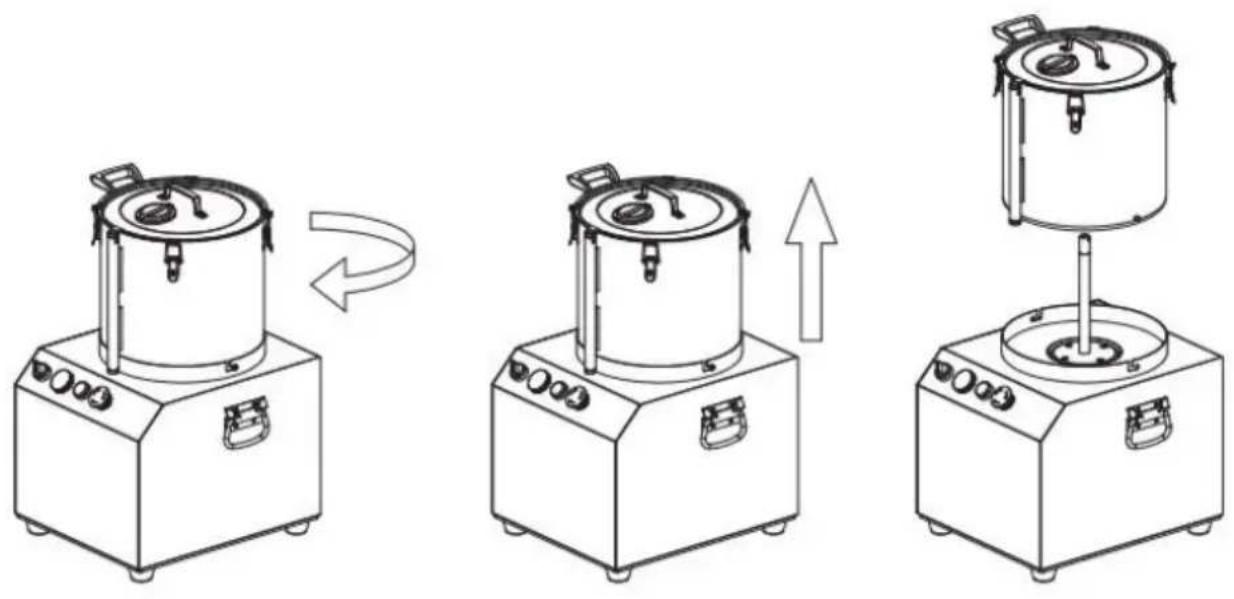

After chopping the material, grasp the handle of the bowl, turn it clockwise, and lift it up with force.

Attention: Do not remove the blade separately. Keep it in the bowl. Lift the bowl, and the blade will loosen as well. Then you can remove the blade more easily. If you are processing pasty food, you may pour out the food first, then take out the knife. Otherwise, the food may flow out from the middle hole.

bowl. Lift up the bowl, and the blade will also loosen. After that, you can take out the blade more easily. If you process pasty food, you may pour out the food first, then take out the knife. Otherwise, the food will flow out from the middle hole.

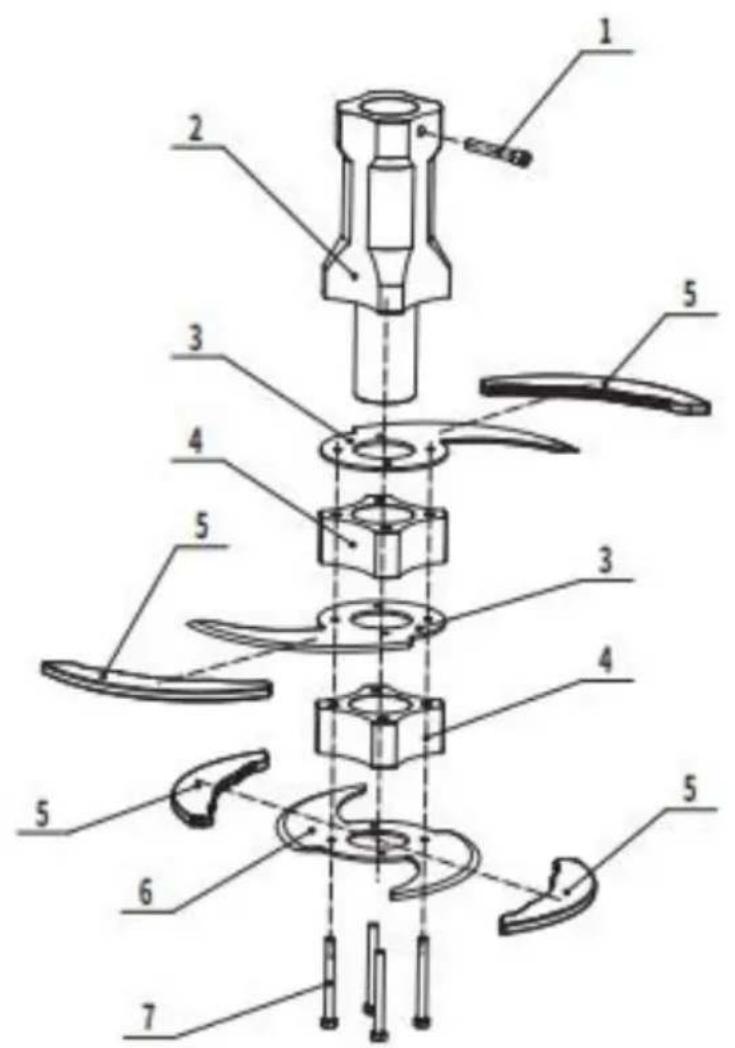

Parts list of blade set

1. Axle pin 2. Aluminum axle 3. Blade 4. Spacer sleeve 5. Sheath 6. Double-edged blade 7. Bolt M5X70

How to replace the blade.

1. Remove 4 pcs Bolts 2. Remove the original blade 3. In turn (from top to bottom): double-edged Blade; Spacer sleeve; Blade; Spacer sleeve; Blade 4. Tighten the Bolt 5. Remove the Sheath before putting the blade set into the bowl

Warning!

1. Never put food over 2/3 of bowl.

Recommended minimal volume is not lower than the blade level. Lack of food leads to

vibration. If food is too big, cut it for suitable size before feeding.

1. The appliance is not allowed no-load running over than 30 min.
2. The over current protection switch belongs to non automatic reset. After the over current

protection switch is working, you need to press it to reset it

TROUBLE SHOOTING

Potential Problem	Probable Cause	Solution
The machine does not operate after power on	The top cover is lock in place or not	Putin the top cover good
The machine stop during use	1.Voltage is too low2. the over current protection switch is working	1.Check power supply for compliance with rated voltage2.press the over curre protection switch to reset it
The machine is unusually vibrating or noisy	1.The blade not put place2.The machine not pu or stable place3 Voltage is too high4 The ingredients is exceed over the max filling level	1.Take out all the ingredients, and put blade in place2.Put the machine on stable place3.Check power supply for compliance with rated voltage4.Remove the power plug from he power outlet then take out t extra ingredients
