USER MANUAL FC-18V1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FOOD CHOPPER

Model:FC-18V1

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

Model:FC-18V1

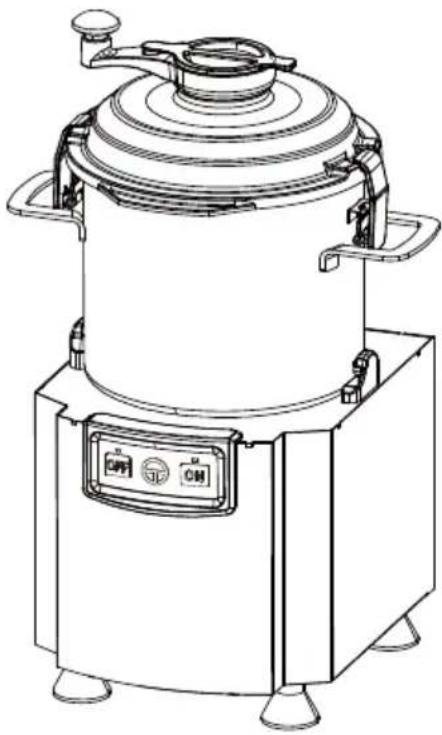

Line drawing of a four-legged industrial vessel with control panel (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, the user must re instructions manual carefully.
	CORRECT DISPOSALThis product is subject to the provision of european D 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to acollection point for recycling electrica electronic devices.
	FCC Information:CAUTION: Changes or modifications not expressly appro by the party responsible for compliance could void the authority to operate the equipment!This device complies with Part 15 of the FCC Rules. is subject to the following two conditions:1) This product may cause harmful interference.2)This product must accept any interference received, including interference that may cause undesired operatio WARNING: Changes or modifications to this product no expressly approved by the party.responsible for compliar could void the user's authority to operate the product. Note: This product has been tested and found to com the limits for a Class B digital device pursuant to Par FCC Rules, These limits are designed to provide reasoprotection against harmful interference in a residential installation.This product generates, uses and can radiate radio fre energy, and if not installed and used in accordance wi instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Ifproduct does cause harmful interference to radio or tele reception,which can be determined by turning the produ and on, the user is encouraged to try to correct the interference by one or more of the following measures.Reorient or relocate the receiving antenna.Increase the distance between the product and receivConnect the product to an outlet on a circuit differer that to which the receiver is connected.Consult the dealer or an experienced radio/TV technic assistance.

Dear Customer,

Thank you for purchasing this appliance. Please take a few minutes before starting operation of the appliance and read the following operating instructions.

1. Intended use

1.1 This machine is designed for food processing in restaurants, cantee and similar catering establishments.
1.2 The machine is not intended to process for meet which has bone, skin, shells or fish scales. Neither use this machine to cutter vegetab fruit with nut or tough skin. Otherwise, it might lead to damage of the machine, property or personal injury.
1.3 The machine is intended for commercial and indoor use by trained skilled personnel familiar with these instructions.

The machine body is built in full stainless steel for easy cleaning and maintenance. It has safety features compliant with the applicable safety directives.

2. Safety regulations

2.1 Safety regulations

2.1.1 This appliance is intended for commercial use only and must not be used for household.

2.1.2 The appliance must only be used for the purpose for which it intended and designed. The manufacturer is not liable for any damage caused by incorrect operation and improper use.

2.1.3 Keep the appliance and electrical plug away from water and an other liquids. In the event that the appliance should fall into water, immediately remove plug from the socket and do not use until the appliance has been checked by a certified technician. Failure to follow these instructions could cause a risk to lives.

2.1.4 Never attempt to open the casing of the appliance yourself.

2.1.5 Do not insert any objects in the casing of the appliance.

1.1.6 Do not touch the plug with wet or damp hands.

2.1.7 Danger of electric shock! Do not attempt to repair the appliance yourself. In case of malfunctions, repairs are to be conducted by qua personnel only.

2.1.8 Never use a damaged appliance! Disconnect the appliance from electrical outlet and contact the retailer if it is damaged.

2.1.9 Do not immerse the electrical parts of the appliance in water of liquids. Never hold the appliance under running water.

2.1.10 Regularly check the power plug and cord for any damage. If power plug or power cord is damaged, it must be replaced by a set agent or similarly qualified persons in order to avoid danger or injury.

2.1.11 Make sure the cord does not come in contact with sharp or objects and keep it away from open fire. To pull the plug out of the always pull on the plug and not on the cord.

2.1.12 Ensure that the cord (or extension cord) is positioned so that not cause a trip hazard.

2.1.13 Always keep an eye on the appliance when in use.

2.1.14 As long as the plug is in the socket the appliance is connected power source.

2.1.15 Turn off the appliance before pulling the plug out of the sock

2.1.16 Never carry the appliance by the cord.

2.1.17 Do not use any extra devices that are not supplied along with appliance.
2.1.18 Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.
2.1.19 Connect the power plug to an easily accessible electrical outlet that in case of

emergency the appliance can be unplugged immediately. To completely switch off the appliance pull the power plug out of the electrical outlet

2.1.20 Always turn the appliance off before disconnecting the plug.
2.1.21 Never use accessories other than those recommended by the manufacturer. Failure to do so could pose a safety risk to the user could damage the appliance. Only use original parts and accessories.
2.1.22 This appliance is not intended for use by persons (including cl with reduced physical, sensory or mental capabilities, or lack of exper and knowledge.
2.1.23 This appliance must not be used by children under any circumstances.
2.1.24 Keep the appliance and its cord out of reach of children.
2.1.25 Always disconnect the appliance from the mains if it is left unattended or is not in use, and before assembly, disassembly or cle 2.1.26 Never leave the appliance unattended during use.

2.2 Special Safety Regulations

2.2.1 The appliance is intended for commercial and indoor use by train and skilled personnel familiar with these instructions.
2.2.2 This machine is designed for food processing in restaurants, canteens and similar catering establishments.
2.2.3 Any other use might lead to damage to the appliance or personal injury.
2.2.4 Do not place the appliance on a heating object (gasoline, electric charcoal cooker, etc.) Keep the appliance away from any hot surfaces open flames. Always operate the appliance on a level, stable, clean, heat-resistant and dry surface.

2.2.5 Danger of injury! Care is needed when operating or cleaning. We protective gloves (not supplied) if necessary.
2.2.6 Caution! Securely route the power cord if necessary, in order to prevent unintentional tripping over and falling.
2.2.7 Do not use the appliance before it is properly assembled.
2.2.8 This appliance is not intended to be operated by means of an e-timer or separate remote-control system.
2.2.9 Never bypass any safety interlocks on the appliance.
2.2.10 WARNING: ALWAYS switch off the appliance and unplug from electrical power supply before cleaning, maintenance or storage.
2.2.11 WARNING: ALWAYS keep hands, long hair and clothing away from the moving parts.
2.2.12 WARNING: Take great care when handling the cutting blade. We protective gloves (not supplied) if necessary.
2.2.13 Allow at least 15cm spacing around the appliance for ventilation purpose during use.
2.2.14 Do not wash the appliance with water or waterjet. Washing with water can cause leakage and increase the risk of electric shock. No are dishwasher safe.
2.2.15 Do not move the appliance while it is under operation. Unplug appliance when moving and hold it at the bottom.
2.2.16 Special care should be taken when moving or transporting the appliance due to heavy weight. With at least 2 people or using a trace assistance. Move the machine slowly, carefully and never be inclined 45°.
2.2.17 This appliance is equipped with a cord having a grounding wire a grounding plug, the plug must be plugged into an outlet that is pr installed and grounded.

3.PRODUCT DESCRIPTION

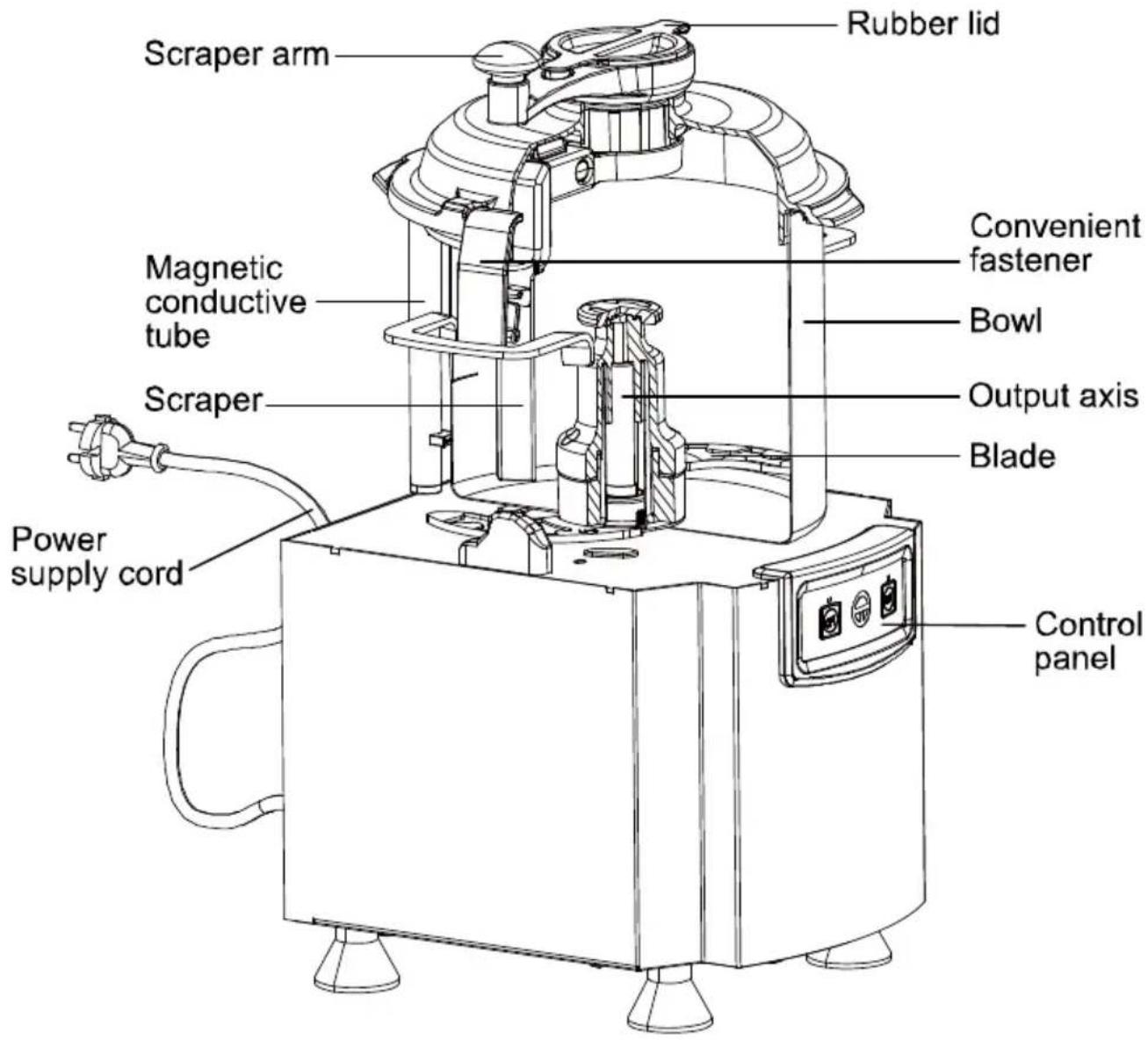

3.1 Parts of description

Scraper arm Rubber lid Magnetic conductive tube Scraper Power supply cord Convenient fastener Bowl Output axis Blade Control panel

3.2 MAIN TECHNICAL PARAMETERS

MODEL	CAPACITY	SPEED (rpm)	POWER	VOLTAGE
FC-18V1	18 L	1500(50Hz)1725(60Hz)	1500W	220V-240V~50/60Hz;115V~ 60Hz

* Surface condition for food and splash area: 3.2 micrometers

* Remark: Technical specification is subjected to change without prior notification.

4. INTRODUCTION

4.1 Preparation for first use

4.1.1 Check to make sure the appliance is undamaged. In case of any damage, contact your supplier immediately and do NOT use the appli 4.1.2 Remove all the packing material and protection film (if applicable). Keep the packaging for future storage.

4.1.3 Clean the appliance, see: 4.6 Cleaning.

4.1.4 Place the appliance on a level and steady surface, unless mention otherwise.

4.1.5 Make sure there is enough clearance around the appliance for ventilation purposes.

4.1.6 Position the appliance in such a way that the plug is accessible times.

4.1.7 The machine must be used only by trained staff with perfect knowledge of the safety standards contained in this manual.

4.1.8 If staff turnover is necessary, provide training beforehand.

4.1.9 Make sure the power outlet ratings correspond to the specification printed on the rating plate.

4.1.10 Make sure that the machine is connected to a grounding system 4.1.11 Even if safety systems are installed on the machine, prevent approaching moving parts with hands and do not touch the machine wet or damp hands.

4.1.12 Disconnect the machine's socket from the electric before carrying out any cleaning or maintenance operations.

4.1.13 Do not clean with high-pressure water jet.

4.1.14 Regularly check the condition of the power cable. Avoid leaving power cable in regularly check the condition of the power cable. Avoid leaving the power cable in contact with hot or sharp surfaces and do pull it in order to remove the plug from the power socket.

4.1.15It is strongly recommended that the operator contact the after center if there is any problem or malfunction occurred. Please do not dismantle the machine or in place of unauthorized parts.

4.2 The manufacturer will be not responsible for following cases:

4.2.1 If the machine is tampered with or safety functions are installed non-authorized staff.

4.2.2 If the components are replaced by unauthorized parts.

4.2.3 If the instruction in this manual is not carefully followed.

4.2.4 If the machine surfaces are treated with unsuitable substance or solvent.

4.3 Safety devices

4.3.1 Micro-switch: The micro-switch is equipped with a magnet mechanism. The appliance stops automatically when the bowl cover or the bowl is opened during operation.

4.3.2 Overcurrent protection switch (Circuit breaker): The switch is designed to protect the electrical circuit from damage caused by exc: current as a result of an overload or short circuit. The switch interrupt current flow after a fault is detected.

Note: To reset the switch, press it after the issue is solved.

4.4 INSTALLATION

4.4.1 Packing and unpacking

4.4.1.1 Remove all packaging materials. Keep the packaging for future storage.

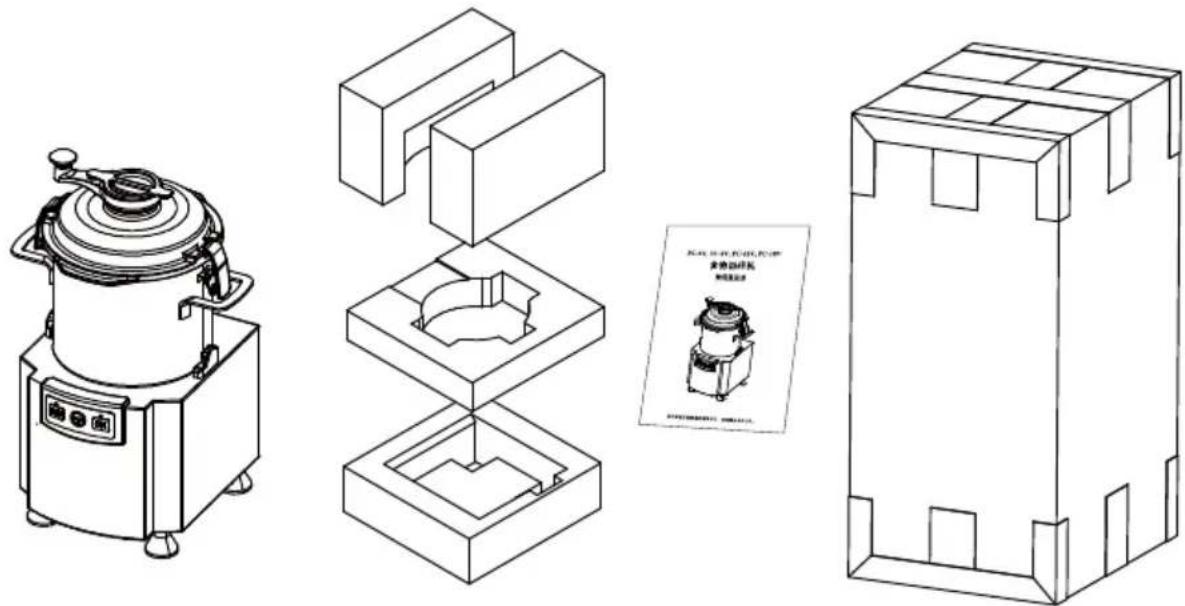

4.4.1.2 Ensure the packages you received includes following items:

Technical line drawings of industrial equipment including a portable stove, multi-tiered storage unit, and a rectangular enclosure (no text or symbols)

4.4.1.3 After unpacking all accessories, lay them on a flat and stable surface.
4.4.1.4 Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage, do not appliance but contact your dealer.
4.4.1.5 Clean the bowl, bowl cover, blade and other parts which contact with food.
4.4.2 Installation area

The selected machine work setting must be sufficiently lit and have a electric power outlet. The workplace must be sufficiently large, perfectly level and dry. The machine should be installed in non-explosive environments. In any case, installation should be carried out by taking account any applicable industrial safety regulations in force.

4.4.3 Electric connection

DANGER-CAUTION: Electric connection to the power outlet should be operated by skilled personnel.

Check for the perfect efficiency of the plant grounding system. Make that the line voltage (V) and frequency (Hz) correspond to the machine ratings (refer to the machine identification plate and wiring diagram). 1 machine comes equipped with an electric cable with plug. Plug the machine into a main wall switch with differential.

4.5 OPERATION AND CLEANING

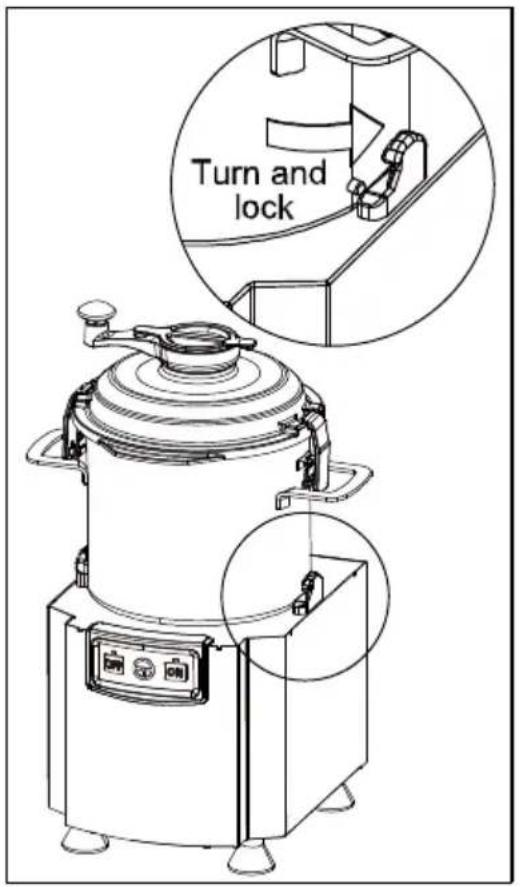

4.5.1 Place middle base onto bottom base as pic 1, and move the bc arrow Direction.
4.5.2 Plug in main power and switch the appliance on and start to work
4.5.3 Safety micro-switches
4.5.3.1 The appliance is equipped with two safety micro switches. These switches cut off the power supply if, during operation, the handle is beyond a certain distance or the cover is opened.
4.5.3.2 The machine will not be started if the cover closed only but this is not in correct position. Before you start with the machine, you should make sure that the shaft is rotating in anticlockwise direction. Otherwise

the bowl cutter will not cut food.

4.5.4Operation

4.5.4.1 Connect the power plug to a socket outlet.

4.5.4.2 Open the bowl cover

4.5.4.3 Lift the cover and feed the food into the bowl, close cover.

4.5.4.4 Press the ON button. The operating light in the ON button will up and the appliance will start working. For continuous cutting, you m open the rubber lid and feed oil or seasoner from it.

Turn and lock

4.5.5 Warning!

4.5.5.1 Never put food over 2/3 of bowl. Recommended minimal volume not lower than the blade level. Lacking food leads to vibration. If foo big, cut it for suitable size before feeding.

4.5.5.2 The appliance is not allowed no-load running over than 30mins

4.5.5.3 When you are finished, press the OFF button, unplug the appliance and clean it.

4.6Cleaning

4.6.1 Clean the machine after each use.

4.6.2 Switch off and unplug the machine before cleaning or maintenance and let it cool down completely.

4.6.3 Do not clean the machine with steel wool, strong chemicals, abra or toxic agents, as they may damage the surface of the machine an a health hazard.

4.6.4 Use clear water during cleaning. Make sure that the electrical parts/connections of the machine do not become wet or damp.

4.6.5 Do not clean the electric components, e. g. switch, button, timer etc., with high pressure water jets or extremely hot steam.

4.6.6 Wipe the outside of the machine at least once a month with a damp cloth, and if necessary, a little mild detergent. Also make sure clean the bowl cover (incl. the gasket), delivery chute and basins thoroughly after each use. Dry with a soft dry cloth.

4.6.7 Open the bowl cover and remove the knives from the bowl. Cleas knives and bowl interior with a suitable brush. Rinse them with clear afterward.

4.6.8 The machine may only be used again or stored after it is dried completely.

Note 1: It is recommended to remove the knives and check the bow bowl cover for blockage and residues after each operating cycle.

WARNING! BLADES ARE SHARP. Clean with care!

Note 2: The knives are NOT suitable for the dishwasher.

4.7 Storage

4.7.1 Before reassembling, make sure that all parts are dry. Before stop remove all residues from the appliance (incl. the basins), disconnect it the supply and clean the appliance and its accessories thoroughly.

4.7.2 Store the appliance in a dry, protected environment at room temperature and out of the reach of children.

4.7.3 Keep the bowl cover open and make appliance ventilated, to avoid smell or moldy.

4.7.4 To protect the appliance from dust, cover it with a cloth that allows

circulation inside the appliance.

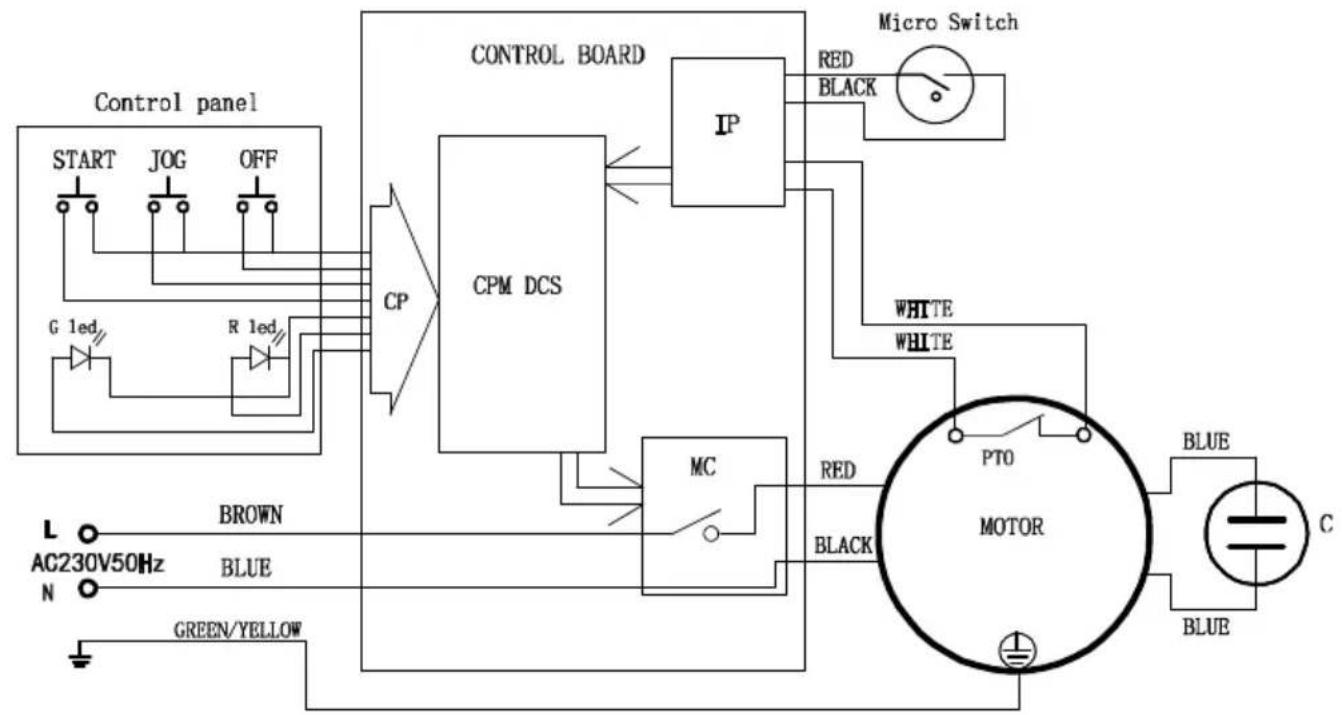

5. Circuit diagram


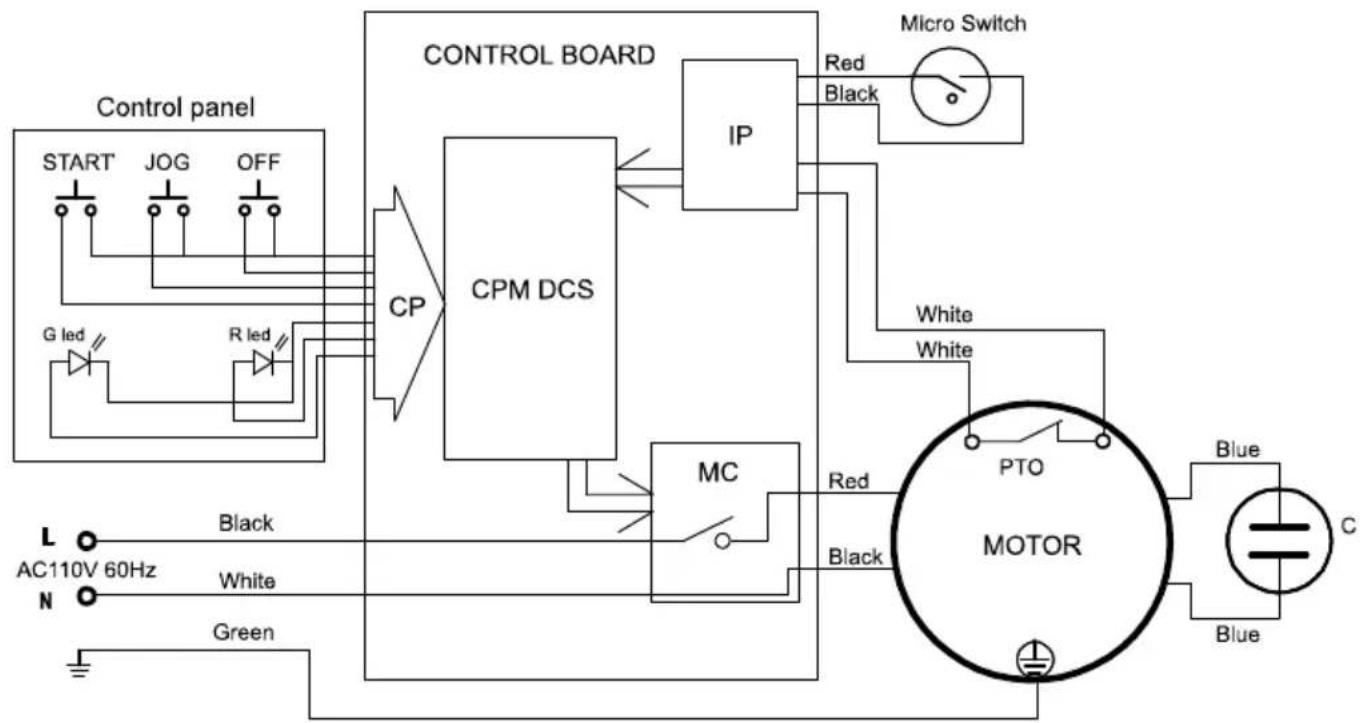

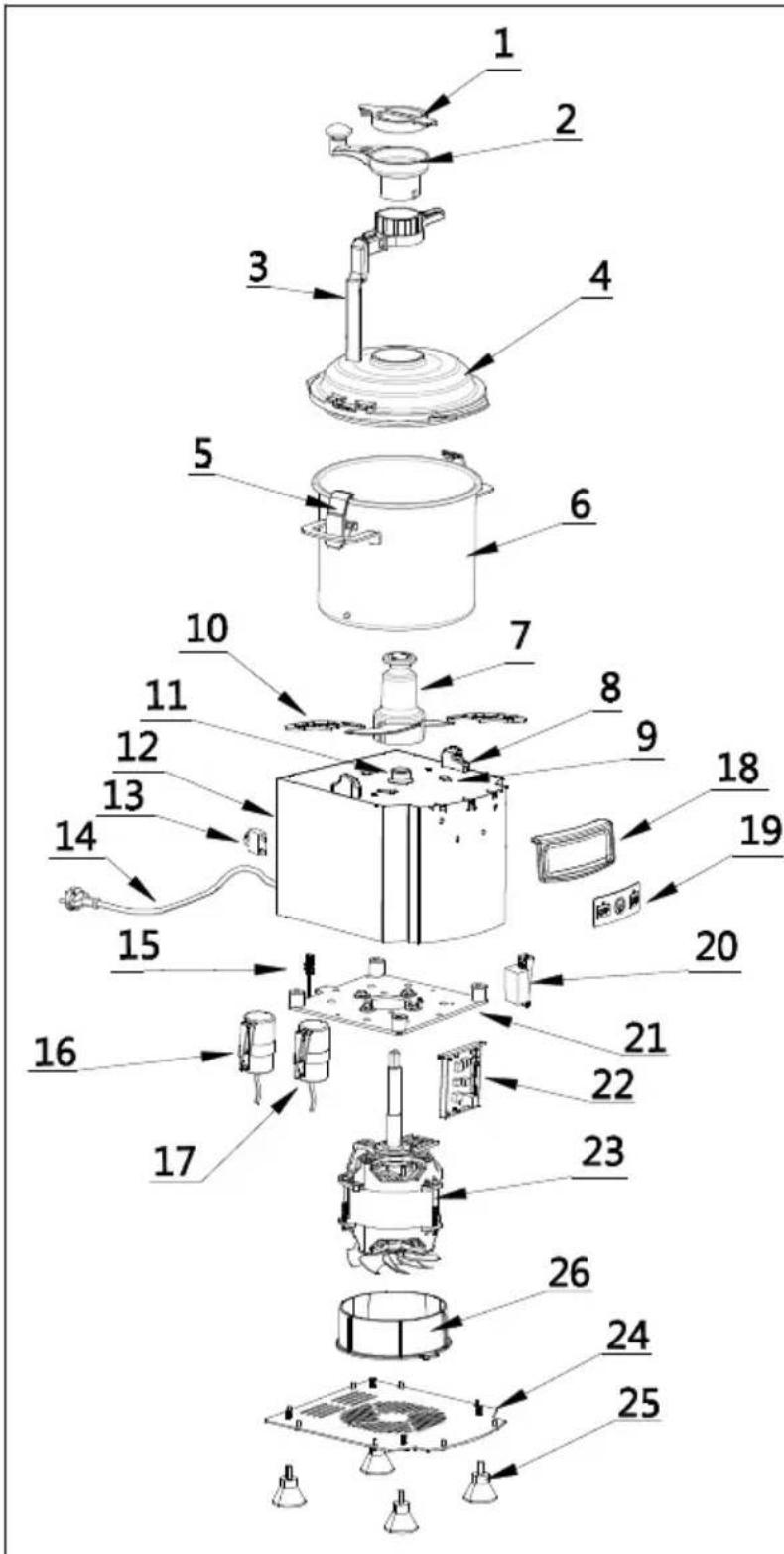

6.Exploded view and spare parts lists

Exploded view diagram of a mechanical assembly with numbered components for identification

No.	Part Name
1	Rubber lid
2	Scraper arm
3	Scraper
4	Bowl lid
5	Fastener
6	S/S Bowl
7	Smooth blade
8	Fixture gadget
9	Support gadget
10	Blade shield
11	Central fixture sea
12	Bottom base
13	Circuit breaker
14	Power cord
15	Microswitch
16	Starting capacitor
17	Running capacitor
18	Fixed plate
19	Control panel
20	Centrifugal switch
21	Motor bracket
22	PCB panel
23	Motor
24	Bottom plate
25	Feet
26	Windshield
