USER MANUAL TK-12MT Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

COMMERCIAL MEAT TENDERIZER

MODEL:TK-12MT

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and dose not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

COMMERCIAL MEAT TENDERIZER

MODEL:TK-12MT

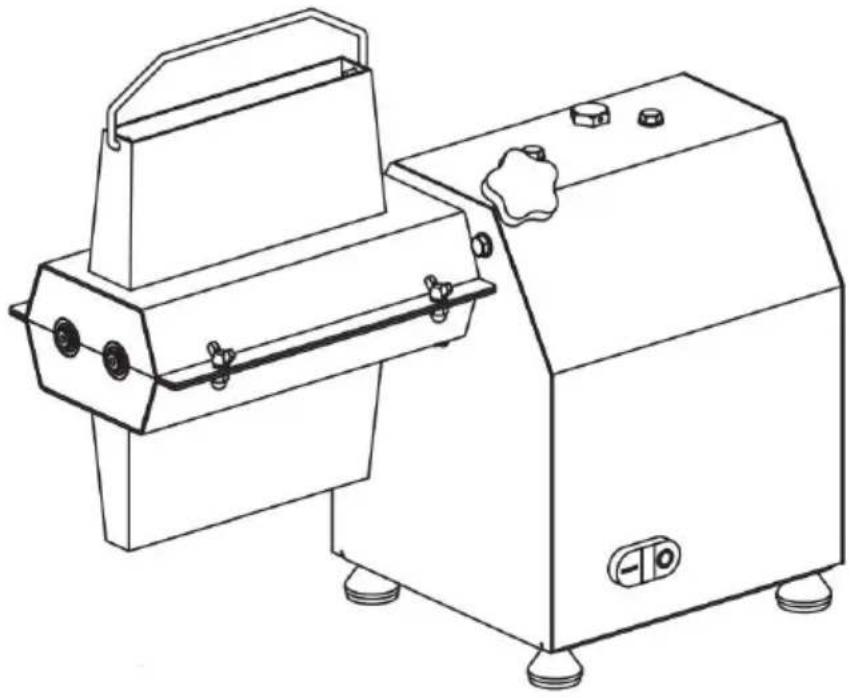

Line drawing of a mechanical device with handle and control buttons (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

[e-mail]

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY NOTICES

Please read these instructions carefully and use the

device only for food processing. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injur

- Persons with physical, sensory or mental abilities may not use the unless supervised and instructed by a person responsible for your safe - Only place the unit out of the reach of children.

- To prevent hair, clothing or chains from getting into the moving pa not wear jewelry or tie long hair together while working. Always work concentrated manner.

- Keep all parts of the unit and accessories clean as they come into contact with food. Thoroughly clean all parts of the unit before each - Do not use solvents, benzene or alcohol to clean the unit.

- Please note the maximum operating time (without interruption) of 15 minutes. Allow the unit to cool down for 5 minutes before further use - If the supply cord is damaged, it must be replaced by the manufacture of its service agent or similarly qualified persons in order to avoid a hazard. - This appliance can be used by children aged from 8 years and a family and persons with reduced physical, sensory or mental capabilities or I of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and underscoring the hazards involved. Children shall not play with the appliance. Clear and user maintenance shall not be made by children without supervising

Avoid contact with moving parts. To prevent personal injury an property damage, make sure that: hands, hair, clothing and cooking accessories do not come into the rotating area of the appliance durin

The meat tenderizer is intended exclusively for tenderizer meat, under no circumstances for other purposes.

Do not process too large quantities at once to avoid clogging filling opening. The tenderizer is not suitable for processing frozen me Defrost frozen meat before using the machine.

Environmental protection

The package materials are recyclable. Pleasures do not throw the package into the household waste but reuse it. Old devices contain valuable recyclable materials which should be recycled. For this reason please dispose of old devices only at suitable collection points.

CORRECT DISPOSAL

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discawith normal domestic waste, but must be taken to a collection point recycling electrical and electronic devices

Intended use

IMPORTANT:

If you forget to turn off the unit before unplugging the power wait for at least 10 seconds before restoring power.

Never leave the unit unattended when the power plug is plugge Always unplug the power cord if you do not use the unit, move the remove individual components or clean the unit.

Cleaning and care instructions

1. The machine must be thoroughly cleaned before first use. Pay par

attention to cleaning the parts that come into direct contact with food.
2. After use, the machine must be thoroughly cleaned to prevent the formation of bacteria.
3. We recommend that the gears, gasket and cylinder interior are light moistened with cooking oil after each cleaning. Always disconnect the mains plug before cleaning.

SAVE THESE INSTRUCTIONS

TECHNICAL INFO

Item no.	TK-12MT	TK-12MT
Material of blade and bod	304 S.S	304 S.S
Rated Voltage	AC110-120V; 60Hz	AC 220-240 50Hz
Motor Power	750W	750W
Tenderize thickness	3mm~22mm	3mm~22mm
Tenderize length	6mm~168mm	6mm~168mm
Blade length	135mm	135mm
Product size	520x230x390mm	520x230x390mm

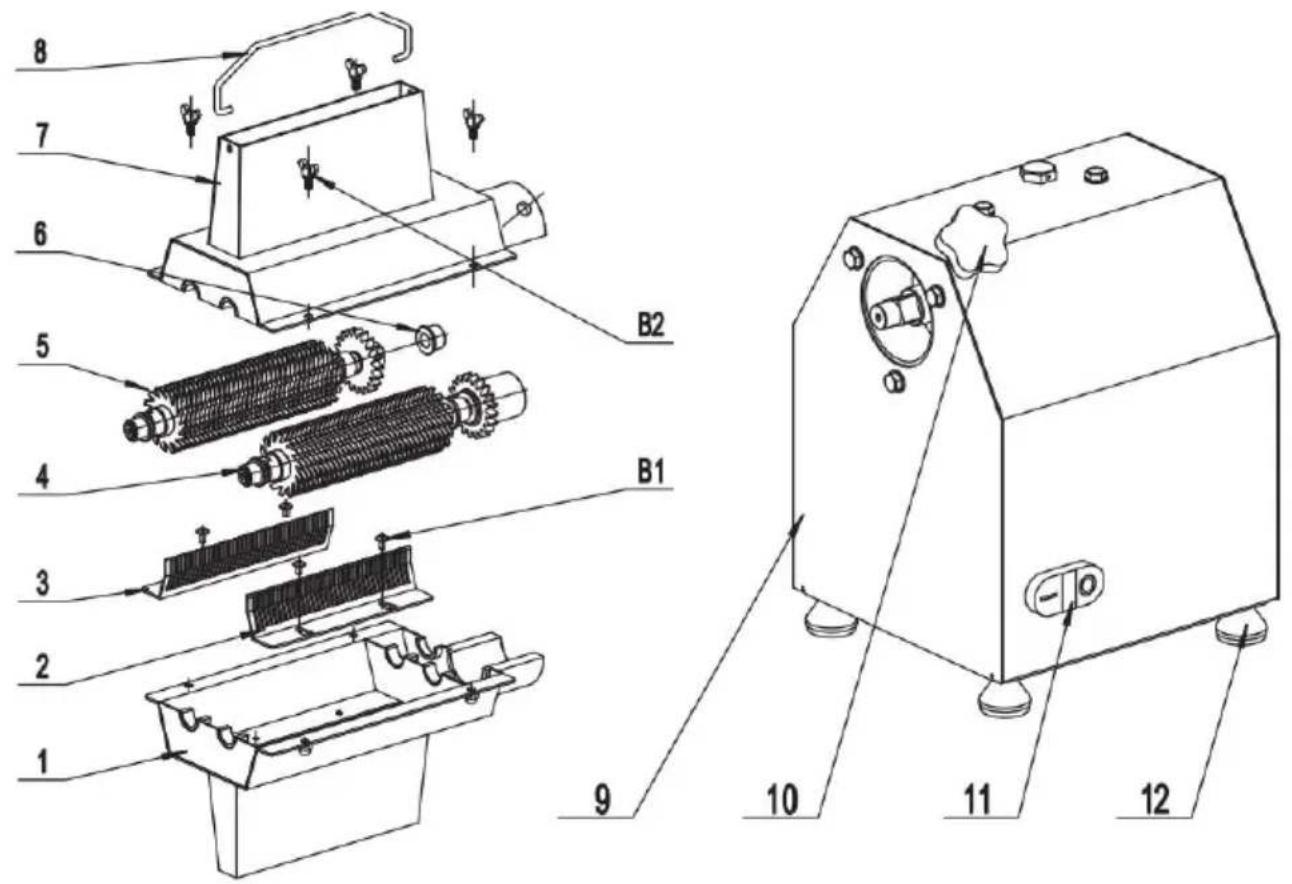

Technical diagram of a mechanical assembly with numbered parts and labeled sections B1, B2

NO	DESCRIPTION
1	Under cover
2	Meat comb 34TH
3	Meat comb 35TH
4	Knife set 1
5	Knife set 2
6	Bushing
7	Upper cover
8	Handle
9	Main body
10	Lock screw
11	Switch
12	Support feet
B1	Cross screw M5*8
B2	screw M6*10
