NRB-22 - Electric scrap press Vevor - Free user manual and instructions

Product Type	Electric Scrap Metal Press / Electric Rebar Bender
Brand	Vevor
Model	NRB-22
Power	1500 W
Power Supply	AC 220-240 V / 120 V (50/60 Hz)
Gross Weight	21.38 kg
Net Weight	22.2 kg
Maximum Bar Diameter	22 mm
Minimum Bar Diameter	12 mm
Cutting Speed	≤ 4 seconds
Oil Tank Capacity	Approx. 1 L (hydraulic oil ISO VG46)
Main Functions	Rebar bending, adjustable stop, quick warm-up
Maintenance and Cleaning	Daily cleaning, check oil level daily, annual oil change, inspect carbon brushes every 2 months
Safety	Safety glasses required, unplug before maintenance, do not use near flammable materials, grounding required
Spare Parts and Repairability	Carbon brushes (standard ref.), oil cap, bending blocks, seal gasket
General Information	Warranty and technical support at www.vevor.com/support ; manufacturing: Shanghai, China

Frequently Asked Questions - NRB-22 Vevor

How to check the hydraulic oil level?

Unplug the device and let it cool. Remove the oil cap and check that the oil is flush with the bottom of the hole. If needed, add hydraulic oil ISO VG46. Never remove the cap when the device is hot.

What hydraulic oil to use?

Use hydraulic oil with viscosity ISO VG46 (e.g., Shell Tellus 46, Mobil DTE-25, Esso Uni power SQ46). It must have anti-foam and anti-wear properties.

How to change the carbon brushes?

Unplug the tool. Unscrew the carbon brush caps and remove them. Replace if they are less than 6 mm in length. Reinstall the caps. Inspection recommended every 2 months.

What to do if bending power decreases?

First check the oil level and carbon brush condition. If the motor overheats, let it cool. Also check the tightness of the housing bolts.

How to adjust the stop for a precise bending angle?

During the first bend, mark the position of the stop screw according to the desired angle. For subsequent bends, screw the stop to the mark to reproduce the same angle.

Can I use the bender in the rain?

No, to avoid any risk of electric shock, never use the device in rain or humid environment. Ensure the plug is properly grounded.

How to bleed air from the hydraulic system?

After topping up the oil, gently tilt the device lengthwise, then put it back horizontally. Repeat several times until no more air bubbles appear.

What is the frequency for changing the hydraulic oil?

Drain and replace the oil at least once a year, or more often if it appears dirty. Dispose of used oil in accordance with local regulations.

How to clean the bender after use?

Unplug the device. Wear gloves to protect against chips. Brush or wipe off all dirt and metal filings, focusing on the lower part of the piston. Do not use compressed air gun.

What to do if the rebar does not bend correctly?

Check that the bar diameter is within the specified range (12-22 mm for NRB-22). Ensure the oil is at the correct level and the piston retracts fully after each bend. If the problem persists, inspect the bending blocks and bolts.

USER MANUAL NRB-22 Vevor

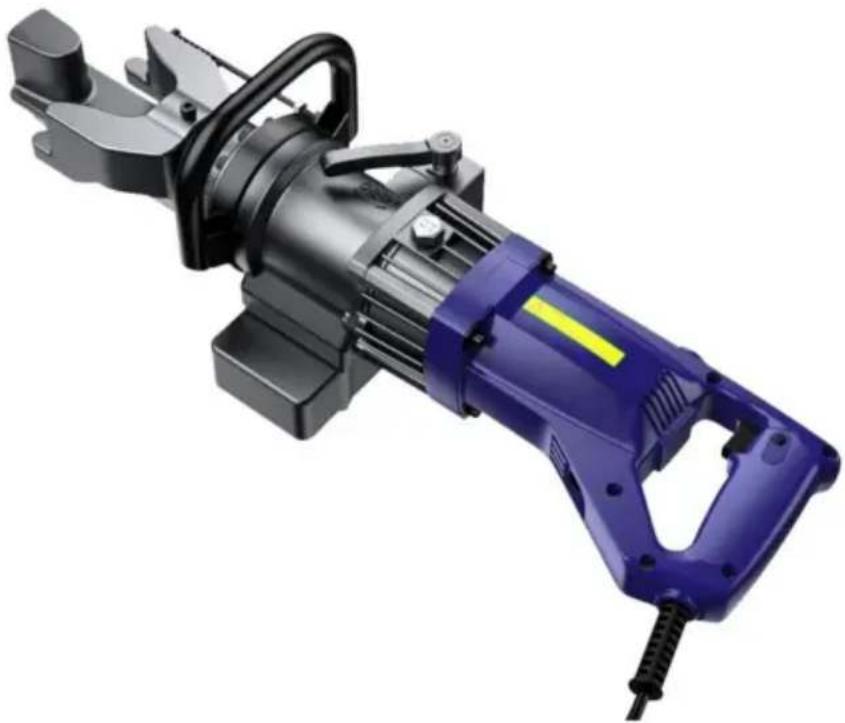

MODEL: NRB-22/NRB-25/RB-16/RN-22/NRB-32

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

MODEL: NRB-22/NRB-25/RB-16/RN-22/NRB-32

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY INSTRUCTIONS

Usage

Use NRB-22, NRB-25, RB-16, RN-22, NRB-32 rebar bender on concrete reinforcing bars only.

Restrict use to designated materials

Don't use the machine to bend very hard rebar. The hard rebar may and will also damage the tool. Do not attempt to bend rebars harder, thicker, or thinner than those specified.

Use eye protection

Wear safety goggles, safety glasses with side shields, or a face shield when using the bender.

Provide safety barriers

Erect safety screens to protect co-workers from possible flying ends. If working in high places, place a safety screen under the rebar.

Guard against electric shock

To avoid possible electric shock, do not handle the cutter with wet hands, and do not use the cutter in the rain or in damp places. Be aware of all power lines, circuits, and other hazards that may be contacted, especially those below the surface or otherwise hidden from view.

Unplug the tool

Disconnect the cutter from the outlet when not in use and before cleaning, adjusting, or servicing. Do not disconnect the plug from the outlet by pulling the cord. Always check that the switch lock is OFF before plugging in.

Beware of the environment

Do not use the cutter in the presence of flammable materials (e.g., paint, thinner, petroleum products, adhesives).

Do not use the cutter in a poorly lit area; keep the work area clear of obstructions. The operator should at all times have an unobstructed view of the cutter, the rebar, and the surrounding area.

Wear proper apparel

Do not wear loose clothes, dangling objects, or jewelry. Restrain long hair. The use of a safety helmet and rubber-soled boots is recommended. If safety gloves are worn, be especially careful that the gloves do not get caught in moving parts.

Keep visitors away

Keep all visitors at a safe distance from the work area for their own protection and to prevent distraction of the operator.

Maintain the cutter with care

Inspect the cutter before each application. Faulty or loose cutter blocks can result in personal injury. Keep the handle dry, clean, and free from oil and grease. Keep the housing and piston free of dirt and iron filings. Check that screws or bolts are not loose or missing. Follow the instructions for maintenance. Inspect the switch, cord, plug, and any extension cable at regular intervals.

Store carefully

When not in use, store the bender and accessories in a dry place that cannot be accessed by unauthorized persons.

PARAMETER LIST

Model	NRB-22	NRB-25	RB-16	RN-22	NRB-32
Wattage(W)	1500	1500	1000	1500	2000
G.W.(kg)	21.38	22.94	11.73	20	33.6
N.W.(kg)	22.2	23.65	12.23	20.8	34.6
Cutting speed	≤4s	≤4s	≤4s	≤4s	≤5s
Max Rebar	22mm	25mm	16mm	20mm	32mm
Min Rebar	12mm	10mm	6mm	6mm	20mm

Note: There are two versions of the voltage for the above product, respectively AC220-240V 50Hz and 120V 60Hz. Please refer to the product nameplate information.

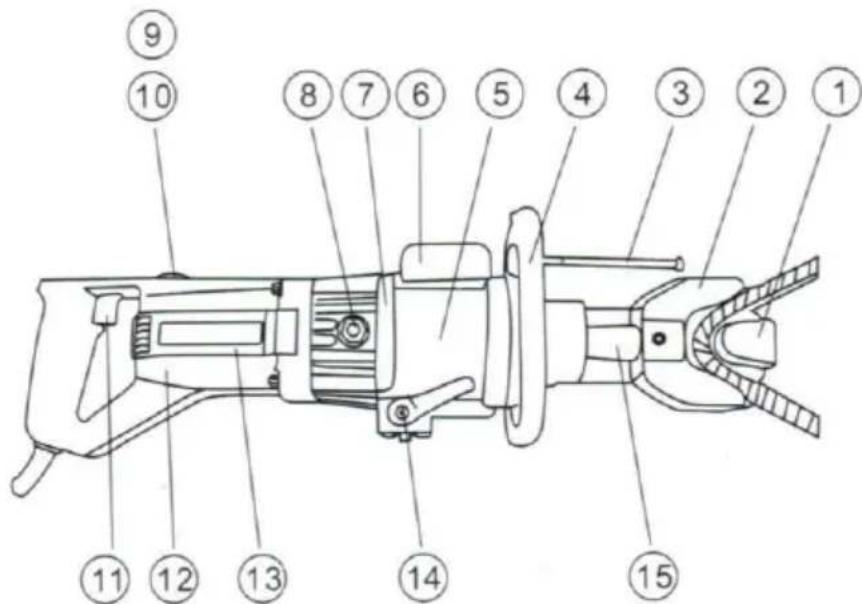

PARTS AND SPECIFICATIONS

NO.	PARTS NAME	NO.	PARTS NAME
1	Head	9	Carbon brush holder
2	Bend blocks	10	Carbon brush
3	Adjustable stopper	11	Switch
4	Side handle (detachable)	12	Plastick house
5	Cylinder	13	Motor
6	Oil case	14	Switch
7	Pump case	15	bending piston
8	Oil-plug

INSTRUCTIONS

Caution: Indicates a hazard that could result in minor personal injury or product damage.

Care: Indicates a hazard that will result in product damage.

Pre-use checks

1. Check oil level.
2. Check the condition of the bender blocks and the tightness of the bender block bolt.
3. Check that the power source is appropriate for the bender.

CARE: If the voltage is too high, the motor will burn out. If the voltage is too low, insufficient power will be generated. Never use DC power.

1. Check that the power supply is properly earthed.

CAUTION: Failure to earth the power supply may result in electric shock to the operator.

1. Check that cord is undamaged and that plug is not loose.

If an extension cable is to be used, make sure that it is undamaged. It is the proper thickness for the length. See table below.

Cable length	110/115V	230V
	Cable size (AWG)	Nomibal diameter
Up to 10m (33 ft	16	1.0mm²
Up to 15m (50 ft	14	1.25mm²
Up to 30m (100 ft	10	1.5mm²

6. Before plugging in, make sure that the switch lock is OFF.

Warm-up

In cold weather, warm up unit for 30~60 seconds so that the hydraulic reaches the proper viscosity. Pull trigger-switch to extend piston and release when it has reached its full stroke. Repeat 15~20 times.

Stopper adjustment

The adjustable stopper function to maintain the rebar in tln cold weat warm up unit for 30-60 seconds so that the hydraulic oil reaches the viscosity. Pull trigger -switch to extend piston and release when it has reached its full stroke, Repeat 15-20 times.

When bending for the first time, you can make a mark at the position screw according to the bending angle, so that you can bend the same angle next time.

POINTS OF ATTENTION

1. Do not cover air vents.

CARE: If events are covered, motor will overheat and may burn out.

2. If hydraulic oil exceeds 70°C (158°F) in temperature, power will drop. Allow unit to cool before resuming operation. (Be particularly careful in summer, when the aluminium pump case heats up quicker.) 3. If a drop in power is observed and motor is unusually hot, check carbon brushes. 4. Pull the #14 part valve to make the bending piston return back totally after each bending.

MAINTENANCE

CLEANING

Cleaning bender every day, preferably immediately after use.

CAUTION: Wear gloves to protect hands from metal splinters. Do not use an air-gun: blasting with air can cause metal filings and/or dust to get into eyes and respiratory system.

1. Disconnect unit. 2. Wipe or brush away all dirt and metal filings. Pay particular attention to the lower half of the piston, where dirt is more easily accumulated.

Oil-level check

As the bender is hydraulically operated, the oil-level must be checked at frequent intervals, preferably every day. Failure to maintain the oil at the proper level results in a drop in pressure and loss of bending power.

Caution: Hydraulic oil is highly flammable. Keep away from sparks or naked flame. Do not smoke.

Caution: Hydraulic oil may cause inflammation of the eyes and skin. If ingested, it will cause diarrhoea and vomiting.

In case of eye contact, rinse in clean water for at least 15 minutes and consult a physician. In case of skin contact, wash thoroughly with soap and water.

In case of ingestion, consult a physician immediately. Do not deliberately induce vomiting.

1. Oil should be warm but not hot. Warm up unit if cold.

1. 2. Adjust stopper and make three or four cuts, noting exactly at what point the rebar is actually breaking.

3. Pinch a short piece of rebar, stopping just before it breaks off. Unplug from power source.

1. 4. With partially severed rebar in place, turn unit over so that oil-plug is uppermost. (If unit is hot, allow to cool down.)

5. Remove oil-plug and seal-washer (packing).

Caution: Never remove oil-plug when unit is hot or oil will spurt out.

6. Check that oil is level with bottom of plug hole (i.e., that oil can go to the brim). If oil level is too low, top up with 20-weight hydraulic oil with anti-foam and anti-abrasion properties (ISO viscosity grade VG46, e.g., Shell Tellus 46, Mobil DTE-25, or Esso Uni Power SQ46).

1. After topping up, extract air from the system. Gently tilt the cutter lengthwise. Return it to a level position. Top up again and tilt in the opposite direction. Repeat this process until all air has been extracted.

CARE: The bender cannot function properly if the oil contains air bubbles.

1. Replace the seal washer (packing) and plug. Connect the cutter to the power source and completely serve the rebar.

Oil change

The hydraulic oil should be changed at least once a year, sooner if it appears dirty.

1. Unplug the unit from the power source. Remove the oil plug and packing. Turn

the bender over and drain the oil into a suitable receptacle. When the oil ceases to drain out, tilt the unit to the rear so that oil trapped in the piston housing comes out. When the housing is empty, tilt the unit in the opposite direction to empty the residue in the pump case.

1. With the drain hole uppermost, slowly fill the unit with fresh oil. Replace and lightly tighten. Connect the unit to the power source and advance the piston three times. Unplug the unit and remove the oil plug. Top up the oil level and re-plug.

3. Finally, follow the procedure for the oil level check. (Steps 2~8.)

Note: Dispose of hydraulic oil in accordance with local regulations. Do not pour into the sea, river, lake, or drains.

Bolt tightness

Once a week or after every 500 cuts, check the tightness of all bolts, especially those securing the housing to the cylinder. Loose bolts will result in a loss of power.

Carbon brushes

Inspect the two carbon brushes at least once every two months. (Normal brush life is 200 hours.)

Care: Worn brushes will result in power loss, cause the motor to run hot, and irreparably damage the armature's commutator.

1. Disconnect the unit. 2. Unscrew both brush caps and pull out the carbon brushes. 3. Replace the brushes if they are less than 6 cm in length.
