TELESCOPIC LADDER

MODEL:ML-1050Z/ML-1062Z

MODEL:ML-1050Z/ML-1062Z

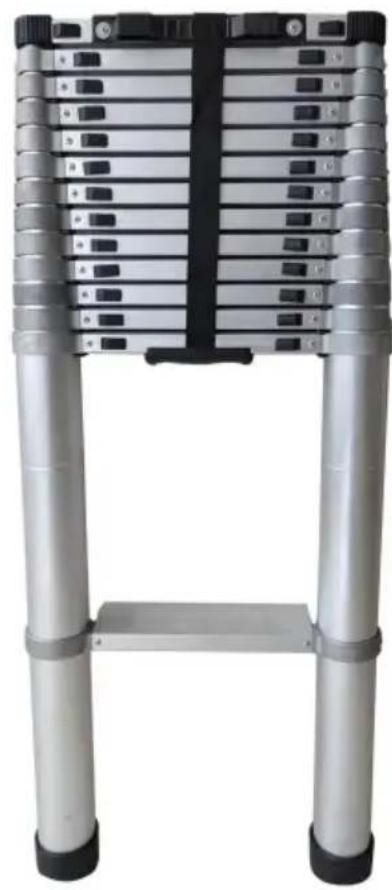

Metallic multi-panel boom stack with black connectors and metal legs (no text or symbols visible)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

CAUTION: Please read ALL instructions before using!!

Before Using

1. Ensure that you are fit enough to use the ladder. Certain medical conditions, medication, alcohol, or drug abuse could make ladder use unsafe. The weight capacity is 420 lbs.
2. When transporting ladders on the roof bars of a vehicle, ensure that suitably placed to prevent damage.
3. Inspect the ladder after delivery and before first use to confirm the condition and operation of all parts.
4. Visually check the ladder is not damaged and is safe to use when using.
5. For professional users, regular periodic inspection is required.
6. Ensure the ladder is suitable for the task.
7. DO NOT USE A DAMAGED LADDER!
8. Remove any contamination from the ladder. Such as wet paint, mud or snow.
9. Before using the ladder at work, a rick assessment should be car respecting the legislation in the country of use.

Positioning and Erecting the Ladder

1. Incline angle should not exceed 75 degrees.
2. Ladder shall be on an even, level, and unmovable base.
3. Leaning ladder should be leaned against a flat non-fragile surface secured before use, e.g., tied or use a suitable stability device.
4. When positioning the ladder, consider the risk of a collision with the ladder, i.e., from pedestrians, vehicles, or doors(no fire exists) and windows in the work area.
5. Identify any electrical risk areas where the ladder is used, such as overhead lines or exposed electrical equipment.

6. Ladder shall be on its feet, not the rungs or steps.

7. Ladders shall not be positioned on slippery surfaces (such as ice, waxed surfaces, or significantly contaminated solid surfaces) unless additional effective safety measures are taken to prevent the ladder from slipping or ensure contaminated surfaces are sufficiently cleaned.

Using the Ladder

1. Do not exceed the maximum total load (420 lbs).
2. Do not overreach. Users should keep their buckle(navel) inside the and both feet on the same step/rung while working.
3. Do not step off a leaning ladder at a higher level without additional security, or use of a suitable stability device.
4. Do not use standing ladders of access to another level.
5. Do not stand on the top three steps/rungs of a leaning ladder
6. Ladders should only be used for light work of short duration.
7. Do not use the ladders outside in adverse weather conditions, suc strong winds.
8. Take precautions against children playing around the ladder.
9. Face the ladder when ascending and descending.
10. Keep a secure grip on the ladder when ascending and descendir
11. Do not use the ladder as a bridge.
12. Wear suitable footwear when using the ladder.
13. Avoid excessive side loading(i.e.drilling brick and concrete).
14. Do not spend long on a ladder without regular breaks(fatigue is risk).
15. Leaning ladders used for access to a higher level should be extended at least 1m above the landing point.
16. Equipment carried while using a ladder should be light and easy handle.

Open the Ladder

Note: The actual number of ladder steps shall prevail in kind.

Automatic locking: Each step/rung of your ladder has 2 locking pins t blocked. They are automatically inserted into the slots of the uprights place when the ladder is extended.

The condition of the lock is of the two black buttons on the side of rung is displayed:

• Unlocked position(see Picture#1 below): There is a gap between the buttons and the Spar.
• Locked position(see Picture#2 below): The buttons are located directly to the leg.

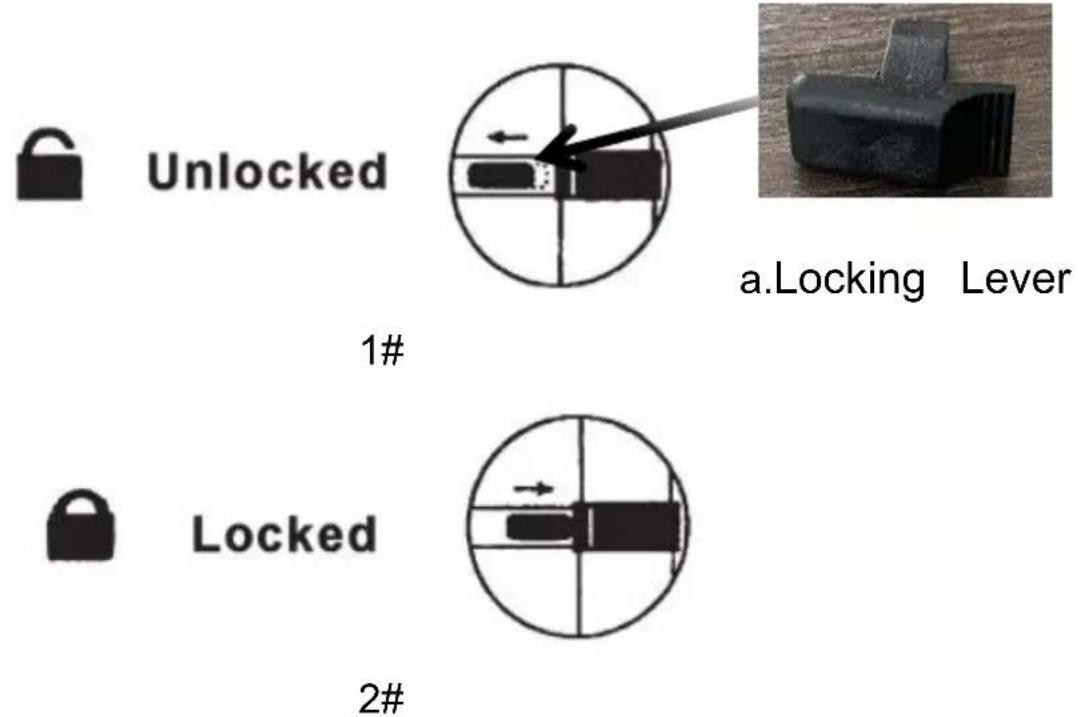

Unlocked 1# a.Locking Lever Locked 2#

Complete Extension of the Ladder:

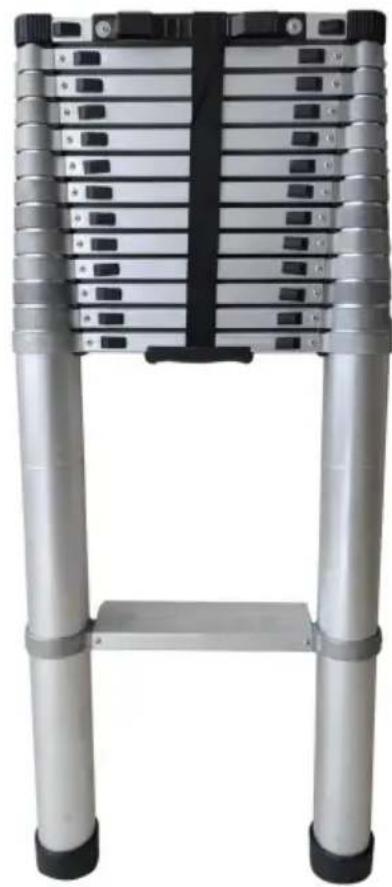

Note: The actual number of ladder steps shall prevail in kind.

Place the ladder on firm, level ground, and put one foot on the lowest step/rung.

The top-rung off, and check if the buttons are locked (see Picture #2 above). Then, repeat the process with the next lower rungs until the are entirely extended (see Pictures #3 and #4).

Partial Extension of the Ladder:

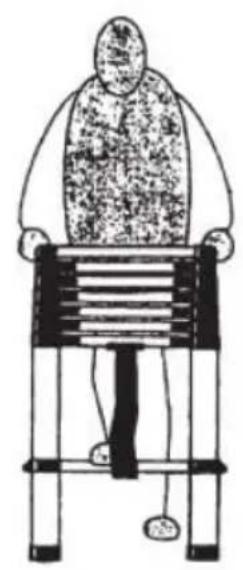

- Place the ladder on firm and flat ground, move one foot on the loop rung

- the lowest rung off and check if the buttons are locked(see Picture above). Repeat the process with each of the next higher rung, until arms are completely extended.

Caution: Always check that all buttons on the exact position are "lock before you climb on the ladder.

Simple line drawing of a human figure seated on a bench with legs and feet, no text or symbols present.

3# 4#

Diagram of a person using a vertical bench with an inset showing a mechanical component (no text or symbols)

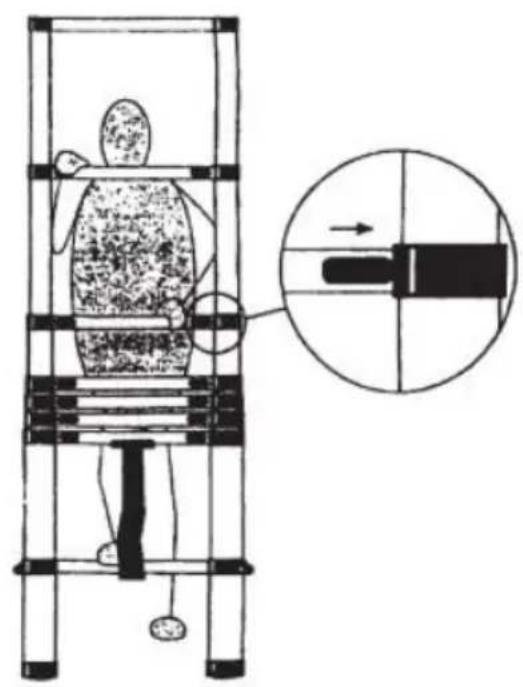

Partial Extension of the Ladder:

Put the ladder on a firm, level ground, and move one foot on the I rung.

- The lowest rung off and check if the buttons are locked(see Picture above). Repeat the process with the next higher rungs until the arms entirely extended.

Caution: Always check that all buttons are in the "locked" position climbing the ladder.

Shorten the Ladder:

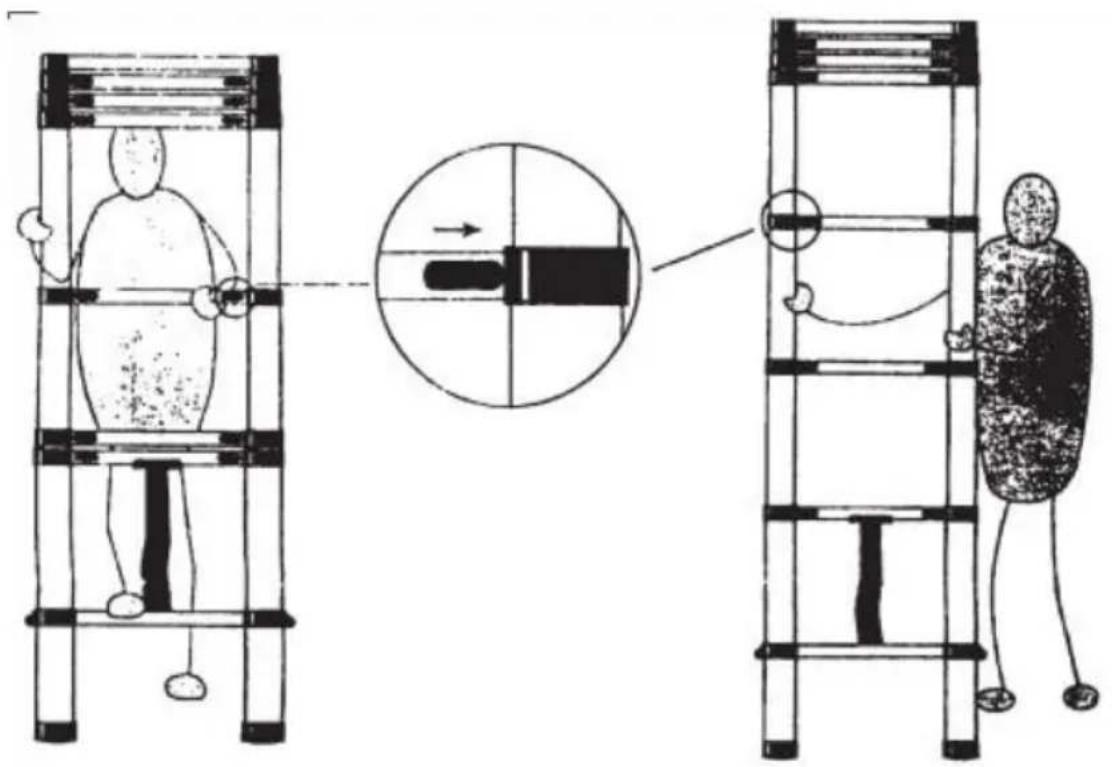

- Put the ladder on a firm and level ground, shorten the ladder from lowest rung.

• The two keys to unlock (see Picture #5).

Diagram illustrating a physical exercise setup with a person using a bench and a person observing the apparatus, including a magnified inset showing motion direction.

5

Troubleshooting Instructions

If there is a problem with your telescopic ladder during operation, ple check the troubleshooting table below before calling the service department.

Troubleshooting Instructions
Fault Phenomenon	Cause of Issu	Solution
Open the rear ladder to lean left and right.	The section of the ladder does not expand properly.	Take back the ladder and che whether each section is stuck, s as normal shrinkage. Re-open and make sure that each section in place (There are lock marks both sides of the pedal.)

Product Technical Parameters

Product Name	TELESCOPIC LADDER
Model	ML-1050Z	ML-1062Z
Extended Height	16.5ft	20.3ft
Number of Floors	13Layers	15Layers
Maximum Load Capacity Each Layer	420lbs(190kg)	420lbs(190kg)
Overall Dimensions (L*W*H)	5036*470*96mm	6203*480*99mm

PART LIST

Name	Picture	Quantity
ML-1050P hook(φ27.7mm)		2
ML-1062P hook(φ23.8mm)		2

Cleaning Instructions

• Store the ladder in the closed position.
• Properly secure and support the ladder while in transit.
• Keep the ladder clean and free from all other harmful materials.

Disposal

Disposal of all packaging, paper, cartons, and plastic, plastic bags according to your local recycling regulations. At the end of the product

lifespan, please dispose of it at an authorized household waste recycle center.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

Metallic multi-panel boom lift with black plastic legs and metal plates (no text or symbols visible)

Close-up of a black mechanical component with a textured surface and a small protrusion on top (no visible text or symbols)

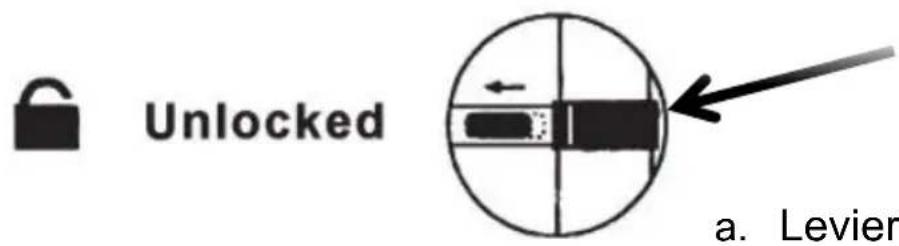

Unlocked a. Levier
