USER MANUAL U12-3 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Pool Ladders

MODEL: U12-3 taupe

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: U12-3 taupe

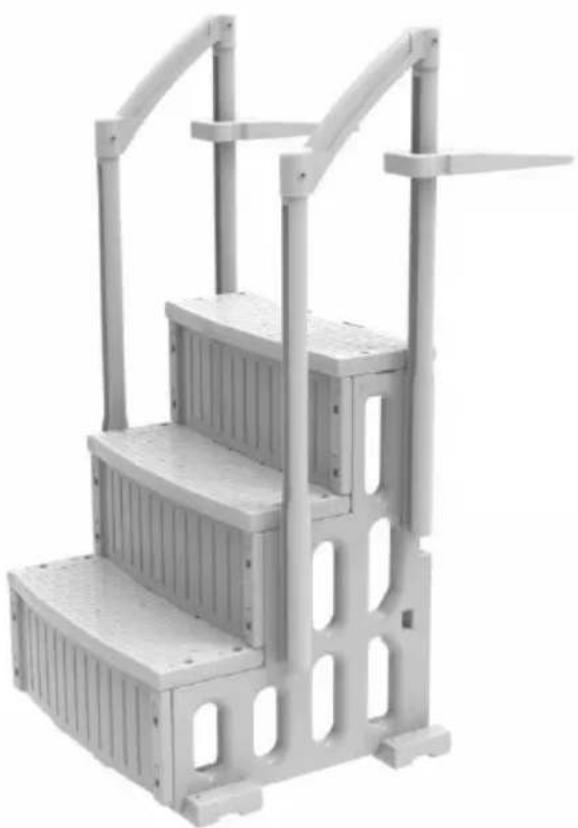

3D rendering of a multi-level industrial staircase structure with vertical supports and horizontal beams (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

Part List

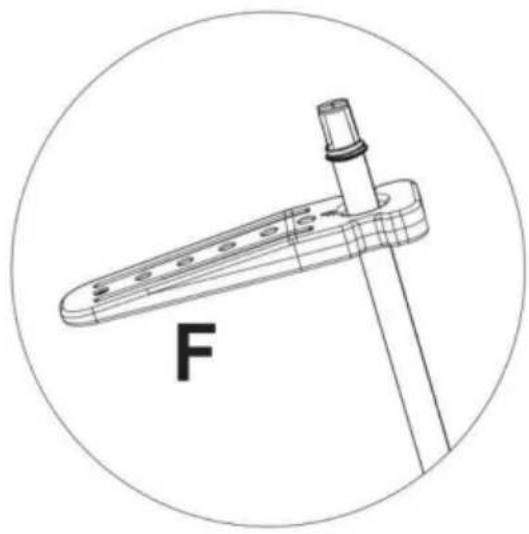

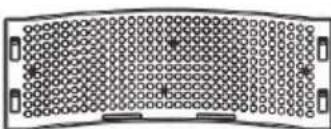

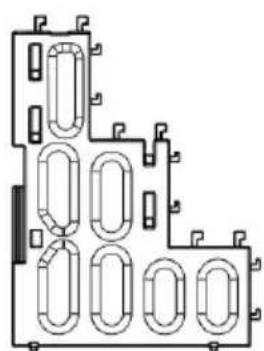

AX2	BX3	CX3
DX2	EX4	FX2
GX4	[S82C]ST5*20 X4	[SZAZ]ST6*35 X2

Installation Procedure

STEP 01

Technical line drawing of a mechanical assembly with multiple cylindrical components and mounting brackets (no text or symbols)

G G The letter "H" is facing up

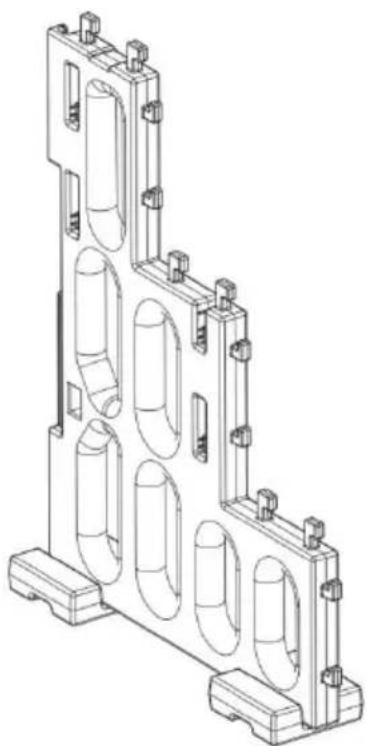

Step 01: Install the base. Note: The "H" printed face up.

STEP 02 ② B Knock down first and then push in. ① C Convex faces outward. Push inward first, then knock down.

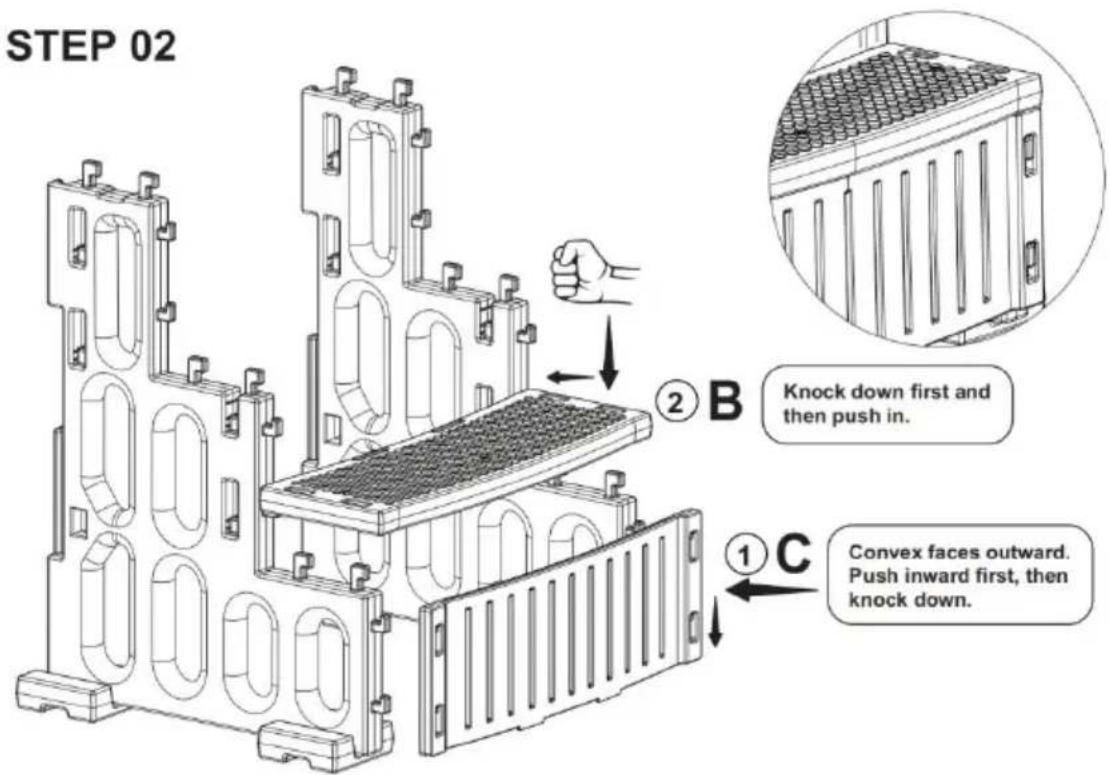

Step 02: Install the first step riser and pedal successively as sh the figure. Other steps need to be installed after sand filling.

STEP 03

E

Technical line drawing of a mechanical or electrical device with multiple vertical posts and a base plate (no text or symbols)

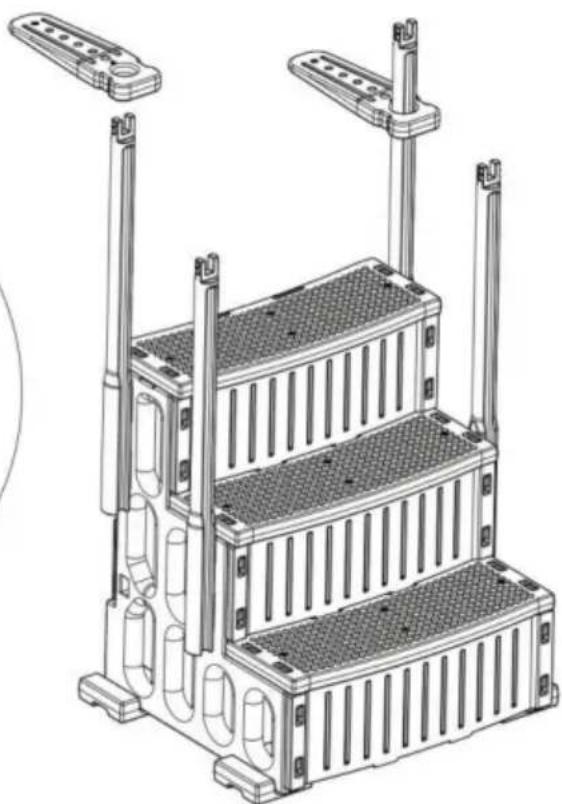

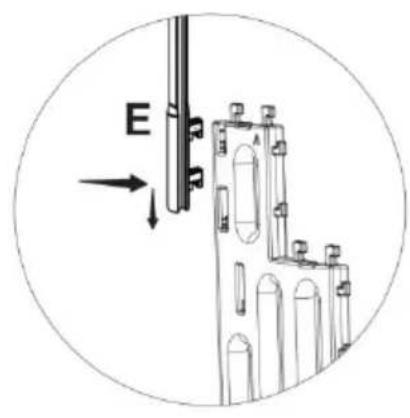

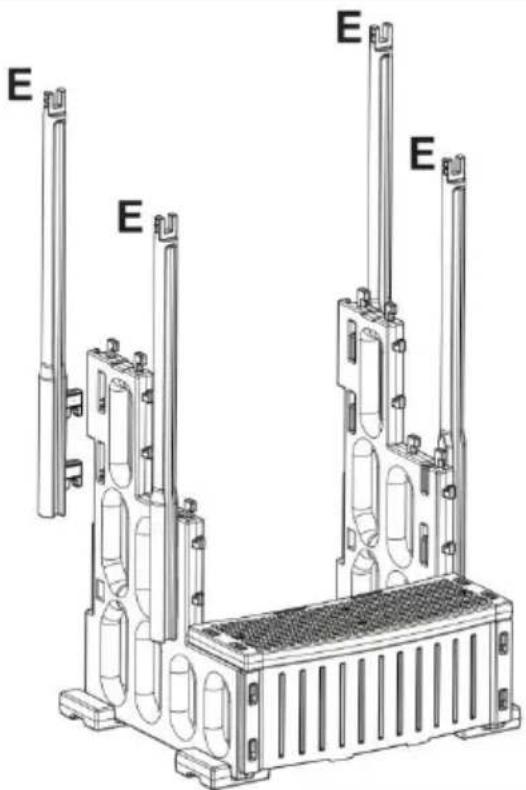

Step 03: Install the handrail as shown.

STEP 04

STEP 04 Pour the clean sand into funnel. SAND

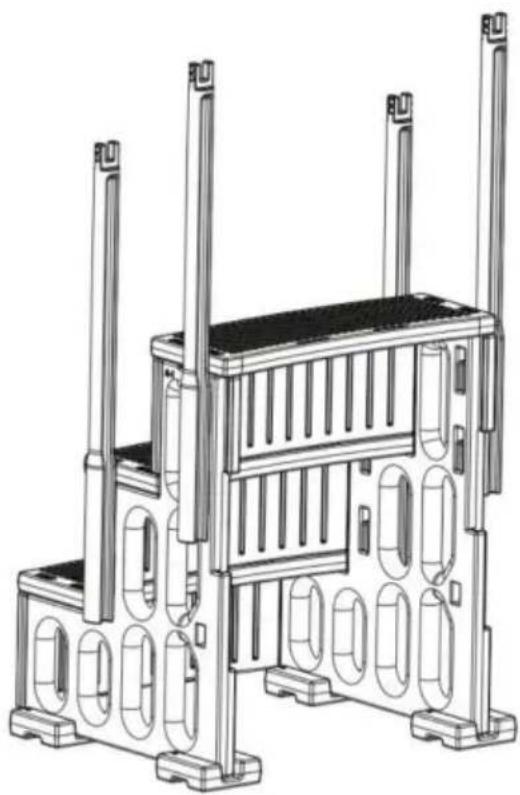

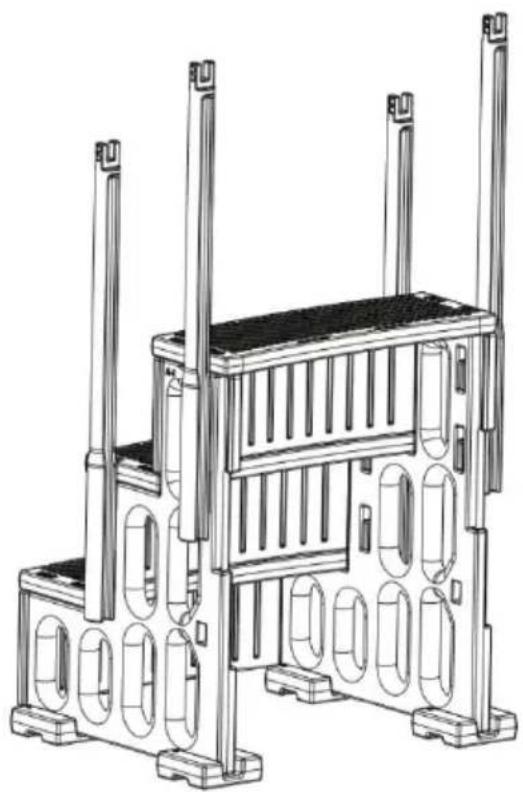

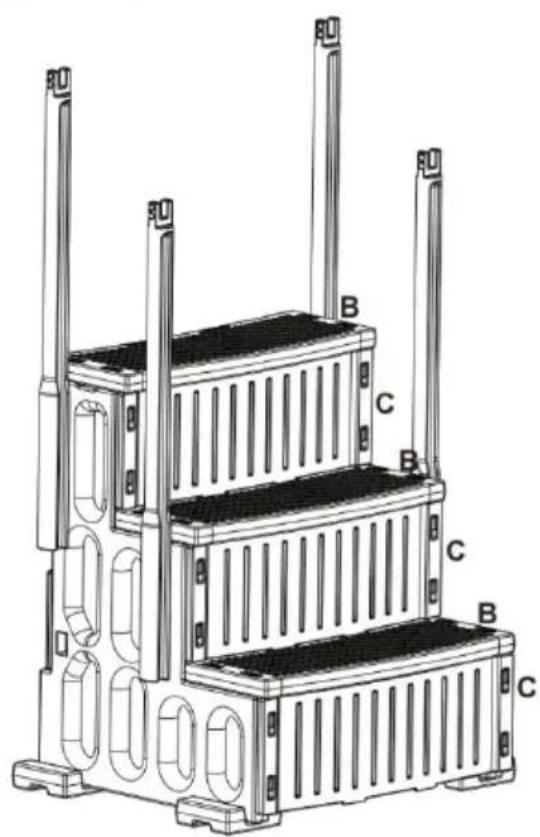

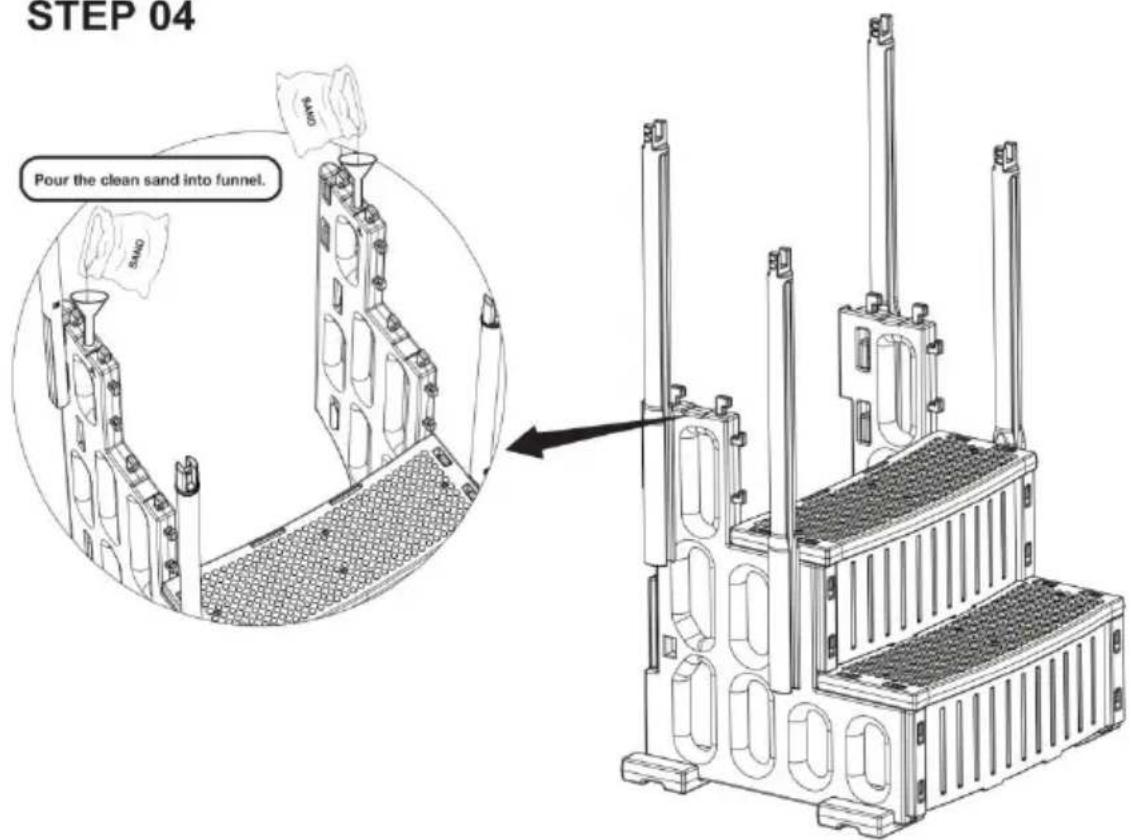

Step 04: After installing the handrail, fill a total of 20kg of clea according to the figure. Make the pool sink better.

STEP 05

Technical line drawing of a multi-level industrial vessel or storage unit with labeled components (B and C), no readable text or symbols present.

Technical line drawing of a modular industrial structure with vertical supports and internal compartments (no text or symbols)

Step 05: Install the remaining riser and pedals as shown in ste

STEP 06

Technical line drawing of a mechanical component with a labeled section 'F' (no text or symbols on the diagram itself)

Technical line drawing of a multi-tiered mechanical device with vertical supports and internal grid structure (no text or symbols)

Step 06: Slip the retaining plate into the rear armrest standpipe

STEP 07 #1

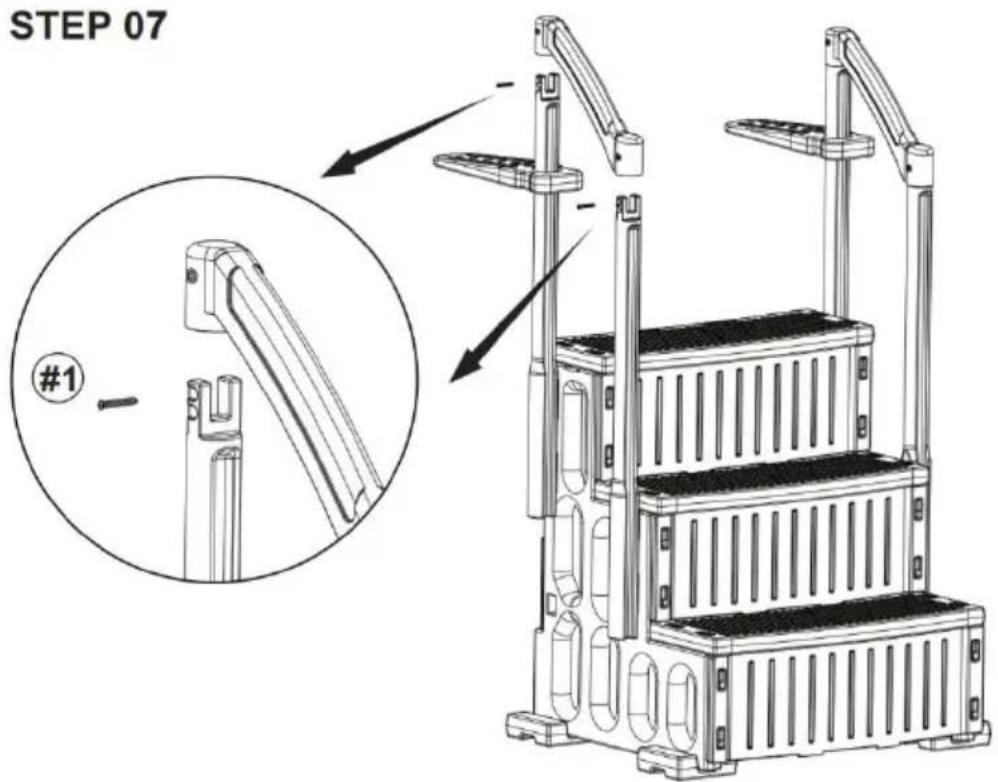

Step 07: Assemble the upper handrail as shown.

STEP 08

#2 #2 Keep the back of the pool ladder firmly against the pool wall.

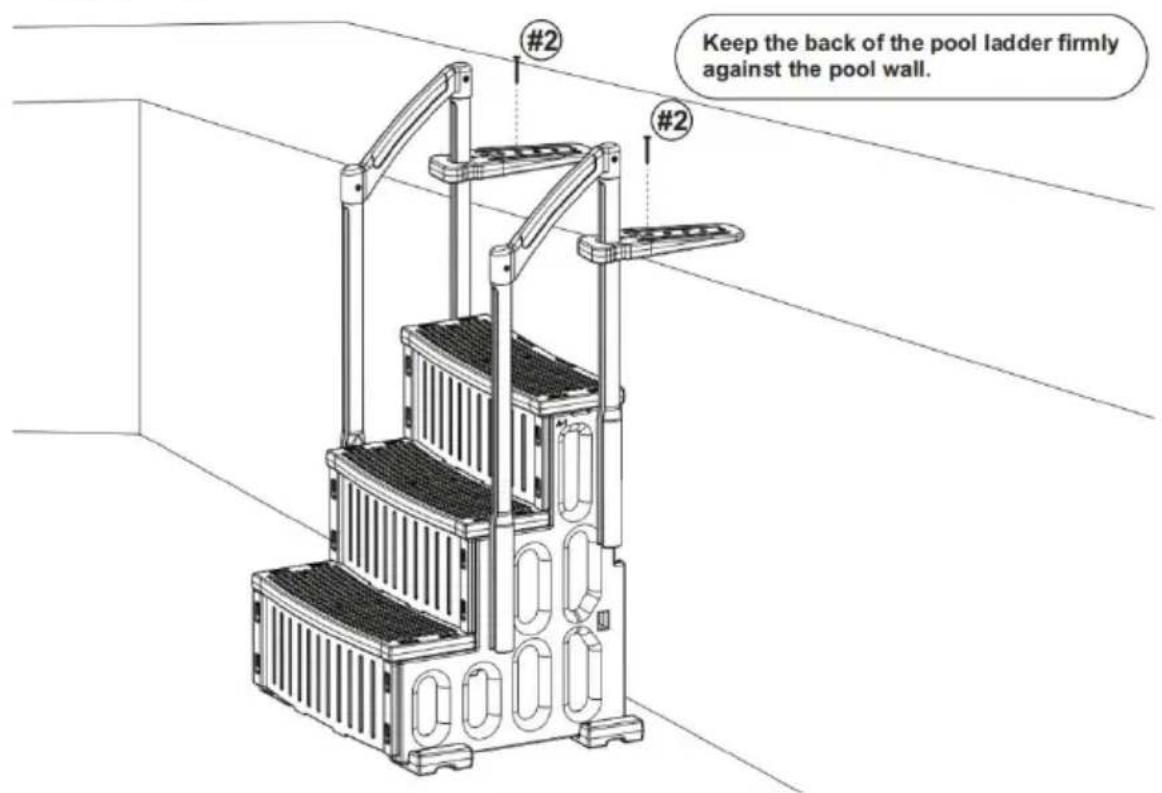

Step 08: Place the ladder into the pool and make sure the balladder is next to the pool wall. Finally, fasten the ladder to th with screws.
