USER MANUAL L01C-3-42 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Pool Ladders

MODEL: L01C-3-42

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

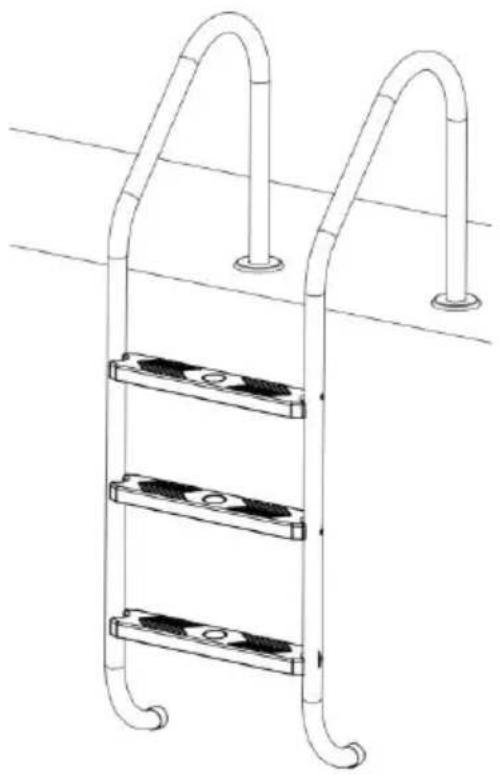

MODEL: L01C-3-42

Line drawing of a three-tiered ladder with curved arms and two feet at the top (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

SAFETY INSTRUCTIONS:

• Install ladder per manufacturer's instructions.
- Locate LADDER on solid base.
- Ladder is designed for use by one person at a time.
- This ladder is intended for use as a swimming pool ladder only.
- Face ladder when entering and exiting the pool.
• No jumping, no diving from ladder.
- Do not swim through, behind or around the ladder.

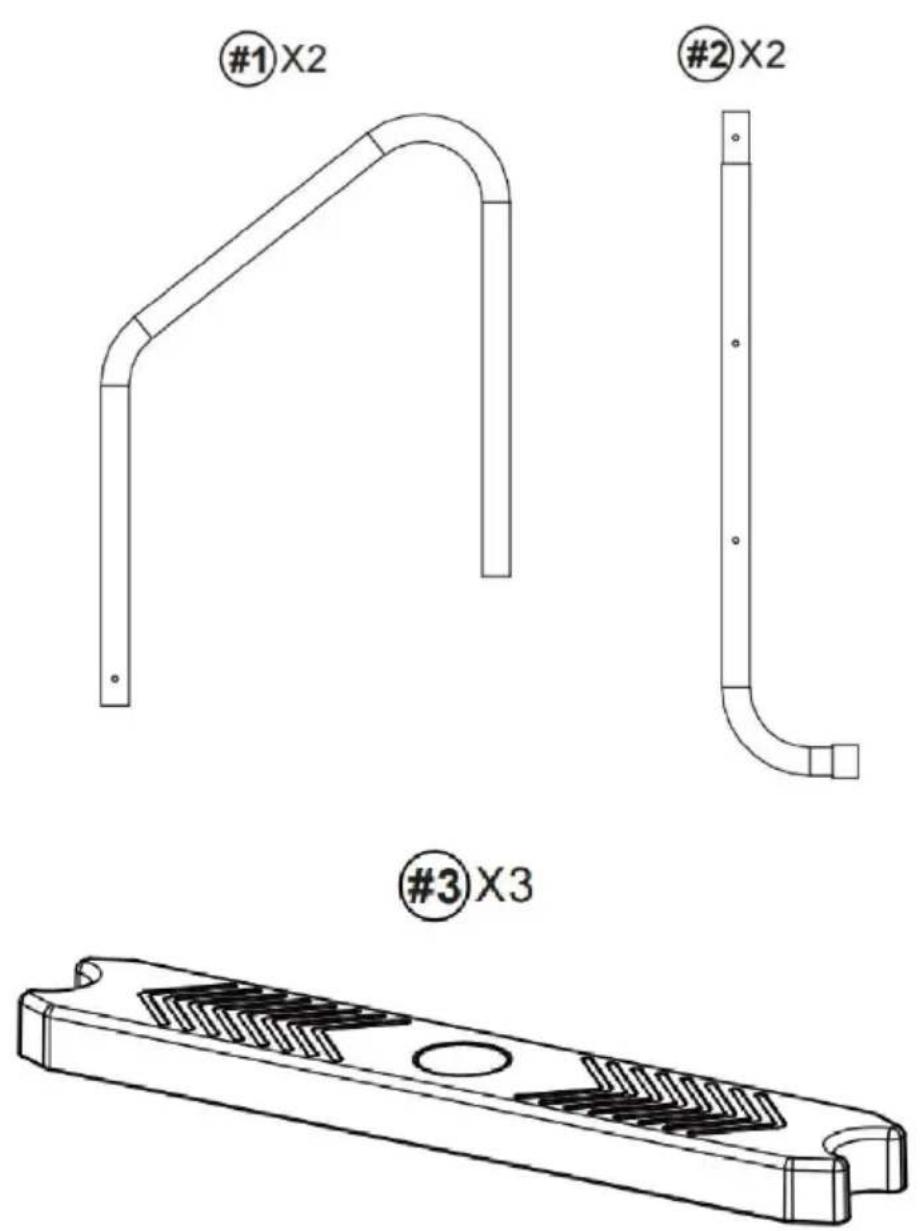

Part List

#1X2 #2X2 #3X3

4 X6

Technical line drawing of a bolt and nut assembly (no text or symbols)

5 X4

6×1

7X2

8X2

Installation Procedure

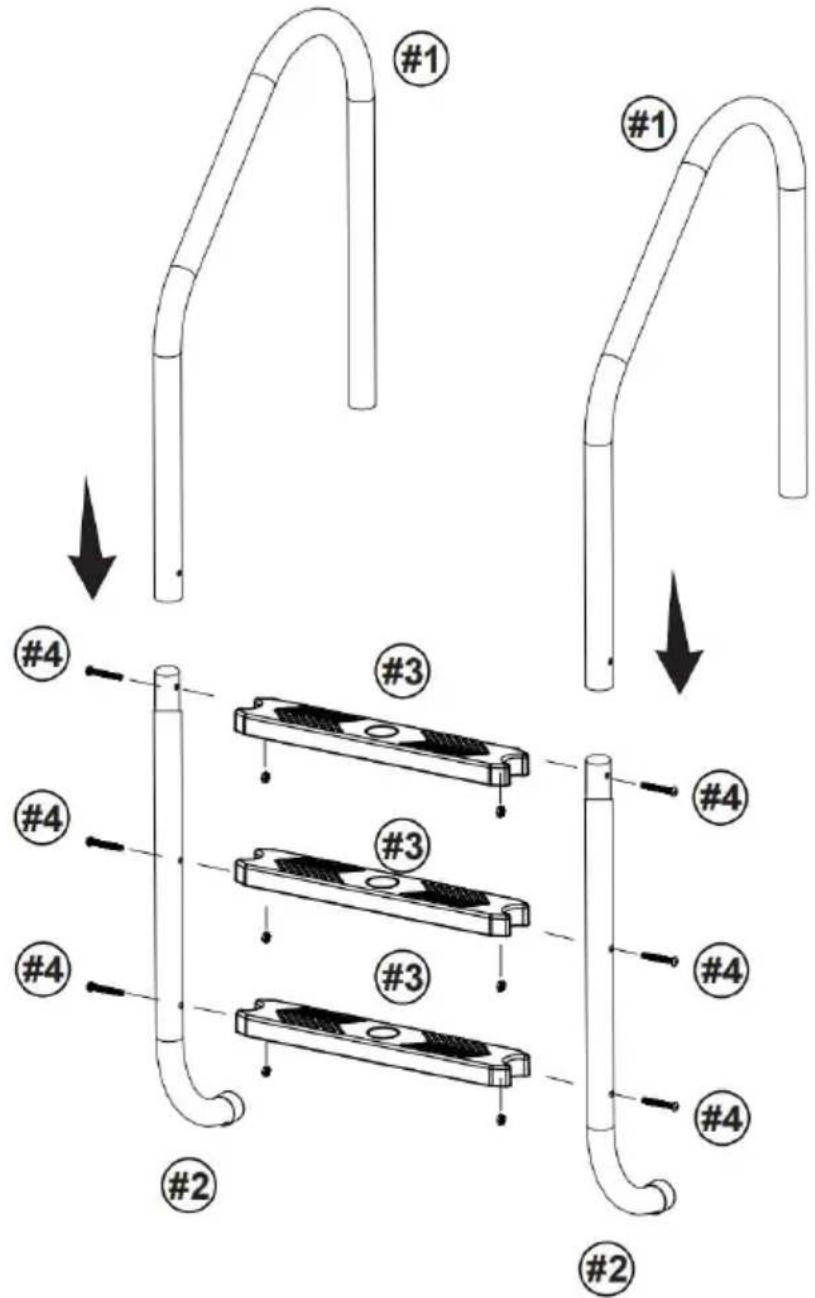

Step 1: Assemble the ladder as shown.

#1 #1 #2 #2 #3 #3 #3 #4 #4 #4 #4 #4 #4

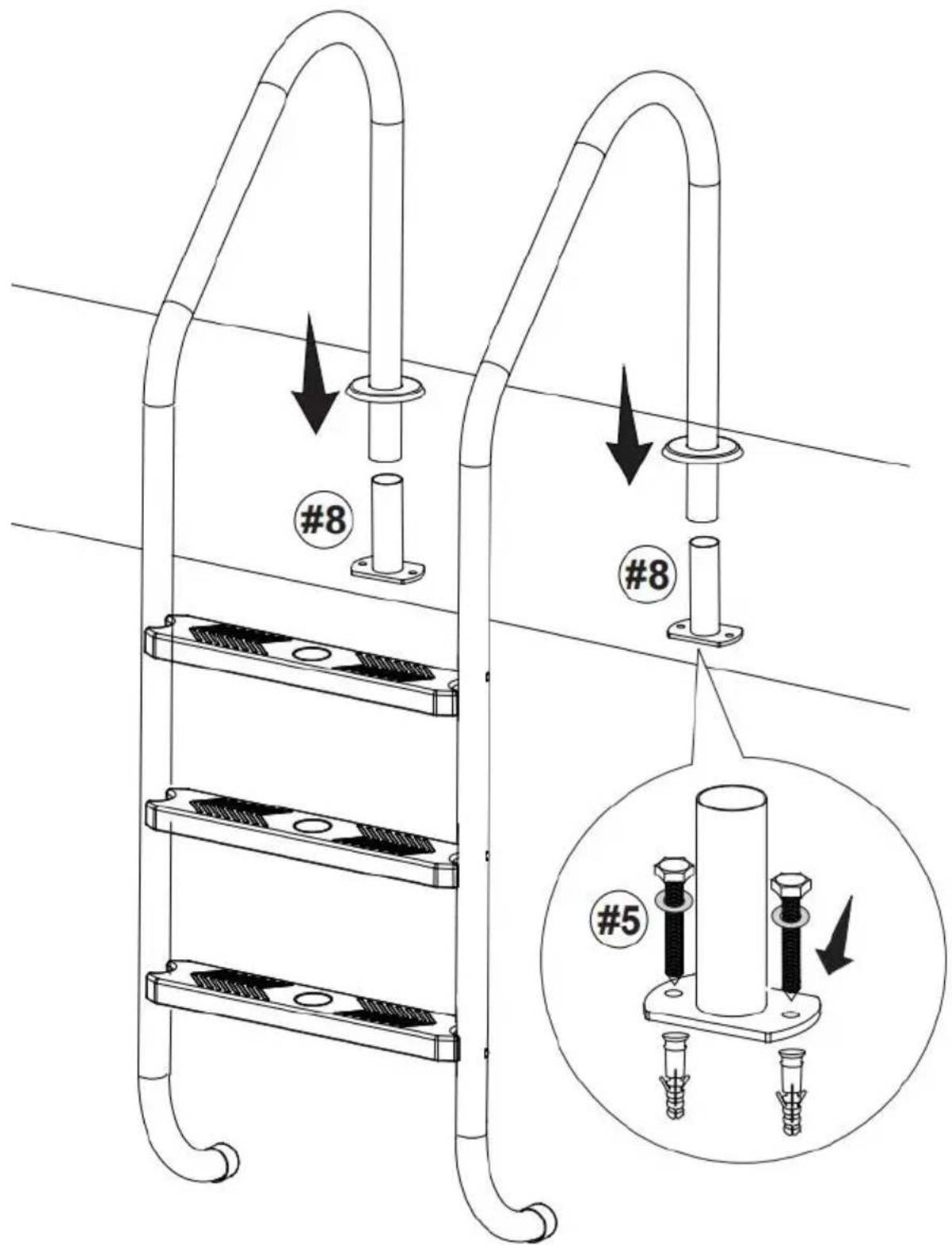

Step 2: Place the bottom of the ladder against the pool wall and inst base.

Warning! Make sure the ladder stays vertical. Otherwise the lack will be unstable.

#8 #8 #5

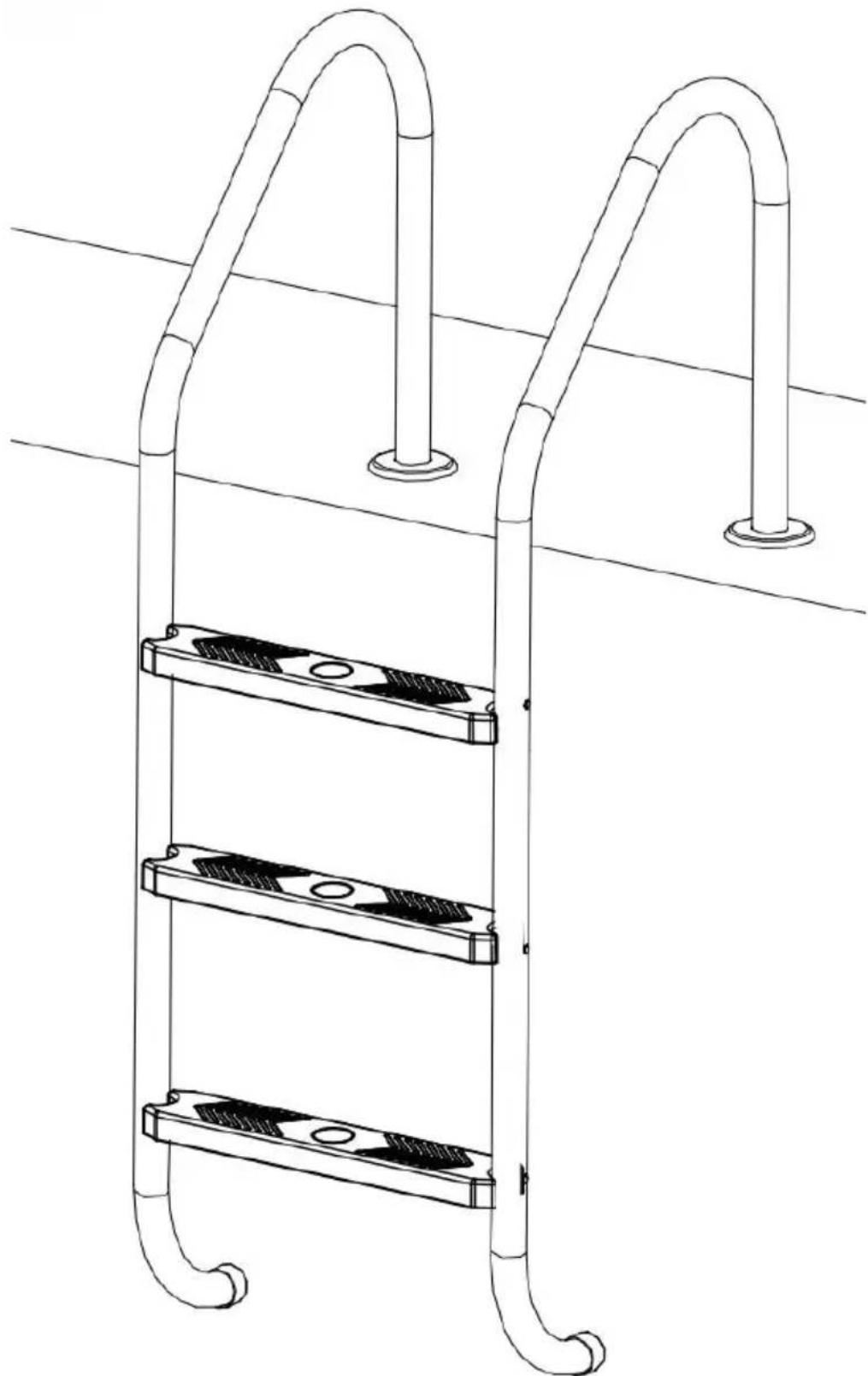

Step 3: Finally, put down the decorative lid.

Line drawing of a ladder with three horizontal supports and two vertical posts on top (no text or symbols)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
