USER MANUAL KMP403A Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Multi-purpose Folding Ladder

MODEL: KMP403A / KMP404A / KMP405A

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: KMP403A / KMP404A / KMP405A

A metallic double-lac ladder structure with two ladders and mounting feet (no text or symbols visible)

(Note: The picture only shows KMP404A.)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

Part List
No.	Name	Picture	QTY.
1	Ladder		1
2	Stabilizer Bar		1
3	Nut		4
4	Screw		4
5	Short Pedal		1
6	Long Pedal		1

Usage Introduction

Simple line drawing of a right triangle with internal circles and connecting lines (no text or symbols)

STRAIGHT LADDER

Simple line drawing of a triangular structure with three circular nodes at the vertices (no text or symbols)

STEP LADDER

Simple line drawing of a trapezoidal structure with no text or symbols

SCAFFOLD

Simple line drawing of a ladder leaning against a wall, no text or symbols present

OVERHANG LADDER

Pure architectural line drawing of a staircase with railings and supports (no text or symbols)

STAIRWELL SCAFFOLD

STORAGE

SAFETY INSTRUCTIONS

1. This ladder may only be used in the positions as shown above.
2. Due care and attention should be paid at all times when using the ladder.
3. Always check the stability of the ladder by ensuring that it is place level and solid ground.
4. Always check that all hinges are in the correct positions for your particular use.
5. The platform may only be used when the ladder is in one of the horizontal positions.
   6.Set at proper(75.5 degree) angle in straight position.

NO.	Model	Step Distance(mm)	Length Of Extension(mm)
1	KMP403a	280	3550
2	KMP404a	280	4650
3	KMP405a	280	5800

Hinges

1. To unlock the hinges simply move the handle to the "o" unlock positive (see diagram) and then fold the ladder section inward.
2. The hinges will automatically lock into position once the ladder is unfolded.
3. Always check that all hinges are securely locked into position before using the ladder.
4. Each pair of hinges must be locked simultaneously.
5. It is extremely dangerous to attempt to alter the positioning of the ladder, hinges or operating joints while the ladder is in use.
6. Always keep the joints clean and free from all foreign materials, it is advisable to cover the joints during exceptionally messy jobs.

β=θ

Simple line drawing of a mechanical component inside a circular frame (no text or symbols)

--UNLOCKED --LOCKED

Mechanical assembly diagram showing a clamp and pulley mechanism (no text or labels)

IMPORTANT: Stabilizers must be fitted before use.

Assembly Instructions

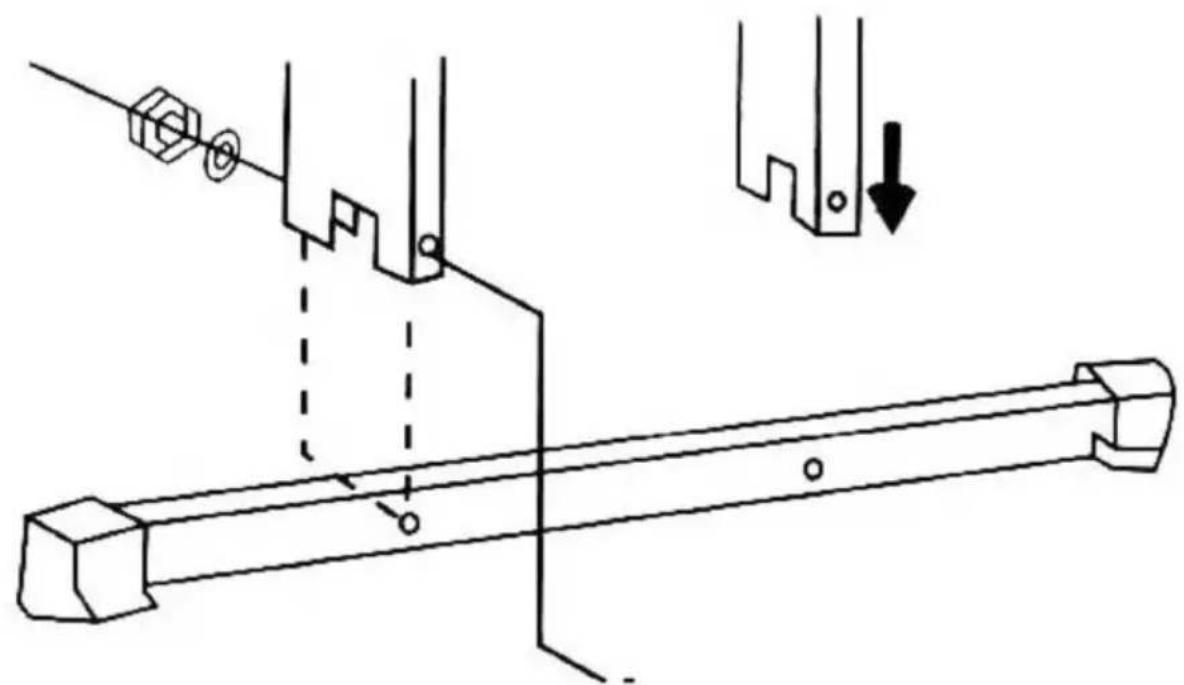

1. Place the stabilizer bar into the end of the side rails(see diagram).
2. Secure the stabilizer bar with the nut and bolt.

Technical line drawing of a mechanical assembly with no visible text or symbols

Care & Maintenance

1. The hinges should be lubricated with a good quality lubricant to ens mobility.
2. The hinges should be cleaned after use especially when the hinges been subjected to dust or dirt.
3. Clean the area, or wash with warm water. However should water be up on the hinges, please remember to re-lubricate after drying.

Important: This ladder should never be used if any part is missing, damaged or worn.

Following the above instructions will help to maintain your appliance and ensure its maximum lifespan.
