U06C-4-42 - Ladder Vevor - Free user manual and instructions

USER MANUAL U06C-4-42 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

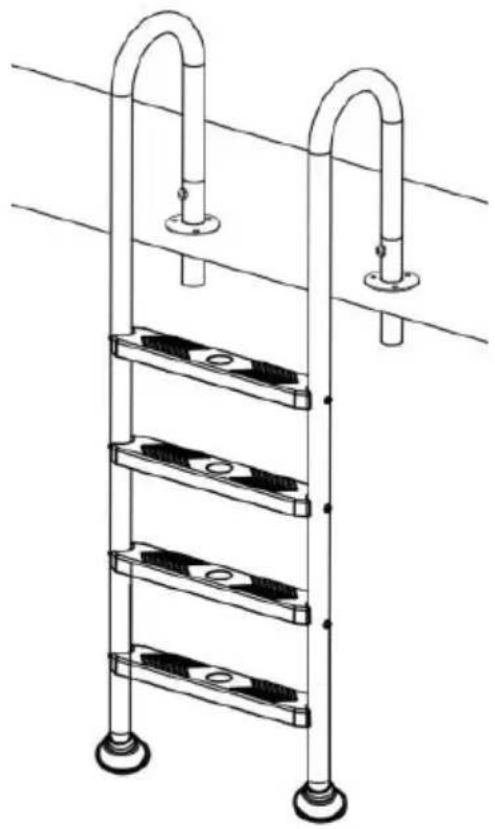

Pool Ladders

MODEL:U06C-4-42

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: U06C-4-42

Line drawing of a ladder structure with multiple horizontal supports and vertical posts (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

SAFETY INSTRUCTIONS:

• Install ladder per manufacturer's instructions.
- Locate LADDER on solid base.
- Ladder is designed for use by one person at a time.
- This ladder is intended for use as a swimming pool ladder only.
- Face ladder when entering and exiting the pool.
• No jumping, no diving from ladder.
- Do not swim through, behind or around the ladder.

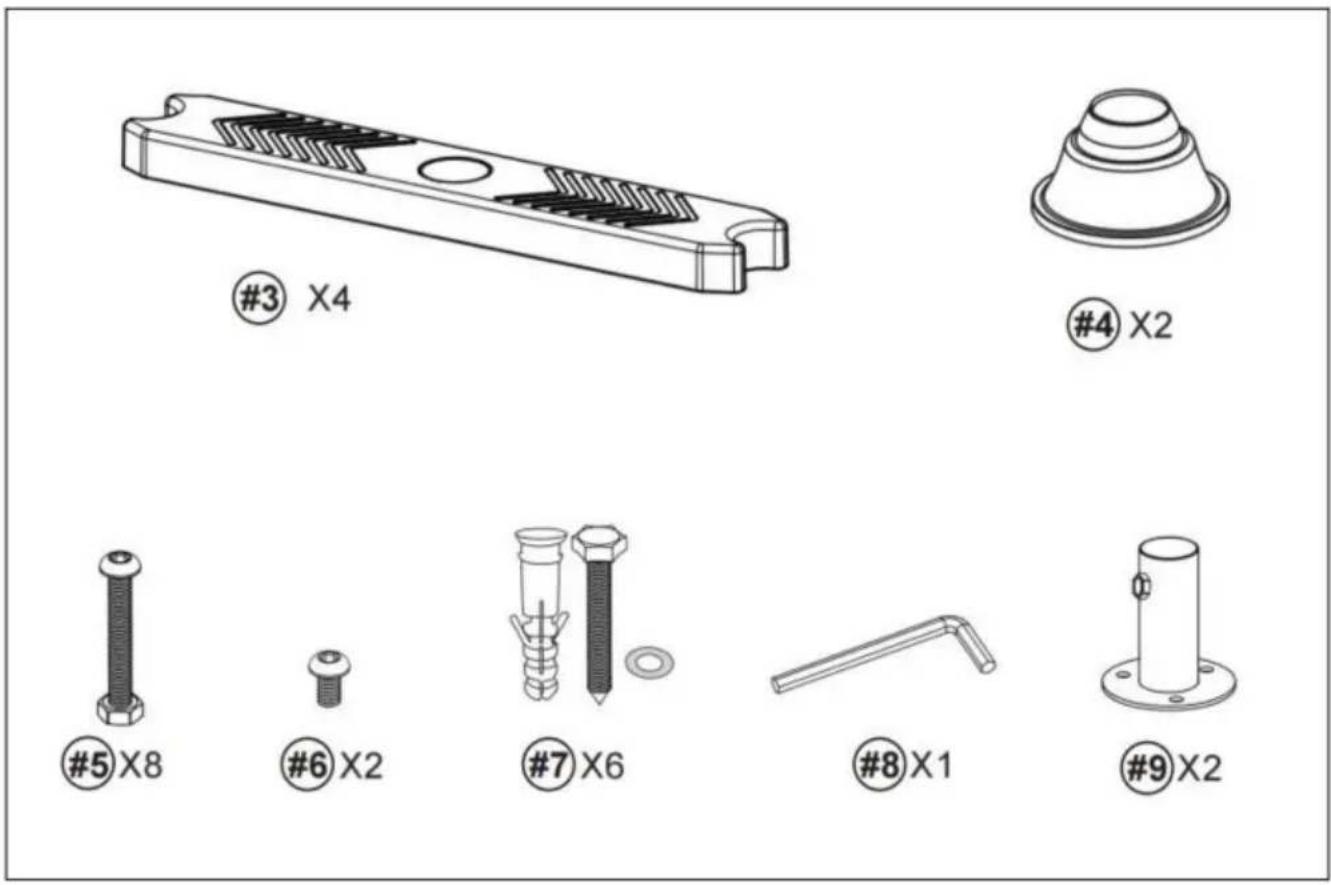

Part List

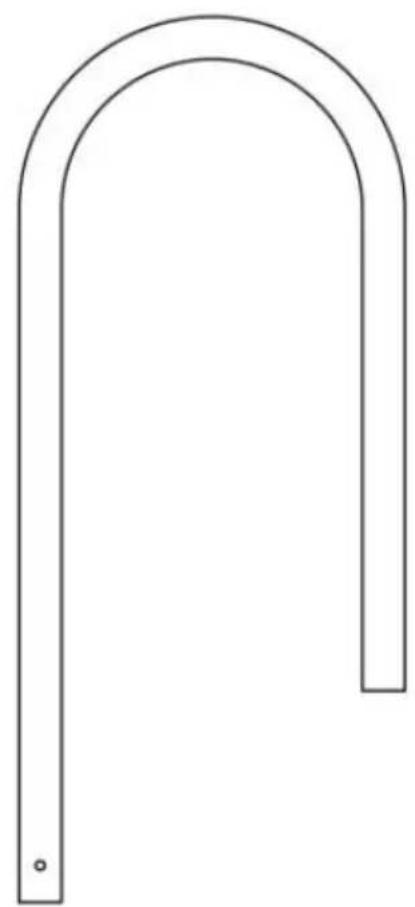

1×2

Simple line drawing of an open arch with a small hole at one end (no text or symbols)

2×2

Simple vertical line drawing with three circular holes at both ends (no text or symbols)

#3 X4 #4 X2 #5 X8 #6 X2 #7 X6 #8 X1 #9 X2

Installation Procedure

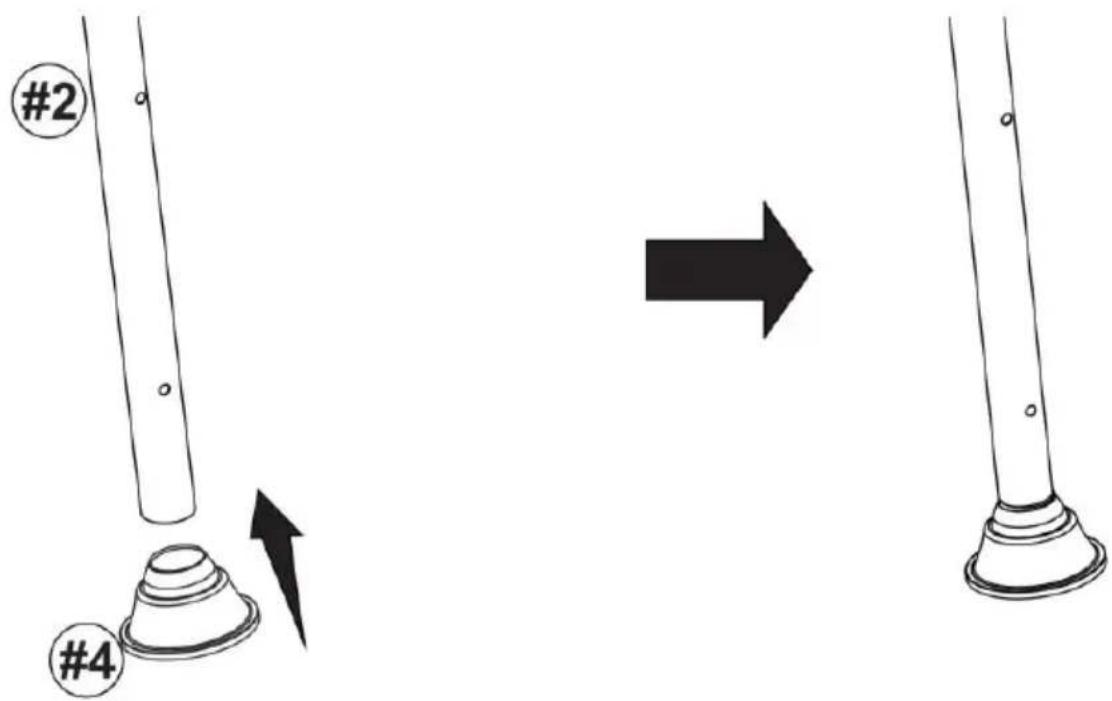

Step 1: Install foot pads.

#2 #4

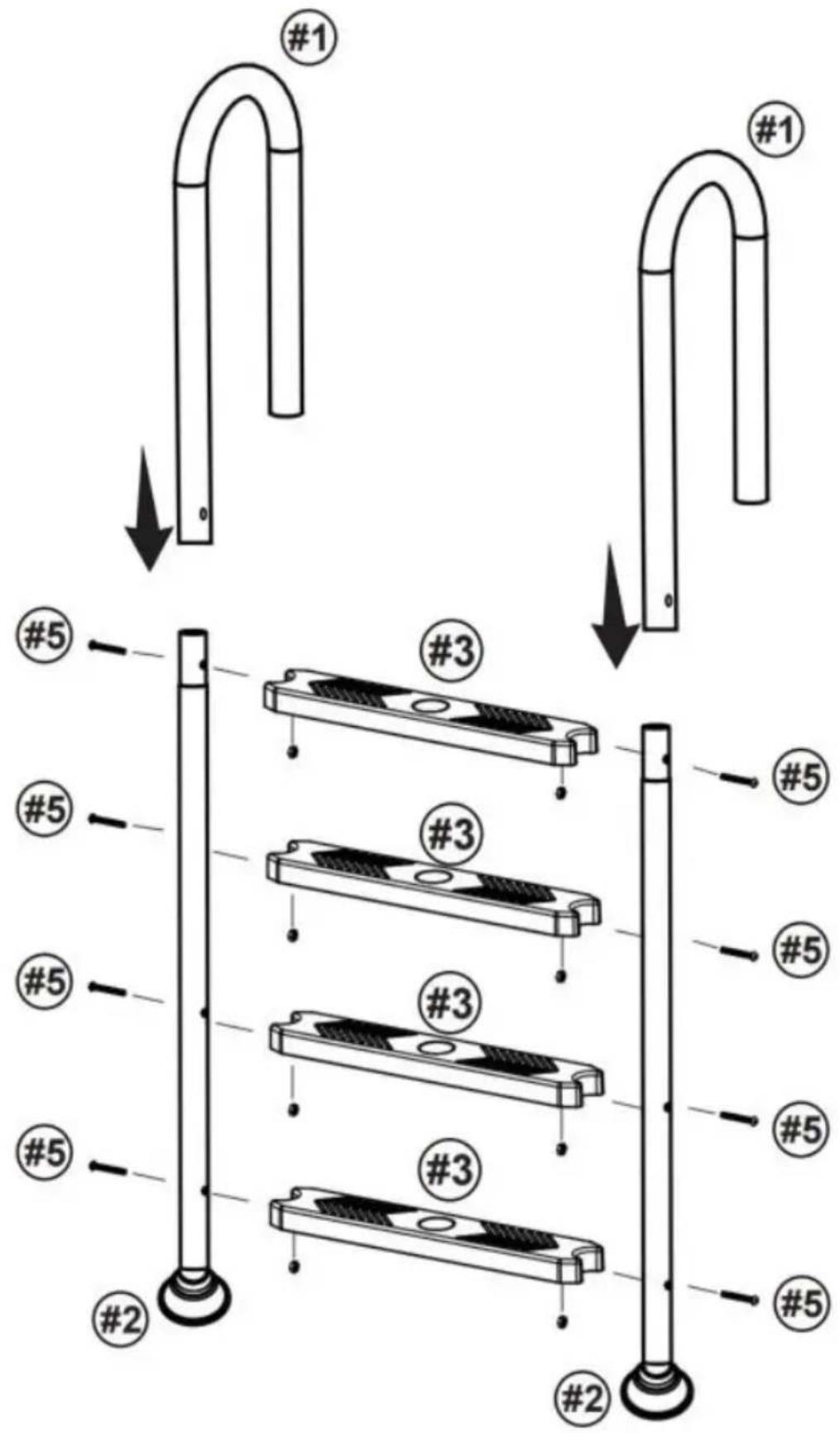

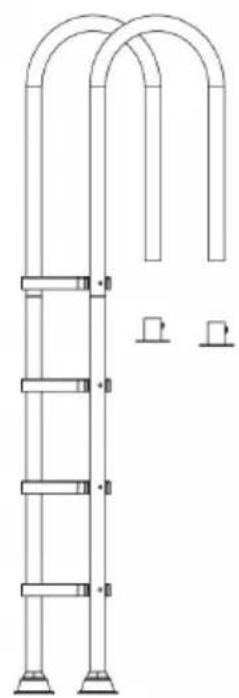

Step 2: Assemble the ladder as shown.

#1 #1 #5 #3 #5 #3 #5 #3 #5 #3 #2 #2 #5 #5 #5 #5

Step 3:

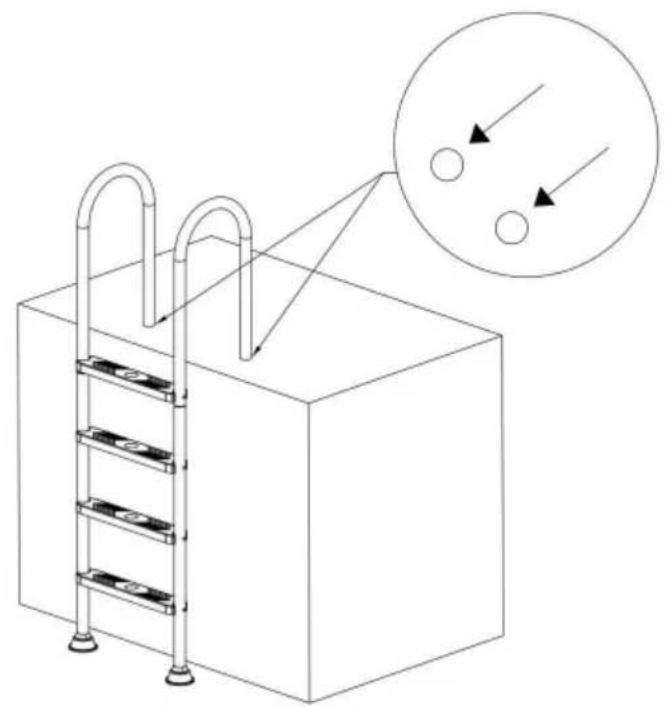

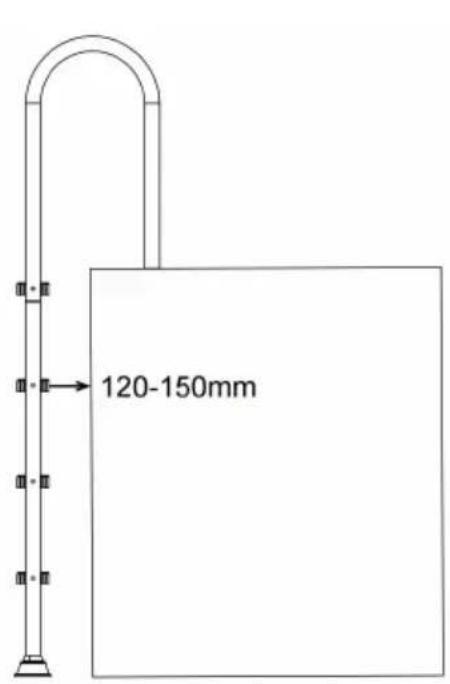

Place the ladder at a position of 120-150mm away from the pool wa bottom of the ladder is tightly attached to the bottom of the swimmin Using the hole saw, drill two holes through the deck boards as final position.

120-150mm

Diagram of a mechanical or electrical device with three vertical channels and an inset showing two circular components (no text or symbols)

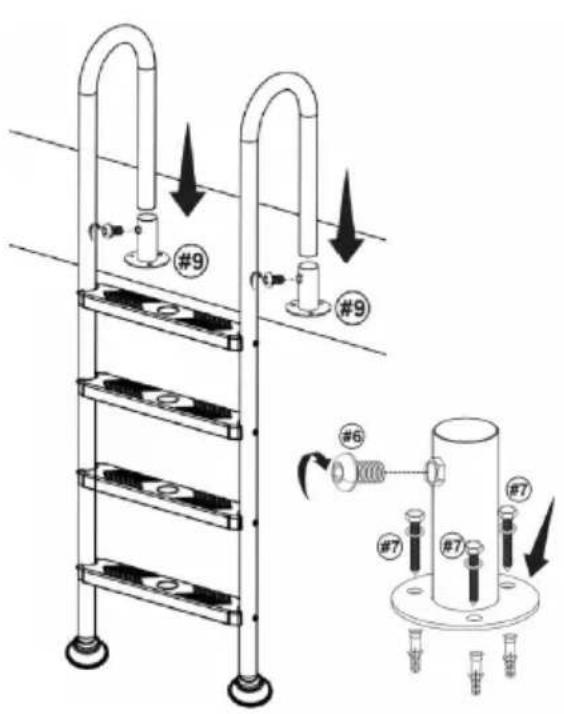

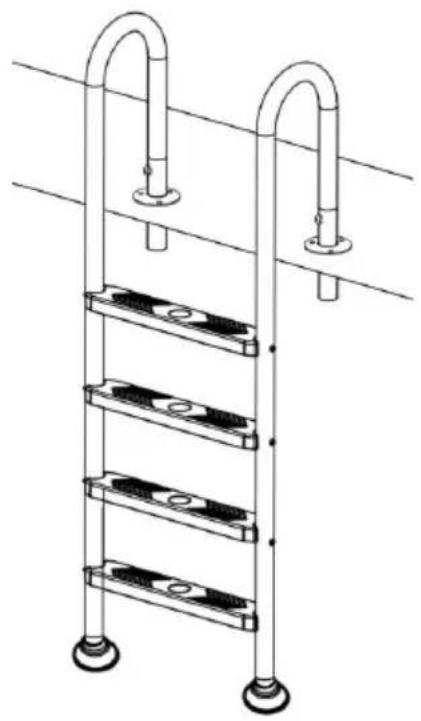

Step 4: Place the deck flange C around each handrail. On the deck and insert the handrails through the holes in the deck until the ladder flat and level on the bottom of pool.

Technical line drawing of a multi-level support structure with mounting feet (no text or symbols)

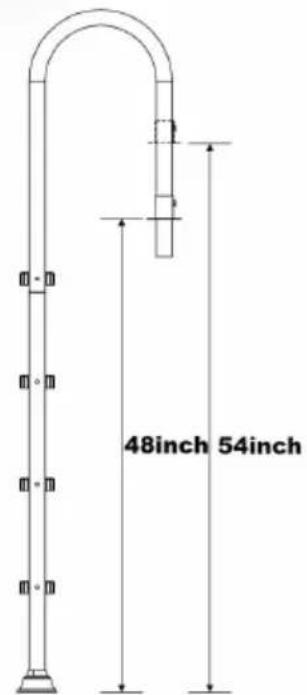

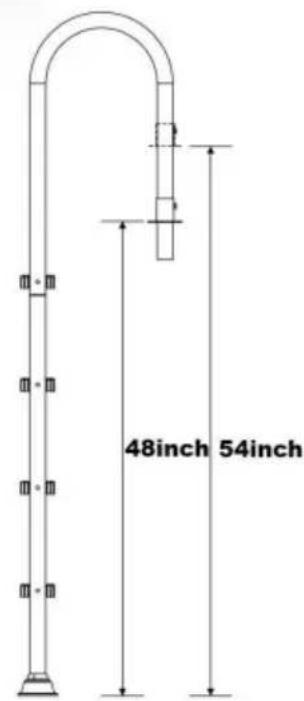

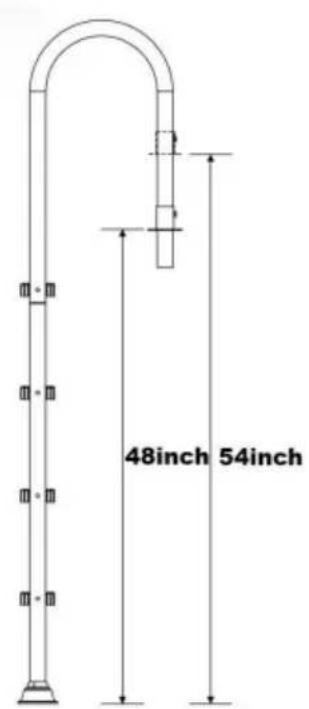

48inch 54inch

Step 5: Secure each deck flange to the deck with the screws.

Technical diagram showing ladder installation with numbered components and a close-up of a mechanical assembly with labeled parts #6, #7, #9.

Technical line drawing of a ladder structure with two vertical supports and three horizontal plates (no text or symbols)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK
