USER MANUAL NL9 Vevor
CAR REFRIGERATOR
USER MANUAL

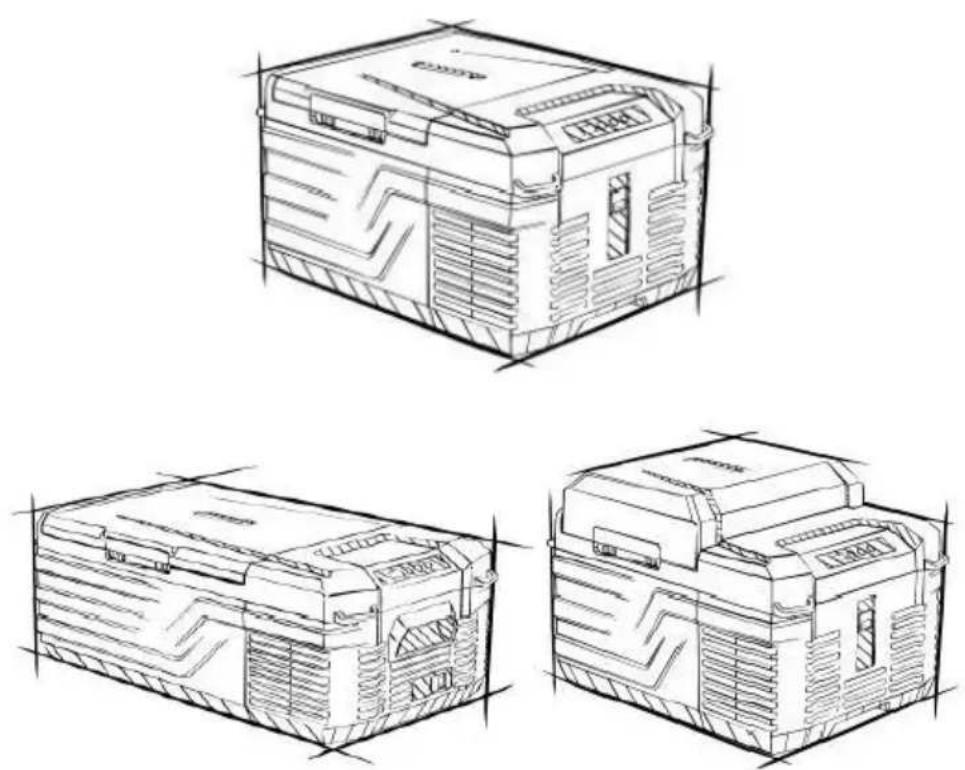

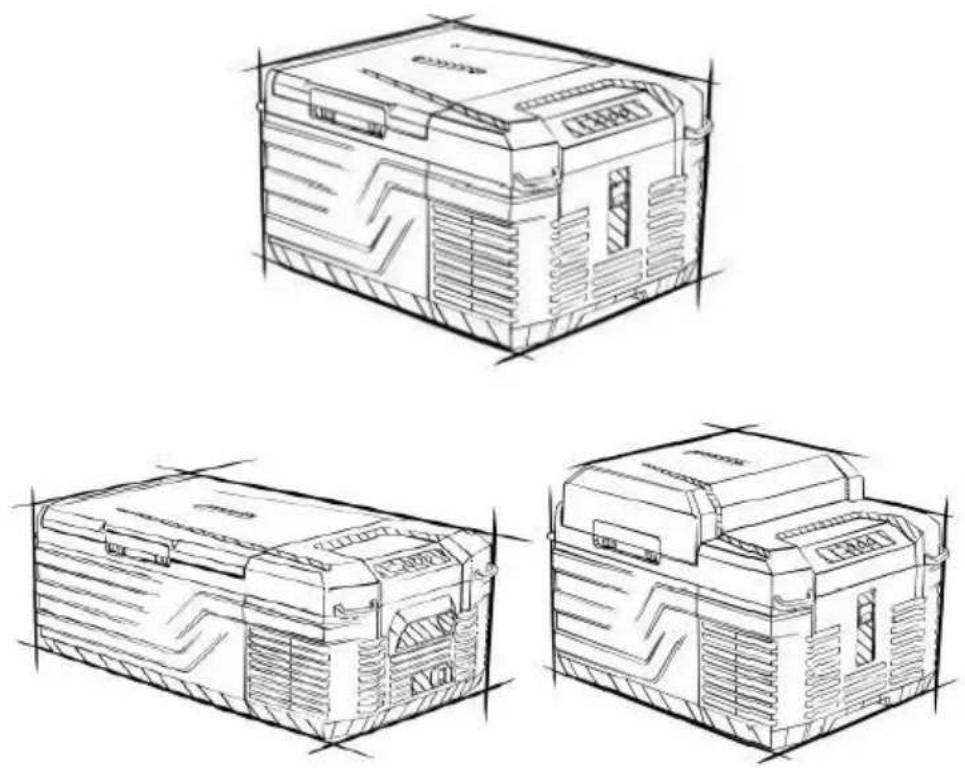

MODEL: NL9 NL12 NL15
SMART CONTROL - FRIDGE APP INSTRUCTIONS

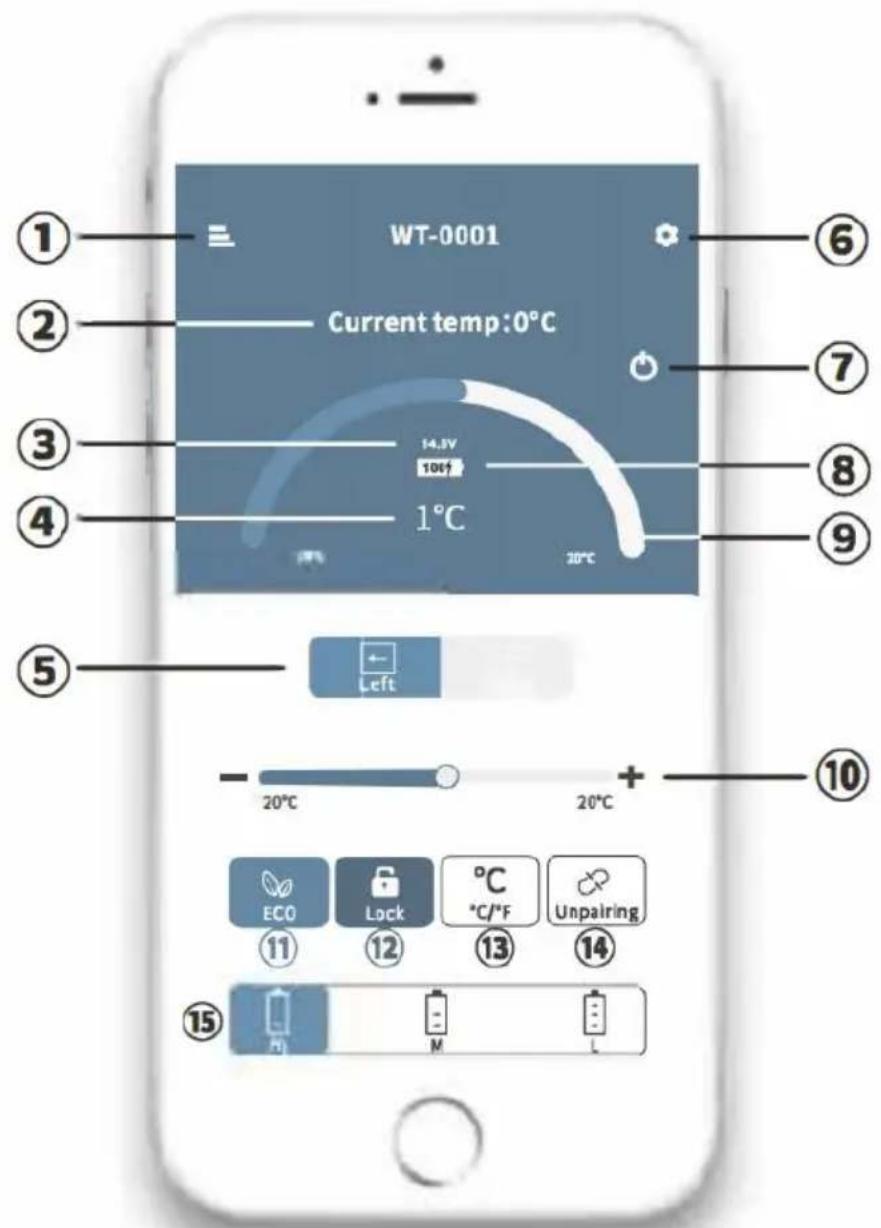

First Step: Turn on Bluetooth on your smart device. Start the APP and click "Search" to find nearby fridges. A location permission prompt will appear. Click to agree to the location request (Android systems only). Second Step: Click the fridge icon for Bluetooth pairing. When connecting the refrigerator for the first time, the APP will prompt you to pair by pressing the set button on the fridge control panel. If there is no settings button, press the temperature up button ▲. After pairing, the APP will switch to the main interface allowing you to control the fridge.
| 1MENU2Current temperature3Current voltage4Target temperature5Switch Left/Right compartment6SET7ON/OFF | 8Current battery910Temperature control11ECO(Energy-saving) / MAX(Fast-cooling)12Lock / Unlock13Celsius / Fahrenheit14Un pairing the device and return to se15Battery protection mode: High / Medium /Low |
Note:
*Click the lock icon on the APP to lock/unlock the control panel on the fridge. If locked, the fridge can only be controlled by the APP.
Downloading the "CAR FRIDGE FREEZER" Application
IOS
Android
Scan the QR code on the left or search for the "CAR FREEZER" APP in the APP Store (for Apple devices) or Google Play (for Android devices).
MODEL: NL9 NL12 NL15
This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
 | Warning-To reduce the risk of injury, user must re instructions manual carefully. |
 | This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices |
Attentions
Before using the refrigerator, please read this manual carefully and keep it properly.
- Before using the refrigerator, clean it inside and outside with a damp cloth.
- Do not fill the refrigerator with corrosive liquids. Do not directly pour liquids into the refrigerator.
- When the refrigerator is not used for a long time, please disconnect the power supply and keep it dry.
- Regularly clean the inner chamber to prevent odor and bacteria and ensure food safety. 5. Shut down the refrigerator and battery before pulling by the trolley (battery).
Connect the Power Supply
- Find the DC power cord in the kit. Connect the DC plug to the power the car refrigerator.
- Well place the refrigerator in the car (back-up, seats...).
- Lay out power cords per your car's interior space. Insert the cigarette lighter plug (one side of the power cord) into the car cigarette lighter.
Adapter Connect the car cigarette lighter
DC 12/24V
Connect the car refrigerator
- The refrigerator can be connected to more than one energy source.
- The refrigerator can connect directly to the DC12V/24V power supply
- If the refrigerator is used with an AC100-240V power supply, an AC adapter should be adopted.
Car Refrigerator Operation

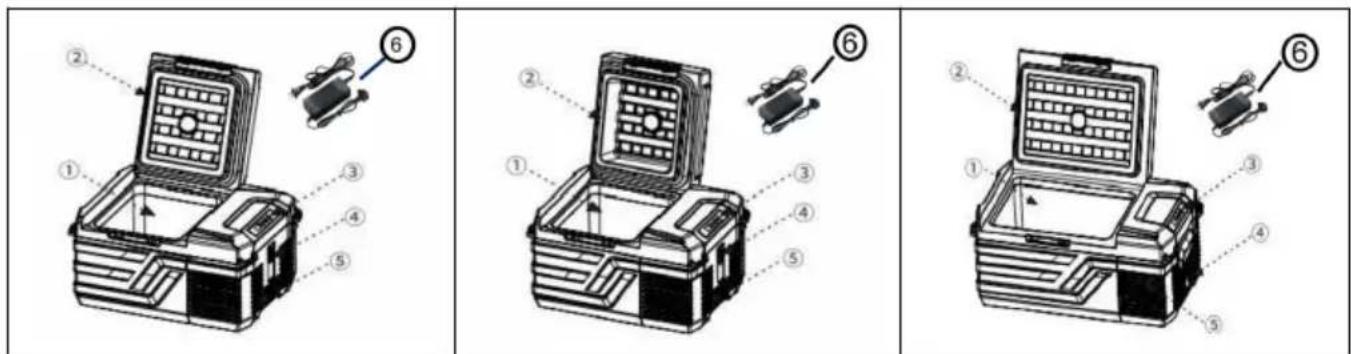

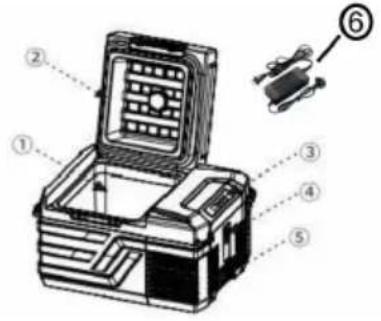

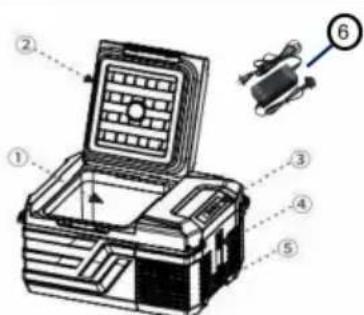

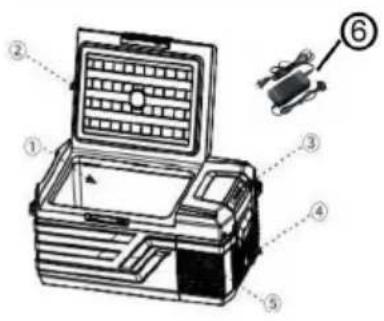

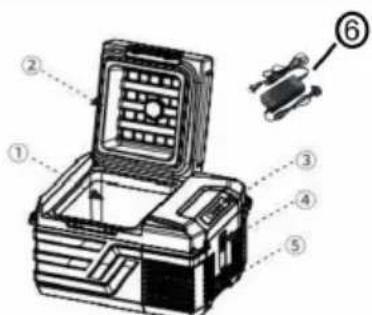

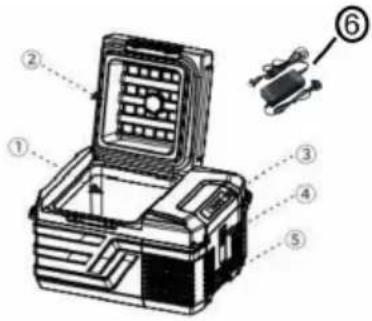

| Model NL9: | Model NL12: | Model NL15: |
 |  |  |

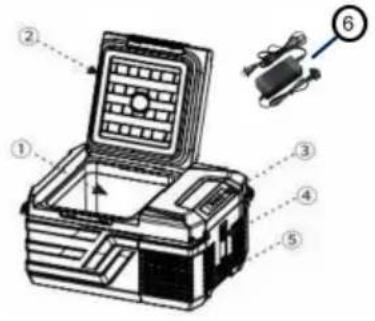

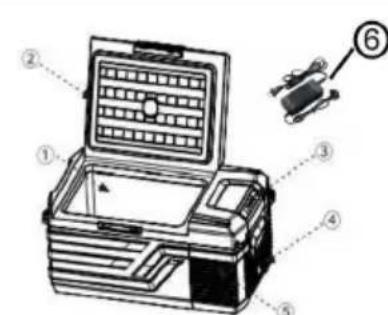

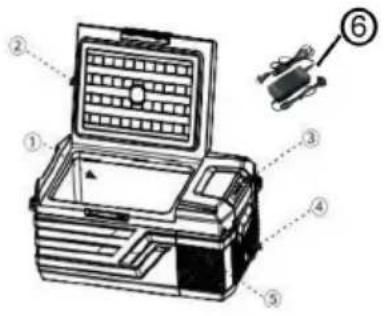

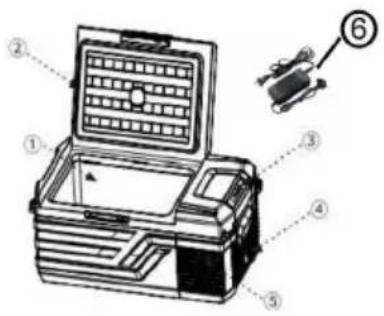

| 1Storage room 2Sealing strip 3Control panel 4Charging port5Machine compartment 6Adapter |

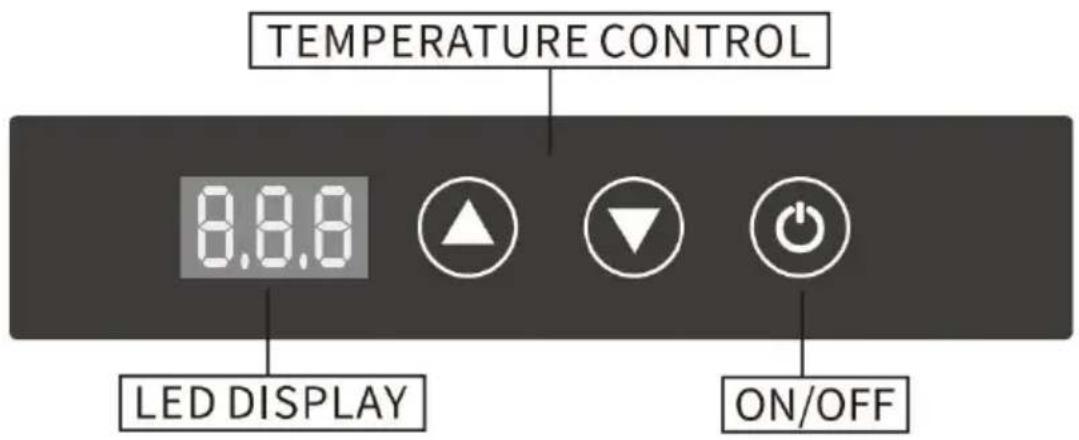

Function and operation
·Power Supply: connect to DC 12V/24V or AC 100-240V power (using dedicated adapter).
- Display Screen Initialization: connect to the power supply, the buzzer will make a long beep, and the display will be on for 3 seconds then the normal operating mode.
·Power ON/OFF: press to switch ON/OFF.
·Temperature Setting: press ▲ to increase temperature, and press ▼ to decrease temperature; keep pressing ▲ or ▼ to adjust the temperature quickly. The setting will be saved automatically after stopping operation for 3 seconds.
Temperature setting range: -20~20°C (-4~68°F)
·Cooling Mode: under the running state, press ▲ and at the same time enter the cooling mode setting, press ▲ or ▼ again to switch HH (fast cooling mode) and ECO (saving energy mode), factory setting is HH.
- Battery Protection Mode: under the running state, press ⏻ and at the same time to enter the battery protection setting, then press ▲ or ▼ again to switch High, Medium and Low (*Factory setting is Medium): From left to right: Low/Medium/High
Voltage Reference:
| MODE\INPUT | DC 12V | DC 24V |
| CUT OUT | CUT IN | CUT OUT | CUT IN |
| L | 8.5V | 10.9V | 21.3V | 22.7V |
| M | 10.1V | 11.4V | 22.3V | 23.7V |
| H | 11.1V | 12.4V | 24.3V | 25.7V |
*the voltage is theoretical value, there may be a deviation in different scenarios.
*Due to the different output voltages between vehicles, H should be set when the product is connected to car power, and M or L should be set when it is connected to a portable battery or other back-up battery.
·Temperature Unit Setting: switch OFF the fridge, long press ▲ ▼ at the same time for 3 seconds until displays E1, and switch to E5 by
pressing, then press ▲ or ▼ to switch Celsius or Fahrenheit.
- Reset: switch OFF the fridge, long press ▲ and ▼ at the same time for three seconds, it will display E1. Under E1 mode, long press ▲ and ▼ at the same time again for three seconds until the screen flashes, which means it has been reset.
Recommended temperature for common food:
 |  | [XHD7] |  | [3HZ] | [SWDC] | [XOSS] |
| Drinks | Fruits | Vegetable | Delicates sen | Wine | Ice cream | Meat |
| 5°C/41°F | 5~8°C/41~46°F | 3~10°C/37~50°F | 4°C/39°F | 10°C/50°F | -10°C/14°F | -18°C/0°F |
Things to note
Cleaning:
- Switch off and unplug the device first to avoid electric shock.
- Use a wet cloth to clean the device and dry it.
- Do not soak the fridge in water and do not wash it directly.
- Do not use abrasive cleaning agents during cleaning as these can damage the device.
Storage:
If the device will not be in use for a long time, please follow the instructions:
- Switch off and unplug the device. Take out all the items stored in the device. Wipe off excess water with a soft rag.
- Put the fridge in a cool and dry place.
- Leave the lid slightly open to prevent odors from forming.
- Recommended storage environment: ambient temperature: 25°C, ambient humidity: ≤75%.
Defrosting:
Humidity can cause frost to form inside the cooling device or on the evaporator. This reduces cooling capacity. Defrost the device in good time to avoid this.
- Switch off and unplug the device first to avoid electric shock. Take out all items stored in the device.
- Keep the lid open. Wipe off the defrosted water.
Never use hard or pointed tools to remove ice or to loosen objects
that have frozen in place.
Troubleshooting methods
Advice: If abnormal situations cannot be resolved through simple fault analysis, please contact professional customer service for assistance.
| Issues | Cause/Suggestions |
| Refrigerator does not work | ·Check if the switch is on. ·Check if the plug and socket are connected ·Check if the fuse has been burnt. Check if the power supply is malfunctioned ·Switch on/off the fridge frequently may cause delay of the compressor |
| Refrigerator compartments are too warm | ·The door is opened frequently. ·A large amount of warm or hot food was s recently ·The refrigerator has been disconnected for a time |
| Food is frozen | ·The temperature was set too low |
| There is"water flow" noise from inside the refrigerator | ·It's a normal phenomenon,caused by the flow refrigerant. |
| There are waterdrops around the refrigerator casing or door gap | ·It's a normal phenomenon,the moisture will condense to water when it touches a cold su of the refrigerator. |
| The compressor is slightly noisy whe starting | It's a normal phenomenon,the noise will be re after the compressor works stably |
| Code F1displayed | ·Possible cause:low voltage to fridge. Adjust the battery protection from High to Me from Medium to Low |
| Code F2 displaye | ·Possible cause:condenser fan is overloaded. Disconnect power to fridge for 5 minutes &re If the code shows again,contact manufacturerservice |
| Code F3 displaye | ·Possible cause:the compressor starts too frequentlyDisconnect power to fridge for 5 minutes &reIf the code shows again,contact manufacturer service |
| Code F4 displaye | ·Possible cause:compressor not kicking in Disconnect power to fridge for 5 minutes &reIf the code shows again,contact manufacturer service |
| Code F5 displaye | ·Possible cause:overheating of the compressor &electronics Disconnect power to fridge for 5 minutes &re-start.If the code shows again,contact manufacturer service |
| Code F6 displaye | ·Possible cause:no parameter can be detected the controller Disconnect power to fridge for 5 minutes &re-startIf the code shows again,contact manufacturer service |
| Code F7 or F8 displayed | ·Possible cause:temperature sensor is faulty Contact manufacturer for service |
Packing List
| No. | Item | Qty | Remark |
| 1 | Refrigerator | 1 set | |
| 2 | Cigarette wire | 1 set | |
| 3 | Power adapter | 1 set | |
| 4 | Manual | 1 pcs | |
Use Suggestions
- If equipped with a backup battery, you can maintain any set temperature under any circumstances without worry.
- When placing ice cream, please adjust the temperature to low; the device must be powered on for a long time.
- Prevent health problems from drinking bottled water caused by high temperatures.
- Frozen food, rare seafood, and vehicle-mounted refrigerators let frozen fresh food accompany the journey.
- Healthcare products, insulin, and imported drugs need to be refrigerated, and the precise temperature control of onboard refrigerators will escort health along the way.
- The tea leaves are effectively kept fresh in the car refrigerator, so you can drink fresh and delicious tea anytime during the self-driving tour.
- The best storage temperature for red wine is 10°C - 18°C (50 - 64.4 °F). The precise temperature control of the car refrigerator can effectively ensure the storage temperature of red wine.
- The storage time of high-grade fruit in the car at high summer temperatures will be at least 2 hours. The storage time is shorter even if the air conditioner is turned on. Using a car refrigerator can effectively preserve high-grade fruit.
- The coating of high-grade sunglasses will fall off under the high temperature in summer. The car refrigerator is an ideal place to place them.
- High-grade cosmetics quickly deteriorate under high temperatures in the car. Carry cosmetics with the car; the car refrigerator will be your choice.
Safety Precautions
WARNING!
Do not operate the appliance if it is visibly damaged.
Do not block the gaps of the fridge with things like pins, wires, etc.
Do not expose the appliance to rain or soak it in water.
Do not place the appliance near naked flames or other heat sources (heaters, direct sunlight, gas ovens, etc.)
Do not store any explosive substances like spray cans with a flammable propellant.
Ensure the supply cord is dry and not trapped or damaged. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
Check the voltage specification on the type plate corresponds to that of the energy supply. The appliance is only to be used with the power supply unit provided with the appliance.
Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Once unpacked and before turning on, the appliance must be placed on a level surface for more than 6 hours.
- Make sure that the appliance stays horizontal when it is running. The tilt angle must be less than 5° for long-time running and less than 45° for short-time running.
- Keep the ventilation openings in the unit casing or in the built-in structure free of obstacles.
- Keep the appliance on the ground or in the car; do not drain upside down.
- When positioning the appliance, ensure the supply cord is not trapped or damaged.
- Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
- Risk of child entrapment. Before you throw away your old refrigerator or freezer: *Take off the doors.
*Leave the shelves in place so that children may not easily climb inside.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Risk of fire/flammable materials.
CAUTION!
- Repairs may only be carried out by qualified personnel. Incorrect repair may cause danger. The lamp and supply cord must be replaced by the manufacturer or qualified persons.
- The installation of DC power in the boat must be handled by qualified electricians.
- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards.
- Disconnect the power supply before each cleaning and maintenance and after every use.
- Do not use sharp tools to defrost; do not damage the refrigerant circuit.
- Risk of child entrapment. Before you throw away your old refrigerator or freezer: take off the doors; leave the shelves in place so that children may not easily climb inside.
- Check if the cooling capacity of the appliance is suitable for storing the food or medicine. Food may only be stored in its original packaging or in suitable containers.
- If the appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
- The appliance is intended to be used in household and similar applications such as:
- Staff kitchen areas in shops, offices and other working environments;
- Camping, farm houses and by clients in hotels, motels and other residential environments;
- Bed and breakfast type environments;
- Catering and similar non-retail applications.
- To avoid contamination of drink, please respect the following instructions:
- Opening the door for long periods can cause a significant increase of temperature in the compartments of the appliance.
- Clean regularly surfaces that can come in contact with drink and accessible drainage systems.
- Store raw meat and fish in suitable containers in the refrigerator, so it is not in contact with or drip onto other food.
-Store raw meat and fish in suitable containers in the refrigerator, so it is not in contact with or drip onto other food.
-If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould develop within the appliance.
Please according to local regulations regarding disposal of the appliance for its flammable refrigerant and blowing gas.
WARNING: This appliance contains flammable foaming agent cyclopentane:
1) Please avoid contact fire when you transport and use it. 2) Please ask a professional for servicing when the machine breaks down. 3) Please send it to your local appointed disposal station when you discard it.
WARNING: During use, service, and disposal of the appliance, please pay attention to a symbol similar to the left side, which is located on the rear of the appliance (rear panel or compressor) and with yellow orange color. It's a risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressors. Please be far away from fire source during use, service, and disposal.
