USER MANUAL NL40 Vevor
CAR REFRIGERATOR
USER MANUAL
MODEL: NL30 NL40 NL50
SMART CONTROL - FRIDGE APP INSTRUCTIONS
First Step: Turn on the Bluetooth on your smart device; start the app and click "Search" to find nearby fridges.
Second Step: Click the fridge icon for Bluetooth pairing (the app will prompt you to pair the fridge by pressing the set button on the fridge's panel when connecting the fridge for the first time). After pairing, the app will switch to the main interface allowing you to control the fridge.

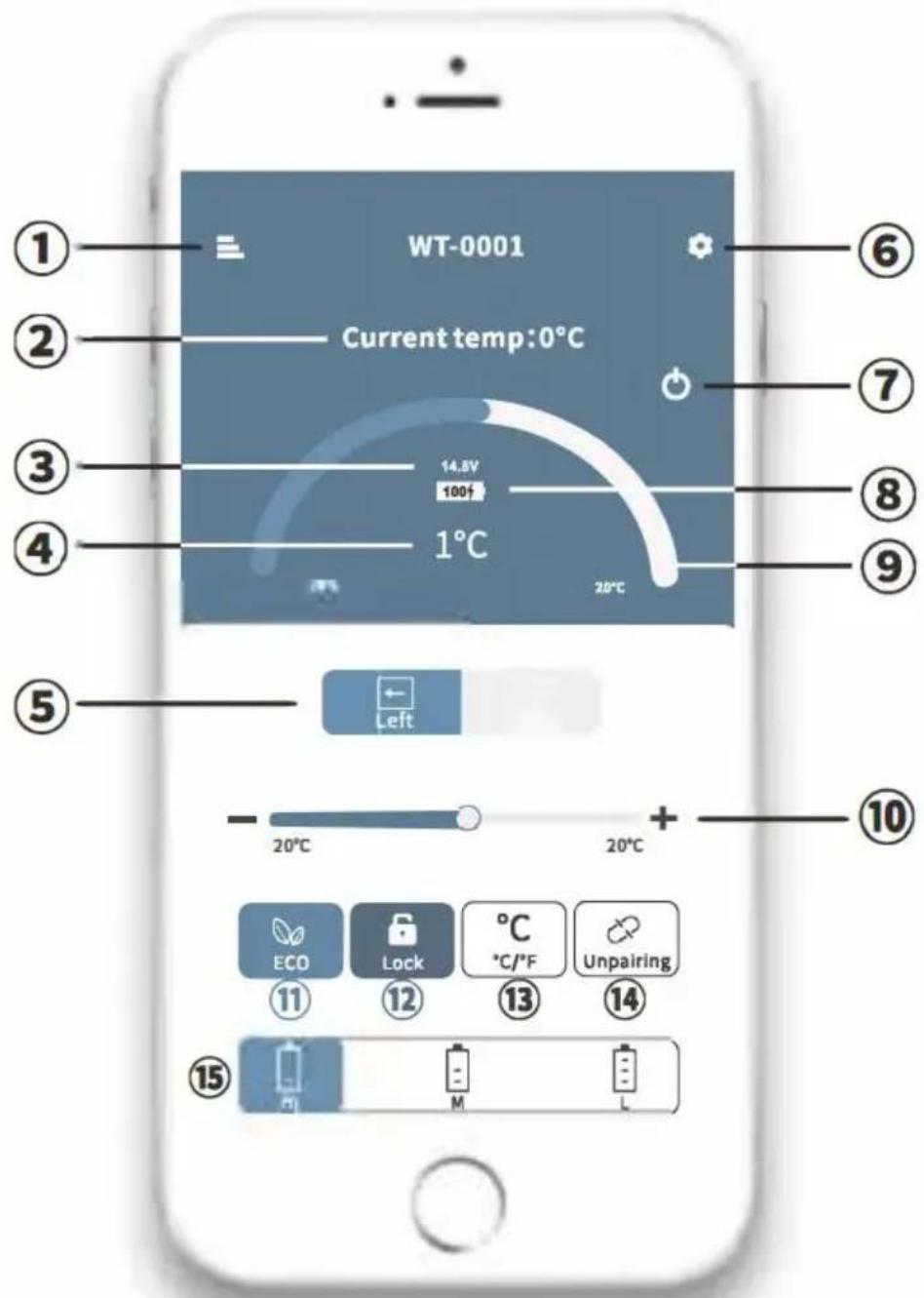

| ①MENU
②Current temperature
③Current voltage
④Target temperature
⑤Switch Left/Right compartment
⑥SET
⑦ON/OFF | ⑧Current battery
⑨⑩Temperature control
⑪ECO(Energy-saving) / MAX(Fast-cooling)
⑫Lock / Unlock
⑬Celsius / Fahrenheit
⑭Un pairing the device and return to set
⑮Battery protection mode: High / Medium /Low |
Note:
*Click the lock icon on the app to lock/unlock the control panel on the fridge. If locked, the fridge can only be controlled by the app.
Downloading the "CAR FRIDGE FREEZER" Application
iOS
Android
Scan the QR code on the left or search for the "CAR FREEZER" app in the App Store (for Apple devices) or Google Play (for Android devices).
MODEL: NL30 NL40 NL50
This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
Warning: To reduce the risk of injury, the user must read the instructions manual carefully.
This product is subject to the provisions of European Directive 2012/19/EC. The symbol showing a wheelie bin with a cross through it indicates that the product requires separate collection in the European Union. This applies to the product and all accessories marked with this symbol. Such products must not be discarded with normal domestic waste and must be taken to a collection point for recycling of electrical and electronic devices.
Attention
Before using the refrigerator, please read this manual carefully and keep it properly.
1. Before using the refrigerator, clean it inside and outside with a damp cloth. 2. Do not fill the refrigerator with corrosive liquids. Do not directly pour liquids into the refrigerator. 3. When the refrigerator is not used for a long time, please disconnect the power supply and keep it dry. 4. Regularly clean the inner chamber to prevent odor and bacteria and ensure food safety. 5. Shut down the refrigerator and battery before pulling by the trolley (battery).
Connect the Power Supply
- Find the DC power cord in the kit. Connect the DC plug to the power socket of the car refrigerator. 2. Well place the refrigerator in the car (back-up, seats...). 3. Lay out power cords per your car's interior space. Insert the cigarette lighter plug (one side of the power cord) into the car cigarette lighter.
Adapter Connect the car cigarette lighter
DC12/24V
Connect the car refrigerator
- The refrigerator can be connected to more than one energy source. 2. The refrigerator can connect directly to the DC12V/24V power supply. 3. If the refrigerator is used with an AC100-240V power supply, an AC adapter should be adopted.
Car Refrigerator Operation

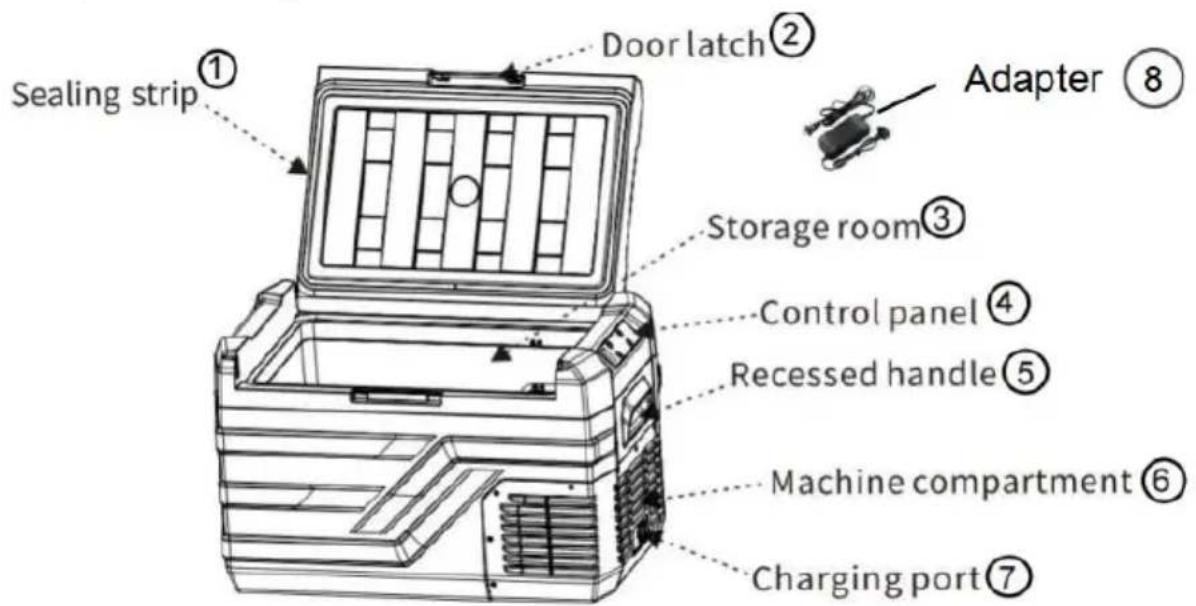

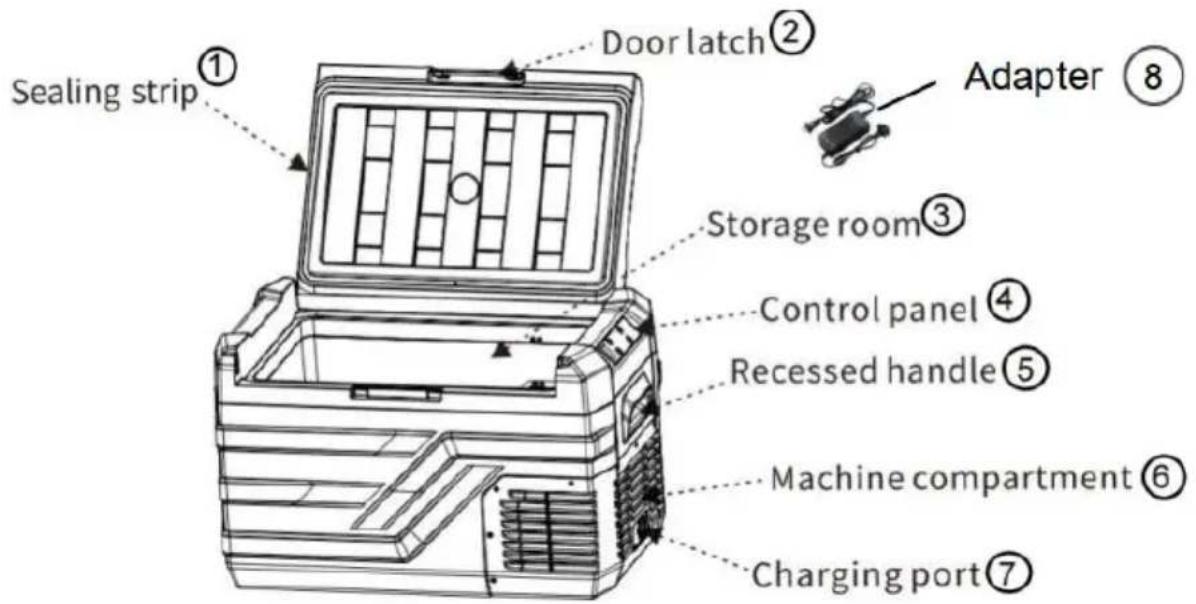

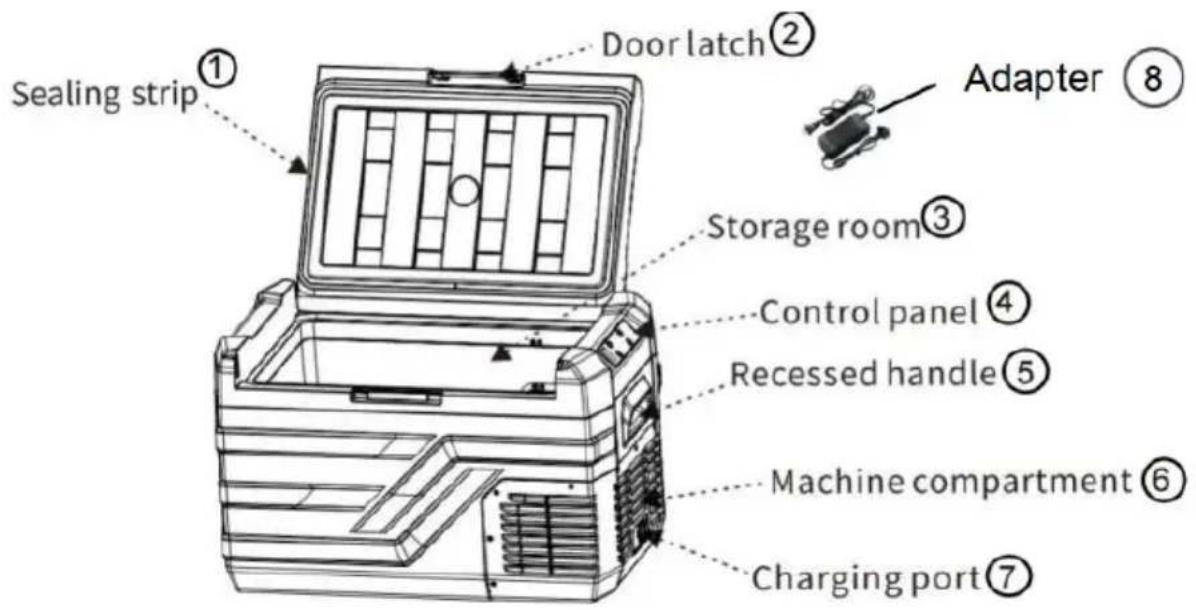

Component Diagram

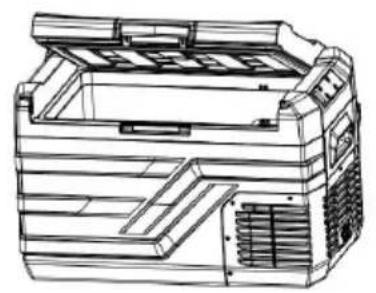

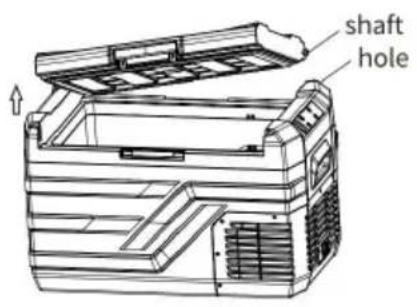

Reverse door opening direction
The door has two opening directions and can be taken off at an angle of 45°. When installing it back, align the door shaft with the compartment and then insert it.

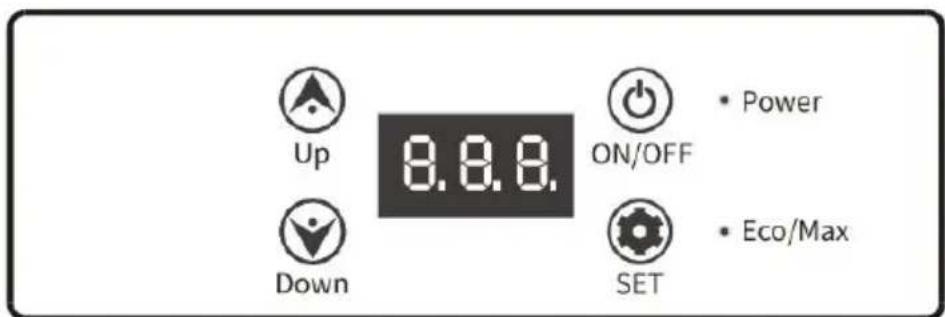

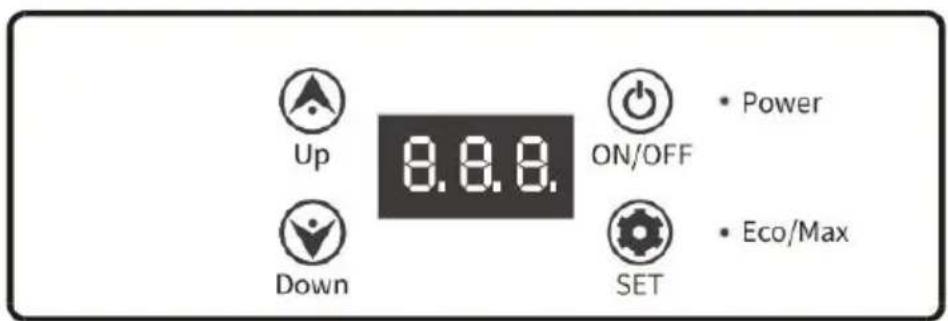

Function and operation
- Power Supply: connect to DC 12V/24V or AC 100-240V power (using dedicated adapter).
- Power ON/OFF: press to switch ON/OFF. (Power light in
red: compressor shutdown or delay start; power light in green: compressor working.)
- Temperature Setting: press △ or ▽ for temperature setting, the setting will be saved automatically after stopping operating for three seconds. Note: the temperature displayed is the current temperature of the compartment, it'll take a while to reach the set temperature. Temperature setting range: -20~20°C (-4~68°F).
- Cooling Mode: under the running state, press to switch MAX (fast cooling mode, ECO/MAX light in red) and ECO (Energy saving mode, Eco/Max light in green). (*Factory setting is MAX.)
·Battery Protection Mode: under the running state, long press for three seconds until screen flashes, then press again to select protection
mode H3 (High), H2 (Medium) and H1 (Low) (*Factory setting is H2.)
Voltage Reference:
| INPUT
MODE | DC 12V | DC 24V |
| CUT OUT | CUT IN | CUT OUT | CUT IN |
| H1 | 8.5V | 10.9V | 21.3V | 22.7V |
| H2 | 10.1V | 11.4V | 22.3V | 23.7V |
| H3 | 11.1V | 12.4V | 24.3V | 25.7V |
*the voltage is theoretical value, there may be a deviation in different sceneries.
*Due to the different output voltages between vehicles, H should be set when the product is connected to car power, and M or L should be set. It is connected to a portable battery or other back-up battery.
- Temperature Unit Setting: Switch OFF the fridge, long press for three seconds until E1 displays, keep pressing until E5 displays, then press ▲ or ▼ to select Celsius or Fahrenheit. (*Factory setting is °C.)
- Reset: Switch OFF the fridge, long press for three seconds until E1 displays. Under E1 mode, long press ▲ and ▼ at the same time for 3 seconds to reset it.
Recommended temperature for common food:
| | | | | | |
| Drinks | Fruits | Vegetable | Delicatessen | Wine | Ice cream | Meat |
| 5℃/41 F | 5~8℃/41~46°F | 3~10℃/37~50°F | 4℃/39°F | 10℃ /50°F | -10℃/14 F | -18℃/0 F |
Things to note
Cleaning:
- Switch off and unplug the device first to avoid electric shock.
- Use a wet cloth to clean the device and dry it.
- Do not soak the fridge in water and do not wash it directly.
- Do not use abrasive cleaning agents during cleaning as these can damage the device.
Storage: If the device will not be in use for a long time, please follow the instructions:
- Switch off and unplug the device. Take out all the items stored in the device. Wipe off excess water with a soft rag.
- Put the fridge in a cool and dry place. Leave the lid slightly open to prevent odors from forming. Recommended storage environment: ambient temperature: 25°C, ambient humidity: ≤75%
Defrosting: Humidity can form frost in the interior of the cooling device on the evaporator. This reduces the cooling capacity. Defrost the device in good time to avoid this.
- Switch off and unplug the device first to avoid electric shock. Take out all the items stored in the device.
- Keep the lid open. Wipe off the defrosted water.
Never use hard or pointed tools to remove ice or to loosen objects that have frozen in place.
Troubleshooting methods
Advice: If abnormal situations cannot be resolved through a simple face analysis, please get in touch with professional customer service for assistance.
| Issues | Cause/Suggestions |
| Refrigerator does not work | ·Check if the switch is on.
·Check if the plug and socket are connected
·Check if the fuse has been burnt.
Check if the power supply is malfunctioned
·Switch on/off the fridge frequently may cause delay of the compressor |
| Refrigerator compartments are too warm | ·The door is opened frequently.
·A large amount of warm or hot food was s recently
·The refrigerator has been disconnected for a time |
| Food is frozen | ·The temperature was set too low |
| There is "water flow noise from inside refrigerator | ·It's a normal phenomenon, caused by the flow refrigerant. |
| There are water drops around the refrigerator casing or door gap | ·It's a normal phenomenon, the moisture will condense to water when it touches a cold so the refrigerator. |
| The compressor is slightly noisy when starting | It's a normal phenomenon, the noise will be re after the compressor works stably |
| Code F1 displayed | ·Possible cause:low voltage to fridge.
Adjust the battery protection from High to Me or from Medium to Low |
| Code F2 displayed | ·Possible cause:condenser fan is overloaded.
Disconnect power to fridge for 5 minutes & re If the code shows again, contact manufacturer service |
| Code F3 displayed | ·Possible cause:the compressor starts too frequently
Disconnect power to fridge for 5 minutes & re.
If the code shows again,contact manufacturer service |
| Code F4 displayed | ·Possible cause:compressor not kicking in
Disconnect power to fridge for 5 minutes & re.
If the code shows again,contact manufacturer service |
| Code F5 displayed | ·Possible cause:overheating of the compressor
& electronics Disconnect power to fridge for 5 minutes & re-start.
If the code shows again,contact manufacturer service |
| Code F6 displayed | ·Possible cause:no parameter can be detected
the controller Disconnect power to fridge for 5 minutes & re-start
If the code shows again,contact manufacturer service |
| Code F7 or F8 displayed | ·Possible cause:temperature sensor is faulty
Contact manufacturer for service |
Packing List
| No. | Item | Qty | Remark |
| 1 | Refrigerator | 1 set | |
| 2 | Cigarette wire | 1 set | |
| 3 | Power adapter | 1 set | |
| 4 | Manual | 1 pcs | |
Use Suggestions
- If equipped with a backup battery, you can maintain any temperature set under any circumstances without worries.
- When placing ice cream, please adjust the temperature to the lowest. The device must be powered on for a long time.
- Prevent the health problems of drinking bottled water caused by hot temperatures.
- Frozen food, rare seafood, and vehicle-mounted refrigerators let frozen fresh food accompany the journey.
- Healthcare products, insulin, and imported drugs need to be refrigerated, and the precise temperature control of onboard refrigerators will escort health along the way.
- The tea leaves are effectively kept fresh in the car refrigerator, and you can drink fresh and delicious tea anytime during the self-driving tour.
- The best storage temperature of red wine is 10°C - 18°C (50 - 64.4°F).
The precise temperature control of the car refrigerator can effectively ensure the storage temperature of red wine.
- The storage time of high-grade fruit in the car at high summer temperatures will be at least 2 hours. The storage time is shorter if the air conditioner is turned on. Using a car refrigerator can effectively preserve high-grade fruit.
- The coating of high-grade sunglasses will fall off under the high temperature in summer. The car refrigerator is an ideal place to place them.
- High-grade cosmetics quickly deteriorate under high temperatures in the car. Carry cosmetics with the car; the car refrigerator will be your choice.
Safety Precautions
Do not operate the appliance if it is visibly damaged.
- Do not block the gaps of the fridge with things like pins, wires, etc.
- Do not expose the appliance to rain or soak it in water.
- Do not place the appliance near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.)
- Do not store any explosive substances like spray cans with a flammable propellant.
- Ensure the supply cord is dry and not trapped or damaged. Do not use multiple portable socket-outlets or portable power supplies at the rear of the appliance.
- Check that the voltage specification on the type plate corresponds to that of the energy supply. The appliance is only to be used with the power unit provided with the appliance.
- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Once unpacked and before turning on, the appliance must be placed on a level surface for more than 6 hours.
- Make sure that the appliance stays horizontal when it is running. The tilt must be less than 5 degrees for long-time running and less than 45 degrees for short-time running.
- Keep the ventilation openings in the unit casing or in the built-in structure free of obstacles.
- Keep the appliance stable on the ground or in the car; do not turn it upside down.
- When positioning the appliance, ensure the supply cord is not trapped or damaged.
- Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
Risk of child entrapment. Before you throw away your old refrigerator freezer: *Take off the doors.
*Leave the shelves in place so that children may not easily climb inside.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
Risk of fire/flammable materials.
CAUTION!
- Repairs may only be carried out by qualified personnel. Incorrect repairs may cause danger. The lamp and supply cord must be replaced by the manufacturer or qualified persons.
- The installation of DC power in the boat must be handled by qualified electricians.
- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved.
NOTICE!
- Disconnect the power supply before each cleaning and maintenance, and after every use.
- Do not use sharp tools to defrost; do not damage the refrigerant circuit.
- Risk of child entrapment. Before you throw away your old refrigerator or freezer: take off the doors, and leave the shelves in place so that children cannot easily climb inside.
- Check if the cooling capacity of the appliance is suitable for storing food or medicine. Food may only be stored in its original packaging or suitable containers.
- If the appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
The appliance is intended to be used in household and similar applications such as:
- Staff kitchen areas in shops, offices and other working environments;
- Camping, farm houses and by clients in hotels, motels and other residential environments;
- Bed and breakfast type environments;
- Catering and similar non-retail applications.
- To avoid contamination of drink, please respect the following instruction
- Opening the door for long periods can cause a significant increase of temperature in the compartments of the appliance.
- Clean regularly surfaces that can come in contact with drink and accessible drainage systems.
- -Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food:
- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould develop within the appliance.
Please according to local regulations regarding disposal of the applian for its flammable refrigerant and blowing gas.
WARNING: This appliance contains flammable foaming agent cyclopentane:
1) Please avoid contact fire when you transport and use it. ( 2 ) Please ask a professional for servicing when the machine breaks out 3) Please send it to your local appointed disposal station when you it.
WARNING: During use, service, and disposal of the appliance,
please pay attention to a symbol similar to the one on the left, which is located
at the rear of the appliance (rear panel or compressor) and is yellow-orange in color. It is a risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressors. Please stay away from fire sources during use, service, and disposal.
VEVOR
Affordable. Reliable. Home Improvement.
CAR REFRIGERATOR
USER MANUAL
MODEL: NL30 NL40 NL50
INSTRUCTIONS FOR SMART CONTROL -
FRIDGEAPP
Affordable. Reliable. Home Improvement.
Car Refrigerator
Connect the Power Supply
Car Refrigerator Operation
Function and operation
Troubleshooting methods
AUTOKÜHLSCHRANK
BENUTZERHANDBUCH
MODELL: NL30 NL40 NL50
Car Refrigerator
MODELL: NL30 NL40 NL50
Connect the Power Supply
Car Refrigerator Operation
Component diagram
Function and operation
Troubleshooting methods
FRIGORIFERO PER AUTO
USER MANUAL
MODEL: NL30 NL40 NL50
SMART CONTROL-FRIDGEAPP INSTRUCTIONS
Affordable. Reliable. Home Improvement.
Car Refrigerator
MODEL: NL30 NL40 NL50
Connect the Power Supply
Car Refrigerator Operation
Function and operation
Troubleshooting methods
Affordable. Reliable. Home Improvement.
CAR REFRIGERATOR
USER MANUAL
MODEL: NL30 NL40 NL50
Connect the Power Supply
Car Refrigerator Operation
Function and operation
Troubleshooting methods
Car Refrigerator
User Manual
MODEL: NL30 NL40 NL50
Smart Control - User Manual for the Refrigerator App
Affordable. Reliable. Home Improvement.
Car Refrigerator
MODEL: NL30 NL40 NL50
Connect the Power Supply
Car Refrigerator Operation
Component Diagram
Component diagram
Function and operation
Troubleshooting methods
Car Refrigerator
MODEL: NL30 NL40 NL50
Connect the Power Supply
Car Refrigerator Operation
Component diagram
Function and operation
Troubleshooting methods
BILKYLSKÄP
ANVÄNDARMANUAL
MODELL: NL30 NL40 NL50
SMART KONTROLL - INSTRUKTIONER FÜR
KYLSKÄPSAPPEN
Ladda ner appen "BILKYL OCH FRYS"
iOS
Android
Skanna QR-koden till vänster eller sök after appen "CAR FREEZER" i APP Store (for Apple-eheter) aller Google Store Android-eheter).
Car Refrigerator
MODELL: NL30 NL40 NL50
Connect the Power Supply

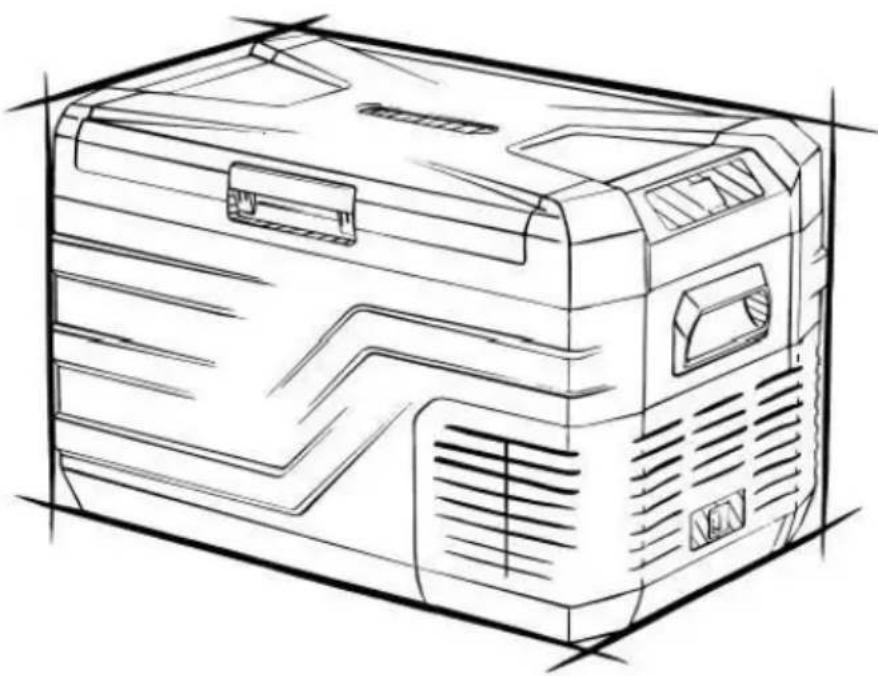

Car Refrigerator Operation
Component Diagram
Function and Operation
Troubleshooting Methods
Packing List and Use Suggestions
