USER MANUAL ML-1026PH Vevor
Affordable. Reliable. Home Improvement.
TELESCOPIC LADDER
Model: ML-1026PH

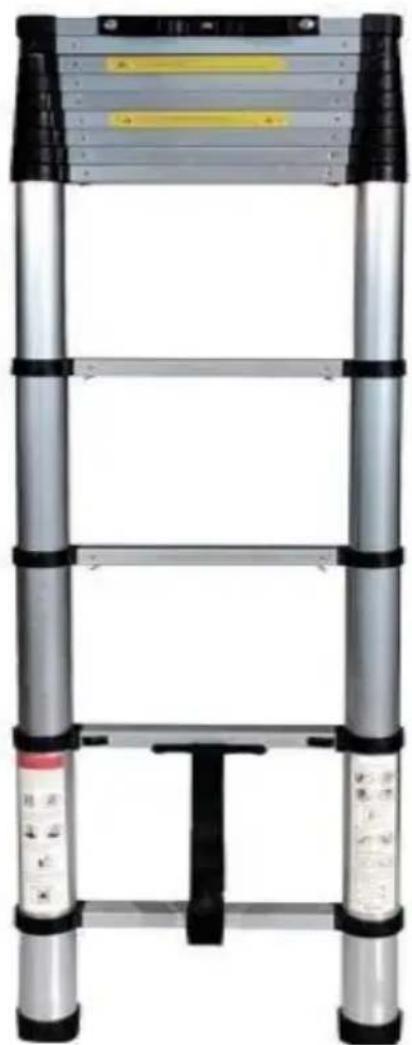

MODEL:ML-1026PH
SECURITY & WARNINGS
CAUTION: Please read AL Instructions before using!!
BEFORE USE
- Ensure that you are fit enough to use the ladder. Certain medical conditions or medication, alcohol or drug abuse could make the use of ladder unsafe. The weight capacity is 375 lbs.
- When transporting ladders on the roof bars of a vehicle or in a tru ensure that it is suitably placed to prevent damage.
- Inspect the ladder after delivery and before first use to confirm con and operation of all parts.
- Visually check that the ladder is not damaged and is safe to use whenever using
- For professional users, regular periodic inspections are required.
- Ensure that the ladder is suitable for the task.
- DO NOT USE A DAMAGED LADDER!
- Remove any contamination from the ladder such as wet paint, mud, oi snow.
- Before using the ladder at work a risk assessment should be carried respecting the legislation in the country of use.
POSITIONING AND EXTENDING THE LADDER
- DO NOT EXCEED THE MAXIMUM LOAD (375 lbs).
- D0 NOT overreach. Users should keep their buckle (naveljinside the s and both feet on the same step/rung during your working.
- D0 NOT step off a leaning ladder at a higher level without addition security.
- D0 NOT use standing ladders for access to another level.
- D0 NOT stand on the top three steps/rungs of a leaning ladder.
-
Ladders should ONLY be used for light work of short duration.
-
D0 NOT use the ladders outside in adverse weather conditions, such strong winds.
- TAKE PRECAUTIONS AGAINST CHILDREN PLAYING ON AND AROUND THE LADDER.
9.Face to the ladder when ascending and descending. - Keep a secure grip on the ladder when ascending and descending
- D0 NOT use the ladder as a bridge.
- Wear suitable footwear when using the ladder.
- Avoid excessive side loading(i.e.drilling brick and concrete).
- DO NOT spend long periods on the ladder without regular breaks (fatigue is a safety risk).
- Leaning ladders used for access to a higher level should be exter least 1m above the landing point.
- Equipment carried while using the ladder should be light and easy handle.

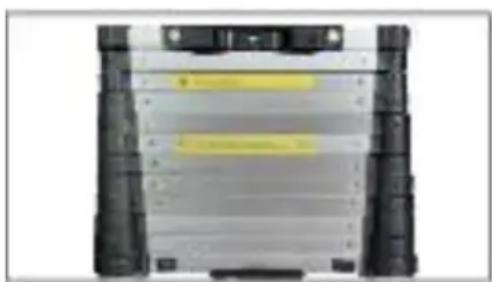

OPENING THE LADDER
Note: The actual number of steps of the ladder shall prevail in kind. Automatic locking: Each step/rung of your ladder has 2 locking p. The location of the locks are the two buttons on the bottom of step/rung as displayed:
- Unlocked position(see Picture #1 below).Unlocked is RED!
- Locked positions(see Picture #2 below).The buttons are located under each step/rung.Locked is fully GREEN!


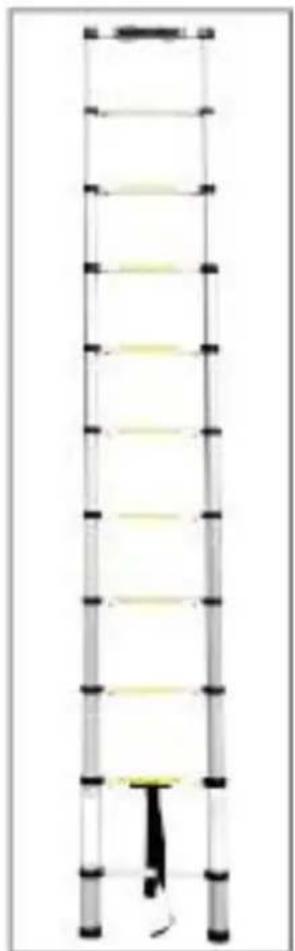

Pure electrical circuit lines without any symbolsCOMPLETE EXTENSION OF THE LADDER
Note: The actual number of steps of the ladder shall prey in kind.
Place ladder on a firm and ground, put one foot on the lowest step/rung.

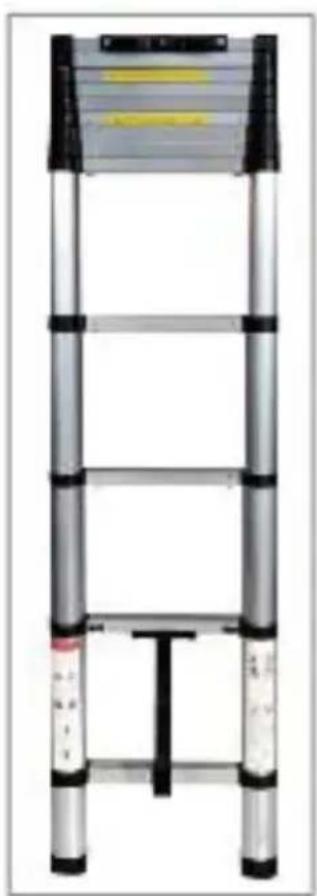

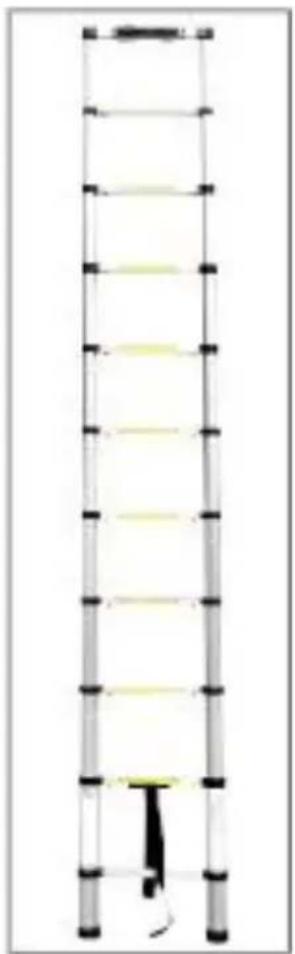

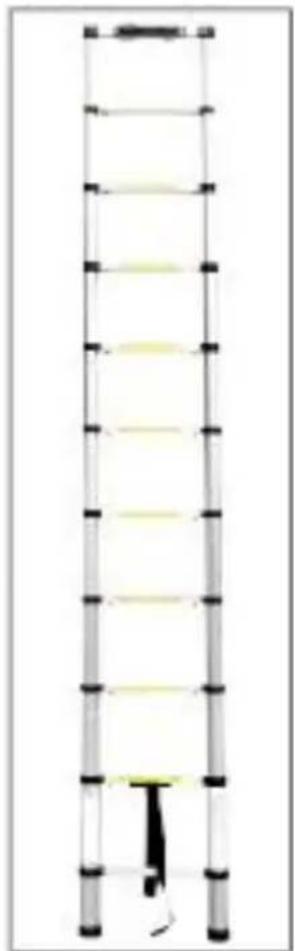

Then pull top step/rung off u and check that the buttons a locked (Picture #2).Repeat the process with each of the next steps/rungs until the arms are completely extended.(see
Picture #3 and #4)
CAUTION: Always check that all buttons are on the"LOCKE position(Green), before you climb the ladder.
If there is a problem with your telescopic ladder during operation, please check the troubleshooting table below before calling the service department.
| Troubleshooting Instructions | ||
| Fault Phenomenon | Cause of Issu | Solution |
| Open the rea adder to lear left and righ | The section of the adder does not expand properly | Take back the ladder and check w each section is stuck,such as norm shrinkage.Re-open it and make sure each section is in place (there are marks on both sides of the ped |
PRODUCT TECHNICAL PARAMETERS
| Product Name | TELESCOPIC LADDER |
| Model | ML-1026PH |
| Number of Floors | 9Layers |
| Maximum Bearing of Each Layer | 375lbs(170kg) |
| Overall Dimensions (L*W*H) | 18"*3.3"*27.8" (457*83*705mm) |
CLEANING INSTRUCTIONS
- Store the ladder in the closed position.
- Properly secure and support the ladder while in transit.
- Keep the ladder clean and free from all other harmful materials.
DISPOSAL
Dispose of all packaging, paper, cartons and plastic, plastic bags by your local recycling regulations At the end of the product's lifespan please dispose of it at an authorized household waste recycling center.
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
