Product Type	Electric heating blanket for the whole body
Brand	Vevor
Model	HL-LTE-1520
Dimensions (L x W)	1500 x 2000 mm
Rated voltage	AC 220-240 V, 50/60 Hz
Rated power	150 W
Heating levels	6 levels (1 to 6)
Automatic shut-off timer	Adjustable from 1 to 9 hours (default 8 h)
Controller	Removable, model HL-LTE-02, with LCD screen
Washing	Machine washable at 30 °C, gentle cycle; do not bleach, do not dry clean, do not iron, do not tumble dry
Storage	Store after cooling, do not place heavy objects on it, keep the controller separate
Safety	Automatic shut-off, do not use if damaged, do not use by children under 3 years
Intended use	Domestic, indoor only
Technical support	www.vevor.com/support
Package contents	1 blanket, 1 user manual, 1 portable controller

Frequently Asked Questions - HL-LTE-1520 Vevor

How to turn on and adjust the heating blanket?

Press the ON/OFF button to turn on. The screen displays the default setting. Press TIMER/HEAT to toggle between heat and timer settings. Use the + and - buttons to adjust the heat level (1 to 6) or the timer duration (1 to 9 hours).

How to set the automatic shut-off timer?

Press the TIMER/HEAT button until the TIMER symbol flashes. Use + or - to select from 1 to 9 hours. By default, the timer is set to 8 hours. The product will shut off automatically after the set time.

Can I machine wash the blanket?

Yes, you can machine wash the blanket at 30 °C on a gentle cycle. Use a mild detergent. Do not use bleach, dry clean, iron, or tumble dry. Make sure the controller is unplugged before washing.

What to do if the blanket does not heat enough?

First check that the controller is properly connected and the plug is fully inserted. Make sure the heat level is set to a high value (5 or 6). If the problem persists, contact customer service via www.vevor.com/support.

Can I use this blanket if I have health issues?

People with diabetes, anemia, heart problems, tumors, skin conditions, or pregnant women should consult a doctor before use. Do not use by persons insensitive to heat or children under 3 years.

How to clean localized stains?

Clean the stained area with a sponge soaked in mild detergent or foam, then rinse with clean water and blot with an absorbent towel. Do not rub too hard.

Can the controller be washed?

No, the controller must never be immersed in water or any other liquid. Before washing the blanket, always unplug the controller. Clean it with a dry cloth if necessary.

How to store the blanket properly?

Let the blanket cool completely. Fold it without excessive creasing and store it in a cool, dry, and clean place. Do not place heavy objects on it. The controller should be kept separately.

What to do if the power cord is damaged?

If the power cord, plug, controller, or blanket is damaged, stop using the product immediately and contact customer service. Do not attempt to repair yourself.

Is this blanket suitable for children?

Not suitable for children under 3 years. Children aged 3 to 8 can use it under supervision with the minimum temperature setting. Children over 8 can use it if they have received instructions. Never let children play with the device.

USER MANUAL HL-LTE-1520 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

Electrical Blanket

MODEL: HL-LTE-1316 / HL-LTE-1318

HL-LTE-1520 / HL-LTE-1820

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Electrical Blanket

HLMP-CF-NFI-T

HLMP-CF-NFI-F

HLMP-CF-NFI-Q

HLMP-CF-NFI-K

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Contents

Product Specifications 03

Precautions 04~07

Troubleshooting 07

Using Your Controller 08

Operation Instruction 09~10

Introduction

Thank you for purchasing the Whole Body Electric Heated Throw Blanket. Please read this user manual carefully and keep it in a safe place for future reference.

Whole Body Electric Heated Throw Blanket

Package included:

1x Throw Blanket

1 x User Manual

1x Handheld controller

Product Specifications

Model	HL-LTE-1316	HL-LTE-1318 HL-LTE-1520 HL-LTE-1820
Name	Whole Body Electric Heated Throw Blanket
Rated Voltage	AC220-240V/50-60Hz
Rated Power	130W	150W 150W	150W
Heating Levels	6 Levels
Default Timer	1-9 Hours Selectable Timer Setting
Controller Model	HL-LTE-01	HL-LTE-02 HL-LTE-02 HL-LTE-02
Product Dimensions	1300*1600mm	1300*1800mm 1500*2000mm 1800*2000mm		0mm

Symbol Explanation
	Read all the instructions.		Gentle wash cycle in water at 30 .°C
			Do not bleach.
	Do not puncture.		Do not tumble dry.
			Do not iron.
	Do not use if folded or creased.		Do not dry clean.
		PAP	Dispose of the packing in an eco-friendly manner.
	Not suitable for very young children (0-3 years).		WARNING: Warning of risks of injury or health hazards.
			CAUTION: Safety information about possible damage to appliance/accessories.

PRECAUTIONS

• THE APPLIANCE IS NOT TO BE USED BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION.
• CHILDREN SHALL NOT PLAY WITH THE APPLIANCE.
• THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE AND PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED.
• CLEANING AND USER MAINTENANCE SHALL NOT BE MADE BY CHILDREN WITHOUT SUPERVISION. USE ONLY WITH DETACHABLE DEVICES MARKED ON THE APPLIANCE.
• WHEN STORING THE APPLIANCE, ALLOW IT TO COOL DOWN BEFORE FOLDING.
• DO NOT CREASE THE APPLIANCE BY PLACING ITEMS ON TOP OF IT DURING STORAGE (FOR BLANKETS AND PADS ONLY). EXAMINE THE APPLIANCE FREQUENTLY.
• EXAMINE THE APPLIANCE FREQUENTLY FOR SIGNS OF WEAR OR DAMAGE. IF THERE ARE SUCH SIGNS, IF THE APPLIANCE HAS BEEN MISUSED OR DOES NOT WORK, RETURN IT TO THE SUPPLIER BEFORE SWITCHING IT ON AGAIN. NOT INTENDED FOR MEDICAL USE IN HOSPITAL. DO NOT USE IF WET.
• DO NOT USE BY PERSONS INSENSITIVE TO HEAT AND OTHER VERY VULNERABLE PERSONS. DO NOT USE BY CHILDREN UNDER THE AGE OF THREE.
• THIS BLANKET IS NOT TO BE USED BY YOUNG CHILDREN, UNLESS THE CONTROLS HAVE BEEN PRE-SET BY A PARENT OR GUARDIAN, OR UNLESS THE CHILD HAS BEEN ADEQUATELY INSTRUCTED ON HOW TO OPERATE THE CONTROLS SAFELY.
• THE APPLIANCE CAN BE USED BY CHILDREN OLDER THAN 3 YEARS AND YOUNGER THAN 8 YEARS UNDER SUPERVISION AND WITH THE CONTROL ALWAYS SET TO MINIMUM TEMPERATURE VALUE.
• THE CABLE AND CONTROL UNIT OF THE APPLIANCE CAN GIVE

RISE TO RISKS OF ENTANGLEMENT, STRANGULATION, TRIPPING OR TREADING IF NOT CORRECTLY ARRANGED. THE USER SHALL MAKE SURE THAT EXCESS TIES AND ELECTRIC CORDS SHALL BE ARRANGED IN A SAFE WAY.

- PLEASE UNFOLD THE POWER CORD COMPLETELY WHEN USING AND STOP USING IN THE EVENT OF POWER CORD OR POWER SOURCES DAMAGES.

- THE PRODUCT CAN ONLY CONNECT TO POWER SOURCES OF 220-240V 50HZ. PLEASE DO NOT USE POWER SOURCES OTHER THAN RATED VOLTAGE TO AVOID FIRE OR PERSONAL INJURY AND PRODUCT DAMAGES.

- IT IS RECOMMENDED TO CHECK REGULARLY ON PRODUCTS. DO NOT USE THE BLANKET IN CASE OF DAMAGES TO POWER CORD, CABLE, PLUG, CONTROLLER, OR BLANKET. PLEASE CONTACT WITH OUR CUSTOMER SERVICE AND STOP USING IMMEDIATELY IN THE EVENT OF DAMAGES.

- TO AVOID ELECTRIC SHOCK, PLEASE DO NOT GET POWER CORD OR POWER SOCKET IN TOUCH WITH WATER OR OTHER LIQUID.

- PERSONS WITH ANEMIA, DIABETES, PREGNANT WOMEN, SKIN SENSITIVITY, HEART DISEASE, ABNORMAL BLOOD PRESSURE, MALIGNANT TUMOR, CEREBROVASCULAR DISEASE, ACUTE DISEASE OR OTHER PATIENTS UNDER DOCTOR'S TREATMENT MUST CONSULT DOCTORS BEFORE USING THIS PRODUCT.

- DO NOT USE THE PRODUCT ON CHILDREN OR UNCONSCIOUS PERSON.

- IT IS PROHIBITED FOR PEOPLE WITH URINARY INCONTINENCE, SKIN PERCEPTION DISORDER OR INSENSITIVITY TO TEMPERATURE.

- IT IS FOR DOMESTIC USE ONLY AND DO NOT USE IN A CAR OR IN A SHIP. DO NOT USE OUTDOOR SINCE IMPROPER USE MIGHT RESULT IN UNNECESSARY DAMAGES.

- IT IS RECOMMENDED TO INSTALL SOME OVERCURRENT PROTECTION DEVICE ON POWER SOURCE (E.G. AIR SWITCH OR FUSE, ETC.) TO PROVIDE EXTRA PROTECTION AND RECOMMENDED TO INSTALL EARTH LEAKAGE PROTECTION LESS THAN 30MA. DETAILS PLEASE CONSULT WITH PROFESSIONAL ELECTRICIAN.

- WHEN NOT IN USE, DO MAKE SURE THE CONTROLLER IS IN OFF STATE AND POWER CORD PLUGGED OFF. PLEASE ENSURE THE PRODUCT IS COOL DOWN FULLY BEFORE STORING.

- IN THE EVENT OF ABNORMAL PHENOMENA, PLEASE SHUT OFF POWER IMMEDIATELY AND DO NOT DISMOUNT THE PRODUCT FOR REPAIR.

• PLEASE DO NOT TEAR DOWN PRODUCT TO AVOID PRODUCT DAMAGE.
• PLEASE DO NOT DAMAGE, OVER BEND, PULL, TWIST, OR TIE THE POWER CORD.
• DO NOT PLACE THE PRODUCT NEAR HEAT SOURCE, E.G. INDUCTION COOKER, OVEN OR HEATERS.
• DO KEEP A DISTANCE OF MORE THAN 20CM FROM WALL OR CURTAIN OR ITEMS SENSITIVE TO HEAT AND KEEP THE AIR VENTILATED.
• The rated power is the instantaneous maximum power in running status.
• For long-term use, it is recommended to switch to the lowest mode.
• To eliminate the risk of children suffocating, please keep the product packaging properly or send it to a recycling bin. • Do not pull the power cord or expose the inner power cord.
• Do not use the product on an adjustable bed. If you must, check that cables or the product will not be twisted or get stuck, for example, in the joint of the hinge.
• Please ensure the inner heating elements are completely unfolded to avoid loops, knots, or overlaps.
• Avoid placing heavy goods on the product surface when in use.
• Please keep the product smooth when not in use, or slightly folded. • The product is not for medical use.
• Please cool down the product before storage.
• Do not over-squeeze the product when in storage and do not place heavy objects on it.
• It is recommended to store in a dry, dust-free, and oil-free place, and avoid squeezing.
• When cleaning the product, please unplug the controller from the product. Do not soak the controller in water.
• Do not dry-clean the product. The cleaning solution used in dry cleaning might corrode the insulation part of the heating element. • It is forbidden to twist the product.
• Under regular service conditions, the safe service life is 6 years. After the service life, it is recommended to use new products.
• The product comes with a matched controller. Do not modify the controller or replace the fuse. Contact our customer service if you have any other questions.
• DO NOT DISCARD THE PRODUCT WITH OTHER DOMESTIC APPLIANCES. PLEASE ABIDE BY LOCAL ENVIRONMENTAL AND DISCARDING RULES WHEN DISCARDING.

Correct Disposal of this product

This symbol on the products and accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper disposal or treatment, recovery and recycling, please take these products to designated collection points where they will be accepted on a free of charge basis, In some countries you may be able to return your products to your local retailer upon the purchase of a new product. Disposing of this product correctly will help you save valuable resources and prevent any possible effects on human health and the environment, which could other wise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest collection point for WEEE. Penalties may be applicable for the incorrect disposal of this product in accordance with national legislation. This appliance conforms to the (LVD) 2014/35/EU,(EMC) 2014/30/EU,(RoHS) 2011/65/EU and (ERP)2009/125/EC directives.

Troubleshooting

Problems	Reasons	Solutions
The product does not work.	The controller is not well connected.	Please check whether the controller is connected correctly with the blanket.
	The plug is loose.	Please check whether the plug is well plugged in
	The blanket shut off by timer.	Re-power the product.
	The product is damaged.	Plug off and contact with our customer service.
Inadequate heating.	The heating mode is not high.	Adjust to a more proper level (Adjust to level 5-6).

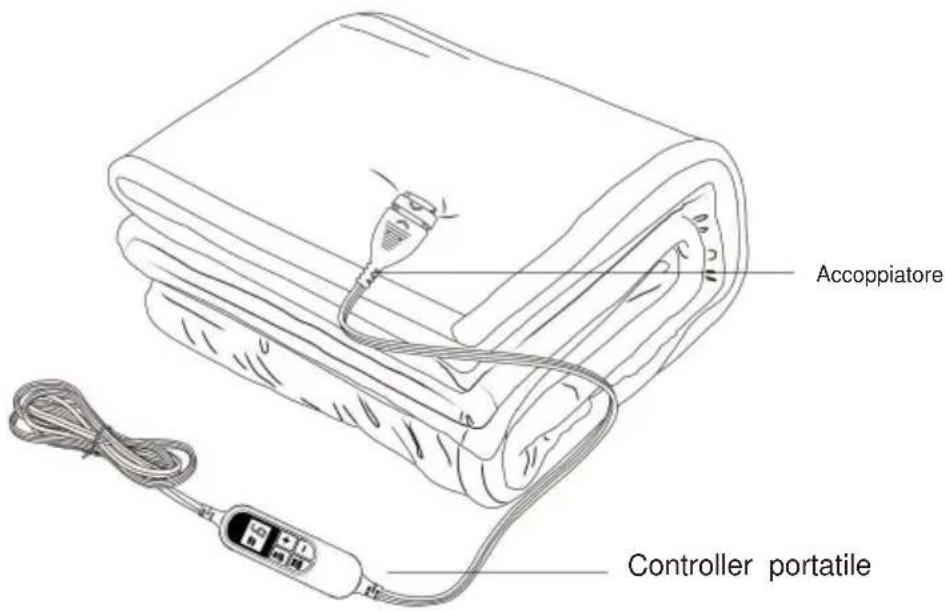

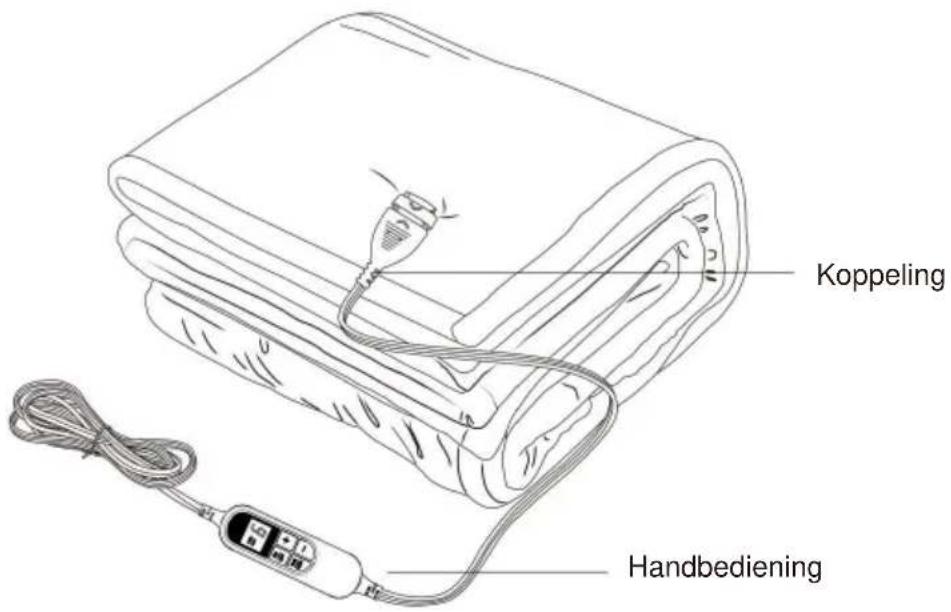

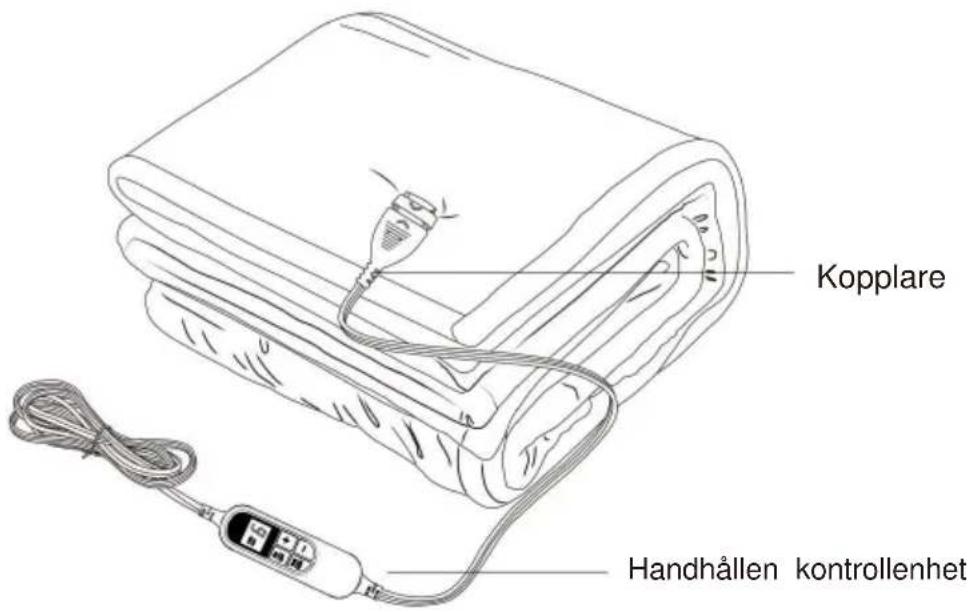

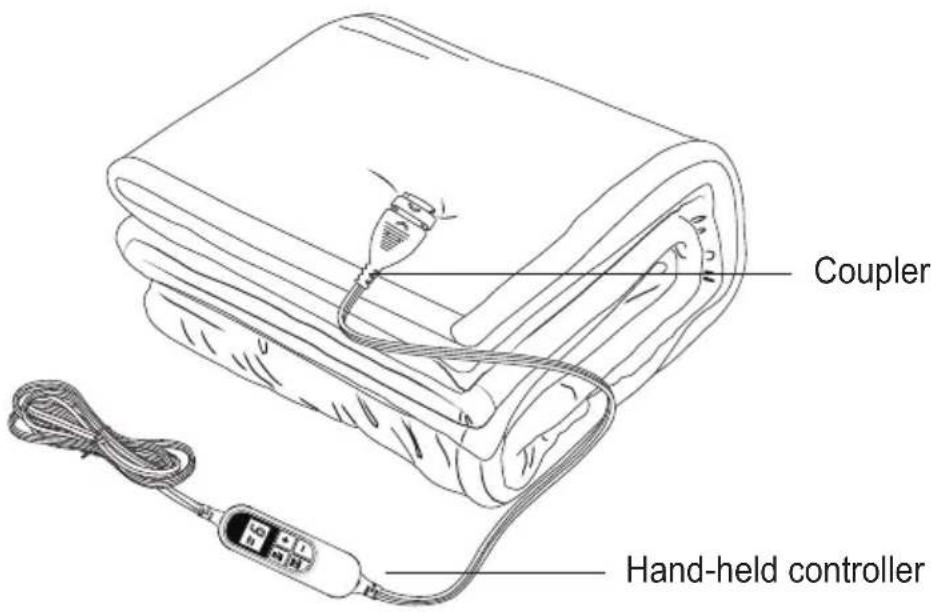

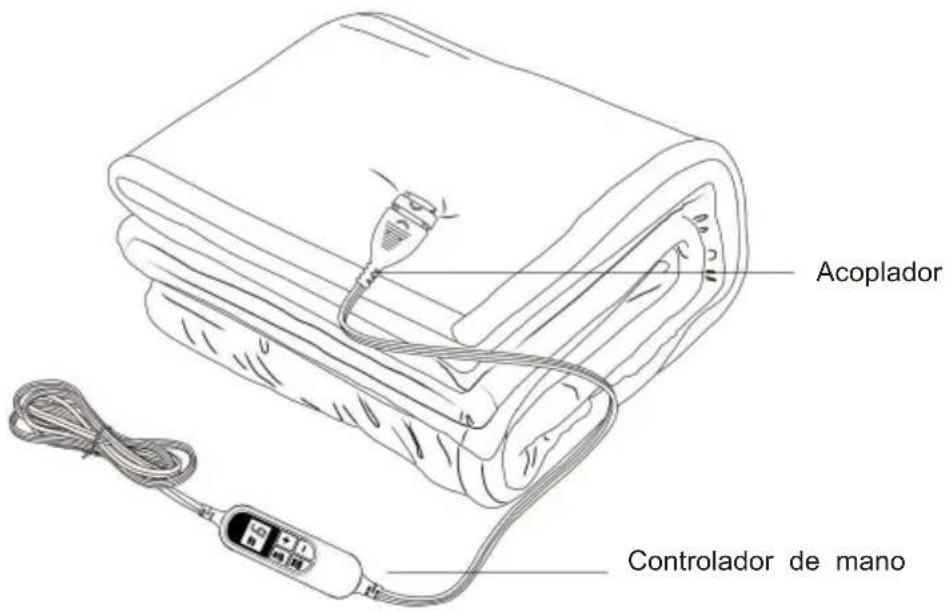

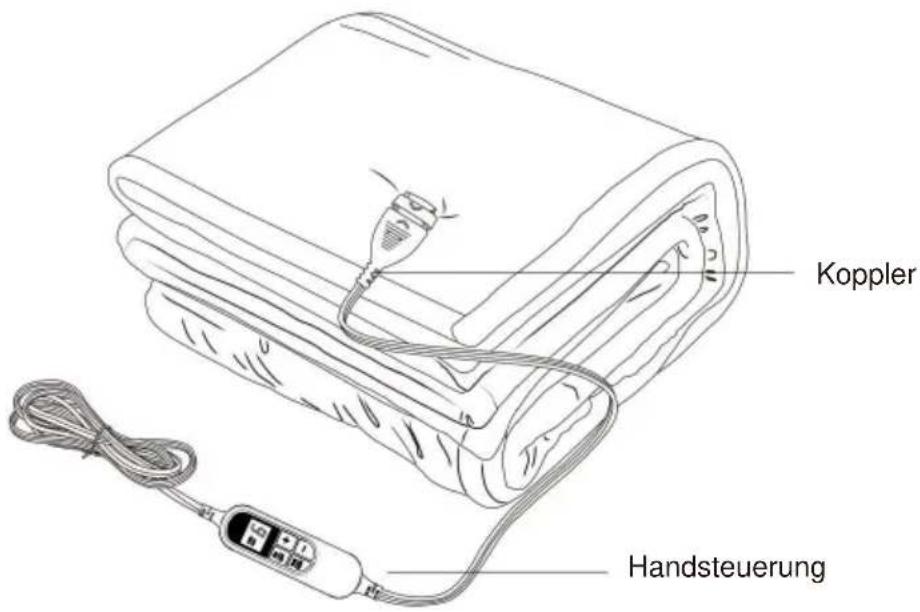

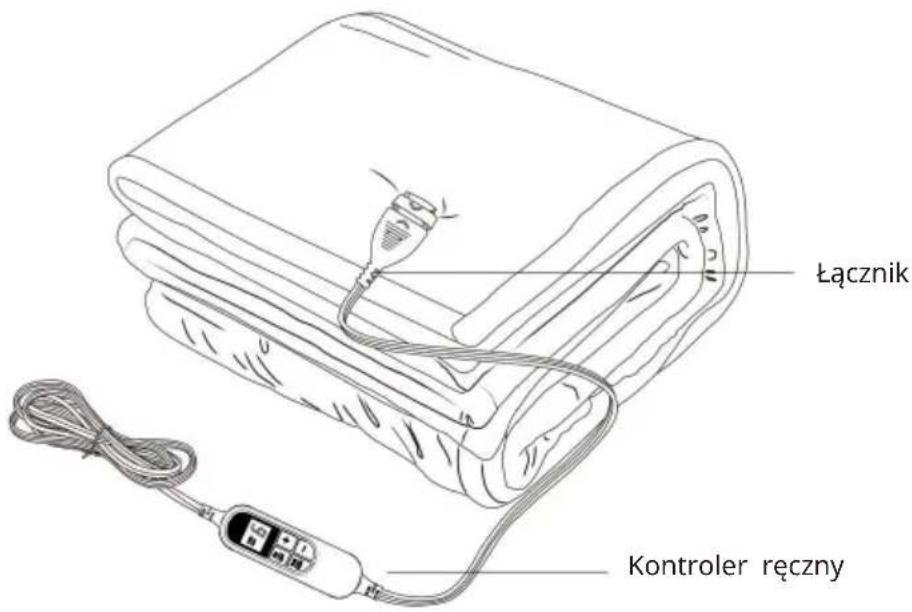

Product Diagram

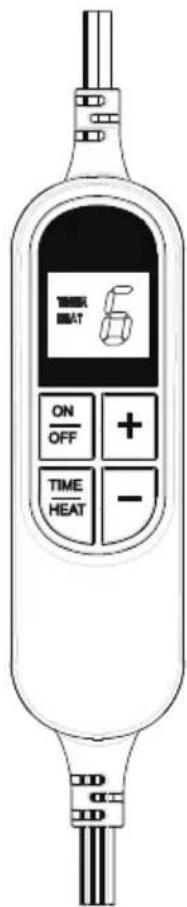

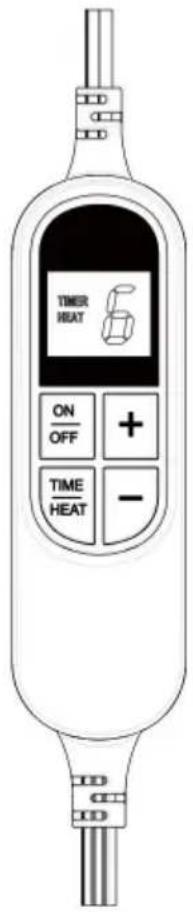

Using Your Controller

1. To turn the control on, press the "ON/OFF" button. The controller will default to the lowest temperature setting.
2. Press the TIMER/HEAT button to select your options.
3. While the "HEAT" sign is flashing on the LCD screen, you can adjust the warming setting to your personal comfort by pressing the "+" or "-". There are 6 heat setting levels, from "1" to "6", where "1" indicates the lowest temperature.
4. While the "TIMER" sign is flashing on the LCD screen, the setting will be on "9" at the beginning. You can adjust the "AUTO-SHUT OFF time" by pressing the "+" or "-" according to your demand. There are 1-9 hours timer setting levels, the screen will show "1" to "9", where "1" indicates 1 hour AUTO-SHUT OFF.
5. To turn the control off, press the "ON/OFF" button.

CAUTION: ALWAYS turn the product "OFF" when not in use.

To restart all products after a power failure.

Press the "ON/OFF" button and repeat the operation above, the product will begin to warm.

AUTO-SHUT OFF FEATURE

The "AUTO-SHUT OFF" feature is designed for conservation of energy by automatically turning the product off. This product has a "TIMER" function, so you can adjust the "AUTO-SHUT OFF" time according to your demand from 1-9 hours.

When you press the "TIMER/HEAT" button, the TIMER will default to 8 hours AUTO-SHUT OFF. Without any selection, the product will be AUTO-SHUT OFF in 8 hours.

After a power outage, the "AUTO-SHUT OFF" feature automatically resets the TIMER.

Operation Instruction

• Please first ensure the controller is off (LCD off) and the power source is not plug into socket.
• Before first time use, please remove the packing and package label first.

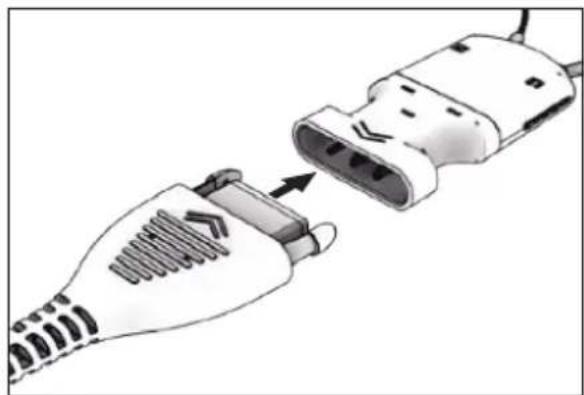

Connect Controller

• Connect the controller into female end socket on blanket and lock up. • After connection, the plug and socket should be closely matched to ensure no further interval.

Cleaning and Maintenance

Please follow the cleaning procedures as below:

Note: before cleaning electric heated products, please ensure the main unit that is the blanket is disconnected with the controller. (it is not allowed to wash or wet the controller with water)

Stained Area Cleaning

• Clean the stained area with sponge dipped with proper gentle detergent or suds.
• Clean again on the stained area with pure water and then wipe the area with absorbent towel.

Hand Wash

• Soak the product into mild detergent or suds. • After 5 minutes soaking, take out and lightly squeeze the detergent.
• Use lukewarm water to wash the product and gently squeeze out the water.

Machine Wash

• The product can be washed in a home washing machine.
• First, set the washing machine to a gentle cycle, then wash with a neutral detergent or laundry detergent.
• Do not use the heating mode, and keep the water temperature below 30°C during washing.
• Do not use high-speed or extra spin cycles.
• Do not wash the controller.

Dry in the Sun

• Hang the product evenly on a clothesline to dry naturally.
• Do not secure the product with clamps.
• Do not use a dryer or oven to dry the product.

	Note: do not dry cleaning or ironing the product.
	Warning: do not twist the product.
	Warning: do ensure the controller is plugged off from the blanket before washing.
	Warning: do not soak the controller into any liquid.
	Warning: do not use the product when it is not fully dried.

Storage

• When not in use, place the product back in its original packaging and store it in a cool, dry, and clean place.
• Avoid contact with sharp objects and do not place heavy items on the product.
• When not in use, store as follows:

A. When storing the product, cool down first before folding.

B. During storing, do not place heavy goods on the product surface to avoid lines made by folding.

- During storing, please shut off the controller first and keep the controller and blanket separated.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

HL-LTE-1316

HL-LTE-1318

HL-LTE-1520

HL-LTE-1820

HL-TEU-8015

HL-TEU-1516

HL-TEU-1619

NEED HELP? CONTACT US!

HLMP-CF-NFI-T

HLMP-CF-NFI-F

HLMP-CF-NFI-Q

HLMP-CF-NFI-K

Introduction

PLEASE DO NOT TEAR THE PRODUCT TO AVOID DAMAGING IT. DO NOT DAMAGE, BEND, PULL, TWIST, OR TIE THE POWER CORD. - DO NOT PLACE THE PRODUCT NEAR A HEAT SOURCE, SUCH AS AN INDUCTION COOKTOP, OVEN, OR HEATERS. - KEEP A DISTANCE OF MORE THAN 20 CM FROM WALLS, CURTAINS, OR HEAT-SENSITIVE ITEMS, AND ENSURE PROPER VENTILATION.

- THE RATED POWER IS THE MAXIMUM INSTANTANEOUS POWER IN OPERATING STATE.

- FOR LONG-TERM USE, IT IS RECOMMENDED TO SWITCH TO THE LOWEST MODE.

TO ELIMINATE THE RISK OF CHILDREN SUFFOCATING, PLEASE STORE THE PRODUCT PACKAGING PROPERLY OR DISPOSE OF IT IN THE RECYCLING BIN.

DO NOT PULL ON THE POWER CORD OR EXPOSE THE INNER POWER CORD.

- DO NOT USE THE PRODUCT ON AN ADJUSTABLE BED. OR IF YOU MUST, ENSURE THAT THE CABLES WILL NOT BE TWISTED OR PINCHED, FOR EXAMPLE, IN THE HINGE JOINT.

PLEASE ENSURE THAT THE INTERNAL HEATING ELEMENTS ARE COMPLETELY UNFOLDED TO AVOID ANY LOOP, KNOT, OR OVERLAP.

- AVOID PLACING HEAVY GOODS ON THE PRODUCT'S SURFACE DURING USE.

PLEASE KEEP THE PRODUCT SMOOTH WHEN NOT IN USE OR SLIGHTLY FOLDED.

THE PRODUCT IS NOT INTENDED FOR MEDICAL USE.

PLEASE COOL THE PRODUCT BEFORE STORAGE.

- DO NOT PRESS THE PRODUCT TOO HARD WHEN STORING AND DO NOT PLACE HEAVY OBJECTS ON IT.

- IT IS RECOMMENDED TO STORE IN A DRY, DUST-FREE, AND OIL-FREE PLACE, AND AVOID PRESSING.

- WHEN CLEANING THE PRODUCT, PLEASE UNPLUG THE PRODUCT'S CONTROLLER. DO NOT SOAK THE CONTROLLER WITH WATER.

- DO NOT DRY-CLEAN THE PRODUCT. THE DRY-CLEANING SOLUTION MAY CORRODE THE INSULATING PART OF THE HEATING ELEMENT.

- IT IS FORBIDDEN TO TWIST THE PRODUCT.

UNDER REGULAR SERVICE CONDITIONS, THE SAFE SERVICE LIFE IS 6 YEARS. DURING THE SERVICE LIFE, IT IS RECOMMENDED TO USE NEW PRODUCTS.

• THE PRODUCT IS DELIVERED WITH A MATCHING CONTROLLER AND DO NOT REINSTALL THE CONTROLLER OR EXCHANGE THE FUSE. CONTACT OUR CUSTOMER SERVICE IF YOU HAVE ANY FURTHER QUESTIONS.
• DO NOT DISCARD THE PRODUCT WITH OTHER HOUSEHOLD APPLIANCES. PLEASE FOLLOW LOCAL ENVIRONMENTAL AND DISPOSAL REGULATIONS WHEN DISPOSING.

HL-LTE-1316

HL-LTE-1318

HL-LTE-1520

HL-LTE-1820

HL-TEU-8015

HL-TEU-1516

HL-TEU-1619

HLMP-CF-NFI-T

HLMP-CF-NFI-F

HLMP-CF-NFI-Q

HLMP-CF-NFI-K

Introduction

Product Diagram

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

electronics www.vevor.com/support

Electric Blanket

MODEL: HL-LTE-1316 / HL-LTE-1318 HL-LTE-1520 / HL-LTE-1820

HL-LTE-1316

HL-LTE-1318

HL-LTE-1520 HL-TEU-1619

HL-LTE-1820

HL-TEU-8015

HL-TEU-1516

HLMP-CF-NFI-T

HLMP-CF-NFI-F

HLMP-CF-NFI-Q

HLMP-CF-NFI-K

Introduction

• PLEASE DO NOT TEAR THE PRODUCT TO AVOID DAMAGE TO THE PRODUCT. PLEASE DO NOT DAMAGE, EXCESSIVELY BEND, PULL, TWIST, OR TIE THE POWER CORD.
• DO NOT PLACE THE PRODUCT NEAR HEAT SOURCES, SUCH AS AN INDUCTION COOKTOP, OVEN, OR STOVES.
• KEEP A DISTANCE OF MORE THAN 20 CM FROM THE WALL OR CURTAIN, AS IT IS SENSITIVE TO HEAT, AND KEEP THE AIR VENTILATED.
• THE RATED POWER IS THE INSTANTANEOUS MAXIMUM POWER IN OPERATING STATE.
• FOR PROLONGED USE, IT IS RECOMMENDED TO SWITCH TO THE LOWEST MODE. TO ELIMINATE THE RISK OF CHILDREN SUFFOCATING, STORE THE PRODUCT PACKAGING PROPERLY OR DISPOSE OF IT IN THE RECYCLING CONTAINER. DO NOT PULL THE POWER CORD OR EXPOSE THE INTERNAL POWER CORD.
• DO NOT USE THE PRODUCT ON AN ADJUSTABLE BED. OR, IF NECESSARY, CHECK THAT THE CORDS OR THE PRODUCT ARE NOT TWISTED OR PINCHED, FOR EXAMPLE, IN THE HINGE JOINT.
• MAKE SURE THE INTERNAL HEATING ELEMENTS ARE COMPLETELY OPEN TO AVOID RINGS, KNOTS, OR OVERLAPPING.
• AVOID PLACING HEAVY OBJECTS ON THE PRODUCT SURFACE DURING USE.
• PLEASE KEEP THE PRODUCT FLAT WHEN NOT IN USE, OR SLIGHTLY FOLDED.
• THE PRODUCT IS NOT FOR MEDICAL USE.
• COOL THE PRODUCT BEFORE STORING IT.
• DO NOT SQUEEZE THE PRODUCT EXCESSIVELY WHEN STORED AND DO NOT PLACE HEAVY OBJECTS ON IT.
• IT IS ADVISED TO STORE IN A DRY PLACE, FREE FROM DUST AND WITHOUT OILS, AND AVOID CRUSHING.
• WHEN CLEANING THE PRODUCT, DISCONNECT THE CONTROLLER FROM THE PRODUCT. DO NOT IMMERSE THE CONTROLLER IN WATER.
• DO NOT DRY CLEAN THE PRODUCT. THE DETERGENT SOLUTION FROM DRY CLEANING COULD CORRODE THE INSULATING PART OF THE HEATING ELEMENT.
• IT IS FORBIDDEN TO TWIST THE PRODUCT. UNDER REGULAR SERVICE CONDITIONS, THE SAFE SERVICE LIFE IS 6 YEARS. BEYOND THE SERVICE LIFE, IT IS ADVISED TO USE NEW PRODUCTS.
• THE PRODUCT COMES WITH A MATCHED CONTROLLER AND DO NOT REASSEMBLE THE CONTROLLER OR REPLACE THE FUSE. CONTACT OUR CUSTOMER SERVICE IF THERE ARE OTHER DO
• DO NOT DISCARD THE PRODUCT WITH OTHER HOUSEHOLD APPLIANCES. PLEASE COMPLY WITH LOCAL ENVIRONMENTAL AND DISPOSAL REGULATIONS IN CASE OF DISPOSAL

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

VEVOR®

TOUGH TOOLS, HALF PRICE

HL-LTE-1316

HL-LTE-1318

HL-LTE-1520

HL-LTE-1820

HL-TEU-8015

HL-TEU-1516

HL-TEU-1619

HLMP-CF-NFI-T

HLMP-CF-NFI-F

HLMP-CF-NFI-Q

HLMP-CF-NFI-K

Introduction

HL-LTE-1316

HL-LTE-1318

HL-LTE-1520

HL-LTE-1820

HL-TEU-8015

HL-TEU-1516

HL-TEU-1619

HLMP-CF-NFI-T

HLMP-CF-NFI-F

HLMP-CF-NFI-Q

HLMP-CF-NFI-K

NEED HELP? CONTACT US!

www.vevor.com/support

Introduction

IF NOT SET UP PROPERLY, THERE IS A RISK OF INCREASED DANGER, SUFFOCATION, FIRE, OR TRIPPING. THE USER MUST ENSURE THAT EXCESS CABLES AND ELECTRICAL WIRES ARE LAID OUT IN A SAFE MANNER.

● PLEASE FULLY UNWIND THE POWER CORD BEFORE USE AND STOP USING IF THE POWER CORD OR POWER SOURCE IS DAMAGED. - THE PRODUCT MAY ONLY BE CONNECTED TO 220-240V 50HZ POWER SOURCES. PLEASE DO NOT USE POWER SOURCES OTHER THAN THE RATED VOLTAGE TO AVOID FIRE OR PERSONAL INJURY AND PRODUCT DAMAGE. IT IS RECOMMENDED TO REGULARLY INSPECT THE PRODUCTS. DO NOT USE THE BLANKET IF THE POWER CORD, CABLE, PLUG, CONTROLLER, OR BLANKET IS DAMAGED. PLEASE CONTACT OUR CUSTOMER SERVICE AND STOP USING IMMEDIATELY IF THERE IS ANY DAMAGE. - TO AVOID ELECTRIC SHOCK, PLEASE DO NOT TOUCH THE POWER CORD OR POWER OUTLET WITH WET HANDS OR OTHER LIQUIDS. PERSONS WITH ANEMIA, DIABETES, PREGNANT WOMEN, SKIN SENSITIVITY, HEART DISEASE, ABNORMAL BLOOD PRESSURE, MALIGNANT TUMORS, CEREBROVASCULAR DISEASE, ACUTE ILLNESS, OR OTHER PATIENTS UNDER MEDICAL TREATMENT SHOULD CONSULT A DOCTOR BEFORE USING THIS PRODUCT. - DO NOT USE THE PRODUCT ON CHILDREN OR PERSONS WHO ARE UNCONSCIOUS. - IT IS FORBIDDEN FOR PERSONS WITH URINARY INCONTINENCE, SKIN PERCEPTION DISORDERS, OR TEMPERATURE INSENSITIVITY. - IT IS INTENDED FOR HOUSEHOLD USE ONLY AND SHOULD NOT BE USED IN A CAR OR ON A BOAT. DO NOT USE OUTDOORS, AS IMPROPER USE MAY CAUSE UNNECESSARY DAMAGE. IT IS RECOMMENDED TO INSTALL A RESIDUAL CURRENT DEVICE (RCD) ON THE POWER SOURCE (E.G., CIRCUIT BREAKER OR FUSE, ETC.) TO PROVIDE ADDITIONAL PROTECTION, AND IT IS RECOMMENDED TO INSTALL A GROUND FAULT PROTECTION DEVICE WITH A RATED RESIDUAL CURRENT OF LESS THAN 30MA. PLEASE CONSULT A PROFESSIONAL ELECTRICIAN FOR DETAILS. - IF NOT IN USE, MAKE SURE THE CONTROLLER IS IN THE OFF POSITION AND THE POWER CORD IS UNPLUGGED. BEFORE STORING, ENSURE THE PRODUCT IS COMPLETELY COOLED. IF ANY ABNORMAL PHENOMENA OCCUR, TURN OFF THE POWER IMMEDIATELY AND DO NOT DISASSEMBLE THE PRODUCT FOR REPAIR.

● PLEASE DO NOT MODIFY THE PRODUCT TO AVOID DAMAGE. ● PLEASE DO NOT DAMAGE, BEND, PULL, TWIST, OR TIE THE POWER CORD. - DO NOT PLACE THE PRODUCT NEAR HEAT SOURCES, SUCH AS INDUCTION COOKTOPS, OVENS, OR RADIATORS. KEEP A DISTANCE OF MORE THAN 20 CM FROM WALLS, CURTAINS, OR HEAT-SENSITIVE ITEMS, AND MAINTAIN AIR VENTILATION.

● THE RATED POWER IS THE MAXIMUM POWER IN OPERATING STATE.

- FOR PROLONGED USE, IT IS RECOMMENDED TO USE THE LOWEST SETTING.

- TO ELIMINATE THE RISK OF SUFFOCATION FOR CHILDREN, PLEASE DISPOSE OF THE PACKAGING PROPERLY OR RECYCLE IT.

DO NOT PULL THE POWER CORD OR REFRESH THE INTERNAL POWER CORD.

- DO NOT USE THE PRODUCT ON AN ADJUSTABLE BED. OR IF NECESSARY, CHECK THE CABLES, OTHERWISE THE PRODUCT WILL NOT BE TWISTED OR BLOCKED, FOR EXAMPLE IN THE HINGE CONNECTION.

- MAKE SURE THE INTERNAL HEATING ELEMENTS ARE COMPLETELY UNFOLDED TO AVOID LOOPS, KNOTS, OR OVERLAPPING.

DURING USE, AVOID PLACING HEAVY ITEMS ON THE PRODUCT'S SURFACE.

● KEEP THE PRODUCT SMOOTH WHEN NOT IN USE OR LIGHTLY FOLDED.

● THE PRODUCT IS NOT INTENDED FOR MEDICAL USE.

● COOL THE PRODUCT BEFORE STORING.

- DO NOT SQUEEZE THE PRODUCT INTENTIONALLY DURING STORAGE AND DO NOT PLACE HEAVY OBJECTS ON IT.

IT IS RECOMMENDED TO STORE IN A DRY, DUST-FREE, AND OIL-FREE PLACE AND AVOID SQUEEZING.

WHEN CLEANING THE PRODUCT, DISCONNECT THE CONTROLLER FROM THE PRODUCT. DO NOT WET THE CONTROLLER WITH WATER.

- DO NOT CLEAN THE PRODUCT DRY. DRY CLEANING SOLUTIONS MAY CORRODE THE INSULATING PART OF THE HEATING ELEMENT.

● IT IS FORBIDDEN TO TWIST THE PRODUCT.

- UNDER REGULAR USE CONDITIONS, THE SAFE SERVICE LIFE IS 6 YEARS. DURING THE OPERATION PERIOD, IT IS RECOMMENDED TO USE NEW PRODUCTS.

• THE PRODUCT IS SUPPLIED WITH A MATCHED CONTROLLER AND THE CONTROLLER OR FUSE SHOULD NOT BE REPLACED. IF YOU HAVE ANY OTHER QUESTIONS, CONTACT OUR CUSTOMER SERVICE.
• DO NOT DISPOSE OF THE PRODUCT WITH OTHER HOUSEHOLD DEVICES. WHEN DISPOSING, FOLLOW LOCAL ENVIRONMENTAL AND WASTE REGULATIONS.

Product Diagram

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical support and e-warranty certificate www.vevor.com/support

Electric Blanket

MODEL: HL-LTE-1316 / HL-LTE-1318 HL-LTE-1520 / HL-LTE-1820

HL-LTE-1316

HL-LTE-1318

HL-LTE-1520

HL-LTE-1820

HL-TEU-8015

HL-TEU-1516

HL-TEU-1619

HLMP-CF-NFI-T

HLMP-CF-NFI-F

HLMP-CF-NFI-Q

HLMP-CF-NFI-K

NEED HELP? CONTACT US!

Introduction

DO NOT REMOVE THE PRODUCT TO PREVENT DAMAGE. ● DO NOT DAMAGE THE CORD, DO NOT BEND, PULL, TWIST, OR KNOT THE POWER CORD. - DO NOT PLACE THE PRODUCT NEAR A HEAT SOURCE, SUCH AS AN INDUCTION COOKER, OVEN, OR HEATING ELEMENTS. - KEEP A DISTANCE OF MORE THAN 20 CM FROM THE WALL OR CURTAIN, AS IT IS SENSITIVE TO HEAT, AND KEEP THE AIR VENTILATED. - THE NOMINAL POWER IS DIRECTLY THE MAXIMUM POWER IN OPERATING STATUS. - FOR LONG-TERM USE, IT IS RECOMMENDED TO USE THE LOWEST SETTING. - TO PREVENT THE RISK OF CHILDREN SUFFOCATING, STORE THE PRODUCT PACKAGING PROPERLY OR PLACE IT IN THE RECYCLING BIN. - DO NOT PULL THE POWER CORD OR EXPOSE THE INNER POWER CORD. - DO NOT USE THE PRODUCT ON AN ADJUSTABLE BED. IF NECESSARY, CHECK THAT THE CABLES OR THE PRODUCT ARE NOT TWISTED OR STUCK, FOR EXAMPLE IN THE HINGE CONNECTION. ENSURE THAT THE INNER HEATING ELEMENTS ARE FULLY EXTENDED TO PREVENT LOOPS, KNOTS, OR OVERLAPS. - AVOID PLACING HEAVY OBJECTS ON THE PRODUCT'S SURFACE DURING USE. - KEEP THE PRODUCT FLAT WHEN NOT IN USE, OR FOLDED. - THE PRODUCT IS NOT FOR MEDICAL USE. LET THE PRODUCT COOL DOWN BEFORE STORING. - DO NOT SQUEEZE THE PRODUCT TOO MUCH DURING STORAGE. DO NOT PLACE HEAVY OBJECTS ON IT. - IT IS RECOMMENDED TO STORE IN A DRY, DUST-FREE, AND OIL-FREE SPACE AND AVOID... - WHEN CLEANING THE PRODUCT, UNPLUG THE CONTROLLER FROM THE PRODUCT. DO NOT IMMERSE THE CONTROLLER IN WATER. - DO NOT DRY THE PRODUCT. THE DRY CLEANING SOLUTION MAY DAMAGE THE INSULATION PART OF THE HEATING ELEMENT. IT IS FORBIDDEN TO TWIST THE PRODUCT. - UNDER NORMAL MAINTENANCE CONDITIONS, THE SAFE SERVICE LIFE IS 6 YEARS. DURING THE SERVICE LIFE, IT IS RECOMMENDED TO USE NEW PRODUCTS.

Product Diagram

HL-LTE-1316

HL-LTE-1318

HL-LTE-1520

HL-LTE-1820

HL-TEU-8015

HL-TEU-1516

HL-TEU-1619

HLMP-CF-NFI-T

HLMP-CF-NFI-F

HLMP-CF-NFI-Q

HLMP-CF-NFI-K

NEED HELP? CONTACT US!

Introduction

• PLEASE DO NOT TEAR DOWN THE PRODUCT TO AVOID PRODUCT DAMAGE.
• PLEASE DO NOT DAMAGE, BEND, PULL, TWIST, OR KNOT THE POWER CORD.
• DO NOT PLACE THE PRODUCT NEAR A HEAT SOURCE, SUCH AS AN INDUCTION COOKTOP, OVEN, OR HEATER.
• KEEP A DISTANCE OF MORE THAN 20 CM FROM WALLS OR CURTAINS OR ANYTHING SENSITIVE TO HEAT, AND KEEP THE AIR VENTILATED. ● THE TURBO MODE IS IMMEDIATELY MAXIMUM POWER IN THE LOWEST SETTING. FOR LONG-TERM USE, IT IS RECOMMENDED TO SWITCH TO THE LOWEST SETTING.
• TO ELIMINATE THE RISK OF CHILD SUFFOCATION, STORE THE PRODUCT PACKAGING PROPERLY OR SEND IT FOR RECYCLING.
• DO NOT PULL THE POWER CORD OR EXPOSE THE INTERNAL POWER CORD.
• DO NOT USE THE PRODUCT ON AN ADJUSTABLE BED. IF NECESSARY, CHECK THAT THE CABLES OR THE PRODUCT ARE NOT WOUND OR STUCK, FOR EXAMPLE IN THE HINGE JOINT.
• MAKE SURE THE INTERNAL HEATING ELEMENTS ARE FULLY UNFOLDED TO AVOID LOOPS, KNOTS, OR OVERLAPPING.
• AVOID PLACING HEAVY ITEMS ON THE PRODUCT'S SURFACE DURING USE. KEEP THE PRODUCT FLAT WHEN NOT IN USE OR FOR LONG-TERM STORAGE.
• THE PRODUCT IS NOT FOR MEDICAL USE.
• COOL DOWN THE PRODUCT BEFORE STORAGE.
• DO NOT FOLD THE PRODUCT WHEN IN STORAGE AND DO NOT PLACE HEAVY OBJECTS ON IT.
• IT IS RECOMMENDED TO STORE IN A DRY, DUST-FREE, AND OIL-FREE PLACE, AND AVOID DAMPNESS. WHEN CLEANING THE PRODUCT, DISCONNECT THE CONTROL UNIT FROM THE PRODUCT. DO NOT SOAK THE CONTROL UNIT WITH WATER.
• DO NOT DRY CLEAN THE PRODUCT. THE DRY CLEANING SOLUTION MAY CORRODE THE INSULATION PART OF THE HEATING ELEMENT.
• IT IS FORBIDDEN TO TWIST THE PRODUCT.
• UNDER NORMAL SERVICE CONDITIONS, THE SAFE SERVICE LIFE IS 6 YEARS. DURING THE SERVICE LIFE, IT IS RECOMMENDED TO USE NEW PRODUCTS.
• THE PRODUCT COMES WITH A MATCHED CONTROLLER. DO NOT INSTALL A CONTROLLER OR REPLACE THE FUSE. CONTACT OUR CUSTOMER SERVICE IF YOU HAVE ANY OTHER QUESTIONS.
• DO NOT DISPOSE OF THE PRODUCT WITH OTHER HOUSEHOLD APPLIANCES. FOLLOW LOCAL ENVIRONMENTAL AND REGULATIONS FOR DISPOSAL WHEN DISPOSING.

Product Diagram

www.vevor.com/support
