USER MANUAL HM-273 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support

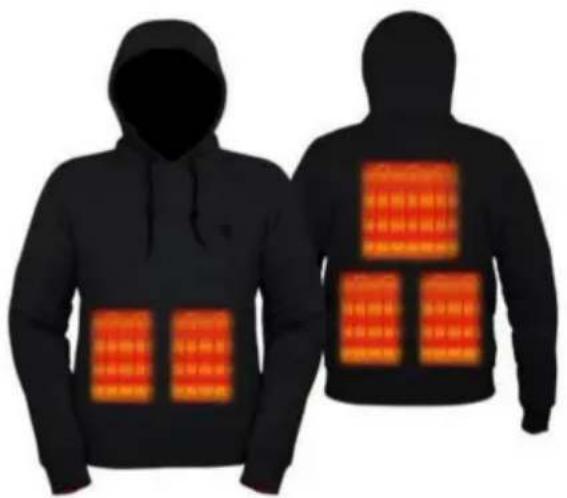

HEATED SWEATSHIRTS

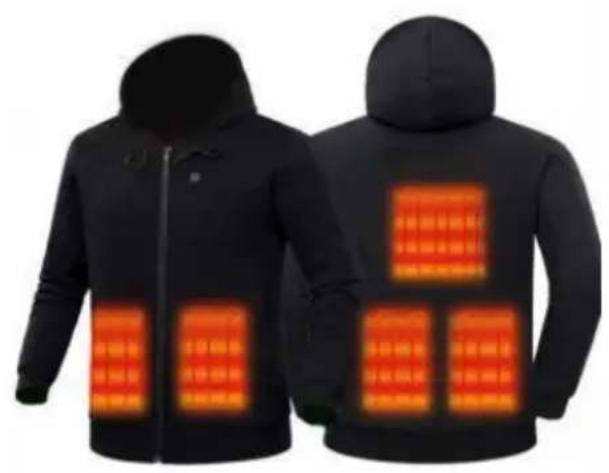

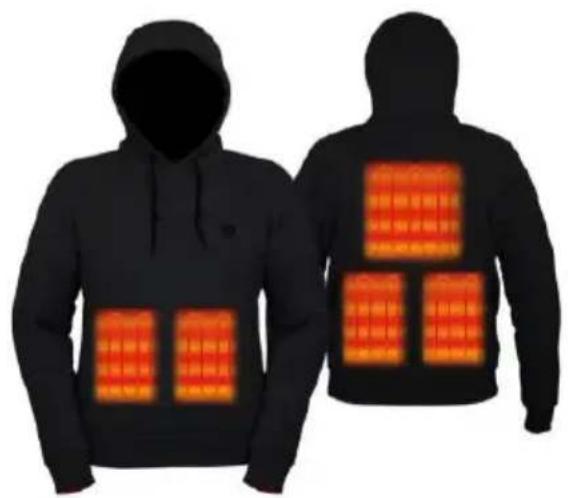

MODEL:HM-273/HM-275
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODEL:HM-273/HM-275
HM-273 HM-275
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
PARAMETER LIST
| Model | HM-273 | HM-275 |
| Input voltage(V) | 7.4 | 7.4 |
| Power(W) | 13 | 13 |
| Size | S/M/L/XL/XXL/XXXL | S/M/L/XL/XXL/XXXL |
PART LIST
| Name | Picture | HM-273 | HM-275 |
| Power Bank | 1 | 1 | |
| USB Cable | 1 | 1 | |
| Clothing | 1 | 1 |
SECURITY & WARNINGS
- Do not plug the USB interface of this product directly into the ad
- For your safety, please turnoff the power before going to bed.
-
Use in the same position of your body, please confirm the skin c remove it immediately if there is any abnormality.
-
Prohibited to stay close to fire, corrosive liquids and various adverse environments.
- If you feel uncomfortable during use, please stop to use it or use the guidance of a doctor.
OPERATION
- Plug out the DC connector from clothes pocket. Connect DC conn with Power Bank (at Least 7.4V 3A output, Be sure the power bank qualified 7.4V 3A). Put the power bank in the battery pocket.
- Press the smart control button for 3-5 seconds to start the heating system. Short press the control button to shift the temperature levels: Red (High), White (Medium), Blue (Low).
High Red 65^ Medium White 55^ Low Blue 45^
Note: The temperature shown above is the temperature of the heating not the temperature perceived by the human body.
- Long press the button 3-5 seconds again to turnoff the heating sy
- Plug off the USB port from battery if you do not use the heating
WASHING INSTRUCTIONS
- Before washing, remove the power, put the DC connector into your pocket.
- The product is recommended to wash by hand. If it is washed by machine, it must be washed after being put into the laundry bag.
-
Do not wiring after washing, hang in a cool place to dry.
-
After washing, the product can be used until it is completely dry.

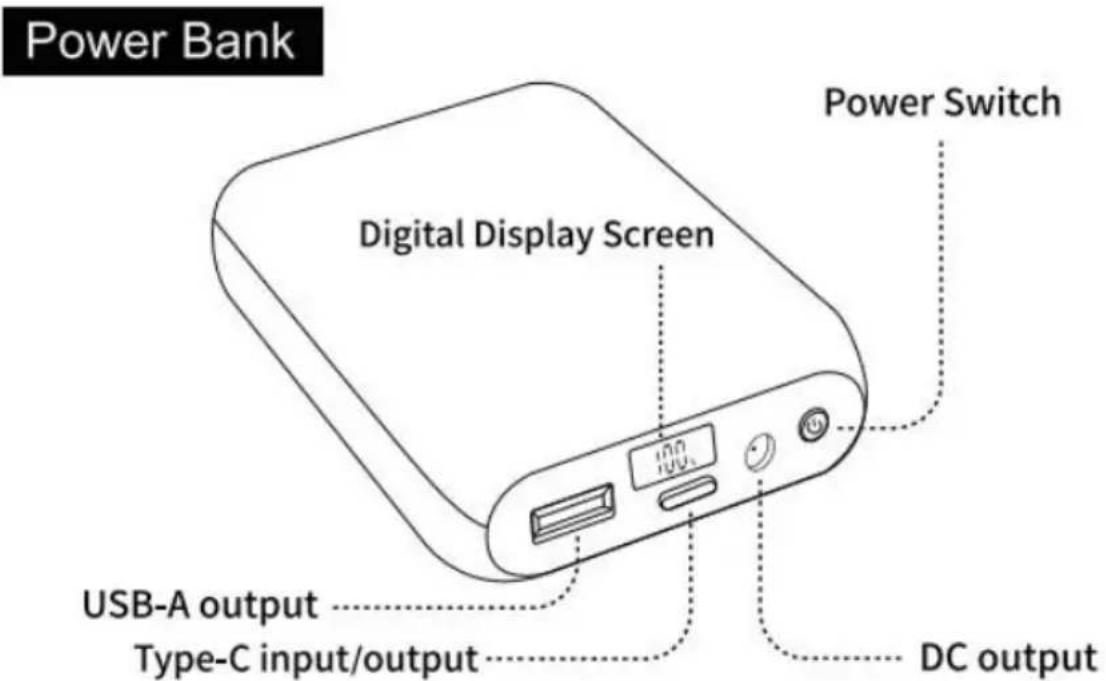

BATTERY INSTRUCTION
Specifications
Capacity: 16000mAh/3.7V(59.2Wh)
Input: Type-C 5V=3A 9V=2A 12V=1.5A
Output: DC 7.4V=3A
Type-C 5V=3A 9V=2A 12V=1.5A
USB-A 4.5V=5A 5V=3A 9V=2A
12V=1.5A

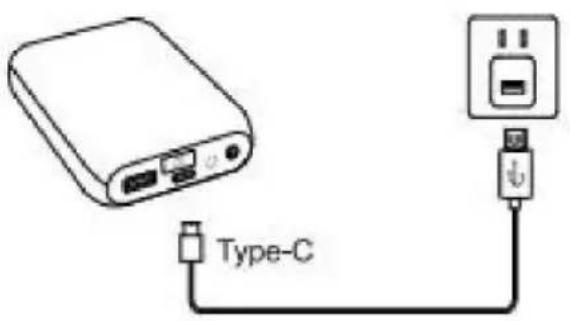

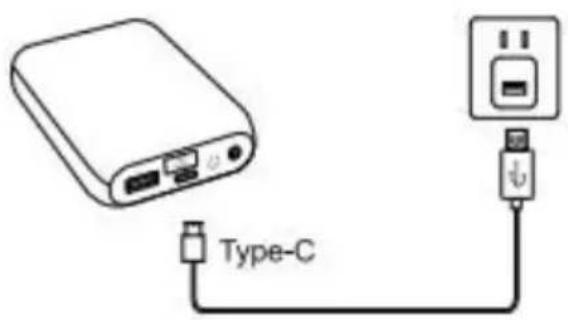

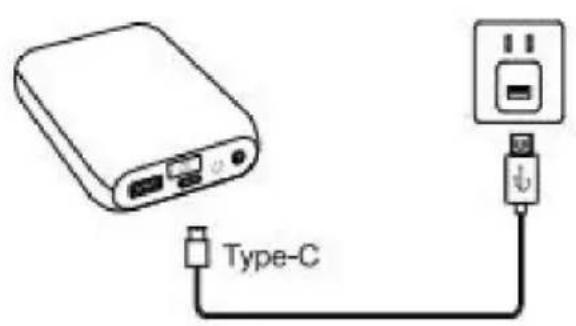

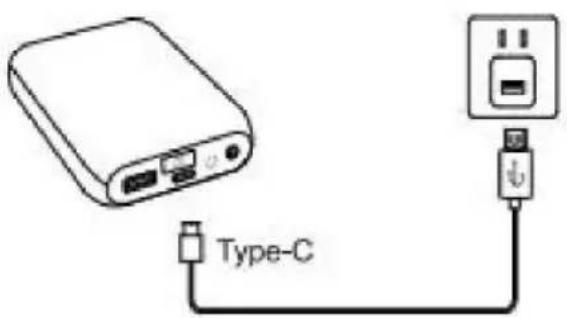

Charge Power Bank

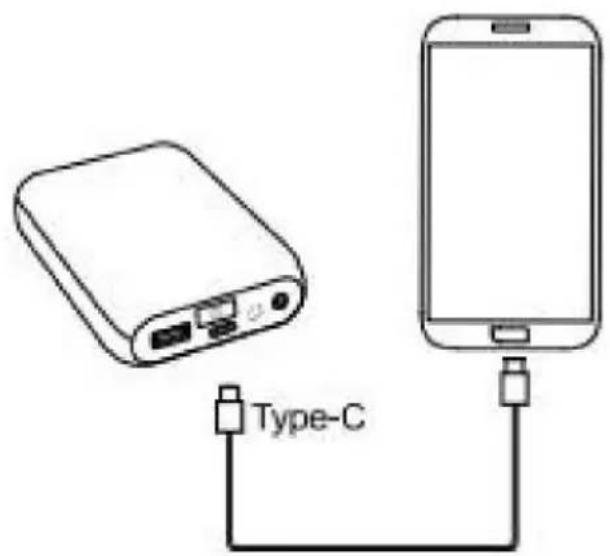

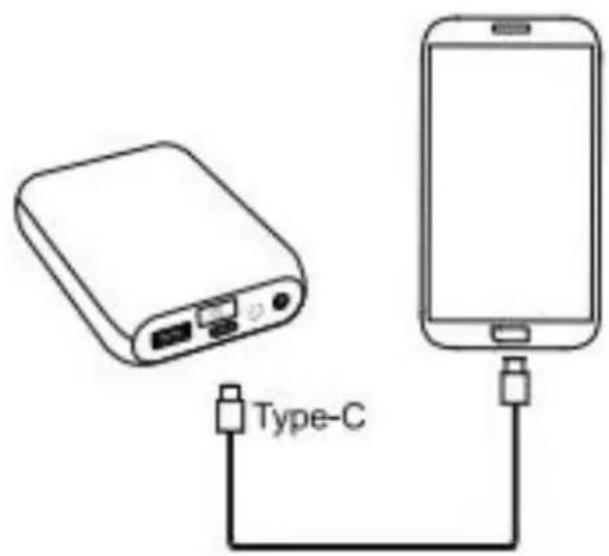

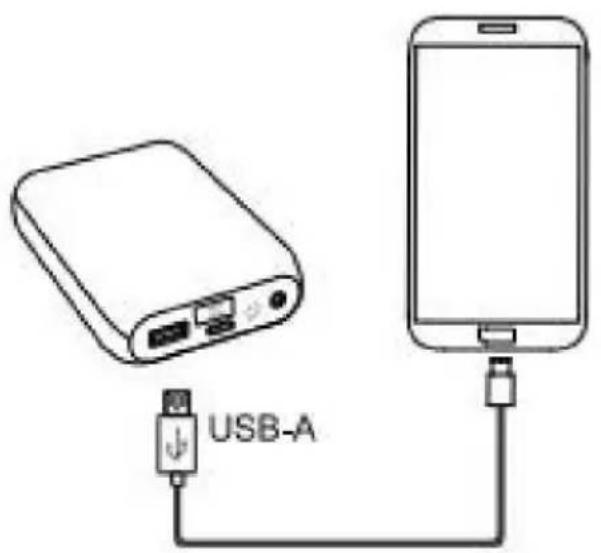

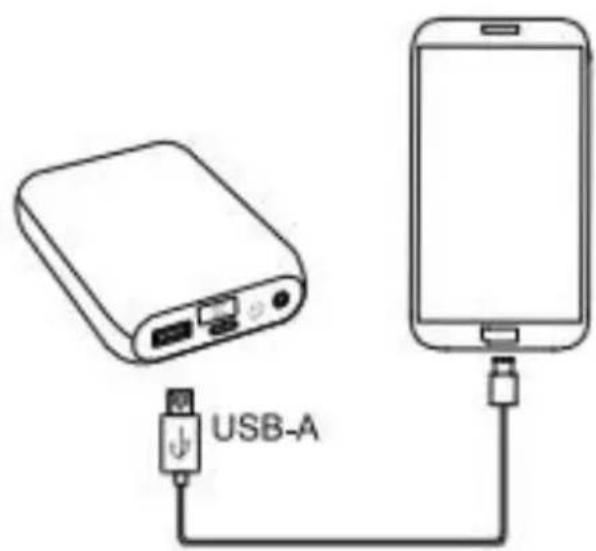

Charge Mobile Phones

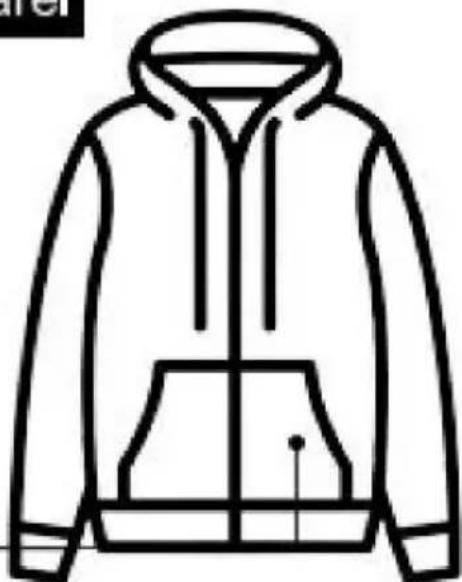

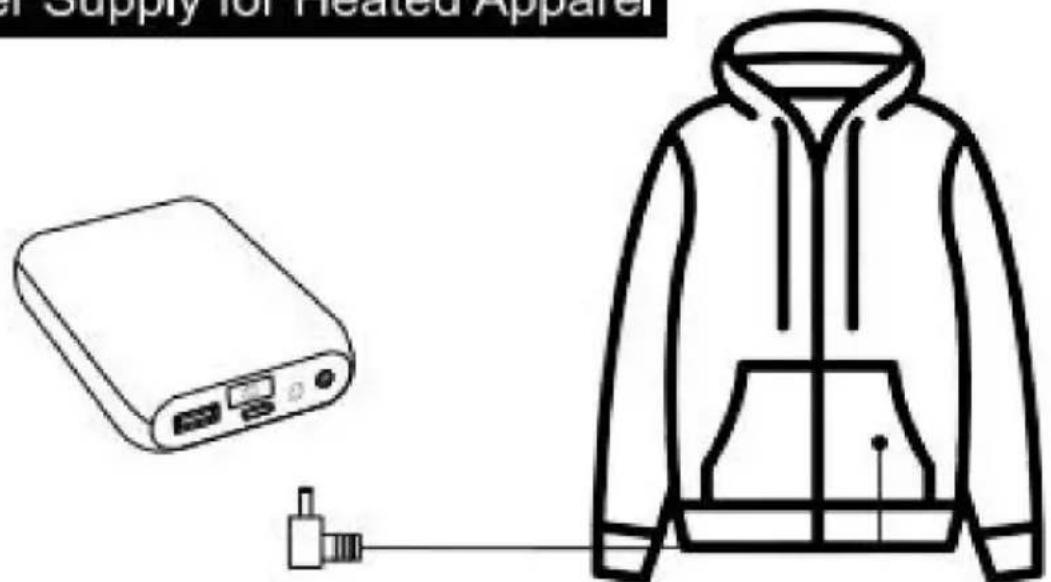

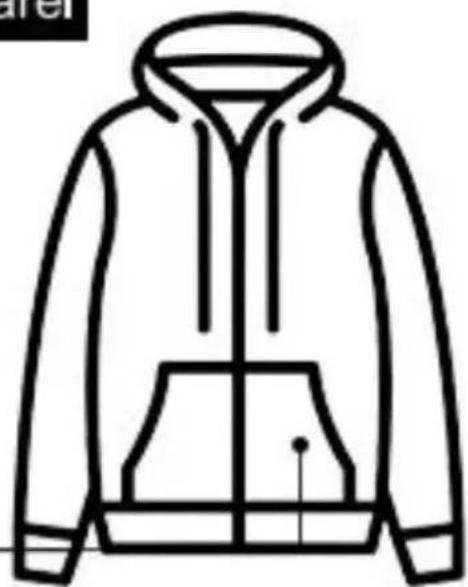

Power Supply for Heated Apparel
Digital Display Screen
PERCENTAGE OF BATTERY
WORKING CURRENT
WORKING VOLTAGE
After the power bank is turned on, Digital Display Screen will show 1 percentage of battery. Pressing the power button each time will switch
display to show the PERCENTAGE OF BATTERY,WORKGCURRENT, and WORKING VOLTAGE.
IMPORTANT SAFETY INSTRUCTIONS
WARNING -When using this product, basic precautions should always be followed, including the following:
a) Read all the instructions before using the product.
b) To reduce the risk of injury, close supervision is necessary when product is used near children.
c) Do not put fingers or hands into the product.
d) Do not expose power bank to rain or snow.
e) Use of a power supply or charger not recommended or sold by p pack manufacturer may result in a risk of fire or injury to persons.
f) Do not use the power bank in excess of its output rating. Over load outputs above rating may result in a risk of fire or injury to persons.
g) Do not use the power bank that is damaged or modified. Damage-modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
h) Do not disassemble the power bank, Take it to a qualified service when service or repair is required. Incorrect reassembly may result in of fire or injury to persons.
i) Do not expose a power pack to fire or excessive temperature. Export to fire or temperature above 60^ may cause explosion. The temperature of 60^ can be replaced by the temperature of 140^ .
j)Have servicing performed by a qualified repair person using only ide replacement parts. This will ensure that the safety of the product is maintained.
k) Switch off the power bank when not in use.
SAVE THESE INSTRUCTIONS
CAUTION
- Risk of Fire and Burns. Do Not Disassemble, Crush, Heat Above60 Incinerate.
FCC Information
CAUTION: Changes or modifications not expressly approved by the paresponsible for compliance could void the user's authority to operate t equipment!
This device complies with Part 15 of the FCC Rules. Operation is such the following two conditions:
1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.
Note: This product has been tested and found to comply with the IIR a Class B digital device pursuant to Part 15 of the FCC Rules, The are designed to provide reasonable protection against harmful interferer in a residential installation.
This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, user is encouraged to try to correct the interference by one or more following measures.
- Reorient or relocate the receiving antenna.
- Increase the distance between the product and receiver.
- Connect the product to an outlet on a circuit different from that to the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for assista
CORRECT DISPOSAL
This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed throat indicates that the product requires separate refuse collection the European Union. This applies to the product and all
accessories marked with this symbol. Products marked as such may be discarded with normal domestic waste, but must be taken to acoll point for recycling electrical and electronic devices.
Manufacturer: Shanghaiuxinmuyeyouxianggsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
UK
REP
YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A
EC
REP
Technical Support and E-Warranty Certificate
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
Assistance technique et certificat de garantie electronique www.vevor.com/support
SWEATS CHAUFFANTS
MODELE:HM-273/HM-275
MODELE:HM-273/HM-275
HM-273
HM-275
BESOIN D'AIDE? CONTACTEZ-NOUS!
Capacity: 16000mAh/3.7V(59.2Wh)
Input: Type-C 5V=3A 9V=2A 12V=1.5A
Output: DC 7.4V=3A
Type-C 5V=3A 9V=2A 12V=1.5A
USB-A 4.5V=5A 5V=3A 9V=2A
12V=1.5A
Charge Power Bank
Charge Mobile Phones
Power Supply for Heated Apparel
Digital Display Screen
PERCENTAGE OF BATTERY
WORKING CURRENT
WORKING VOLTAGE
YH CONSULTING LIMITEE. C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Stainesupon-Thames, Surrey, TW18 4AX
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Francfort-sur-le-Main.
VEVOR
TOUGH TOOLS, HALF PRICE
Assistance technique et certificate de garantie
MODELL: HM-273/HM-275
MODELL: HM-273/HM-275
HM-273
HM-275
Capacity: 16000mAh/3.7V(59.2Wh)
Input: Type-C 5V=3A 9V=2A 12V=1.5A
Output: DC 7.4V=3A
Type-C 5V=3A 9V=2A 12V=1.5A
USB-A 4.5V=5A 5V=3A 9V=2A
12V=1.5A
Charge Power Bank
Charge Mobile Phones
Power Supply for Heated Apparel
Digital Display Screen
PERCENTAGE OF BATTERY
WORKING CURRENT
WORKING VOLTAGE
YH CONSULTING LIMITED. C/O YH Consulting Limited Office
147, Centurion House, London Road, Staines-upon-Thames,
Surrey, TW18 4AX
E-CrossStu GmbH
Mainzer Landstr.69,
60329 Frankfurt am Main.
VEVOR
TOUGH TOOLS, HALF PRICE
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
MODELLO:HM-273/HM-275
MODELLO:HM-273/HM-275
HM-273
HM-275
HO BISOGNO DI AIUTO? CONTATTACI!
Capacity: 16000mAh/3.7V(59.2Wh)
Input: Type-C 5V=3A 9V=2A 12V=1.5A
Output: DC 7.4V=3A
Type-C 5V=3A 9V=2A 12V=1.5A
USB-A 4.5V=5A 5V=3A 9V=2A
12V=1.5A
Charge Power Bank
Charge Mobile Phones
Power Supply for Heated Apparel
Digital Display Screen
PERCENTAGE OF BATTERY
WORKING CURRENT
WORKING VOLTAGE
Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122
Australia
Rancho Cucamonga, CA 91730
| REP. DEL | REGNO UNITO |
YH CONSULENZA LIMITATA. C/O YH Consulting Limited
Office 147, Centurion House, London Road, Staines
upon-Thames, Surrey, TW18 4AX
| REP.CE |
E-CrossStu GmbH
Mainzer Landstr.69,
elettronica www.vevor.com/support
VEVOR
TOUGH TOOLS, HALF PRICE
Soporte专业技术 y certificate de garantia electrònica www.vevor.com/support
SUDADERAS CALEFACTADAS

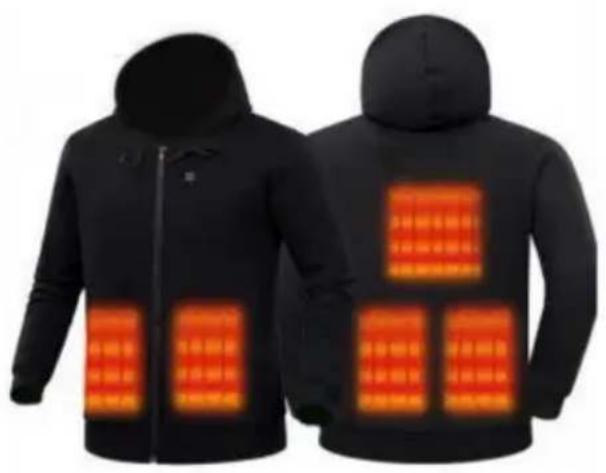

MODELO:HM-273/HM-275
MODELO:HM-273/HM-275
HM-273
HM-275
NECESITAS AYUDA? iCONTÁCTENOS!
Capacity: 16000mAh/3.7V(59.2Wh)
Input: Type-C 5V=3A 9V=2A 12V=1.5A
Output: DC 7.4V=3A
Type-C 5V=3A 9V=2A 12V=1.5A
USB-A 4.5V=5A 5V=3A 9V=2A
12V=1.5A
Charge Power Bank
RanchoCucamonga,CA91730
YH CONSULTING LIMITADO. C/O YH Consulting Limited
Oficina 147, Centurion House, London Road, Staines
uponThames,Surrey,TTW184AX
E:CrossStu:GmbH
MainzerLandstr.69,
