USER MANUAL HM-275 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HEATED SWEATSHIRTS

MODEL:HM-273/HM-275

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:HM-273/HM-275

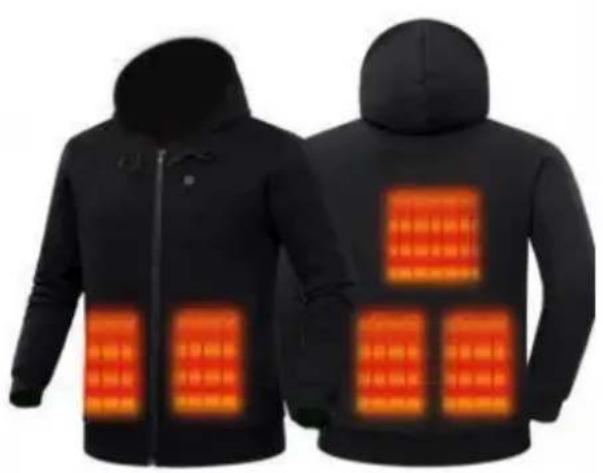

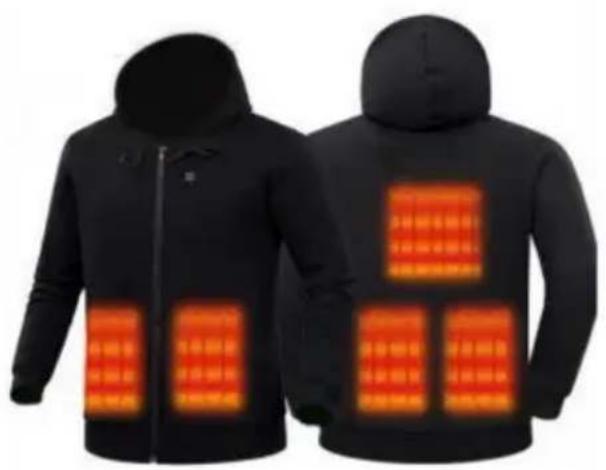

Two hooded black jackets with heatmaps showing heat distribution patterns (no text or symbols)

HM-273 HM-275

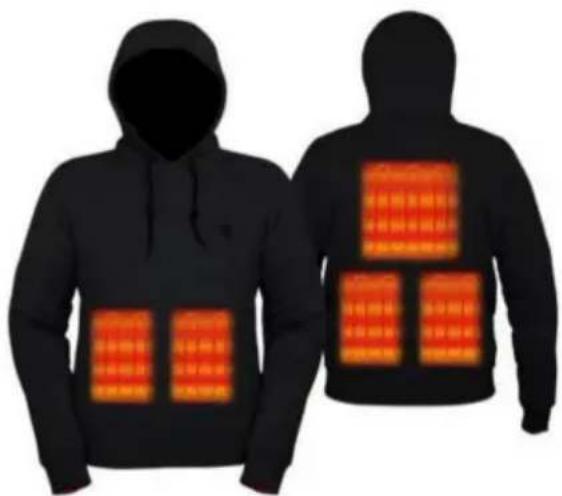

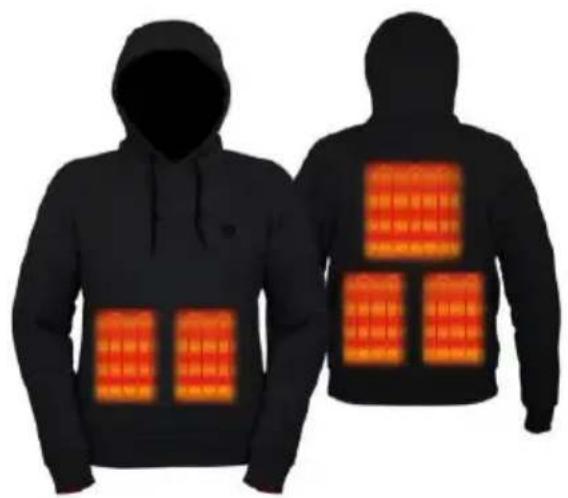

Two silhouettes of hooded garments with heatmaps showing heat distribution patterns (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PARAMETER LIST

Model	HM-273	HM-275
Input voltage(V)	7.4	7.4
Power(W)	13	13
Size	S/M/L/XL/XXL/XXXL	S/M/L/XL/XXL/XXXL

PART LIST

Name	Picture	HM-273	HM-275
Power Bank		1	1
USB Cable		1	1
Clothing		1	1

SECURITY & WARNINGS

1. Do not plug the USB interface of this product directly into the ad
2. For your safety, please turnoff the power before going to bed.

3. Use in the same position of your body, please confirm the skin or remove it immediately if there is any abnormality.

4. Prohibited to stay close to fire, corrosive liquids and various adverse environments.

5. If you feel uncomfortable during use, please stop to use it or use the guidance of a doctor.

OPERATION

1. Plug out the DC connector from clothes pocket. Connect DC conn with Power Bank (at Least 7.4V 3A output, Be sure the power bank qualified 7.4V 3A). Put the power bank in the battery pocket.
2. Press the smart control button for 3-5 seconds to start the heating system. Short press the control button to shift the temperature levels: Red (High), White (Medium), Blue (Low).

Red square button with a white power symbol (no text or numbers)

Icon of a power button symbol (no text or labels)

Blue square button with a black square icon containing a white power symbol (no text or numbers)

High Red 65°C Medium White 55°C Low Blue 45°C

Note: The temperature shown above is the temperature of the heating not the temperature perceived by the human body.

1. Long press the button 3-5 seconds again to turnoff the heating sy
2. Plug off the USB port from battery if you do not use the heating

WASHING INSTRUCTIONS

1. Before washing, remove the power, put the DC connector into you pocket.
2. The product is recommended to wash by hand. If it is washed by machine, it must be washed after being put into the laundry bag.

3. Do not wiring after washing, hang in a cool place to dry.

4. After washing, the product can be used until it is completely dry.

BATTERY INSTRUCTION

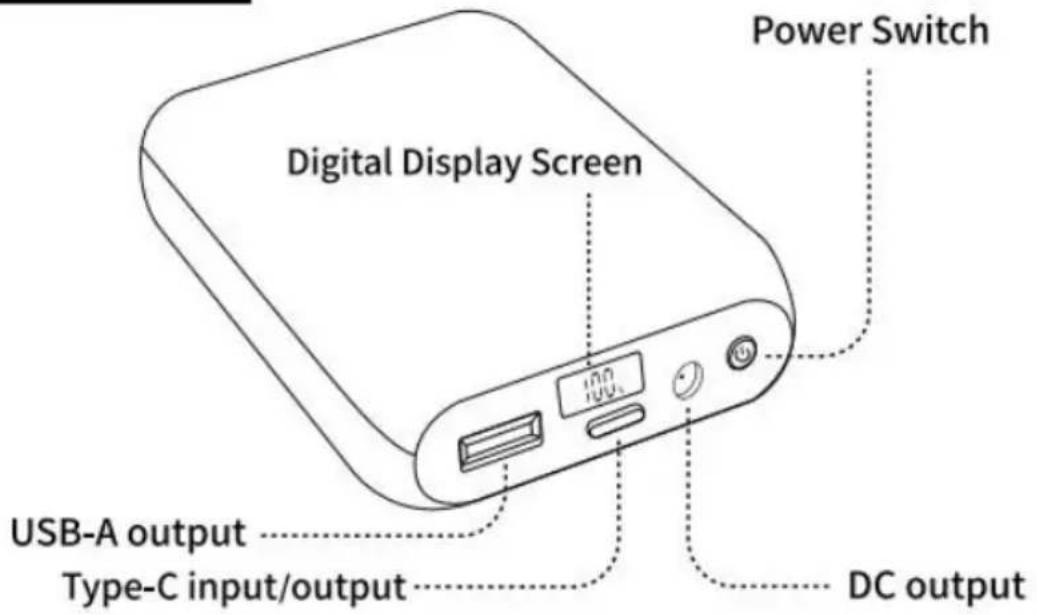

Power Bank

Power Switch Digital Display Screen USB-A output Type-C input/output DC output

Specifications

Capacity: 16000mAh/3.7V(59.2Wh)

Input: Type-C 5V==3A 9V==2A 12V==1.5A

Output: DC 7.4V==3A

Type-C 5V==3A 9V==2A 12V==1.5A

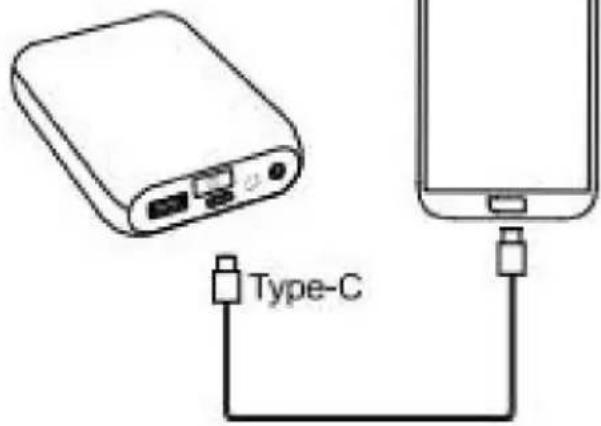

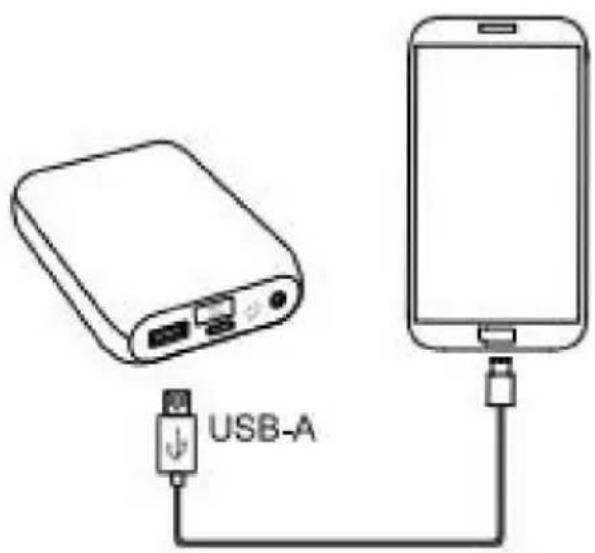

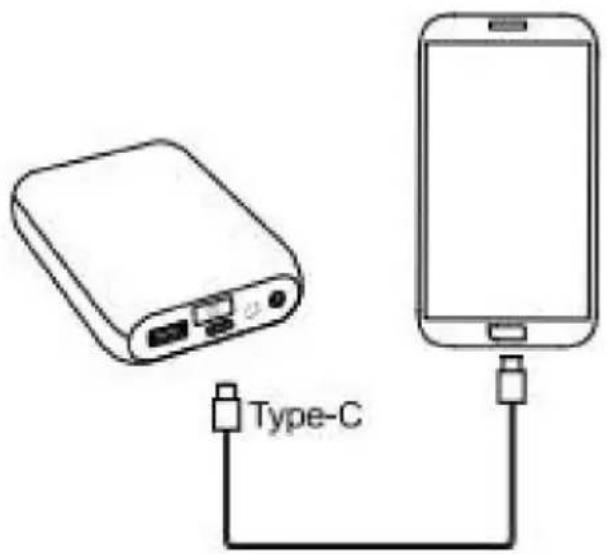

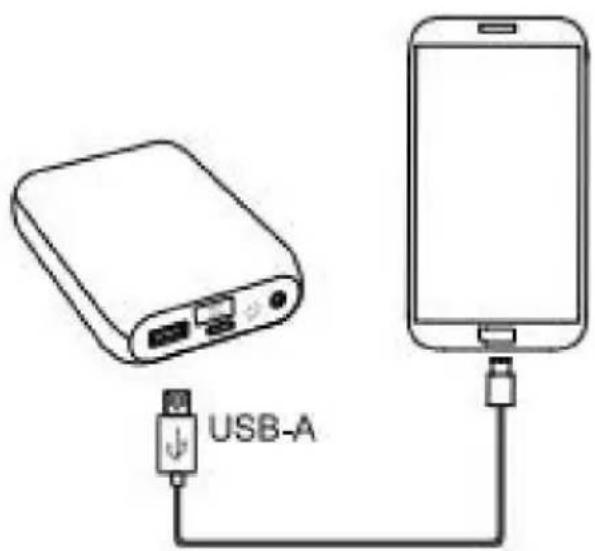

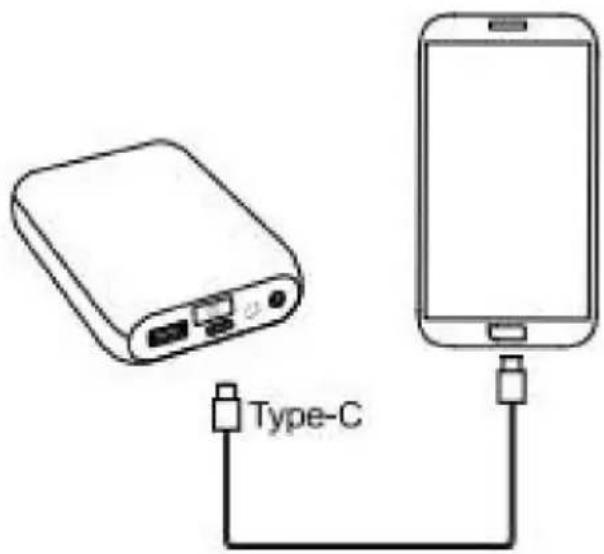

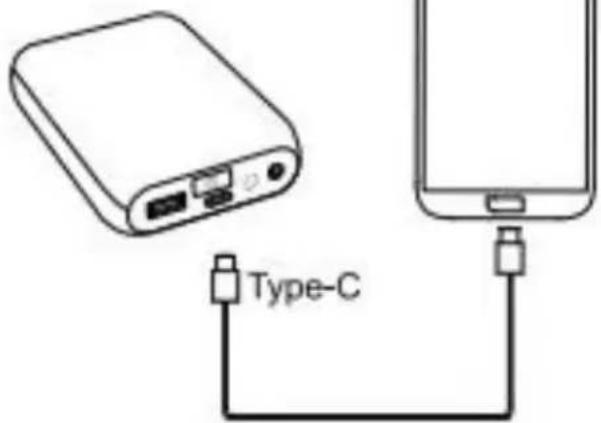

Charge Mobile Phones

USB-A

Type-C

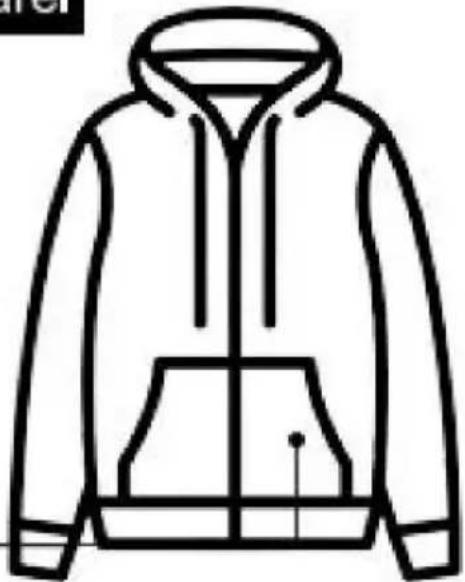

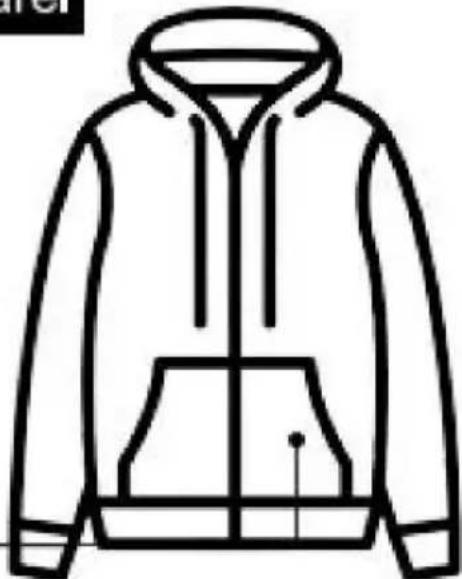

Power Supply for Heated Apparel

Line drawing of a rectangular electronic device with ports and an integrated circuit (no text or symbols)

Line drawing of a jacket with front pocket and side pockets (no text or symbols)

Digital Display Screen

PERCENTAGE OF BATTERY

WORKING CURRENT

WORKING VOLTAGE

After the power bank is turned on, Digital Display Screen will show the percentage of battery. Pressing the power button each time will switch

display to show the PERCENTAGE OF BATTERY, WORKING CURRENT, and WORKING VOLTAGE.

IMPORTANT SAFETY INSTRUCTIONS

WARNING -When using this product, basic precautions should always be followed, including the following:

a) Read all the instructions before using the product.
b) To reduce the risk of injury, close supervision is necessary when product is used near children.
c) Do not put fingers or hands into the product.
d) Do not expose power bank to rain or snow.
e) Use of a power supply or charger not recommended or sold by pack manufacturer may result in a risk of fire or injury to persons.
f) Do not use the power bank in excess of its output rating. Over I, outputs above rating may result in a risk of fire or injury to persons g) Do not use the power bank that is damaged or modified. Damage modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

h) Do not disassemble the power bank, Take it to a qualified service when service or repair is required. Incorrect reassembly may result in of fire or injury to persons.

i) Do not expose a power pack to fire or excessive temperature. Expo to fire or temperature above 60^ C may cause explosion. The temperature of 60^ C can be replaced by the temperature of 140^ F.

j) Have servicing performed by a qualified repair person using only ide replacement parts. This will ensure that the safety of the product is maintained.

k) Switch off the power bank when not in use.

SAVE THESE INSTRUCTIONS

CAUTION

- Risk of Fire and Burns. Do Not Disassemble, Crush, Heat Above60 Incinerate.

FCC Information

CAUTION: Changes or modifications not expressly approved by the pa responsible for compliance could void the user's authority to operate t equipment!

This device complies with Part 15 of the FCC Rules. Operation is such the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the lir a Class B digital device pursuant to Part 15 of the FCC Rules, The are designed to provide reasonable protection against harmful interferer in a residential installation.

This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, user is encouraged to try to correct the interference by one or more following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assista

CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection the European Union. This applies to the product and all

accessories marked with this symbol. Products marked as such may be discarded with normal domestic waste, but must be taken to acoll point for recycling electrical and electronic devices.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODÈLE:HM-273/HM-275

MODÈLE:HM-273/HM-275

Two identical black hooded jackets with heatmaps showing heat distribution patterns (no text or symbols)

HM-273

Two hooded garments with heatmaps showing heat distribution patterns (no text or symbols)

HM-275

BESOIN D'AIDE? CONTACTEZ-NOUS!

Red square button with a white power symbol (no text or numbers)

Rouge élevé 65

Icon of a power button symbol, no text or labels present

Blanc moyen 55

Blue square icon with a white power button symbol (no text or numbers)

Bleu faible 45

Capacity: 16000mAh/3.7V(59.2Wh)

Input: Type-C 5V==3A 9V==2A 12V==1.5A

Output: DC 7.4V==3A

Type-C 5V==3A 9V==2A 12V==1.5A

Charge Mobile Phones

USB-A

Type-C

Power Supply for Heated Apparel

Line drawing of a rectangular electronic device with ports and an indicator lights (no text or symbols)

Line drawing of a hooded jacket with pockets (no text or symbols)

Digital Display Screen

PERCENTAGE OF BATTERY

WORKING CURRENT

WORKING VOLTAGE

YH CONSULTING LIMITÉE. C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT CE

E-CrossStu GmbH Mainzer Landstr.69, 60329 Francfort-sur-le-Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELL: HM-273/HM-275

MODELL: HM-273/HM-275

Two identical black hooded jackets with heatmaps showing heat distribution patterns (no text or symbols)

HM-273

Two hooded garments with heatmaps showing heat distribution patterns (no text or symbols)

HM-275

Red square button with a white power symbol (no text or numbers)

Hoch Rot 65ÿ

Icon of a power button symbol, commonly used for control or activation functions (no text or labels)

Mittelweiß 55ÿ

Blue square icon with a white power button symbol (no text or numbers)

Niedrig Blau 45ÿ

Capacity: 16000mAh/3.7V(59.2Wh)

Input: Type-C 5V==3A 9V==2A 12V==1.5A

Output: DC 7.4V==3A

Type-C 5V==3A 9V==2A 12V==1.5A

Charge Mobile Phones

USB-A

Type-C

Power Supply for Heated Apparel

Line drawing of a rectangular electronic device with ports and an indicator lights (no text or symbols)

Line drawing of a hooded jacket with pockets (no text or symbols)

Digital Display Screen

PERCENTAGE OF BATTERY

WORKING CURRENT

WORKING VOLTAGE

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELLO:HM-273/HM-275

MODELLO:HM-273/HM-275

Two identical black hooded jackets with heatmaps showing heat distribution patterns (no text or symbols)

HM-273

Two hooded garments with heatmaps showing heat distribution patterns (no text or symbols)

HM-275

HO BISOGNO DI AIUTO? CONTATTACI!

Red square button with a white power symbol (no text or numbers)

Rosso alto 65 ÿ

Icon of a power button symbol, commonly used for digital control or battery functions (no text or labels)

Blue square icon with a white power button symbol (no text or numbers)

Capacity: 16000mAh/3.7V(59.2Wh)

Input: Type-C 5V==3A 9V==2A 12V==1.5A

Output: DC 7.4V==3A

Type-C 5V==3A 9V==2A 12V==1.5A

Charge Mobile Phones

USB-A

Type-C

Power Supply for Heated Apparel

Line drawing of a rectangular electronic device with ports and an LCD display (no text or symbols)

Line drawing of a hooded jacket with pockets (no text or symbols)

Digital Display Screen

PERCENTAGE OF BATTERY

WORKING CURRENT

WORKING VOLTAGE

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

YH CONSULENZA LIMITATA. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REP.CE

E-CrossStu GmbH Mainzer Landstr.69, 60329 Francoforte sul Meno.

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELO:HM-273/HM-275

MODELO:HM-273/HM-275

Two identical black hooded jackets with heatmaps showing heat distribution patterns (no text or symbols)

HM-273

Two hooded garments with heatmaps showing heat distribution patterns (no text or symbols)

HM-275

Red square button with a white power symbol (no text or numbers)

Rojo alto 65

Icon of a power button symbol, commonly used for control or action (no text or labels)

Blanco medio 55

Blue square icon with a white power button symbol (no text or numbers)

Capacity: 16000mAh/3.7V(59.2Wh)

Input: Type-C 5V==3A 9V==2A 12V==1.5A

Output: DC 7.4V==3A

Type-C 5V==3A 9V==2A 12V==1.5A

Charge Mobile Phones

USB-A

Type-C

Power Supply for Heated Apparel

Line drawing of a rectangular electronic device with ports and an indicator lights (no text or symbols)

Line drawing of a hooded jacket with pockets (no text or symbols)

Digital Display Screen

PERCENTAGE OF BATTERY

WORKING CURRENT

WORKING VOLTAGE

YH CONSULTING LIMITADO. C/O YH Consulting Limited Oficina 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE DE LA CE

E-CrossStu GmbH Mainzer Landstr.69, 60329 Fráncfort del Meno.

VEVOR®

TOUGH TOOLS, HALF PRICE

Two identical black hooded jackets with heatmaps showing heat distribution patterns (no text or symbols)

HM-273

Two hooded garments with heatmaps showing heat distribution patterns (no text or symbols)

HM-275

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Red square button with a white power symbol (no text or numbers)

Wysoka czerwona

Icon of a power button symbol, commonly used for control or action (no text or labels)

Średni biały 55 °C

Blue square icon with a white power button symbol (no text or numbers)

Capacity: 16000mAh/3.7V(59.2Wh)

Input: Type-C 5V==3A 9V==2A 12V==1.5A

Output: DC 7.4V==3A

Type-C 5V==3A 9V==2A 12V==1.5A

Charge Mobile Phones

USB-A

Type-C

Power Supply for Heated Apparel

Line drawing of a rectangular electronic device with ports and an LCD display (no text or symbols)

Line drawing of a hooded jacket with pockets and shoulder straps (no text or symbols)

Digital Display Screen

PERCENTAGE OF BATTERY

WORKING CURRENT

WORKING VOLTAGE

ODPOWIEDZIALNOŚCIĄ. C/O YH Consulting Limited

Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW1

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

REPREZENT KE

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VERWARMDE SWEATSHIRTS

MODEL:HM-273/HM-275

Two identical black hooded jackets with heatmaps showing heat distribution patterns (no text or symbols)

HM-273

Two hooded garments with heatmaps showing heat distribution patterns (no text or symbols)

HM-275

HULP NODIG? NEEM CONTACT MET ONS OP!

Red square button with a white power symbol (no text or numbers)

Hoog Rood 65ÿ

Icon of a power button symbol, commonly used for control or action (no text or labels)

Middelwit 55ÿ

Blue square icon with a white power button symbol (no text or numbers)

Laag Blauw 45ÿ

Capacity: 16000mAh/3.7V(59.2Wh)

Input: Type-C 5V==3A 9V==2A 12V==1.5A

Output: DC 7.4V==3A

Type-C 5V==3A 9V==2A 12V==1.5A

Charge Mobile Phones

USB-A

Type-C

Power Supply for Heated Apparel

Line drawing of a rectangular electronic device with ports and an LCD display (no text or symbols)

Line drawing of a hooded jacket with pockets and shoulder straps (no text or symbols)

Digital Display Screen

PERCENTAGE OF BATTERY

WORKING CURRENT

WORKING VOLTAGE

YH CONSULTING LIMITED. C/O YH Consulting Limited

Office 147, Centurion House, London Road, Staines-upon-

Thames, Surrey, TW18 4AX

EG REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELL: HM-273/HM-275

MODELL: HM-273/HM-275

Two identical black hooded jackets with heatmaps showing heat distribution patterns (no text or symbols)

HM-273

Two hooded garments with heatmaps showing heat distribution patterns (no text or symbols)

HM-275

BEHÖVS HJÄLP? KONTAKTA OSS!

Red square button with a white power symbol (no text or numbers)

Hög röd 65 y Obs:

Icon of a power button symbol, commonly used for digital control or battery functions (no text or labels)

Medium vit 55ÿ

Blue square icon with a white power button symbol (no text or numbers)

Lågblå 45ÿ

Capacity: 16000mAh/3.7V(59.2Wh)

Input: Type-C 5V==3A 9V==2A 12V==1.5A

Output: DC 7.4V=3A

Type-C 5V==3A 9V==2A 12V==1.5A

Charge Mobile Phones

USB-A

Type-C

Power Supply for Heated Apparel

Line drawing of a rectangular electronic device with ports and an indicator lights (no text or symbols)

Line drawing of a hooded jacket with pockets (no text or symbols)

Digital Display Screen

PERCENTAGE OF BATTERY

WORKING CURRENT

WORKING VOLTAGE

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

www.vevor.com/support
