USER MANUAL AY460-2 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Tomato Slicer

MODEL:AY460-1/AY460-2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Tomato Slicer

MODEL:AY460-1/AY460-2

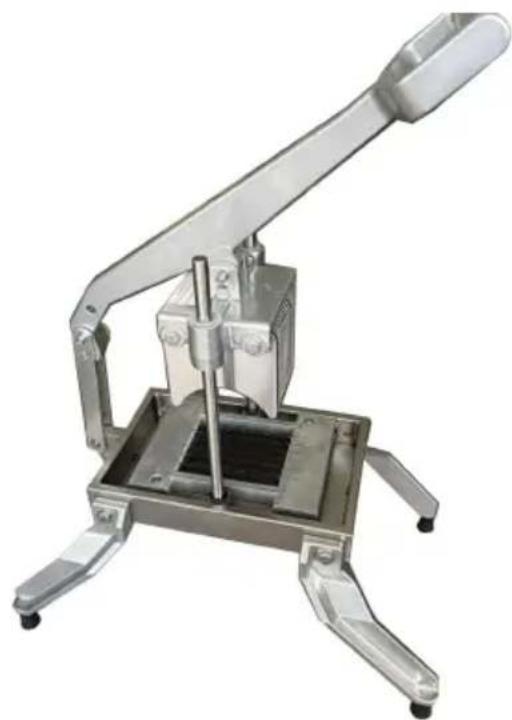

Metal kitchen knife with lever mechanism (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

Warning-To reduce the risk of injury, user must read instruction manual carefully. Always follow basic safety precautions when using these devices. These include:

PLEASE NOTE:

To get the maximum life and most efficient operation of your equipment please comply with all the instructions below. Clean the equipment thoroughly before the first use and after each use. Avoid using high alkalinity cleaners as they may cause the casting to become dull, dis or dent.

SAFETY NOTE:

The blades on this equipment are VERY SHARP! Use extreme care handling and operating this equipment, and always keep your hands of the cutting area while using this equipment!

ASSEMBLY: Install the legs on the frame using the bolts, washers, a wrench provided.

OPERATION:

1. Place equipment on a sturdy firm work surface.
2. Prepare the tomatoes (Cut offends of the onion and peel).
3. Lift up the pusher assembly and place the tomatoes in the center blades. Ensure that fingers and hands are clear of the cutting area. lever down with one strong, quick, fluid mount, forcing the product that the blades. Repeat as necessary until you have cut the amount of p necessary.

Knife plate assembly

The 1/4 blade assembly consists of two 1/2 blade assemblies. It can be used as a single piece or stacked as two pieces (a single blade can

1/2 thickness, and two stacked pieces can slice 1/4 thickness) The 3/16 blade assembly consists of two 3/8 blade assemblies. It can be used as a single piece or stacked as two pieces (a single blade can 3/8 thickness, and two stacked pieces can slice 3/16 thickness)

Note: The 1/4 blade assembly cannot be stacked with the 3/16 blade assembly

Replacing the blade:

Remove the original blade assembly from the machine (it can be eas removed by hand) and install the blade assembly that needs to be r (the hole on the blade is installed on the positioning column on the machine), as shown in the following figure

CLEANING:

1、Remove the pin from the lever and pusher. Lift the pusher off the rods. Lift the blade assemblies, one at a time, off the positioning pin at a time.

NOTE: Blades are very sharp – use extreme care when handling the assembly!

2、Use warm water and a mild detergent to clean all the components desired. A nylon brush can clean debris from the pusher and the blade assembly.

3、Allow equipment to air dry.

If the pusher is hard to slide after it has dried, you can apply a fo lubricant to the guide rods. DO NOT use vegetable oil, as this may the pusher sticky and hard to slide.

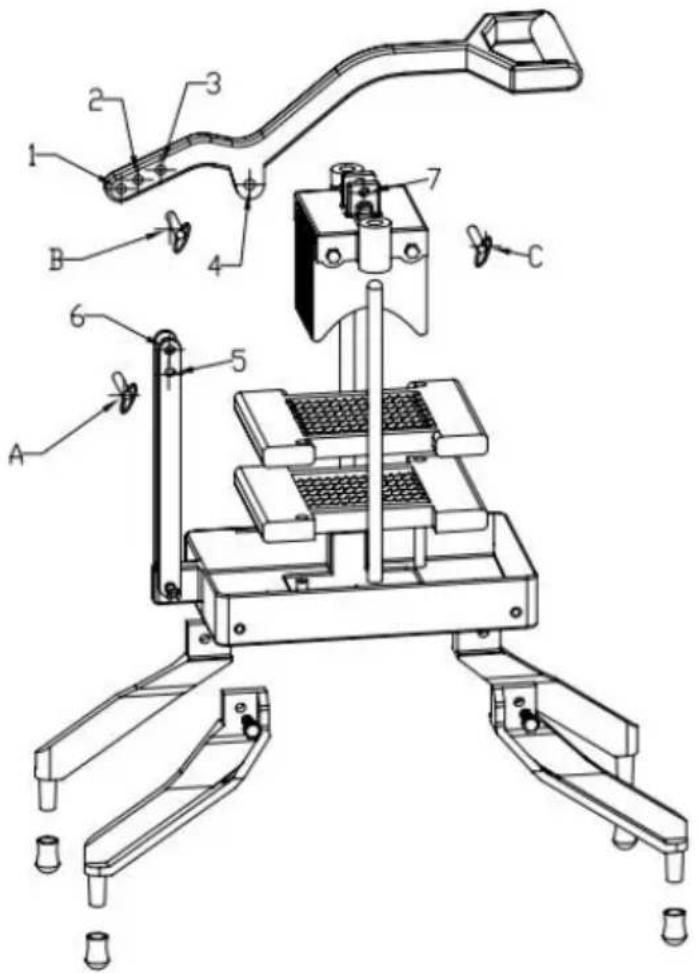

Available service parts are noted on the drawing below

Technical diagram of a robotic device with numbered components and labeled parts

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

SHUNSHUN GmbH Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten, Germany [e-mail] [phone] Pooledas Group Ltd Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom [e-mail] 01772418127

Made In China
