USER MANUAL 3BDPC3.0-50-D48-400 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support

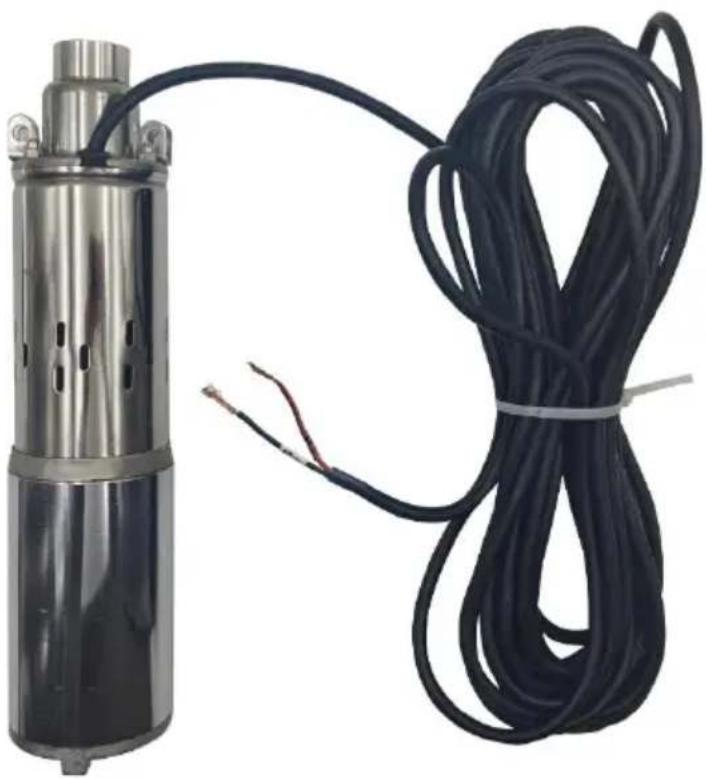

SOLAR WATER PUMP
MODEL:3BDS2.0-50-D24-250、3BDPC3.0-50-D48-400
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
| Warning-To reduce the risk of injury, user must read instructions manual carefully. | |
| This device complies with Part 15 of the FCC Rules. Operat subject to the following two conditions:(1)This device may not harmful interference, and (2)this device must accept any inter received, including interference that may cause undesired oper | |
| This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling elec tri electronic devices |
WARNING
DO NOT use any Submersible pump for petrol/gasoline, petroleum products.solvents, thinners or ANY other flammable liquid with flash point below 82^(180^) . NOT FOR USE where flammable vapors are present.
BEFORE CONNECTING OR OPERATING THIS PRODUCT, PLEASE READ THESE INSTRUCTIONS COMPLETELY.
PRODUCT OVERVIEW
- DC deep well electric pump 12V, 24V, 36V, 48V, 60V, 72V adopts brush DC motor; Since the DC carbon brush motor has the structure ac motor, it can run By, easy to maintain a series of advantages, the dc motor running power Many advantages, such as high rate, no excitation loss and good speed regulation performance, are increasing popular in various fields of the national economy.
- The electric pump is made of high-quality screw or impeller and sta steel, which has the characteristics of low power consumption high large flow, compact structure, novel advanced light and durable, east maintain and so on. Dc 12v,24V, 36V 48V 60V,72Velectric pump is suitable for power supply with corresponding voltage, All kinds of sh and aquaculture. The water supply and drainage of grassland anima husbandry and mining enterprises is portable ideal water carrier.
INSTRUCTIONS FOR USE
- Before use, check that the supply voltage is consistent with the purthe voltage tolerance is 5% .
- When using additional cables, the wire diameter of the drawer wire should be thick enough.
- Before use, check whether the bolts are loose and whether there is damage or bad contact at the power cord and the insertion cord.
- The lift and release of the electric pump should be tied to the lift hand put, do not pull the cable.
- Water if there are sand and other sundries, the electric pump shoul placed in a basket or with prevention Dirt and sundries are set an to prevent water pump from blocking.
- After 500 hours of power operation, the pump shall be removed. For maintenance, the seals shall be checked, the brush powder of commutator shall be cleaned, and the bearing butter and carbon brush shall be replaced.
- Before use, please determine the positive and negative poles of the water pump and the power supply, and the positive and negative pole the water pump should correspond to the positive and negative pole the power supply. (Connect the positive and negative electrodes, and press the screws on the inside of the outlet to fix the screws and them forward).
- Check the voltage of the solar photovoltaic panel/battery before use, voltage of the water pump needs to be matched with the voltage of solar photovoltaic panel/battery.
- The water depth of the pump shall not exceed 20 meters, otherwise water pressure is too high and the oil seal cannot bear it, which to the water inflow of the motor (Household electricity is strictly prohibited)!
TECHNICAL SPECIFICATIONS
| Voltage range | 24V-42V DC 5% |
| Optimum operating voltage | 24V-36VDC 5% |
| Rated power | 277W |
| Maximum head | 272FT |
| Maximum flow rate | 9.25GPM |
| Outlet thread specifications | 1-inch (Barbed) BSPP(BSW) |
| Rated speed | 4000 rpm |
| Pump body material | Iron + stainless steel |
| Voltage range | 48V-82V DC 5% |
| Optimum operating voltage | 48V-72V 5% |
| Rated power | 369W |
| Maximum head | 275FT |
| Maximum flow rate | 8.4GPM |
| Outlet thread specifications | 1-inch (Barbed) BSPP(BSW) |
| Rated speed | 4000 rpm |
| Pump body material | Iron + stainless steel |
ACCESSIONS LIST
- Solar water pump *1
- Barb interface *1
- Rubber seals *1
- Manual book *1
INSTALLATION
- You may need combinations of panels, especially for the larger pump. During connection of solar panels, you have to get the solar panel series in a line to reach the rated voltage of the pump. Then get lines mentioned in parallel to reach the rated current of the pump.

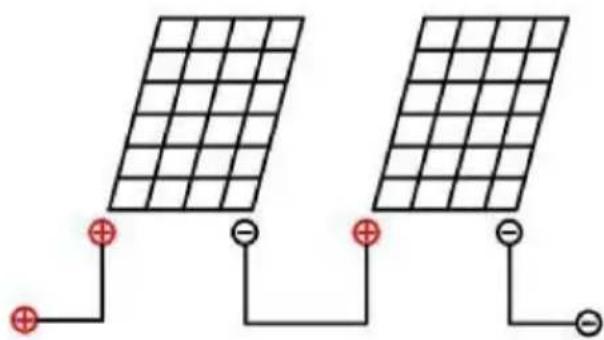

series

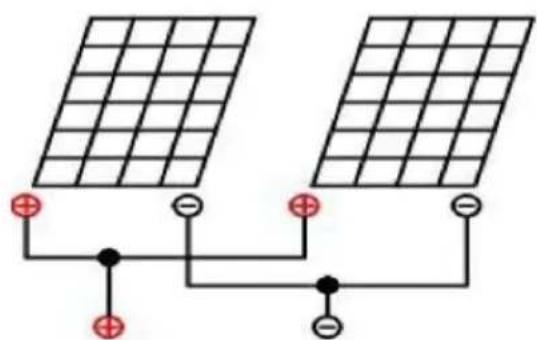

parallel

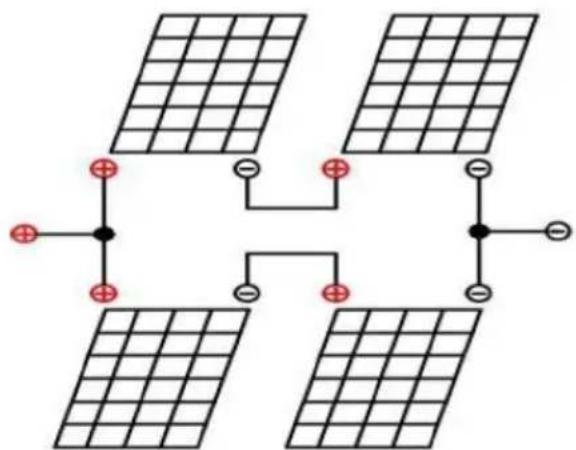

series and parallel
Tips:
- Panels in series, add the voltage current remains unchanged
-
Panels in parallel, add the current the voltage remains unchanged
-
You will need to buy battery if you want to pump water when it is sunny.
- You must use deep cycle batteries not car batteries. Deep cycle ba are designed to take much lower continual discharges than regular batteries.
- Please note even with a deep cycle battery discharging it to a low will shorten its life, this is why we use 60% as a discharge leve

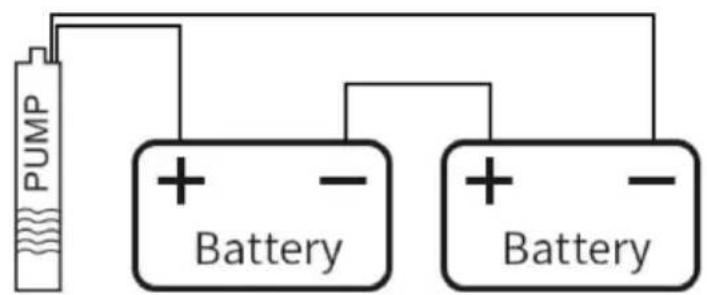

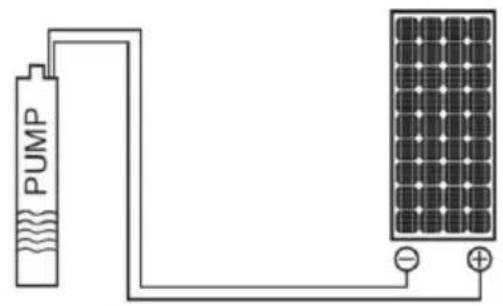

24V Solar water pump
Solar panel: each panel working voltage/power >30V/250W
Battery: 12V battery x 2pcs

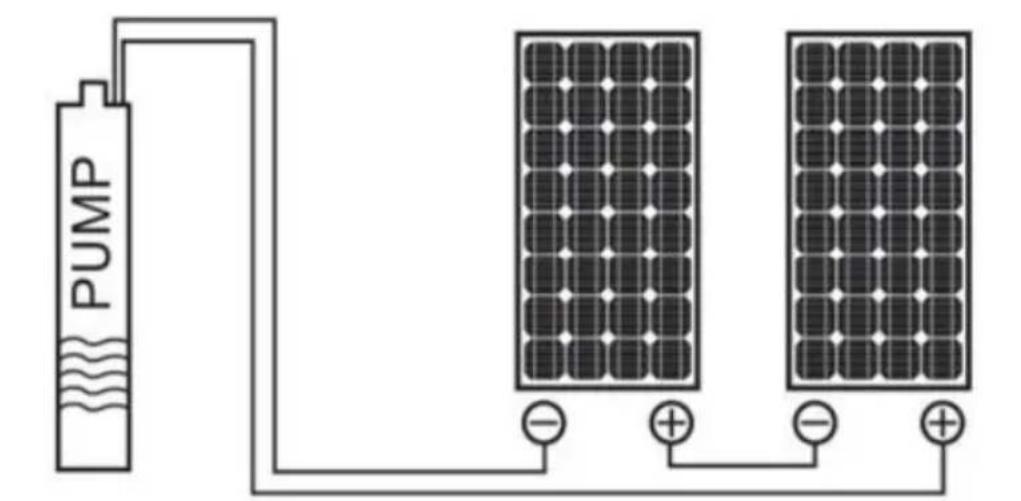

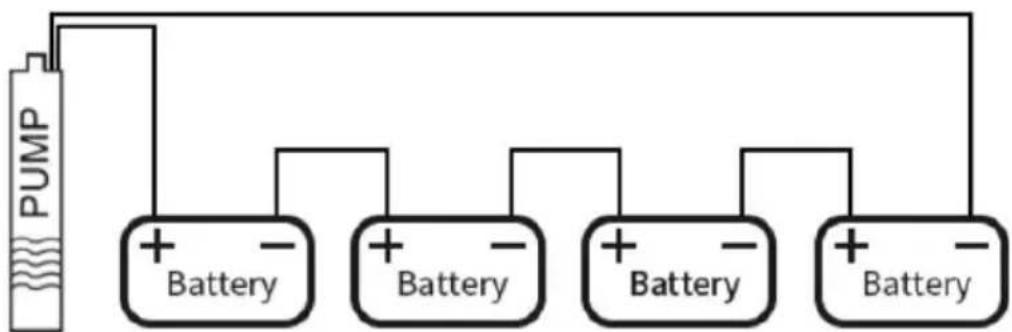

-48V Solar water pump
Solar panel: each panel working voltage/power
Battery: 12V battery x 4pcs
TROUBLESHOOTING
| The fault Phenomenor | The cause of the Problem | Fault elimination |
| The electric pump won't give water | 1.Power supply cut off or bad contact. 2.The impeller or screw is stuck Debris 3.Low inlet water level | 1.Check whether the line socke is in good contact. 2.Remove impurities in the filter screen and pump 3.Put the pump in water with water level higher than the fi screen |
| Reduced water output | 1.Low power supply, not up to ra Speed. 2.The filter screen or impeller or screw Is obstructed by sundries. 3.the additional wire diameter is too small.the resistance is too large. 4.The water outlet is higher than maximum head of the pump. 5.impeller or screw wear. 6.carbon brush wear, spring elasti Is insufficient. | 1.improve the power supply. 2.Remove debris from the inside of the filter impeller or screw. 3Replace the cable with a thick enough diameter, but not more than the diameter of the inlet the pump. 4.Lower the discharge head of water pipe. 5adjust the impeller or screw pump body clearance or replace impeller or screw blade. 6.Replace the carbon brush. |
| Abnormal sound | bearing wear clearance is too large | Update the internal bearings |
