Brand	Scheppach
Model	MS197-51E-3W
Product type	Gasoline lawn mower
Engine	4-stroke, air-cooled, 173 cm³
Power	3.0 kW (4.1 HP)
Rated speed	2800 rpm
Fuel	Unleaded gasoline (max 10% bioethanol)
Gas tank capacity	1.0 L
Engine oil	SAE 30 / 10W-30 / 10W-40, capacity 0.4 L
Cutting width	51 cm
Cutting height	25-75 mm, 7 positions
Grass catcher capacity	65 L
Weight	33 kg
Starting system	Recoil starter and electric starter (Li-ion battery optional)
Transmission	Rear drive (self-propelled)
Sound pressure level	85 dB(A)
Sound power level	96.1 dB(A)
Vibrations (hand-arm)	7.218 m/s²
Cutting functions	Mowing, mulching, side discharge
Safety	Engine brake, stop lever, anti-throw protection
Routine maintenance	Cleaning after each use, oil change before season, air filter and spark plug cleaning
Wear parts	Blade, spark plug, air filter, drive belt, battery

Frequently Asked Questions - MS197-51E-3W SCHEPPACH

What type of engine oil to use and how much?

Use engine oil SAE 30, 10W-30 or 10W-40. The capacity is 0.4 liters. Check the level with the dipstick without screwing it in.

How to adjust the cutting height?

The cutting height is adjusted via a lever on each wheel. There are 7 positions from 25 to 75 mm. Make sure the adjustment is identical on both sides and that the engine is stopped.

How to start the lawn mower?

Press the engine brake lever against the handlebar. In cold weather, activate the choke. Pull the starter cord vigorously or use the electric starter (battery optional).

When and how to drain the engine oil?

Drain the oil before each season, with the engine warm. Place a container under the mower, unscrew the dipstick and tilt the machine to drain. Fill with 0.4 L of new oil.

How to maintain the blade?

The blade must be sharpened by a professional if it is blunt. Replace it if it is damaged or deformed. The tightening torque is 45 Nm. Always use original blades.

What to do if the engine does not start?

Check: Is the engine brake lever pressed? Does the tank contain clean gasoline? Are the spark plug and air filter clean? In cold weather, use the choke.

How to clean the lawn mower?

After use, tilt the mower and clean the underside with a cloth or a low-pressure water jet. Use the hose connection provided for this purpose. Do not use a high-pressure cleaner.

Which gasoline to use?

Use unleaded gasoline with a maximum of 10% bioethanol. Never mix oil with gasoline. The tank has a capacity of 1 liter.

How to store the mower in winter?

Empty the gas tank with a pump, run the engine until it stops. Drain the oil and add 20 ml of oil into the cylinder through the spark plug hole. Clean the machine and store it in a dry, ventilated place.

What accessories are available?

Accessories include: grass catcher (65 L), mulching kit, side discharge adapter, and battery/charger for the electric starter (20V IXES series).

USER MANUAL MS197-51E-3W SCHEPPACH

scheppach 407-515 2W https://www.scheppach.com/

https://www.scheppach.com/de/service

scheppach

MS197-51E-3W

DE	Benzin RasenmäherOriginalbetriebsanleitung	08
GB	Petrol lawn mowerTranslation of original instruction manual	26
FR	Tondeuse thermiqueTraduction des instructions d'origine	43

Close-up of a mechanical component with hoses and a central hole, no visible text or symbols

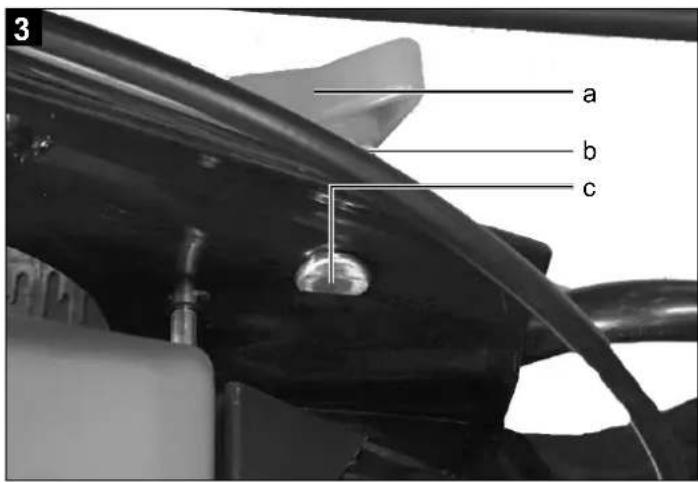

3 a b c

Close-up of a hand using a tool to adjust or install a black mechanical component, with arrows indicating motion (no text or symbols)

Close-up of a mechanical component with a metallic rod inserted, showing no visible text or symbols.

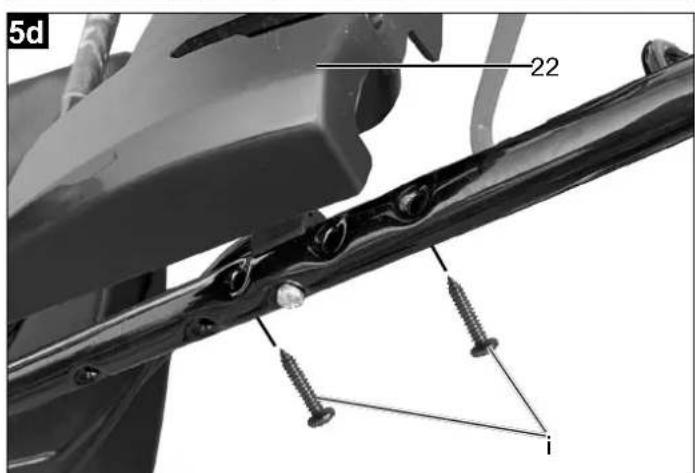

5d 22

6

5a Chipped 5

7

Close-up of a black cable with a knotted circular component and a numbered label '8' pointing to it (no text or symbols beyond the number)

8 19

Close-up of a person using a lawn mower to adjust equipment, no visible text or symbols

10 11 e

Interior view of a vehicle chassis showing front wheel, rear wheels, and internal structural components (no text or symbols)

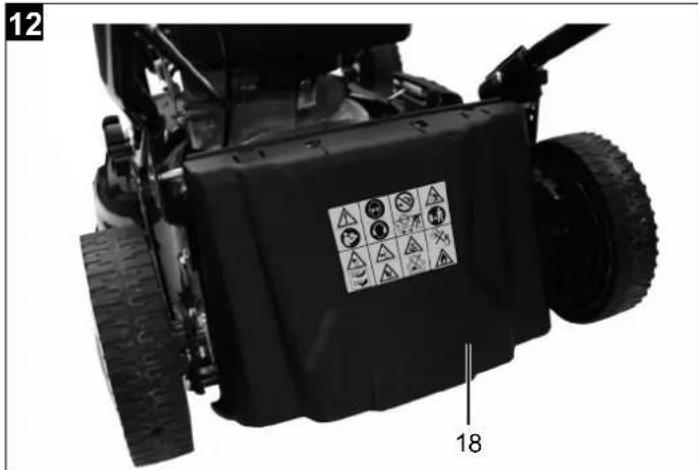

12 18

13 14 14

14 3 1 5a 22

Close-up of a car's front bumper and dashboard components, showing hand positioning and mounting features (no text or symbols visible)

Close-up of hands installing or adjusting a lawn mower component with visible wiring and a mounted fan (no text or symbols)

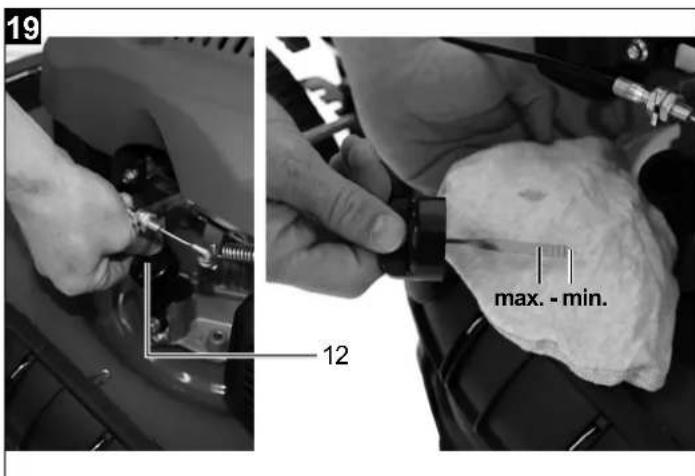

19 12 max. - min.

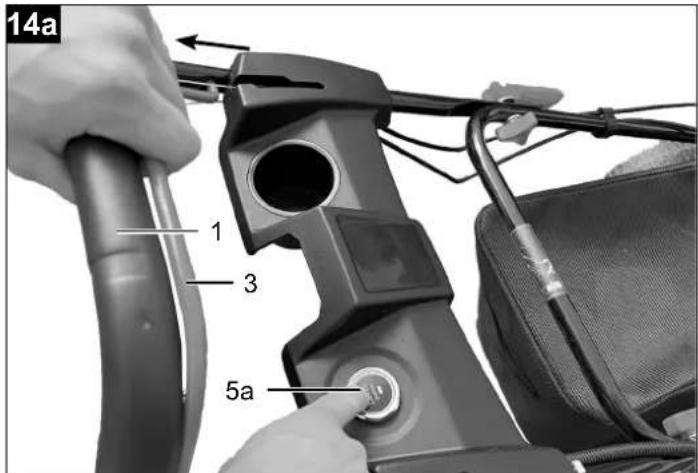

14a 1 3 5a

Close-up of a lawn mower component with visible tire, blade, and housing (no text or symbols)

Mechanical component assembly showing a blade, gear, and housing (no visible text or symbols)

Close-up of mechanical components with arrows indicating motion direction (no text or symbols visible)

Close-up of a car's front bumper panel with a close-up of its internal components (no visible text or symbols)

h 0.75mm h

Black-and-white photo of a lawn mower with attached motors and headboard (no visible text or symbols)

Close-up of a mechanical component with a transparent tray and internal cavity, no visible text or symbols

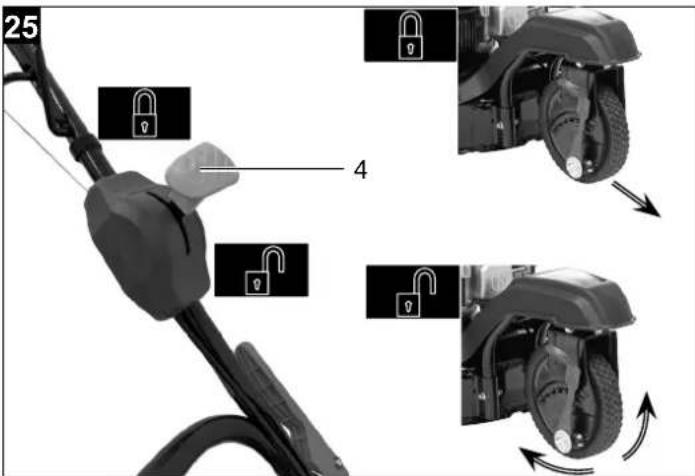

25 4

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

https://www.scheppach.com/de/service scheppach

Explanation of the symbols on the equipment

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Observe all safety instructions before use.
	Caution - Read the operating instructions to reduce the risk of inquiry!
	On a slope, do not mow uphill or downhill.
	Before operating the lawn mower, remove lawn debris which may be ejected by the blade.
	There is a risk of debris being ejected when the engine is running. Make sure you keep a safe distance.
	Make sure other people also keep a safe distance.
	Remove the ignition cable before all maintenance work, and read the instructions for use.
	Warning! Risk of injury! Do not let your hands or feet come in contact with the blades when the motor is running.
	Important. Exhaust gas is poisonous, do not operate in an unventilated area.
	Danger - Hot surface!
	Wear ear-muffs and safety goggles!
	Attention! Operating materials are flammable and explosive.Do not fill with fuel while the motor is hot or running.
	Fuel tank capacity
	Engine oil
	Length knives. Max. Cutting width
	Guaranteed sound power
	The product complies with the applicable European directives and an evaluation method of conformity for this directives was done.
	Primer-Button (if present)
	Check oil level
	DRIVE - Drive leverSTOP - Engine brake lever
⚠ Attention!	In this operating manual, we have used this sign to mark all sections that concern your safety.

Table of contents: Page:

1. Introduction......29
2. Device description (Fig. 1)......29
3. Scope of delivery (Fig. 1)....29
4. Proper use....29
5. Safety instructions....30
6. Technical data 32
7. Unpacking 33
8. Assembly / Before commissioning 33
9. Start up....34
10. Cleaning 37
11. Transport 37
12. Storage....38
13. Maintenance....38
14. Disposal and recycling 40
15. Troubleshooting....42
16. Declaration of conformity 63

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer

We hope your new device brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Improper handling
• Failure to comply with the operating instructions
• Repairs carried out by third parties, unauthorised specialists
• Installing and replacing non-original spare parts
  • Application other than specified
• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE0113 not being observed

Note:

Read through the complete text in the operating manual before installing and commissioning the device.

This operating manual should help you to familiarise yourself with your device and to use it for its intended purpose.

The operating manual includes important instructions for safe, proper and economic operation of the device, for avoiding danger, for minimising repair costs and downtimes, and for increasing the reliability and extending the service life of the device.

In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the device in your country.

Keep the operating manual at the device, in a plastic sleeve, protected from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work.

The device may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards. The required minimum age must be observed.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

2. Device description (Fig. 1)

1. Handle
2. Drive lever
3. Engine brake lever
4. Locking lever

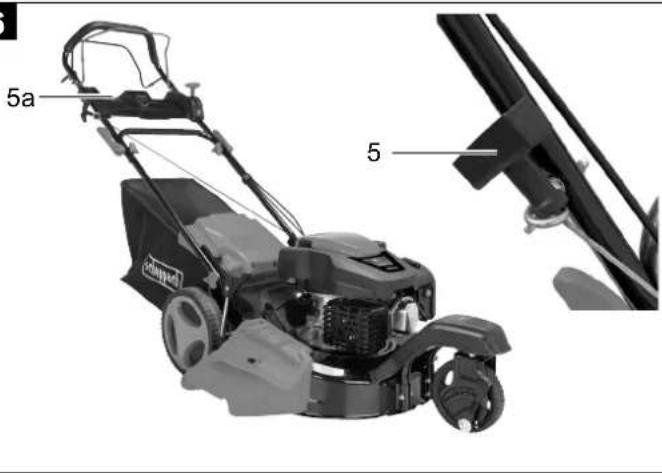

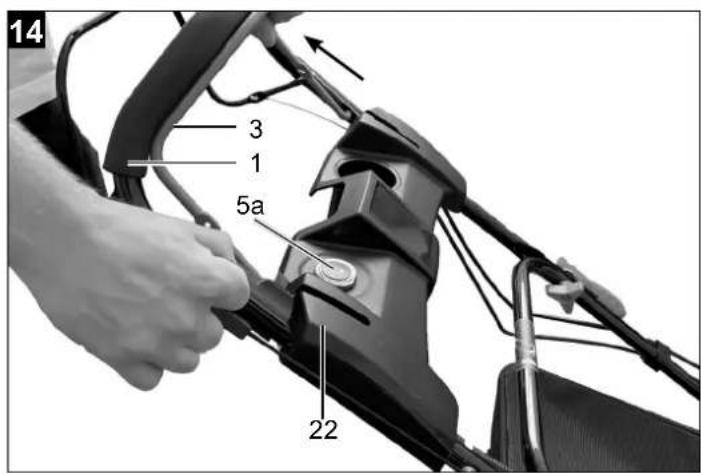

5. Cable starter / 5a Electric starter
6. Upper push bar
   6a. Lower push bar

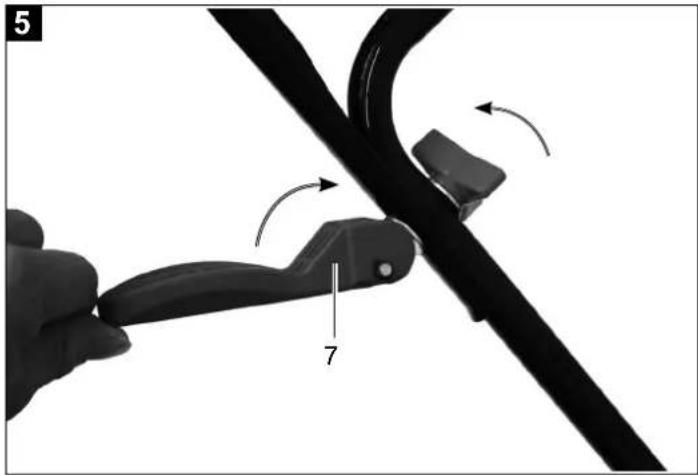

7. Quick clamp lever
8. Cable clip
9. Fuel tank

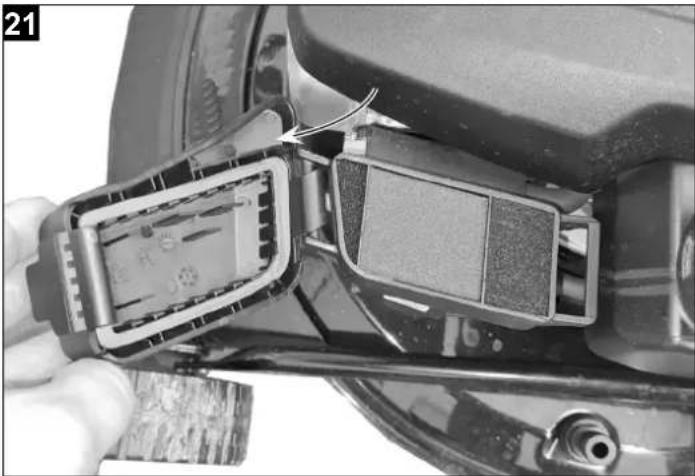

10. Air filter
11. Primer button
12. Oil dipstick
13. Exhaust pipe

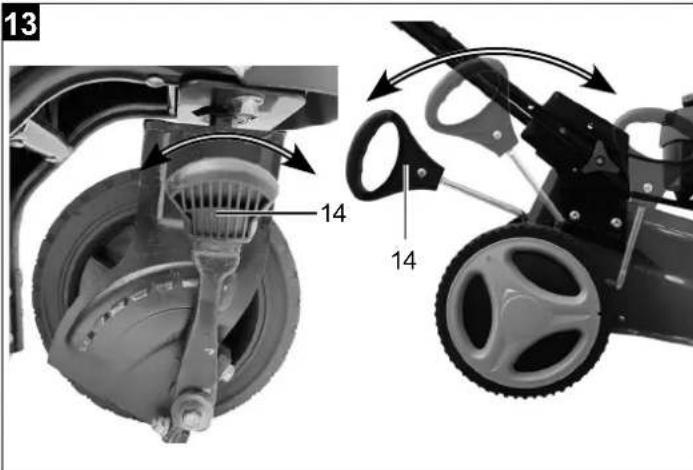

14. Wheel height adjustor lever
15. Front wheel

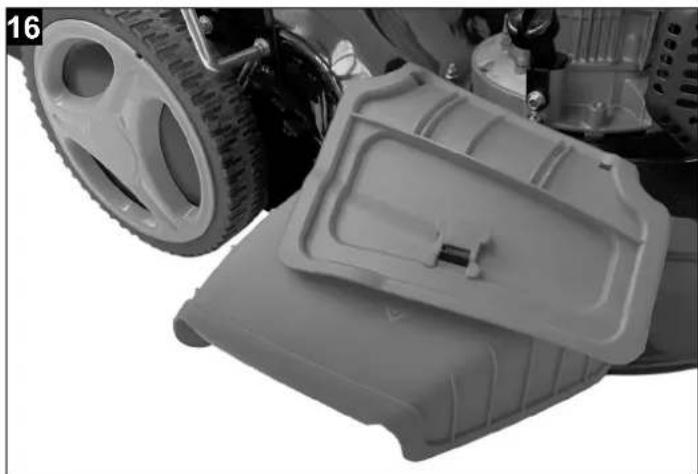

16. Side discharge flap
17. Drive wheel
18. Discharge flap

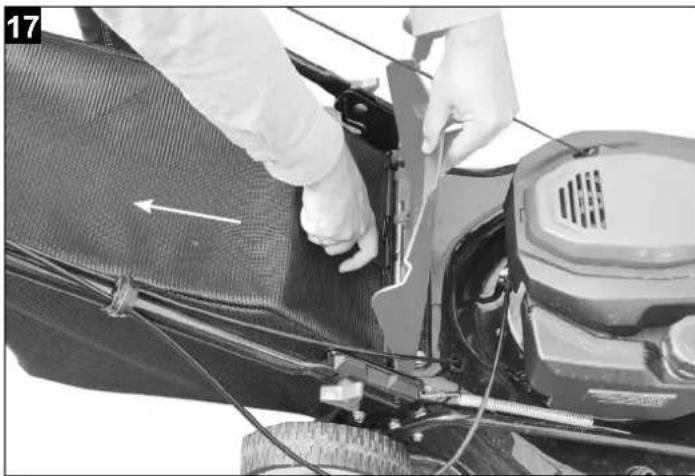

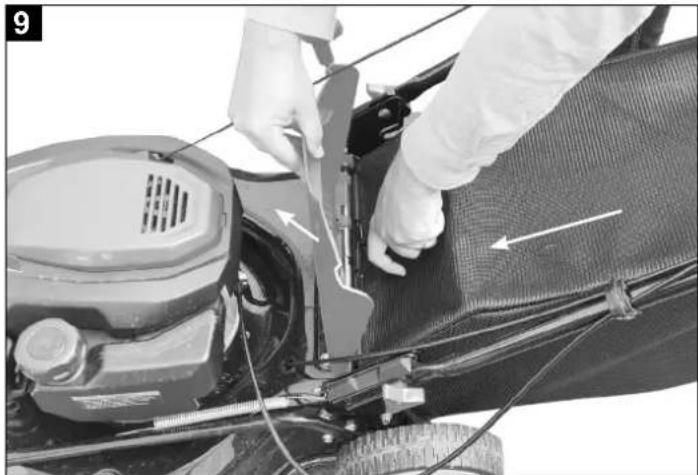

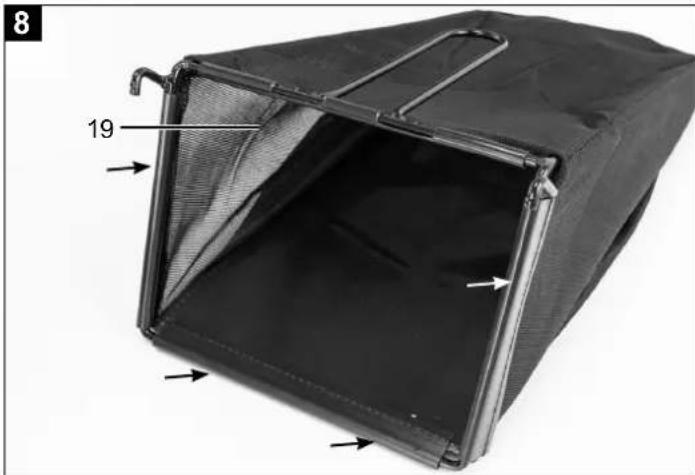

19. Catch basket
20. Battery*
21. Battery charger*
22. Electric starter unit

* = may not be included in the scope of delivery!

3. Scope of delivery (Fig. 1)

a) 4 x Plastic nut
b) 4 x Washer, small
c) 2 x Round-headed screws M8
d) 2 x washer, large

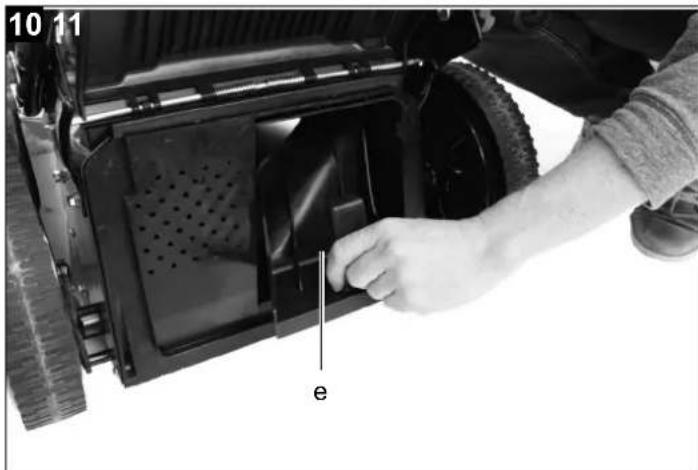

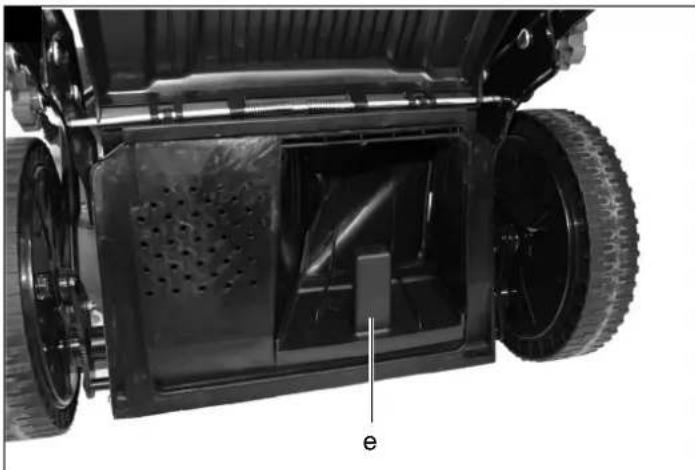

e) 1 x mulching insert
f) 1 x Operating manual
g) 1 x Side discharge adapter
h) Spark plug
i) 4 x screw

4. Proper use

The machine complies with the applicable EC machinery directive. Before starting any work, all protective and safety devices must be in place.

• The operator is responsible for third parties in the area of operations.
• The machine has been designed to be operated by one person.
• Observe all safety information and danger notices on the machine.
• Ensure that all of the safety information and danger notices on the machine are complete and in legible condition.

• Only use the machine when in a technically fault-less condition, appropriately and in compliance with the operating manual and with full knowledge of safety and hazards!

• In particular, rectify malfunctions that could impair safety immediately (or commission rectification works accordingly)!

• The manufacturer's safety, operating and maintenance specifications as well as the dimensions given in the technical data must be observed.
• Relevant accident prevention regulations and other generally recognized safety and technical rules must also be observed.
• The machine may only be used, maintained or repaired by trained persons who are familiar with it and have been informed of the dangers. Any liability of the manufacturer for damages resulting from arbitrary changes to the machine is excluded.
• The machine is intended for use only with original accessories and original tools from the manufacturer.
• Any use beyond this is improper use. The manufacturer is not responsible for the resultant damages, the user bears this risk alone.
• The machine must not be used for commercial, technical or industrial applications.
• If you are not sure whether working conditions are safe or unsafe, do not work with the machine.
• The petrol lawnmower is intended for private use i.e. for use in home and gardening environments. Private use of the lawnmower refers an annual operating time generally not exceeding that of 50 hours, during which time the machine is primarily used to maintain small-scale, residential lawns and home/hobby gardens. Public facilities, sporting halls, and agricultural/forestry applications are excluded.

Attention! Due to the high risk of bodily injury to the user, the lawnmower may not be used to trim bushes, hedges or shrubs, to cut scaling vegetation, planted roofs, or balcony-grown grass, to clean (suck up) dirt and debris off walkways, or to chop up tree or hedge clippings. Moreover, the lawnmower may not be used as a power cultivator to level out high areas such as molehills.

- For safety reasons, the lawnmower may not be used as a drive unit for other work tools or toolkits of any kind.

⚠ WARNING

For your own safety, please thoroughly read this manual and the general safety instructions before turning the device on. If you give the device to third parties, always include these usage instructions.

The product is part of the 20V IXES series and may only be operated with batteries of this series. Batteries may only be charged with battery chargers of this series. Observe the manufacturer's instructions.

5. Safety instructions

We have marked points in these operating instructions that impact your safety with this symbol: ⚠

Furthermore, the operating manual contains other important text sections that are marked with the word

"ATTENTION!".

⚠️ DANGER

A failure to observe these instructions poses an extreme danger of death or the risk of life-threatening injuries.

⚠ WARNING

A failure to observe these instructions poses a danger of death or the risk of serious injuries.

⚠️ CAUTION

A failure to observe these instructions poses a minor to moderate danger of injury.

NOTE

A failure to observe these instructions poses a risk of damage to the device or other property.

⚠ Attention!

When using equipment, several safety warnings must be observed to prevent injuries and damage. For this reason, please carefully read this operating manual / safety instructions. Keep them in a safe place so that the information is available at all times. If you hand the device over to another person, please hand over this operating manual / safety instructions as well. We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

Warning! This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

Who is not permitted to use the device:

• Children and other persons who do not know the instructions for use (local regulations may specify the minimum age of the user).
  • People who are under the influence of alcohol, drugs, medication, tired or ill.

Safety instructions for hand-operated lawnmowers

Note

• Read the usage instructions with due care. Familiarise yourself with the settings and proper operation of the machine.
• Never allow children or other persons who are unfamiliar with the usage instructions to use the lawnmower. Contact your local governmental agency for information regarding minimum age requirements for operating the lawnmower.
• Never mow while people, especially children or animals are nearby. Always keep in mind that the operator is responsible for accidents involving other persons and/or their property.
• If you give the device to any other person, give them this operating manual as well.
• Always wear sturdy, non-slip footwear and long trousers when mowing. Never mow barefoot or in sandals.
• Check the terrain on which the machine will be used and remove all objects that could be caught up and violently flung out of the chute (like stones, toys, sticks and wires etc.).
• Only mow in daylight or with good artificial lighting.
• Keep third-parties away from the working range of the device!
• Use non-slip foot protection and close-fitting clothing.

• Stop the engine and remove the spark plug cap and make sure that all moving parts have stopped and that the ignition key, if present, is removed:

• Before you dislodge any blockages or clogs in the ejector chute.

• Before checking or cleaning the lawnmower or performing work on it.
• If it came into contact with a foreign object. Inspect the mower for damage and perform the required repairs before starting again and working with the mower, If the lawnmower begins to experience exceptionally strong vibrations, immediately switch it off and check it.
• any time you leave the mower
• Before you refuel.

⚠ WARNING

Petrol is highly flammable:

• Only store petrol in the designated containers.
• Only refuel the unit outdoors and do not smoke when filling.
• Petrol must be filled before starting the engine. While the engine runs or if the mower is hot, the fuel cap must not be opened and petrol must not be filled.
• If petrol overflows, no attempts should be made to start the engine. Instead, the machine must be removed from the area contaminated with petrol.

Do not try to start the engine until the fuel vapours have evaporated.

• For safety reasons, the fuel tank cap and other fuel caps must be replaced if damaged.
• Never store petrol near a source of sparks. Always use a tested canister. Keep petrol away from children.
• Replace defective silencers.
• Before use, always visually check whether the cutting tools, fastening bolts and the entire cutting unit are worn out or damaged. To prevent an imbalance, worn out or damaged cutting tools and bolts may only be replaced in sets.
• Please note that where a mower has more than one blade, the rotation of one of the blades can cause the others to rotate as well.

Handling

• Do not run the combustion engine in closed rooms in which hazardous carbon monoxide can collect.
• Only mow in daylight or with good artificial lighting. Avoid using the device on wet grass as far as possible.
• Do not use the lawnmower in a thunderstorm - risk of lightning strike!
  • Always maintain good footing on inclines.
• Only guide the machine at walking pace.
• The following applies to wheeled machines: Always mow across hills i.e. never straight up or straight down.
  • Take particular care when changing direction on a slope.
• Do not mow on excessively steep slopes and nearby rubbish tips, ditches and dykes. Take particular care when reversing the lawnmower or pulling it towards you.
• Switch off the lawnmower and ensure that the blade has stopped rotating whenever the mower has to be tilted for transporting over areas other than lawns and whenever it has to be moved from or to the area you want to mow.
• Never use the lawnmower if the blade or safety grilles are damaged, or without the attached guards, e.g. deflectors and/or grass catching devices.
• Do not adjust or overclock the engine speed settings.
• Release the engine brake before you start the engine.
• Disconnect all work tools and drives before starting the engine.
• Start the engine with care, in accordance with the manufacturers instructions. Make sure that your feet are far enough away from the mower blade!
• Do not tilt the lawnmower when you start the engine unless the mower must raised off of the ground a little in order to start it.

In this case, only tilt as far as absolutely required and only lift the side away from the operator.

- Do not start the engine if you are standing in front of the ejector chute.

- Never out hands and feet on or under rotating parts. Always keep clear of the ejection opening.

- Never lift or carry a lawnmower while the engine is running.

- Operating the machine with excessive speed can increase the risk of accidents.

- When the engine runs out, close the throttle valve. If the engine has a petrol shut-off valve, close it after mowing.

- Be careful when adjusting the machine and avoid trapping fingers between the moving cutting tool and rigid parts of the machine

- Be particularly careful when mowing on yielding ground, nearby rubbish tips, ditches and dykes.

- The user must be adequately trained in the use, adjustment and operation of the machine (including prohibited operations).

- Check the device regularly and make sure that all start locks and push buttons are working properly before each use.

- Please note that improper maintenance, the use of non-compliant spare parts, or the removal or modification of safety devices can result in damage to the device and serious injury to the person working with it.

- Please note that the lawnmower's safety systems or equipment must not be tampered with or deactivated.

- Please note that the user must not change or manipulate any sealed engine speed control settings.

- Use only cutting tools and accessories recommended by the manufacturer. Use of other insert tools and accessories may result in injury to the user.

• Always keep the lawnmower in good operating condition.

- It is necessary to take enough breaks to reduce noise and vibration exposure.

- Caution! The lawnmower must not be operated without either the full grass catcher or the self-closing separating guard for the ejection opening in place.

- Make sure that all nuts, bolts and screws are securely tightened so that the device is kept in a safe working condition.

- Never store the machine with petrol in the tank inside a building in which fuel vapours may come into contact with naked flames or sparks.

- Allow the engine to cool before storing the machine in enclosed spaces.

- In order to avoid fire hazards, keep the engine, exhaust pipe and the area around the fuel tank free of grass, leaves and leaking grease (oil).

• Regularly check the grass catcher for signs of wear or loss of functionality.
• For safety reasons, replace worn or damaged parts.
• If the fuel tank has to be drained, you must do this outdoors.

Residual risks and protective measures

Neglect of ergonomic principles

Negligent use of personal protective equipment (PPE)

Careless use or omission of personal protective equipment may result in serious injury.

- Wear prescribed protective equipment.

Human behaviour, misconduct

- Always concentrate fully on all work.

⚠️ Residual hazard - can never be ruled out.

Danger from noise

Hearing damage

Prolonged unprotected work with the device may cause hearing damage.

- Always wear hearing protection as a matter of principle.

Behaviour in an emergency

In the event of an accident, initiate the necessary first aid measures and seek medical assistance as quickly as possible.

WARNING

Follow the safety and charging instructions and correct usage given in the instruction manual of your 20V IXES Series battery and charger. A detailed description of the charging process and further information are provided in this separate manual.

6. Technical data

Type of engine 1-cylinder, 4-cycle
DV170 engine

Displacement 173 cm ^3
Rotation speed 2800	rpm
Power 3.0 kW / 4.1 PS
Fuel Regular grade petrol/	lead-free max. 10% bioethanol
Tank contents 1.0 l
Engine oil SAE 30 / 10W-40 /	10W-30
Oil tank capacity 0.4 l
Cutting height adjustment	25-75 mm / 7 stages
Catch basket capacity	65 l

Cutting width 51 cm

Weight 33 kg

Subject to technical changes!

Rechargeable battery / battery charger

The technical data for the rechargeable battery and battery charger can be found in the accompanying operating manual.

Information about noise level measured in accordance with applicable standards:

Sound pressure L_pA = 85.0 dB

Measurement uncertainty K_PA = 3 dB

Sound power L_WA = 96.1 dB

Measurement uncertainty K_PA = 1.83 dB

Wear hearing protection.

Excessive noise can result in a loss of hearing.

Vibration A_hv (left/right) = 7.218 m/s ^2

Measurement uncertainty K_PA = 1.5 m/s^2

Keep the noise level and vibration to a minimum!

• Only use faultless devices.
• Maintain and clean the device at regular intervals.
• Adapt your working methods to the device.
• Do not overload the device.
• Have the device checked if necessary.
• Switch the device off if it is not in use.
• Wear gloves.

When using the petrol lawnmower for extended periods, vibration-induced circulatory problems may occur (white finger disease).

Information about the duration of use cannot be provided in this case, since this can vary from person to person.

Raynaud's syndrome is a vascular disease that causes the small blood vessels on the fingers and toes to cramp in spasms. The affected areas are no longer supplied with sufficient blood and therefore appear extremely pale. The frequent use of vibrating devices can cause nerve damage in people whose circulation is impaired (e.g. smokers, diabetics). If you notice unusual adverse effects, stop working immediately and seek medical advice.

The following factors can influence the condition:

• Circulatory problems in the user's hands
• Low outside temperatures
• Extended periods of use

We therefore recommend you wear warm work gloves and take regular breaks.

7. Unpacking

- Open the packaging and carefully remove the device from the packaging.

• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating instructions before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.
• When ordering please provide our article number as well as type and year of manufacture for your equipment.

ATTENTION!

The device and the packaging material are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

8. Assembly / Before commissioning

Assembling the components

Some parts of the delivery come disassembled. For quick and easy assembly, read and follow the instructions below.

Note!

You will need the following additional tools, which is not included in the scope of delivery, for assembly, and also for maintenance work:

• One oil collecting tray, flat (for oil change)
• A 1 litre measuring beaker (oil / petrol-proof)
- A petrol canister (5 litres is sufficient for approx. 6 hours of operation)
- A funnel (to suit the petrol filler neck of the tank)
- Household wipes (to wipe up oil/petrol residue; dispose of these at a filling station)
- A petrol suction pump (plastic version, available in DIY stores)
- An oil can with hand pump (available in DIY stores)
• 0.4 I Engine oil SAE30 / 10W-30 / 10W-40

Assembly

1. Remove the lawnmower and attachments from the packaging and check if all parts are available.

2. Screw the lower push bar (6a) to both sides of the mower with one screw (c), one washer small (b) and one plastic star nut (a) each. When doing so, make sure that the cable pulls that will be attached later are not in the way (Fig.2-3).

3. Screw the upper push bar (6) to the lower push bar (6a) with a quick release lever (7), a washer large (d), a washer small (b) and a plastic star nut (a) on both sides (Fig.4-5).

4. Pull the throttle cable through the electric starter unit (22) as shown in figure 5a.

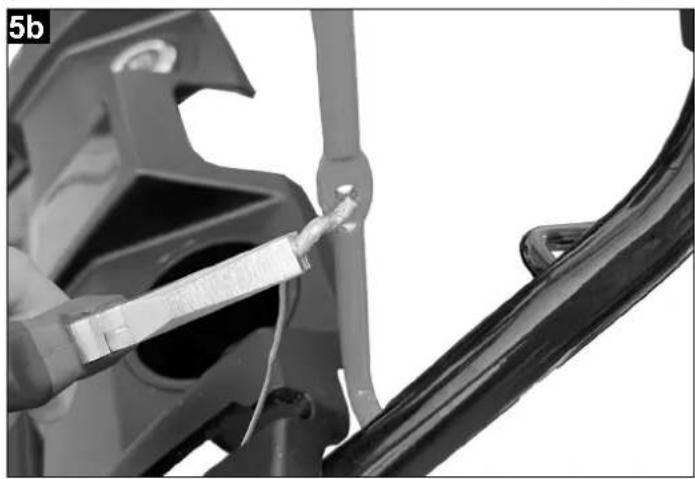

5. Use a pliers to place the throttle cable in the engine brake lever (3). (Fig. 5b-5c)
6. Secure the electric starter unit (22) to the upper push bar (6) using the screws (f). (fig. 5d)
7. Insert the handle of the pull cable starter (5) in the designated hook as shown in fig. 6.
8. Fix the cables to the push bar with the cable clips (8) provided (fig. 7).
9. Catch basket (19) - open it up and click the plastic clips into position on the frame. (Fig. 8)
10. Mowing without the catch basket: Lift the discharge flap (18) with one hand and hook in the catcher bag (19) as shown in Fig.9.
11. Mowing with side discharge: Lift the side discharge flap (16) and hook in the side discharge adapter (Fig. 15). If fitted, remove catcher bag (19) and insert mulch insert (e).
12. Mulching: Remove the catcher (19), if fitted, and insert the mulch insert (e) as shown in Fig. 10-12

Attention:

The side discharge adapter must not be installed when mulching.

Setting the cutting height

△ Attention! Adjust the cutting height only when the engine is switched off and the plug boot has been pulled.

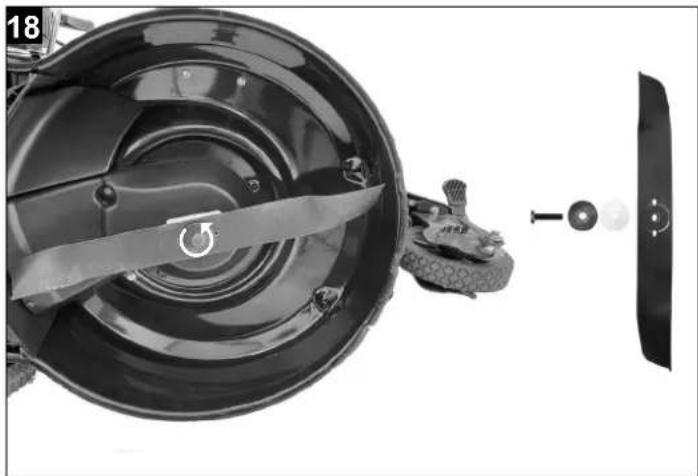

• Before you begin to mow, check to ensure that the blade is not blunt and that none of the fasteners are damaged.
• To prevent any imbalance, replace blunt and/or damaged blades as a set only (if applicable). To carry out this check, first switch off the engine and pull the spark plug connector.
• The cutting height is centrally adjusted with the wheel height adjustor lever (fig. 13/ item 14). 7 different cutting heights can be selected.

⚠ Attention! The wheel height adjustment must be the same on both sides!

- Pull the adjustor lever out and select the desired cutting height. The lever snaps into the desired position (fig. 13).

Preparing the area to be mowed

Before mowing, carefully examine the area. Remove stones, sticks, bones, wires, toys and other objects that may be ejected by the device.

9. Start up

ATTENTION!

Always make sure the device is fully assembled before commissioning!

Battery charge level (20) (Fig. 1)

The lawn mower is equipped with an electric starter. A lithium ion battery (20) is used as the starter battery. Using the battery (20) and the battery charger (21) is described in the user manual supplied.

1. To check the charge level, press the charge level indicator button on the battery (20). The battery charge level indicator signals the charge level of the battery.
2. The battery (20) may only be charged using the battery charger (21) supplied. The battery (20) is not recharged when operating the lawnmower.

⚠ Attention!

The engine does not come with oil in it. Therefore, ensure that you add oil before starting it up. Use normal multigrade oil (SAE30 / 10W-30 / 10W-40). The oil level in the engine must be checked each time before mowing.

You will also need to fill in petrol, as this is also not supplied upon delivery.

• To prevent the lawn mower from starting unintentionally, it is equipped with an engine brake lever (Fig.1, Pos.3), which must be actuated before the lawn mower is started. When the engine control lever is released it must return to its initial position, at which point the engine automatically switches off.
• Press the engine brake lever (3) together and give the pull cable starter (5) a vigorous pull. (Fig. 14)
• ATTENTION: When you pull the pull cable starter, the cutting blade rotates even with a dissolved engine brake lever. Make sure that there are no body parts in the danger zone of the cutting blade.
• When the engine is running, press the drive lever (2) to the handle (1) in order to engage the drive on the mower.
• Before you start mowing, you should run through this process several times in order to ensure that the machine is working properly.

⚠ WARNING

Whenever you need to perform any kind of adjustment and/or repair work on your lawnmower, wait until the blade has come to a complete stop.

Always switch off the engine and take out the spark plug before carrying out any adjustments, maintenance or repairs.

Warning of the danger of moving knife assemblies!

Using the drive:

• Engine brake lever (3): Use the lever to stop the engine. When you release the lever the engine and the blade stop automatically.
• To mow, pull the drive lever (2) towards the handle (1). Before actually mowing, check the drive bar (2) several times. Ensure that the pull cable can be smoothly operated.
• Drive lever (2): If you press this, the clutch for the drive will be closed and the lawnmower will start to move with the engine running. Release the drive lever in time to stop the moving lawn mower. Practice starting and stopping before you use the mower for the first time until you are familiar with controlling the mower.

Warning: The cutter blade rotates when the engine is started.

Important: Before starting the engine, move the engine brake levers several times to check that the pull rope is also working well.

Note: The engine is designed for cutting speed for grass, and grass ejection into the catcher box and for a long engine life.

• Check the oil level.
• Open the fuel fuel cap and fill the fuel tank (9) up to the lower point of the tank inlet with about 1.0 litres of petrol. Use a funnel and measuring container for filling. Do not overfill the tank.
• Only use fresh, clean, unleaded fuel. Never mix oil with petrol. Purchase fuel in quantities that can be used within 30 days to ensure that the fuel is fresh.

Note: Use standard unleaded petrol with max. 10% bioethanol component.

⚠ WARNING

Always only use a safety petrol canister. Do not smoke when filling petrol. Remove any oil or petrol residues. Switch the engine off before filling petrol and let the engine cool for several minutes.

Using the electric starter to start the engine (Fig. 14a)

• Check the motor oil level. See "oil level check" section.
• Inspect the battery compartment at the top of the electric starter unit (22) for foreign objects and clean with a brush or cloth if necessary. Install the battery in the battery compartment on the electric starter unit (22). Make sure that the battery is securely fastened.
• Make sure that the controls for the device drive, if any, are out of operation.

- Press the engine brake lever (3) against the handle (1). Operate the electric starter (5a). The engine will start.

Starting the engine without the electric starter (Fig. 14)

• Make sure that the device is connected properly to the spark plug.
• Stand behind the lawnmower. One hand pushes the engine brake lever (3) to the handle, the other hand should be on the pull starter (5).
• Start the engine with the pull starter (5). To do this pull the handle approx. 10 – 15 cm (until you feel a resistance) and then start the engine with a sharp pull. If the engine does not start, pull on the handle again.
• Due to protective coating on the engine, a small amount of smoke may be present during the initial use of the device and should be considered normal. This is a normal process.

Note: Easier start at colder temperatures by pressing the primer button (11) Fig. 14. Use only when the engine is cold!

⚠ Attention!

• Never allow the pull cable starter to snap back.
• Attention: In case of cool weather, it may be necessary to repeat the starting process numerous times.

Turning off the engine:

• To stop the engine, release the drive lever (2) then the engine brake lever (3) and wait until the blade stops.
• Disconnect the spark plug cap from the spark plug (h) to avoid unintentional starting of the engine. (Fig.22)
• Before you start the engine again, check the cable for the engine brake. Check that the cable is correctly fitted. If the cable is kinked or damaged, it should be replaced.
• Remove the battery.

Before mowing

Important notes:

• Dress appropriately. Wear sturdy shoes and no sandals or trainers.
• Check the cutting blade. If a blade is bent or otherwise damaged, it must be replaced with an original blade.
• Only fill the fuel tank outdoors. Use a filling funnel and a measuring jug. Wipe off any spilled petrol.

• Read and follow the operating instructions and also the instructions regarding the engine and the accessories. Keep the manual accessible for other users of the device.

• Exhaust gas is dangerous. Only start the engine outdoors.

• Make sure that all safety devices are in place and working properly.
• The device should only be operated by a person who is capable of doing so.
• Mowing wet grass can be dangerous. Mow grass when it is as dry as possible.
• Instruct other persons or children to stay away from the mower.
• Never mow when visibility is poor.
• Pick up loose objects lying around, such as stones, toys, sticks and wires, etc., from the ground before mowing.

Hints for mowing correctly

△ Attention! Never open the discharge flap when the catcher is being emptied and the engine is still running. The rotating blade can lead to injuries.

Always secure the discharge flap and the catch basket carefully. Switch off the engine before removing.

The safety distance between the blade housing and the user given by the guide rails must always be maintained.

Special care must be taken when mowing and changing direction on embankments and slopes. Make sure you have a secure footing, wear shoes with non-slip, well gripping soles and long trousers. Always mow across slopes.

For safety reasons, slopes with an inclination of more than 15 degrees must not be mowed with the lawn mower.

Exercise particular caution when moving backwards and pulling the lawnmower. Risk of tripping!

Mulching

When mulching, the cuttings are shredded in the closed mower housing and then dispersed on the lawn. Grass collection and disposal is not required.

⚠️ NOTE! Mulching is only possible on relatively short lawns.

To use the mulching function, unhook the catcher bag (19) and push the mulching insert (fig.10-12 /pos. e) into the discharge opening and close the discharge flap (18).

Mowing

Mowing can be done either with the catcher box (19) fitted or alternatively with the side discharge fitted. To use the side discharge, the mulching insert (e) should be fitted.

Cut only with sharp, clean cutting blades so that the blades of grass do not fray and the lawn does not turn yellow.

To achieve a clean cut, guide the lawn-mower in the straightest possible paths.

These strips should always overlap by a few centimetres so that no patches remain.

Keep the underside of the mower housing clean and remove any grass deposits. Deposits make the starting process more difficult, impair cutting quality and grass discharge. On slopes, the cutting path should be made perpendicular to the slope. It is possible to prevent the lawnmower from slipping by lifting it upwards at an angle. Set the cutting height depending on the actual length of the lawn. Carry out several passes so that a maximum of 4 cm of lawn is removed at a time.

Switch off the engine before carrying out any checks on the blade. Remember that the blade will continue to rotate for a few seconds after the engine is switched off. Never try to stop the blade.

Regularly check that the blade is properly fastened, in good condition and sharpened. Sharpen or replace it if this is not the case. If the moving blade strikes an object, stop the lawnmower and wait for the blade to come to a complete stop. Then check the condition of the blade and the blade holder. If it is damaged, it must be replaced.

Locking lever (Fig. 25)

There are two adjustment options for the front wheel, which can be selected via the locking lever (4).

- If the locking lever (4) on the push bar (6) is in the position of the symbol the freewheel of the front wheel (15) is locked. The front wheel only runs straight ahead.

- If the locking lever (4) on the push bar (6) is in the position of the symbol the freewheel of the front wheel (15) is unlocked. The front wheel is movable.

Tips for mowing:

- Pay attention to ensure that you do not run into or over solid objects. The lawnmower could be damaged and/or the machine could inflict bodily injury.

- A hot engine, exhaust pipe or drive unit can burn the skin. Thus, do not touch these parts.

- Use extra caution when mowing on inclines and steep grades.

- Only mow when there is sufficient light.

- Check the mower, the blade and other parts if they have struck a foreign object or if the machine vibrates more than usual.

- Do not make any adjustments or repairs until the engine has been switched off. Pull off the spark plug connector.

- Pay special attention to traffic if you are mowing directly next to a street or are close by one. Always keep the grass chute pointed away from the street.

- Avoid mowing in places where the wheels have trouble gripping or mowing is unsafe in any other way. Before you back up, ensure that nobody is standing behind you (especially little children).

• In dense, tall grass, set the highest cutting level and mow more slowly. Before you remove any grass or blockages of any kind, switch off the engine and disconnect the ignition cable.
• Never remove any safety-related parts.
• Never fill the engine with petrol when it is hot or is running.

Emptying the catch basket

As soon as grass residues are left lying behind on the ground during mowing, the catch basket must be emptied.

⚠ WARNING

Before removing the catch basket, stop the engine and wait for the cutting tool to come to a standstill.

To remove the catch basket (19), lift the discharge flap (18) with one hand and remove the catch basket (19) by the carrying handle with the other hand (Fig. 17). In accordance with the safety regulations, the discharge flap (18) closes when the catch basket is unhooked and closes the rear ejection opening. If grass cuttings remain in the opening, it is advisable to pull the lawnmower back about 1m to make it easier to start the engine.

Do not remove cuttings in the mower housing and on the working tool by hand or with your feet, but with suitable aids, e.g. brush or hand brush.

To ensure good collection, the catch basket (19) and in particular the air grille must be cleaned from the inside after use.

Only hook in the catch basket (19) when the engine is switched off and the cutting tool is stationary.

Lift the discharge flap (18) with one hand and hold the catch basket (19) by the handle with the other hand and hook it in from above. (Fig. 9)

After mowing

• Always allow the motor to cool off before parking the lawnmower in an enclosed room. Remove grass, leaves, grease, and oil before storage. Do not store other objects on the mower.
• Check all screws and nuts before the next use. Tighten all loose screws.
• Empty the catch basket (19) before the next use.
• Remove the spark plug connector to prevent unauthorised use.
• Make sure that the mower is not parked next to a source of danger. Escaping gas can cause explosions.
• Only original parts or parts approved by the manufacturer may be used for repairs (see address on guarantee certificate).
• In case of longer idle periods of the mower, empty the petrol tank with a petrol extraction pump.
• Oil and maintain the machine

10. Cleaning

The mower should be thoroughly cleaned after each use. In particular, the underside and the blade retainer.

⚠ Attention!

For safety reasons, disconnect the spark plug cable before cleaning.

It is best to tilt the mower backwards. The spark plug should point upwards to prevent engine oil from entering the intake tract or leaking out.

Alternatively, you can tilt the device on its side, but you must make sure that the air filter is on the upper side.

Note: Before tilting the lawnmower, empty the fuel tank fully with a petrol extraction pump.

Do not tilt the lawnmower beyond 90 degrees.

It is easiest to remove the dirt and grass immediately after mowing.

Grass residues and dirt that have dried on can impair mowing. Check that the grass ejection channel is clear of grass residues and remove these if necessary.

Never clean the mower with a water jet or high pressure cleaner. The motor should remain dry.

Do not use aggressive cleaning products such as cold cleaners or white spirit.

Clean the device with water as follows. (Fig. 1)

• Remove the mulch insert / take off the grass bag.
• Place the hose connector (w) on the mower and open the water tap. (Fig. 1)
• Start the mower and switch off after approx. 30 sec. The rotating blade bar dashes the water against the underside of the mower and in doing so cleans it.
• Close the water tap and disconnect the hose-connection piece.
• Clean the top side with a cloth (do not use sharp objects).

11. Transport

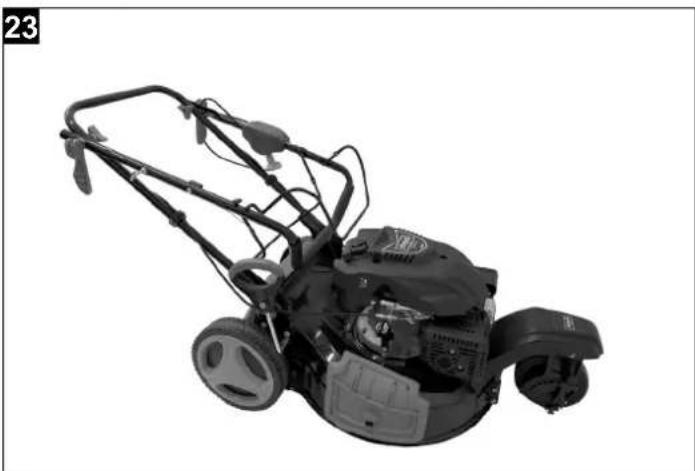

Preparing the lawnmower for transport (Fig. 23)

• Empty the fuel tank with a petrol extraction pump.
• Always let the engine run until it has used up the remainder of petrol in the tank.
- Drain the motor oil of the warm motor.
- Remove the spark plug connector from the spark plug.
- Clean the cooling fins of the cylinder and the housing.
- Remove the pull cable starter (5) from the hook. Release the quick-release levers (7) and fold down the upper push bar (6). Make sure that the cables are not bent during this process.

• Wedge a few layers of corrugated cardboard between the upper and lower push bars and the engine to prevent any chafing.
• The device must be secured against tipping and slipping during transport in vehicles in order to prevent damage and injuries.

12. Storage

Clean and maintain the unit before storage.

Store the device and its accessories in a dark, dry and frost-free place that is inaccessible to children.

The optimum storage temperature lies between 5 and 30 °C.

Store the power tool in its original packaging.

Cover the power tool to protect it from dust or moisture. Store the operating manual with the power tool.

• Never store the lawnmower with petrol in the tank inside a building in which petrol fumes may come into contact with naked flames or sparks.
• Allow the engine to cool down before you put the lawnmower in an enclosed area.
• In order to avoid fire hazards, keep the engine, exhaust pipe and the area around the fuel tank free of grass, leaves and leaking grease (oil).

Preparing the lawnmower for long-term storage

Warning: Do not remove the petrol in enclosed spaces, near fire or when smoking. Petrol fumes can cause explosions and fire.

• Empty the fuel tank with a petrol extraction pump.
• Start the engine and let it run until the remaining petrol is used up.
• Change the oil at the end of every season. To do so, remove the used engine oil from a warm engine and refill with fresh oil.
• Remove the spark plug from the cylinder head.
• Fill the cylinder with approx. 20 ml of oil from an oil can.
• Slowly pull back the starter handle, which will bathe the cylinder wall with oil.
• Attach the spark plug again.
• Clean the cooling fins of the cylinder and the housing.
• Be sure to clean the entire device to protect the paint.
• Store the device in a well-ventilated place.

Battery (20) and battery charger (21)

Follow the safety instructions and instructions for charging and correct use given in the instruction manual for your Scheppach 20V IXES series battery (20) and charger (21). A detailed description of the charging process and further information are provided in this separate operating manual.

13. Maintenance

Ensure that the unit is in good working order during its entire service life. Improper maintenance may lead to life-threatening injuries.

• Regular, careful servicing is required to guarantee the safety level and performance of the device.
• Make sure that all nuts, bolts and screws are securely tightened so that the device is in a safe working condition.
• Regularly check the catch basket for signs of wear and loss of functionality.
• Regularly clean the catch basket with water and let it dry thoroughly.
• For safety reasons, replace worn or damaged parts.
• When storing the machine for a longer period of time or when maintaining it, the fuel tank must be emptied. This should only be done outdoors using a petrol suction pump (available from DIY shops).

⚠ WARNING

Never work on or touch conducting parts on the ignition unit with the engine running. Always remove the spark plug connector from the spark plug before starting any work of care or maintenance. Never perform any work on the machine while it is running. Any work not described in this operating manual must be performed by an authorised service workshop only.

Attention!

Always shut the engine down and remove the spark plug connector before carrying out any maintenance work.

Wheel axles and wheel hubs

• These should be lightly greased once a season.

Blade

For safety reasons, only have your mowing blade sharpened, balanced and fitted by an authorised specialist workshop. For optimum results it is recommended that the blade should be inspected once a year.

Change the blade (Fig. 18)

When changing the cutting tool, only use original replacement parts.

Wear gloves to avoid cut injuries while changing the blade.

Never install another blade.

• Empty the fuel tank before removing the blade.
- Undo the screw to replace the blade.
- Install everything as described in Fig. 18. Fasten the screw correctly. The fastening torque is 45Nm . Also replace the blade screw when replacing the blade.

Damaged blades

Should the blade, in spite of all precautions, come into contact with an obstruction, shut down the engine immediately and remove the spark plug connector.

Tip the lawnmower onto its side and check the blade for damage. Damaged or bent blades must be replaced. Never attempt to bend a bent blade back to straight again.

Never mow the lawn with a bent or heavily worn blade as this will cause vibrations and can lead to further damage to the mower.

⚠ Attention! There is a risk of injury if you work with a damaged blade.

Resharpening the blade

The blades can be resharpened with a metal file. In order to avoid imbalance, the blade should be re-sharpened by an authorised service workshop.

Oil level check

⚠ Attention! Never run the engine with no or too little oil. This could cause severe damage to the engine. Only use SAE30 / 10W-30 / 10W-40 engine oil.

Check the oil level (Fig. 19):

• Position the lawnmower on a straight, level surface.
• Remove the oil dipstick (12) by turning it to the left, then wipe off the dipstick. Insert the dipstick back in the filling nozzle as far as the stop, but do not screw it back in.
• Pull out the dipstick and read the oil level horizontally. The oil level must be positioned between the max and min of the oil dipstick (12).

Oil change (Fig. 24)

• The engine oil change should be completed annually before the start of the season while the engine is at operating temperature and shut off.
• Only use engine oil (SAE30 / 10W-30 / 10W-40).
• Empty the fuel tank (with a petrol extraction pump).
• Place a flat oil collecting tray in front of the mower (min. volume 1 litre).
• Remove the oil dipstick and tip over the mower until all of the oil has drained into the oil collecting tray.
• Then fill in fresh engine oil up to the upper mark of the oil dipstick (approx. 0.4 l), do not overfill the device.
• Attention! To check the oil level, do not screw in the oil dipstick, but only insert it up to the thread.
  Dispose of the used oil in accordance with applicable regulations.

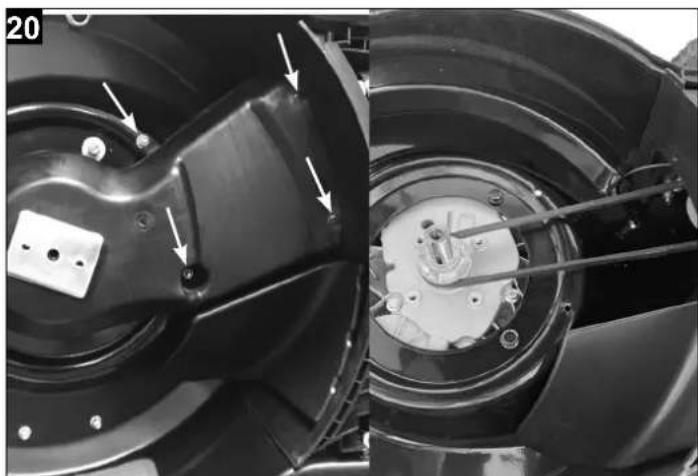

Cleaning the belts (Fig. 20)

• Remove the blade and the transmission housing by undoing the screws.
• Clean the elements of the transmission and the V-belt once or twice a year with a brush or compressed air.

- Refit the transmission housing and the blade using the screws.

Maintaining and adjusting the cables

Oil the cables at regular intervals and check that they move easily.

Air filter maintenance (Fig. 21)

Contaminated air filters (10) diminish the engine output due to reduced air supply to the carburettor. Regular inspection is therefore essential. The air filter should be checked every 25 operating hours and cleaned as required. The air filter must be checked more often in case of very dusty air.

Unclip the air filter cover and remove the sponge filter element. Replace the air filter to avoid objects falling into the air intake (fig. 21).

Attention: Never clean the air filter with petrol or combustible solvents. Clean the air filter with compressed air or simply by knocking out any soiling.

Spark plug maintenance (Fig. 22)

Check the spark plug for contamination for the first time after 10 operating hours and clean it with a copper wire brush if necessary. Then service the spark plug every 50 operating hours.

Remove the spark plug connector with a twist. Remove the spark plug (h) with a spark plug wrench.

Use a feeler gauge to set the gap to 0.75 mm(0.030"). Refit the spark plug (h), taking care not to over-tighten it.

Engine brake lever (fig. 1)

The motor is equipped with a mechanical brake that must be checked regularly. When the brake lever (3) is released, the blade must come to a standstill within 7 seconds; if this is not the case, the appliance must not be used. Contact an authorised specialist dealer. Ensure that the device is in perfect condition for the entire duration of its service life.

Improper maintenance may lead to life-threatening injuries.

Repairs

After repairs or maintenance, make sure that all safety-related parts are installed and are in perfect condition. All parts which may cause injury must be kept where they are inaccessible to children or others.

Attention: According to the German product liability act, no liability is accepted for damage caused by improper repairs or by not using original spare parts.

Such work should be performed by a customer service centre or an authorised specialist. The same applies to accessory parts.

Operating times

Please comply with statutory regulations to lawnmower operating times, which may vary from location to location.

Important note in the case of repairs:

When returning the device for repair, please ensure for safety reasons that it is free of oil and petrol when it is sent to the service centre.

Ordering spare parts

Please provide the following information when ordering spare parts:

• Device type
  • Device article number

Spare parts / accessories Article no:

Lawnmower blade	7911200628
Engine oil 7850000025
Battery SBP2.0	7909201708
Battery SBP4.0	7909201709
Charger SBC2.4A	7909201710
Charger SBC4.5A	7909201711
Charger SDBC2.4A	7909201712
Charger SDBC4.5A	7909201713

Service information

Only use original Scheppach parts for accessories and wear and spare parts, otherwise there may be a risk of accidents resulting in personal injury or damage to the machine.

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Spark plug, air filter, fuel filter, blade, V-belt, battery

* may not be included in the scope of delivery!

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

14. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act [ElektroG]

Electrical and electronic appliances do not belong in household waste, but should be collected and disposed of separately.

• Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed non-destructively before disposal. Their disposal is regulated by the battery act.
• Owners or users of electrical and electronic devices are legally obliged to return them after use.
• The end user is responsible for deleting their personal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.
• Waste electrical and electronic equipment can be handed in free of charge at the following places:
• Public disposal or collection points (e.g. municipal works yards).
• Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.
• Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.
• For additional take-back conditions of the manufacturers and distributors, please contact the respective customer service.
• In the case of delivery of a new electrical device by the manufacturer to a private household, the latter may arrange for the free collection of the old electrical device upon request from the end-user. Get in contact with the manufacturer's customer service.
• These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. Different provisions may apply to the disposal of electrical and electronic appliances in countries outside the European Union.

Notes on lithium-ion batteries

Removing the battery before disposing of the device!

• Do not dispose of the battery in household waste, in a fire (risk of explosion) or in water. Damaged batteries can harm the environment and your health if toxic vapours or liquids escape.
• Defective or used batteries must be recycled in accordance with Directive 2006/66/EC.
• Hand in the device and the battery charger at a recycling centre. The plastic and metal parts used can be separated by type and thus recycled.
• Dispose of batteries when discharged. We recommend covering the poles with an adhesive strip to protect against a short circuit. Do not open the battery.
• Dispose of batteries according to local regulations. Return batteries to a used battery collection point where they can be recycled in an environmentally friendly manner. Ask your local waste disposal company about this.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out electrical devices.

Fuels and oils

• Before disposing of the unit, the fuel tank and the engine oil tank must be emptied!
• Fuel and motor oil do not belong in household waste or drains, but must be collected or disposed of separately!
• Empty oil and fuel tanks must be disposed of in an environmentally friendly manner.

15. Troubleshooting

Troubleshooting

The table shows potential failures, their possible cause and solutions. However, if you are unable to solve the problem, contact a professional to assist you.

Fault Possible cause Remedy
Machine runs unsteadily and vibrates heavily	Screws are loose Check screws
	Blade fasteners are loose Check blade	fasteners
	Blade is unbalanced Replace blade
Engine does not run	Engine brake lever not pressed Press	engine brake lever
	Spark plug is defective Replace spark plug
	Fuel tank is empty Refill with fuel
	Contaminated fuel Empty fuel tank and	fill with clean fuel
	Cold environment Push the primer button (if present)
	Engine defective	Contact authorised customer service
Engine runs unsteadily	Air filter dirty	Clean the air filter
	Spark plug dirty	Clean the spark plug
Lawn turns yellow, uneven mowing results	Blade is blunt	Sharpen the blade
	Cutting height is too low	Set correct height
The discharge of grass clippings is unclean	Cutting height is too low	Set height
	Blade is worn	Replace the blade
	Catch basket is clogged	Empty the catch basket or remove the blockage

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

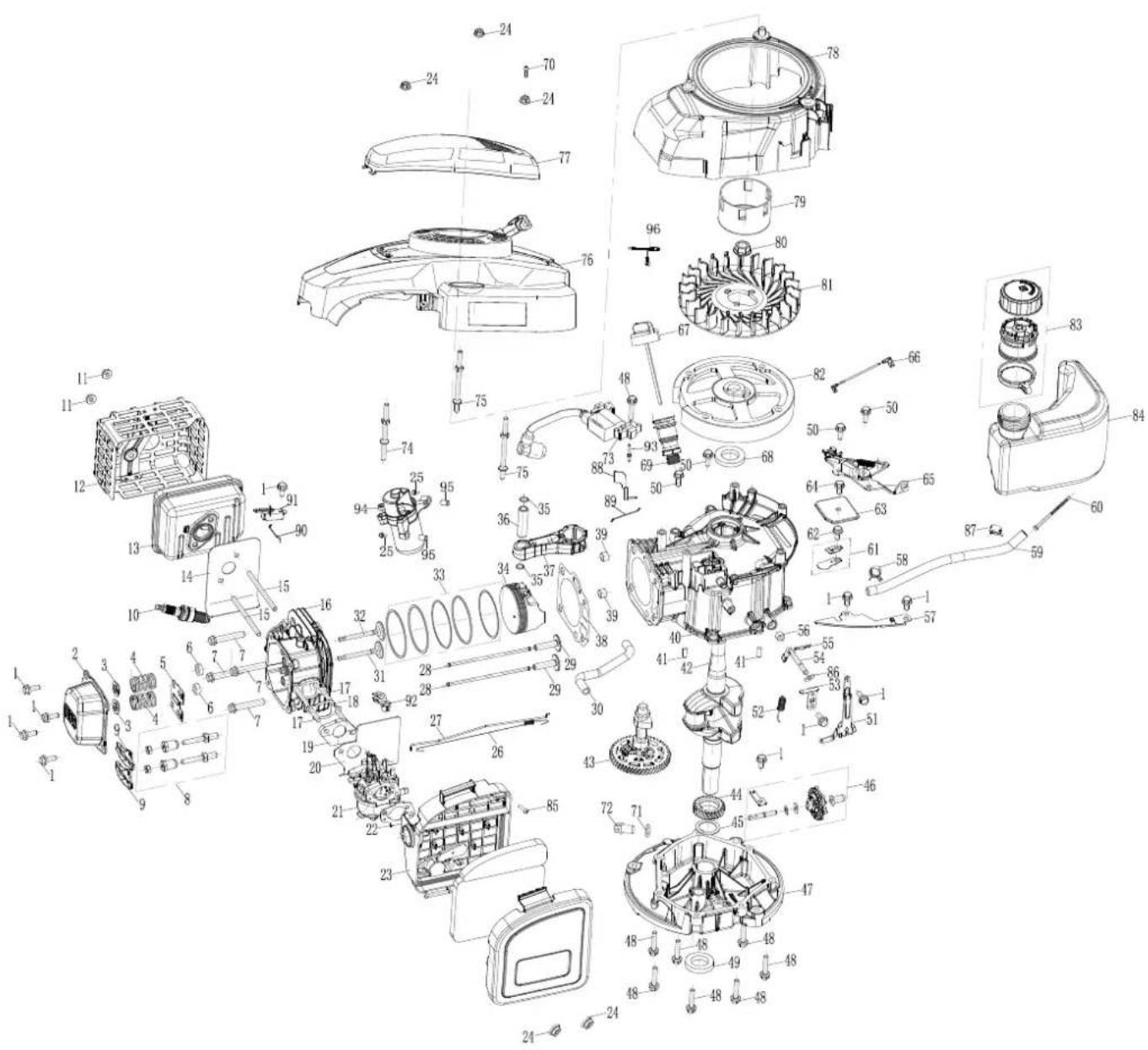

Technical schematic diagram of a mechanical assembly with numbered components and exploded views

B

Exploded view diagram of a mechanical assembly with numbered parts for identification

EU Declaration of Conformity

Annex IV Notified Body: Notified Body No.: Certificate No.:

X	2000/14/EG_2005/88/EG
	Noise: measured LWA= 96,1 dB; guaranteed LWA= 98 dBP = xx KW; L/∅ = cm
		Annex V
	X	Annex VINotified Body: TÜV SÜD Product Service GmbHNotified Body No.: 0036
X	2016/1628/EC
	Emission. No: e24*2016/1628*2018/989SRA1/P*0420*00

Standard references:

EN ISO 5395-1:2013/A1:2018; EN ISO 5395-2:2013/A2:2017; EN 14982:2009

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyeris rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material

or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
