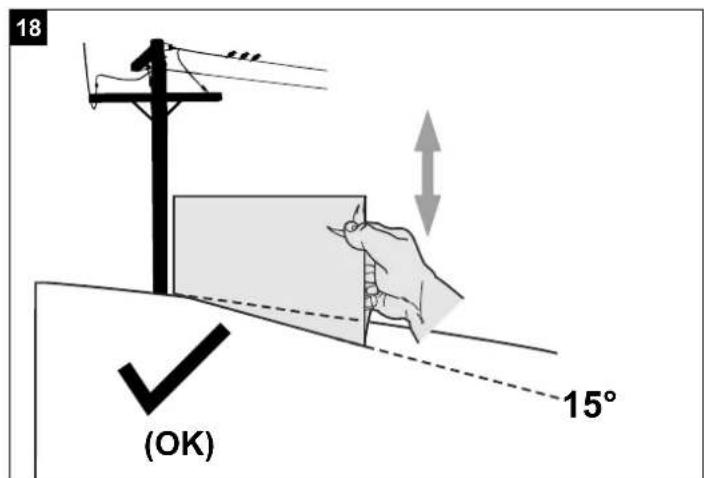

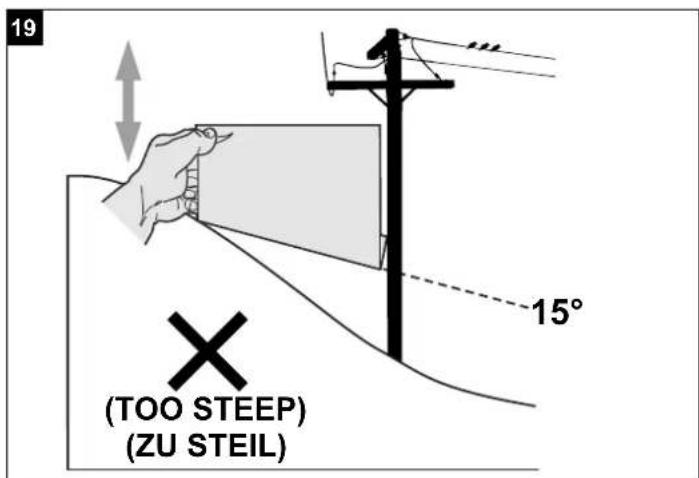

	Do not mow uphill or downhill.For safety reasons, slopes steeper than 15 degrees may not be mowed with the meadow mower.
	Make sure that other persons maintain a sufficient safety distance. (min. 15m)Danger due to parts flying off while the engine is running.
	Danger of poisoning! Only use the product outdoors and never in closed or poorly ventilated rooms.
	Do not refuel while the engine is hot or running.
	Remove the spark plug connector prior to all maintenance work.
	Keep your hands and feet away from the rotating blades.
	Important. The exhaust gases are toxic. Do not operate the engine in areas that are not ventilated.
	Attention: hot surface - risk of burns!
	Use hearing and eye protection! Wear safety shoes.
	ATTENTION! Operating materials are flammable and explosive - danger of burning.Do not refuel while the engine is hot or running.
	Never attach metallic cutting elements!
	Primer button for cold start

		Cutting diameter 56 cm
		Tank contents
		Check the oil level
		Specification of the guaranteed sound power level L_WA in dB.
		The product complies with the applicable European directives.

Table of contents: Page:

1. Introduction......28
2. Product description (Fig. 1)....28
3. Scope of delivery....28
4. Proper use....28
5. General safety instructions.... 29
6. Residual risks 31
7. Technical data 32
8. Unpacking 32
9. Assembly....32
10. Before commissioning....33
11. Start-up 34
12. Operation....34
13. Working instructions.... 35
14. Cleaning 35
15. Maintenance....36
16. Transport 38
17. Storage....38
18. Repair & ordering spare parts 38
19. Disposal and recycling 39
20. Troubleshooting....39
21. Declaration of conformity 59

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
• Failure to comply with the operating manual
  • Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
• Improper use
• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE 0113 not being observed

Note:

The operating manual is part of this product. It includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country.

Familiarise yourself with all operating and safety instructions before using the product. Only operate the product as described and for the specified areas of application. Keep the operating manual in a good place and hand over all documents when passing the product on to third parties.

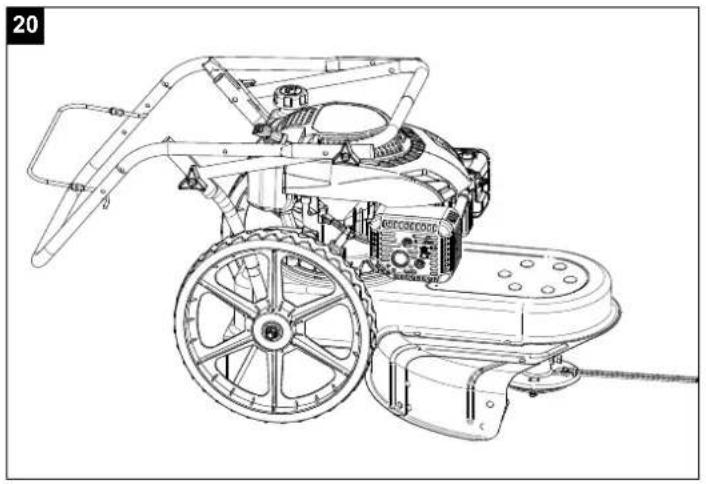

2. Product description (Fig. 1)

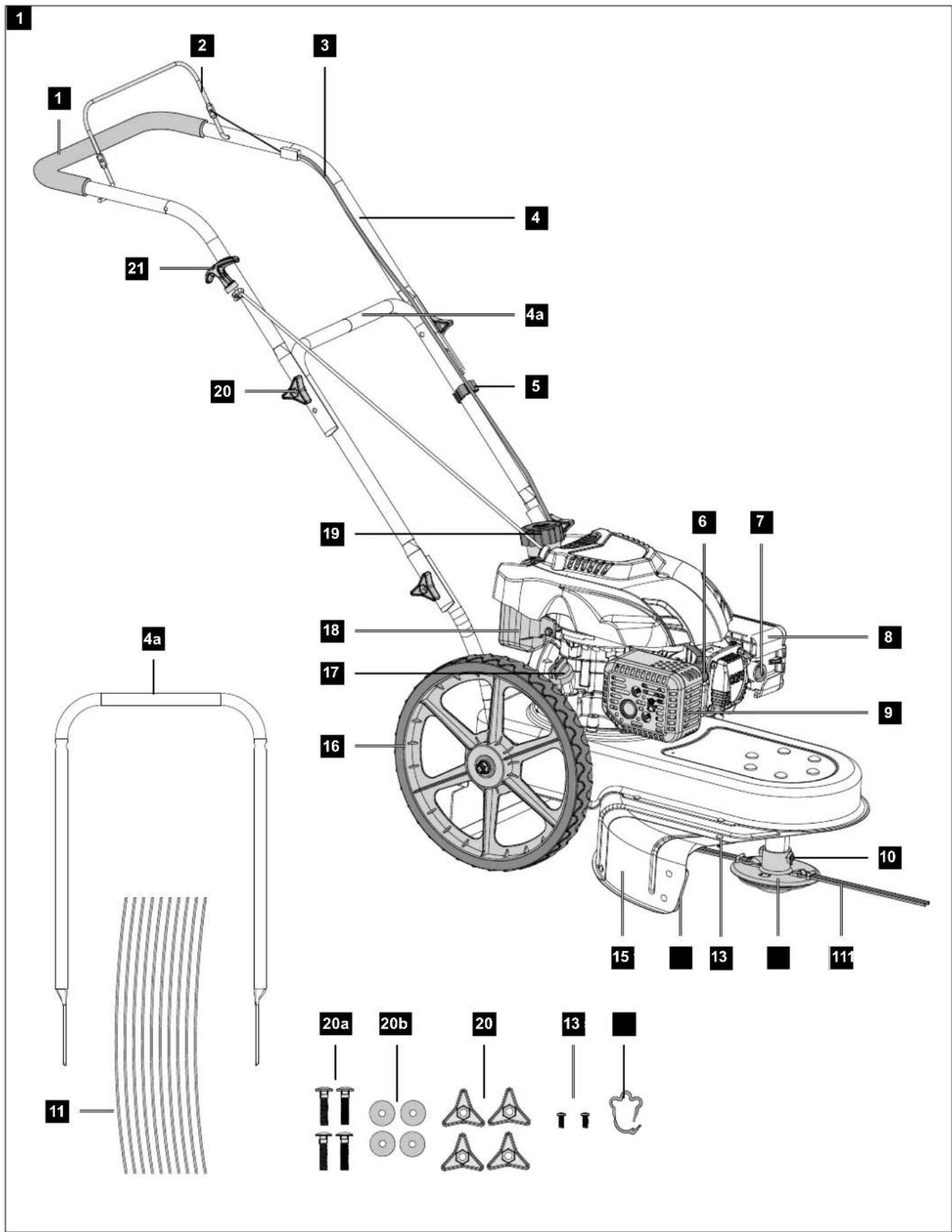

1. Handle

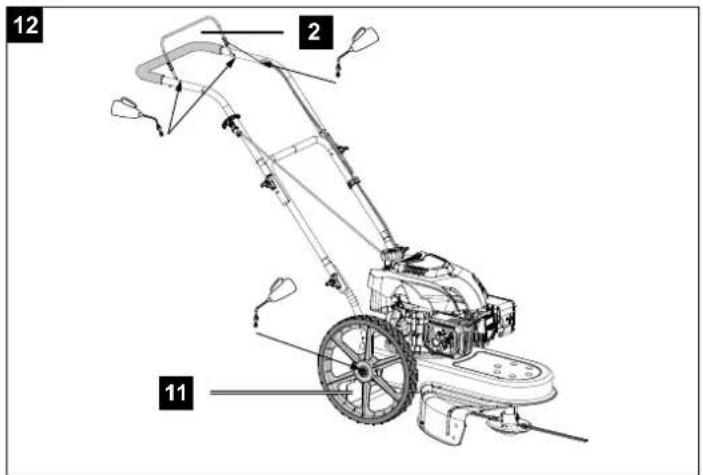

2. Engine brake lever
3. Cable pull
4. Upper push bar
   4a. Lower push bar

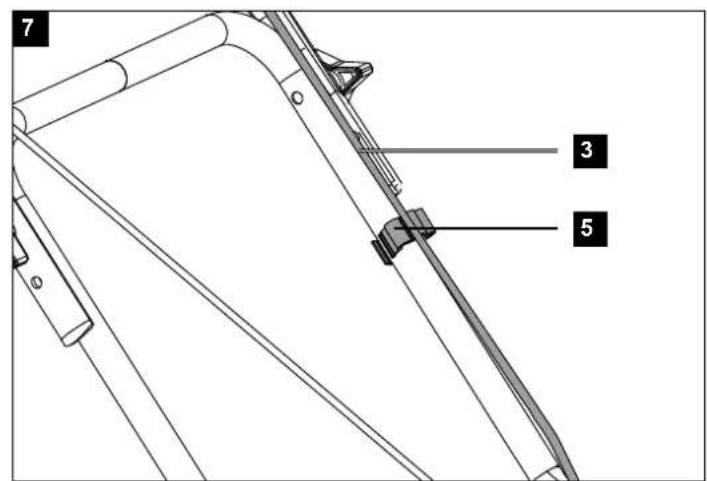

5. Cable clips

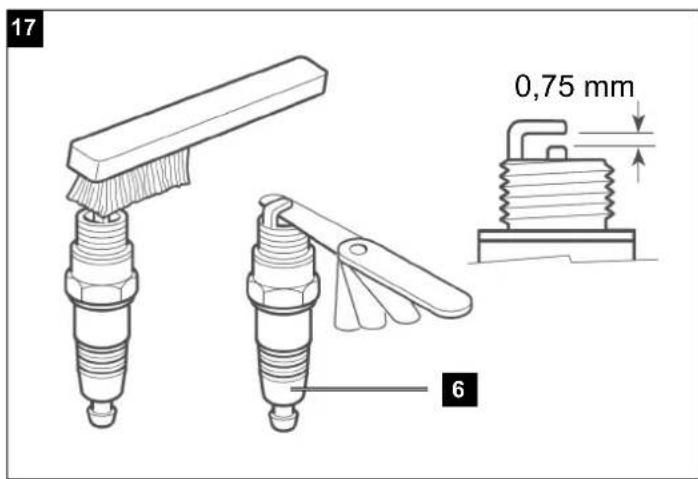

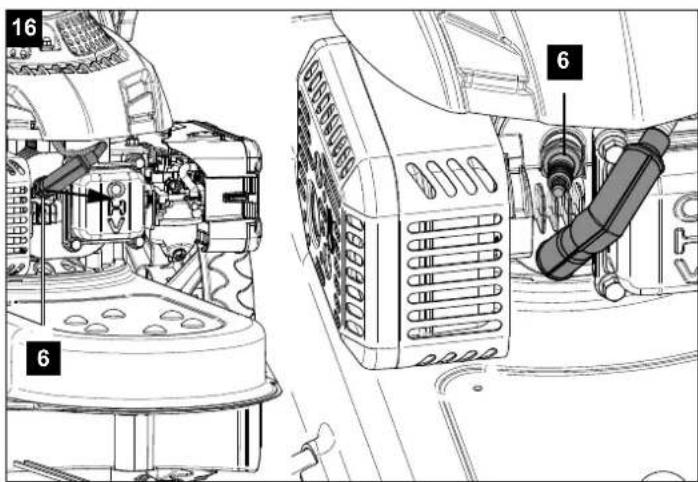

6. Spark plug

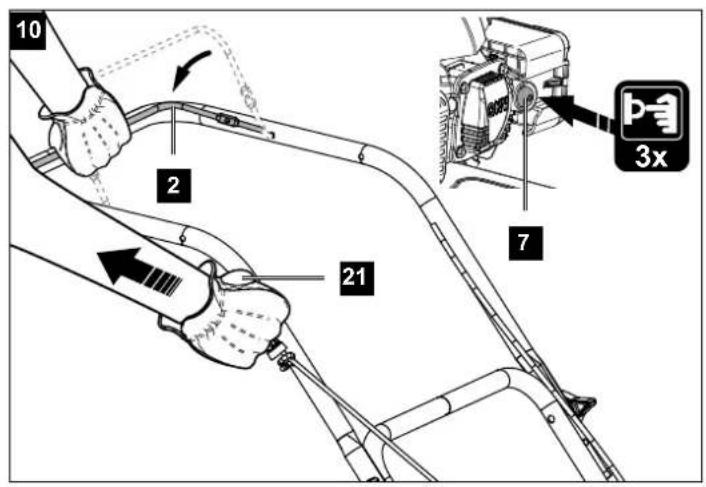

7. Primer button

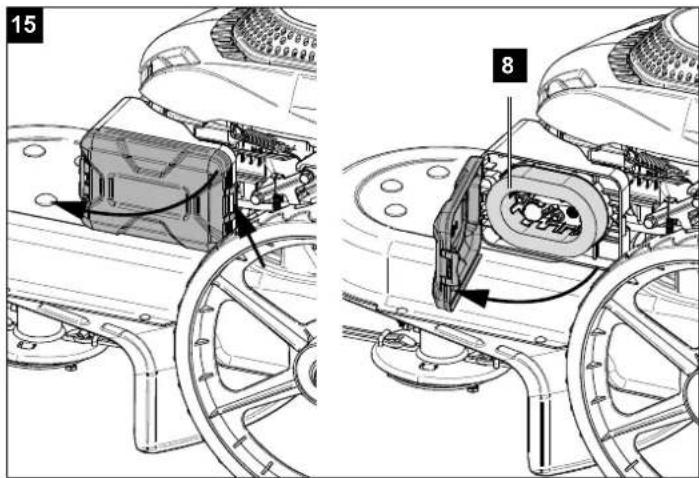

8. Air filter
9. Exhaust pipe
10. Hexagonal bolt

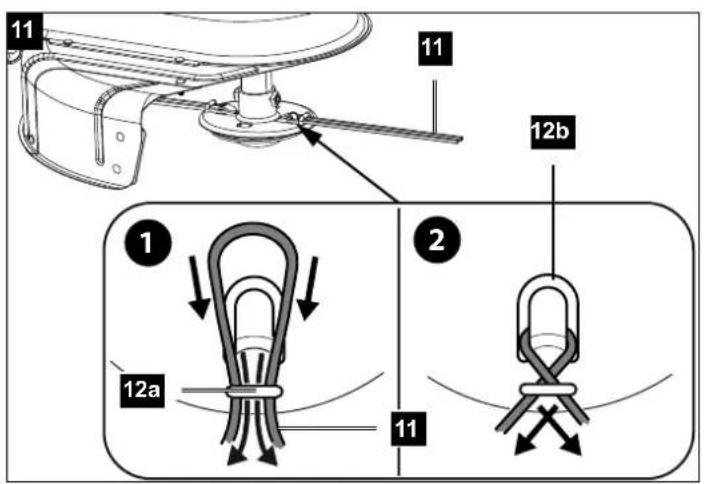

11. Cutting thread
12. Spindle

12a. Loop
12b. Metal tab
13. Fillister head screw

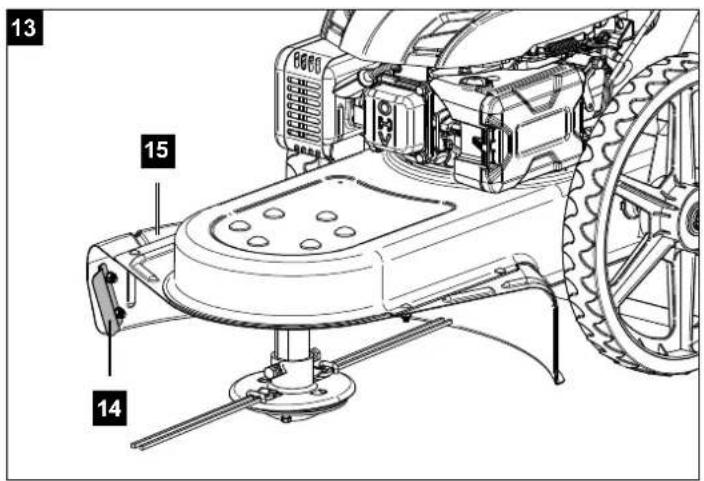

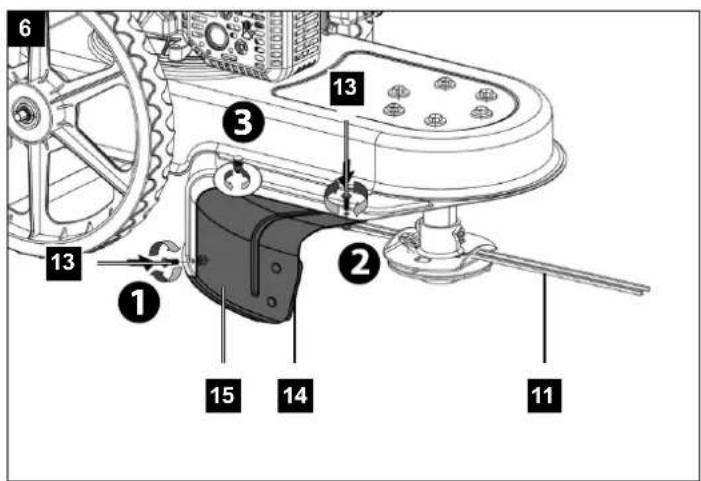

14. Limiting blade
15. Trim plate
16. Idler
17. Oil dipstick
18. Fuel tank
19. Fuel filler cap
20. Plastic star grip nut
20a. Round-head screw
20b. Washer
21. Pull starter

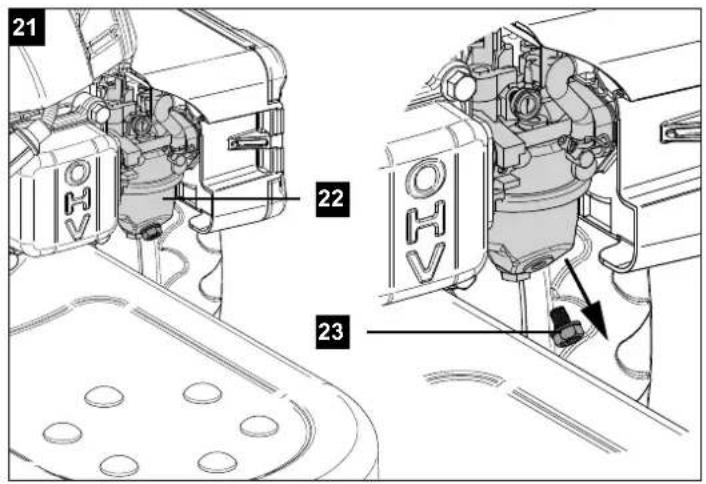

22. Carburettor
23. Drain screw

3. Scope of delivery

Item Quantity Designation

4 1x Meadow mower with upper push bar

4a 1x Lower push bar

4 1x Upper push bar

20a 4x Round-head screw

20b 4x Washer

20 4x Plastic star grip nut

5 1x Cable clip

13 2x Fillister head screw

11 10x Cutting thread with sheath

1x Operating manual

4. Proper use

The meadow mower is suitable for private use in domestic and hobby gardens. Meadow mowers for private domestic and hobby gardens are considered to be those whose annual use does not generally exceed 50 hours and which are primarily used for the maintenance of grass or meadow areas, but not in public areas, parks, sports facilities or in agriculture and forestry.

The product may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product.

The product may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

Due to physical danger to the user

the meadow mower must not be used for the following work (incomplete list):

• for trimming bushes, hedges and shrubs,
• for cutting climbing plants,
• for lawn care on roof plantings and in
- Balcony boxes,
- for chipping and shredding tree and hedge cuttings,
• for cleaning pavements (vacuuming, blowing away),
• for levelling ground elevations such as
- Molehills.

⚠ WARNING

For your own safety, please thoroughly read this manual and the general safety instructions before turning the product on. If you give the product to third parties, always include these usage instructions.

Explanation of the signal words in the operating manual

DANGER

Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

ATTENTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.

5. General safety instructions

Keep all safety information and instructions for future reference!

⚠ WARNING

Read all safety information and instructions, illustrations and technical data provided with this product.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Who is not permitted to use the product:

• Children and other people who do are not familiar with the usage instructions (local stipulations may specify a minimum age for users).
  • People under the influence of alcohol, drugs and medication, as well as those who are tired or ill.

5.1 Safety instructions for hand-held meadow mowers

• Read the usage instructions with due care. Familiarise yourself with the settings and proper operation of the product.
• Never allow children or other persons who do not know the operating instructions to use the lawn mower. Contact your local governmental agency for information regarding minimum age requirements for operating the lawnmower.
• Never mow while people, especially children or animals are nearby. Always keep in mind that the operator is responsible for accidents involving other persons and/or their property.
• Only mow when visibility is good. It is necessary to keep third parties away.
• If you hand over the product to another person, please also hand over these operating instructions.
  • Always wear sturdy, non-slip footwear and long trousers when mowing. Never mow barefoot or in sandals.
• Check the terrain on which the product will be used and remove all objects that could be caught up and violently flung out of the chute (like stones, toys, sticks and wires etc.).

• Switch off the engine, wait for it to stop and disconnect the spark plug connector if

• you are leaving the product.

• You are removing blockages or obstructions.
• the product has been in contact with foreign objects.

- malfunctions and unusual vibrations occur on the product.

⚠ WARNING

Fuel is highly flammable.

• Only store fuel in containers (canisters) intended for this purpose.
• Refuel outdoors only and do not smoke while refuelling.
• Fuel must be filled before starting the engine. While the engine is running or immediately after switching off the product, do not open the fuel filler cap or add fuel.
• If fuel overflows, no attempts should be made to start the engine. Instead, the product must be removed from the area contaminated with fuel. Do not try to start the engine until the fuel vapours have evaporated.
• For safety reasons, the fuel tanks and other fuel caps must be replaced if damaged.
• Never store fuel near a source of sparks. Always use a tested canister. Keep fuel away from children.
• Replace defective silencers.
• Prior to use. always perform a visual inspection to check whether the blade and fastening bolts are worn out or damaged. To prevent an imbalance, worn out or damaged blades and bolts may only be replaced in sets.
• Make sure that all nuts, bolts and screws are securely tightened so that the product is kept in a safe working condition.
• Never store the product with fuel in the tank inside a building in which fuel vapours may come into contact with naked flames or sparks.
• Allow the engine to cool down before parking the product in enclosed spaces.
• In order to avoid fire hazards, keep the engine, exhaust pipe and the area around the fuel tank free of grass, leaves and leaking grease (oil).
• Regularly check the catch basket for signs of wear and loss of functionality.
• For safety reasons, replace worn or damaged parts.
• If the fuel tank has to be drained, you must do this outdoors.
• Do not run the combustion engine in closed rooms in which hazardous carbon monoxide can collect.
• Only mow in daylight or with good artificial lighting.
• Avoid using the product on wet grass as far as possible.
• Do not use the product in a thunderstorm - risk of lightning strike!
  • Always maintain good footing on inclines.
• Only guide the product at walking pace.

5.2 Handling

• The following applies to wheeled products: Always mow across hills i.e. never straight up or straight down. Take particular care when changing direction on a slope.
• Do not mow on excessively steep slopes and nearby rubbish tips, ditches and dykes. Take particular care when reversing the product or pulling it towards you.
• Stop the blade if the meadow mower has to be tilted, when transporting over areas other than grass and when moving the meadow mower to and from the area to be mowed.

⚠ WARNING

The meadow mower must not be used without the trim plate and other protective devices in place.

• Never use the meadow mower with damaged guards or protective grids or without attached protective devices, e.g. baffle plates and/or grass catchers.
• Do not adjust and overclock the engine speed settings.
• Release the engine brake and disengage all cutting tools and drives before starting the engine.
• Start the engine with care, in accordance with the manufacturers instructions. Ensure that your feet are far enough away from the blade.
• The meadow mower must not be tilted when starting the engine, unless the meadow mower has to be lifted during the process. In this case, only tilt as far as absolutely required and only lift the side away from the operator.
• Do not start the engine if you are standing in front of the ejector chute.
• Never put hands and feet on or under rotating parts. Always keep clear of the ejection opening.
• Never lift or carry a mower with the engine running.
• Stop the engine and make sure that all moving parts have come to a standstill and that the ignition key, if present, is removed:
• Before you dislodge any blockages or clogs in the ejector chute.
• Before checking or cleaning the product, or performing work on it.
• If it came into contact with a foreign object. Search for damage to the product and carry out the necessary repairs before restarting and working with the product. If the product begins to experience exceptionally strong vibrations, switch it off immediately and check it.
• Any time you leave the product.
• Before you refuel.

• When the engine runs out, close the throttle valve. If the engine has a petrol shut-off valve, close it after use.

• Operating the product at excessive speed can increase the risk of accidents.

• Be careful when adjusting the product and avoid trapping fingers between the moving blade and rigid parts of the device.
• Be particularly careful when mowing on yielding ground, nearby rubbish tips, ditches and dykes.
• Avoid mowing in places where the wheels have trouble gripping or mowing is unsafe in any other way.
• Watch out for traffic near a road.

DANGER

Risk of tripping!

Exercise particular caution when moving backwards and pulling the product.

Before reversing, make sure there are no small children behind you.

• The user must be adequately trained in the use, adjustment and operation of the machine (including prohibited operations).
• Check the product regularly and make sure that all start locks and push buttons are working properly before each use.
• Please note that improper maintenance, the use of non-compliant spare parts, or the removal or modification of safety devices can result in damage to the product and serious injury to the person working with it.
• Please note that the product's safety systems or equipment must not be tampered with or deactivated. Never remove any safety-related parts.
• Please note that the user must not change or manipulate any sealed engine speed control settings.
• Use only blades and accessories recommended by the manufacturer. The use of other insert tools and other accessories may pose a risk of injury to the user.
  • Always keep the product in good operating condition.
• It is necessary to take sufficient breaks to reduce the noise and vibration load.

6. Residual risks

The product has been built according to state-of-the-art and the recognised technical safety rules. However, individual residual risks can arise during operation.

• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
• Residual risks can be minimised if the "Safety Instructions" and the "Intended Use" together with the operating manual as a whole are observed.
• Prevent the product being unintentionally started up.
• Keep your hands away from the working area when the product is in operation.

- Observe the maintenance and safety instructions in the operating instructions.

6.1 Residual risks and accident protective measures Neglect of ergonomic principles Negligent use of personal protective equipment (PPE)

Careless use or omission of personal protective equipment may result in serious injury.

- Wear prescribed protective equipment.

Human behaviour, misconduct

- Always concentrate fully on all work.

⚠️ Residual risk

- Can never be ruled out.

Danger from noise

Hearing damage

Prolonged unprotected work with the device may cause hearing damage.

- Always wear hearing protection as a matter of principle.

Behaviour in an emergency

In the event of an accident, initiate the necessary first aid measures and seek medical assistance as quickly as possible.

WARNING

In case of extended working periods, the operating personnel may suffer circulatory disturbances in their hands (vibration white finger) due to vibrations. Raynaud's syndrome is a vascular disease that causes the small blood vessels on the fingers and toes to cramp in spasms. The affected areas are no longer supplied with sufficient blood and therefore appear extremely pale. The frequent use of vibrating devices can cause nerve damage in people whose circulation is impaired (e.g. smokers, diabetics). If you notice unusual adverse effects, stop working immediately and seek medical advice.

Observe the following information to reduce hazards:

• Keep your body and especially your hands warm in cold weather.
  • Take regular breaks and move your hands to promote circulation.
• Ensure as little vibration as possible at the device via regular maintenance and stable parts on the machine. If there is increased noise and vibration from the mower, it must be switched off and checked immediately.

7. Technical data

Type of motor 4-Stroke engine / air cooled

Displacement 161 cm		3
Rotation speed 3000 RPM
Fuel	Regular grade petrol/lead-free max. 10% bioethanol
Tank capacity / petrol 1.3 l
Engine oil SAE 30 / 10W30 / 10W40
Oil tank capacity		0.4 l
Cutting height adjustment		40-95 mm
Cutting thread		∅4 x 445 mm
Cutting width		56 cm
Weight		26 kg
Power		4,1 PS / 3,0 KW
CO2-Output		1550 g/kWh

Subject to technical changes!

Noise and vibration

⚠ WARNING

Noise can have serious effects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection for yourself and anyone in the vicinity.

Information about noise level measured in accordance with applicable standards:

Sound pressure L_pA =	88 dB
Measurement uncertainty K_PA =	3 dB
Sound power L_WA =	102 dB
Measurement uncertainty K_WA =	3 dB

Wear hearing protection.

Excessive noise can result in a loss of hearing.

Vibration A_hv (left/right) = 6.812 m/s ^2

Measurement uncertainty K_PA= 1.5 m/s ^2

Keep the noise level and vibration to a minimum!

• Only use faultless products.
• Maintain and clean the product at regular intervals.
• Adapt your working methods to the product.
• Do not overload the product.
• Have the product checked if necessary.
• Switch the product off if it is not in use.
• Wear protective gloves.

8. Unpacking

⚠ WARNING

The product and the packaging material are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

• Open the packaging and carefully remove the product.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating manual before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.
• When ordering please provide our article number as well as type and year of manufacture for the product.

9. Assembly

⚠ WARNING

Risk of injury due to rotating cutting thread. Only work on the product when the cutting thread is switched off and stationary!

ATTENTION

Ensure that the throttle cable is not squeezed when mounting the push bars.

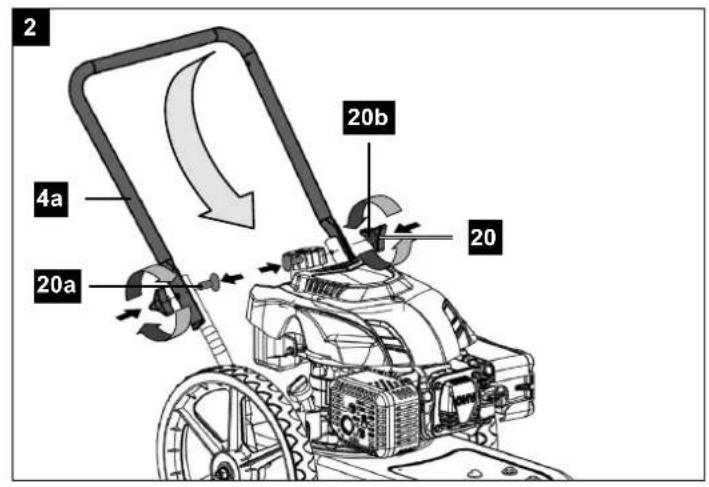

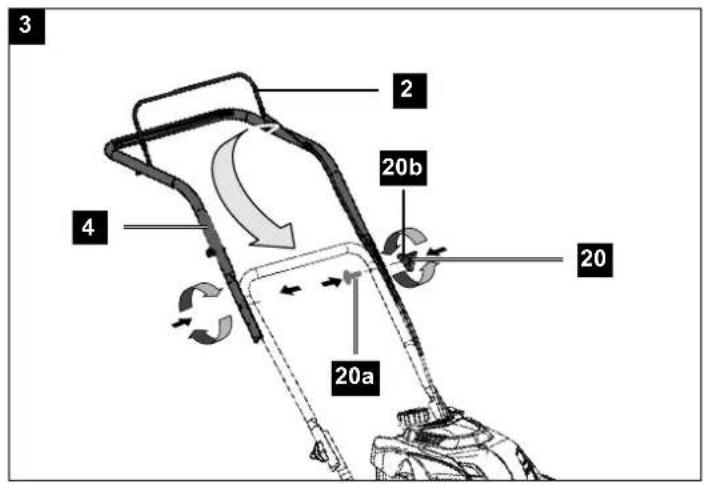

Assembly (Fig. 2-7)

1. Remove the product and all attachments from the packaging and check that all parts are present.
2. Screw the lower push bar (4a) to both sides of the mower using a round-head screw (20a), a washer (20b) and a plastic star nut (20). Make sure that the cable pull (3), which will be attached later, is not in the way (Fig. 2).
3. Screw the upper push bar (4) to the lower push bar (4a) using a round-head screw (20a), a washer (20b) and a plastic star nut (20) on both sides (Fig. 3).

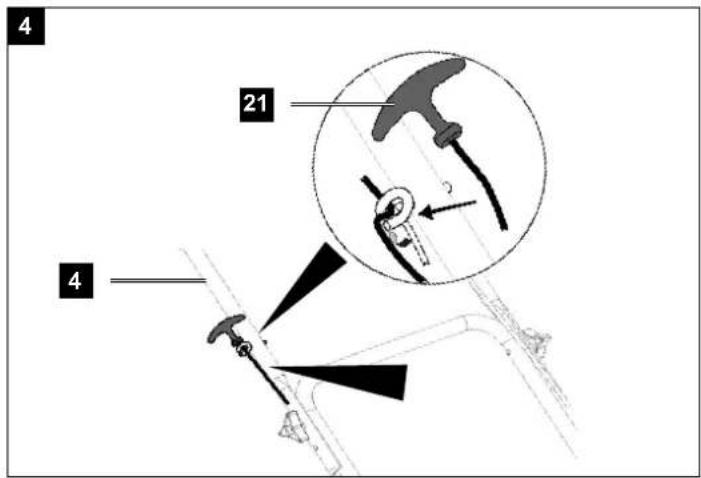

4. Hang the handle of the pull-cord starter (21) on the hook provided, as shown in Fig. 4.

5. Secure the cable pull (3) to the lower push bar (4a) using the enclosed cable clip (5) (Fig. 7).

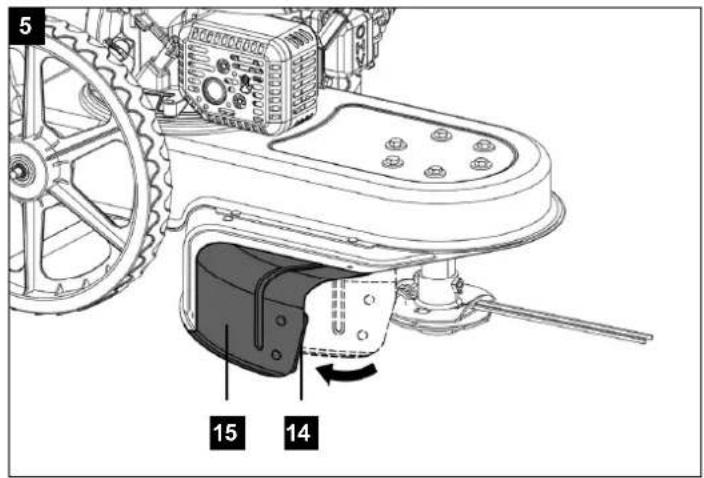

6. Turn the trim plate (15) outwards into position (Fig. 5)

7. Fasten the trim plate (15) with two pan-head screws (13) (Fig. 6).

10. Before commissioning

ATTENTION

Always assemble the product completely before commissioning!

⚠ WARNING

Health hazard!

Inhalation of fuel / lubricating oil vapours and exhaust gases can cause serious damage to health, unconsciousness and in extreme cases death.

• Do not inhale fuel/lubricating oil vapours and exhaust fumes.
• Operate the product outdoors only.

ATTENTION

Product damage!

Using the product without or with too little engine and gear oil can result in engine damage.

- Fill with fuel and oil before commissioning. The product is supplied without engine and gearbox oil.

ATTENTION

Environmental damage!

Spilled oil can pollute the environment permanently. The liquid is highly toxic and can quickly lead to water pollution.

• Fill/empty oil only on level, paved surfaces.
• Use a filling nozzle or funnel.
• Collect drained oil in a suitable container.
• Wipe up spilled oil carefully immediately and dispose of the cloth according to local regulations.
• Dispose of oil as per local regulations.

ATTENTION

Risk of damage!

If incorrectly stored or undrained fuel is used, the carburettor may become clogged or engine operation may be affected.

- Put unused fuel in an airtight vessel and store it in a dark, cool room.

Place the product on a level, even surface.

Tool required: (not necessarily included in the scope of delivery!)

• Measuring cup 1 litre (oil/fuel resistant)
• Funnel
• Lappen

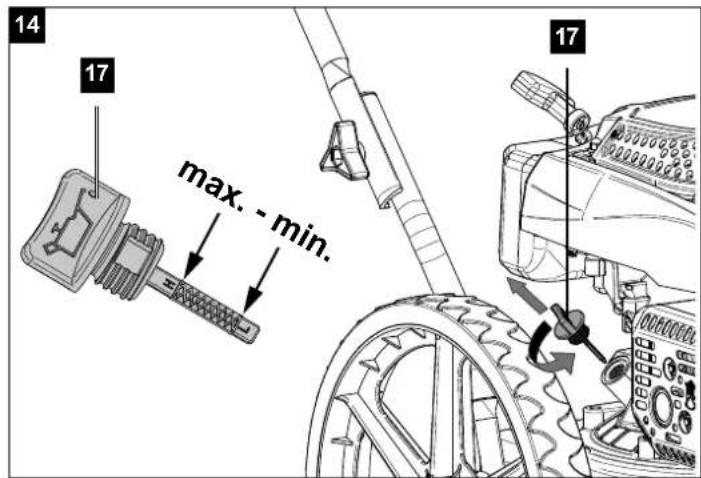

10.1 Filling up with engine oil (Fig. 14)

ATTENTION

The product is delivered without engine oil. Therefore, ensure that you add oil before starting it up. Use multigrade oil (SAE 30, 10W-30 or 10W-40).

Check the oil level regularly before commissioning. An oil level that is too low can damage the motor.

1. Unscrew the oil dipstick (17).

2. Fill the tank with engine oil using a funnel. Note the max. filling capacity of 0.4 l. Fill the oil up to the lower edge of the filling nozzle carefully.

3. Wipe the oil dipstick (17) with a clean, lint-free cloth.

4. Re-insert the oil dipstick (17) and pull it out again. Check the oil level without screwing the oil dipstick (17) back in.

5. The oil level must be within the middle mark on the oil dipstick (17).

6. If the oil level is too low, add the recommended amount of oil (max. 0.4 l).

7. Then screw the oil dipstick (17) back in.

10.2 Filling up with fuel (Fig. 1)

DANGER

Risk of fire and explosion!

When filling, fuel may ignite and even explode. This can lead to severe burns or death.

• Switch off the motor and allow it to cool down
• Keep heat, flames and sparks away.
• Only fill up with fuel outdoors.
• Wear protective gloves.
• Avoid contact with skin and eyes.
• Start the product at a distance of at least 3 m from the fuel filling point.
• Watch out for leaks. If fuel is leaking, do not start the engine.

ATTENTION

The product is delivered without fuel. It is therefore essential to fill with fuel before commissioning. Use Super E10 petrol for this.

1. Clean the area surrounding the filling area. Impurities in the fuel tank (18) lead to operational faults.
2. Carefully open the tank cover (19) so that any possible overpressure can be relieved.
3. Fill the fuel tank (18) with petrol using a funnel. Note the max. filling capacity of 1.2 l. Fill the petrol up to the lower edge of the filling nozzle carefully.
4. Close the tank cover (19) again. Ensure that the fuel cap is tightly sealed.
5. Clean the tank cover (19) and the surroundings.

11. Start-up

NOTE

Some noise pollution from this product is unavoidable. Postpone noisy work to approved and designated times. If necessary, adhere to rest periods and limit the duration of work to the bare minimum. For your personal protection and the protection of nearby persons, wear suitable hearing protection.

⚠ Attention!

Always make sure the product is fully assembled before commissioning!

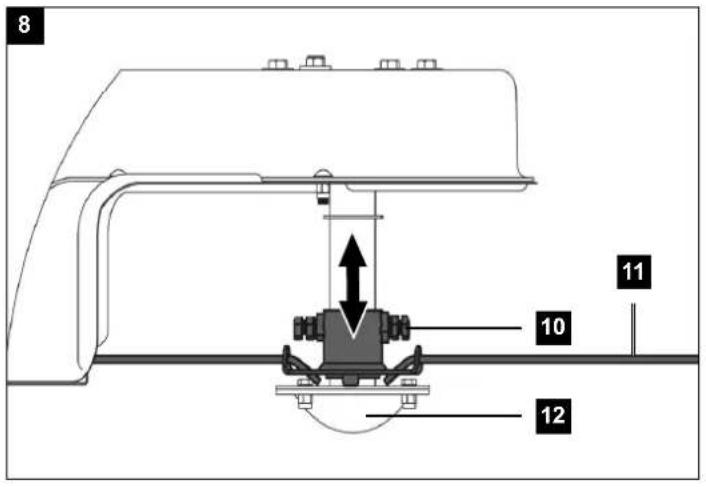

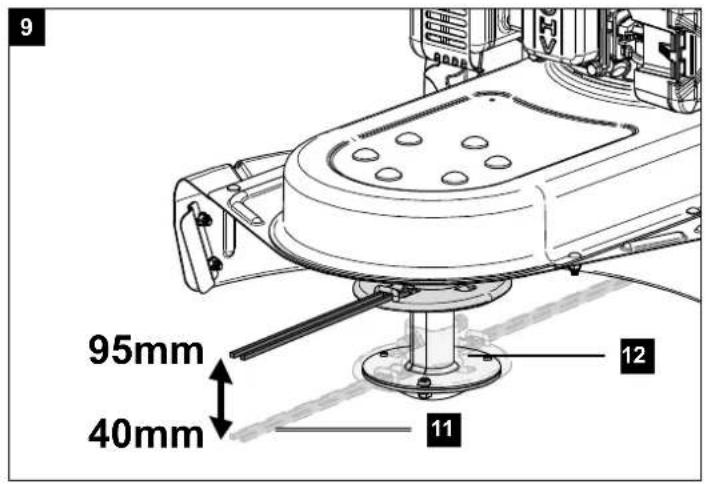

11.1 Setting the cutting height (Fig. 8-9)

ATTENTION

Adjust the cutting height only when the engine is switched off and the plug boot has been pulled.

1. In dense, tall grass, set the highest cutting level and mow more slowly. Adjust the cutting height so that the product is not overloaded.
2. The cutting height adjustment is infinitely variable. To adjust the cutting height, loosen the hexagon head screws (10) on the side of the spindle shaft (Fig. 8).
3. Slide the spindle (12) to the desired position, between 40 mm and 95 mm cutting height (Fig. 9).
4. Tighten the screws (10) again.

11.2 Engine brake lever (2) (Fig. 10)

You must check the spindle stop device before each start-up. Start the engine as described under 12.1.

1. Release the engine brake lever (2). The motor switches off and the spindle shaft is braked.

2. The cutting thread (11) must stop within 7 seconds.

12. Operation

The product is powered by a powerful, air-cooled 4-stroke engine.

It is equipped with infinitely variable cutting height adjustment and a folding push handle. Please refer to the following descriptions for the function of the controls.

Check before operation

• Check all sides of the engine for oil or fuel leaks.
• Check the engine oil level.
• Check the fuel level – the fuel tank should be at least half-full.
• Check the condition of the air filter.

• Check the condition of the fuel lines.

• Make sure that the spark plug connector is attached to the spark plug.

• Look for signs of damage.
• Check that all protective covers are in place and that all screws, nuts and bolts are tightened.

12.1 Starting the engine (Fig. 10)

NOTE

The cutting thread rotates when the motor is started.

1. Check the fuel and engine oil level before every start (see 10.1 and 10.2). Make sure that the spark plug connector is connected to the spark plug (6).
2. In colder temperatures, press the fuel pump "primer" (7) three times. This makes it easier to start the product (Fig. 10).
3. Stand behind the product. One hand pushes the engine brake lever (2) towards the handle (1), the other hand should be on the pull-wire starter (21).
4. Start the engine with the pull starter (21). To do this, pull the handle out approx. 10-15 cm (until resistance is felt). And then pull hard with a jerk. If the engine does not start, pull on the pull starter (21) again.
5. Due to protective coating on the engine, a small amount of smoke may be present during the initial use of the product and should be considered normal. This is a normal process.

NOTE

Only use the fuel pump "primer" when the engine is cold!

ATTENTION

• Do not let the pull starter whip back in. This can result in damage.
• Only use the fuel pump "primer" when the engine is cold!

12.2 Switch off the motor

⚠ WARNING

Danger of injury!

After switching off the motor, the cutting line continues to run for a few seconds. If you touch the rotating parts, you may cut yourself.

• Wait until the cutting thread comes to a standstill
• Do not brake the cutting line by hand.
• Wear protective gloves.

• Keep the cutting line away from your feet.

• To switch off the engine, release the engine brake lever (2).

• Wait until the cutting thread (11) comes to a standstill.

• Remove the spark plug cap from the spark plug (6) to prevent the engine from starting unintentionally (Fig. 16)

13. Working instructions

• Only mow with perfect, undamaged cutting line.
• To achieve a clean cut, guide the product in as straight a path as possible. These strips should always overlap by a few centimetres so that no patches remain.
• Keep the underside of the mower housing clean and be sure to remove grass debris. Deposits impede the start-up process and impair the cutting quality.
• On slopes, the cutting path should be made perpendicular to the slope. Sliding of the meadow mower can be prevented by tilting it upwards. For safety reasons, slopes steeper than 15 degrees may not be mowed with the meadow mower. (Fig. 18, Fig. 19)

13.1 After mowing

• Always allow the motor to cool down before parking the product in a closed room. Remove grass, leaves, grease, and oil before storage. Do not place any other objects on the product.
• Check all screws and nuts before the next use. Tighten up loose screws.
• Please also refer to chapter 17.

14. Cleaning

⚠ WARNING

Danger of injury and burning!

The product can start unexpectedly and cause injuries.

• Switch off the motor before carrying out any cleaning or maintenance work.
• Allow the motor to cool down.
• Disconnect the spark plug connector from the spark plug.

WARNING

Health hazard!

Inhalation of fuel/lubricating oil vapours and exhaust fumes can cause serious damage to health, unconsciousness and, in extreme cases, death.

• Do not breathe fuel / lubricating oil vapours and exhaust gases.
• Operate the product outdoors only.

Tool required: (not necessarily included in the scope of delivery)

• Spatula
• Hand brush

- Compressed air

14.1 Cleaning the product

Never clean the mower with a water jet or high pressure cleaner. The motor should remain dry. Do not use aggressive cleaning products such as cold cleaners or white spirit.

The mower should be thoroughly cleaned after each use. In particular, the underside and the spindle. Keep protective devices, air vents and motor housings as free of dust and dirt as possible.

NOTE

Before tipping the product, empty the fuel tank completely using a petrol suction pump (not included in the scope of delivery).

The product must not be tilted more than 90 degrees.

• It is best to tilt the mower backwards. Make absolutely sure that the spark plug (6) is pointing upwards. If the spark plug (6) is pointing downwards, oil can leak out and cause major damage to the engine and carburettor.
• Alternatively, you can tilt the appliance on its side, but you must ensure that the air filter (8) is on the upper side.
• Clean the underside of the product with a spatula and hand brush. The spatula helps to remove coarse and larger plant residues from the cutting line area. Cleaning the underbody is easier and more thorough immediately after use. Then dirt and plant residues are still fresh and can be loosened more easily. Grass residues and dirt that have dried on can impair mowing.
• Rub the product clean with a clean cloth or blow it off with compressed air at low pressure.
• Clean the product at regular intervals using a damp cloth. Do not use any cleaning products or solvents; they could attack the plastic parts of the product. Make sure that no water can penetrate the interior of the product.

15. Maintenance

⚠ WARNING

Have repair and maintenance work that is not described in these operating instructions carried out by a specialised workshop. Use only original spare parts.

There is a risk of accident! Carry out maintenance and cleaning work should always be carried out with the engine switched off. There is a danger of injury! Let the Product cool down before all maintenance and cleaning tasks. Elements of the engine are hot. There is a danger of injury and burning!

The product can start unexpectedly and cause injuries.

• Switch off the motor before carrying out any cleaning or maintenance work.
• Disconnect the spark plug connector from the spark plug.

• Allow the motor to cool down.

• Regular, careful servicing is required to guarantee the safety level and performance of the product.

• Ensure that all nuts, pins and screws are securely tightened so that the product is in a safe working condition.
• For safety reasons, replace worn or damaged parts.
• Check that the rear wheels are securely fastened.
• To ensure that the wheels run smoothly, we recommend cleaning and lightly oiling the wheel axles and wheel hubs at least once a season (Fig. 12).
• Work not described in these operating instructions should only be carried out by an authorised specialist workshop.
• Place the product on a level, even surface.

Tool required:

• Spark plug wrench*
• Fuel extraction pump*
• Cloth*
• Open-ended spanner, size 10 mm*
• Open-ended spanner, size 13 mm*
• Phillips screwdriver
• Oil pump*
• Oil collecting tray, flat (for oil change)*
• Collection bucket*
• Copper wire brush*
  * = may not be included in the scope of delivery!

15.1 Changing the cutting thread (Fig. 11)

⚠ WARNING

There is a risk of injury when working with a damaged cutting thread.

• Wear protective gloves!

• Only original spare parts may be used when replacing the cutting thread.

• Empty the fuel tank before removing the cutting line (11) (see 15.5.).

• Remove the cutting thread (11) by pushing both ends of the thread through the loop (12a) so that the cutting thread (11) comes out from under the metal tab (12b). The cutting thread (11) can then simply be pulled out.
• Fold the cutting thread (11) in half and feed both ends through the loop (12a) on the edge of the spindle.
• Pull the ends of the cutting thread (11) through the loop (12a) until the cutting thread sits securely under the metal tab (12b).
• Cross the thread ends and pull them tight to secure the cutting thread (11). (Fig. 11)

15.2 Grinding the limiting blade (14)(Fig. 13)

The limiting blade (14) can become blunt over time.

1. If you notice this, loosen the screws that secure the limiting blade (14) to the trim plate (15).
2. Secure the limiting blade (14) in a vice.
3. Grind the cutting edge of the limiting blade (14) with a flat file, taking care to maintain the angle of the cutting edge.
4. Important! Refit the limiting blade (14) in the trim plate (15).
5. Replace or sharpen the limiting blade (14) at the end of each mowing season or as required.

15.3 Checking the oil level (Fig. 14)

⚠ WARNING

Health hazard.

Inhalation of fuel/lubricating oil vapours and exhaust fumes can lead to serious damage to health, unconsciousness and, in extreme cases, death.

- Do not inhale fuel/lubricating oil vapours and exhaust fumes.

- Operate the product outdoors only.

ATTENTION

Product damage!

If the product is operated without or with too little engine and gear oil, this can lead to engine damage.

- Fill with fuel and oil before commissioning. The product is supplied without engine and gearbox oil.

- Only use engine oil SAE 30, 10W-30 or 10W-40.

ATTENTION

Environmental damage!

Spilled oil can pollute the environment permanently. The liquid is highly toxic and can quickly lead to water pollution.

• Fill/empty oil only on level, paved surfaces.
• Use a filling nozzle or funnel.
• Collect drained oil in a suitable container.
• Wipe up spilled oil carefully immediately and dispose of the cloth according to local regulations.

• Dispose of oil as per local regulations.

• Turn the oil dipstick (17) anticlockwise to unscrew it and wipe it with a clean, lint-free cloth.

• Reinsert the oil dipstick (17) and check the oil level without screwing the oil dipstick (17) tight again.
• Pull the oil dipstick (17) out and read the oil level in the horizontal position. The oil level must be positioned between the max. and min. of the oil dipstick (17).
• Then screw the oil dipstick (17) in again.

15.4 Oil change

The engine oil should be changed annually before the start of the season.

must be carried out with the engine at operating temperature and switched off.

Only use engine oil (SAE30, 10W-30 or 10W-40).

1. Unscrew the oil dipstick (17) by turning it anticlockwise.
2. Suck out the engine oil through the filler neck using an oil pump (with hose).
3. Fill up with fresh engine oil and check the oil level (see 15.3).

15.5 Drain fuel with a fuel suction pump (Fig. 21)

1. Hold a collection bucket under the hose on the fuel extraction pump.
2. Unscrew and remove the fuel filler cap (19).
3. Push the hose of the petrol extraction pump into the fuel tank and drain out the fuel completely using the petrol extraction pump.
4. Screw the fuel filler cap (19) tight again
5. To ensure that no fuel remains in the carburettor, the remaining fuel must be drained out of the carburettor.

To do this, place a collecting container under the carburettor (22) and open the drain plug (23) using a 10 mm open-end spanner (Fig. 21).

15.6 Maintenance of the air filter (8) (Fig. 15)

DANGER

Risk of fire and explosion!

If not cleaned correctly, fuel may ignite and even explode. This can lead to severe burns or death.

• Clean the air filter only by knocking it out.
• Never clean the air filter with petrol or flammable solvents.

ATTENTION

Risk of damage!

Operating the engine without a filter element or with a damaged filter element can cause engine damage.

- Never run the engine without or with a damaged air filter element. This would allow dirt into the engine, which would result in severe damage to the engine.

Contaminated air filters (8) diminish the engine output due to reduced air supply to the carburettor. Regular inspection is therefore essential.

The air filter (8) should be checked every 25 operating hours and cleaned as required. The air filter (8) must be checked more often if the air is very dusty.

1. Remove the air filter cover and remove the air filter (8).
2. Clean the air filter (8) only by tapping it.
3. Replace a faulty air filter (8) with a new one.
4. Reinsert the air filter (8) and replace the air filter cover.

15.7 Spark plug maintenance (fig. 17)

Check the spark plug (6) for the first time after 10 operating hours for soiling and clean these with a copper wire brush if necessary. Then maintain the spark plug (6) every 50 operating hours.

1. Remove the spark plug connector with a twist.
2. Remove the spark plug (6) with a spark plug wrench.
3. Use a feeler gauge to set the gap to 0.75 mm(0.030"). Refit the spark plug (6) and take care not to overtighten it.

15.8 Engine brake lever (2) (Fig. 1)

The engine is equipped with a mechanical brake which has to be checked regularly. When the motor brake lever (2) is released, the cutting line (11) must come to a standstill within 7 seconds.

A running cutting thread (11) produces clearly audible wind noises. The running of the cutting thread (11) is signalled by the wind noise generated and can thus be checked.

The cable pulls must be oiled more often and checked for ease of movement (Fig. 12).

NOTE

If you notice that the motor brake is not working correctly, please contact customer service or a specialist workshop.

Ensure that the product is in perfect condition throughout its service life. Improper maintenance may lead to life-threatening injuries.

16. Transport

⚠ WARNING

Risk of injury and burn!

The product can start unexpectedly and cause injuries.

• Switch off the motor before carrying out any cleaning or maintenance work.
• Allow the motor to cool down.

• Disconnect the spark plug connector from the spark plug.

• Empty the fuel tank using a petrol extraction pump (not included in the scope of delivery) into a collection container.

• Drain the motor oil of the warm motor.
• Clean the cooling fins of the cylinder and the housing.
• Fold in the upper push bar (4).
• Wrap a few layers of corrugated cardboard between the upper push bar (4), the lower push bar (4a) and the motor to prevent chafing (Fig. 20).
• The product must be secured against tipping and slipping during transport in vehicles in order to prevent damage and injuries.

17. Storage

ATTENTION

Clean and maintain the product before storage.

Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children.

The optimum storage temperature lies between 5 and 30 °C.

Store the product in its original packaging. Cover the product to protect it from dust or moisture. Store the operating manual with the product.

• Never store the product with fuel in the tank inside a building in which fuel vapours may come into contact with naked flames or sparks.
• Allow the engine to cool down before parking the product in enclosed spaces.
• In the event of prolonged storage, empty the fuel tank with a fuel extraction pump (not included in the scope of delivery).
• In order to avoid fire hazards, keep the engine, exhaust pipe and the area around the fuel tank free of grass, leaves and leaking grease (oil).

17.1 Preparing the product for storage

⚠ WARNING

Do not remove the fuel in enclosed spaces, near fire or when smoking. Petrol fumes can cause explosions and fire.

1. Clean and maintain the product before storage.
2. Empty the fuel tank using a petrol extraction pump. (see 15.5)
3. Carry out an oil change (see 15.4)
4. Remove the spark plug (6) from the cylinder head.
5. Pull the pull starter (21) slowly so that the oil protects the inside of the cylinder.
6. Screw the spark plug (6) back in.
7. Clean the cooling fins of the cylinder and the housing.
8. Be sure to clean the entire product to protect the paint.
9. Store the product in a well-ventilated place or area.

18. Repair & ordering spare parts

After repairs or maintenance, make sure that all safety-related parts are installed and are in perfect condition. All parts which may cause injury must be kept where they are inaccessible to children or others.

ATTENTION

According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts.

Such work should be performed by a customer service centre or an authorised specialist. The same applies to accessories

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

NOTE

Important note in the case of repairs

When returning the product for repair, for safety reasons, ensure that it is free of oil and fuel when it is sent to the service centre.

18.1 Ordering spare parts

Please provide the following information when ordering spare parts:

• Model designation
• Item number
• Type plate data

Spare parts / accessories

Cutting thread - item number: 5911290002

18.2 Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Cutting thread, V-belt, engine oil, spark plug, air filter, wheels

* may not be included in the scope of delivery!

19. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

You can find out how to dispose of the disused device from your local authority or city administration.

Fuels and oils

• Before disposing of the device, the fuel tank and the motor oil tank must be emptied!
• Fuel and engine oil do not belong in household waste or drains, but must be collected or disposed of separately!
• Empty oil and fuel tanks must be disposed of in an environmentally friendly manner.

20. Troubleshooting

The following table shows fault symptoms and describes remedial measures in the event of your product failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.

Fault Possible cause Remedy
Unsteady running, strong vibration of the device	Screws are looseCutting line, cutting height adjustment looseCutting threads of unequal length	Check screwsCheck cutting height adjustmentCheck cutting threads
Engine does not run	Engine brake lever not pressedSpark plug is defectiveFuel tank is emptyContaminated fuelcold environmentEngine defective	Press engine brake leverReplace spark plugRefill with fuelEmpty the fuel tank and fill with clean fuelPress the primer buttonContact authorised customer service
Engine runs unsteadily	Air filter dirtySpark plug dirty	Clean the air filterClean the spark plug

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Technical diagram of a mechanical assembly with numbered parts, likely for assembly or maintenance reference.

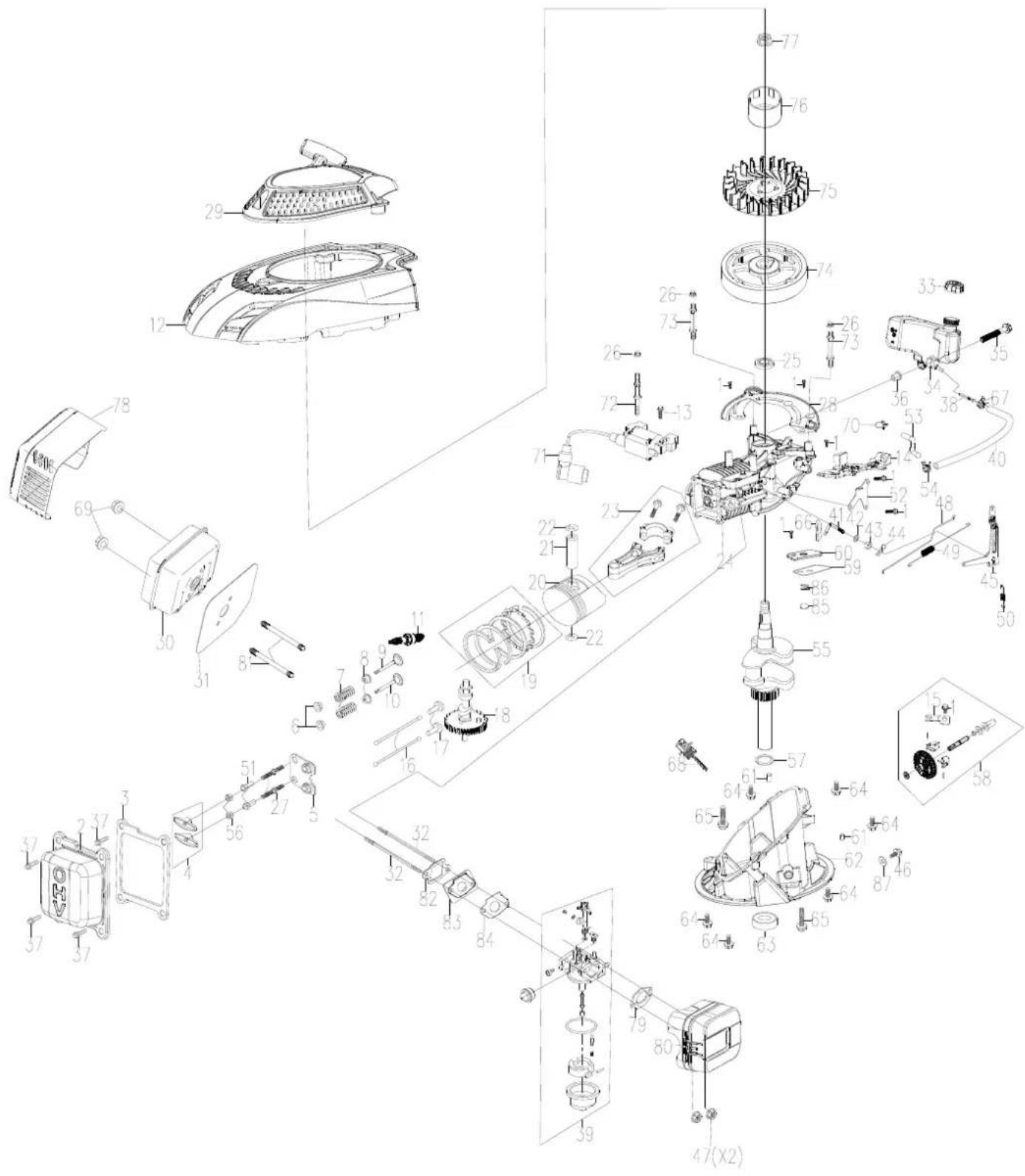

Exploded view diagram of a mechanical assembly with numbered components and exploded views

EU Declaration of Conformity

Standard references:

EN ISO 14982:2009, EN 14910:2007+A1:2009

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Stefan Hartinger Günzburger Str. 69, D-89335 Ichenhausen

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyeris rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material

or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
