USER MANUAL MS196-51E SCHEPPACH

Black-and-white photo of a S196-51E lawn mower with visible blades and handle, no text or symbols on the machinery itself.

https://www.scheppach.com/de/service scheppach

MS196-51E

Close-up of a hand holding a black cable with a numbered label '5' and directional arrows indicating motion (no text or symbols beyond labels)

5a 18

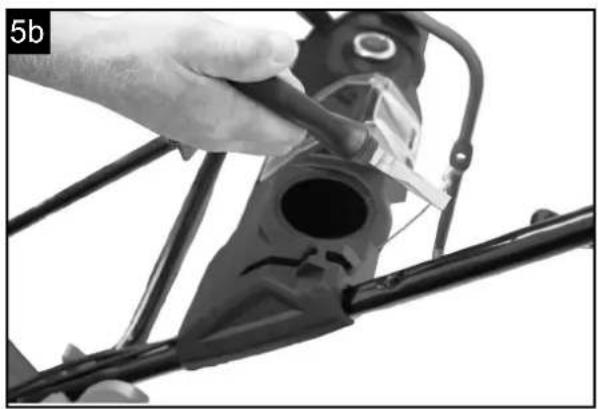

Close-up of a hand adjusting a bicycle wheel handle and cable (no visible text or symbols)

Close-up of a mechanical component with a circular opening and attached brackets (no visible text or symbols)

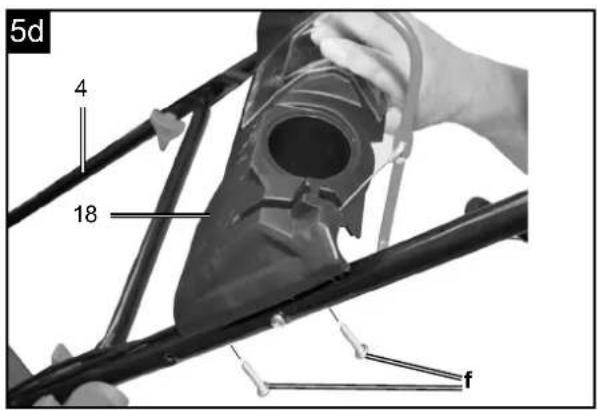

5d 4 18 f

6 17a 17

7 e

Black plastic container with mesh pattern and directional arrows, labeled '16' (no text or symbols on the diagram itself)

Close-up of a person using a lawn mower on a grassy vehicle (no visible text or symbols)

Close-up of a hand pressing down on a black mechanical component with visible tire and blade (no text or symbols)

Close-up of a black lawn mower with visible tire and handle, labeled parts 11 and 19 (no text or symbols on the device itself)

12 15

13 14

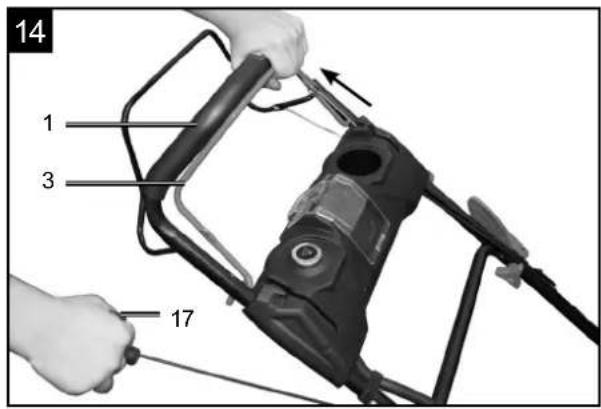

14 1 3 17

Close-up of a car's helmet and seat assembly, showing hand positioning and mounting bracket (no text or symbols visible)

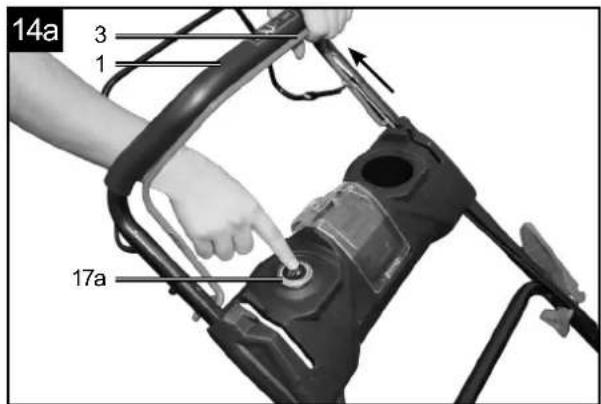

14a 3 1 17a

Close-up of a mechanical component with visible gears and housing (no text or symbols)

Close-up of a lawn mower with a mounted device and directional arrows indicating motion (no text or symbols)

Close-up of a person using a tool on a motorcycle seat, with no visible text or symbols

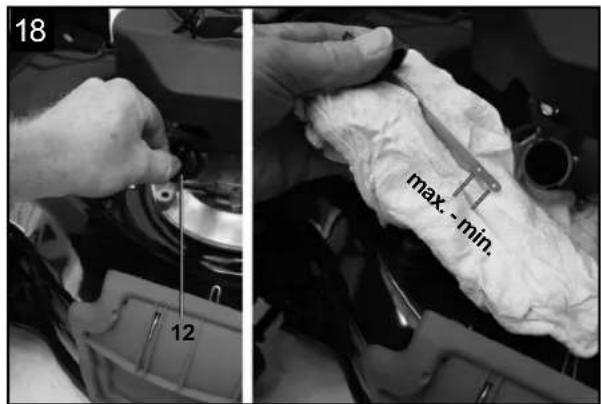

18 12 max. - min.

Close-up of a mechanical component with concentric rings and mounting holes, no visible text or symbols

20 21

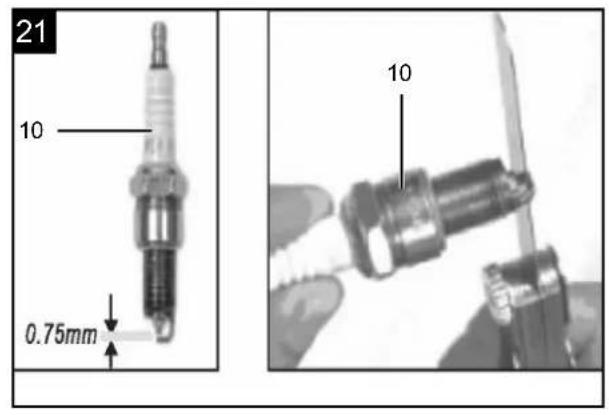

21 10 0.75mm 10

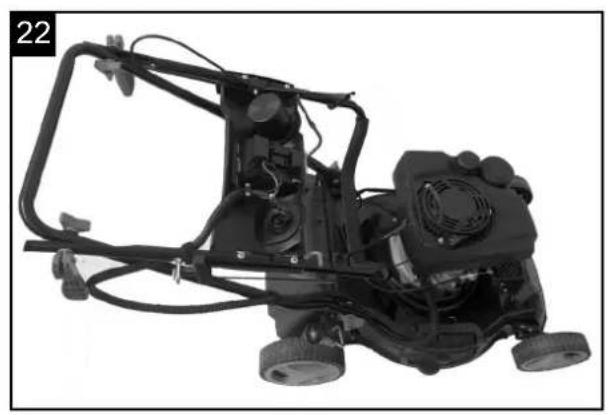

Black-and-white photo of a small utility vehicle with visible wheels, hoses, and control panel (no text or symbols)

Close-up of a robotic arm with exposed mechanical components and a transparent box containing a circular object (no visible text or symbols)

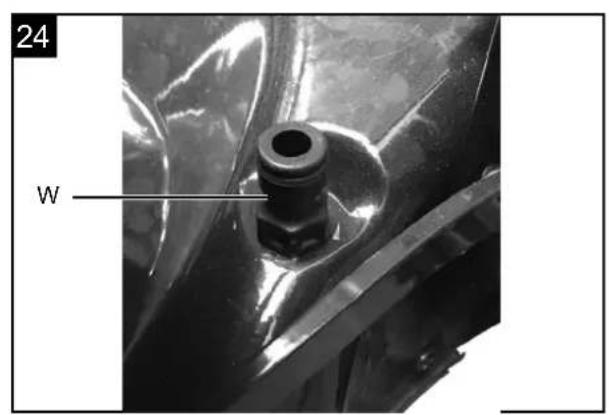

24 W

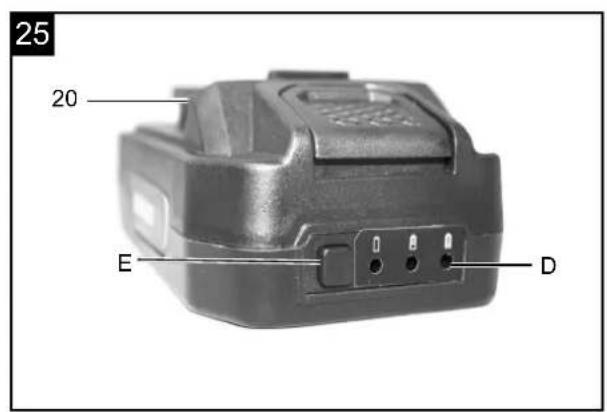

25 20 E D

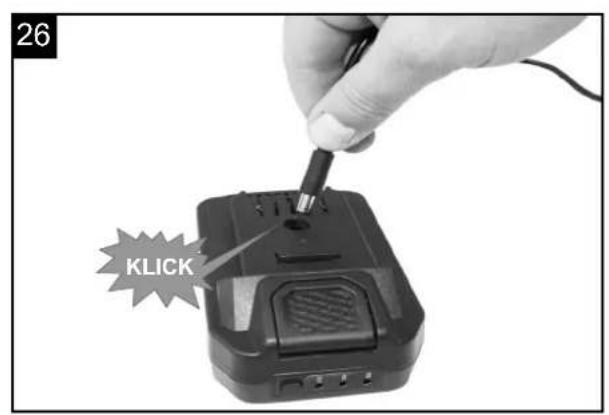

26 Klick

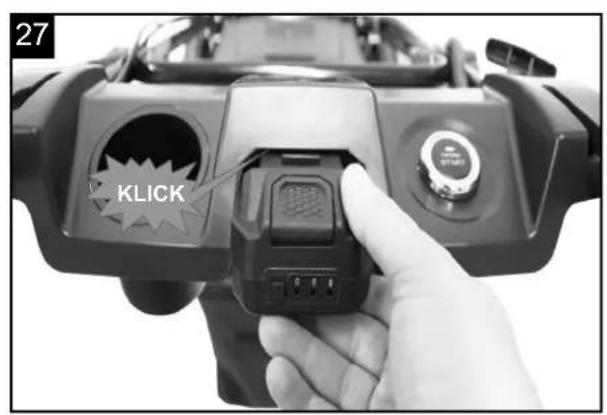

27 Klick

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

https://www.scheppach.com/de/service scheppach

Explanation of the symbols on the equipment

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

		Observe all safety instructions before use
		Read and understand all text in the operating instructions before start up.
		On a slope, do not mow uphill or downhill.
		Before operating the lawn mower, remove lawn debris which may be ejected by the blade.
		There is a risk of debris being ejected when the engine is running. Make sure you keep a safe distance.
		Make sure other people also keep a safe distance.
		Remove the ignition cable before all maintenance work, and read the instructions for use.
		Warning! Risk of injury! Do not let your hands or feet come in contact with the blades when the motor is running.
		Important. Exhaust gas is poisonous, do not operate in an unventilated area.
		Danger - Hot surface!
		Wear ear-muffs and safety goggles!
		Attention! Operating materials are flammable and explosive.Do not fill with fuel while the motor is hot or running.
		Fuel tank capacity
		Engine oil
		Length knives. Max. Cutting width
		Guaranteed sound power
		The product complies with the applicable European directives and an evaluation method of conformity for this directives was done.
		Check oil level

	DRIVE - Drive leverSTOP - Engine brake lever
	Use only in closed rooms!
	Protection class II
	Device fuse
	Do not dispose of batteries with your domestic waste.
	The battery is used as a device key
	Protect the battery from water and moisture.
	Protect the battery from heat and fire.
	Protect the battery from temperatures above 45 °C.

Table of contents: Page:

1. Introduction ...... 30
2. Device description....30
3. Scope of delivery.... 30
4. Proper use....30
5. Safety instructions....31
6. Technical data 34
7. Unpacking 34
8. Assembly / Before commissioning.... 35
9. Operation 35
10. Cleaning 39
11. Transport 39
12. Storage....40
13. Maintenance....40
14. Disposal and recycling 42
15. Troubleshooting....43

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer

We hope your new tool brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Improper handling
• Failure to comply with the operating instructions.
• Repairs carried out by third parties, unauthorised specialists
• Installing and replacing non-original spare parts,
• Improper use,
• Failures of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE 0113 not being observed

Note:

Read the whole text of the operating manual before assembly and commissioning.

This operating manual should help you to familiarise yourself with your device and to use it for its intended purpose.

The operating manual includes important instructions for safe, proper and economic operation of the device, for avoiding danger, for minimising repair costs and downtimes, and for increasing the reliability and extending the service life of the device.

In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the device in your country.

Keep the operating manual at the device, in a plastic sleeve, protected from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work.

The device may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards. The required minimum age must be observed.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

2. Device description

Fig. 1 (1 - 21)

1. Handle
2. Drive lever
3. Engine brake lever
4. Upper push bar, 4a lower push bar
5. Quick-release lever
6. Petrol tank
7. Air filter
8. Side discharge (Side discharge flap and side discharge adapter)
9. Wheel
10. Spark plug
11. Exhaust
12. Dip stick
13. Drive wheel

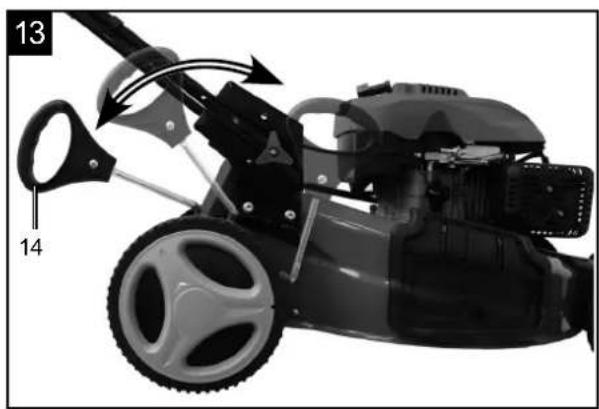

14. Wheel height adjustment

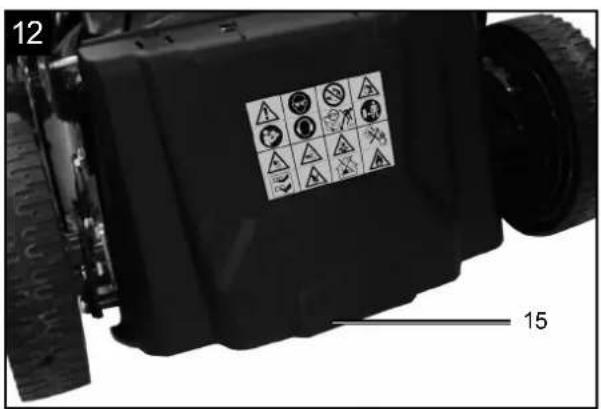

15. Discharge flap
16. Grass box

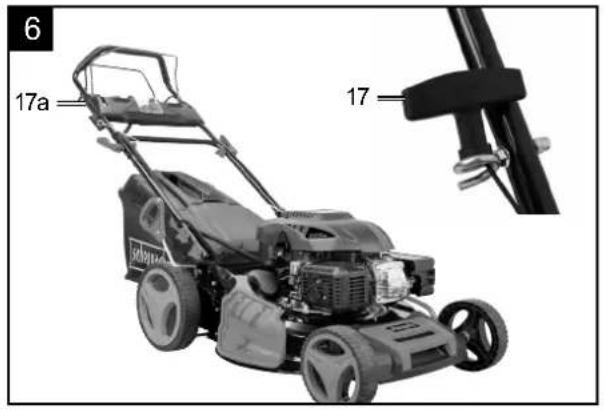

17. Pull starter, 17a. Electric starter
18. Electric starter unit
19. Mulch insert
20. Battery
21. Battery Charger

3. Scope of delivery

Fig. 1 (a - h)

a) 2 x round head screw M8
b) 4 x washer small
c) 2 x washer big
d) 4 x plastic star grip nut

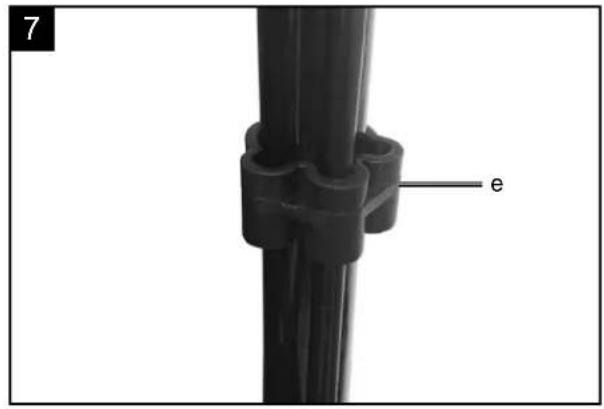

e) 1 x cable clip
f) 4 x screw
g) 4 x velcro
h) 1 x manual
- Mulch insert (19)
- Side discharge (8)
- Battery (20)
- Battery Charger (21)

4. Proper use

The machine complies with the applicable EC machinery directive. Before starting any work, all protective and safety devices must be in place.

• The machine has been designed to be operated by one person.
• The operator is responsible for third parties in the area of operations.
• All safety and hazard notices on the machine must be observed.

• All safety and hazard notices on the machine must be kept in a completely legible condition.

• Use the machine in a technically flawless condition only, as well as for its intended purpose, in a safe manner and being aware of dangers, in compliance with the operating instructions!

• Disruptions which can affect safety in particular must be eliminated straight away!
• The manufacturer's safety, operation and maintenance instructions as well as the technical data given in the calibrations and dimensions must be adhered to.
• Relevant accident prevention regulations and other generally recognized safety and technical rules must also be adhered to.
• The machine may only be used, maintained or repaired by trained persons who are familiar with the machine and have been informed about the dangers. Unauthorized modifications of the machine exclude a liability of the manufacturer for damages resulting from the modifications.
• The machine is intended for use only with original spare parts and original tools from the producer.
• Any other use is considered to be not intended. The manufacturer excludes any liability for resulting damages, the risk is exclusively borne by the user.
• The device must not be used for commercial, technical or industrial applications.
• If you are not sure whether working conditions are safe or unsafe, do not work with the machine.
• The petrol lawn mower is intended for private use i.e. for use in home and gardening environments. Private use of the lawn mower refers an annual operating time generally not exceeding that of 50 hours, during which time the machine is primarily used to maintain small-scale, residential lawns and home/hobby gardens. Public facilities, sporting halls, and agricultural/forestry applications are excluded.

Important! Due to the high risk of bodily injury to the user, the lawn mower may not be used to trim bushes, hedges or shrubs, to cut scaling vegetation, planted roofs, or balcony-grown grass, to clean (suck up) dirt and debris off walkways, or to chop up tree or hedge clippings. Moreover, the lawn mower may not be used as a power cultivator to level out high areas such as molehills.

- For safety reasons, the lawn mower may not be used as a drive unit for other work tools or toolkits of any kind.

⚠ WARNING

For your own safety, please thoroughly read this manual and the general safety instructions before turning the device on. If you give the device to third parties, always include these instructions.

5. Safety instructions

These operating instructions provide places concerning your safety which are marked with this indication: ⚠

Furthermore, the operating manual contains other important text sections that are marked with the word "ATTENTION!".

DANGER

A failure to observe these instructions poses an extreme danger of death or the risk of life-threatening injuries.

⚠ WARNING

A failure to observe these instructions poses a danger of death or the risk of serious injuries.

CAUTION

A failure to observe these instructions poses a minor to moderate risk of injury.

NOTE

A failure to observe these instructions poses a risk of damage to the device or other property.

⚠️ CAUTION!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

Improper use of the battery and charger can result in an electrical shock or fire.

When Operating

Keep battery charger dry. Avoid exposing battery pack to rain or wet conditions.

• To reduce the risk of electrical shock, do not allow water to flow into AC plug.
• Do not short circuit; never place any object into the battery contacts.

When Charging Battery Pack

• Charge original battery pack only with original battery charger.

• Do not use battery charger to charge generic batteries.

• Keep battery charger dry. Avoid exposing battery pack to rain or wet conditions.

• To reduce risk of damage to electric plug and cord, pull by plug rather than cord when disconnecting charger.
• Do not operate charger with damaged plug or cord. The supply cord cannot be replaced. If the cord is damaged, the charger should be replaced immediately.
• Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way. If charger is damaged it must be replaced. Charger is not serviceable.
• Do not disassemble charger; or attempt to service.
• To reduce risk of electric shock, unplug charger from outlet before cleaning.
• Do not short circuit; never place any object into the battery contacts.
• The charger is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the charger.

Extension Cord

An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire and electric shock. If an extension cord must be used, make sure that;

a. Pins on plug of extension cord are the same number, size, and shape as those of plug on charger,
b. Extension cord is properly wired and in good electrical condition, and
c. Wire size is a minimum of 16 AWG (American Wire Gauge) to allow for AC ampere rating of charger.

When Storing Battery Pack

Keep battery charger dry. Avoid exposing battery pack to rain or wet conditions.

Before Performing Adjustments Or Repairs

Remove battery pack from engine battery tray.

WARNING

Battery chemicals are toxic and corrosive.

Fire or explosion can cause severe burns or death.

• Never burn or incinerate discarded or used battery packs as they may explode. Toxic fumes and materials are created when battery packs are burned.
• Do not use a battery that has been crushed, dropped or damaged.

Warning! This electric tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the electric tool.

The following must not use the machine:

• Children and other people who do are not familiar with the operating manual (local stipulations may specify a minimum age for users).
• People under the influence of alcohol, drugs and medication, as well as those who are tired or ill.

Safety instructions for handoperated lawn mowers

Note

• Read the directions with due care. Familiarize yourself with the settings and proper operation of the machine.
• Never allow children or other persons who are not familiar with the operating instructions to use the mower. Contact your local governmental agency for information regarding minimum age requirements for operating the mower.
• Never mow in the direct vicinity of persons - especially children - or animals. Always keep in mind that the operator is responsible for accidents involving other persons and/or their property.
• If you give the equipment to any other person, give them these operating instructions as well.
• Always wear sturdy, non-slip footwear and long trousers when mowing. Never mow barefoot or in sandals.
• Check the grounds on which the machine will be used and remove all objects that could be caught up and violently flung out of the chute.(Like stones, toys, sticks and wires etc.)

⚠ WARNING

Petrol is highly flammable! Therefore:

• Only store petrol in containers designed to hold petroleum-based liquids.
• Only refuel out in the open and do not smoke during the refueling process.
• Always refuel the lawn mower before starting the engine. Always ensure that the fuel tank cap is closed when the engine is running and when the mower is hot; also do not refuel.
• If petrol has overflowed, do not under any circumstances attempt to start the engine. Instead, remove the machine from the affected area. Avoid starting the engine until the petrol fumes have completely evaporated.

• For safety reasons, the petrol tank and other tank closures must be replaced if they are damaged.

• Never store petrol near a source of sparks. Always use a tested canister. Keep petrol away from children.

• Replace defective mufflers.
• Before using the mower, visually inspect it to ensure that the blade, mounting bolts and the entire cutting apparatus are in good working order (i.e. not worn out or damaged). To prevent any imbalance, replace worn out or damaged blades and mounting bolts as a set only (if applicable).
• Please note that where a mower has more than one blade, the rotation of one of the blades can cause the others to rotate as well.
• Do not let the combustion engine run in enclosed areas, as dangerous carbon monoxide gas can build up.
• Only mow in broad daylight or in well-lit conditions. Avoid using the machine on wet grass as far as possible.
• Do not use the lawn mower in a thunderstorm - risk of lightning strike!
  • Always maintain good footing on inclines.
• Only operate the machine at a walking pace.
• For machines with wheels: Always mow across hills i.e. never straight up or straight down.
• Be particularly careful when you change direction on a slope.
• Do not mow on excessively steep slopes and nearby garbage dumps, ditches or dykes. Always be extra careful when turning the mower around and when pulling it towards you.
• Switch off the lawn mower and ensure that the blade has stopped rotating whenever the mower has to be tilted for transporting over areas other than lawns and whenever it has to be moved from or to the area you want to mow.
• Never use the lawn mower if the blade or safety grilles are damaged, or without the attached guards, e.g. deflectors and/or grass catching devices.
• Do not adjust or overclock the engine speed settings.
• Release the engine brake before you start the engine.
• Start the engine with care, in accordance with the manufacturer's instructions. Make sure that your feet are far enough away from the mower blade!
• Do not tilt the lawn mower when you start the engine unless the mower must raised off of the ground a little in order to start it. In the latter case, tilt the mower as little as absolutely necessary and only raise the side opposite to that of the user.
• Never start the engine while standing in front of the chute.
• Never move your hands or feet toward or under any rotating parts. Keep clear of the chute opening at all times.

• Never lift or carry a lawn mower with the engine running.

• Switch off the engine and pull the spark plug boot and make sure that all moving parts have come to a standstill:

• Before you dislodge any blockages or clogs in the chute.
• Before carrying out any checks, cleaning, maintenance or other work on the lawn mower
• If the lawn mower strikes a foreign body, examine it for signs of damage and carry out any necessary repairs before restarting and continuing to work with the mower. If the lawn mower begins to experience exceptionally strong vibrations, immediately switch it off and check it.

- Switch off the engine:

- When you leave the lawn mower.

- Before you refuel.

- Operation of the machine at higher than normal speed can lead to an increased risk of accidents.

- Take care when carrying out installation work on the machine, and avoid trapping fingers between the moving cutting tool and the fixed parts of the machine.

- Please be particularly careful when mowing on ground that may subside, on nearby landfills, trenches and embankments.

- The user must be adequately trained in the use, adjustment and operation of the machine (including prohibited operations).

- Check the machine regularly and ensure that all start locks and push buttons are working properly before each use.

- Please note that improper maintenance, the use of inappropriate spare parts, or the removal or modification of safety devices can result in damage to the machine and serious injury to the person working with it.

- Please note that the lawnmower's safety systems or devices must not be manipulated or deactivated.

- Please note that the user must not change or manipulate any sealed engine speed control settings.

- Only use cutting equipment and accessories recommended by the manufacturer. The use of other tools and accessories may result in injury to the operator.

- Always keep the lawnmower in good operating condition.

- It is necessary to take enough breaks to reduce noise and vibration exposure.

- Caution! Do not operate the lawn mower without either the entire grass catching device or the self-closing guard for the discharge opening in place.

Residual risks and accident prevention standards

Neglect of ergonomic principles

Negligent handling of personal protective equipment (PPE)

Negligent handling or commission of the personal protective equipment may cause serious injuries.

- Wear prescribed personal protection equipment.

Human behaviour, misbehaviour

- For any work be fully concentrated.

⚠️ Residual - can never be ruled out.

Danger from noise

Hearing damage

Prelonged unprotected work with the device may cause hearing damage.

- Always wear ear-muffs.

In case of emergency

In case of a possibly occurring accident take the necessary first aid steps as appropriate and obtain qualified medical aid as quickly as possible.

6. Technical data

Type engine	Four stroke engine/air cooled
Cubic capacity	200 cm3
Rotation speed	2800 min-1
Max. engine output	3,8 kW / 5,2 PS
Fuel	Regular grade petrol/lead-free max. 10% bioethanol
Capacity tank	1,2 l
Motor oil	SAE 30/10W30/10W40
Capacity tank/oil	0,5 l
Cutting height adjustment	25-75 mm / 7-fach
Collection bag capacity	65 l
Cutting width	51 cm
Weight	34,0 kg

Lithium-Ion-Battery

Lithium-ion battery system	20 V
Minutes charging time	200 min
Charging current	0,6 A
AC input of the charging unit (variable)	100 - 240 V
Battery capacity	2000 mAh / 37 Wh

Technical changes reserved!

Noise & vibration

⚠ Warning: Noise can have serious effects on your health. If the machine noise exceeds 85 dB (A), please wear suitable hearing protection.

Noise data

Sound pressure level L_PA 84,6 dB (A)

Measurement uncertainty K_PA ..... 3 dB(A)

Sound power L_WA 96,2 dB(A)

Uncertainty K_WA 1,85 dB(A)

Vibration parameters

Vibration a_bv 7,218 m/s²

Uncertainty K_h .....1,5 m/s ^2

Keep the noise level and vibration to a minimum!

• Only use faultless devices.
• Maintain and clean the device at regular intervals.
• Adapt your working methods to the device.
• Do not overload the device.
• Have the device checked if necessary.
• Switch the device off if it is not in use.
• Wear gloves.

When using the petrol lawn mower for extended periods, vibration-induced circulatory problems may occur (white finger disease).

Information about the duration of use cannot be provided in this case, since this can vary from person to person.

The following factors can influence the condition:

• Circulatory problems in the user's hands
- Low outside temperatures
• Extended periods of use

We therefore recommend you wear warm work gloves and take regular breaks.

7. Unpacking

• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating instructions before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Replacement parts can be obtained from your dealer.

- When ordering please provide our article number as well as type and year of manufacture for your equipment.

ATTENTION!

The device and the packaging material are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

8. Assembly / Before commissioning

ATTENTION!

Always make sure the device is fully assembled before commissioning!

Some parts of the mower come disassembled. For quick and easy assembly, read and follow the instructions below.

Note!

You will need the following additional tools (not supplied) for assembly, and also for maintenance work:

• One oil collecting tray, flat (for oil change)
• A 1 litre measuring jug (oil/petrol resistant)
- A petrol can (5 litres is sufficient for approx. 6 operating hours)
- A funnel (suitable for the tanks petrol filler neck)
- Household wipes (to wipe up oil/petrol residue; dispose of these at a filling station)
- A petrol suction pump (plastic, available from DIY stores)
- An oil can with hand pump (available from DIY stores)
• 0,5 litre of engine oil (SAE 30)

Assembly

1. Take the mower and attachment parts out of the packaging and check that all parts are present.
2. Attach the lower push bar to both sides of the mower with one screw (a), 1 washer (c), 1 plastic star grip nut (d) each. Make sure that the cables, which will be attached later, are not in the way (Fig. 2-3).
3. Attach the upper push bar on the lower push bar with one quick-release lever (5), one washer big (b), one washer small (c) and one plastic star grip nut (d) each on both sides (Fig. 4-5). Note the correct alignment of the quick-release lever fixation slice ensuring the quick-release function remains intact.

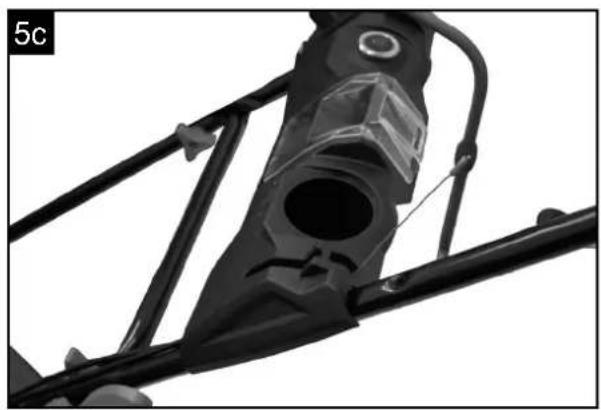

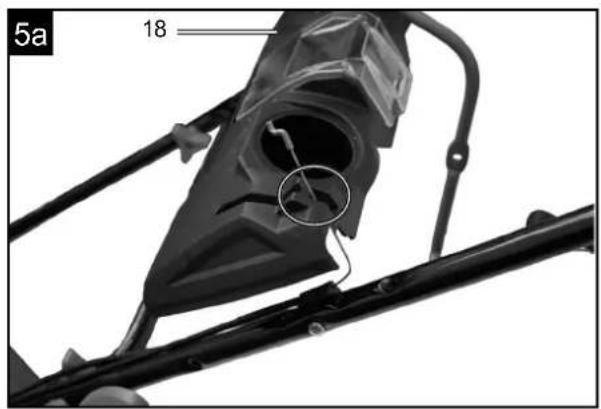

4. Guide the gas throttle through the electric starter unit as shown in figure 5a.
5. Insert the throttle cable into the engine brake lever (3) using applier. (Fig. 5b-5c)
6. Secure the electric starter unit (18) using the screws (f) on the upper push bar (4). (fig. 5d)

7. Insert the pull start handle (17) in the designated hook as shown in Fig. 6.

8. Fix the cables to the push bar with the cable clips (18) provided (Fig. 7).

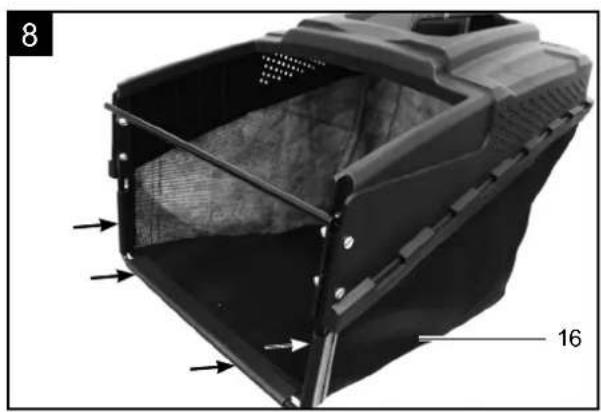

9. Grass box (16) - open it up and click the plastic clips into position on the frame (Fig. 8).

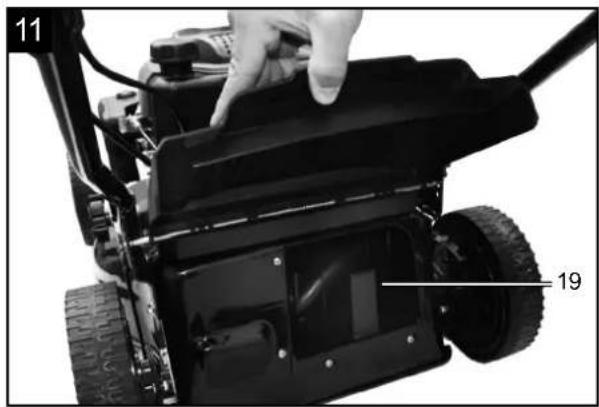

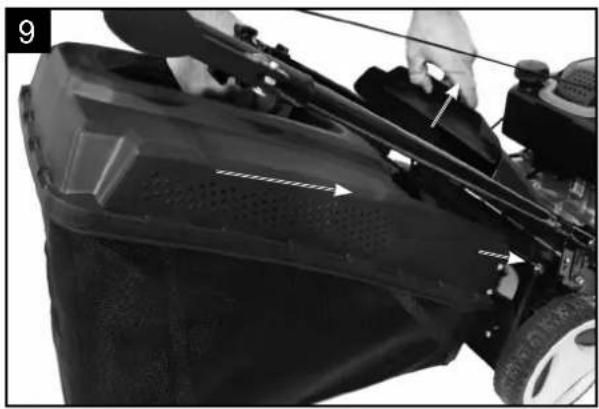

10. Mowing with grass box: Lift the discharge flap (15) with one hand and hang the grass box (16) as shown in Fig. 9.

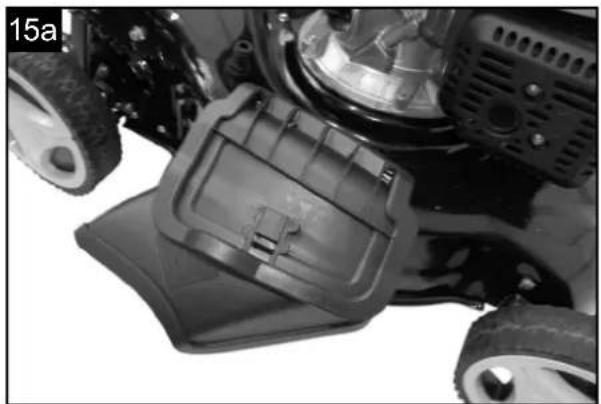

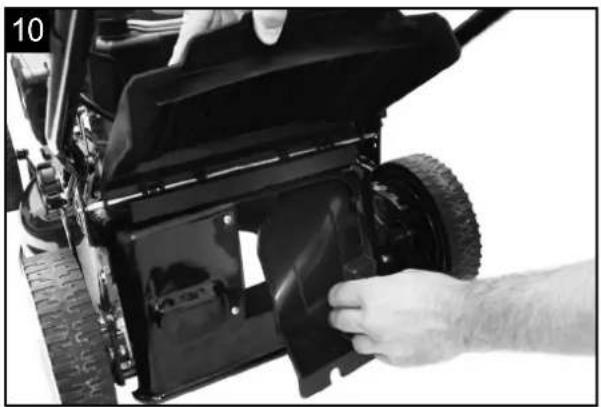

11. Mulching: If the grass box (16) is attached, remove it and replace it with the mulch insert (19) as shown in Fig. 10-12.

Attention:

The side discharge cover must not be installed when mulching.

Setting the cutting height

⚠ CAUTION! Adjust the cutting height only when the engine is switched off and the plug boot has been pulled.

• Before you begin to mow, check to ensure that the blade is not blunt and that none of the fasteners are damaged.
• To prevent any imbalance, replace blunt and/or damaged blades as a set only (if applicable). To carry out this check, first switch off the engine and pull the spark plug boot.
• The cutting height is centrally adjusted with the cutting height adjustor lever (Fig.13/ Item 14). 5 different cutting heights can be selected.
• Pull the adjustor lever out and select the desired cutting height. The lever snaps into the desired position. (Fig. 13)

Preparing the area to be mowed

Before mowing, carefully examine the area. Remove stones, sticks, bones, wires, toys and other objects that may be ejected.

9. Operation

ATTENTION!

Always make sure the device is fully assembled before commissioning!

Charge Battery Pack

Improper use of the battery and charger can result in an electrical shock or fire.

When Charging Battery Pack

• Charge battery pack only with original battery charger.
• Do not use battery charger to charge any other types of batteries.

• Keep battery charger dry. Avoid exposing battery pack to rain or wet conditions.

• To reduce risk of damage to electric plug and cord, pull by plug rather than cord when disconnecting charger.

• An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire and electric shock. If an extension cord must be used, make sure:

• That pins on plug of extension cord are the same number, size, and shape as those of plug on charger;

• That extension cord is properly wired and in good electrical condition; and

• That wire size is a minimum of 16 AWG to allow for AC ampere rating of charger.

• Do not operate charger with damaged plug or cord. The supply cord cannot be replaced. If the cord is damaged, the charger should be replaced immediately.

• Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way. If charger is damaged it must be replaced. Charger is not serviceable.
• Do not disassemble charger; or attempt to service.
• To reduce risk of electric shock, unplug charger from outlet before cleaning.
• Do not short circuit; never place any object into the battery contacts.
• The charger is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the charger.

When To Charge Battery Pack

As Required - To check available charge, press the Battery Fuel Gauge button (E, Fig. 25) and charge if required. See the Battery Fuel Gauge section.

How To Charge Battery Pack

1. Connect battery charger to electrical outlet. A green light appears. Keep battery charger dry. Avoid exposing battery pack to rain or wet conditions.
2. Push the connector of the charging unit firmly into the rechargeable battery. (Fig. 26) Make sure the battery pack is firmly seated in the battery charging bay.
3. A completely discharged rechargeable battery needs about three (3) hours to be fully charged. The battery pack will stay fully charged if left on the charger.
4. To check available charge, press the Battery Fuel Gauge button (E, Fig. 25).
5. When not in use, disconnect battery charger from electrical outlet.

Battery fuel gauge (Fig. 25)

To check available charge, press the Battery Fuel Gauge button (E).

The display lights (D) will indicate the approximate amount of available charge remaining in the battery pack.

Display Lights Available Charge

Three green lights 70%	-100%
Two green lights 10%	-70%
One green light Less than 10%

CAUTION!

The engine does not come with oil in it. Therefore, ensure that you add 0,45 litres of oil before starting it up. Use normal, multigrade oil (SAE30). The oil level in the engine must be checked each time before mowing.

You will also need to fill in petrol, as this is also not supplied upon delivery.

• In order to avoid any unintentional start-ups of the lawn mower, it comes equipped with an engine brake (Fig. 1/ Item 3) which must be pulled back before the engine can be started. When the engine control lever is released it must return to its initial position, at which point the engine automatically switches off.
• Press the engine brake lever (3) together and give the starter cord (17) a vigorous pull. (Fig. 14) ATTENTION: When you pull the starting rope the cutting blade rotates even when dissolved motor brake lever. Make sure that there are no body parts in danger zone of cutting blade.
• When the engine is running, press the drive lever (2) to the handle (1) in order to engage drive on the mower.
• Before you start mowing, you should run through this operation several times in order to ensure that the machine is working properly.

⚠ WARNING

Whenever you need to perform any kind of adjustment and/or repair work on your lawn mower, wait until the blade has come to a complete stop.

Always switch off the engine before carrying out any adjustments, maintenance or repairs.

Using the drive:

• Engine brake (3): Use the lever to stop the engine. When you release the lever the engine and the blade stop automatically.
• To mow, hold the drive lever (2) in the working position. Before you start to mow, check the start/stop lever several times to be sure that it is working properly. Ensure that the tension cable can be smoothly operated (i.e. is not catching or kinking in any way).

- Drive lever (2):

If you press this the clutch for the drive will be closed and the lawnmower will start to move with the motor running. Release the drive lever in good time to stop the moving lawnmower. Practice starting and stopping before you use the mower for the first time until you are familiar with controlling the mower.

Caution: The blade begins to rotate as soon as the engine is started.

Important: Before you start the engine, move the motor brake several times to be sure that the stop cable is properly working.

Note: The engine is factory set to a speed that is optimal for cutting and blowing grass into the basket and is designed to provide many years of use.

- Check the oil level.

- Open the fuel tank cap and fill the petrol tank (6) up to the lower point of the tank inlet with about 1.4 litres of petrol. Use a funnel and measuring container for filling. Do not overfill the tank. Only use fresh, clean, unleaded fuel.

Never mix oil with petrol. Purchase fuel in quantities that can be used within 30 days to ensure that the fuel is fresh.

Note the following: Use standard unleaded petrol with max. 10% bioethanol component.

WARNING

Always only use a safety petrol canister. Do not smoke when filling petrol. Remove any residual oil and petrol Switch the engine off before filling petrol and let the engine cool for several minutes.

Start engine (Fig. 14a)

• Check the motor oil level. See "oil level check" section.
• Check the battery tray on top of the engine for debris and if dirty clean with a brusher cloth. Mount the battery pack in the engine battery tray on top of the engine. Make sure battery pack is securely installed. Battery pack may represent equipment key in some instances.
• Note: To wake up a new battery, a First Time quick charge of approximately ten (10) seconds is required. See the When To Charge Battery Pack section.
• Make sure equipment drive controls, if equipped, are disengaged.
• Models with electric start switch: Hold the engine stop lever (3) against the handle (1). Press the electrical starter. The engine starts.

Start engine (Fig. 14)

- Ensure that the ignition cable is connected to the spark plug.

• Stand behind the mower. One hand squeezes the engine brake lever (3) to the handle, the other pulls the pull start.
• Start the engine using the reversing starter (17). To do this pull the handle approx. 10 – 15 cm (until you feel a resistance) and then start the engine with a sharp pull. If the engine does not start, pull on the handle again.
• Due to protective coating on the engine, a small amount of smoke may be present during the initial use of the product and should be considered normal.

CAUTION!

• Never allow the starter cord to snap back.
• Note: In cold weather, it may be necessary to repeat the starting process several times.

Turn off the engine:

• To turn off the engine, release the drive lever (2), then the engine brake lever (3) and wait for the blades to stop.
• Pull the spark plug boot from the spark plug (10) boot in order to prevent the engine from restarting.
• Before you start the engine again, check the cord for the engine brake. Check that the cord is correctly fitted. If the cord is kinked or damaged, it should be replaced.
• Remove the battery pack. The battery pack may represent equipment key in some instances.

Before mowing

Important information

• Make sure that you are properly dressed when mowing. Wear sturdy, non-slip footwear; do not wear sandals or tennis shoes.
• Inspect the blade. A blade that is bent or damaged in any other way must be immediately exchanged for a genuine replacement blade.
• Do not fill the fuel tank indoors, but rather out in the open. Use a filling funnel and a measuring jug. Wipe off any spilled petrol.
• Read and follow in the instructions in the operating manual as well as the information regarding the engine and accessory equipment. Store the manual in a place where it can be readily accessed by other users of the machine.
• Exhaust gas is dangerous. Only start the engine out in the open.
• Make sure that all the guards are fitted and that they are in good working order.
• The machine should only be operated by persons who are well informed with the way it works, and who are in reasonably good physical condition.
• It can be dangerous to mow the grass when it is wet. Try to ensure that you only mow the grass when it is dry.

• Advise children and others to keep well away from the lawn mower.

• Never mow the grass in poor visibility.

• Remove all loose objects from the lawn before you start mowing the grass.(Like stones, toys, sticks and wires etc.)

Tips for proper mowing

△ CAUTION! Never open the chute flap when the catch bag has been detached (to be emptied) and the engine is still running. The rotating blade can cause serious injuries!

Always carefully fasten the chute flap and grass basket. Switch off the engine before emptying the grass basket. Always ensure that a safe distance (provided by the length of the long handles) is maintained between the user and the mower housing. Be especially careful when mowing and changing direction on slopes and inclines. Maintain a solid footing and wear sturdy, non-slip footwear and long trousers. Always mow along the incline (not up and down).

For safety reasons, the lawn mower may not be used to mow inclines whose gradient exceeds 15 degrees. Use special caution when backing up and pulling the lawn mower. Tripping hazard!

Mulching

In the mulching mode the cuttings are shredded in the enclosed mower housing and then spread back onto the lawn. It is not necessary to gather and dispose of the grass.

⚠️ Note! Mulching is only possible if the lawn is relatively short.

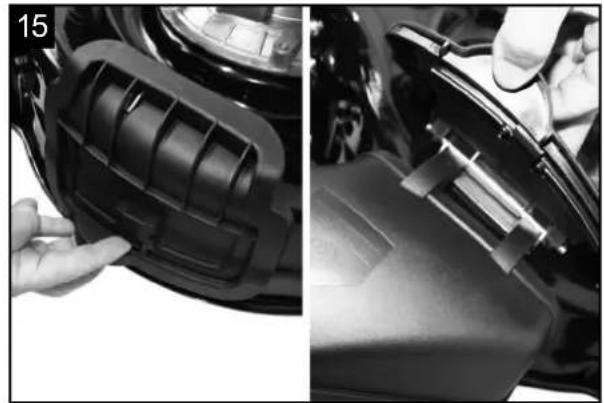

To use the mulching function, disconnect the debris bag (16), slide the mulching adaptor (Fig. 10-12 / 19) into the ejector opening and close the ejector opening (15).

Mowing

Only use a sharp blade that is in good condition. This will prevent the grass blades from fraying and the lawn from turning yellow.

Try to mow in straight lines for a nice, clean look. Inso-doing, the mowing swaths should always overlap each other by a few centimeters in order to avoid bare strips. Keep the underside of the mower housing clean and remove grass build-up. Deposits not only make it more difficult to start the mower; they decrease the quality of the cut and make it harder for the machine to bag the grass. Always mow along inclines (not up and down). Slightly turning the front wheels up the hill while mowing will prevent the mower from sliding out of the straight line. Select the cutting height according to the length of the grass. If the lawn has grown quite a bit, mow over it several times so that no more than 4 cm of grass are cut at one time.

Switch off the engine before doing any checks on the blade. Keep in mind that the blade continues to rotate for a few seconds after the engine has been switched off. Never attempt to manually stop the blade.

Regularly check to see if the blade is securely attached, is in good condition and is sharp. If the contrary is the case, sharpen the blade or replace it. In the event that the blade strikes an object, immediately switch off the lawn mower and wait for the blade to come to a complete stop. Then inspect the condition of the blade and the blade mount. Replace any parts that are damaged.

Tips for proper mowing:

• Pay attention to ensure that you do not run into or over anything that could damage the mower. The lawn mower could be damaged and/or the machine could inflict bodily injury.
• A hot engine, exhaust or drive unit can burn the skin if touched. Thus, do not touch these parts unless the mower has been switched off for a while and you know that they have cooled down!
• Use extra caution when mowing on inclines and steep grades.
• Insufficient daylight or even a sufficient level of artificial light is one reason not to mow.
• Check the mower, the blade and other parts if they have struck a foreign object or if the machine vibrates more than usual.
• Do not make any adjustments or repairs until the engine has been switched off. Pull the plug boot.
• Pay special attention if you are mowing directly next to a street or are close by one (traffic). Always keep the grass chute pointed away from the street.
• Avoid mowing in places where the wheels have trouble gripping or mowing is unsafe in any other way. Before you back up, ensure that nobody is standing behind you (especially little children, who are more difficult to see).
• When mowing over thick, high grass, select the highest cutting level and mow at a slower speed. Before you remove any grass or blockages of any kind, switch off the engine and pull the plug boot.
• Never remove any safety-related parts.
• Never fill the engine with petrol when it is hot or is running.

Emptying the grass basket

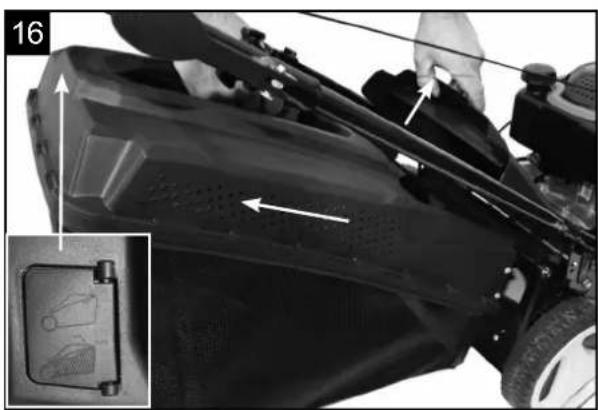

The grass basket (16) has a level indicator (Fig. 16). This is opened by the air flow generated by the mower during operation. If the flap (Fig. 16) closes during mowing, the gras basket (16) is full and should be emptied. To ensure that the filling level indicator works properly, the holes under the flap must be kept clean and permeable.

As soon as grass clippings start to trail the lawn mower, it is time to empty the grass basket.

WARNING

Before taking off the grass basket, switch off the engine and wait until the blade has come to a stop.

To take off the grass basket (16), use one hand to lift up the chute flap (15) and the other to grab onto the basket handle (Fig. 16). Remove the basket. For safety reasons, the chute flap (15) automatically falls down after removing the grass basket and closes off the rear chute opening.

If any grass remains in the opening, it will be easier to restart the engine if you pull the mower back approx.

1 meter. Do not use your hands or feet to remove clippings in or on the mower housing, but instead use suitable tools such as a brush or a hand broom.

In order to ensure that the majority of grass clippings are picked up, the inside of both the grass basket (16) and especially the air grill must be cleaned after each use.

Reattach the grass basket (16) only when the engine is switched off and the blade is stopped.

Using one hand, lift up the chute flap (15), while grabbing onto the basket handle with the other. Hang in the basket from the top. Fig. 9

After mowing

• Allow the engine to cool before you put the lawn mower in an enclosed area.
  Remove grass, foliage, grease and oil before storing the mower. Do not place any objects on top of the mower.
• Check all the screws and nuts once more before you start to use the lawn mower again. Tighten any loose screws.
• Also be sure to empty the grass basket (16).
• Pull the spark plug boot to prevent unauthorized use.
• Ensure that you do not park the mower next to any source of danger. Petrol fumes can lead to explosions.
• Only original parts or parts approved by the manufacturer may be used for repairs (see address on the warranty certificate).
• If the lawn mower is not going to be used for an extended period, empty the petrol tank using a petrol suction pump.
• Oil and maintain the machine.

10. Cleaning

Cleaning

The mower should be thoroughly cleaned after each use. In particular, the underside and the blade retainer.

Attention!

For safety reasons, disconnect the spark plug cable before cleaning.

It is best to tilt the mower backwards. The spark plug should point upwards to prevent engine oil from entering the intake tract or leaking out.

Alternatively, you can tilt the device on its side, but you must make sure that the air filter is on the upper side.

Note: Before tilting the lawnmower, empty the fuel tank fully with a fuel scavenge pump.

Do not tilt the lawnmower beyond 90 degrees.

It is easiest to remove the dirt and grass immediately after mowing.

Grass residues and dirt that have dried on can impair mowing. Check that the grass ejection channel is clear of grass residues and remove these if necessary.

Never clean the mower with a water jet or high pressure cleaner. The motor should remain dry.

Do not use aggressive cleaning products such as cold cleaners or white spirit.

Fig. 24 (w)

• Remove the mulch unit / gras box.
• Fit the hose connection to the mower and turn the tap on. (Fig. 24)

- Start the mower and switch off again after about 30 seconds. The rotating blade bar throws the water onto the bottom of the mower and thus cleans it.

- Turn off the tap and remove the hose connection.

- Clean the top with a cloth (do not use any sharp objects).

11. Transport

Preparing the mower for transportation (Fig. 22)

• Empty the petrol tank.
  • Always let the engine run until it has used up the remainder of petrol in the tank.
  • Empty the engine oil from the warm engine.
• Remove the spark plug boot from the spark plug.
• Clean the cooling fins of the cylinder and the housing.
• Remove the start tension cable (17) from the hook. Loosen the quick-release lever (5) and fold the upper push bar down. Make sure the cables are not bent during this process.
• Wedge a few layers of corrugated cardboard between the upper and lower push bars and the engine in order to prevent any chafing.

12. Storage

Store the device and its accessories in a dark, dry and frost-free place that is inaccessible to children.

The optimum storage temperature lies between 5 and 30 °C.

Store the tool in its original packaging.

Cover the tool to protect it from dust or moisture. Store the operating manual with the tool.

• Never store the machine with petrol in the tank inside a building in which fuel vapours may come into contact with naked flames or sparks
• Allow the engine to cool before storing it.
• In order to reduce the risk of fire, keep the engine, exhaust, battery box and the area surrounding the fuel tank free of grass, straw, moss, leaves or escaping grease.

Preparing the mower for long-term storage

Caution: Do not empty the petrol tank in enclosed areas, near fire or when smoking. Petrol fumes can cause explosions and fire.

• Empty the petrol tank with a petrol suction pump.
- Start the engine and let it run until any remaining petrol has been used up.
- Change the oil at the end of every season. To do so, remove the used engine oil from a warm engine and refill with fresh oil.
- Remove the spark plug from the cylinder head.
- Fill the cylinder with approx. 20ml of oil from an oil can.
- Slowly pull back the starter handle, which will bathe in the cylinder wall with oil.
- Screw the spark plug back in.
- Clean the cooling fins of the cylinder and the housing.
- Be sure to clean the entire machine to protect the paint.
- Store the machine in a well-ventilated place.

Battery Pack and Charger

When not in use, disconnect charger and store in a cool, dry area. Wet, damp areas can cause corrosion of terminals and electrical contacts. If stored for long periods in high temperatures ( 120^ F / 50°C), permanent damage to the battery pack can result. Check electrical terminals and contacts on battery packs and charger. Wipe with clean cloth or blow clean with compressed air.

After storage, a normal charge may be required. To check available charge, press the Battery Fuel Gauge button (E) and charge if required. See the Battery Fuel Gauge section.

13. Maintenance

• Regular, careful maintenance is required to guarantee the safety level and performance of the machine.
• Make sure that all nuts, bolts and screws are tightened securely and that the machine is in safe working condition.
• Routinely check the grass basket for signs of wear and impaired functionality.

Regularly clean the grass box with water and let it dry thoroughly.

• For your own safety, replace worn or damaged parts without delay.
• If the fuel tank should require emptying this should only be done in the open air using a petrol suction pump (available from DIY shops).

⚠ WARNING

Never work on or touch conducting parts on the ignition unit with the engine running. Always pull the spark plug boot from the spark plug before starting any work of care or maintenance. Never perform any work on the machine while it is running. Any work not described in these Operating Instructions must be performed by an authorized service workshop only.

Attention!

Always shut the engine down and remove the spark plug connector before carrying out any maintenance work.

Wheel axles and wheel hubs

• These should be lightly greased once a season.

Blade

For safety reasons you should only ever have your blade sharpened, balanced and mounted by an authorized service workshop. For optimum results it is recommended that the blade should be inspected once a year.

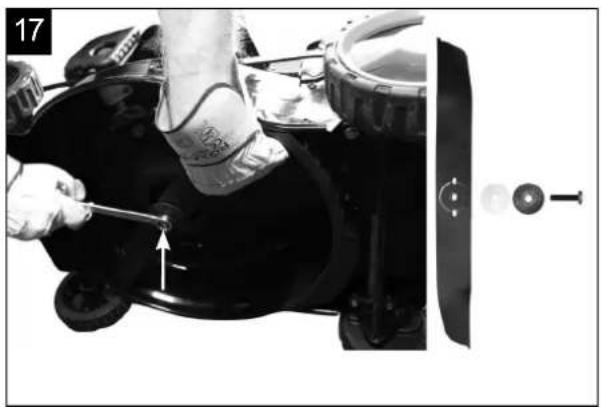

Changing the knife (fig. 17)

Only ever use original spare parts when having the blade replaced. Wear gloves when replacing the blade in order to prevent injury.

Never have any other blade fitted.

• Empty the fuel tank before removing the blade
- To replace the blade, undo the screw.
- Reinstall as illustrated in Fig. 17. Tighten the screw properly. Tightening torque 45Nm . When replacing the blade, the blade screw should also be replaced.

Damaged blades

Should the blade, in spite of all precautions, come into contact with an obstruction, shut down the engine immediately and pull the spark plug boot.

Tip the lawn mower onto its side and check the blade for damage. Damaged or bent blades must be re-

placed. Never attempt to bend a bent blade back to straight again. Never mow the lawn with a bent or heavily worn blade as this will cause vibrations and can lead to further damage to the lawn mower.

⚠ Caution! There is a risk of injury if you work with a damaged blade.

Resharpening the blade

The blades can be resharpened with a metal file. In order to avoid imbalance, the blade should be re-sharpened by an authorized service workshop.

Checking the oil level

⚠ CAUTION! Never run the engine with no or too little oil. This could cause severe damage to the engine. Use only SAE30 engine oil.

Checking the oil level (Fig. 18):

• Stand the lawn mower on a flat level surface.
• Unscrew the oil dip stick (12) by turning anticlockwise, pull out and wipe. Insert the dip stick back in the filling mount as far as the stop, but do not screw back in.
• Pull out the dip stick (12) again and read off the oil level while holding horizontally. The oil level must be between the maximum and the minimum

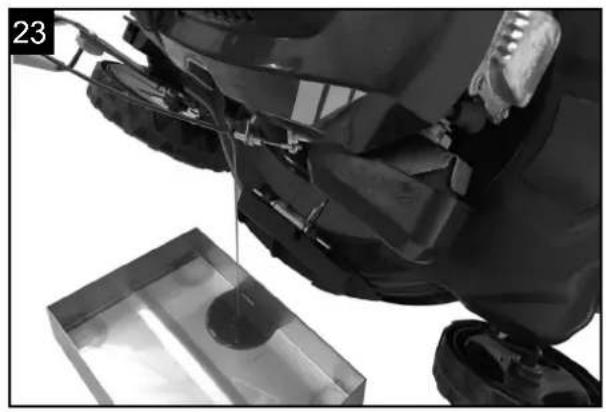

Changing the oil (Fig. 23)

• Change the engine oil every year before the start of the season when the engine is warm.
• Use only engine oil (SAE30).
• Empty the fuel tank (with a petrol suction pump)
• Place a flat oil drip tray in front of the mower (min. volume 1 litre).
• Remove the dipstick and tip over the mower until the whole oil is run out into the oil drip tray.
• Fill up with engine oil as far as the top mark on the dipstick (approx. 0.5 l).
• Important! Do not screw in the oil dipstick to check the oil level – only insert it as far as the thread.

Dispose of the used oil in accordance with applicable regulations.

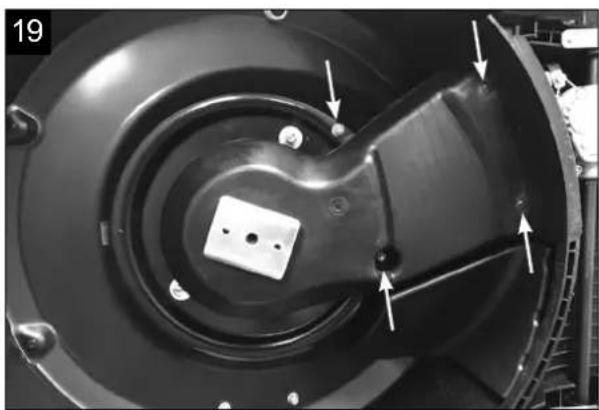

Cleaning the belts (Fig. 17, 19)

• Remove the knife and the gear housing by loosening the screws out.
• Clean the elements of the transmission and the belt once or twice a year with brush or compressed air.
• Screw the transmission housing and the knife on again.

Care and adjustment of the cables

Oil the cables at regular intervals and check that they move easily.

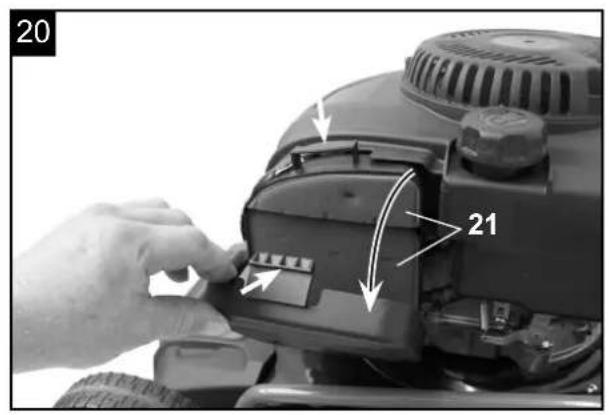

Maintenance of the air filter (Fig. 20)

A soiled air filter will reduce the performance of the engine because it will prevent enough air getting to the carburetor. It is therefore imperative that regular checks are made.

The air filter should be checked every 25 hours and cleaned if required. If the air is very dusty the air filter should be checked more regularly.

Unclip the air filter cover and remove the sponge filter element. To avoid objects falling into the air intake, replace the air filter cover. (Fig. 20).

Important: Never clean the air filter with petrol or inflammable cleaning agents. Clean the air filter with compressed air or simply by knocking out any soiling.

Maintenance of the spark plug (Fig. 21)

Check the spark plug for dirt and grime after 10 hours of operation and if necessary clean it with a copper wire brush. Thereafter service the spark plug after every 50 hours of operation.

Pull off the spark plug boot with a twist.

Remove the spark plug (10) with a spark plug wrench.

Using a feeler gauge, set the gap to 0.75 mm(0.030").

Replace the spark plug (10) and take care not to pull it too firmly.

Engine brake lever (Fig. 1)

The engine is equipped with a mechanical brake (3) which has to be checked regularly. When releasing the brake lever, the blade must come to a halt within 7 seconds. If this is not the case, the machine must not be used. Contact an authorised specialist retailer. Ensure that the machine is in a flawless condition for its entire service life. Improper maintenance may lead to life-threatening injuries.

Repairs

After any repair or maintenance work, check that all safety-related parts are in place and in proper working order. All parts which may cause injury must be kept where they are inaccessible to children or others.

Important: In accordance with product liability legislation we are not liable for any damages caused by improper repairs or the use of spare parts that are not original spare parts or parts approved by us.

In addition, we are also not liable for any damages arising from improper repairs. Such work should be performed by a customer services workshop or authorized specialist. The same applies to accessory parts.

Times of use

Please comply with statutory regulations, which may vary from location to location.

Please provide the following information in the event of any enquiries:

• Type of current for the motor
• Machine data - type plate
• Engine data - type plate

Important note in the case of repairs:

When returning the mower for repair, for safety reasons, ensure that it is free of oil and petrol when it is sent to the service centre.

Spare parts / accessories

Lawn mower blade - Article no.: 7911200618

Engine oil - Article no.: 7850000025

Rechargeable battery pack - Article no.: 7911200716

Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wear parts*: spark plug, air filter, petrol filter, knife, belt, battery

* may not be included in the scope of supply!

14. Disposal and recycling

The device is supplied in packaging to avoid transport damages. This packaging is raw material and can thus be used again or can be reintegrated into the raw material cycle.

The device and its accessories are made of different materials, such as metals and plastics. Take defective components to special waste disposal sites.

Check with your specialist dealer or municipal administration!

Lithium-Ion Battery Pack Disposal

• Battery chemicals are toxic and corrosive.
• Fire or explosion can cause severe burns or death.
• Never burn or incinerate discarded or used battery packs as they may explode. Toxic fumes and materials are created when battery packs are burned.
• Do not use a battery that has been crushed, dropped, or damaged.
• Used and discarded battery packs will likely still carry a small electrical charge and should be handled with care. Always dispose of discarded or used battery packs according to federal, state and local regulations.

Do not throw old equipment away with household waste!

This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/EU) pertaining to waste electrical and electronic equipment (WEEE). This product must be disposed of at a designated collection point. This can occur, for example, by handing it in at an authorised collecting point for the recycling of waste electrical and electronic equipment. Improper handling of waste equipment may have negative consequences for the environment and human health due to potentially hazardous substances that are often contained in electrical and electronic equipment. By properly disposing of this product, you are also contributing to the effective use of natural resources. You can obtain information on collection points for waste equipment from your municipal administration, public waste disposal authority, an authorised body for the disposal of waste electrical and electronic equipment or your waste disposal company.

Batteries and rechargeable batteries do not belong in the household waste!

As the consumer you are required by law to bring all batteries and rechargeable batteries, regardless whether they contain harmful substances* or not, to a collection point run by the local authority or to a retailer, so that they can be disposed of in an environmentally friendly manner.

*labelled with: Cd = cadmium, Hg = mercury, Pb = lead

- Remove the batteries from the device before disposing of the machine and the batteries.

15. Troubleshooting

The following table shows fault symptoms and describes remedial measures in the event of your machine failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.

Fault Possible cause Remedy
Loud while running, machine vibrates heavily	Screws are loose Check screws
	Blade fasteners are loose Check blade fasteners
	Blade is unbalanced Replace blade
Engine does not start	Brake lever not pressed Press brake lever
	Speed lever in wrong position Check setting
	Spark plug is defective Replace spark plug
	Fuel tank is empty Refill with fuel
	Contaminated fuel Empty fuel tank and fill with clean fuel
	Cold environment Push the primer button (if present)
	Engine faulty	Contact authorised customer service
Engine runs unsteadily	Air filter is soiled Clean the air filter
	Spark plug is soiled	Clean the spark plug
Uneven mowing results	Blade is blunt	Sharpen the blade
	Cutting height is too low	Set correct height
Unsatisfactory bagging of the grass	Cutting height is too low	Set correct height
	Blade is worn	Replace the blade
	Basket is clogged	Empty the basket

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny Kliencie,

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

Günzburger Straße 69

D-89335 Ichenhausen

Kedves Ügyfelünk!

Günzburger Straße 69

D-89335 Ichenhausen

Austatud klient!

Günzburger Straße 69

D-89335 Ichenhausen

Gerbiamas kliente,

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Arvoisa asiakas

Günzburger Straße 69

D-89335 Ichenhausen

Bästa Kund!

*indikeras med: Cd = kadmium, Hg = kvicksilver, Pb = bly

CE - Declaration of Conformity

PETROL LAWN MOWER (SELF PROPELLED)

TONDEUSE THERMIQUE (TRACTÉE)

MS196-51E

MS196-51E

MS196-51E

X 2000/14/EC_2005/88/EC
Noise: measured LWA=96,2 dB(A); guaranteed LWA=98 dB(A)P = xx KW; L/∅ = cm
	Annex V
X	Annex VINotified Body: TÜV SÜD Product Service GmbHNotified Body No.: 0036

Standard references:

EN 5395-1:2013; EN 5395-2:2013/A2:2017; EN 14982:2009

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

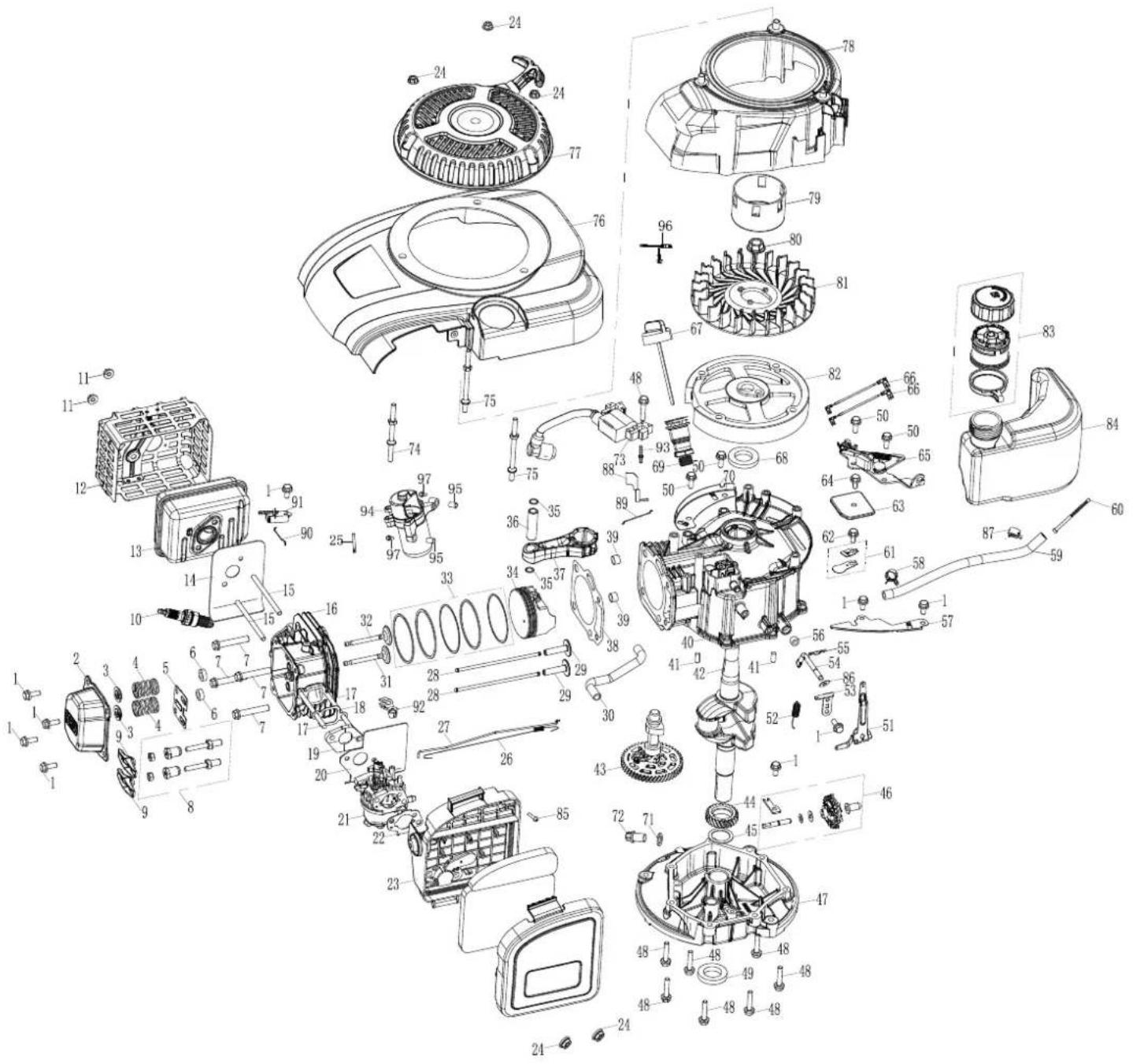

Exploded view diagram of a mechanical device with numbered parts for identification

Exploded view diagram of a mechanical assembly with numbered parts for identification

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material

or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
