Explanation of the symbols on the device

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Warning! Disregard results in a risk of death or injury, or damage to the tool!
	Warning - read the instruction manual to reduce the risk of injury
	Wear hearing protection. Excessive noise can result in a loss of hearing.
	Wear a dust protection mask. When machining wood and other materials, harmful dust may be generated. Do not machine material containing asbestos!
	Wear eye protection. Sparks created during work or fragments, chippings and dust ejected by the device can case sight loss.
	Attention! Before assembly, cleaning, modification, servicing, storage and transport, the device must be switched off and disconnected from the power supply.
	A grindstone must never be used on the brush side of the machine.

Table of contents: Page:

1. Introduction....20
2. Device description 20
3. Scope of delivery 20
4. Proper use 20
5. General safety information....21
6. Residual risks 24
7. Technical data....24
8. Unpacking 25
9. Assembly 25
10. Start up 25
11. Electrical connection 26
12. Cleaning....27
13. Storage 27
14. Maintenance 27
15. Disposal and recycling....27
16. Troubleshooting 28

1. Introduction

Manufacturer:

scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer

We hope your new tool brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Improper handling,
  • Non-compliance with the operating manual,
• Repairs carried out by third parties, unauthorised specialists.
  • Installing and replacing non-original spare parts
  • Application other than specified
• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 13 / VDE0113 not being observed

Please consider:

Read through the complete text in the operating manual before installing and commissioning the device.

The operating manual is intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations.

The operating manual includes important instructions for safe, proper and economic operation of the device, for avoiding danger, for minimising repair costs and downtimes, and for increasing the reliability and extending the service life of the device.

In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the device in your country.

Keep the operating manual package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work.

The device may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards.

The required minimum age must be observed.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

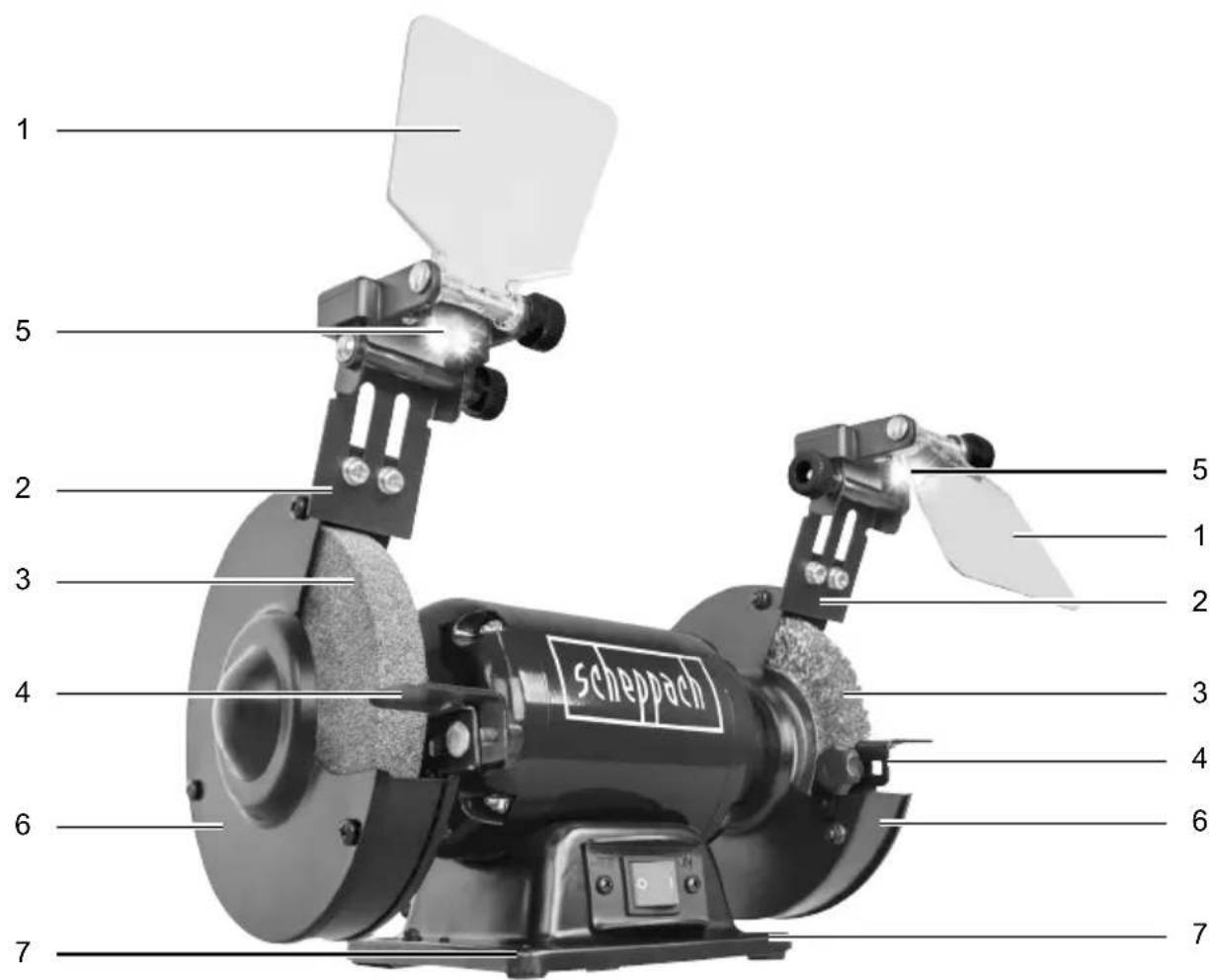

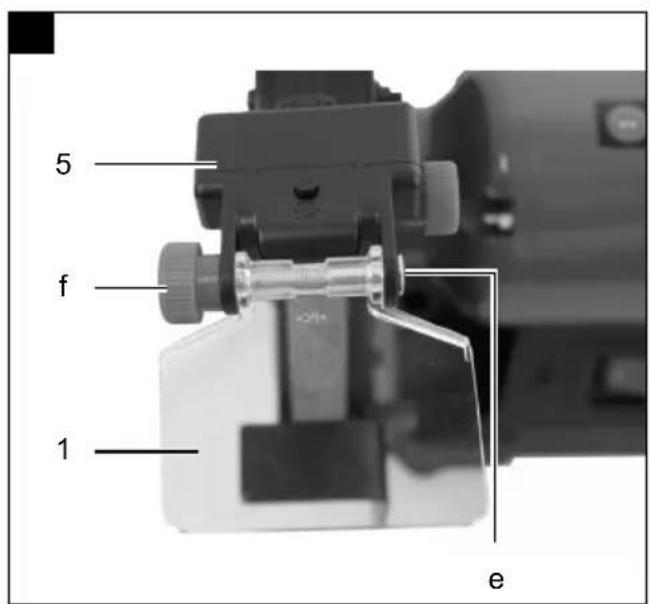

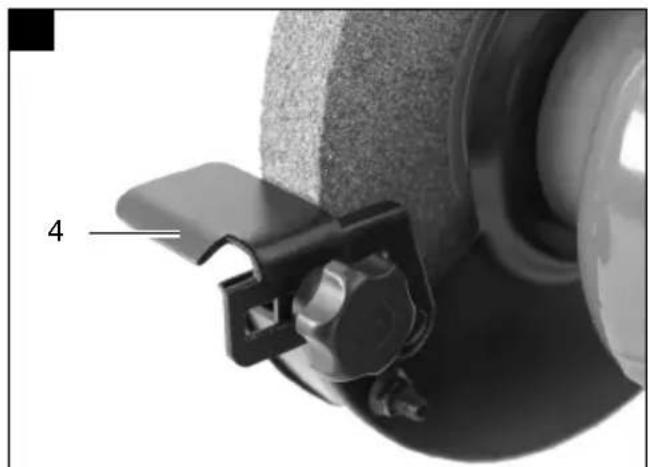

2. Device description (Fig. 1)

1. Protective panel
2. Spark protection
3. Grinding disc (K36) / brush
4. Tool support
5. LED work lamp
6. Grinding disc guard
7. Hole for workbench assembly
8. Main switch (ON/OFF)

3. Scope of delivery

• Bench grinder
• 2x protective panels
• 2x LED work lamp
• 2x tool support
  • 4x type AAA batteries
• Assembly material
• Operating manual

4. Proper use

The bench grinder is a combination device for grinding and polishing metals, plastics and other materials using the appropriate grinding discs.

The machine may only be used in the intended manner.

Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the machine must be familiar with it and must be informed about potential dangers.

In addition, the applicable accident prevention regulations must be strictly observed.

Other general occupational health and safety-related rules and regulations must be observed.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the machine.

The machine may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please observe that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the equipment is used in commercial or industrial applications, or for equivalent work.

The device is intended for use by adults. Children over the age of 16 may use the tool except under supervision. The manufacturer is not liable for damage caused by an improper use or incorrect operation of this device.

5. General safety information

General power tool safety warnings

⚠ WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

1. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

1. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

ATTENTION!

This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the machine.

Safety instructions for table-top grinding machines

a) Do not use a damaged accessory. Check tool attachments such as grinding discs for chipping and cracks before each use. Once you have checked and used the tool attachment, ensure that you and all other persons in the vicinity remain outside the plane of the rotating tool attachment and allow the device to run for 1 min. at the maximum speed. Damaged tool attachments usually break during this test period.

b) The permissible rotational speed for tool attachments must be at least as high as the maximum speed cited on the electric tool. Accessories that rotate faster than permitted can break and fly off at high speed.

c) Note that wire brushes lose pieces of wire even during normal use. Do not overtax the wires by applying too much contact pressure. Pieces of wire that fly off can easily penetrate thin clothing and/or the skin.

d) Never grind on the side surfaces of the grinding disc. Grinding on the side surfaces can cause the grinding disc to break and fall apart.

Device-specific safety instructions for bench grinders

- Do not touch the mains cable if it is damaged or cut during operation. Immediately disconnect the mains plug and then have the device repaired exclusively by a specialist or the responsible service centre.

- Do not operate the device when it is damp or in a damp environment.

- When working outdoors, connect the device via a residual current device (RCD) with a maximum trigger current of 30 mA. Only use an extension cable approved for outdoor use.

- Pull the mains plug out of the socket immediately in the event of danger.

• Always guide the mains cable backwards away from the device.

- Fire hazard due to flying sparks! Flying sparks occur when grinding metals. Therefore, make absolutely sure that no persons are endangered and that there are no flammable materials near the work area.

- Warning! Toxic vapours! Processing harmful / poisonous dusts poses a health risk for the operator or bystanders. Wear safety goggles, hearing protection, dust protection mask and protective gloves.

- Danger of burning! The workpiece becomes hot during grinding. Never touch it to the area to be machined and let it cool down sufficiently. Particularly when sanding for a longer period of time, always interrupt the grinding process and allow the workpiece to cool down before you continue grinding. A continuous operation of 10 minutes should not be exceeded.

- The double grinding machine is designed for dry surface grinding of metal surfaces. The device may only be used for dry grinding.

- Do not machine material containing asbestos. Asbestos is considered carcinogenic. Do not use damaged grinding discs.

- Only use grinding discs whose data match the machine's type plate. The orbital velocity should be equal to or greater than the specified number.

- Periodically readjust the protective holders (spark deflectors) and protective panels so that the wear of the grinding discs is evened out. Keep the distance as low as possible.

- Avoid contact with the running grinding disc.

- Do not operate the device unattended.

- Never misuse the device.

• Always make sure that the device is switched off before inserting the mains plug into the socket.

- Always switch on the device first and then guide the workpiece against the grinding disc. After machining, lift the workpiece and then switch off the device.

• Always hold the workpiece firmly with both hands.

• Make sure that you have a secure footing.

- Allow the grinding disc(s) to come to a complete stop after working on metals.

• Always disconnect the mains plug from the socket during breaks in work, before carrying out any work on the device and when it is not in use.

- Handle the device with care and attention. The device must always be clean, dry and free of oil or grease.

- Remain attentive at all times! Always pay attention to what you are doing and always use common sense. Never use the device when you are not concentrated or feel unwell.

- Grinding discs must be stored in such a way that they are not exposed to mechanical damage and damaging environmental influences.

- Do not use defective or deformed grinding discs.

- Check the setting of the spark protection frequently and adjust it according to the wear of the grinding disc. Keep the distance between the spark protection and the grinding disc as small as possible (not more than 2 mm).

- Check the setting of the tool support frequently and adjust it according to the wear of the grinding disc. Keep the distance between the spark protection and the grinding disc as small as possible (not more than 2 mm).

- Only use grinding discs whose hole fits exactly on the shaft of the bench grinder. Do not use grinding discs with too small a hole.

- Do not overtighten the washer nut.

- Do not grind with a cold grinding disc. Allow the grinding disc to idle for one minute before starting work.

- Do not grind on the side surfaces of the grinding disc. Grind only on the front side.

- Do not apply coolant directly on the grinding disc. Coolant can affect the bond strength of the grinding disc, causing it to fail.

• Sparks can be dangerous. Do not sand near flammable gases or liquids.

- Stand to the side of the grinding disc when switching on the device.

• Only true the grinding disc on the front side. Grinding on the side surfaces can make the grinding disc too thin for safe use.
• Grinding generates heat. Do not touch the workpiece until it has cooled down sufficiently.
• Only use grinding discs that are designed for safe use on the bench grinder. Do not use a grinding disc whose specified maximum rotational speed is lower than the speed specification of the device.
• Do not use any damaged or deformed grinding wheels or brushes.
• Only use grinding wheels and brushes marked with a rotational speed which is at least as high as the speed indicated on the rating plate of the electrical tool.
• Always leave the brush fastened to the spindle in order to limit the risk of contact with the rotating spindle.

6. Residual risks

The machine has been built according to the state-of-the-art and the recognised technical safety requirements. However, individual residual risks can arise during operation.

• Health hazard due to electrical power, with the use of improper electrical connection cables.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
- Residual risks can be minimised if the "Safety information" and the "Proper use" together with the operating manual as a whole are observed.
- Avoid accidental starting of the machine: the operating button may not be pressed when inserting the plug in an outlet. Use the tool attachment that is recommended in this operating manual. This is how to ensure that your machine provides optimum performance.
- Keep your hands away from the work area, when the machine is in operation.

7. Technical data

Motor 230 - 240 V\~ / 50 Hz

Rated input	S1: 250 W S2 10 min: 400 W
Idle speed 2980 rpm
Dimensions 380 x 210 x 280 mm
Max. disc ∅ ∅ 150 mm
Min. disc ∅ (after wear) ∅ 110 mm
Max. brush ∅ ∅ 150 mm
Min. brush ∅ (after wear)	∅ 120 mm
Disc hole ∅ 12.7 mm
Disc width 20 mm
Brush width 13 mm
Work lamp LED with battery (2x)
Weight approx.	7.5 kg

Technical changes reserved!

Duty cycle:

The duty cycle S2 10 min (short-time duty) states that the engine may only be continuously loaded with the rated power (400W) for the time specified on the data plate (10 min). Otherwise, it would heat up impermissibly. During the pause, the motor cools down again to its initial temperature.

Noise and vibration

The noise and vibration levels have been determined in accordance with EN 62841.

⚠ Warning: Noise can have serious effects on your health. If the machine noise exceeds 85 dB (A), please wear suitable hearing protection.

Noise data

Sound power level L_WA	90.5 dB(A)
Sound pressure level L_pA	77.5 dB(A)
Uncertainty K_wa/pA	3 dB

8. Unpacking

• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
  • Familiarise yourself with the product by means of the operating instructions before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Replacement parts can be obtained from your dealer.
• When ordering please provide our article number as well as type and year of manufacture for your equipment.

⚠ WARNING!

The device and the packaging material are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

9. Assembly

Warning!

Always pull out the mains plug before carrying out adjustments on the device.

• Before connecting the machine, make certain that the data on the type plate matches with the mains power data.
  • Always pull out the mains plug before carrying out adjustments on the device.
• Pull out the mains plug before all maintenance and assembly work.
• The machine must be stable, i.e. bolted down on a workbench or similar, or similar.
• Prior to commissioning, all covers and safety devices must be mounted correctly.
  • The grinding disc must be able to run freely.

Safety instruction! Do not connect the device until all assembly and adjustment work has been completed and the operating manual and safety instructions have been read and understood.

Tool support (left and right) (Fig. 1, 2, 2.1)

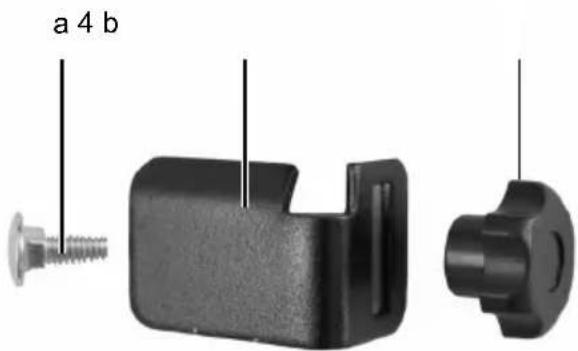

Fasten the tool support (4) to the grinding wheel guard (6) with the mushroom head screw (M6x10) (a) and the star grip nut (b). The distance between the grinding disc (3) and the tool support (4) must be set to max. 2 mm.

Spark protection with LED work lamp (left and right) (Fig. 1, 3)

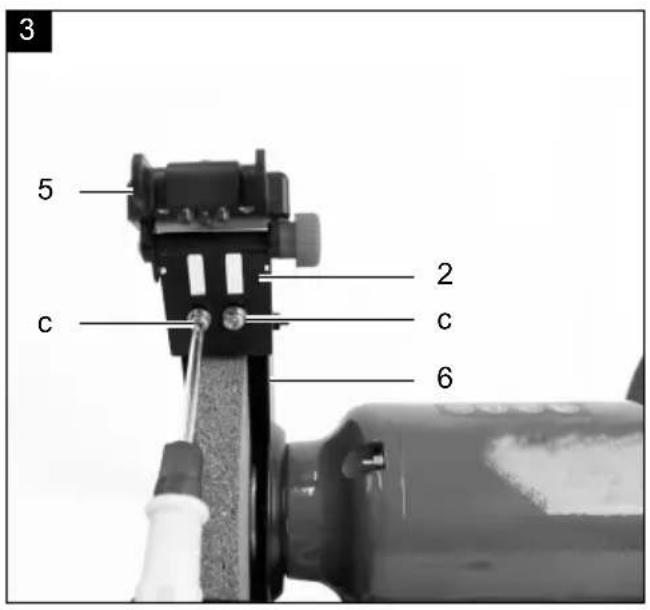

Fasten the spark guard (2) with LED work lamps (5) to the grinding wheel guard (6) with two M5x8 pan head screws (c).

The distance to the grinding wheel (3) should be not more than 2mm. The distance between the spark guard (2) and the grinding wheel (3) can be adjusted by slackening the two pan head screws (c). Tighten the screws securely.

LED work lamp (Fig. 1, 4, 4.1, 4.2)

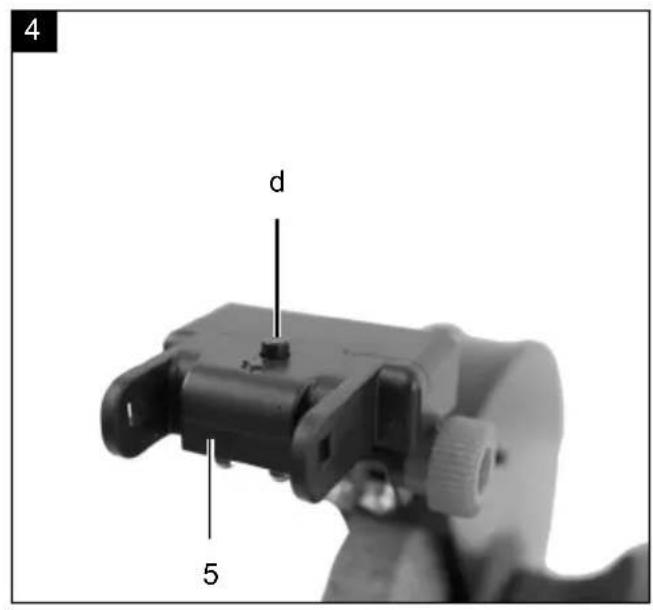

The lighting (5) can be switched on by pressing the switch (d) on the lamp. The lighting is switched off by pressing the switch again.

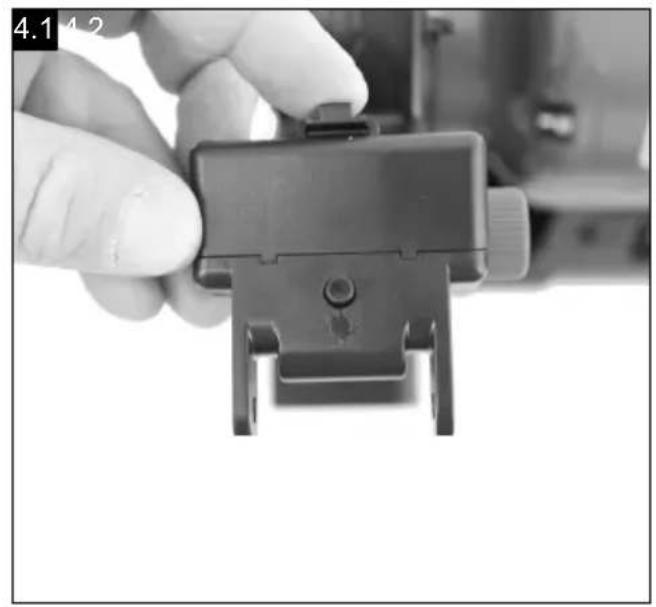

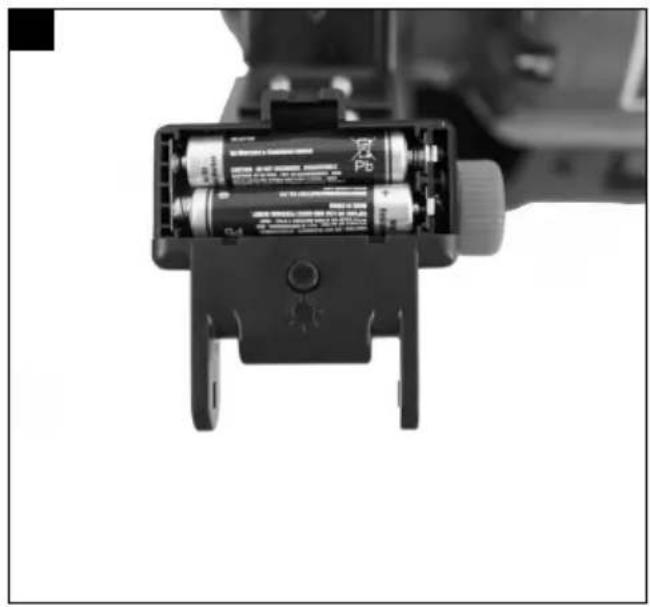

Open the battery compartment (Fig. 4.1) to insert/change the batteries (2xAAA R03 1.5 V). Insert the batteries (2x on each side) (Fig. 4.2). If you change the batteries dispose of the used batteries properly. Replace the cover of the battery compartment in reverse order (Fig. 4.1).

Protective panels (Fig. 1, 5, 5.1)

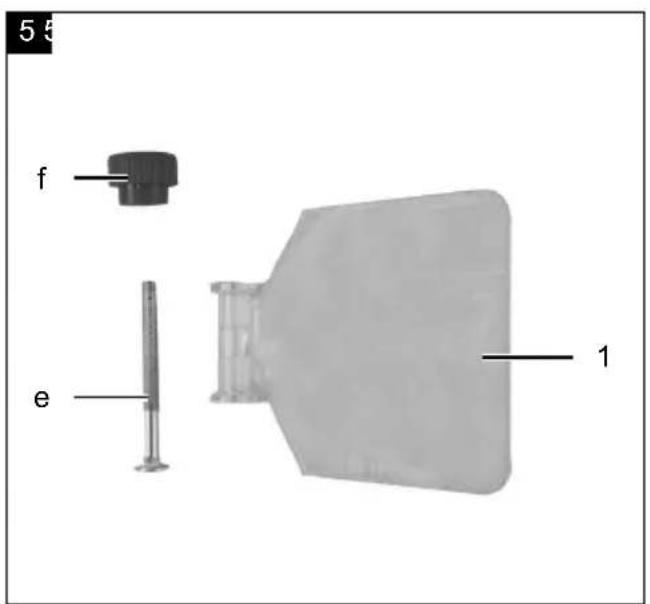

Install the safety screen (1) on the LED work lamp (5) with the M5x55 mushroom head screw (e) and the knurled head screw (f).

The protection is individually adjustable so that the user's eyes are protected during the grinding process.

10. Start up

⚠ Attention!

Always make sure the device is fully assembled before commissioning!

Switching on/off

• To switch on, set the ON/OFF switch (8) to the ON position.
• To switch off, set the ON/OFF switch (8) to the OFF position.

Do not start grinding until the device has reached its maximum speed.

Working instructions

• Note that the best results are achieved with low pressure of the workpiece on the grinding disc, as then work is done at a constant speed. Excessive pressure on the workpiece brakes the grinding disc or it comes to a standstill, this overloads the engine and does not accelerate the work process.
• For your own safety, always secure small workpieces with a vice or screw clamp.

Grinding

• Place the workpiece on the workpiece support (4) and slowly move it towards the grinding disc (3) at the desired angle until it touches it.
• To obtain an optimum grinding result and to wear the grinding disc (3) evenly, the workpiece should be moved slightly back and forth on the grinding disc (3).
  • Always allow the workpiece to cool down.

Attention!

If the disc/wheel should jam while working, please remove your workpiece and wait until the device has reached its maximum speed again.

Changing the grinding disc

Attention: To prevent injuries caused by accidentally starting the bench grinder, always switch off the device (switch setting to "0") and disconnect the mains plug from the socket before changing the grinding disc.

• Loosen the spark protection and protective panel and pull them out as far as possible, but do not detach them.
• Loosen the tool support and pull it out as far as possible.
• Undo the screws of the grinding wheel guard (6) and remove the guard.
• Remove the outer flange and the old grinding disc, put on the new grinding disc.

Note:

• Do not remove the cardboard discs attached to the sides of the new grinding disc, as these help to safeguard the flanges' grip against the grinding disc.
• Inspect the new grinding disc for cracks or other visible damage and discard if necessary.
• Replace the flange and nut.
• Do not overtighten the nut with a spanner, otherwise the grinding disc may break.
• Re-install the grinding wheel guard (6) in the reverse order.

- Adjust the tool support, spark protection and protective panel again according to the assembly instructions.

11. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions.

The customer's mains connection as well as the extension cable used must also comply with these regulations.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fastened or routed.
• Places where the connection cables have been cut due to being driven over.
  • Insulation damage due to being ripped out of the wall outlet.
• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables of the same designation.

The printing of the type designation on the connection cable is mandatory.

For single-phase AC motors, we recommend a fuse rating of C 16A or K 16A for machines with a high starting current (from 3000 watts)!

12. Cleaning

Danger!

Disconnect the mains plug before carrying out any cleaning work.

- Keep protective devices, air vents and the motor housing as free of dust and dirt as possible. Rub the device clean with a clean cloth or blow it off with compressed air at low pressure.

• We recommend that you clean the device directly after every use.

- Clean the device at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning products or solvents; they could attack the plastic parts of the device. Make sure that no water can penetrate the device interior. Water entering a power tool will increase the risk of electric shock.

13. Storage

Store the device and its accessories in a dark, dry and frost-free place that is inaccessible to children. The optimum storage temperature lies between 5 and 30 °C. Store the power tool in its original packaging. Cover the power tool to protect it from dust or moisture. Store the operating manual with the power tool.

14. Maintenance

The device has no further internal parts that require maintenance.

Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Abrasives, carbon brushes, honing wheels, angle gauges

* may not be included in the scope of supply!

Connections and repairs

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any queries:

• Type of current for the motor
• Data of machine type plate
• Data of motor type plate

Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page.

15. Disposal and recycling

The device is supplied in packaging to avoid transport damages. This packaging is raw material and can thus be used again or can be reintegrated into the raw material cycle.

The device and its accessories are made of different materials, such as metals and plas-

tics. Take defective components to special waste disposal sites. Check with your specialist dealer or municipal administration!

Old devices must not be disposed of with household waste!

This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/EU) pertaining to waste electrical and

electronic equipment (WEEE). This product must be handed over at the intended collection point. This can be done, for example, by returning it when purchasing a similar product or delivering it to an authorised collection point for the recycling of old electrical and electronic devices. Improper handling of waste equipment may have negative consequences for the environment and human health due to potentially hazardous substances that are often contained in electrical and electronic equipment. By properly disposing of this product, you are also contributing to the effective use of natural resources. You can obtain information on collection points for waste equipment from your municipal administration, public waste disposal authority, an authorised body for the disposal of waste electrical and electronic equipment or your waste disposal company.

Do not throw primary batteries or rechargeable batteries away with household waste

As the consumer you are required by law to bring all batteries and rechargeable batteries, regardless whether they contain harmful sub-

stances* or not, to a collection point run by the local authority or to a retailer, so that they can be disposed of in an environmentally friendly manner.

*marked with: Cd = cadmium, Hg = mercury, Pb = lead

16. Troubleshooting

The following table shows fault symptoms and describes remedial measures in the event of your machine failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.

Fault Possible cause Remedy
Engine does not run.	Engine, cable or connector defective, fuses burnt.	Have the machine checked by a specialist. Never repair the engine yourself. Attention! Check the fuses and replace them if necessary.
The engine starts slowly and does not reach the operating speed.	Voltage too low, coils damaged, capacitor burnt.	Have the power supply company check the voltage. Have the engine checked by a specialist. Have the capacitor replaced by a specialist.
Engine producing excessive noise.	Coils damaged, motor defective.	Have the engine checked by a specialist.
Engine does not reach full power.	Circuits in the network are overloaded (lamps, other engines, etc.)	Do not use any other devices or engines on the same circuit.
Motor overheats easily.	Overloading of the engine, insufficient cooling of the engine.	Avoid overloading the engine during grinding and remove dust from the engine to ensure optimum engine cooling.

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

89335 Ichenhausen

Egregio cliente,

Günzburger Straße 69

D-89335 Ichenhausen

Estimado cliente:

Exploded view diagram of a mechanical assembly with numbered components and exploded views

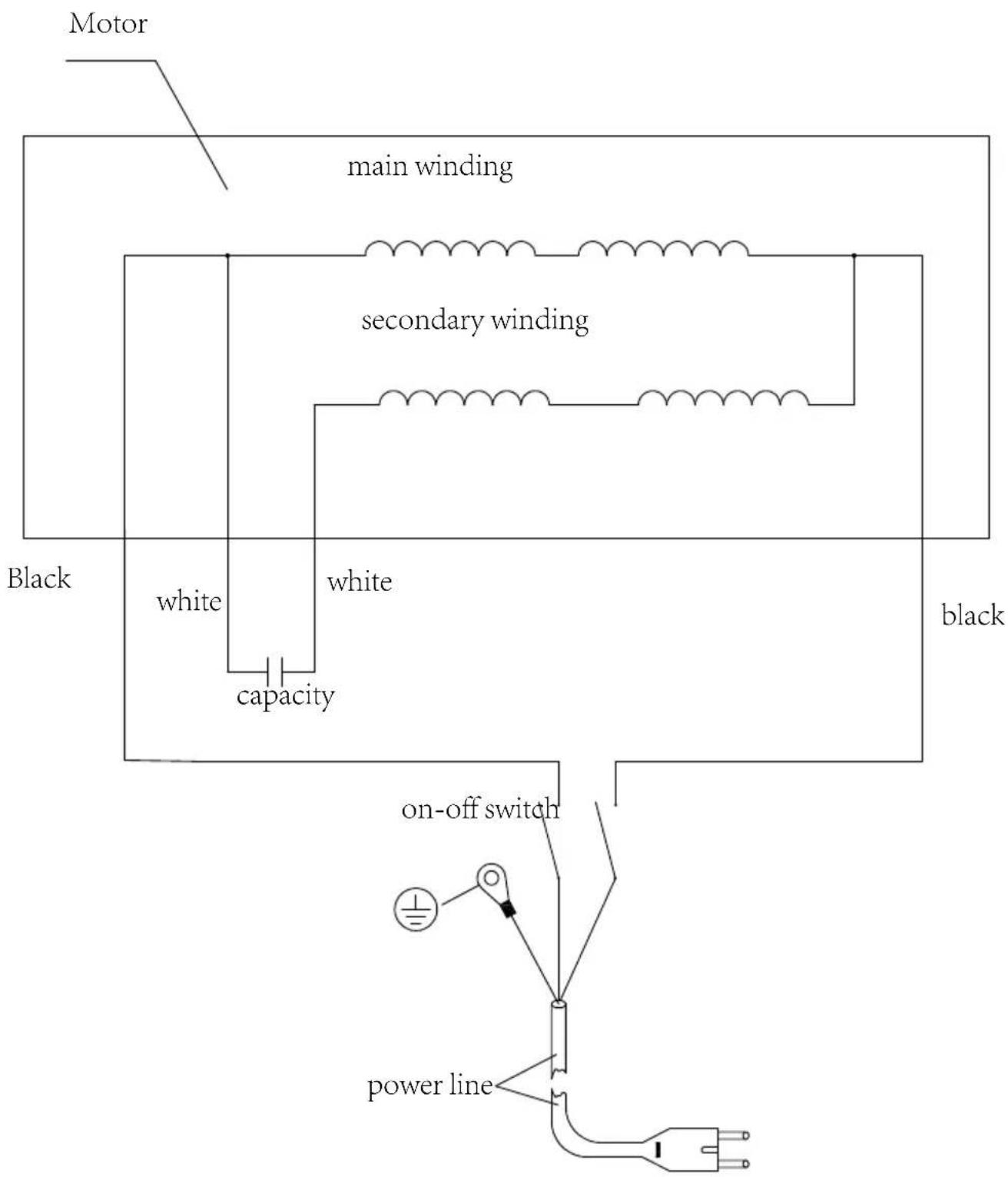

Motor main winding secondary winding black white white black capacity on-off switch power line

CE Declaration of Conformity

89/686/EC_96/58/EC 90/396/EC

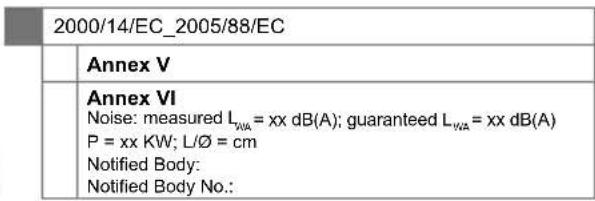

2000/14/EC_2005/88/EC Annex V Annex VI Noise: measured LWA = xx dB(A); guaranteed LWA = xx dB(A) P = xx KW; LØ = cm Notified Body: Notified Body No.:

x 2006/42/EC
	Annex IV Notified Body: Notified Body No.: Certificate No.:

2010/26/EC

Emission. No:

Standard references:

EN 62841-1:2015; EN 62841-3-4:2016+A11:2017+A12:2020;

EN 55014-1:2017; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55014-2:2015

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Dawid Hudzik

Günzburger Str. 69, D-89335 Ichenhausen

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
