USER MANUAL BAB150-40Li SCHEPPACH

Scheppach

BAB150-40Li

DE	Akku-LaubbläserOriginalbedienungsanleitung	3
GB	Cordless Leaf BlowerTranslation of original instruction manual	13
FR	Souffleur de feuilles sans filTraduction des instructions d'origine	21
PL	Akumulatorowa dmuchawa do liściOryginalna instrukcja obsługi	30
CZ	Akumulátorový fukar na listíPřeklad originálního návodu k obsluze	39
SK	Akumulátorový fúkač lístiaPreklad originálu návodu na obsluhu	48
HU	Akkumulátoros lombfúvóAz eredeti használati útmutató fordítása	57

1 2 8 1 5 6 7

2 ② ①

3 3 4

4 2 8

Line drawing of a person using a handheld tool to clean or spray the material (no text or symbols)

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

Explanation of the symbols on the equipment

	Read instruction manual and safety instructions before starting up and pay attention!
	Wear safety goggles!
	Wear ear-muffs!
	Wear protective gloves!
	Wear dust protection mask!
	Wear robust, non-slip footwear.
	Warning! Beware of thrown objects hit by cutting attachments. Never use without properly mounted blade guard. Keep bystanders away.
	Warning! Long hair can be pulled in.
	Don’t use your device in moisty weather.
	△ Warning! Rotating fan blades can cause serious injury or cut. Keep hands clear. Switch off and unplug the device before servicing.

Table of contents: Page:

1. Introduction...... 15
2. Layout....15
3. Scope of delivery.... 15
4. Intended use....15
5. Safety information 16
6. Technical data 18
7. Before starting the equipment....19
8. Operation.... 19
9. Cleaning and maintenance.... 19
10. Storage.... 19
11. Disposal and recycling 19
12. Trouble shooting....20

1. Introduction

Manufacturer:

scheppach

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new tool brings you much enjoyment and success.

Note:

According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Improper handling,
  • Non-compliance of the operating instructions,
• Repairs by third parties, not by authorized service technicians,
• Installation and replacement of non-original spare parts,
  • Application other than specified,
• A breakdown of the electrical system that occurs due to the non-compliance of the electric regulations and VDE regulations 0100, DIN 57113 / VDE0113.

We recommend:

Read through the complete text in the operating instructions before installing and commissioning the device.

The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations.

The operating instructions contain important information on how to operate the machine safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine.

In addition to the safety regulations in the operating instructions, you have to meet the applicable regulations that apply for the operation of the machine in your country.

Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information. The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules for operating woodworking machines must also be observed.

We accept no liability for damage or accidents which arise due to non-observance of these instructions and the safety information.

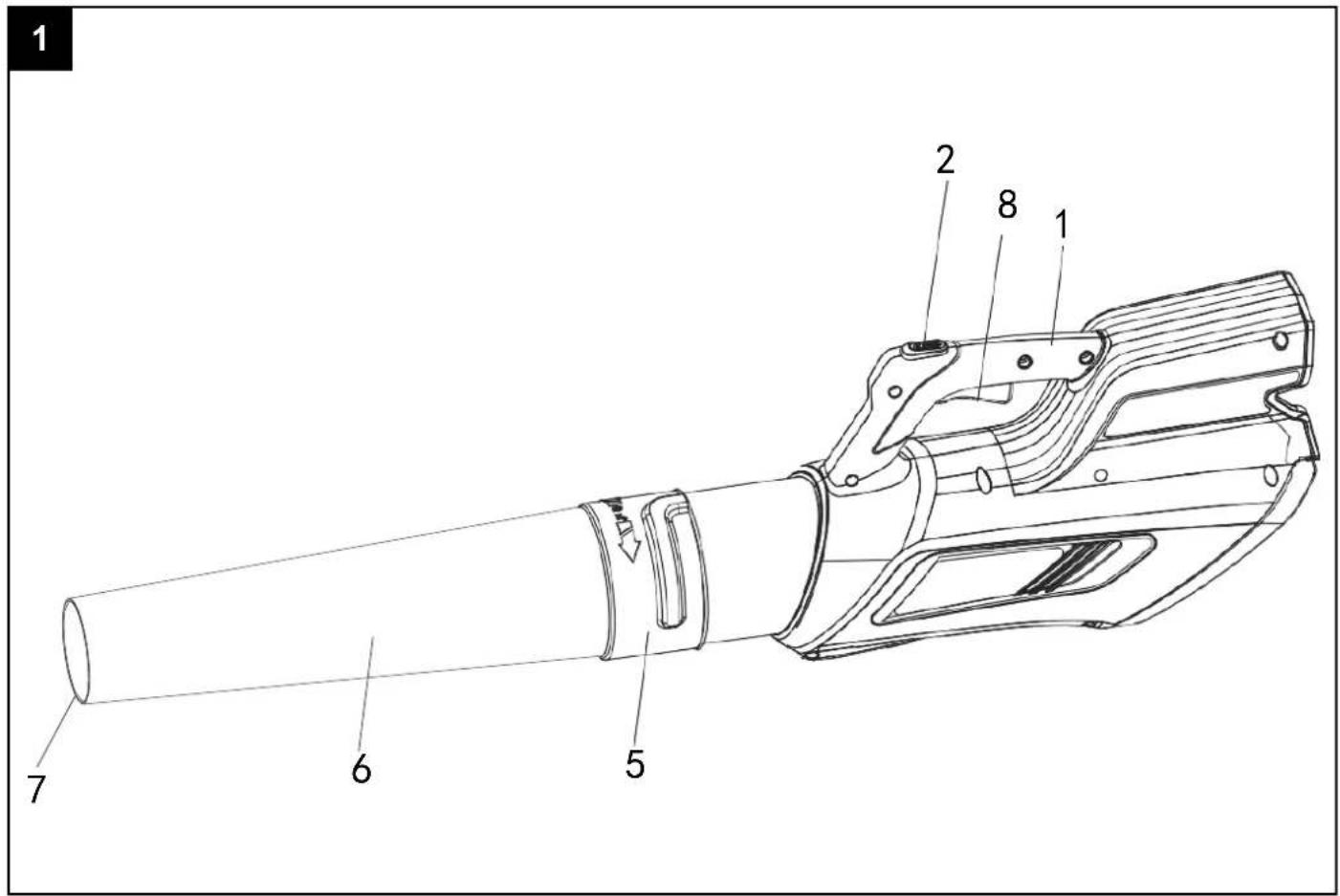

2. Layout (Fig. 1, 3)

1. Handle
2. Turbo but ton
3. Battery*
4. Battery locking
5. Blast pipe locking
6. Blast pipe
7. Blast pipe opening
8. On/off switchr

*Optional. Depending on delivery contents

3. Scope of delivery

• Motor unit
• Blast pipe
• Original instructions

Items supplied

• Open the packaging and remove the device carefully.
• Remove the packaging material as well as the packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport damage.
• If possible, store the packaging until the warranty period has expired.

ATTENTION

The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

4. Intended use

Equipment designed for use in private and hobby gardens is regarded as unsuitable for use in public facilities, parks and sports centers, along roadways, or in agriculture and forestry. The operating instructions as supplied by the manufacturer must be kept and referred to in order to ensure that the equipment is properly used and maintained.

The equipment may be used only for the tasks it is designed to handle. Any other use is deemed to be a case of misuse. The user/operator and not the manufacturer will be liable for any damage or injuries of any kind resulting from such misuse.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

Remaining hazards

The machine has been built using modern technology and in accordance with recognized safety rules. Some hazards, however, may still remain.

• Wear regulation safety gear such as safety boots and tight work clothing.
• Electrical hazards exist when unsuitable electric connections are used.
• Although having regarded all considerable rules there may still remain not obvious remaining hazards.
• Minimize remaining hazards by following the instructions in "Safety Rules", "Use only as authorized" and in the entire operating manual.

5. Safety information

We have marked points in these operating instructions that impact your safety with this symbol: △

Furthermore, the operating manual contains other important text sections that are marked with the word "ATTENTION!".

DANGER

A failure to observe these instructions poses an extreme danger of death or the risk of life-threatening injuries.

⚠ WARNING

A failure to observe these instructions poses a danger of death or the risk of serious injuries.

CAUTION

A failure to observe these instructions poses a minor to moderate risk of injury.

NOTE

A failure to observe these instructions poses a risk of damage to the device or other property.

⚠ WARNING! Read all safety directions and instructions. Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries. Retain all safety directions and instructions for future use. Read these instructions before using the charger and follow them:

• operating instructions provided,
- rules and regulations for accident prevention applicable to the operating site.

This gardening tool is not intended for use by people (including children) with limited physical, sensory or mental abilities or with a lack of experience and/or lack of knowledge, unless they are supervised by a person responsible for their safety or they receive instructions from such a person on how to use this gardening tool.

Never let children or people unfamiliar with these instructions use this gardening tool. Children must be supervised to ensure that they do not play with the device.

Safety notices for the charger

⚠ WARNING! Carefully read all safety notices and instructions. Failure to comply with safety notices and instructions can cause electric shock, fire and/or severe injuries.

Store all safety notices and instructions for future reference.

The term "power tool" used in the safety instructions refers to mains-powered tools (with a mains cable) and to battery-powered tools (without a mains cable).

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

• The electrical tool's connection plug must fit into the socket. The plug may not be modified in any way. Do not use an adaptor plug together with earthed electric tools. Unmodified plugs and suitable sockets reduce the risk of an electric shock
• Avoid body contact with earthed surfaces, such as pipes, heaters, ovens and refrigerators. There is an increased risk of electric shock if your body is earthed.

• Keep electric tools away from rain and moisture. Water entering an electric tool increases the risk of an electric shock.

• Do not use the cable for another purpose, for example, carrying or hanging the electric tool or pulling the plug out of the socket. Keep the cable away from heat, oil, sharp edges or moving device parts. Damaged or coiled cables increase the risk of an electric shock.

• If you work with an electric tool outdoors, only use extension cables that are also suitable for outdoor use. Using an extension cable suitable for outdoor use reduces the risk of an electric shock.
• If you cannot avoid using the electrical tool in a wet environment, use a fault-current circuit breaker. Using a fault-current circuit breaker reduces the risk of an electric shock.

Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• If dust extraction and collection devices can be mounted, make sure that they are connected and used properly. Using a dust extraction unit can reduce hazards caused by dust.

Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

• Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Careful handling and use of Battery devices

• Charge the batteries only in chargers that are recommended by the manufacturer. Risk of fire if a charger that is suitable for a specific type of battery is used with other batteries
• In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in injuries and risk of fire
• Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or fire
• If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery fluid may cause skin irritations or burns
• Observe the operating manual and the safety instructions enclosed with the rechargeable battery or charging unit.

Service

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained

Safety notices for the blower

• This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety. Children should be supervised to ensure that they do not play with the machine.
• The operator or user is responsible for accidents or hazards occurring to other people or their property.
• Other persons and animals should remain at a distance of 3 metres or more when the machine is being used. The operator is responsible for third persons in the working area.
• Never operate the machine while people, especially children or pets, are nearby.
• Use the machine only in daylight or good artificial light.
• Do not operate the machine when barefoot or wearing open sandals, always wear substantial footwear and long trousers.
• Failure to keep loose clothing from being drawn into air intake could result in personal injury.
• Do not operate without tubes in place.
• Failure to keep long hair away from the air inlet could result in personal injury.
• Always be sure of your footing on slopes.
• Keep all cooling air inlets clear of debris.
• Never blow debris in the direction of bystanders.
• Do not make any changes to the leaf blower. Unauthorised changes can impair safety and lead to increased noise and vibrations.
• Never overexert yourself and always maintain balance
• Walk calmly, never run quickly
• Do not work with the gardening tool during adverse weather conditions, in particular if a storm is approaching.

Safety notices for Li-Ion batteries

• Do not open the battery. Risk of short-circuiting!
• Protect the battery from heat, e.g. from constant sun exposure, and from fire, water and humidity. Risk of explosion.
• When the battery has been damaged or it is being used inappropriately, fumes can be released. Let fresh air in and consult a doctor if the fumes cause you any problems. The fumes can irritate the respiratory tract.

• Under abusive conditions, liquid may be ejected from the battery. Avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

• Only use original batteries with the voltage specified on the rating plate of your power tool. If other batteries are used, e.g. imitations, reconditioned batteries or products from third party manufacturers, there is a risk of personal injury as well as property damage based on exploding batteries.

• The battery voltage must correspond with the battery charging voltage of the charger. Otherwise, there is a risk of fire and explosion.
• Charge the batteries only in chargers that have been recommended by the manufacturer. There is a risk of fire if a charger for a particular type of battery is used for another type of battery.
• The battery can be damaged by sharp objects such as a nail or screwdriver or by external application of force. The battery may short-circuit and start burning, smoking, exploding or overheating.

Warning! This electric tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the electric tool.

6. Technical data

Nominal voltage 40 V

Engine speed 12000 min	-1
Airspeed 45 m/s
Air volume	680 m^3 /
Weight (without battery)	2,36 kg

Noise and vibration

The noise and vibration values were developed using a standardised measuring process.

Sound pressure L_pA	78,7 dB(A)
Sound power L_wA	97,7 dB(A)
Uncertainty K_WA	3 dB(A)
Vibration a_h	1,86 m/s ^2
Uncertainty K	1,5 m/s ^2

Wear ear-muffs.

The impact of noise can cause damage to hearing.

Reduce noise generation and vibration to a minimum!

• Use only equipment that is in perfect condition.
• Maintain and clean the equipment regularly.
• Adopt your way of working to the equipment.
• Do not overload the equipment.

• Have the equipment checked if necessary.

• Switch off the equipment when not in use.

• Wear gloves

7. Before starting the equipment

Unpack the device and check it for complete delivery contents and transport damage.

NOTE

The batteries (optional; depending on the delivery scope) are not fully charged on delivery. Before first use, fully charge the batteries. See charger instruction manual.

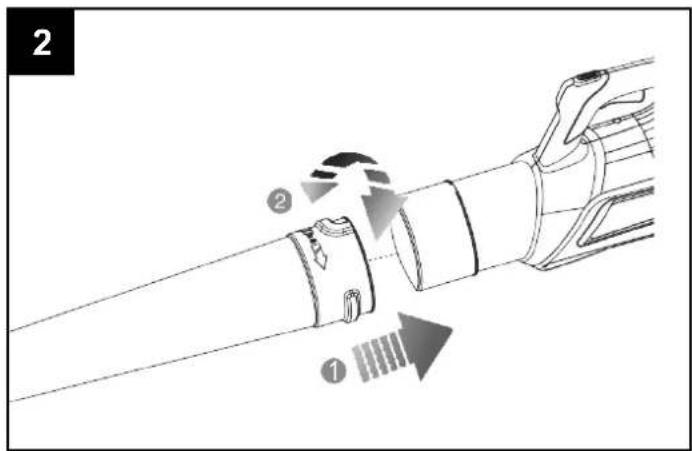

Fitting the blower tube (Fig. 2)

• Fit the blast pipe on the outlet opening of the motor unit.
• Turn the blast pipe to lock it with the bayonet catch

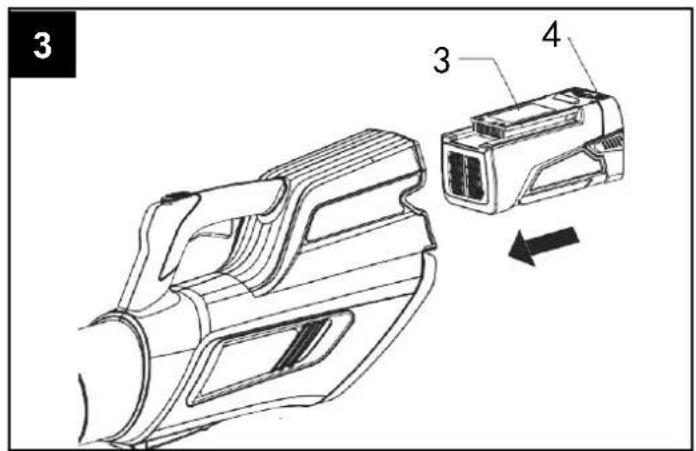

Removing / inserting the battery (Fig. 3)

1. To remove the battery from the appliance, press the release button (4) on the battery (3) and pull out the battery.
2. To insert the battery, place it on the guide track and push it back into the appliance. It will audibly snap in.

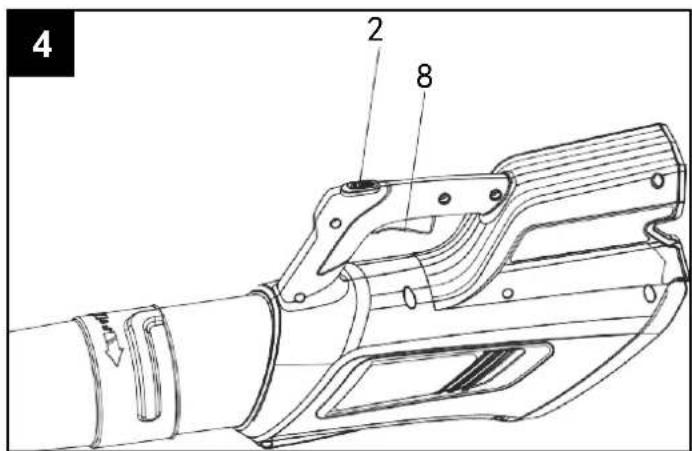

8. Operation

• To switch on, press and hold the On/Off switch (8).
• The airflow is variable depending on the setting of the on/off switch (8)
  • To switch off, let go of the On/Off switch.
• For maximum airflow, press and hold the turbo button (3)
  ATTENTION: Only use the turbo button (3) with heavy accumulations (higher battery consumption and therefore shorter run time of the leaf blower when the turbo button is pressed)
• To reduce the airflow again, release the turbo button (3)

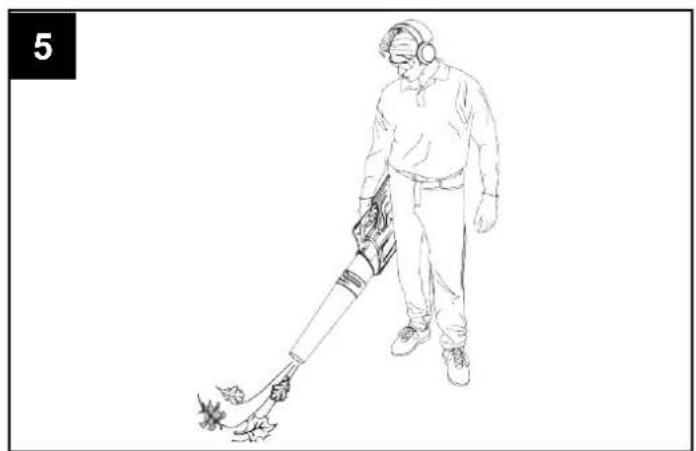

• Channel the air stream forward and walk slowly to blow foliage or garden refuse into.

9. Cleaning and maintenance

Before putting away or cleaning, switch off and remove the battery pack.

Cleaning

• Regularly check the device before starting work
• Damaged parts have to be repaired or replaced by an authorised service department before you can work with the device
• Only ever use original accessories and spare parts.
• Use the device only with batteries and chargers intended for it.
• Do not use the charger if it is damaged.

• Using other components can lead to fire.
- Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it down with compressed air at low pressure.
- We recommend that you clean the equipment immediately after you use it.
- Clean the equipment regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plastic parts in the equipment. Ensure that no water can get into the interior of the equipment. The ingress of water into an electric tool increases the risk of an electric shock.
- Use a brush to remove deposits from the safety guard.

Maintenance

There are no other parts inside the equipment which require maintenance.

Service information

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Wear parts*: Nozzle

* Not necessarily included in the scope of delivery!

10. Storage

NOTE

• Store the device in a dry and frost-free (10-25 °C) place.
• Store the battery and the device separately from each other.
• Charge the battery before storing it for the winter.
• Keep the device, and its plastic components in particular, away from brake fluid, petrol, products containing oil, penetrating oil etc. They contain chemical substances that may damage or destroy the plastic parts of the device.
• Fertilisers and other garden chemicals contain substances which can have a heavily corrosive effect on metal parts. Do not store the device close to these substances.

11. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

Old devices must not be disposed of with household waste!

This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/EU) pertaining to waste electrical and

electronic equipment (WEEE). This product must be disposed of at a designated collection point. This can occur, for example, by handing it in at an authorised collecting point for the recycling of waste electrical and electronic equipment. Improper handling of waste equipment may have negative consequences for the environment and human health due to potentially hazardous substances that are often contained in electrical and electronic equipment. By properly disposing of this product, you are also contributing to the effective use of natural resources. You can obtain information on collection points for waste equipment from your municipal administration, public waste disposal authority, an authorised body for the disposal of waste electrical and electronic equipment or your waste disposal company.

Batteries and rechargeable batteries do not belong in the household waste!

As the consumer you are required by law to bring all batteries and rechargeable batteries, regardless whether they contain harmful substances* or not, to a collection point run by the local authority or to a retailer, so that they can be disposed of in an environmentally friendly manner.

*labelled with: Cd = cadmium, Hg = mercury, Pb = lead

- Remove the batteries from the laser before disposing of the machine and the batteries.

12. Trouble shooting

Problem Possible Cause	Help
Device does not start	Battery emptyOn/Off switch faultyMotor faultyBattery too cold/too warmGardening tool defectiveInternal wiring of the gardening tool defective	Check the battery, if required, arrange repair by an authorised electrician.Repair by an authorised Service CentreRepair by an authorised Service CentrerWarm up the battery/leave the battery to cool downContact the Service CentreContact the Service Centre
The tool works intermittently.	The on/off switch is faulty.	Contact the Service Centre
Heavy vibrations/loud noise	Gardening tool defective	Contact the Service Centre
Gardening tool does not blow	Nozzle blockedGardening tool switches off	Clear nozzleSwitch gardening tool off and charge the battery if the airflow speed reduces significantly
Motor stops during operation	Battery emptBattery not inserted correctlyBattery faulty	Charge batteryRe-insert batteryClean terminals, replace original battery
Decreased performance	Battery exhaustedBattery not fully charged	Replace batteryCharge battery

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

*marqué p ar: C d = c admium, H g = m ercure, P b = plomb

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny kliencie,

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

Günzburger Straße 69

D-89335 Ichenhausen

Tisztelt vásárló!

Technical diagram of a mechanical device with numbered parts, showing exploded and assembled views

CE - Declaration of Conformity

	2014/29/EU		2004/22/EC		89/686/EC_96/58/EC	2000/14/EC_2005/88/EC
X	2014/35/EU		2014/68/EU		90/396/EC		Annex V
X	2014/30/EU	X	2011/65/EU*			x	Annex VINoise: measured L_WA = 97,7 dB(A); guaranteed L_WA = 100 dB(A)P = xx KW; L/∅ = cmNotified Body:Notified Body No.:
X	2006/42/EC
		Annex IVNotified Body:Notified Body No.:Certificate No.:				2010/26/EC
						Emission. No:

Standard references:

EN 60335-1; EN 50636-2-100; EN 62233, EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyeris rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material

or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
