INSTALLATION

• Unpack all parts and remove protective material.
• Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.

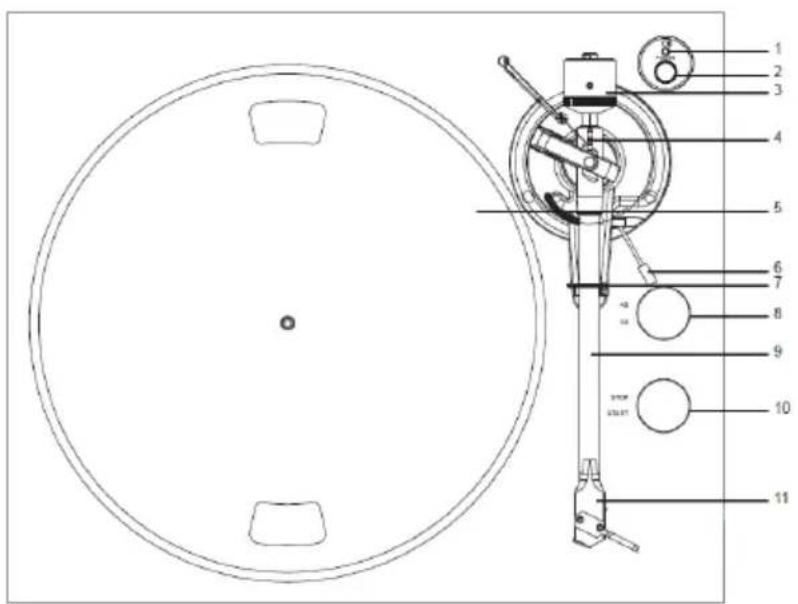

COMPONENTS, FEATURES AND CONNECTIONS

1. Power & Bluetooth indicator
2. Power button
3. Counterweight
4. Anti-skating Stub
5. Turntable Platter
6. Tonearm lift lever
7. Tonearm rest
8. 33/45 selector
9. Tonearm
10. Stop/Start knob
11. Cartridge

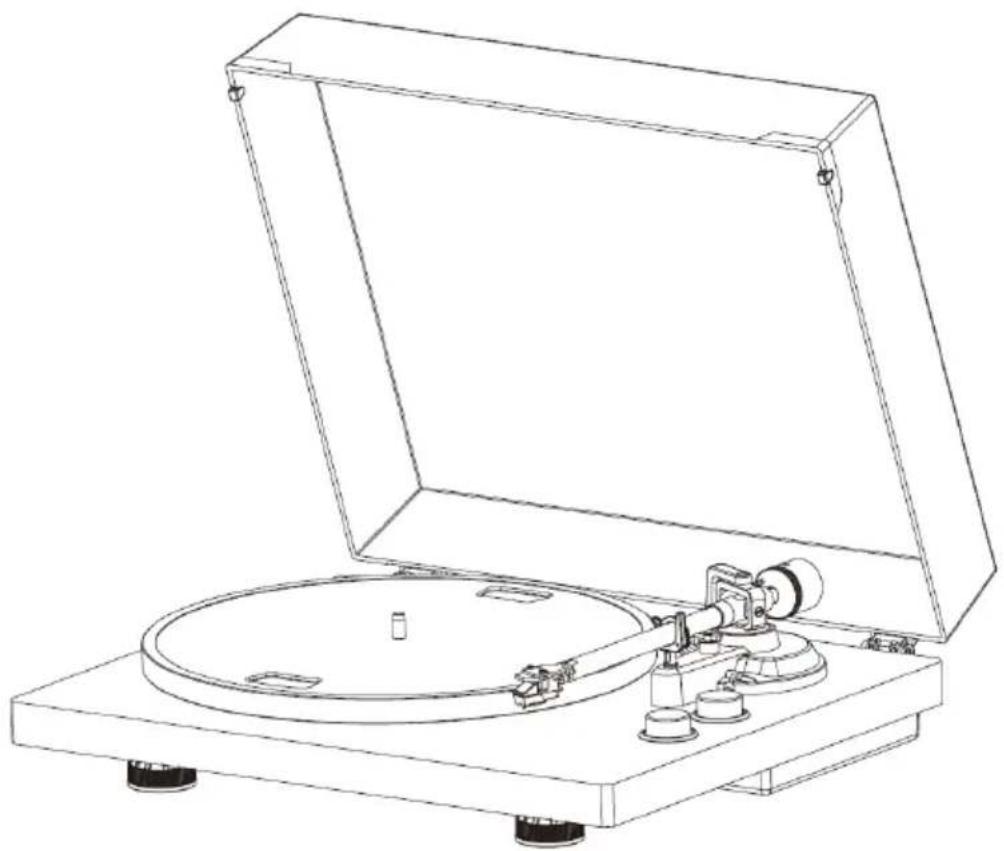

Technical diagram of a mechanical device with numbered parts, including a circular base and internal components.

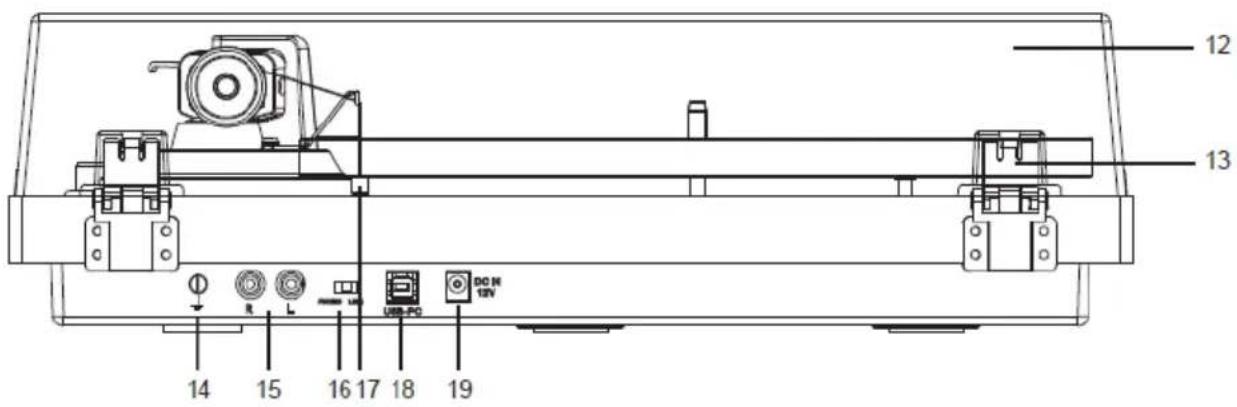

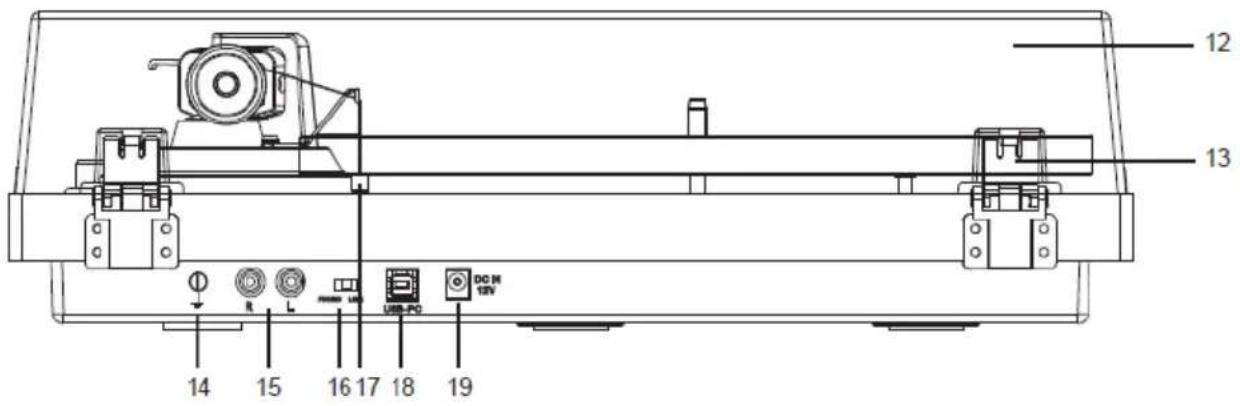

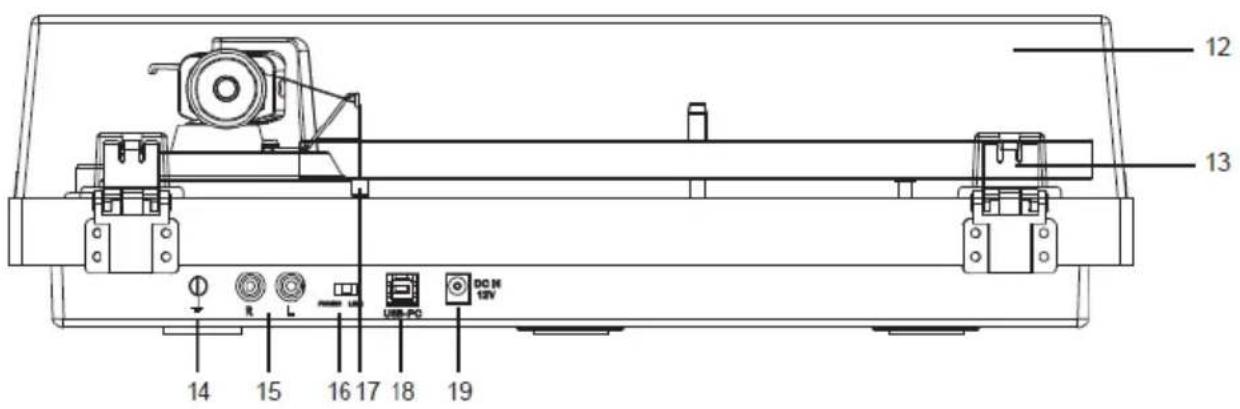

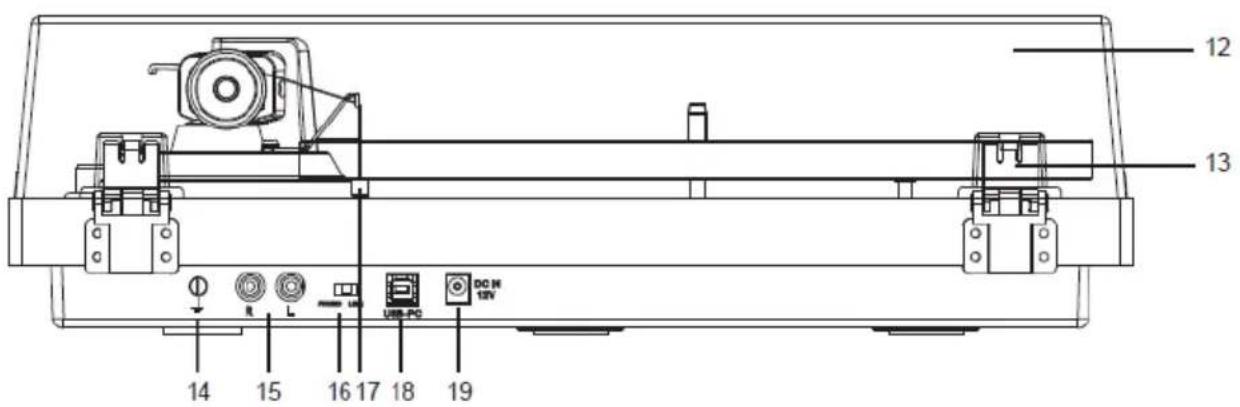

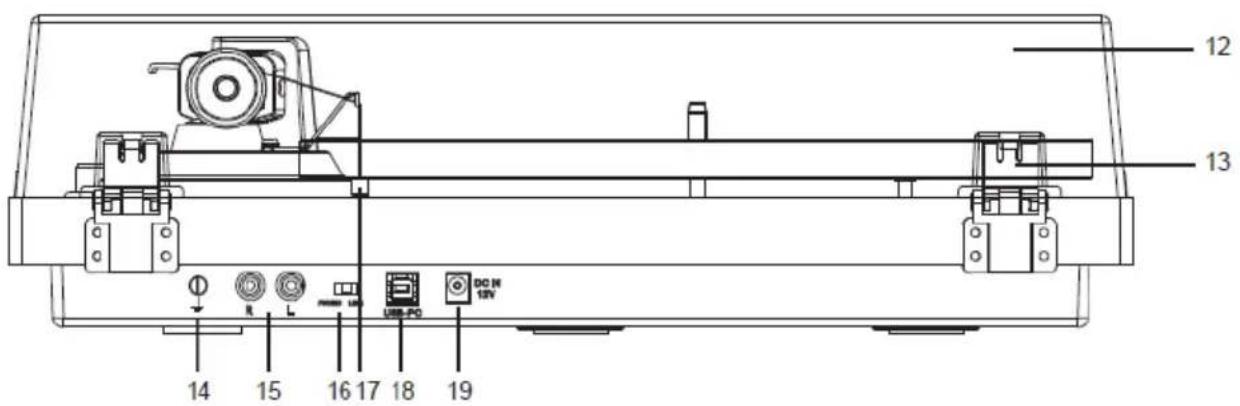

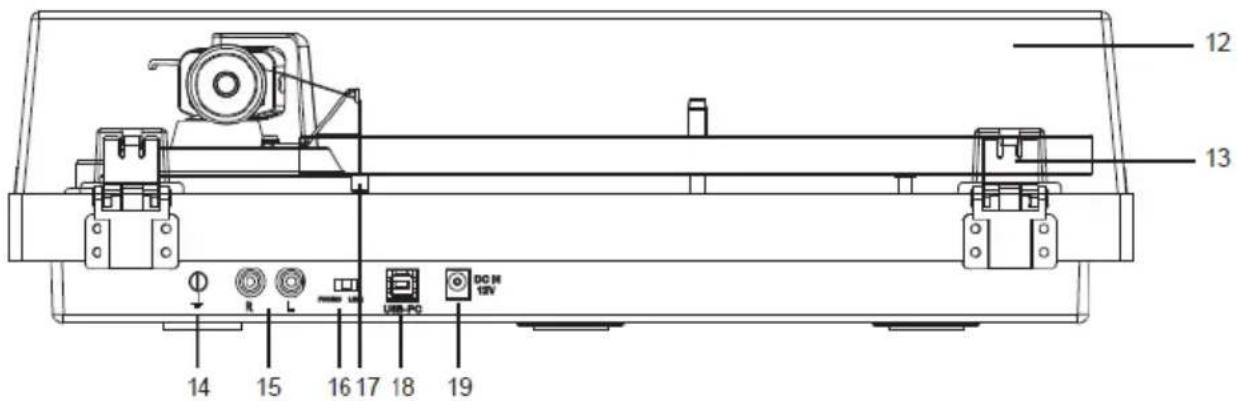

12 13 14 15 16 17 18 DC N 19

1. Lid
2. Lid Hinge
3. Ground Connector
4. PHONO & Line Out Jacks

5. PHONO & Line Out Switch

6. Anti-skating Weight

7. USB-PC port
8. AC-DC Power Jack

Please check thoroughly and make sure you find the following items that come along with this package:

1) Unit
7) Instruction Manual
2) Adaptor with EU-UK plug-end
8) Cartridge Alignment Protractor
3) Counterweight
9) USB-PC Cable
4) Platter with Belt
10) 2pcs lid spare rubber
5) 45 RPM Adaptor
11) Anti-skating Weight
6) Turntable mat
12) Line out cable

This turntable is supplied with a factory fitted and adjusted cartridge.

**The following instructions for adjusting the cartridge are provided in case the cartridge is replaced by a different model at a later date.

Installing the Lid

Install the Lid carefully over the hinge prongs.

Turntable Platter and Belt Setup

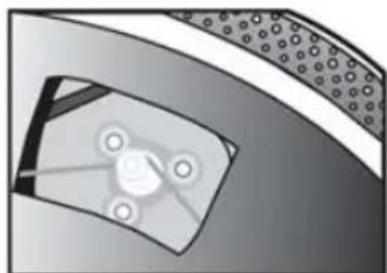

1. Install the drive belt over the inner ring under the platter and make sure it won't fall off during the setup.

2. Place the platter through the turntable spindle, then rotate the platter until you see the drive motor pulley through the window at the top left corner.

3. Carefully grab the drive belt and put it around the slot of motor pulley.

4. Connect the power adapter to the turntable and power on the turntable.

5. Set the Motor Start/Stop switch to the Start position to see if the platter

Close-up of a mechanical component with circular features and a central hub (no visible text or symbols)

motor spins. If the platter does not spin, try the steps listed above again.

Cartridge Down force Adjustment

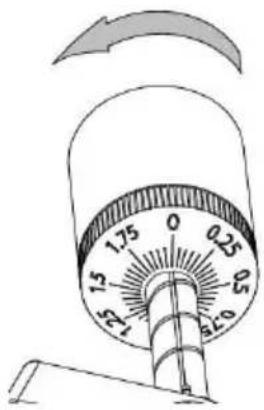

Counterweight Downforce scale ring Center line

The Counterweight supplied is suitable for cartridges weighing between 3.0-6.0g.

• Gently push and turn the Counterweight onto the rear of the tonearm (with the scale facing toward the front of the turntable).
• Remove the cartridge protection cap.
• Lower the tonearm lift and position the cartridge in the space between tonearm rest and platter.

Carefully rotate the Counterweight until the tonearm balances out. The tonearm should return to the balanced position if it is moved up or down. This adjustment must be done carefully.

Simple line drawing of a mechanical device with no text or symbols

- Once the tonearm is correctly balanced return it to its' rest. Hold the Counterweight without moving it, and gently rotate the Down force Scale ring until the zero is in line with black line on the rear of the tonearm. Check whether the arm still balances out.

1.75 0 0.25 0.5 1.5 1.25 2.0

- Rotate the counterweight counter clockwise (seen from the front) to adjust the down force according to the cartridge manufacturer's recommendations. One mark on the scale represents 0.05g of down force.

1.75 0 0.25 0.5 15 25 20

NOTE: The recommended down force for the factory fitted cartridge is 3.0 ± 0.5 g.

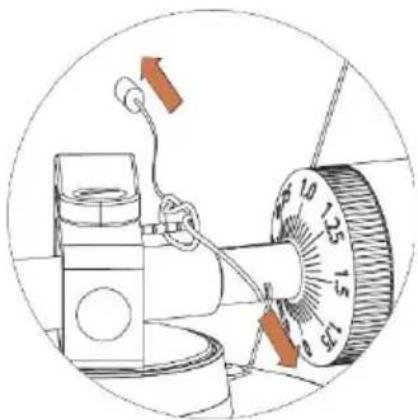

Locate the anti-skating weight

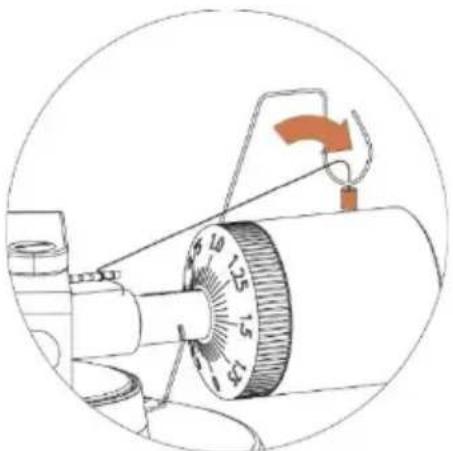

You will find a anti-skating weight with small fishing line from the package, please follow below steps to locate the anti-skating weight:

1. Slip the looped end of the fishing line over the anti-skating weight adjustment stub and into Groove 3^rd (the correct anti-skating force for the factory-fitted cartridge).

Diagram of a mechanical device with a dial and lever, showing no text or symbols

1. Pull the anti-skating weight slightly to let the tie of the fishing line move to the stub.

2. Lift the anti-skating weight over the anti-skating weight wire support. The anti-skating weight should now be dangling in free space to the left of support.

Diagram of a mechanical device with a rotary knob and directional arrow (no text or symbols)

Slip the loop of the anti-skating weight's thread over the 3nd groove of the stub to set the correct anti-skating force for the factory-fitted cartridge. Feed the thread through the loop of the wire support.

Anti-skating force adjustment

The anti-skating force must be adjusted corresponding to the down force as follows:

Down force

2 - 2.5g

2.5 - 3g

Groove in the stub

1 st from bearing rings

2 nd "" "

④ ③ ② ①

3 - 3.5g	3^rd '' '' ''
3.5 - 4g	4 th '' '' ''

Slip the loop of the anti-skating weight's thread over the 3rd groove of the stub to set the correct anti-skating force for the factory-fitted cartridge. Feed the thread through the loop of the wire support.

Stereo System connection

RCA Jacks

• The RCA Jacks of this unit are shared as both the Phone output jacks and the Line output jacks. They are determined by the Phono/Line Switch.
• When used as a line output, the jacks output analog line-level signals and could be connected directly with a pair of active speakers or the appropriate input of your stereo system. When used as a Phono output, they should be connected to the phono pre-amplifier or the phono input of the stereo system.
• The Red plug connects with the Right channel and the White plug connects with the Left channel.

Note:

• If the Phono/Line switch is set at LINE position but RCA jacks connected to the stereo system's phono input, the sound might be distorted due to input overload and could damage your stereo system.
• If the Phono/Line switch is set at PHONO position but RCA jacks connected to the stereo system's line input, the volume will be very low due to lacking signal pre-amplification.

RCA Jack is not designed to be connected directly to the passive/unpowered speakers and if it does, the volume will be very low.

Main Power Connection

The power adaptor is in the foam packing material. Unpack the power adaptor and plug the small end into the DC power jack located at the back side of the turntable. Plug the power adaptor into your power outlet.

Operation

Turntable Operation

1. Connect the included power adapter to unit and Press the power button (2) to power ON the turntable.
2. Remove the needle cover from the cartridge.
3. Place the slipmat on the platter and place a record on the slipmat. If using 45 RPM records, put the 45 RPM adapter on the center spindle before placing the record on the platter.
4. Set the 33/45 RPM Selector according to the type of record.
5. Turn the Start/Stop dial to the Start position to begin spinning the platter.
6. Unlock the arm clip and set the Lift Lever to the up position.
7. Position the tonearm over the desired location (groove) on the record.
8. Move the tonearm lift lever to the down position to move the tonearm toward the record. Alternatively, place the needle over the desired location on the record.
9. Carefully lower the tonearm on the record.
10. When you are finished playing the record, raise the tonearm, return it to rest on the arm clip, and turn the Start/Stop dial to the Stop.
11. Press the power button to turn off the power.

Bluetooth Operation

This unit has a Bluetooth transmitter to send the sound to a Bluetooth speaker of headphone wirelessly.

1. Power on your Bluetooth speaker and ensure it is in pairing mode.
2. Power ON the turntable with the power button (2). The LED indicator (1) will

first light to RED and then will flash in blue during Bluetooth searching of the external speaker or headphone.

Note: if you want to disable the Bluetooth searching function you can press the Power button for 3 seconds, then the Led light indicator will light to RED.

1. When pairing, the Blue LED light will flash twice per second, then change to be long Lighting Blue when paired;

Note: This unit will connect to the closest Bluetooth. If after 2 minutes no Bluetooth speaker can be found to pair with, the Bluetooth transmitter will become inactive and the LED color will turn to red.

1. To disconnect pairing, long press power button for 3 seconds or turn off Bluetooth pairing on your External Bluetooth speaker or headphone..

"This product has a bluetooth transmission function, you can not receive any bluetooth sound on it: this means that you can transmit wirelessly a bluetooth sound signal to an external device like a bluetooth speaker, bluetooth headphone, audio system with bluetooth reception,..."

Audacity software overview

Audacity is free software, licensed under the GNU General Public License (GPL). More information as well as open source code can be found on the web at https://www.audacityteam.org/download/

* Please ensure you have installed the software before starting.

Setting up your PC to work with Audacity

1. Connect an input source to the unit.
2. Connect the USB lead to your computer.
3. Install the Audacity recording software.

4. Open the Audacity program.

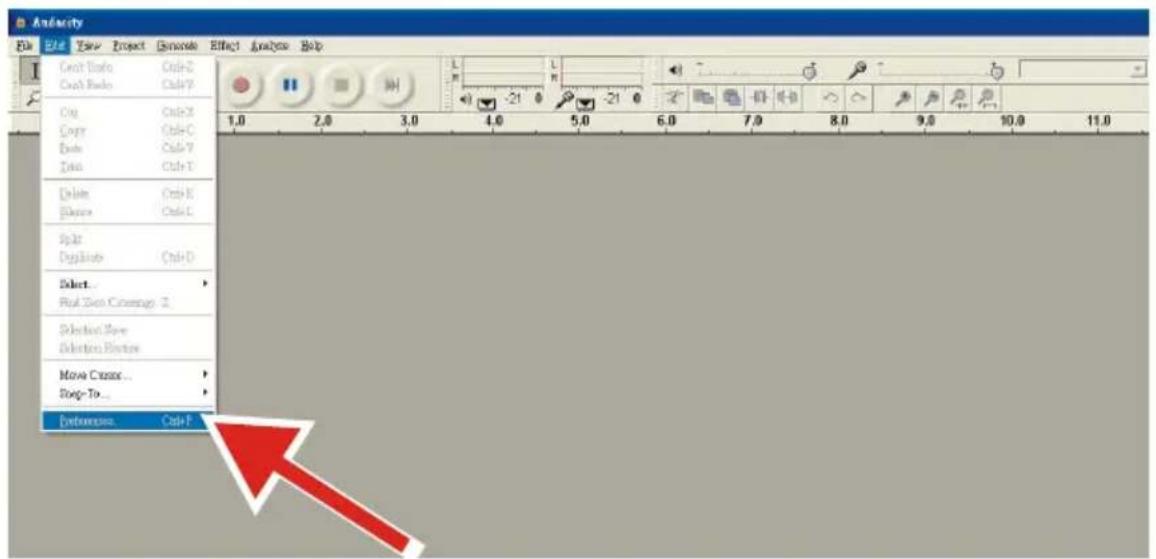

5. Select Preference from the Edit tab in the Audacity Menu.

Endurance File Edit View Project Generate Effect Analysis Help Cut Tools Ctrl+2 Cash Tools Ctrl+Y Copy Ctrl+X Cover Ctrl+C Paste Ctrl+Y Edit Ctrl+T Delete Ctrl+E Delete Ctrl+L Split Duplicate Ctrl+D Select... Real Save Coverage: 2 Selection Move Selection Buttons Move Cross... Stop-To... Endurance Ctrl+P

1. Select Audio I/O tab at the top left.

• Under Playback, Device, select your internal sound card.
• Under Recording, Device, select USB Audio CODEC.
• Under Recording, Channels, select 2 (Stereo).
- Check the box marked Play other tracks while recording new one.
- Check the box marked Software Playthrough.

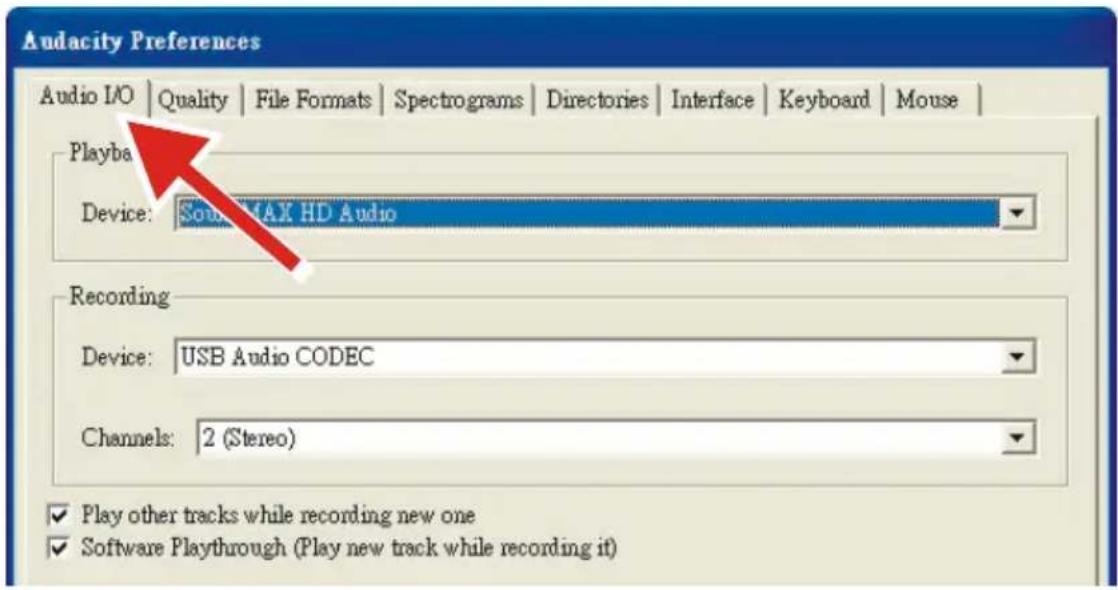

Audacity Preferences Audio I/O | Quality | File Formats | Spectrograms | Directories | Interface | Keyboard | Mouse | Playba Device: Sound MAX HD Audio Recording Device: USB Audio CODEC Channels: 2 (Stereo) ✓ Play other tracks while recording new one ✓ Software Playthrough (Play new track while recording it)

Recording Albums with Audacity

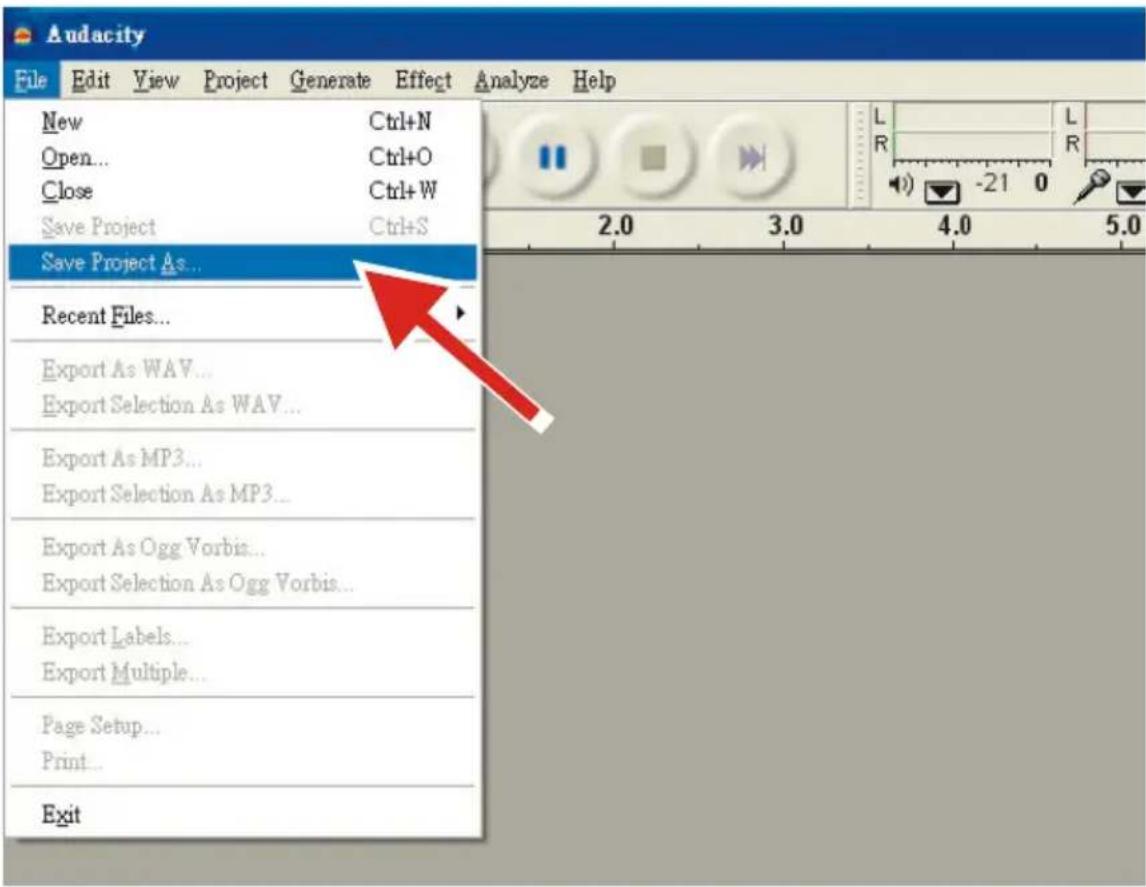

1. Saving a project

• Audacity writes all the changed and recorded audio to a directory called Projectname_data, which is located right where you saved the project file itself.
• Thus, select Save Project as from your Audacity File tab and choose a location and filename for your project.
• Please note that when you startup Audacity fresh, only the "Save As..." menu option is available.

Audacity File Edit View Project Generate Effect Analyze Help New Ctrl+N Open... Ctrl+O Close Ctrl+W Save Project Ctrl+S Save Project As... Recent Files... Export As WAV... Export Selection As WAV... Export As MP3... Export Selection As MP3... Export As Ogg Vorbis... Export Selection As Ogg Vorbis... Export Labels... Export Multiple... Page Setup... Print... Exit

2. How to record

- Set your USB turntable up to play the song or album you want to record.

- Click on the red Record button to begin recording.

- Lower tone arm on USB turntable onto album and track you want to record.

- Click on the blue Pause button to pause the recording. Press it again to

continue.

- Click on the yellow Stop button.

That's it. You can now play around with your recording and explore the editing capabilities of Audacity. Remember that you can use the Undo function almost without limits while the project is open.

NOTE: CD's cannot be burned directly from the Audacity application. Other CD burning applications should be used.

Maintenance and Cleaning

Your turntable requires little of no regular maintenance. Remove dust with a slightly damp antistatic cloth. Never use a dry cloth, this will create static electricity and attract more dust! Antistatic cleaning agents are available at specialist stores, but must be applied sparingly to avoid damage to rubber parts. It is recommended to install the needle cover before cleaning or maintenance is carried out to avoid damage.

If the turntable is not used over a long period of time, the drive belt should be removed to prevent unequal stretching.

NOTE: Always disconnect the record player from the power supply as a precaution before maintenance!

Useful Tips

The turntable should be positioned on a low-resonance surface such as wood or multiple layer ply board to avoid structural vibrations disturbing playback.

Cartridge Replacement

1. Before replacement, put the stylus protector back on the stylus to prevent damage to the stylus during the replacement process.
2. Carefully remove the wire leads from the original cartridge.
3. Loosen the two screws on the headshell that are securing the cartridge and then remove the original cartridge.
4. Mount the new cartridge to the headshell and tighten it lightly. Do not completely tighten the screws at this moment.
5. Connect the wire leads to the new cartridge's terminals. The wire lead color codes are as below:

White Left channel positive (L+)

Black Left channel negative (L−)

Red Right channel positive (R+)

Black Right channel negative (R-)

1. Adjust the cartridge's position to make sure it is precisely aligned on the headshell so that the stylus will be tracking the grooves in parallel perfectly.

To achieve this, place the included paper cartridge alignment protractor over the turntable spindle, carefully lift the tone arm and place the tip of the stylus on the points marked 130mm and 250mm respectively. Fine tune the cartridge's position on the headshell until the cartridge is perfectly in parallel with the reference lines at both points.

1. Tighten the screws completely once the perfect alignment is achieved.

NOTE: If you are unfamiliar or uncomfortable with completing this procedure, we recommend consulting with a professional to perform the installation.

Technical Specifications:

Nominal Speeds	33 1/3 & 45RPM
Speed Variance	±1%
Wow and Flutter	≤0.15%
Signal to Noise	55dB
Down force Range	3.0-6.0g
Effective Tonearm Length	8.6" (218.5mm)
Overhang	0.73in
Power Consumption	5W (Max)
Outboard Power Supply	12V/500mA AC-DC
Dimensions (W x H x D)	420 x 360 x 125mm
Weight	4.8kgs

Technical Specifications: AT-3600L (audio-technica)

Frequency response	20Hz-20kHz
Recommended load resistance	47kohms
Channel balance	<2.5dB
Amplifier connection	MM - input
Channel separation	>18dB
Recommended tracking force	3.0±0.5g
Output voltage	2.5mV
Weight	5g

Potential Incorrect Use and Fault Conditions

These turntables are manufactured to the highest standards and undergo strict quality controls before leaving the factory. Faults that may possibly

occur are not necessarily due to material or production faults but can sometimes be caused by incorrect use or unfortunate circumstances.

Therefore the following list of common fault symptoms is included.

The platter doesn't turn although the unit is switched on:

• The unit is not connected to the main power supply.
• No power at the outlet.
• Drive belt is not installed or has slipped off.
• The unit automatically switched in standby mode, power ON again.

No signal through one or other channel or both channels:

• Phone input not selected at amplifier.
• Amplifier not switched on.
• Amplifier or speakers muted.
• No connection to the speakers.
• No connection between turntable and amplifier.
• Wire leads not connected the cartridge.

Strong hum on phono input:

• No ground connection from cartridge, arm, or arm cable to amplifier or ground loop.
• Turntable too close to speakers.

Distorted of inconsistent sound from one or both channels:

• Turntable is connected to wrong input of amplifier.
• Needle or cantilever damaged.
• Drive belt overstretched or dirty.
• Platter bearing without oil, dirty or damaged.
• Dust on stylus.
• MM/MC switch on pre-amplifier set incorrectly.

Remark: Due to the ErP Stage 2 requirements for power saving measures, a unit which is connected to the mains power will switch itself to standby mode automatically if no music has been playing for about 20 minutes.

If your unit switches off regularly, this is no defect.

Power supply adaptor

Manufacturer: BRIGHTPOWER OPTOELECTRONIC TECHNOLOGY CO., LTD

Model number: SW1200500-FM

Input voltage: 100-240V

Input AC frequency: 50/60Hz

Output voltage: DC 12V

Output current: 0.5A

Output Power: 6W

Average active efficiency: 79.62%

Efficiency at low load (10%): 70.40%

No load Power consumption: 0.073W

Use only the power supply listed in the user instructions

Guarantee

Commaxx B.V. offers service and warranty in accordance with the European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer.

Important note: It is not possible to send products that need repairs to Commaxx B.V. directly.

Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires.

This device is not suitable for professional use. In case of professional use, all

warranty obligations of the manufacturer will be voided.

Disclaimer

Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply to particular situation. No legal right or entitlements may be obtained from the description made in this manual.

Disposal of the Old Device

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or numbers present)

This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to

conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive).

DECLARATION OF CONFORMITY

Hereby, Commaxx declares that the radio equipment type [Lenco LBT-188 (V2) / LBT-189 / LBT-288] is in compliance with directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

https://commaxx-certificates.com/doc/lbt-188_doc.pdf

Type RF	Frequency range (MHz)	Power (dBm)
Bluetooth	2402-2480	<6

Service

For more information and helpdesk support, please visit www.lenco.com

Commaxx B.V. Wiebachstraat 37, 6466 NG, Kerkrade, The Netherlands.

Nederlands

LET OP:

Technical diagram of a mechanical device with numbered parts, including a circular base and internal components.

12 13 14 R L 16 17 USB-PC DO H 12V 15 16 17 18 19

Close-up of a mechanical component with a central circular feature and surrounding textured surface (no visible text or symbols)

Counterweight Downforce scale ring Center line

Simple line drawing of a mechanical device with bidirectional arrows indicating motion (no text or symbols)

Diagram of a mechanical device with a rotary dial and attached cable, no visible text or symbols

Diagram of a mechanical device with a rotary knob and adjustment lever (no text or symbols)

Audacity File Edit View Project Options Effect Analysis Help Cut Down Ctrl+S Cut Down Ctrl+T Copy Ctrl+X Copy Ctrl+C Paste Ctrl+Y Zoom Ctrl+T Delete Ctrl+K Delete Ctrl+L Split Options Ctrl+D Select... Post Save Coverage 2 Select Bars Select Bars Display Move Connect... Snap-To... Environment Ctrl+T

Audacity Preferences Audio I/O | Quality | File Formats | Spectrograms | Directories | Interface | Keyboard | Mouse | Playba Device: South MAX HD Audio Recording Device: USB Audio CODEC Channels: 2 (Stereo) ✓ Play other tracks while recording new one ✓ Software Playthrough (Play new track while recording it)

Audacity File Edit View Project Generate Effect Analyze Help New Ctrl+N Open... Ctrl+O Close Ctrl+W Save Project Ctrl+S Save Project As... Recent Files... Export As WAV... Export Selection As WAV... Export As MP3... Export Selection As MP3... Export As Ogg Vorbis... Export Selection As Ogg Vorbis... Export Labels... Export Multiple... Page Setup... Print... Exit

2. Opnemen

Output voltage: DC 12V

Output current: 0.5A

Output Power: 6W

Average active efficiency: 79.62%

Efficiency at low load (10%): 70.40%

No load Power consumption: 0.073W

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Technical diagram of a mechanical device with numbered parts, including a circular base and internal components.

12 13 14 R L 16 17 USB-PC DO H 12V 15 16 17 18 19

Close-up of a mechanical component with a circular feature and dotted pattern (no visible text or symbols)

Counterweight Downforce scale ring Center line

Simple line drawing of a mechanical device with no text or symbols

Diagram of a dial indicator with numbered segments and an arrow indicating direction, likely for measurement or calibration.

Diagram of a mechanical device with a rotary knob and lever, no visible text or symbols

Diagram of a mechanical device with a rotating knob and directional arrow (no text or symbols)

1. der Lagerringe

2. ""

3. "" "

4. " " "

④ ③ ② ①

Annuosity File Edit View Project Commands Effect Analysis Help Cust Tools Ctrl+T Cust Tools Ctrl+V Cut Ctrl+X Cut Ctrl+C Down Ctrl+V Down Ctrl+S Drink Ctrl+X Observe Ctrl+S Style Replace Ctrl+O Select... Find Zins Cramings... X Selection Data Selection Bartrues Move Correct... Run-To... Pathways Ctrl+Y

Audacity Preferences Audio I/O | Quality | File Formats | Spectrograms | Directories | Interface | Keyboard | Mouse | Playba Device: South MAX HD Audio Recording Device: USB Audio CODEC Channels: 2 (Stereo) ✓ Play other tracks while recording new one ✓ Software Playthrough (Play new track while recording it)

Audacity File Edit View Project Generate Effect Analyze Help New Ctrl+N Open... Ctrl+O Close Ctrl+W Save Project Ctrl+S Save Project As... Recent Files... Export As WAV... Export Selection As WAV... Export As MP3... Export Selection As MP3... Export As Ogg Vorbis... Export Selection As Ogg Vorbis... Export Labels... Export Multiple... Page Setup... Print... Exit

2. Aufnahme

Output voltage: DC 12V

Output current: 0.5A

Output Power: 6W

Average active efficiency: 79.62%

Efficiency at low load (10%): 70.40%

No load Power consumption: 0.073W

C. 2017 W. W. W. W. W. W. W. W. W. W. W. W. W. W. W. W. W. W. W. W. W. W. W. W. W. W. W. W. W. W. W.

Français

ATTENTION :

Technical diagram of a mechanical device with numbered parts, including a circular base and internal components.

12 13 14 R L 16 17 USB-PC DO H 12V 15 16 17 18 19

Close-up of a mechanical component with a central circular feature and surrounding textured surface (no visible text or symbols)

Counterweight Downforce scale ring Center line

EN	FR
Counterweight	Contrepoids
Downforce scale ring	Bague de réglage de la force d’appui
Center line	Axe

Simple line drawing of a mechanical device with bidirectional arrow indicating rotation (no text or symbols)

Diagram of a mechanical device with a rotary dial and attached cable, no visible text or symbols

Diagram of a mechanical device with a rotating knob and directional arrow (no text or symbols)

Analyze File Edit View Insert Generate Effect Audio Help Create Mode Ctrl+S Create Mode Ctrl+Y Copy Ctrl+C Copy Ctrl+C Delete Ctrl+T Delete Ctrl+C Delete Ctrl+S Split Engleak Ctrl+D Select... Post-Store Crossover 3 Select Bars Select Bars Next Command... Stop-To... Performance Ctrl+P

Audacity Preferences Audio I/O | Quality | File Formats | Spectrograms | Directories | Interface | Keyboard | Mouse | Playba Device: Sound MAX HD Audio Recording Device: USB Audio CODEC Channels: 2 (Stereo) ✓ Play other tracks while recording new one ✓ Software Playthrough (Play new track while recording it)

Audacity File Edit View Project Generate Effect Analyze Help New Ctrl+N Open... Ctrl+O Close Ctrl+W Save Project Ctrl+S Save Project As... Recent Files... Export As WAV... Export Selection As WAV... Export As MP3... Export Selection As MP3... Export As Ogg Vorbis... Export Selection As Ogg Vorbis... Export Labels... Export Multiple... Page Setup... Print... Exit

Output voltage: DC 12V

Output current: 0.5A

Output Power: 6W

Average active efficiency: 79.62%

Efficiency at low load (10%): 70.40%

No load Power consumption: 0.073W

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Technical diagram of a mechanical device with numbered parts, including a circular base and internal components.

12 13 14 15 16 17 18 19 USB-PO DC M 12V

1. Tapa 16. Interruptor PHONO y Line Out
2. Bisagra de la tapa 17. Peso de antideslizamiento
3. Conector a tierra 18. Puerto USB-PC
4. Entrada PHONO y Line Out 19. Toma de corriente CA-CC

Close-up of a mechanical component with circular features and a central hub (no visible text or symbols)

Counterweight Downforce scale ring Center line

Simple line drawing of a mechanical device with no text or symbols

Diagram of a mechanical device with a rotary knob and rotating wheel (no text or symbols)

Diagram of a mechanical device with a lever and adjustment knob, no visible text or symbols

Unity File Edit View Project Quickrate Effect Analyze Help Cut Ctrl Ctrl+1 Cut Ctrl Ctrl+2 Copy Ctrl+3 Copy Ctrl+C Delete Ctrl+7 Delete Ctrl+8 Delete Ctrl+9 Delete Ctrl+10 Split Dividends Ctrl+11 Select... Final Zero Operations 2 Selection/Show Selection Range Move Connect... Swap-To... Endhouse Ctrl+12

Audacity Preferences Audio I/O | Quality | File Formats | Spectrograms | Directories | Interface | Keyboard | Mouse | Playba Device: South MAX HD Audio Recording Device: USB Audio CODEC Channels: 2 (Stereo) ✓ Play other tracks while recording new one ✓ Software Playthrough (Play new track while recording it)

Audacity File Edit View Project Generate Effect Analyze Help New Ctrl+N Open... Ctrl+O Close Ctrl+W Save Project Ctrl+S Save Project As... Recent Files... Export As WAV... Export Selection As WAV... Export As MP3... Export Selection As MP3... Export As Ogg Vorbis... Export Selection As Ogg Vorbis... Export Labels... Export Multiple... Page Setup... Print... Exit

2. Cómo grabar

Output voltage: DC 12V

Output current: 0.5A

Output Power: 6W

Average active efficiency: 79.62%

Efficiency at low load (10%): 70.40%

No load Power consumption: 0.073W

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Technical diagram of a mechanical device with numbered parts, including a circular base and internal components.

12 13 14 15 16 17 18 19 USB-PC DC IN 12V

Close-up of a mechanical component with circular holes and a central hub (no text or symbols visible)

Counterweight Downforce scale ring Center line

Simple line drawing of a mechanical device with an arrow indicating upward motion (no text or symbols)

Diagram of a mechanical device with a rotary dial and directional arrows indicating motion (no text or symbols)

Diagram of a mechanical device with a dial and directional arrow, no visible text or symbols

Adobe File Edit View Project Generate Effect Analysis Help Cut Tools Ctrl+S Cut Tools Ctrl+V Copy Ctrl+X Down Ctrl+C Down Ctrl+V Down Ctrl+T Lock Ctrl+E Down Ctrl+L Up/Diplock Ctrl+D Select... Find Save Currency: 2 Delete Save Delete Picture Move Classic... Stop-To... Emphasize Ctrl+P

Audacity Preferences Audio I/O | Quality | File Formats | Spectrograms | Directories | Interface | Keyboard | Mouse | Playba Device: Sony MAX HD Audio Recording Device: USB Audio CODEC Channels: 2 (Stereo) ✓ Play other tracks while recording new one ✓ Software Playthrough (Play new track while recording it)

Audacity File Edit View Project Generate Effect Analyze Help New Ctrl+N Open... Ctrl+O Close Ctrl+W Save Project Ctrl+S Save Project As... Recent Files... Export As WAV... Export Selection As WAV... Export As MP3... Export Selection As MP3... Export As Ogg Vorbis... Export Selection As Ogg Vorbis... Export Labels... Export Multiple... Page Setup... Print... Exit

2. Come registrare

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Technical diagram of a mechanical device with numbered components, including a circular base and internal components.

12 13 14 15 16 17 18 19 R L USB-PC DC H EN

Close-up of a mechanical component with a circular housing and mounting holes (no visible text or symbols)

Counterweight Downforce scale ring Center line

Simple line drawing of a mechanical device with bidirectional arrow indicating rotation (no text or symbols)

Simple line drawing of a cylindrical object with internal components and no text or symbols

Instruction for PC Encoding

Audacity File Edit View Project Generate Effect Analyze Help Can't Undo Ctrl+Z Can't Rado Ctrl+Y Cut Ctrl+X Copy Ctrl+C Paste Ctrl+V Trim Ctrl+T Delete Ctrl+K Silence Ctrl+L Split Duplicate Ctrl+D Select... Find Zero Crossings Z Selection Save Selection Restore Move Cursor... Snap-To... Preferences... Ctrl+P

3 Настройки

Audio Preferences Audio 2/0 | Audio 1/0 | File Format | Spectrograph | Histogram | TextForm | Enboard | Audio Audio format Chase: 44.0GHz 32-bit load Mode: 50Hz Audio Audio format Syste: 44.0GHz 32-bit load Audio Audio format Chase: 44.0GHz 32-bit load Audio Audio format Chase: 44.0GHz 32-bit load Audio Audio format Chase: 44.0GHz 32-bit load Audio Audio format Chase: 44.0GHz 32-bit load Audio Audio format Chase: 44.0GHz 32-bit load Audio Audio format Chases: 44.0GHz 32-bit load Audio Audio format Chases: 44.0GHz 32-bit load Audio Audio format Chases: 44.0GHz 32-bit load Audio Audio format Chases: 44.0GHz 32-bit load Audio Audio format Chases: 44.0GHz 32-bit load Audio Audio format Chase: 44.0GHz 32-bit load Audio Audio format Chases: 44.0GHz 32-bit load Audio Audio format Chases: 44.0GHz 32-bit load Audio Audio format Chases: 44.0GHz 32-bit load Audio Audio format Chase: 44.0GHz 32-bit load Audio Audio format Chase: 44.0GHz 32-bit load Audio Audio format Chases: 44.0GHz 32-bit load Audio Audio format Chases: 44.0GHz 32-bit load Audio Audio format Chase: 44.0GHz 32-bit load Audio Audio format Chases: 44.0GHz 32-bit load Audio Audio format Chase: 44.0GHz 32-bit load Audio Audio format Chases: 44.0GHz 32-bit load

Audio Properties Audio Devices Sound playback Default device SigmaTel Audio Volume... Advanced... Sound recording Default device SSS USB Audio Device SSS USB Audio Device Signalter Audio MIDI music playback Default device: Microsoft GS Wavetable SW Synth Volume... About... Use only default devices OK Cancel

Stereo Stereo Line in Volume Microphone Volume

AudioTray File Edit View Project Generate Effect Analysis Help 1 21.0 22.0 23.0 24.0 25.0 26.0 27.0 28.0 29.0 Stereo Audio Track Stevs, 44100Hz 32-bit load Multi: 30% L: 0% 1.0 0.5 -0.5 -1.0 1.0 0.5 -0.5 -1.0 0.0 0.5 -0.5 -1.0 1.0 0.5 -0.5 -1.0 Data space remains for recording 6 hours and 2 minutes. Project rate: 44103 Curves: 0.00/0.00/0.00 min sec (Snap-In Off)

Audacity Preferences File Format: Spectrograms Directories Interface Keyboard Mouse When importing uncompressed audio files into Audacity ○ Make a copy of the file before editing (safer) ● Read directly from the original file (faster) Uncompressed Export Format NAV (Microsoft 16 bit PCM) WAV (Microsoft), Signed 10 bit PCM OGG Export Setup OGG Quality: 5 0 10 MF3 Export Setup MF3 Library Version: LAME v3.92 Find Library Bit Rate: 120 Cancel OK

Audacity Preferences File Formats | Spectrograms | Directories | Interface | Keyboard | Mouse | When importing uncompressed audio files into Audacity ○ Make a copy of the file before editing (safer) ● Read directly from the original file (Easter) Uncompressed Export Format YAV (Microsoft 16 bit PCM) YAY (Microsoft), Signed 16 bit PCM OGG Export Setup OGG Quality: 5 0 ———— 10 MP3 Export Setup MP3 Library Version: MP3 exporting plugin not found Find Library Export MP3 Audacity does not export MP3 files directly, but instead uses the freely available LAME library to handle MP3 file encoding. You must obtain lane_one.dll separately, by downloading the LAME MP3 encoder, and then locate this file for Audacity. You only need to do this once. Would you like to locate lane_one.dll now? (Y) (O)

Where is lame_enc.dll? (I): PHONO Current Document Desktop Document Computer Network Keiborhood Audacity config data lamo392 RozarLane115 UP (N): lame_enc (T): Only lame_enc.dll (O) Cancel (R)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Technical diagram of a mechanical device with numbered components, including a circular base and internal components.

12 13 14 15 16 17 18 19 USB-PC DC H 12V

Close-up of a mechanical component with circular features and a central hub (no visible text or symbols)

Counterweight Downforce scale ring Centerline

EN	DA
Counterweight	Kontravægt
Downforce scale ring	Nåletryksskalaring
Center line	Centerlinje

Simple diagram of a mechanical or electrical component with bidirectional arrows indicating rotation (no text or symbols)

Diagram of a rotary dial with scale markings and an arrow indicating rotation direction

Diagram of a mechanical device with a dial and lever mechanism, no visible text or symbols

Diagram of a mechanical device with a rotary knob and adjustment knob, showing no text or symbols.

Adobe File Edit View Project Generate Effect Analysis Help Cut Tools Ctrl+S Cut Tools Ctrl+T Ctrl Ctrl+Z Copy Ctrl+C Paste Ctrl+Y Delete Ctrl+T Delete Ctrl+S Remove Ctrl+L Split Replace Ctrl+D Select... Real-Size Coverage 2 Selection Save Selection Support Move Correct... Snap-To... Preferences Ctrl+P

Audacity Preferences Audio I/O | Quality | File Formats | Spectrograms | Directories | Interface | Keyboard | Mouse | Playba Device: Sony MAX HD Audio Recording Device: USB Audio CODEC Channels: 2 (Stereo) ✓ Play other tracks while recording new one ✓ Software Playthrough (Play new track while recording it)

Optagelse af albums med Audacity

Audacity File Edit View Project Generate Effect Analyze Help New Ctrl+N Open... Ctrl+O Close Ctrl+W Save Project Ctrl+S Save Project As... Recent Files... Export As WAV... Export Selection As WAV... Export As MP3... Export Selection As MP3... Export As Ogg Vorbis... Export Selection As Ogg Vorbis... Export Labels... Export Multiple... Page Setup... Print... Exit

2. Sådan optager du

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic discharge (no text or symbols)

Technical diagram of a mechanical device with numbered parts, including a circular base and internal components.

12 13 14 15 16 17 18 DC N 12V 13 14 L L USB-PC

Close-up of a mechanical component with a central circular feature and surrounding textured surface (no visible text or symbols)

Counterweight Downforce scale ring Center line

Simple line drawing of a mechanical component with bidirectional arrow indicating rotation (no text or symbols)

Diagram of a mechanical device with a dial and lever mechanism, no visible text or symbols

Diagram of a mechanical device with a rotating dial and directional arrow (no text or symbols)

Adobe File Edit View Project Generate Effect Analysis Help Cut Tools Ctrl+2 Cash Tools Ctrl+Y Copy Ctrl+X Layer Ctrl+C Paste Ctrl+Y Draw Ctrl+T Delete Ctrl+K Elease Ctrl+L Split Delete Ctrl+D Select... Post Zero Currency: Z Selection Tree Selection Review Move Correct... Stop-To... Preview... Ctrl+P

Audacity Preferences Audio I/O | Quality | File Formats | Spectrograms | Directories | Interface | Keyboard | Mouse | Playba Device: Sony MAX HD Audio Recording Device: USB Audio CODEC Channels: 2 (Stereo) Play other tracks while recording new one Software Playthrough (Play new track while recording it)

Audacity File Edit View Project Generate Effect Analyze Help New Ctrl+N Open... Ctrl+O Close Ctrl+W Save Project Ctrl+S Save Project As... Recent Files... Export As WAV... Export Selection As WAV... Export As MP3... Export Selection As MP3... Export As Ogg Vorbis... Export Selection As Ogg Vorbis... Export Labels... Export Multiple... Page Setup... Print... Exit

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Technical diagram of a mechanical device with numbered components, including a circular base and internal components.

12 13 14 15 16 17 18 19 R L USB-PO DO IN 12V

Close-up of a mechanical component with circular features and a central hub (no visible text or symbols)

Counterweight Downforce scale ring Center line

EN	FI
Counter weight	Vastapaino
Downforce scale ring	Neulapainon asteikkorengas
Center line	Keskilinja

Simple line drawing of a mechanical device with an arrow indicating upward motion (no text or symbols)

Diagram of a mechanical device with a rotary dial and attached cable, showing no text or symbols.

Diagram of a mechanical device with a rotary knob and directional arrow, no text or symbols present

Adobe File Edit View Project Generate Effect Analysis Help Cut Tools Ctrl+O Cut Tools Ctrl+P Cut Ctrl+X Copy Ctrl+C Paste Ctrl+Y Paste Ctrl+T Delete Ctrl+E Delete Ctrl+L Split Collapse Ctrl+D Select... Post-Zurn Coverage 2 Deletion Save Deletion Sorts Move Classic... Keep-To... Preferences Ctrl+P

Audacity Preferences Audio I/O | Quality | File Formats | Spectrograms | Directories | Interface | Keyboard | Mouse | Playba Device: Sony MAX HD Audio Recording Device: USB Audio CODEC Channels: 2 (Stereo) Play other tracks while recording new one Software Playthrough (Play new track while recording it)

Audacity File Edit View Project Generate Effect Analyze Help New Ctrl+N Open... Ctrl+O Close Ctrl+W Save Project Ctrl+S Save Project As... Recent Files... Export As WAV... Export Selection As WAV... Export As MP3... Export Selection As MP3... Export As Ogg Vorbis... Export Selection As Ogg Vorbis... Export Labels... Export Multiple... Page Setup... Print... Exit

2. Tallentaminen

Symbol of a trash bin crossed with a diagonal line, no text or numbers present
