USER MANUAL PrecisionCare Expert Diamond Pro CECOTEC

Close-up of a black precision carbide (CBCO) tool with blue handle and textured grip, no visible text or symbols on the device itself.

Safety instructions 8

1. Parts and components 51

2. Before use 51

3. Operation 52

4. Cleaning and maintenance 53

5. Troubleshooting 53

6. Technical specifications 53

7. Disposal of old electrical and electronic appliances 54

8. Technical support and warranty 54

9. Copyright 54

10. Simplified EU Declaration of Conformity 54

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• This appliance has irreplaceable batteries.
• WARNING: Keep the appliance dry.
• The appliance may be used by children aged 3 years and above under supervision.
• The appliance can be used by children aged 8 years and above and by people with reduced physical, sensory, or mental capabilities, as well as with lack of experience and knowledge, as long as they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children must not play with the appliance. Cleaning and maintenance by the user must not be carried out by unsupervised children.
• The appliance must be powered at a low safety voltage as stated on the marking.
• Check the power cable regularly for visible damage. If the power cable is damaged, it must be replaced with a special cable or set to be supplied by the official Cecotec Technical Support Service or the corresponding after-sales service to avoid any danger.
• Ensure that the mains voltage matches the voltage specified on the product rating label and that the plug is earthed.

• Do not immerse the cable, plug, or any other non-removable part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.

• Keep all packaging materials away from children. Risk of suffocation.

• This appliance must be checked frequently for signs of wear or damage. If such signs are present, or if the device has been used improperly, contact the official Cecotec Technical Support Service. Do not try to repair the appliance by yourself.
• Switch off the appliance immediately in the event of defects or malfunctions.
• Do not use accessories or parts that have not been provided by Cecotec
• Never leave the appliance unattended during use.
• Keep the appliance away from heat sources.
• Do not use outdoors or operate it near flammable substances such as sprays.
• Do not place the appliance directly on any non-heatproof surfaces while plugged in or in operation.
• Do not try to open, disassemble, or repair the appliance by yourself. There are no serviceable parts inside the appliance.
• The appliance is exclusively designed for trimming natural hair. Do not use it to cut artificial or animal hair.
• Cecotec accepts no liability for damage caused by improper or incorrect use.
• Do not operate the appliance near water, or in places where it could get wet.
• Do not use the device if your skin or head skin is injured or suffers from any type of illness.
• Switch off and make sure that the device is disconnected from the mains before assembling or disassembling any of its parts or accessories.

Battery instructions

- This appliance contains an irreplaceable battery.

• This appliance includes a Li-ion battery. Do not incinerate or expose it to high temperatures, as it may explode.
• WARNING: to recharge the battery, use only the power cord supplied with the appliance.
• The battery may leak under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid comes into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Keep batteries out of the reach of children when there is a risk of ingestion.
• Battery ingestion can cause burns, perforation of soft tissue, and death. Severe burns may occur within two hours of ingestion.
• In case of battery ingestion, please seek medical help immediately.

INSTRUCTIONS DE SÉCURITÉ

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.
• Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.

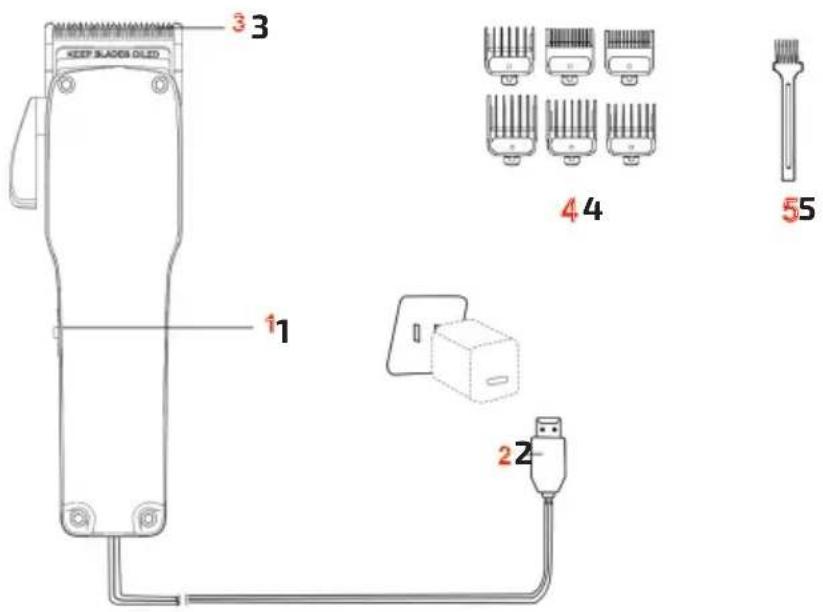

Box content

• Hair clipper
• 6 guide combs: 13/10/6/4.5/3 and 1.5 mm
• Cleaning brush
• USB charging cable
• Instruction manual

- Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.

3. OPERATION

Charging the device

1. Insert the charger connector into the charging port located on the base of the device.
2. Then connect the other end of the USB cable to a compatible power adapter and plug the adapter into a power socket.
3. When the device is charging, the corresponding indicator light will turn on red.
4. When the hair clipper is fully charged, the indicator light will turn on white.

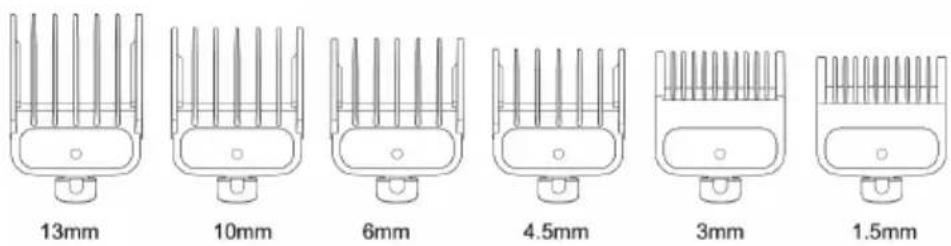

Guide combs

Fig. 2

This hair clipper includes 6 guide combs of the following lengths: 13 mm, 10 mm, 6 mm, 4.5 mm, 3 mm and 1.5 mm.

They are ideal for achieving different cutting styles with ease.

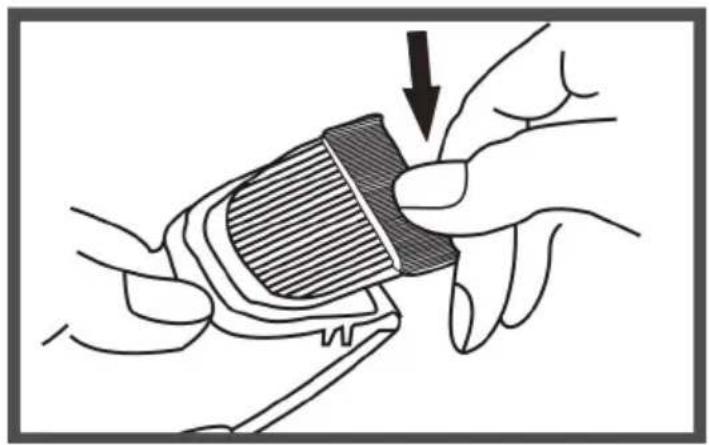

Attaching the guide comb

Fig. 3

1. Align the guide comb with the cutting edge of the blades.
2. Gently push it forward until it fits snugly.

Removing the guide comb

To remove it, simply pull it out.

Removing and fitting the blade assembly

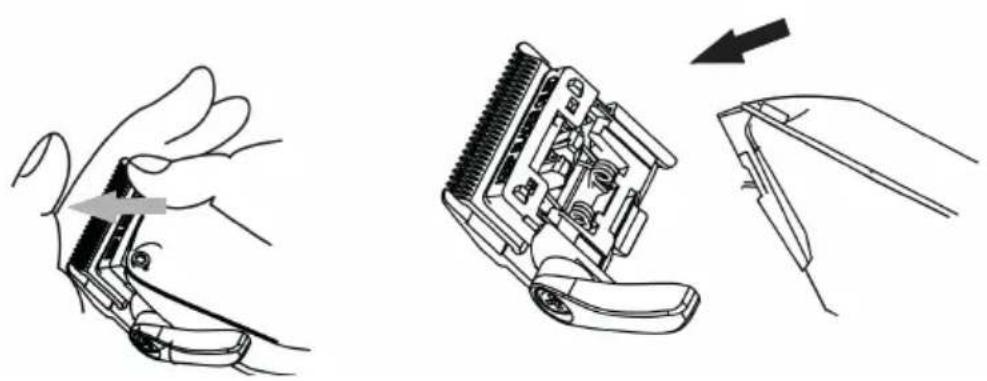

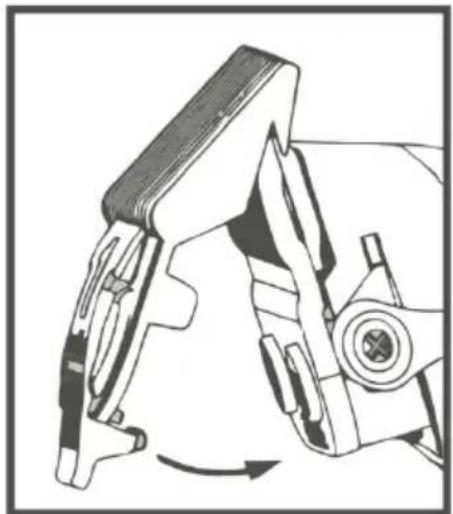

A. Removing the blade assembly

1. Remove the blade assembly by pressing it with your thumb, as shown in figure 4.
2. When removing it, hold it with the other hand to prevent it from falling.

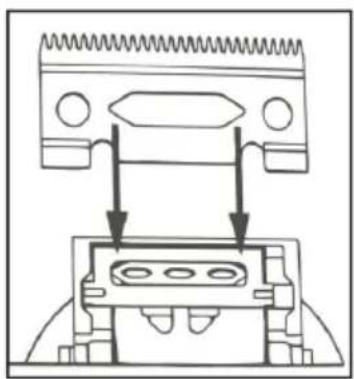

B. Fitting the blade assembly

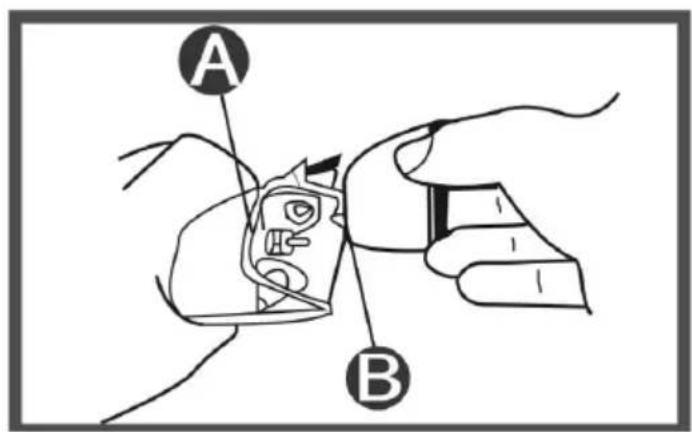

1. To fit the blade assembly (B), insert it into the corresponding slot in the device (A). Fig. 5
2. Then press it gently until it fits completely into place. Fig. 6

4. CLEANING AND MAINTENANCE

• Turn off and disconnect the appliance from the mains supply before cleaning, servicing it, or assembling or disassembling any of its parts.
• Clean the appliance after every use.

ENGLISH

Cleaning the blades

Clean the blades with the brush provided.

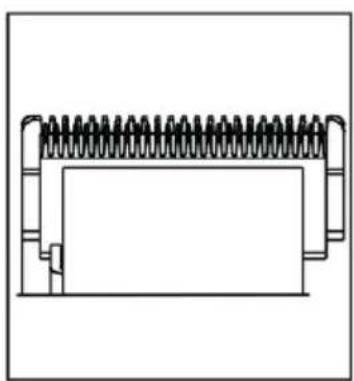

Aligning the blades

• This device has been carefully checked to ensure that the blades have been lubricated and aligned before leaving the factory.
• The blades must be realigned if they have been removed for cleaning or if they have been replaced.
• To realign them, simply match the teeth of the upper and lower blades. The end of the upper blade teeth should be approximately 0.5-1.0 mm from the lower blade, as shown in figure 7.
• If the blades are not correctly aligned, apply a few drops of lubricating oil and keep the device switched on for a while, then switch it off. Then loosen the screws slightly and align the blades. Once aligned, retighten the screws.

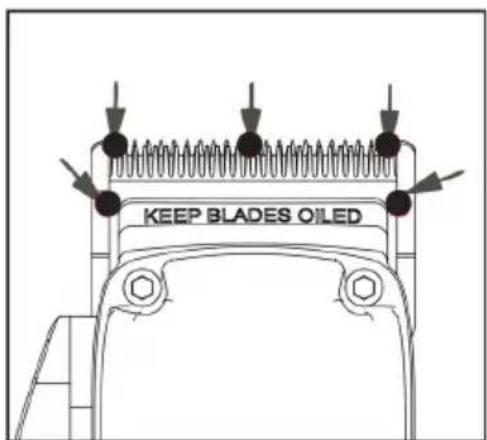

Maintenance

• Please note that in order to keep the device in optimum condition, the blades should be lubricated regularly.
• To lubricate them properly, hold the device with the blades facing downwards. Then switch it on and apply 2-3 drops of lubricating oil on the upper blade. Fig. 8

Note:

• Do not disassemble the device.
• Do not get the device wet, even for cleaning.
• Clean the device with a damp cloth and a little neutral liquid soap.
• Do not charge the device in a place where the room temperature is higher than 40 °C or lower than 0 °C.
• It is normal for the device to heat up slightly during operation or charging.
• When the battery has reached the end of its useful life, remove it and dispose of it in a suitable place.

• Do not tap the device or the blade against a surface to remove hair or water, as this may damage the product and the blade. Replace the blade if it is damaged.

• TROUBLESHOOTING

Problem Possible cause Possible solution
The device does not turn on. The battery is discharged. Connect it to the USB port and charge it fully.
The charging cable is damaged.		Replace the cable with a compatible 5V/USB cable.
The device cuts unevenly. The blades are blunt or poorly maintained.		Clean and lubricate the blades according to the instructions.
		Make sure that the selected guide comb is well installed.
The device makes an abnormal noise.	The blades are dry or dirty. Clean them with the brush and apply lubricating oil on the blades.
	The head screws are loose. Carefully tighten the head screws.
The device does not charge correctly.	The USB port or cable is damaged.	Try another standard 5V USB charger.
	Unstable plug connection. Make sure that the charger is properly connected.
The device gets too hot. Prolonged use without breaks.		Turn off the device and let it cool down for a few minutes.
		Apply lubricating oil to the blades.

ENGLISH

6. TECHNICAL SPECIFICATIONS

Product reference: EU01_104488

Product: PrecisionCare Expert Diamond Pro

Input:

Voltage 5 V=

Power 1 A

Battery (not replaceable): Lithium-ion, 3.6 V, 2500 mAh, 9 Wh

Charging time: approx. 3 hours

To recharge the battery, it is recommended to use a power adapter with the following characteristics:

Input: 100-240 V\~, 50/60 Hz

Output: 5 V =, 1 A

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the appliance and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and electronic appliances and/or batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

10. DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested to meet the required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Image 1

https://cecotec.es/es/information/declaration-of-conformity

KEEP SLADERS OLED 3 3 1 4 4 5 2Z

Fig./Img./Abb./Afb./Rys.1

13mm 10mm 6mm 4.5mm 3mm 1.5mm

Fig./Img./Abb./Afb./Rys.2

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Fig./Img./Abb./Afb./Rys. 3

Line drawings of a robotic hand and its mechanical device, showing hand positioning and tool application (no text or symbols)

Fig./Img./Abb./Afb./Rys. 4

A B

Fig./Img./Abb./Afb./Rys.5

Illustration of hands using a belt buckle to adjust a seatbelt, showing a downward arrow (no text or symbols)

Fig./Img./Abb./Afb./Rys. 6

Pure technical line drawing of a mechanical component with spring-like extensions and a rectangular base (no text or symbols)

Diagram of a connector assembly showing two ports with arrows indicating connection points (no text or labels)

Fig./Img./Abb./Afb./Rys.7

KEEP BLADES OILED

Fig./Img./Abb./Afb./Rys. 8
