USER MANUAL SLR-13 Dörr

White ring light bulb device with 'DÖRR' branding, mounted on a stand (no additional text or symbols visible)

SLR-13

Three circular ring light fixtures with LED patterns, each labeled 'DÖRR' (no additional text or symbols visible)

10.3 ROHS KONFORMITÄT

THANK YOU very much for choosing a quality product from DÖRR.

Please read the instruction manual and the safety instructions carefully before using the device for the first time.

Keep this instruction manual together with the device for later use. If other people use this device, provide them with this instruction manual. If you sell the device, the instruction manual is part of the device and must be supplied with it.

DÖRR is not liable for damage caused by improper use or failure to observe the instruction manual and safety instructions.

In the event of damage caused by improper handling or by external influence, the guarantee or warranty becomes void. Manipulation, structural alteration of the product, as well as opening the housing by the user or unauthorised third parties, is considered improper handling.

01 | SAFETY HINTS

- Do not look directly into the LED and do not direct the light beam into the eyes of humans or animals. CAUTION: Looking into the light for an extended period may cause an irreversible damage to the retina.

• Only for the illumination for photographic purposes. Not suited for permanent room lightning.
• Protect the device from rain, moisture, direct sunlight, and extreme temperatures.
• Turn off the light after use and disconnect from power source.
• Do not operate or touch the device with wet hands.
• Protect the device against impacts. Do not use the device if it has been dropped. In this case a qualified electrician should inspect the device before you use it again.
• Do not attempt to repair the device by yourself. Risk of electric shock! When service or repair is required, contact qualified service personnel.
• People with physical or cognitive disabilities should use the device with supervision.
• People with cardiac pacemakers, defibrillators or any other electrical implants should maintain a minimum distance of 30 cm, as the device generates magnetic fields.
• This device is not a toy. To prevent accidents and suffocation keep the device, the accessories, and the packing materials away from children and pets.
• Protect the device against dirt. Never use aggressive cleansing agents or benzine to clean the device. We recommend a soft, slightly damp microfiber cloth to clean the outer parts of the device. Before cleaning make sure to switch off the device and take off from USB power supply!
• Store the device in a dust-free, dry, and cool place.
• If the device is defective or without any further use, dispose of the device according to the Waste Electrical and Electronic Equipment Directive WEEE. For further information, please contact your local authorities.

02 | PRODUCT DESCRIPTION

Extra-large and ultra slim LED selfie ring light for video tutorials, self-portraits, beauty videos etc.

The soft light reduces skin imperfections and creates a natural, circle reflection in the eye.

• 80 LEDs Bi-Color
• 3 light modes: cold light, mixed light, warm light
  • Colour temperature 3500-8500 K
• Brightness dimmable
• Touch-Control buttons on the front for easy operation
• Clamp can be tilted up to 45° and rotated by 360°
  • Built-in Li-Ion battery 3.7 V / 1100 mAh
• USB-C charging port, supplied with USB-C charging cable

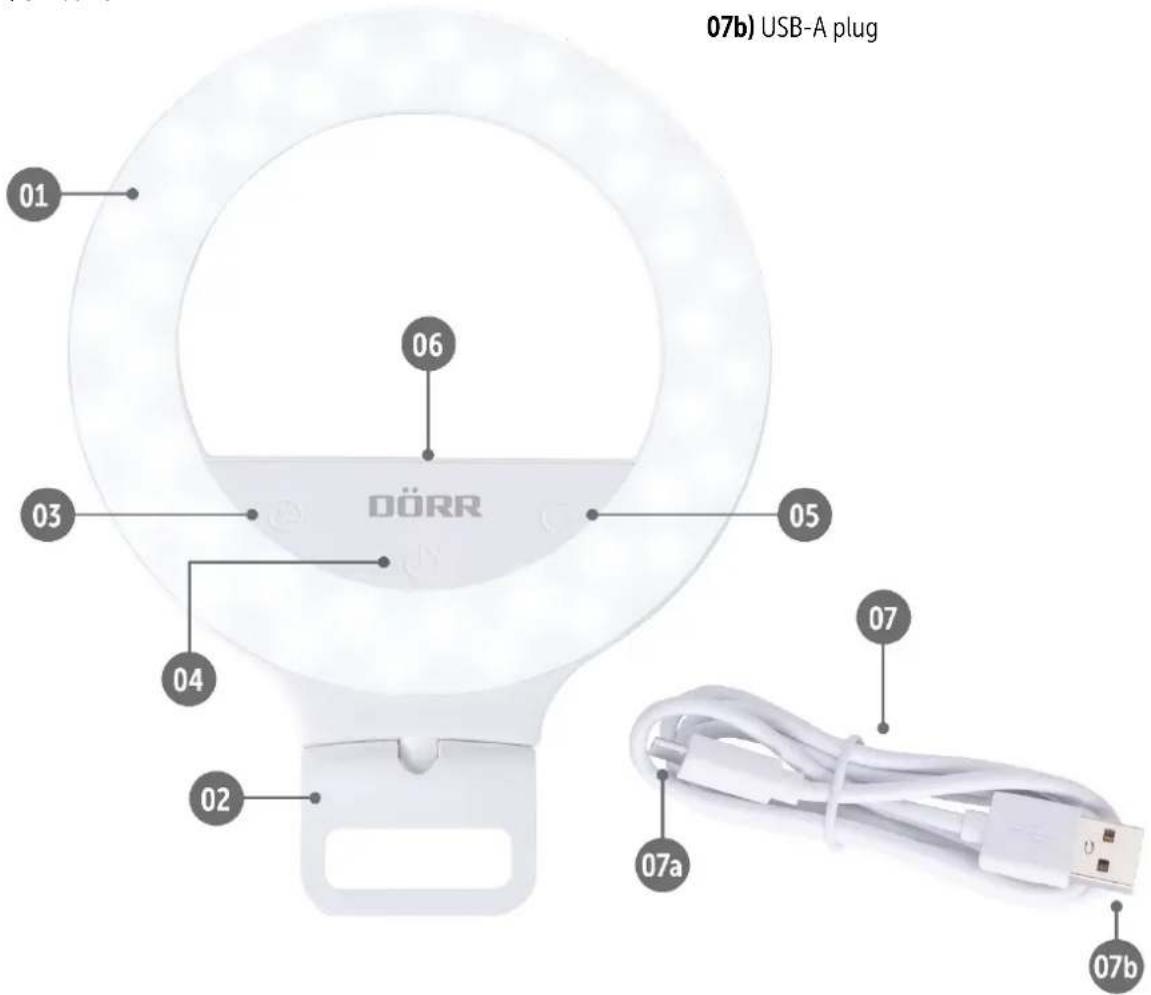

03 | NOMENCLATURE

01 Ring light

02 Clamp

03 Button +/-

04 On/Off button

05 Button Light Mode

06 USB-C charging port with LED indicator

07 USB charging cable

07a) USB-C plug

07b) USB-A plug

07b) USB-A plug 01 06 03 DÖRR 05 04 02 07 07a 07b

04 | FIRST STEPS

• Before first use, please fully charge the built-in Li-Ion battery.
• Only charge with the supplied USB charging cable
• Never leave the ring light unattended while charging.

Insert the USB-C plug (07a) of the USB charging cable (07) into the USB-C port (06) of the LED selfie ring light. Connect the USB-A plug (07b) to a USB socket on your computer. The charging process starts, and the LED indicator next to the USB-C port (06) lights up red. When battery is fully charged, the LED indicator lights up green. Remove the USB cable. When the battery is totally empty, the charging time by PC is about 2.5 hours.

05 | OPERATION

05.1 Switching On/Off

To switch on the LED selfie ring light, tap the On/Off button (04) and hold it for about 1 second. To switch off the ring light, tap on the On/Off button (04) again.

05.2 Changing the light mode

To change the light mode, tap the light mode button (05) until the desired light mode lights up. There are 3 light modes available:

• Warm light with approx. 3500 K colour temperature
• Mixed light with approx. 4400 K colour temperature
• Cold light with approx. 8500 K colour temperature

Circular ring light fixture with LED pattern and brand logo (DÖRR) on a white base (no text or symbols on the object itself)

Warm Light

Circular LED ring light fixture with 'DÖRR' branding on the base (no other text or symbols visible)

Mixed Light

Circular light bulb device with white LED pattern and 'DÖRR' logo on base (no text or symbols on device body)

Cold Light

05.3 Dimming

The brightness can be dimmed in all 3 light modes:

Tap on the +/- button (03) to reduce or increase the brightness in 3 steps.

06 | APPLICATION

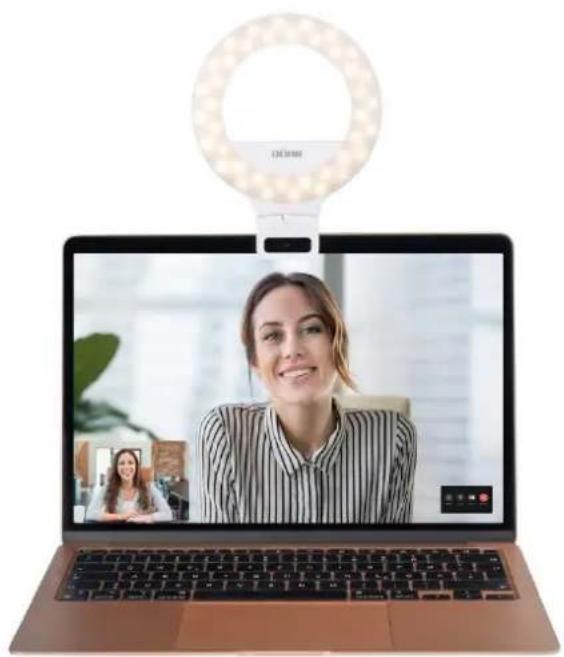

Laptop screen displaying a video call with two women in the background, topped with a ring light (no visible text or symbols)

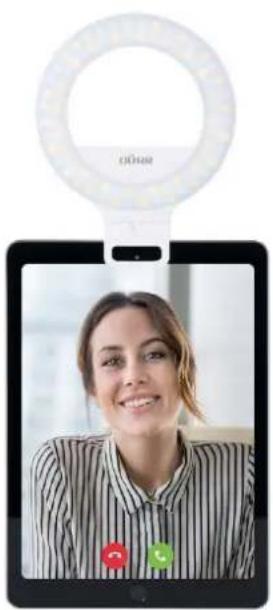

Digital photo of a woman on a tablet screen with a ring light and ear tag (no readable text or symbols)

Smartphone with a ring light and a smartphone displaying a smiling woman's face (no visible text or symbols on the device)

07 | CLEANING AND STORAGE

Never use aggressive cleansing agents or benzine to clean the device. We recommend a soft, slightly damp microfiber cloth to clean the outer parts of the device. Before cleaning make sure to switch off the device and take off from USB power supply! Store the device in a dust-free, dry, and cool place. This device is not a toy - keep it out of reach of children. Keep away from pets.

08 | TECHNICAL SPECIFICATIONS

Number of LEDs	80 LEDs (40x warm white + 40x cold white)
LED power 2.7 W
Colour temperature min. [Kelvin]	3500 K
Colour temperature max. [Kelvin]	8500 K
Illumination power max. at 1m [Lux]	80-90
Colour rendering index (CRI)	85 Ra
Dimmable in 3 steps
Power supply	Built-in Lithium-Ion battery 3.7 V/1100 mAh
Voltage [Volts] 5V/1A
Operating time approx. (with fully charged battery)	100 minutes
Charging time via USB approx. 2,5 h
Length USB cable approx. [cm]	100 cm
Housing	ABS
Dimensions approx. [cm]	12,7 x 16,4 x 3,4 cm
Outer diameter approx. [cm]	12,7 cm
Opening clamp	max. 2 cm
Weight approx. [g]	80 g

Dörr GmbH reserves the right to make technical changes without notice.

09 | SCOPE OF DELIVERY

1x Business LED selfie ring light SLR-13

1x USB-C charging cable

1x Safety hints

10 | DISPOSAL, CE MARKING

10.1 DISPOSAL OF BATTERIES/ACCUMULATORS

Batteries are marked with the symbol of a crossed-out bin. This symbol indicates that empty batteries or accumulators which can no longer be charged should not be disposed of with household waste. Waste batteries may contain harmful substances that can cause damage to health and to the environment. Please use the return and collection systems available in your country for the disposal of the waste batteries.

10.2 WEEE INFORMATION

The Waste Electrical and Electronic Equipment Directive (WEEE Directive) is the European community directive on waste electrical and electronic equipment, which became European law in February 2003. The main purpose of this directive is to prevent electronic waste. Recycling and other forms of waste recovery should be encouraged to reduce waste. The symbol (trash can) on the product and on the packing means that used electrical and electronic products should not be disposed of with general household waste. It is your responsibility to dispose of all your electronic or electrical waste at designated collection points. Disposing of this product correctly will help to save valuable resources and it is a significant contribution to protect our environment as well as human health. For more information about the correct disposal of electrical and electronic equipment, recycling and collection points please contact your local authorities, waste management companies, your retailer, or the manufacturer of this device.

10.3 ROHS CONFORMITY

This product is compliant with the European RoHS directive for the restriction of use of certain hazardous substances in electrical and electronic equipment and its amendments.

10.4 CE MARKING

The CE marking complies with the European standards and indicates that the product meets the requirements of the applicable EU directives.
