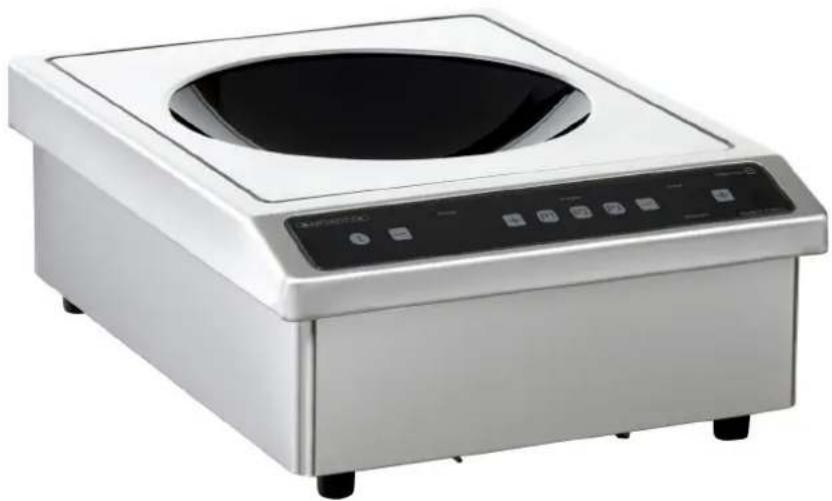

Professional induction WOK

BTWIC 7000

User's guide

For your induction hob

Dear Customer,

We would like to congratulate you on the purchase of your ADVENTYS product.

This one has been manufactured according to the very latest developments, using modern, safe electrical and electronic components.

Please take the time to read this user's guide before using this appliance.

Thank you for your confidence in our products.

Technical specifications

Model:	BTWIC 7000
Name:	induction hob
Matérials:	STAINLESS STEEL / VITRO
Power:	7000W
Electricity supply:	400V +/-10%, 50Hz or 60Hz+/-2% three phase
Current:	12A per phase
Controls	Capacitive touch control.
Dimensions of appliance:	W 392 X D 526 X H 236 mm
Dimensions of the vitroceramic plate	310 mm
Dimensions of the inductor:	280 mm
Net weight of the appliance:	14 Kg
Maximum weight allowed on the appliance:	20 kg

Compliance and waste statement

This product complies with current EU directives. We certify this in the EU compliance statement. We can send you a copy of the compliance statement in question if required.

The packing materials in which this appliance is packed are recyclable. Please recycle them by disposing of them in the appropriate containers at your local facility. In so doing, you will be making a ton to the protection of the environment.

At the end of its useful life, the appliance to be scrapped must be destroyed in accordance with the applicable national regulations that govern the elimination and recycling of waste.

We recommend you contact a company that specialises in waste disposal.

WARNING:

To avoid all risks associated with the destruction of the appliance, ensure that it is disconnected from themains and that the mains cable is removed.

PLEASE NOTE!

When destroying the appliance, local rules and the applicable regulations in your country or geographical zone must be adhered to.

Using your hob safety

The induction principle

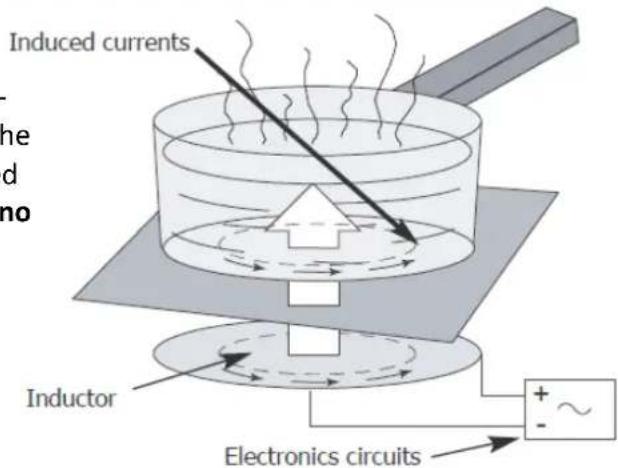

After the appliance is switched on and a power level is selected, electronic circuits produce induced currents in the base of the pan which instantly transmits the heat produced to the foodstuffs. Cooking takes place with practically no energy loss with a very high energy output.

If you have a heart pacemaker Or other active implant fitted :

The functioning of the hob complies with the currently applicable norms concerning electromagnetic disturbance. Your induction cooking hob therefore fully meets the legal requirements (89/336/CEE directives). It has been designed not to cause disturbance to other electric appliances insofar as they also meet the requirements of the same regulations. Your induction hob emits magnetic fields in its immediate surroundings.

To avoid the possibility of interference between your cooking hob and a heart pacemaker, the latter must be designed to comply with the regulations that apply to it.

In this respect, we can therefore only guarantee the compliance of our own appliance. With regard to the compliance of a heart pacemaker or any eventual incompatibility, we recommend that you consult its manufacturer or your doctor.

If a crack appears in the surface of the glass, disconnect the appliance immediately from the mains supply to avoid the risk of electric shock.

To do this, remove the fuses or operate the cut-off switch.

Do not use your appliance again until the vitroceramic glass has been replaced.

Only appropriate cookware should be placed on the hob. Do not put any other object on it, no matter what it is.

Ensure that the mains cable of any electric appliance that is plugged into a socket located in the immediate vicinity of the hob does not come into contact with the cooking zones.

When cooking, never use aluminium foil and never place products that are wrapped in aluminium or frozen products in aluminium trays, on the hob. The aluminium will melt and will permanently damage your appliance.

Do not clean your hob with huge amounts of water. Use a little bit of household alcohol.

Do not use a steam cleaner.

If the mains cable is damaged, it must be replaced by the manufacturer, their After Sales Service or a person with similar qualifications to avoid risk.

This appliance is not intended for use by anyone (including children) whose physical, sensory or mental capacities are reduced, or lacking experience or knowledge, unless they have been able to benefit from prior instructions as to the use of the appliance or supervision by a person who is responsible for their safety.

Supervise children to ensure that they do not play with the appliance.

Users should exercise caution if wearing items such as rings, watches or similar objects when using the appliance since these may heat up when positioned very close to the cooking surface.

Only use pans of the type and size recommended.

Repairs must only be carried out by a technician who has been trained or recommended by the manufacturer.

Take care that the coating and the surrounding areas do not contain metal surfaces.

Your induction cooking appliance is not intended to be operated by means of an external timer or a separate remote control.

Operating instruction

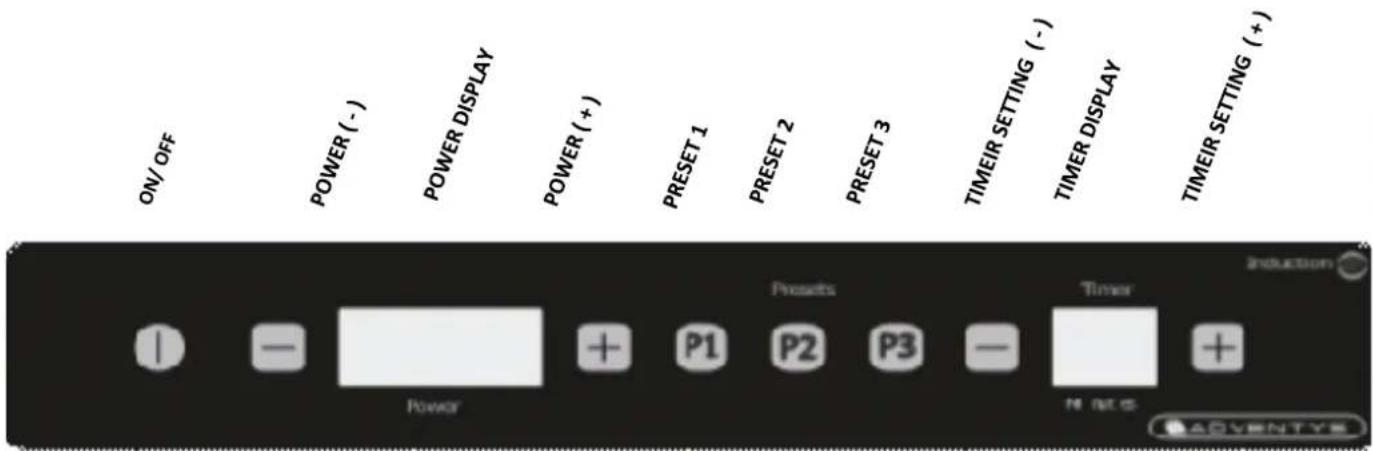

Switch On the device

Plug the unit on a standard three phases power plug 400V (+/-10%), 50Hz or 60Hz.

Press the « ON/OFF » touch to switch on the device. The value « 0 » displays on the indicator of power. Still no power is sent at that point.

Press either the power touches (+), « P1 », « P2 » or « P3 » (if you already memorized a power for them), to send power to the pan. The power display indicates the power level set into the pan.

Switching Off the device

Press the « ON/OFF » touch to sswitch off the product. The power is cut and the display turns off.

Timer setting

Press (+) and (-) to adjust the timer. The duration of the timer is between 1 and 99 minutes.

The end of the timer forces the stop of the power. The product is automatically switched off. To stop the sound emitted at the end of the timer, a brief press on any touches is enough.

By pressing simultaneously on both (+) and (-) touches MINUTES/TIMER, the timer is deactivated.

Operating instructions

Power setting

When an induction-friendly pan is on the cooktop product. The power display indicates the level of regulation. The level of regulation indicate is or a power level between 1 and 20.

It is at any time possible to press on touches (+) or (-) POWER to increase or decrease the level of regulation of power.

Position	Watts	Position	Watts
1	50	11	1900
2	100	12	2400
3	200	13	2900
4	300	14	3500
5	500	15	4000
6	700	16	4500
7	900	17	4900
8	1100	18	5300
9	1350	19	5800
10	1600	20	7000

When the pan is pick-up of the cooking zone, the selected power on the screen displayed will start to blink with a frequency of 1Hz, which means that the pan is missing.

If the power selected on the screen keeps blinking when a pan is on top of the cooking zone, it means that:

The pan is NOT induction friendly

Use of the preset P1, P2 et P3

The user can allocate power selection from 1 to 20, to the 3 programmable touches P1, P2, and P3, regarding its most often used power usages. The three selected power P1, P2, and P3, once memorized, can be use right the way by the user, instead of selecting the powers with the (+) and (-) controls.

To assign and memorize a level of power on one of those three touches P1, P2, and P3, the user has to first adjust the level of power to be memorized (between 1 and 25), with the touches (+) and (-).

Then, in order to memorize, the user should hold for at least 3 nonstop seconds his or her finger on either P1, P2, or P3 touches. A "BIP" sound signal means that the power is saved and memorized. You can change and memorized as many different power as you like.

During usage, a simple touch on P1, P2, or P3 is enough to affect the level of power desired (just like the touches (+) and (-) controls).

Operating instruction

Display of specific message

The device is extremely safe. It makes a permanent control of the values of temperature and other electric parameters to guarantee to the user the best level of performance and safety at every moment.

A flashing error code « Fx » can appear on the display to warn about a malfunctioning.

DESIGNATION ERREUR	ERROR CODE ON DISPLAY
Sensor vitro T°, short circuit or open circuit	F1
Sensor electronic T°, short circuit or open circuit	F2
3 phases line voltages out of range	F3
Power supplies out of ranges	F4
Sensor ambient T°, (inside the product), short circuit or open circuit	F5
Error with the control of the electronics components	F6
CONTROL board SOFTWARE unconformity	F7
Fans connection problem (fans absence or polarity inversion + with -)	F8
Overheating under the Vitro	H1 ou H3
Overheating of the power electronics components	H2 ou H4
Problem with the vitro T° sensor under the Vitro	H5
Overheating of the ambient temperature	H6

The code error flashing is effective as long as the user doesn't stop the device manually unplug and replug the unit, and then relaunch the device using the « On/Off » touch.

If a code error becomes permanent without having the possibility of cancelling it by trying to relaunch the device, it is advised to get in touch with the after-sales service specified by the retailer of the product.

Cookware Recommended

Your induction hob is able to recognize the majority of pans and recipients.

Testing a pan: place the pan on the cooking zone with a power level set : if indicator stays on, your pan is compatible, if it flashes, your pan has not been recognised and cannot be used.

You can also test with the aid of a magnet: if it "sticks" to the base of the pan, then the pan is compatible with induction technology.

Induction-compatible pans are:

• enamelled steel pans with or without a nonstick coating.
• stainless-steel pans designed for induction.

Most stainless steel pans are suitable if they pass the pan test.

• cast-iron pans with or without an enamelled base.
• aluminium pans with special bases.

NOTE

Pans made from glass, ceramic material, clay, aluminium (without special pan base), and copper, as well as certain non-magnetic stainless steels are not compatible with induction cooking. The indicator for the power level selected will flash to inform you of this.

Containers made of plastic must not be placed on hot surfaces

How to maintain and care for your hob

Avoid shocks when handling the pans.

The glass surface is very strong, however it is not unbreakable.

Avoid rubbing the pans over the surface of the appliance.

Centre your pan on the induction cooking zone.

Do not leave an empty pan on the induction zone.

Do not pre-heat foodstuffs on the highest power setting if you are using a pan with an anti-stick coating (of the teflon type) without or with a tiny a mount of cooking fat or oil.

Do not heat an unopened tin can, as it might burst.

Use maximum power (3600W) only for boiling or deep-frying.

All these defects that do not cause a non operation or inability to use are not covered by the guarantee.

Do not leave metal cooking utensils, lids, knives or any other metal objects on the inductioncooking zone. These objects are liable to heat up if they remain too close to the magnetic field generated by the induction cooking zone.

How to maintain and care for your hob

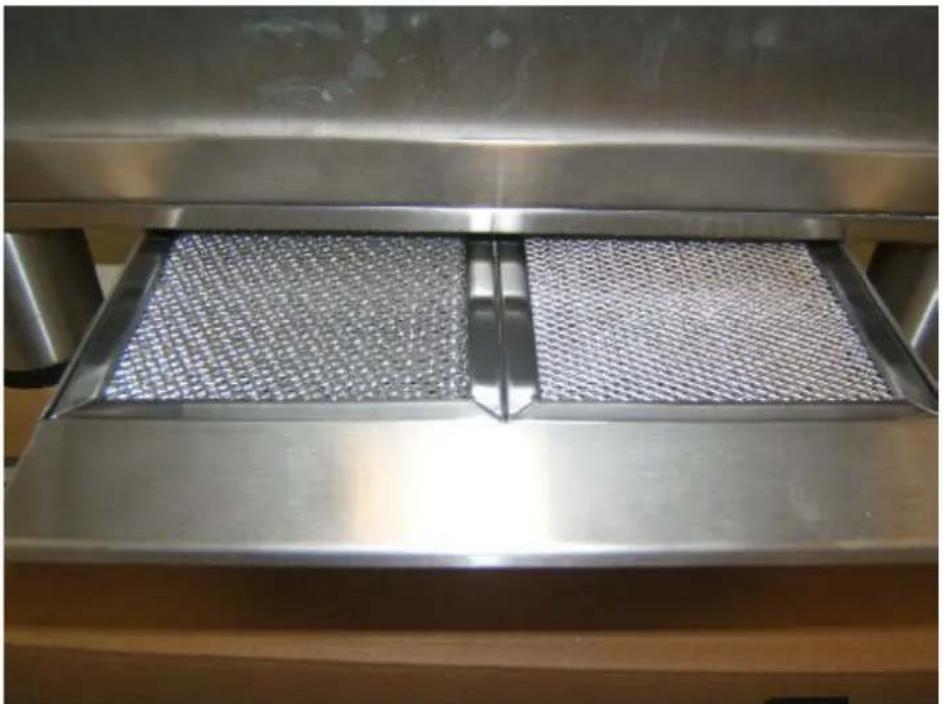

Clean approximately every week with soapy water the filter placed under your device (or put it in the dishwasher). Put it back very dry before any use. This filter protects your device from dust and fats.

Your device is cleaned easily, to help you, here is some advice:
Type of spots How to proceed Use
Slight	Dilute well the zone to clean with hot water then wipe.	Sanitary sponges
Accumulation of recooked spots	Dilute well the zone to clean with hot water, use a special scraper for glass to rough-hew, finish with the scraper side of a sanitary sponge, then wipe.	Sanitary sponges special scraper for glass
Haloes and tracks of limestone	Apply some hot spirit vinegar to the spot, let act, wipe with a soft cloth. Use a domestic product.	Special vitroceramic glass dough
Inlays following the over-Flowing of sugar, aluminium or molten plastic	Apply to the surface a special product for vitroceramic glass, rather containing some solicone (protective effect).	Special vitroceramic glass product

If you think that your hob is not functioning correctly .... this does not necessarily mean that a fault has occurred. Please verify the following in all cases :

YOU NOTICE THAT ...

POSSIBLE CAUSES

WHAT YOU CAN DO

When putting into service, a bright display appears

Regular functioning

NOTHING: everything is normal

When putting into service, your installation short-circuits

The connection of you device is defective

Verify your connection or the conformity of the connection

The ventilation continues a few minutes after stopping the device

Cooling of the device

It's normal.

The device doesn't work. The display on the casing stays off

The device is not supplied. The supply or the connection is defective

Inspect fuses and the circuit breaker of your electric installation

« F- » appears on the power or temperature display

There is a touch activated permanently on the control keyboard

If the default doesn't disappear, call the after-sales service

The device doesn't work, another code appears on the display

Electric circuits doesn't work well

Unplug and plug back the unit. If the code does not disappear, note the type of error an call your after sales service

The device releases a smell during the first cookings

New device

Run the cooking during half an hour with nothing on it

If the vitroceramic hob suffers a breakage, split or crack, no matter how small, disconnect the appliance immediately and contact After-Sales Service.

Garantee

Keep the proof of purchase to use the guarantee service of your product.

Any modification such as drilling, welding, crimping, clinching, etc., is not permitted and is not covered by the manufacturer's warranty.

Any wrong modification or installation, which does not respect ADVENTYS' standards, is not covered by the manufacturer's warranty and will be permanently suspended.

The guarantee is subject to the non-modification of the product and its mechanical and electrical specifications. Opening the product cancels any form of warranty.

Any defects in appearance caused by the use of abrasive products or friction of cookware on the ceramic glass hob that does not result in a non-functioning or inability to use the appliance is not covered in the guarantee. The vitroceramic glass and the casing are not subject to warranty.

ANY REPAIRS MUST BE CARRIED OUT BY A QUALIFIED TECHNICIAN APPROVED BY ADVENTYS.

Only the distributors of our brand:

• KNOW YOUR APPLIANCE PERFECTLY AND HOW IT WORKS.
• FULLY APPLY OUR METHODS OF ADJUSTEMENT, MAINTENANCE AND REPAIRS.
• USE ONLY ORIGINAL SPARE PARTS.

In case of a claim or if you wish to order spare parts from your distributor, please specify the full reference numbers of your appliance (appliance type and serial number). This information appears on the plate fixed under the metal casing of the appliance.

The descriptions and characteristics given in this booklet are for information purposes only and do not imply commitment from the manufacturer. Concerned about the quality of our products, we reserve the right to carry out necessary changes or improvements without prior notice.

Original spare parts: ask your retailer for certified original spare parts during a maintenance operation

Made In France
