USER MANUAL COQUET ALFA

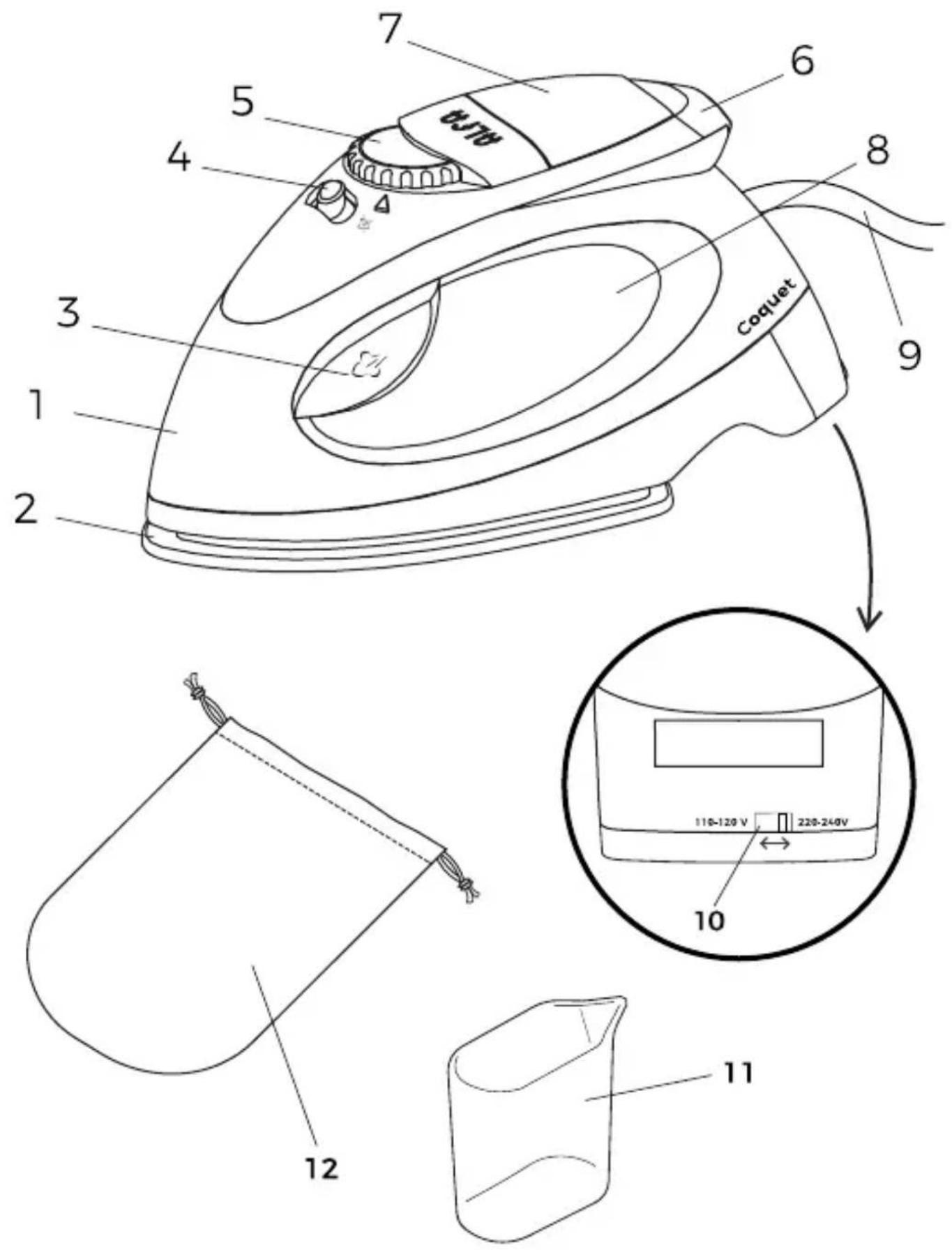

Exterior view of a Coquet air iron with control panel and buttons (no text or symbols on body)

7 5 4 3 1 2 6 8 Coquet 9 10 110-120 V 220-240V 12 11

ES

COMPONENTES

RECOMMANDATIONS DE REPASSAGE

1. Body
2. Ceramic soleplate
3. Steam boost button
4. Steam selector
5. Temperature control
6. Heating indicator
7. Tank lid
8. Water tank
9. Power cord
10. Voltage selector
11. Filling cup
12. Travel bag

USER INSTRUCTIONS

BEFORE IRONING

• Ensure that the iron is unplugged from the electrical outlet.
• Check the voltage of the outlet and slide the voltage selector (10) to the appropriate position using a tool.
• Move the steam selector (4) to the closed position
• Clean the soleplate of the iron with a lightly dampened cloth.

STEAM IRONING

• Open the filling hole (7).
• Fill the water tank without exceeding the maximum level using the filling cup (11).
• Close the tank lid.
• Place the fabric and prepare for ironing.
• Insert the plug into a power outlet. The indicator light should turn on (6).
• Select the appropriate temperature based on the fabric material using the guide located on the back of the iron (water may come out of the soleplate if the selected

temperature is too low).

• Once the light (6) goes off, the selected temperature has been reached.
• Move the steam selector (4) to the open position, let the steam out for a few seconds, and then iron the clothes.

For tougher wrinkles:

• Press the steam boost button (3) two or three times and direct the extra steam to the desired area of the garment, then run the iron soleplate over it to dry.
  • We recommend pressing the button in 5-second intervals.

DRY IRONING

• Place the fabric and prepare for ironing.
• Insert the plug into a power outlet. The indicator light should turn on (6).
• Select the appropriate temperature based on the fabric material using the guide located on the back of the iron.
• Once the light (6) goes off, the selected temperature has been reached, and you can begin ironing.

AFTER IRONING

• Set the steam selector to the closed position and lower the temperature control (5) to the minimum.
• Unplug the iron from the power outlet.
• In the case of steam ironing, open the tank lid and empty the water.
• To ensure there is no residual water and to prevent the heating plate from being marked: reconnect the appliance and open the steam selector until nothing comes out.
• Close the steam selector again and unplug the appliance.
• Store the iron in an upright position in a safe place.

IRONING RECOMMENDATIONS

• We recommend starting with steam ironing and finishing with dry ironing for best results.
- Organize garments according to their ironing temperature. Start with lower temperatures and finish with higher ones.
• We advise using distilled water for ironing. Otherwise, ensure you use water low in minerals (soft) or filter tap water with a purifying jug.
- Do not use chemical products or perfumed waters in the water tank of your appliance. These products damage the interior of the steam generation system.

WARRANTY

This product is backed by legal warranty in accordance with current legislation. To exercise your rights, please contact our official technical support services.

* The intended use of this product is as a travel iron, so regular use is not anticipated.
