Thank you to have chosen the FAR quality. This product has been created by our professional team and according to the European regulation. For a better use of your new device, we recommend you to read carefully this user manual and keep it for record.

TABLE OF CONTENTS

SAFETY INSTRUCTIONS......GB-2

PARTS IDENTIFICATION......GB-4

PARAMETER DATA ......GB-5

WARNING GB-5

USE INDICATION.... GB-7

FUNCTIONAL CONTROL......GB-9

METHOD OF CLEANING GB-11

BAKING REFERENCE OF COMMON FOOD......GB-12

OPERATING INSTRUCTIONS ......GB-12

CAUTIONS ......GB-14

WARNING ......GB-15

DISPOSAL OF OLD ELECTRICAL APPLIANCES ......GB-16

SAFETY INSTRUCTIONS

• Read these safety instructions carefully before using your appliance and keep safe for future reference.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
  • Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Keep the appliance and its cord out of reach of children less than 8 years.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
  • This appliance is intended to be used in

household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments,
• farm houses,
• by clients in hotels, motels and other residential type environments,
• bed and breakfast type environments.

• The temperature of adjacent surfaces may be raised when the appliance is on.

• Surfaces are likely to heat up during use.

• The door or outer surface of the appliance may become hot while it is on.

• The back of the appliance must be placed against a wall.

• Refer to the «METHOD OF CLEANING» section for detailed information on how to clean surfaces in contact with foodstuffs.

- Do not place the appliance close to or on top of a gas cooker or hob, and do not place on an oven or mini-oven.

• The power socket must remain easily accessible.

• The appliance is to be connected to a socket-outlet having an earthing contact.

PARTS IDENTIFICATION

Technical diagram of a microwave oven with numbered parts and exploded view labels

1. Glass door
2. Heating element
3. Housing
4. Temp knob
5. Switch knob
6. Timer knob
7. Indicator light
8. Oven foot
9. Bake tray
10. Tray handle
11. Wire rack

PARAMETER DATA

Model No. MF 20BEK1
Power supply	230 V~ 50-60Hz
Power consume 13	80W

WARNING

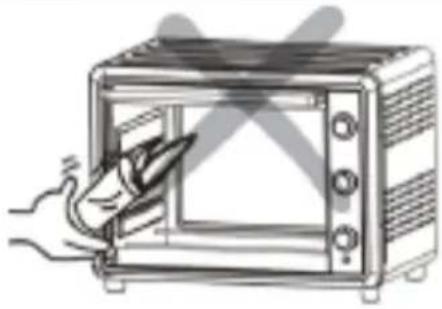

	Always use the food fork when inserting or removing the tray. Touching these will cause severe burns.
	When hot, do not apply water to the glass window. It may cause the glass to break.
	When unplugging the cord, always take hold of the plug itself. Never pull on the cord. Doing so could break the wires inside the cord.

Illustration of a microwave oven next to a gas cylinder (no text or symbols on the devices themselves)

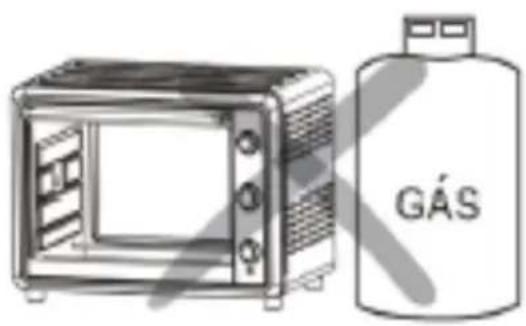

Do not position the unit close to a gas burner or other source of high temperature or do not direct an electric fan, etc, at the unit during USE. Doing so could prevent correct temperature control.

Illustration of a hand holding a framed picture with a star-shaped object nearby (no text or symbols)

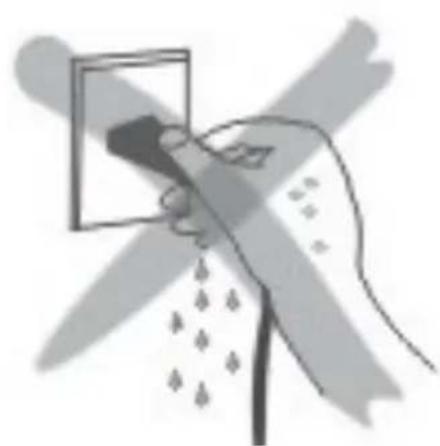

Do not wet the power cord nor handle the unit with wet hands. Always unplug the cord after use, or whenever the unit is to be left unattended. A malfunction while the plug is inserted into the outlet could cause a fire.

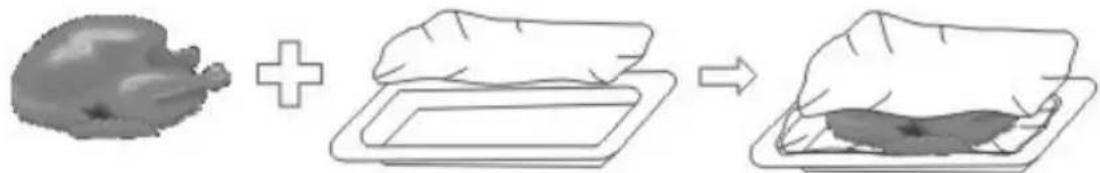

When cooking oil-splashing dishes such as roast chicken, it is recommended to put 2 sheets of aluminum foils on a tray in order to diminish oil splashing. Put one on a tray. Then oil will drip to a gap between foils.

Diagram illustrating the preparation process of a dish, showing addition and adding to a food item.

USE INDICATION

Special indication: the parts and accessory varies from different models. Please refer the image to the real item you buy.

Bake Tray and Wire Rack
Bake Tray	Food(For Ref. only)	How to useTray Handle
*Recommended to use it as crumb tray.	Roast Chicken Wings, Hamburg steak, Gratin, Cake, almost all other oven-cooked foods
Wire Rack	Baked potatoes, Dry food
Bake Tray and Wire Rack	For food which will drip, e.g. boiled fish, etc.

The trays are not perfectly square. Note: Be careful when removing pudding and other hot liquids.

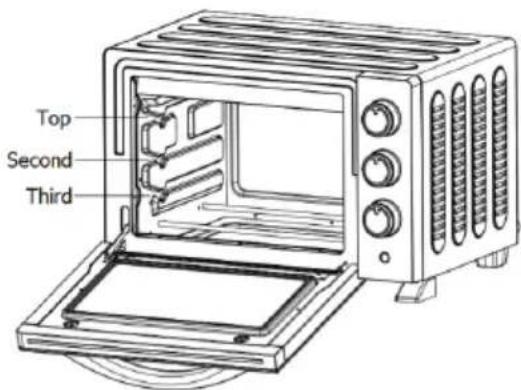

- Rack Support

1. The e are 3 levels cater for different type of dishes you want to cook. You can adjust the cooking position by slotting the baking tray and wire rack at top, second and third rack support (refer to right picture).

2. For example, when making macaroni gratin and you want to have the top part to be cooked the most, use the top or second support. For roasting a chicken, you can use the third rack support.

Top Second Third

FUNCTIONAL CONTROL

1. Set the “Temperature Control” by turning clockwise to select the suitable temperature according to the dishes you are going to cook.	2. Set the “Function Selector” by turning clockwise to select the suitable heating function and convection.
Temperature Control Function Selector	[T5D]

3. Set the “Timer” to the number which indicates the cooking time (minutes). Now, the oven is working, beware of the HOT surface, and DO NOT open the glass door during cooking!Timer		Upper heating
		Lower heating
		Upper + Lower heating

METHOD OF CLEANING

	Take off he plug and cool down before cleaning.
	When cleaning, wash the interior and exterior surface, tray, wire rack, and tray handle with soft cotton (or sponge) with neutral cleaner. Then wash with clean water. Do not use hard brush or any others to wash, so as not to scrape the interior surface of the oven, and to protect the tray, the net and the food fork.
	Do not use the toxic and abrasive cleaners such as gasoline, polishing powder, solvent.

BAKING REFERENCE OF COMMON FOOD

Type of food	Number of thickness	Temperature (°C)	Timer (min.)
Hot dogs	2 cm	200	6-10
Toast 2-4 pcs 220 9-13
Hamburger	2-3 pcs 200 10-14
Fish / 200 10-15
Pancake 1 pc		160	7-10
Sausage	3-4 pcs	200-220	8-15
Cake	/	180 25-35
Steak 1-2 cm		220 8-15
Chicken	Half chicken	175-200	30-45

OPERATING INSTRUCTIONS

• Before using the unit for the first time:

Heat the empty oven.

(1) Insert the tray and baking net.
(2) Set the heater operating switch to «UPPER & LOWER», set the temperature control dial to «220°C» and heat the empty oven for about 10 minutes.

Note:

There may be some smoke and a burning smell at

first, but this is not a malfunction.

Temperature control dial:

Set the Temperature Control Dial for the dishes which you are going to cook

1. Set the arrow on the timer knob to the number which indicates the cooking time (minutes) according to the dishes you are going to cook.

2. Set the Timer by turning it clockwise.

min 60 50 40 30 20 10 OFF

The oven will turn off automatically at the end of the selected time and a bell will ring • When setting the Timer to less than 5 min, turn it to more than 6 min. and then back to the selected time.

1. The oven can be turned off annually during cooking by turning the Timer counterclockwise to the «OFF» position.

Note:

If the inside of the oven is dirty, cooking may take slightly longer than usual.

CAUTIONS

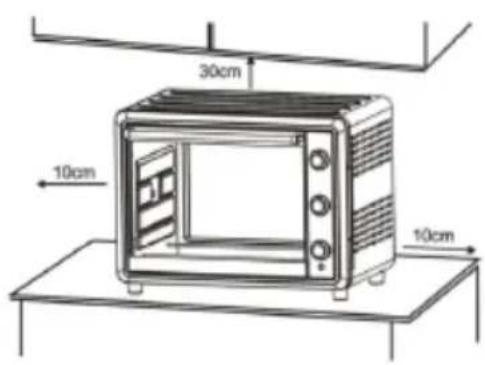

30cm 10cm 10cm

If the oven is positioned too close to a wall, the wall will be burned or stained. Be sure the curtain, etc. are not in contact with the body. Do not put anything between the bottom of the body and the surface on which it is set. An object so placed could be burned.

Line drawing of a microwave oven with a lid and front-mounted dish (no text or symbols)

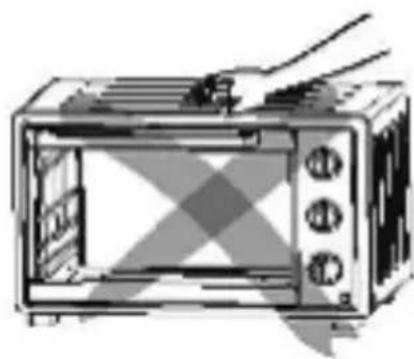

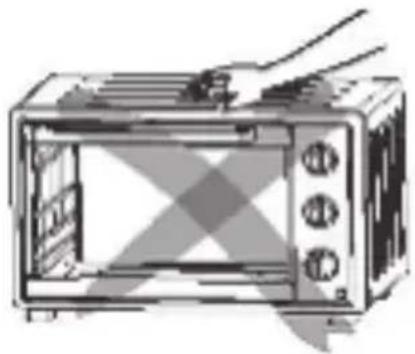

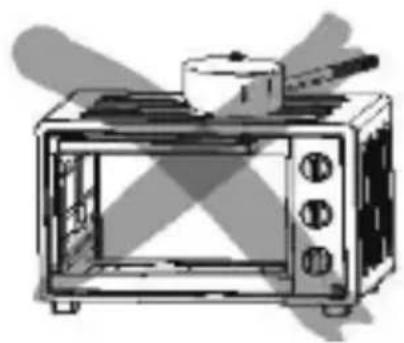

Do not put anything on the oven while using it, the heat could cause deformation, cracking, etc.

Illustration of a microwave oven with a labeled Tin container (no text or symbols on the device itself)

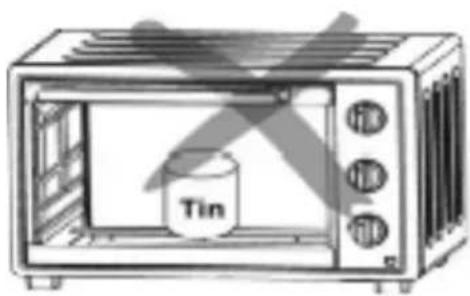

Any bottled or tinned food cannot be heated directly as the bottle or tin would be broken out and scald the person.

Illustration of a microwave oven with open lid and control knobs (no text or symbols)

Be careful! Not to burn yourself during use or immediately after use.

The metal parts and glass window of the door become extremely hot during use. Be careful not to touch them when opening and closing the door.

Illustration of two hands using a tool on a base, no text or symbols present

AC power must be taken from a properly wired outlet. Insert the plug completely into the socket. If it is not, it could become abnormally hot. Do not use an electric light outlet. Never connect multiple plugs to the same outlet.

WARNING

If the supply cord is damaged, the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard must replace it.

This instruction book is also available on our website: www.conforama.fr

DISPOSAL OF OLD ELECTRICAL APPLIANCES

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream.

Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.
