USER MANUAL MF 2413TOW Melchioni

White portable air conditioner tower with vertical grille and base (no visible text or symbols)

IT Manuale d'uso 1

EN User manual 8

ON/OPF Sweir 61 2M LH 0.5M LOW Speed 11mm Normal Stomp High Mid

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
2. Children has not to play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
3. Use fan only for intended use, as described in instruction manual.
4. To protect against electrical shock, do not immerse unit, plug, or cord in water or spray with liquids.
5. Close supervision is necessary when any appliance is used by or near children.
6. Unplug from outlet when not in use, when moving fan from one location to another, before putting on or taking off parts and before cleaning.
7. Never insert fingers, pencils or any other objects through the grille when fan is running.
8. Disconnect fan before cleaning.
9. Make sure fan is on a stable surface when operating to avoid chance of overturning.
10. Do not use fan in a window. Rain may cause an electrical hazard.
11. Do not operate in the presence of explosive and/or flammable fumes.
12. Do not place fan or any parts near an open flame, cooking or other heating appliances.
13. Do not operate any appliance with a damaged cord or plug, after the appliance malfunctions or has been dropped or damaged in any manner.
14. Do not let cord hang over table or counter or touch hot surfaces.
15. To disconnect, grip plug and pull from wall outlet. Never yank on cord.
16. Always use on a dry surface.
17. This product is intended for household use only and not for commercial or industrial use.
18. Do not use fan near curtains, plants, window treatments, etc.
19. During the first few minutes of initial use, a slight odor may be noticeable. This is normal and will quickly disappear.

B. POWER CORD SAFETY TIPS

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
2. Never pull or yank on the cord or the appliance.
3. To insert plug, grasp it firmly and guide it into outlet.

4. To disconnect appliance, grasp plug and remove it from outlet.

5. Before each use, inspect the power cord for cuts and/or abrasion marks. If any are found, this indicates that the appliance should be serviced and the power cord replaced. Please return it to our Service Department or to an authorized service representative.

6. Never wrap the cord tightly around the appliance, as this could cause the appliance to fray and break.
7. Do not operate appliance if the power cord shows any damage, or works intermittently and stops working.

C. WARNINGS FOR BATTERIES

1. Insert the batteries correctly, paying attention to the polarities (+ and -) indicated on the batteries and on the device.
2. Batteries must not be short-circuited.
3. Do not charge the batteries.
4. KEEP BATTERIES OUT OF THE REACH OF CHILDREN. Ingestion can cause chemical burns, soft tissue perforation and death. Serious burns can arise within 2 hours of ingestion. Consult a physician immediately.
5. Do not allow children to replace the batteries.
6. Do not force discharge of the batteries. Do not mix new and used batteries or batteries of different types or from different manufacturers together.
7. Discharged batteries must be removed immediately from the device and disposed of according to the laws in force.
8. Do not heat the batteries or expose them to heat sources.
9. Do not directly solder the batteries.
10. Do not disassemble the batteries.
11. Do not deform the batteries.
12. Do not throw or dispose of batteries in fire.
13. Do not put in contact with water or moisture, especially if the battery container is damaged.
14. Do not encapsulate or modify batteries.
15. Store unused batteries in their original packaging away from metallic objects. If already removed from the packaging, do not mix or mix the batteries.
16. If you intend not to use the device for an extended period of time, remove the batteries.
17. Clean the battery contacts and those of the device before inserting the batteries.
18. In the event of battery leaks, avoid any contact with the leaked material; in case of contact, rinse the affected area with water and consult a doctor.

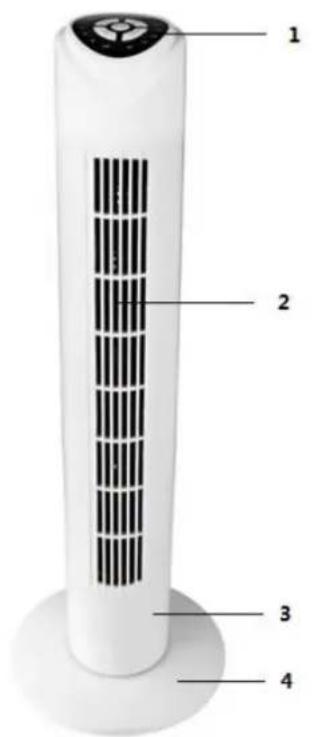

D. COMPONENTS

1 2 3 4

1. Control panel
2. Air intake
3. Oscillating base
4. Support base

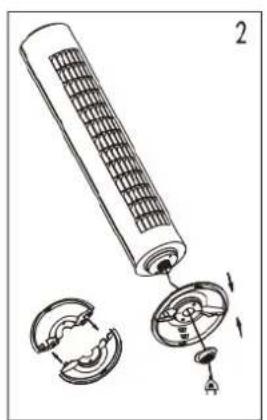

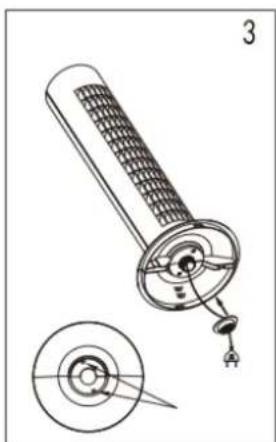

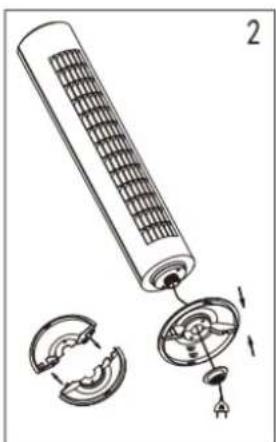

E. ASSEMBLY INSTRUCTIONS

Line drawing of a cylindrical device with internal grid structure and a small connector (no text or symbols)

Diagram of a hair dryer with internal components and a separate view showing internal structure (no text or symbols)

Technical line drawing of a thermometer with a magnified inset showing internal components (no text or symbols)

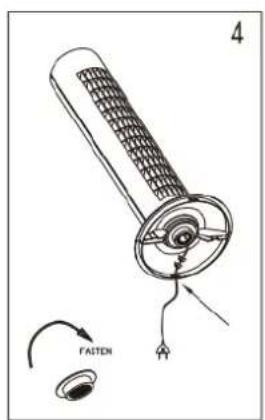

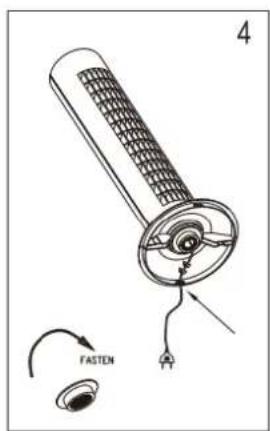

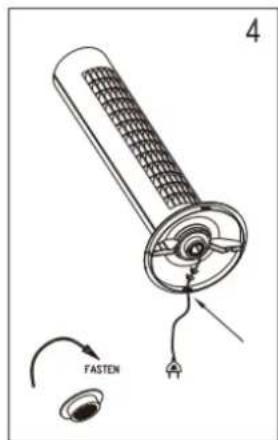

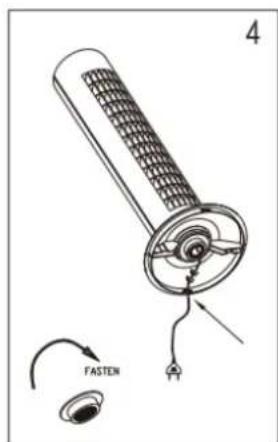

4 FASTEN

Once the fan has been fully assembled, you can now plug it into a power outlet.

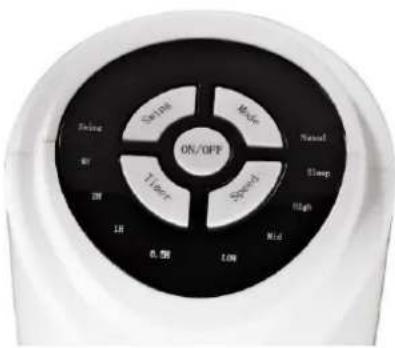

F. CONTROL PANEL

ON/OFF Swee Normal Normal Stop T Hour Speed High Mid 1H 0.59 LOW

1. ON / OFF: to switch the fan on or off

2. Swing: To enable or disable the automatic swing

3. Speed: to select the desired airflow speed - Low - Medium - High

4. Mode: To select Natural or Sleep type of airflow

5. Timer 7.30 hours: press several times to choose the desired operating time. Once reached, the device will automatically stop working.

IMPORTANT: Always turn off the appliance and unplug it when not in use.

G. REMOTE CONTROL

ON/OFF SPEED SWING TIMER MODE

1. ON / OFF: Press this button to turn the fan on or off.
2. Timer: by repeatedly pressing this button you can set the sleep timer from 0.30 to 7.30 hours.
3. Mode: press the button to choose the type of air flow: natural, strong ventilation or night.
4. Swing: By pressing this button, you can activate the swing function. This mode will not be activated when the fan is off or the timer is set to OFF.

- The remote control can be used with a range of about 8m from the receiver (the reception is located inside the main body of the fan)

- Do not place anything between the fan and the remote control to allow the remote control to work properly.

REMOTE CONTROL BATTERIES

The remote control is supplied without batteries; before use, open the battery compartment on the back of the remote control and insert two LR03 1.5V AAA batteries, respecting the indicated polarity.

To remove the batteries, open the battery compartment on the back of the remote control, sliding the cover outwards.

H. CARE AND CLEANING

This appliance requires little maintenance and contains no user serviceable parts. Do not try to fix it yourself. Refer it to qualified service personnel if servicing is needed.

The fan is permanently lubricated and will not require additional lubrication for the life of the fan.

TO CLEAN: Before cleaning, turn fan off and unplug from electrical outlet. Wipe off excess dust with a lint-free cloth. To ensure adequate air circulation to the motor, keep vents located at the rear of the motor housing free from dust accumulation. A vacuum cleaner hose can be used to

clean these vents. Do not immerse fan in water or any other liquid.

TO STORE: Make sure to disassemble and clean the fan before storing. Retain the original packaging for the purpose of storing the fan. Always store fan in a dry place. Never store it while it is still plugged in. Never wrap the cord tightly around the fan, and do not put any stress on the cord where it enters the fan housing, as it could cause the cord to fray and break.

I. TECHNICAL DATA

Power: 45W

Power supply: 220-240V\~50/60Hz

Dimensions: 27x27x81 cm

Net weight: 2 kg

L. CONFORMITY OF THE PRODUCT

The producer Melchioni Spa declares that the product Tower fan with remote control -Model MF 2413TOW (Cod. 118620060) is in compliance with Directive 2014/30/EU of the European Parliament and of the Council, of 26 february 2014, on the harmonisation of the laws of the Member States relating to electromagnetic compatibility.

The producer Melchioni Spa declares that the product Tower fan with remote control -Model MF 2413TOW (Cod. 118620060) is in compliance with Directive 2014/35/EU of the European Parliament and of the Council, of 26 february 2014, on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits.

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby, manufacturer Melchioni Spa declares that the radio equipment type Tower fan with remote control -Model MF 2413TOW (Cod. 118620060) is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.melchioni.it.

The producer Melchioni Spa declares that the product Tower fan with remote control -Model MF 2413TOW (Cod. 118620060) is in compliance with Directive 2009/125/EC of the European Parliament and of the Council, of 21 october 2009, establishing a framework for the setting of ecodesign requirements for energy-related products.

The producer Melchioni Spa declares that the product Tower fan with remote control -Model MF 2413TOW (Cod. 118620060) is in compliance with Directive 2011/65/EU of the European Parliament and of the Council, of 8 June 2011 and subsequent Commission Delegated Directive 2015/863, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

According to Directive 2012/19/EU of the European Parliament and of the Council, of 4 July 2012, on waste electrical and electronic equipment (WEEE), the presence of the crossed-out bin symbol indicates that this appliance is not to be considered as urban waste: its disposal must

therefore be carried out by separate

collection. Disposal in a non-separate manner may constitute a potential harm to the environment and health. This product can be returned to the distributor when purchasing a new device. Improper disposal of the appliance constitutes misconduct and is subject to sanctions by the Public Security Authority. For further information, contact the local administration responsible for environmental matters.
