USER MANUAL MF 2519BLS Melchioni

White electric fan with black handle and digital display (no visible text or symbols)

IT Manuale d'uso 1

EN User manual 12

Simple line drawing of a U-shaped container with two downward arrows indicating depth (no text or symbols)

Diagram showing three steps of a device with labeled parts A, B, and a battery symbol

Melchioni S.p.a., owner of the Melchioni Family brand, thanks you for purchasing this appliance. It is the result of a careful selection of features and the meticulous refinement of details, with the aim of offering a complete, versatile, reliable and high-performance solution for both the occasional and the most demanding users.

This manual contains important information both for the correct use of the appliance and for its safe operation. It is essential to read and understand its contents before performing any operations in order to obtain the best performance from the appliance. Keep this manual even after reading it, as you may need to refer to it in the future.

The Melchioni Family team is at your disposal for any advice, instructions or suggestions.

2. IMPORTANT INFORMATION FOR CORRECT, SAFE USE OF THE APPLIANCE

The following instructions must be read, understood and complied with before commissioning the appliance. They are especially useful for the protection of the safety, physical conditions and security of the operator and persons nearby, as well as for providing valuable information for preventing faults and malfunctions, to prolong the operating life of the appliance by reducing waste production and to reduce energy consumption, thus helping to protect the environment.

• The appliance is designed for household and non-intensive use. Any professional use compromises the safety requirement and is a condition for inapplicability of the warranty.
• The appliance is intended for indoor use and protected from inclement weather: use in an outdoor environment compromises the safety requirement and constitutes a potential hazard for the safety of the operator and persons nearby.
• The appliance must not be used if it shows deformations, bulges, cracks in the casing, missing parts or other structural anomalies. If these conditions occur, disconnect the power supply and contact qualified technical personnel.
• The appliance must not be used if it emits unusual noises, foul odours, smoke, vapours or any other type of exhalation not related to foreseeable operation. If these

conditions occur, disconnect the power supply and contact qualified technical personnel.

- The appliance must not be stored or used in excessively humid or dusty environments, in the presence of atmospheres saturated with gas, fumes, in excessive or low temperatures or under direct solar radiation.

- The appliance must not be used in explosive atmospheres, near explosive, combustible, detonating or flammable material (e.g. petrol pumps, gas cylinders, etc.). Such use constitutes a serious risk to the safety of the operator and persons nearby and may cause fires or deflagrations.

- Make sure that each part of the appliance, especially the cord, is placed at a safe distance from heat sources (e.g. electric or gas cookers), both during use and when not in use.

- The appliance and all its parts must be handled with special care to avoid damaging the parts.

- During use, the appliance must be constantly supervised: do not use it in the absence of operators or persons who are able to constantly check its correct operation.

- If the appliance needs to be left unattended, switch it off.

- During use, the appliance must be placed at a minimum distance of 50 cm from surrounding objects on each side: this precaution prevents parts from deterioration and improves performance.

- The appliance must be placed in a location where its operation cannot cause unexpected movement of objects and materials. Therefore, check the trajectory of the outbound air flow.

- Do not use the appliance to dry garments or any other objects by resting them on the structure, which would seriously compromise the integrity of the appliance, as well as the health and safety of the operator and nearby persons and animals.

- Do not insert any objects into the slots: damage to the mobile parts could create situations of risk for the user and nearby persons and animals through injury or electric shock.

• Take the utmost care not to touch any part of the appliance during operation.

- Ensure a significantly long standstill period after particularly prolonged use of the device.

- Do not surround the appliance with any heat reflective material (e.g. aluminium). Doing so in no way enhances its performance and causes overheating, with the possibility of breakdowns and danger to the operator and nearby persons or animals.

- Do not use the appliance if one or more of the parts listed in the following chapter are missing or damaged: contact your dealer for repair.

- Periodically check the conditions of the parts making up the appliance, in particular the power cord: if any anomalies are found, refrain from using the appliance and contact qualified technical personnel.

- Do not use abrasive sponges or aggressive detergents for cleaning operations: refer to the following chapter for complete requirements.

- Cleaning operations must be carried out taking care to disconnect the appliance from the power supply: refer to the following chapter for the relevant requirements.

- The appliance must be connected to a compliant electrical system. The electrical system must have a power rating equal to or greater than that of the appliance and must be earthed.

- Before connecting the plug of the power cord to the socket, make sure that the voltage of your household installation corresponds to the voltage indicated on the appliance.

- Do not connect the appliance to extension cords, power strips, multi-socket strips, timers, controlled sockets or other devices that can start it up independently.

- If the appliance is not to be used for a prolonged period of time, it is advisable to unplug the power cord from the socket: this will extend the life of the appliance and help reduce energy consumption.

- Do not disconnect the power supply by pulling on the cord: grasp the plug firmly with one hand, place the other hand on the frame of the electrical outlet and disconnect with a quick, sharp movement.

- Before disconnecting the appliance, make sure that it is switched off, unless you need to disconnect it in an emergency situation due to abnormal behaviour as described in this chapter.

- The appliance must be kept out of the reach of children under 8 years of age; in any case make sure that it is not used for play.

- If the appliance is used by children, even if they are over 8 years old, or by persons with reduced cognitive, sensory or motor skills, they must be instructed about the dangers of incorrect use of the appliance and it must be guaranteed that the information has been correctly and fully understood. Adequate supervision must however be ensured.

- Do not use the appliance in the vicinity of liquid accumulations or sources, such as swimming pools, tanks, tubs, showers, sinks, other sanitary fixtures, faucets, pipes, sprinklers, bottles, storage vessels, expansion vessels, watercourses, flowerpots and similar. Do not place containers holding liquids on top of the appliance; make sure that the power cord or electrical plug is never submerged.

- Do not use the appliance with wet hands.

- Do not move the appliance by tugging on the cord.

- Do not immerse the appliance in any type of liquid.

• Before stowing the appliance, make sure that it has been switched off and/or disconnected from the mains for at least one hour.
• Do not position the appliance in such a way that the generated flow can be directed towards electrical connections such as power outlets, including wall sockets, extension cords, power strips, electrical adaptors, switches or similar.
• Do not remain in the operating range of the appliance for long periods: direct air flow can result in a health risk factor.
• There is no reason to disassemble the appliance, not even after it has been decommissioned. It is composed of parts that could be swallowed by children or persons with reduced cognitive ability.
• Do not carry out any repairs yourself; in the event of a fault, have the appliance inspected by a qualified technician.
• None of the parts of the appliance must be modified under any circumstances: doing so normally constitutes a serious impairment of the safety requirement, a condition for immediate forfeiture of the warranty and does not lead to any increase in performance.
• Do not subject the power cord to excessive bending or kinking: any internal damage to the cable which cannot be detected constitute a serious safety hazard.
• Place the appliance at an adequate distance from moving parts such as curtains, door and window sashes, hatches or similar in order to avoid accidental contact.
• Place the appliance on a flat, stable surface and ensure that the appliance cannot move independently due to gravity or external forces.
• Keep this manual for future reference.

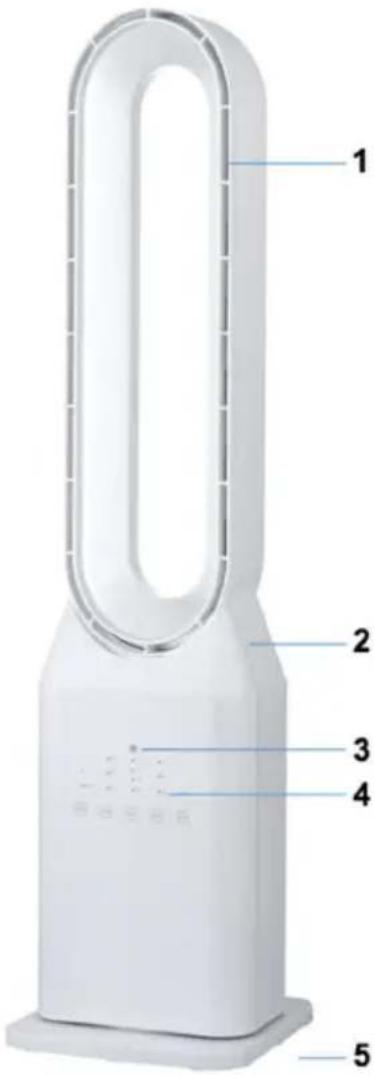

3. IDENTIFICATION OF PARTS

1 2 3 4 5

Appliance body

1. Ejection grille | 2. Appliance body | 3. Remote control receiver | 4. Control panel | 5. Base

Control panel

Sleep 4H High Nat. 2H Mid Swing Nor 0.5H Low Power

Touch keypad

Swing Each time the button is pressed again, it starts and stops the horizontal oscillation mechanism of the appliance to achieve wider air distribution

Mode Each time the button is pressed again, the air supply switches according to three pre-set modes (Sleep: Dispensing suitable for night hours – Nat.: Simulating natural ventilation – Nor: Continuous and uninterrupted air flow)

Timer Each time the button is pressed again, it changes the time after which the appliance automatically switches off: see the following table

Speed Each time the button is pressed again, it changes the air outlet speed and with it the flow (Low: Minimum speed – Mid: Middle speed – High: Maximum speed)

On/Off Each time the button is pressed again, the appliance switches on and off

Each press of a touch button corresponds to an audible warning and the switching on or off of a LED indicator above, as shown in the table above.

On the display, the first hole in the top left has no functionality.

Remote control

ON/OFF MODE TIMER SWIING SPEED

The remote control transmits commands via infrared rays: for best performance it is therefore necessary to point it in the direction of the appliance body before pressing any buttons. The buttons faithfully reproduce the touch-sensitive keypad on the body of the appliance, equally reproducing its controls and related functions.

4. COMMISSIONING AND FIRST START-UP

Some preliminary operations are necessary before first use. Proceed as follows:

• Unpack the appliance and check the conditions and completeness of the equipment, as indicated in the previous chapter.
• Keep the packaging for 15 days in case it needs to be returned to the retailer; after this period, dispose of it in accordance with the instructions on the separation of materials indicated on it.
• Read this manual in its entirety, paying particular attention to the instructions for safe use.
• Carefully remove all possible fastening materials from parts, including internal parts.
• Fully remove any stickers from the surface of the appliance.

Simple line drawing of a U-shaped container with two downward arrows indicating flow or movement (no text or symbols)

• Remove the film on the bottom part of the remote control battery compartment, pulling it outwards.
• Place the body of the appliance on a flat, stable floor, taking into consideration the safety instructions in chapter 2 above.
• Connect the power cord to an electrical outlet that is part of

a properly constructed system.

• Touch the "On/Off" button and check that the appliance is switched on.
• Check the activation of the various functions by touching the various touch buttons in sequence.
• If one or more functions do not respond as expected, contact the dealer where you purchased the appliance.

5. USING THE APPLIANCE

Using the controls described in the table in chapter 3 above, the appliance can be activated at different levels of air outlet intensity, according to different ventilation modes, using or not using the horizontal oscillation and setting an auto power-off time, the duration of which depends on the configuration of the LEDs that light up with subsequent presses of the “Timer” touch button. The following table illustrates the meaning of this:

“0.5h” LED “1h” LED “2h” LED “4h” LED Power-off time
OFF OFF	OFF OFF Auto power-off
ON	OFF OFF	OFF	30 minutes
OFF	ON	OFF	OFF	1 hour
ON	ON	OFF	OFF	1 hour and 30 minutes
OFF OFF	ON	OFF		2 hours
ON	OFF	ON	OFF	2 hours and 30 minutes
OFF	ON	ON	OFF	3 hours
ON	ON	ON	OFF	3 hours and 30 minutes
OFF OFF	OFF	ON	4 hours
ON	OFF	OFF	ON	4 hours and 30 minutes
OFF	ON	OFF	ON	5 hours
ON	ON	OFF	ON	5 hours and 30 minutes
OFF OFF	ON	ON		6 hours
ON	OFF	ON	ON	6 hours and 30 minutes
OFF	ON	ON	ON	7 hours
ON	ON	ON	ON	7 hours and 30 minutes

Auto power-off cannot be activated for a period longer than 7 hours and 30 minutes.

6. CLEANING AND MAINTENANCE

The appliance does not require maintenance, understood as the replacement of consumables or scheduled servicing; it is normally sufficient to regularly clean the surfaces. All cleaning must absolutely be carried out with the power cord disconnected and, before reconnecting, ensure that all parts are completely dry. Use a simple, strictly non-abrasive cloth and wipe gently: then dry approximately with a dry cloth. In any case, avoid the use of aggressive detergents, abrasive sponges, steel wool or other chemical cleaning agents.

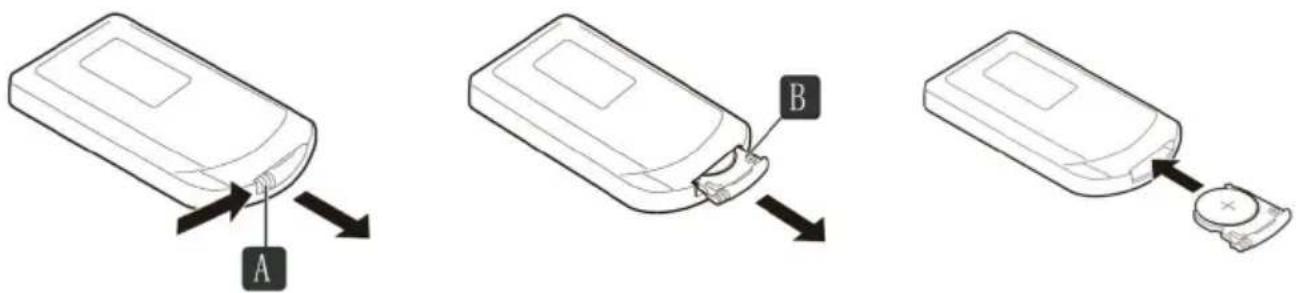

Replacing the remote control batteries:

The remote control battery must be replaced whenever it shows signs of malfunctioning or its range becomes significantly reduced; the battery used is a non-rechargeable lithium battery, type CR 2032.

Diagram showing three steps of a device with labeled parts A, B, and a battery symbol

6) Move the tab indicated by the arrow (A) towards the inside of the remote control using a sharp object.
7) Pull the battery drawer out by the notch.
8) Replace the battery observing polarity, i.e. with the positive side facing the rear of the remote control.
9) Reinsert the battery drawer, pushing it all the way into the slot.
10) Dispose of the used battery in accordance with local regulations.

7. TROUBLESHOOTING

Problem Possible cause Probable solution
The remote control commands have no effect	The remote control batteries are flat	Replace the remote control batteries as described in chap. 6
The appliance does not start	The power cord is disconnected	Connect the power cord
	The electrical outlet is not powered	Check the switches on the electrical panel

Should any malfunctions other than those listed above occur, a self-sufficient solution is not feasible and the appliance must be inspected by a qualified technician.

8. TECHNICAL DATA

Power supply voltage : 220 – 240 V AC 50 Hz

Maximum power : Up to 50 Watt

Dimensions (L x H x D) : 23.4 x 90.1 x 23.4 cm

Weight : 3.2 Kg

9. PRODUCT COMPLIANCE

The producer Melchioni Spa declares that the product Bladeless fan Mod.

MF2519BLS (cod. 118620071) is in compliance with Directive 2014/30/EU of the European Parliament and of the Council, of 26 february 2014, on the harmonisation of the laws of the Member States relating to electromagnetic compatibility.

The producer Melchioni Spa declares that the product Bladeless fan Mod.

MF2519BLS (cod. 118620071) is in compliance with Directive 2014/35/EU of the European Parliament and of the Council, of 26 february 2014, on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits.

The producer Melchioni Spa declares that the product Bladeless fan Mod.

MF2519BLS (cod. 118620071) is in compliance with Directive 2009/125/EC of the European Parliament and of the Council, of 21 october 2009, establishing a framework for the setting of ecodesign requirements for energy-related products.

The producer Melchioni Spa declares that the product Bladeless fan Mod.

MF2519BLS (cod. 118620071) is in compliance with Directive 2011/65/EU of the European Parliament and of the Council, of 8 June 2011 and subsequent Commission Delegated Directive 2015/863, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

According to Directive 2012/19/EU of the European Parliament and of the Council, of 4 July 2012, on waste electrical and electronic equipment (WEEE), the presence of the crossed-out bin symbol indicates that this appliance is not to be considered as urban waste: its disposal must therefore be carried out by separate

collection. Disposal in a non-separate manner may constitute a potential harm to the environment and health. This product can be returned to the distributor when purchasing a new device. Improper disposal of the appliance constitutes misconduct and is subject to sanctions by the Public Security Authority. For further information, contact the local administration responsible for environmental matters.

10. PRODUCT WARRANTY

Melchioni Spa, based in Milan (Italy), via Colletta 37, recognizes a conventional guarantee on the product for a period of two years from the date of the first purchase by the consumer. This guarantee does not affect the validity of the legislation in force concerning consumer goods (Legislative Decree 6 September 2005 n. 206 art. 128 and following), of which the consumer remains the owner. This guarantee applies to the entire territory of the European Union.

The components or parts that are found to be defective for ascertained manufacturing causes will be repaired or replaced free of charge through the dealer, during the above warranty period. Melchioni Spa reserves the right to make a complete replacement of the device, if repairability is impossible or excessively expensive, with another device of similar characteristics (Legislative Decree 6 September 2005 no. 206 art. 130) during the warranty period. In this case, the validity of the warranty remains that of the original purchase: the service provided under warranty does not extend the warranty period.

In any case, this appliance will not be considered defective in terms of materials or manufacture should it be adapted, changed or adjusted, in order to comply with national or local safety and / or technical standards, in force in a country other than that for which it is was originally designed and manufactured. This appliance has been designed and built for domestic use only: any other use will invalidate the benefits of the guarantee.

The warranty does not cover:

• parts subject to wear or tear, nor those parts that require periodic replacement and / or maintenance
  • professional use of the product
• malfunctions or any defects due to incorrect installation, configuration, software / BIOS / firmware update not performed by authorized Melchioni Spa
• repairs or interventions carried out by persons not authorized by Melchioni Spa
  • manipulation of assembly components or, where applicable, of the software
• defects caused by fall or transport, lightning, voltage fluctuations, liquid infiltration, opening of the appliance, bad weather, fire, public disturbances, inadequate ventilation or incorrect power supply
• any accessories, for example: boxes, bags, batteries, etc. used with this product
  • home interventions for convenience checks or presumed defects

The recognition of the guarantee by Melchioni Spa is subject to the presentation of a tax document that proves the actual date of purchase. The same must not show any tampering or deletions, in the presence of which Melchioni Spa reserves the right to refuse the provision of treatment under warranty.

The warranty will not be recognized if the serial number or model of the appliance is non-existent, abraded or modified.

This warranty does not include any right to compensation for direct or indirect damage, of any nature, to people or things, caused by any inefficiency of the appliance. Any extensions, promises or services in this regard, insured by the retailer, will be borne by the latter.
