Melchioni S.p.a., owner of the Melchioni Family brand, thanks you for purchasing this fan. It is the result of careful selection and meticulous refinement, with the aim of offering a high-performance, reliable, safe and planet-friendly household appliance.

Thanks to the efforts made and the experience gained over many years on the market, the Melchioni Family ensures satisfaction for both occasional users and the most demanding consumers.

In order to achieve the best performance available, as well as for completely safe use, we invite you to read this manual in its entirety and to apply all the requirements and indications it contains. This manual must also be kept for any necessary future consultation.

Melchioni S.p.a. is at your disposal for support during installation and use, as well as for any suggestions or recommendations.

2. IMPORTANT REQUIREMENTS FOR SAFE INSTALLATION AND USE OF THE PRODUCT

In order to minimise the risk factors associated with product installation and use, please read the following instructions carefully and observe them with the utmost diligence:

• The product is designed for household use by consumers. Compliance with the declared performance and safety requirement is not guaranteed in case of intense professional use.
• The product is not designed for operation in open industrial environments, large commercial areas, large public or community areas, basements, garages, garrets, pergolas, porches or other locations where it may be exposed to the elements.
• The product is not designed for outdoor use; if used outdoors, compliance with the safety requirement is not guaranteed and the user's safety may be at risk.
• The product must not be used by children unless they are provided with comprehensive information regarding its use and it is ascertained that said information has been properly understood.
• The product must not be made available to children even after it has been decommissioned insofar as it contains certain parts that may cause injury if used improperly.
  • The product must not be used by persons with motor or cognitive impairments unless they are properly supervised.
• Do not use the product in the presence of sources or accumulations of liquids: ensure a safe distance from containers, tanks, taps, piping, dehumidifiers, expansion or storage tanks, gutters, downpipes, filling and drain pipes, etc.
• The product must not be used if deformities, colour changes (even partial), openings in the housings, cracks, excessive heating, the emission of smoke, vapours, bad smells, intense or unusual noises are observed; in this case, discontinue use immediately and contact qualified technical personnel.
• Before installation, check that the rated voltage indicated on the rating plate attached to the appliance corresponds to the mains voltage.
• Before assembly, check that the power cord is disconnected from the mains. Never start or operate the appliance in any way until assembly and installation are complete.
• The appliance must not be installed near windows or openings where it may be exposed to the elements, nor in the vicinity of curtains, ornamental plants or other bodies that could collide with moving parts.
• The product must be placed on a horizontal, flat and stable surface, sheltered against impact, accidental or otherwise, with objects of any kind.
• The product must not be placed in the path of opening doors or windows, shutters, blinds, louvres, movable partitions or the like.
• Do not move the product while it is running.
• Do not use the product after a fall: have it checked by qualified technical personnel.
• Do not place any objects in the fan oscillation area during operation: such conduct constitutes a serious risk of injury. For the same reasons, avoid stopping fan oscillation in any way during operation; carefully and constantly check that such circumstances cannot occur accidentally.

• Do not cover the fan in any way. Do not use the grille to cover fabrics, clothes or other damp objects. Periodically check that no objects can in any way obstruct fan air circulation.

• Do not insert any objects into the grille and make sure that this cannot happen during the entire period of operation: in addition to constituting a danger of injury to surrounding persons, doing so seriously compromises the reliability of the product, causing almost certain breakdowns.

• Before cleaning, check that the appliance has been switched off for at least 15 minutes and that the power cord has been disconnected.
• Use a damp cloth to clean the product and avoid any abrasive or aggressive cleaning agents; wait for the product to fully dry before operating it again.
• Do not install or use the appliance under direct sunlight or within the range of other ventilation devices, in environments that are particularly humid and/or saturated with gas, vapours or other suspended substances, in the vicinity of open flames and/or flammable, combustible or explosive substances.
• Do not use in the vicinity of open flames, such as burners, fireplaces, pellet stoves, gas cookers and the like, especially if extinguishing such flames would result in gas leakage.
• Do not use the product to extinguish flames.
• Ensure the appliance is connected to a compliant, state-of-the-art installation fitted with a residual current device and thermal magnetic circuit breaker.
• Do not connect the appliance to devices that may cause it to start unsupervised, such as timers, remote controls or automatisms.
• Once unpacked, do not leave the relative materials unsupervised, in particular the plastic bags, as these may be a source of danger for children or persons with motor and cognitive impairments.
• There is no reason to disassemble the appliance, even after its decommissioning. At the end of its service life, it must be sent for recycling according to the legal requirements in force and described in detail in the next chapter.
• Do not modify the appliance for any reason whatsoever: no improvements in performance can be gained by tampering with its parts. Any modifications shall invalidate the legal guarantee and compliance with the safety requirement, with foreseeable risks for the user.
• Do not remove or tamper with the safety devices fitted to the product.
• Do not disconnect the product from the mains by pulling on the cord; rather, firmly grasp and extract the plug with a quick and decisive movement.
• Never submerge any part of the appliance in water or other liquids: do not spray any substances in the vicinity of the appliance or directly thereon, especially if operating.
• Slight smoking or a burning smell during the initial moments of the first start-up is normal and does not constitute a defect: this emission should cease after a few minutes of operation.
• Periodically check the wear of the various parts of the appliance. If damage or defects are found, do not use it and contact qualified personnel. Pay particular attention to the wear of the power cord.
• In anticipation of long periods of non-use of the appliance, it should be disconnected from the mains and not simply switched off by means of the relative control.
• Wait until the blade has exhausted its rotation due to inertia before restarting the appliance following a stop.
• During use, it is not advisable to stand close to the appliance for a long time, especially in the direction of the flow: this circumstance impacts user health and well-being at a multi-system level.
• Use the appliance only for the intended purposes as illustrated in this instruction manual.

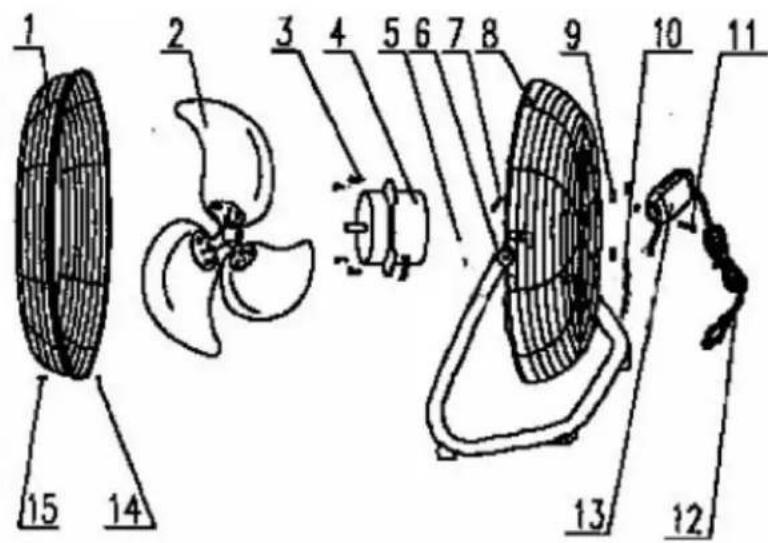

3. IDENTIFICATION OF PARTS

Check that all the items shown in the picture are present in the packaging: if any items are found to be missing or damaged, do not proceed with assembly or commissioning in any way and contact your dealer to have the original equipment restored.

Technical diagram of a fan with numbered parts, including blades and internal components

1	Front shield
2	Blade
3	Motor screws
4	Motor
5	Earth screw
6	Base joint
7	Grille closing clips
8	Rear shield
9	Motor screws
10	Base
11	Keypad screws
12	Power cord
13	Keypad
14	Securing nut
15	Securing screw

4. ASSEMBLY AND COMMISSIONING

The appliance is supplied with the motor and keypad already installed on the rear shield (8). Therefore, only the blade, front shield and base need to be installed.

K) Insert the blade (2) in the motor shaft (4), aligning the hole with the screw with the flat part of the shaft.

L) Fully tighten the blade screw on the shaft.

M) Place the front shield (1) on the rear shield (8), aligning the holes of the securing screw found at the bottom end of the perimeter.

N) Insert the securing screw (5) in the hole and fully tighten it with the relative nut.

O) Secure the base by matching the ends with the holes on the side of the shield (1), making sure the horizontal part is facing the back of the appliance.

P) Insert and fully tighten the side screws of the base.

Q) Place the appliance on a flat and stable surface, then connect the plug to a socket with the proper voltage.

R) Start the appliance at medium speed by pressing the dark grey key on the keypad.

S) Run for a few minutes to check that it is in proper working order.

T) Turn the appliance off by pressing the white button on the keypad.

5. USE

The rear selector switch behind the shield activates blade rotation and therefore ventilation, the speed of which depends on the start button pressed:

• Black button: maximum speed
• Dark grey button: medium speed
• Light grey button: minimum speed
• White button: stop rotation

The flow angle can be directed vertically by gently guiding the grille in the desired direction: if the base screws are properly tightened, the grille can be easily adjusted and will automatically hold the selected position. Avoid using excessive force to adjust the grille to prevent the appliance from tipping over; for the same reason, do not push the grille beyond the mechanical limit allowed by the base. The grille should be adjusted with rotation stopped.

6. CARE AND MAINTENANCE

The product does not require any maintenance. Use a damp cloth for cleaning. Do not use any aggressive or abrasive cleaning agents. It is imperative to disconnect the blade from the mains before cleaning. Do not use compressed air to clean the blade, and in any case never try to help the blade rotate other than normal use of the appliance. A long, soft bristle brush can be used to remove any dust deposits. Wait until it is completely dry before reconnecting the appliance to the mains.

7. TROUBLESHOOTING

In the event that the appliance exhibits abnormal operating conditions other than that stated in Chapter 2 above, it is advisable to consult the following table for simple troubleshooting.

Problem	Possible cause	Probable solution
The fan does not start.	The electrical plug is disconnected from the mains.	Plug the electrical plug into a normal 10 A household socket.
	The electrical socket to which the fan is connected does not supply electricity.	Check the efficiency of the socket by connecting another appliance that is definitely working. If necessary, contact an electrician.
Fan is particularly noisy.	Parts are not fully assembled.	Review the assembly process, tightening screws and bolts more fully.

If the product shows malfunctions or anomalies other than those indicated, it is highly probable that the problem cannot be solved independently. In this case, consult qualified technical personnel.

8. TECHNICAL DATA

Power supply voltage : 230 VAC 50 Hz (+ - 10%)

Motor power : 80 Watts

Dimensions : 50.7x54.3x18.7cm

Tilt range : Approx. 120°

Cable length : 154 cm

9. CONFORMITY OF THE PRODUCT

The producer Melchioni Spa declares that the product Industrial floor fan Mod. MF 2445IND (cod. [118620062) is in compliance with Directive 2014/30/EU of the European Parliament and of the Council, of 26 february 2014, on the harmonisation of the laws of the Member States relating to electromagnetic compatibility.

The producer Melchioni Spa declares that the product Industrial floor fan Mod. MF 2445IND (cod. [118620062) is in compliance with Directive 2014/35/EU of the European Parliament and of the Council, of 26 february 2014, on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits.

The producer Melchioni Spa declares that the product Industrial floor fan Mod. MF 2445IND (cod. [118620062) is in compliance with Directive 2009/125/EC of the European Parliament and of the Council, of 21 october 2009, establishing a framework for the setting of ecodesign requirements for energy-related products.

The producer Melchioni Spa declares that the product Industrial floor fan Mod. MF 2445IND (cod. [118620062) is in compliance with Directive 2011/65/EU of the European Parliament and of the Council, of 8 june 2011 and subsequent Commission Delegated Directive 2015/863, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

According to Directive 2012/19/EU of the European Parliament and of the Council, of 4 July 2012, on waste electrical and electronic equipment (WEEE), the presence of the crossed-out bin symbol indicates that this appliance is not to be considered as urban waste: its disposal must therefore be carried out by separate

collection. Disposal in a non-separate manner may constitute a potential harm to the environment and health. This product can be returned to the distributor when purchasing a new device. Improper disposal of the appliance constitutes misconduct and is subject to sanctions by the Public Security Authority. For further information, contact the local administration responsible for environmental matters.

10. GUARANTEE

Melchioni Spa, based in Milan (Italy), via Colletta 37, recognizes a conventional guarantee on the product for a period of two years from the date of the first purchase by the consumer. This guarantee does not affect the validity of the legislation in force concerning consumer goods (Legislative Decree 6 September 2005 n. 206 art. 128 and following), of which the consumer remains the owner. This guarantee applies to the entire territory of the European Union.

The components or parts that are found to be defective for ascertained manufacturing causes will be repaired or replaced free of charge through the dealer, during the above warranty period. Melchioni Spa reserves the right to make a complete replacement of the device, if repairability is impossible or excessively expensive, with another device of similar characteristics (Legislative Decree 6 September 2005 no. 206 art. 130) during the warranty period. In this case, the validity of the warranty remains that of the original purchase: the service provided under warranty does not extend the warranty period.

In any case, this appliance will not be considered defective in terms of materials or manufacture should it be adapted, changed or adjusted, in order to comply with national or local safety and / or technical standards, in force in a country other than the one for which it is was originally designed and manufactured. This appliance has been designed and built for domestic use only: any other use will invalidate the benefits of the guarantee.

The warranty does not cover:

• parts subject to wear or tear, nor those parts that require periodic replacement and / or maintenance
  • professional use of the product
• malfunctions or any defects due to incorrect installation, configuration, software / BIOS / firmware update not performed by authorized Melchioni Spa
  • repairs or interventions carried out by persons not authorized by Melchioni Spa
• manipulation of assembly components or, where applicable, of the software
• defects caused by falls or transport, lightning strikes, power surges, liquid infiltrations, opening of the appliance, bad weather, fire, public disturbances, inadequate ventilation or incorrect power supply
• any accessories, for example: boxes, bags, batteries, etc. used with this product
  • home interventions for convenience checks or presumed defects

The recognition of the guarantee by Melchioni Spa is subject to the presentation of a tax document that proves the actual date of purchase. The same must not show any tampering or deletions, in the presence of which Melchioni Spa reserves the right to refuse the provision of treatment under warranty.

The warranty will not be recognized if the serial number or model of the appliance is non-existent, abraded or modified. This warranty does not include any right to compensation for direct or

indirect damage, of any nature, to people or things, caused by any inefficiency of the appliance. Any extensions, promises or services in this regard, insured by the retailer, will be borne by the latter.
