USER MANUAL Dark Heat FH-200.015A Haeger

QR code image containing encoded data, no visible human-readable text

Download Multi-language file

Fan Heater / Termoventilador Calefactor / Chauffage soufflant Αερόθερμο

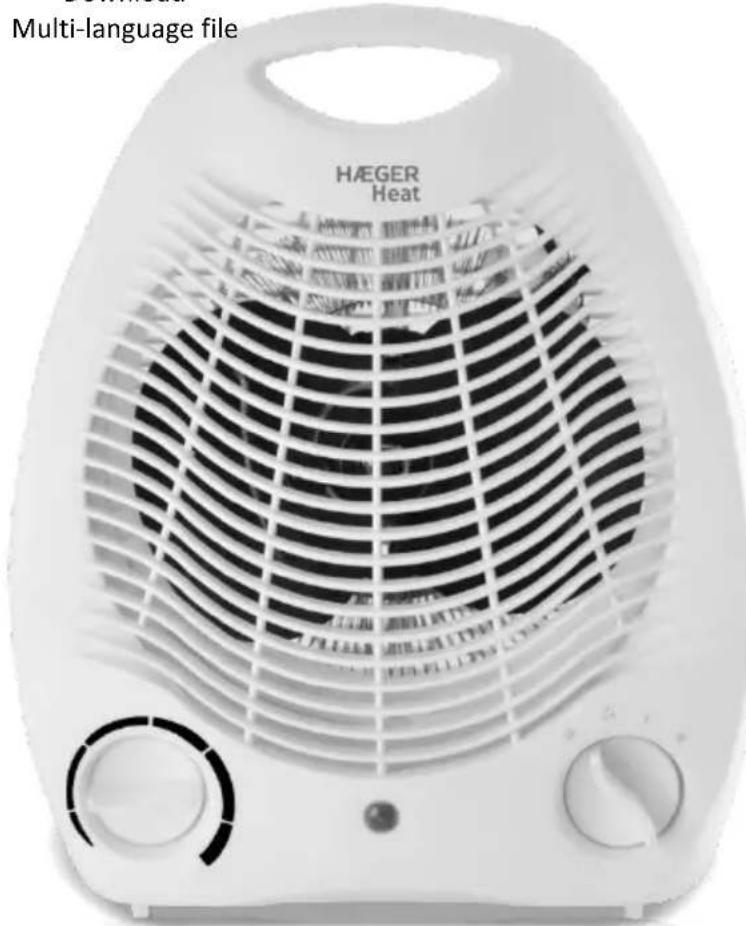

Heat * FH-200.006A

QR code image containing encoded data, no visible human-readable text

Download Multi-language file

Multi-language file HÄEGER Heat

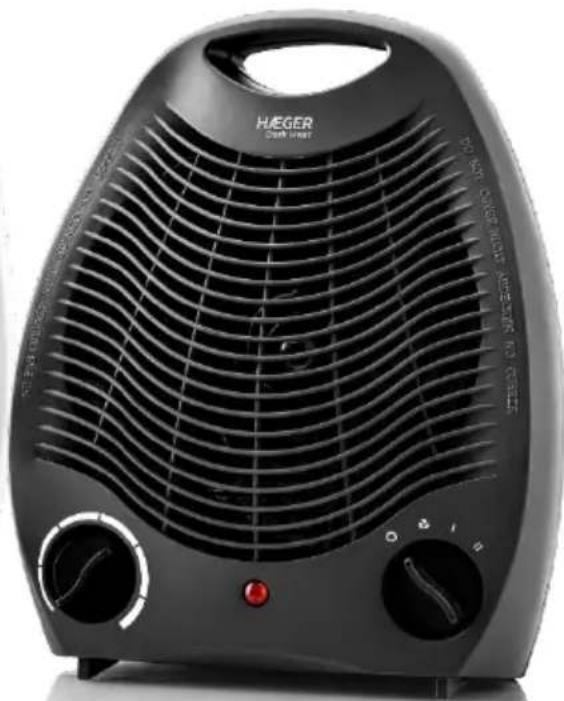

Dark Heat * FH-200.015A

Black HIEGER Dark Heat heater with wavy grille and control buttons (no visible text or symbols on body)

This product is only suitable for well insulated spaces or occasional use.

Este produto é adequado apenas para espaços bem isolados ou utilização ocasional. Este producto está indicado únicamente en lugares abrigados o para una utilización puntual. Ce produit ne peut être utilisé que dans des locaux bien isolés ou de manière occasionnelle. Autó to προϊόν είναι κατάλληλο μόνο για καλά μονωμένους χώρους ή περιστασιακή χρήση.

CE

User instructions / Instruções de uso / Instrucciones de uso Mode d'emploi / Οδηγίες χρήστη

HAEGER Heat 1 2 3 4

WARNING: DO NOT COVER

ATENÇÃO: NÃO COBRIR

ADVERTENCIA: NO CUBRIR

AVERTISSEMENT: NE PAS COUVRIR

Thank you for having chosen a HÆGER product.

The HÆGER products have been produced to think about the welfare of the consumer privileging the most raised standards of quality, functionality and assign. We are sure you will be happy with this appliance.

We assume that the user is familiar with the common procedures of handling household appliances.

Before using the appliance for the first time please read carefully and thoroughly through these operating instructions and the safety advice, completely familiarising yourself with the appliance. Retain these instructions for future reference and pass them on to whoever might acquire the appliance at a future date.

Important Safety Instructions

Please keep this instruction manual in a safe place, along with the warranty card, purchase receipt and carton for future reference. The safety precautions enclosed here in reduce the risk of fire, electric shock and injury when correctly adhered to.

• The input voltage of this product is 220-240V\~, 50-60Hz. Before turning on, ensure the electrical voltage and frequency of the circuit corresponds to those indicated on the appliance.
• Do not place the appliance on window sills, sink drainboards, unstable surfaces, on electric or gas stoves, or in their vicinity. Only place the appliance on a stable, even, dry surface.
• Do not use the appliance near flammable materials such as curtains, kitchen towels, etc.
• Do not use the appliance in rooms less than 4m^2 in area.

Surface are liable to get hot during use.

• When the appliance is in operation, the temperature of accessible surfaces may be higher. Do not touch the hot surface, otherwise, this could cause burns.
• A fire may occur if the appliance is covered or touches flammable material, including curtains, walls and the like, when in operation. Do not store any items on top of the appliance during operation.

• Always switch off the appliance and remove the plug from the electrical outlet when leaving it unattended or when not in use. Let the appliance cool down before moving or cleaning it.

• To protect against electrical shock, do not submerge the appliance in water or in any other liquid.

• Do not place heavy items on the power cord. Make sure that the power cord does not hang over the edge of a table or that it is not touching a hot surface.
• Power plug must be removed from power socket before cleaning, servicing, maintenance or moving the appliance. When it is not in use, unplug it.
• Disconnect the appliance from the power socket by gently pulling the plug of the power cord, and not the power cord itself. Otherwise, this could damage the power cord or the socket.
• The unit has no user-serviceable parts contained within. Do not attempt to repair, disassemble or modify the appliance.
• In the event that the power cord is damaged, it must be replaced with an original power cord that is available at an authorised service centre. It is forbidden to use the appliance if it has a damaged power cord.
• To avoid the danger of injury by electrical shock, do not repair the appliance yourself or make any adjustments to it. All repairs must be performed at an authorised service centre. By tampering with the appliance, you risk voiding your legal rights arising from unsatisfactory performance or quality warranty.
• Improper installation may result in the risk of fire, electric shock and or injury to persons.
• The manufacturer/distributor is not responsible for any eventual damages caused by improper or faulty use.

Caution!

Do not use the appliance near showers, bath tubs, wash basins, swimming pools, etc.

Do not cover the appliance while it is functioning to avoid overheating with the attendant risk of fire.

WARNING: Do not use the appliance with a programmer, timer, separate remote-control system, or any other device that turns the heater on automatically, as there is a risk of fire if the heater is covered or not positioned correctly.

WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

• Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
• This appliance shall not be used by children from 0 year to 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years.
• Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.
• Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
• CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

SAVE THESE INSTRUCTIONS FOR HOUSEHOLD USE ONLY

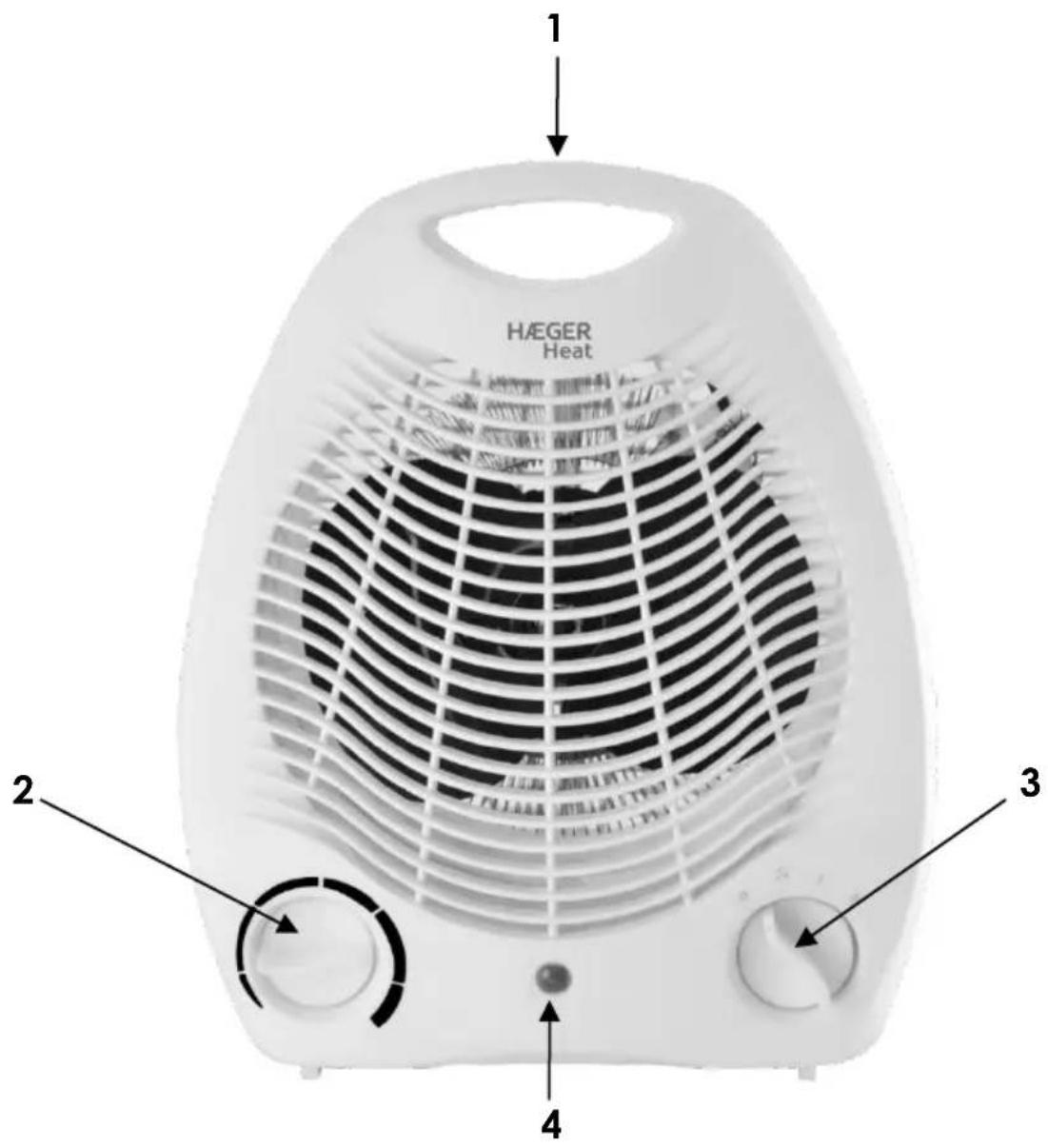

Description of the appliance

1 - Handle	2 - Thermostat knob
3 - Function button	4 - Control light

Operating the appliance

Installation

The appliance requires no installation; it should be used solely as a portable appliance.

Portable appliances are not suitable for use in a bathroom.

Before plugging in the heater, check that the voltage of your domestic supply corresponds to the voltage indicated on the appliance. Check that the electrical socket has a rating of 10/16 Amps.

Function Switch

$$ \mathbf {0} = \text { OFF } $$

$$ 氵 = \text { Only ventilation } $$

I = Heating at reduced power (1000 W)

II = Heating at full power (2000 W)

Operation

1. Plug the appliance into the mains.
2. Turn the thermostat knob (2) clockwise to its maximum position (MAX).
3. Select the desired power with the function switch (3).
4. When the room reaches the desired temperature, turn the thermostat knob (2) anticlockwise until the control light (4) switches off which indicates that the thermostat has been disconnected.
5. Leave it in that position and the thermostat will maintain the selected temperature with the consequent energy saving.
6. When the heater is not in use, turn the function switch to the off position and the thermostat to the minimum position and unplug the appliance.

Only ventilation

If you would like to use the device as a ventilator, move the function switch to the ventilator symbol and turn the temperature control to the highest position.

Cleaning and Maintenance

• Before cleaning always remove the plug from the electrical socket.
• Leave cool down the warm parts and clean with a soft dry cloth.
• Clean the air inlet / outlet grilles frequently.
• Never use chemical or abrasives, metal scourers, which may deteriorate the surfaces of the appliance.

Technical Data

Fan Heater	FH-200.006A / FH-200.015A
Rated voltage, Frequency	220-240V~, 50/60Hz
No. of heating stages	2 (1000W+1000W)
Heat output	2000W
Product type	Portable
Thermostat type	Mechanical
Type of control	Mechanical switch
Protection class	Class II

Conformity CE

This product has been tested and produced according to all relevant current CE guidelines, such as:

• Electromagnetic compatibility Directive 2014/30/EU,
• Low voltage Directive (LVD) Directive 2014/35/EU,
• RoHS with its amendments Directive EU 2015/863,

and has been constructed in accordance with the latest safety regulations.

The CE mark attests this product with all relevant directives.

Disposal – Environment policy

Packing

The packaging material is entirely recyclable and marked with the recycling symbol. Follow local regulations for scrapping. Keep the packaging materials (plastic bags, polystyrene parts, etc.) out of reach of children, as they are potentially dangerous.

Disposal

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

This symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead, it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Warranty

Warranty Terms and Conditions

1. The product is guaranteed for the period stipulated by the legislation where it is placed on the market, starting from the date of purchase, against manufacturing defects and/or workmanship. The lack of conformity manifested in this period is presumed to exist at the date of purchase. After this period, it is for the customer to prove that the lack of conformity already existed at the time of delivery.
2. If, during the warranty period, the product is defective in normal use, the buyer should contact the selling establishment and send the appliance to the place indicated by the seller.
3. The warranty is only valid upon presentation of the invoice proving the purchase and the completed warranty certificate (indicating the date of purchase, the name of the dealer, the reference of the model, and it is also recommended to indicate the serial number and lot number).
4. The importer/seller reserves the right to refuse warranty assistance in the event that such information has been deleted or altered after the original purchase of the product.
5. The responsibility of the importer/seller includes in particular the costs of repairing and/or replacing the unit covered by the warranty with the reservation of the right to replace it with an equivalent product, in cases where it is not possible to repair it.
6. The warranty does not apply to problems that are not directly related to defects in material, design or workmanship.
7. This product is an appliance and is intended for home use only. The warranty will be void if the product is used for professional purposes.
8. The warranty does not cover damage caused by misuse, improper installation, spillage, external factors, or intentional damage.
9. The warranty does not cover damage resulting from falls, use of excessive force, blows, exposure to extreme environmental conditions or deterioration caused by the normal use of plastic parts or keyboards, as well as the use of batteries other than those specified in this manual.
10. The warranty does not cover installation and programming by the dealer. In particular, no claim for installation and free programming by the reseller may be accepted.
11. The warranty does not cover deficiencies that insignificantly impair the operation of the appliance. Other costs, such as installation, transportation and travel of the technician are expressly excluded from the warranty.
12. The applicability of the warranty presupposes that the appliance is sent to the seller or place indicated by him, complete and in well-protected packaging (if possible, in its original packaging) and accompanied by its sheet or warranty card duly filled out and proof of purchase.
13. If after verification, it is found that there are no reasons for the claim, or that the product is not defective, the inherent costs will be imputed to the customer, and the dealer is authorized to charge those costs to the customer.
14. The warranty will be void when it shows signs that an unauthorized person has attempted to carry out repairs, modifications or replacement of parts on the appliance.
15. Repairs carried out after the end of the warranty period are subject to costs.

16. This warranty does not affect your legal rights that you may have as a consumer under applicable national law governing the purchase of products where the product is sold.

17. Warranty Period:

European Union countries - European Directives (EU) 2019/771 and (EU) 2019/770 apply on certain aspects of contracts for the purchase and sale of movable property and transposed into the national laws of their countries.

Other countries - national legislation on consumer rights in their country applies. In the case of no official legislation, the guarantee shall be applied at the discretion of the importer placing the product on the market or the seller establishment.

Português

Estimado Cliente

Information requirement for the electric local space heaters

Model identifier(s): FH-200.006A / FH-200.015A
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only
Nominal heat output	Pnom	2.0	kW	manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	Pmin	1.0	kW	manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c	2.0	kW	electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				fan assisted heat output	No
At nominal heat output	elmax	0,000	kW	Type of heat output/room temperature control
At minimum heat output	elmin	0,000	kW	single stage heat output and no room temperature control	No
In standby mode	eISB	0,000	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	Yes
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	HAEGERTEC, s.a.Praceta Cidade de Londres, 1 - Parque Industrial do Arneiro, 2660-456 S. Julião do Tojal - PORTUGAL
