Doce Plus HB-400.012A - Hand blender Haeger - Free user manual and instructions

Brand	Haeger
Model	Doce Plus HB-400.012A
Product type	Immersion blender
Power supply	220-240 V ~ 50/60 Hz
Power	400 W
Max. operating time	1 minute
Min. resting time	1 minute
Package contents	Motor unit, blender shaft, bowl with lid, chopper, whisk
Functions	Blending, chopping, whisking
Speeds	I (normal), TURBO
Safety	Very sharp blades, do not immerse the motor unit, unplug before cleaning
Cleaning	Motor unit: damp cloth; other parts: running water
Warranty	24 months (EU)
Standards	CE, electromagnetic compatibility, low voltage, RoHS

Frequently Asked Questions - Doce Plus HB-400.012A Haeger

How to use the immersion blender?

Attach the blending shaft to the motor unit until it is firmly in place. Place the food in a container, then press the control button I or TURBO. Gently move the shaft up and down and in a circular motion to blend well.

How to attach the blender shaft?

Insert the blending shaft into the motor unit and turn until it clicks. To remove it, unplug the appliance, then press the eject button.

Can I blend hot foods?

Yes, the blender can be used to blend hot soups, but be careful of splashes. Let cool slightly if necessary and use a tall container.

How to clean the motor unit?

Never immerse the motor unit in water. Clean it with a well-wrung cloth. For stubborn stains, use a mild cleaning product.

Are the blades removable?

The blades of the immersion blender are fixed on the shaft. For the chopper, the blade is removable and very sharp: handle it with care when cleaning.

Can I use the blender continuously?

No, the continuous operating time must not exceed 1 minute. Let the appliance cool down for at least 1 minute before using it again.

What to do if the appliance does not work?

Check that the plug is properly inserted into a working power outlet. If the problem persists, contact after-sales service. Do not repair yourself.

How to use the chopper?

Insert the blade into the chopper bowl, add ingredients, close the lid, attach the motor unit and press I or TURBO. Let it cool after use.

Can I use the whisk to beat eggs?

Yes, the whisk is designed for whipping cream, egg whites, etc. Use a large deep bowl and fully immerse the whisk in the ingredients.

What is the warranty?

This product is covered by a 24-month warranty from the date of purchase, valid in the European Union. It covers manufacturing defects.

USER MANUAL Doce Plus HB-400.012A Haeger

Illustration of a hand using a pipette to test liquid in a beaker (no text or symbols)

Illustration of hands using a tool to interact with a rotating device in a beaker (no text or symbols)

Dear customer

Thank you for having chosen a HÆGER product.

The HÆGER products have been produced to think about the welfare of the consumer privileging the most raised standards of quality, functionality and assign. We are sure you will be happy with this appliance.

We assume that the user is familiar with the common procedures of handling household appliances.

Before using the appliance for the first time please read carefully and thoroughly through these operating instructions and the safety advice, completely familiarising yourself with the appliance. Retain these instructions for future reference and pass them on to whoever might acquire the appliance at a future date.

Intended use

This hand blender set is intended exclusively for process sing foodstuffs in small quantities. It is intended for domestic use only. This hand blender is not intended for commercial use.

General Safety Instructions

To reduce the risk of fire, electrical shock, or injury when using your appliance, follows these basic precautions:

WARNING:

Do not touch the plug at the mains cable with wet or moist hands when connecting or disconnecting. Risk of death by electric shock!

• The blades are very sharp! Handle with care.
• In case of emergency, unplug the device immediately.
• Hold the plug when disconnecting the mains cable; do not pull the cable.

- Disconnect the plug before cleaning or servicing.

- Regularly check the device and cable for signs of damage. Do not continue to operate the device in case of damage.

- A damaged mains cable must be replaced by the manufacturer or a technician and without any delay. Do not use the device with a damaged cable or plug.

• Do not repair the device by yourself. Please contact authorized personnel. In order to avoid hazards a damaged mains cable must be replaced with an equivalent cable by the manufacturer or qualified specialist.
• Except for cleaning and maintenance work described in this manual, no other alterations of this device must be executed.
• Do not operate the device with an external timer or separate remote control system.

CUATION!

In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Do not allow small children to play with the foil as there is a danger of suffocation!

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• The packaging must be undamaged. Check the device for any possible transport damage. Do not install a damaged device. In case of damage, please contact your distributor.
• The appliance is constructed to process normal household quantities.

Overview of the components

A. Switch (1) Normal Speed
C. Motor unit
E. Cup with lid
G. Whisk

B. Switch Turbo Speed
D. Release button
F. S/S Hand blender
H. Chopper

Putting into Service

Electrical Connection

1. Connect the device to a duly installed 230V/50Hz protective contact socket.
2. Before inserting the plug into the socket, make sure that the mains voltage to be used matches that of the device. You can find this information on the nameplate.

2 Instructions for use

How to use the hand blender

The hand blender is perfectly suited for preparing dips, sauces, soups, mayonnaise and baby food as well as for mixing and milkshakes.

1. Press the blender stick on the motor unit until it locks.
2. Immerse the blade guard completely in the ingredients. Then press the switch (I) or switch (TURBO).
3. Move the appliance slowly up and down and in circles to blend the ingredient.
4. Unplug then press the ejection button to remove blender stick after use.

You can use the hand blender in the measuring beaker and just as well in any other vessel.

Important: Short-time operating. Use the appliance for no longer than 1 minutes and leave it cool down for at least 1 minute before using again.

Chopper

The chopper is intended for chopping ingredients such as nuts, meat, onions, hard cheese, boiled eggs, garlic, herbs, dry bread etc.

The blades are very sharp! So be very careful when handling the blade unit. Be especially careful when you remove the blade unit from the chopper bowl, when you empty the chopper bowl and during cleaning.

Diagram of a mechanical device with a lever and base, showing internal components (no text or symbols)

Illustration of a kitchen mixer with a lid and dropping funnel into a glass container filled with food (no text or symbols)

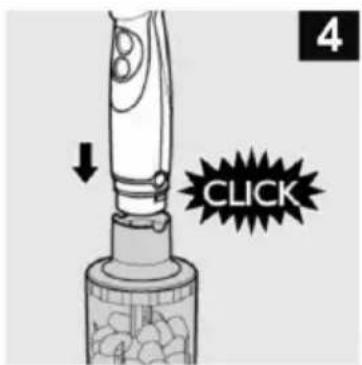

4 CLICK

1. Put the chopper blade unit in the chopper bowl.
2. Put the ingredients in the chopper bowl.
3. Put the coupling unit onto the chopper bowl.

4. Fasten the motor unit onto the chopper bowl.

5. Pressing the normal or turbo speed button to switch the appliance.

If the ingredients stick to the wall of the chopper bowl, loosen them by adding liquid or using a spatula. Always let the appliance cool down after chopping meat.

Whisk

The whisk is intended for whipping cream, whisking egg whites, desserts etc.

Illustration showing three-step cleaning procedure: brush drop, brush press with click button, and liquid brush with rotation arrow.

1. Connect the whisk to the coupling unit.

2. Connect the coupling unit to the motor unit.

3. Put the ingredients in a bowl (Use a large and deep bowl for best result).

4. Immerse the whisk completely in the ingredients. To avoid splashing, start processing at normal speed.

Cleaning

Risk of electric shock!

Before you clean the hand blender, unplug the appliance from the power socket. Under no circum stances may the motor unit 3 be cleaned by immersing it in water or holding it under running water.

- Clean the motor unit, the hand blender, with a moist cloth.

• After processing very salty food, you should rinse the blades right away.

- Ensure that water cannot permeate through the openings of the hand mixer. For stubborn soiling use a mild detergent on the cloth.

- Clean the rest of the attachment components under running water and dry them off well with a dish towel.

Technical Data

Model No	HB-400.012A	Insulation
Voltage	AC 220-240V~
Frequency	50/60Hz	Continuous working time	≤slant 1 min
Power	400W	Intermission time	≥slant 1 min

4 Instructions for use

Conformity CE

This product has been tested and produced according to all relevant current CE guidelines, such as:

• electromagnetic compatibility Directive 2014/30/EU,
• Low voltage Directive (LVD) Directive 2014/35/EU,
• RoHS with its amendments Directive 2011/65/EU,

and has been constructed in accordance with the latest safety regulations.

The CE mark attests this product with all relevant directives.

Environment

Please consider our environment

Do not dispose of the appliance in your normal domestic waste. This product is subject to the European guideline 2002/96/EC.

Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Dispose of all packaging materials in an environmentally responsible manner.

When you wish to dispose of the appliance, remove the cable and dispose it in an environmentally friendly way (e.g. recycling plant).

Guarantee

This unit is covered by a 24 months (*) warranty, from the purchase date, and covers the repair free of charges of the damaged due to the manufacturer fault or defected components. The distributor reserves the right to change the unit for an equivalent model.

The warranty does not cover any damaged caused by incorrect use, lightning, incorrect installation, external factors or any intentional damaged. The warranty does not cover damage thus attributable to falls, blows, spill, exposure to extreme environmental conditions or deterioration caused by normal use of plastic parts or keyboards, as well as by the use of batteries other than those specified in this manual.

For the repairing, during the warranty period, the unit shall be sent to the distributor or reseller, or to the address indicated by them, and must be jointed the warranty certificated and the respective original invoice or selling ticket, where the buying date is expressed indicated.

The consumer is protected by the guarantee provided by Directive 1999/44/CE of European Parliament and Council of 25 May.

(*) Only for European Union countries

Estimado Cliente

Diagram of a mechanical device with a lever and base, showing internal components (no text or symbols)

Diagram showing a mechanical component being inserted into a container with granular material (no text or symbols)

4 CLICK

Illustration showing three-step cleaning procedure: brush drop, brush press with click button, and brush tip with rotation arrow.

Diagram of a mechanical device with a lever and base, showing internal components (no text or symbols)

Diagram showing a container with granular material being inserted into a lid, labeled with number 3 (no text or symbols on the diagram itself)

4 CLICK

Illustration showing four steps of a brush tool application: adding a brush, clicking a button, and pouring liquid into a container.

Diagram of a mechanical device with a lever and base, showing internal components (no text or symbols)

Diagram showing a kitchen mixer with a lid and dropping into a container filled with food (no text or symbols)

4 CLICK

Illustration showing three-step cleaning procedure: brush drop, brush press with click button, and brush tip with rotation arrow.
