USER MANUAL XF 16mm f/2.8 R WR FUJIFILM

XF50mmF2 R WR / XF16mmF2.8 R WR

Technical diagram of a camera lens assembly with numbered parts for identification

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or movement.

レンズフードの取り付け方

XF16mmF2.8 R WR

日本語

絞りリング

Be sure to read these notes before use

Safety Notes

Thank you for your purchase of this product. For repair, inspection, and internal testing, contact your Fujifi lm dealer.

• Make sure that you use the lens correctly. Read these safety notes and the camera Owner's Manual carefully before use.
• After reading these safety notes, store them in a safe place.

About the Icons

The icons shown below are used in this document to indicate the severity of the injury or damage that can result if the formation indicated by the icon is ignored and the product is used incorrectly as a result.

WARNING	This icon indicates that death or serious injury can result if the information is ignored.
CAUTION	This icon indicates that personal injury or material damage can result if the information is ignored.

The icons shown below are used to indicate the nature of the instructions which are to be observed.

	Triangular icons tell you that this information requires attention ("Important").
	Circular icons with a diagonal bar tell you that the action indicated is prohibited ("Prohibited").
	Filled circles with an exclamation mark indicate an action t be performed ("Required").

WARNING
Do not use in the bathroom or shower	Do not immerse in or expose to water.Failure to observe this precaution can cause a fi re or electric shock.
Do not disassemble	Do not disassemble (do not open the case).Failure to observe this precaution can cause fi re, electric shock, or injury due to product malfunction.
Do not touch internal parts must	Should the case break open as the result of a fall or other accident, do not touch the exposed parts.Failure to observe this precaution could result in electric shock or in injury from touching the damaged parts.Remove the camera battery immediately, taking care to avoid injury or electric shock, and take the product to the point of purchase for consultation.
	Do not place on unstable surfaces. The product may fall, causing injury.
	Do not view the sun through the lens or camera view fi ndFailure to observe this precaution can cause permanent visual impairment.
	Do not use or store in locations that are exposed to steam, or smoke or are very humid or extremely dusty. Failure to observe this precaution can cause fi re or electric shock.
	Do not leave in direct sunlight or in locations subject to very high temperatures, such as in a closed vehicle on a sunny day.Failure to observe this precaution can cause fi re.

	CAUTION
	Keep out of the reach of small children. This product could cause injury in the hands of a child.
	Do not handle with wet hands.Failure to observe this precaution can cause electric shock.
	Keep the sun out of the frame when shooting backlit subjects.Sunlight focused into the camera when the sun is in or close to the frame can cause fire or burns.
	When the product is not in use, replace the lens caps and store out of direct sunlight. Sunlight focused by the lens can cause fire or burns.
	Do not carry the camera or lens while they are attached to a tripod. The product can fall or strike other objects, causing injury.

	CAUTION
	Keep out of the reach of small children. This product could cause injury in the hands of a child.
	Do not handle with wet hands.Failure to observe this precaution can cause electric shock.
	Keep the sun out of the frame when shooting backlit subjects.Sunlight focused into the camera when the sun is in or close to the frame can cause fire or burns.
	When the product is not in use, replace the lens caps and store out of direct sunlight. Sunlight focused by the lens can cause fire or burns.
	Do not carry the camera or lens while they are attached to a tripod. The product can fall or strike other objects, causing injury.

For Customers in the U.S.A.

Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• You are cautioned that any changes or modifications not expressly approved in this manual could void the user's authority to operate the equipment.

Notes on the Grant: To comply with Part 15 of the FCC Rules, this product must be used with a Fujifi Im-specific ed ferrite-core A/V cable, USB cable, and DC supply cord.

For Customers in Canada

CAN ICES-3 (B)/NMB-3(B)

CAUTION: This Class B digital apparatus complies with Canadian ICES-003.

IMPORTANT SAFETY INSTRUCTIONS

• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water (excluding waterproof products).
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as ra-

diators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personal. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Disposal of Electrical and Electronic Equipment in Private Households

In the European Union, Norway, Iceland and Liechtenstein: This symbol on the product, or in the manual and in the warranty, and/or on its packaging indicates that this product shall not be treated as household waste. Instead it should be taken to an applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The recycling of materials will help to conserve natural resources. For more detailed information about recycling this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

In Countries Outside the European Union, Norway, Iceland and Liechtenstein: If you wish to discard this product, including the batteries or accumulators, please contact your local authorities and ask for the correct way of disposal.

Australian RCM

Before Using This Product

The lens may not perform as expected and some features may not be available with older versions of the camera fi rmware. Be sure to update the camera fi rmware to the latest version. Instructions on viewing the camera fi rmware version and updating camera fi rmware are available from the following website:

http://www.fujifilm.com/support/digital_cameras/software/#firmware

If you do not have access to a computer, support is available from the local distributor listed in the "FUJIFILM Worldwide Network" material provided with your camera.

Product Care

• When using a lens hood, do not pick up or hold the camera using only the hood.

• Keep the lens signal contacts clean.

• Use a blower to remove dust and lint from the glass surfaces of the lens or fi lter. To remove smudges and fi ingerprints, apply a small amount of lens cleaner to a soft, clean cotton cloth or lens-cleaning tissue and clean from the center outwards using a circular motion, taking care not to leave smears or touch the glass with your fi ngers.

• Never use organic solvents such as paint thinner or benzene to clean the lens.
• Attach the front and rear caps when the lens is not in use.
• Store the lens and filter in cool, dry locations to prevent mold and rust. Do not store in direct sunlight or with naphtha or camphc moth balls.
• Keep the lens dry. Rusting can cause irreparable damage. Wipe off rain and water droplets.
  • Leaving the lens in extremely hot locations could cause damage or warping.

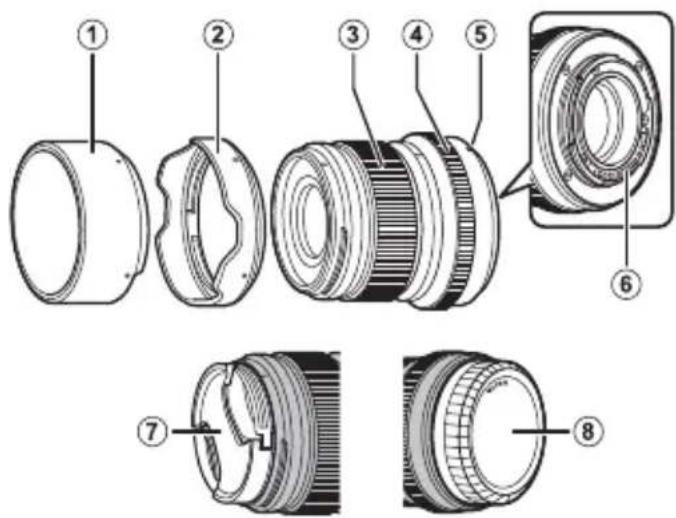

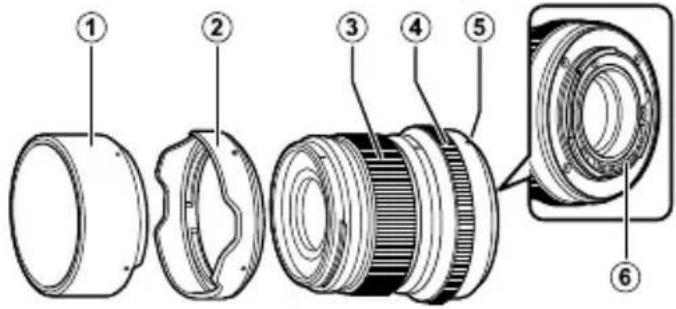

Parts of the Lens

XF50mmF2 R WR/XF16mmF2.8 R WR

Exploded view diagram of a camera lens assembly with numbered parts for identification

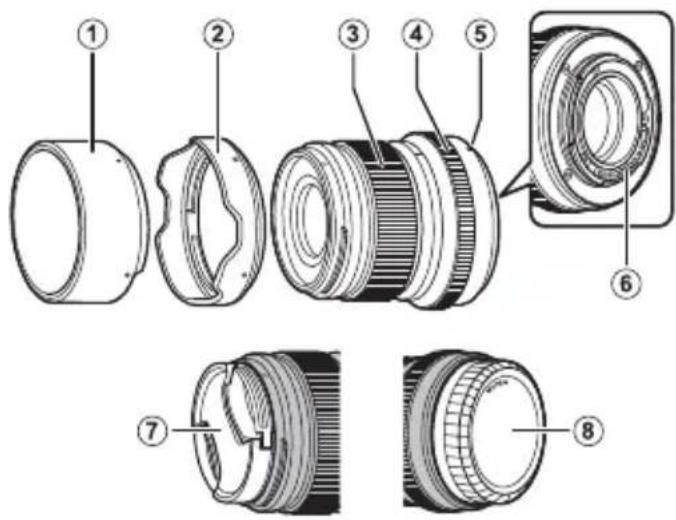

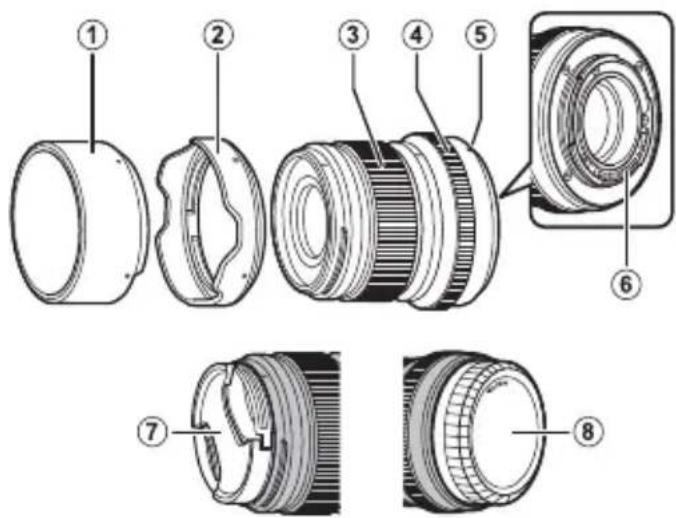

① Lens hood (XF50mmF2 R WR)
② Lens hood (XF16mmF2.8 R WR)
③ Focus ring
④ Aperture ring
⑤ Mounting marks (focal length)
⑥ Lens signal contacts

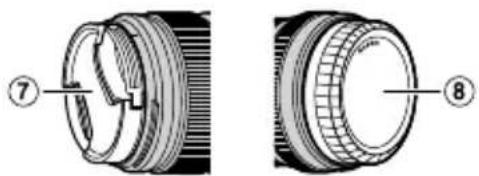

⑦ Front lens cap
⑧ Rear lens cap

① The lens mount includes a rubber ring to ensure that the lens remains dust- and splash-proof. The ring can be replaced for a fee at any Fujifi lm service center.

Supplied Accessories

• Front lens cap
• Rear lens cap

• Lens hood
• Cloth wrapping

Attaching the Lens

See the camera manual for information on attaching and removing lenses.

①This product is for use exclusively with the FUJIFILM X mount. It is not compatible with the G mount or with X mount fi lm cameras.

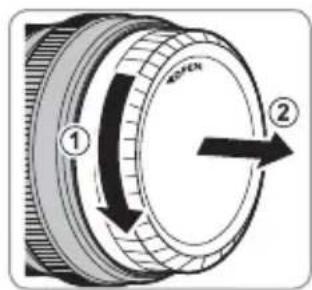

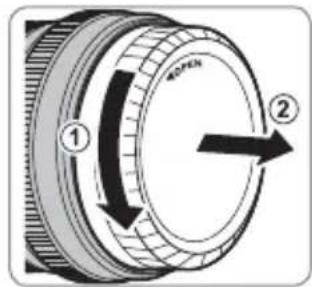

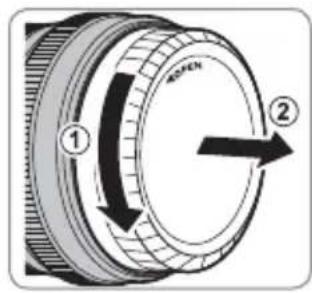

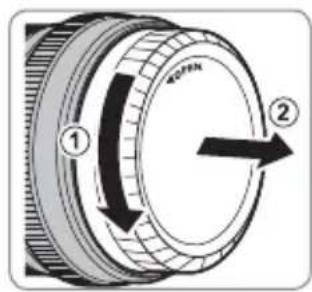

Removing the Caps

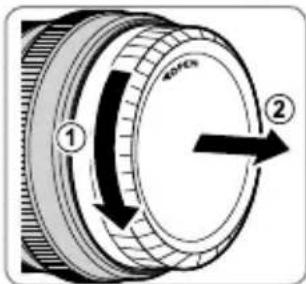

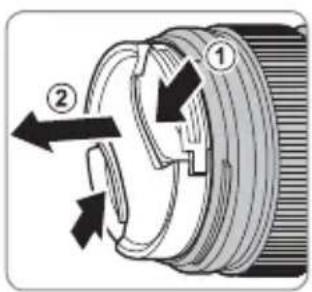

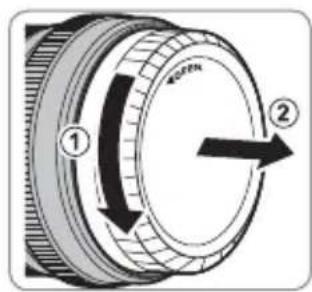

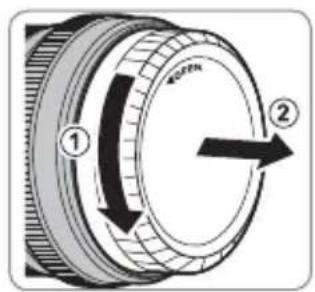

Remove the caps as shown.

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or movement.

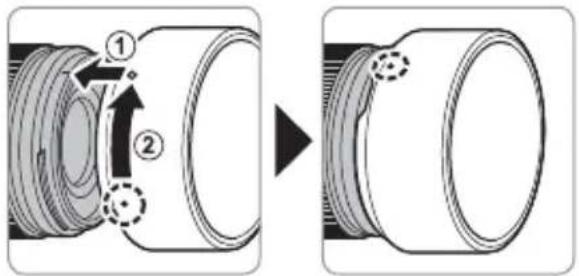

Attaching the Hood

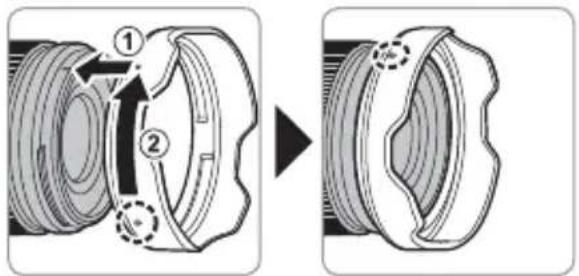

When attached, lens hoods reduce glare and protect the front lens element.

XF50mmF2 R WR

Diagram illustrating a mechanical assembly process with numbered components and directional arrows, likely from an engineering or manufacturing context.

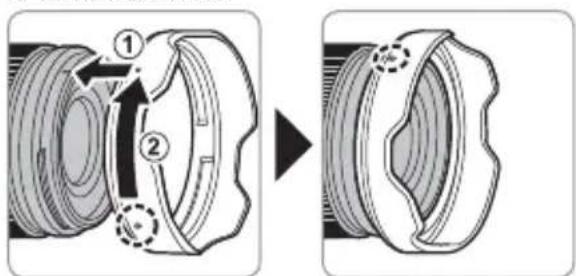

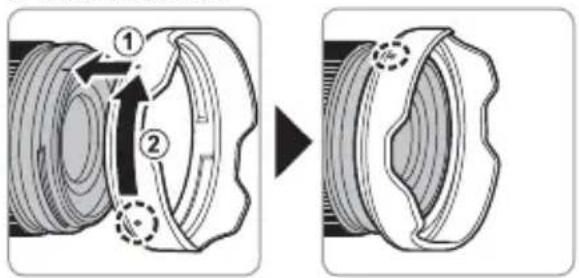

XF16mmF2.8 R WR

Diagram illustrating camera lens assembly process, showing two stages of adding a component with numbered arrows and circular features.

Aperture ring

At settings other than A, you can adjust aperture by rotating the lens aperture ring (exposure modes A and M).

Aperture ring

A 5,64811

EN-7ENGLI

Specifications

Type XF50mmF2 R WR XF16mmF2.8 R WR
Lens construction 9 elements in 7 groups (includes 1 aspherical extra-low-dispersion element)		10 elements in 8 groups (includes 2 aspherical elements)
Focal length (35 mm format equivalent)	f=50 mm (76 mm)	f=16 mm (24 mm)
Angle of view 31.7° 83.2°
Max. aperture f/2 f/2.8
Min. aperture f/16 f/22
Aperture controlNumber of bladesStop size	9 (rounded diaphragm opening) 13 EV (19 stops)	9 (rounded diaphragm opening) 13 EV (19 stops)
Focus range (measured from focal plane)	39 cm – infinity	17 cm – infinity
Max. magnification	0.15 ×	0.13 ×
External dimensions: Diameter × Length* (approx.)* distance from front of lens to lens mount flange	60 × 59.4 mm	60 × 45.4 mm
Weight* (approx.)* excluding caps and hoods	200 g	155 g
Filter size	46 mm	49 mm

① Improvements may result in unannounced changes to specifications and appearance.
① Owing to how this lens is constructed, the "Distance indicator" displayed by the camera may in some cases differ from the actual focus distance. Use the "Distance indicator" as a guide only.

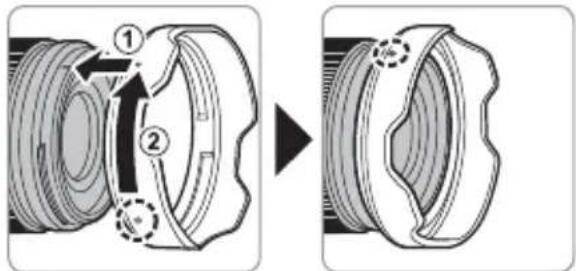

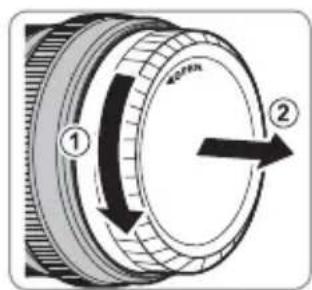

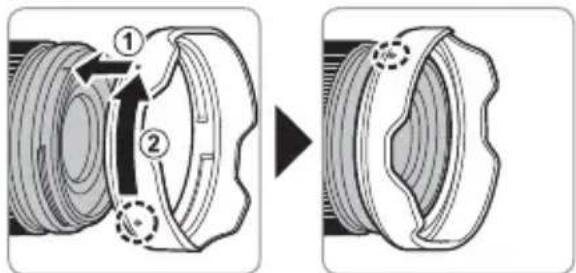

Pour votre sécurité

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF50mmF2 R WR/XF16mmF2.8 R WR

Exploded view diagram of a camera lens assembly with numbered parts for identification

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Diagram of a camera lens with labeled parts and directional arrow indicating rotation direction

Diagram illustrating camera lens adjustment process with numbered components and directional arrows

XF16mmF2.8 R WR

Diagram illustrating the process of a mechanical component before and after assembly, with numbered parts and directional arrows.

FR-6 FRANÇAIS

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF50mmF2 R WR/XF16mmF2.8 R WR

Exploded view diagram of a camera lens assembly with numbered parts for identification

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Diagram of a mechanical component with labeled parts and directional arrows indicating motion or movement.

Diagram illustrating mechanical assembly steps with numbered components and directional arrows

XF16mmF2.8 R WR

Diagram illustrating the process of a mechanical component before and after assembly, with numbered steps and directional arrows.

DE-6 DEUTSCH

Blendenring

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF50mmF2 R WR/XF16mmF2.8 R WR

Exploded view diagram of a camera lens assembly with numbered parts for identification

Diagram showing mechanical assembly with numbered components and directional arrows indicating motion or flow

Diagram of a camera lens with labeled parts and directional arrow indicating rotation

Diagram illustrating camera lens assembly process with numbered components and directional arrows

XF16mmF2.8 R WR

Diagram illustrating the process of a mechanical component with numbered parts and directional arrows indicating motion.

ES-6 ESPAÑOL

Anillo de apertura

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF50mmF2 R WR/XF16mmF2.8 R WR

Exploded view diagram of a camera lens assembly with numbered parts for identification

① Zonnekap (XF50mmF2 R WR)
② Zonnekap (XF16mmF2.8 R WR)
③ Scherpstelring
④ Diafragmaring
⑤ Bevestigingsmarkeringen (brandpuntsafstand)
⑥ Lenssignaalcontacten
⑦ Voorste lensdop
⑧ Achterste lensdop

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow

① ②

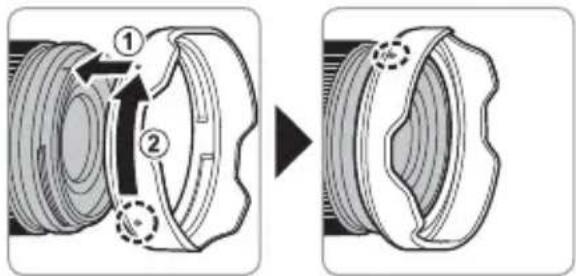

De zonnekap bevestigen

Diagram illustrating camera lens assembly process with numbered components and directional arrows

XF16mmF2.8 R WR

Diagram illustrating the process of a mechanical component before and after assembly, with numbered parts and directional arrows.

NL-6 NEDERLANDS

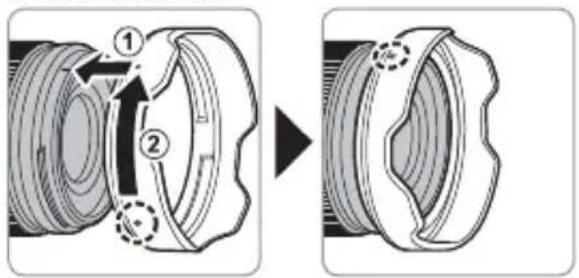

De diafragmaring

XF50mmF2 R WR/XF16mmF2.8 R WR

Exploded view diagram of a camera lens assembly with numbered parts for identification

① Motljusskydd (XF50mmF2 R WR)
② Motljusskydd (XF16mmF2.8 R WR)
③ Fokusring
④ Bländarring
⑤ Monteringsmarkeringar (brännvidd)
⑥ Objektivsignalkontakter
⑦ Främre objektivlock
⑧ Bakre objektivlock

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Diagram of a mechanical component with numbered parts and directional arrow indicating rotation or movement

Diagram illustrating mechanical assembly steps with numbered components and directional arrows

XF16mmF2.8 R WR

Diagram illustrating camera lens assembly process with numbered components and directional arrows

SV-6 SVENSKA

Bländarring

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF50mmF2 R WR/XF16mmF2.8 R WR

Exploded view diagram of a camera lens assembly with numbered parts for identification

① Solblender (XF50mmF2 R WR)
② Solblender (XF16mmF2.8 R WR)
③ Fokusring
④ Blenderring
⑤ Monteringsmerker (brennvidde)
⑥ Objektivets signalkontakter
⑦ Fremre objektivdeksel
⑧ Bakre objektivdeksel

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow

① ②

Diagram illustrating camera lens assembly process with numbered components and directional arrows

XF16mmF2.8 R WR

Diagram illustrating the process of a mechanical component before and after assembly, with numbered parts and directional arrows.

NO-6 NORSK

Blenderring

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF50mmF2 R WR/XF16mmF2.8 R WR

Exploded view diagram of a camera lens assembly with numbered parts for identification

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow

Diagram of a camera lens with labeled parts and directional arrows indicating rotation or movement.

Diagram illustrating camera lens adjustment process with numbered components and directional arrows

XF16mmF2.8 R WR

Diagram illustrating the process of a mechanical component before and after assembly, with numbered parts and directional arrows.

FI-6 SUOMI

Himmenninrengas

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF50mmF2 R WR/XF16mmF2.8 R WR

Exploded view diagram of a camera lens assembly with numbered parts for identification

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or rotation.

Установка бленды

Diagram illustrating camera lens assembly process with numbered components and directional arrows

XF16mmF2.8 R WR

Diagram illustrating the process of a mechanical component before and after assembly, with numbered steps and directional arrows.

RU-6 РУССКИЙ

Кольцо диафрагмы

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF50mmF2 R WR/XF16mmF2.8 R WR

Exploded view diagram of a camera lens assembly with numbered parts for identification

Diagram showing mechanical assembly with numbered components and directional arrows indicating motion or flow

Diagram of a mechanical component with numbered parts and directional arrow indicating rotation or movement

Montaggio paraluce

Diagram illustrating camera lens assembly process with numbered components and directional arrows

XF16mmF2.8 R WR

Diagram illustrating the process of a mechanical component before and after assembly, with numbered steps and directional arrows.

IT-6 ITALIANO

Ghiera diaframma

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF50mmF2 R WR/XF16mmF2.8 R WR

Exploded view diagram of a camera lens assembly with numbered parts for identification

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Diagram of a mechanical component with numbered parts and directional arrow indicating rotation or movement

Diagram illustrating camera lens assembly process with numbered components and directional arrows

XF16mmF2.8 R WR

Diagram illustrating the process of a mechanical component before and after assembly, with numbered parts and directional arrows.

DA-6 DANSK

Blændering

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF50mmF2 R WR/XF16mmF2.8 R WR

Exploded view diagram of a camera lens assembly with numbered parts for identification

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or rotation.

Technical diagram showing mechanical assembly with labeled component ② and directional arrow

Technical line drawing of a cylindrical mechanical component with a flanged end and a circular feature (no text or symbols)

XF16mmF2.8 R WR

Technical diagram showing mechanical assembly with numbered components and directional arrows

Cross-sectional diagram of a mechanical component with layered structure (no text or symbols)

PL-6 POLSKI

Pierścień przystony

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF50mmF2 R WR/XF16mmF2.8 R WR

Exploded view diagram of a camera lens assembly with numbered parts for identification

① 镜头遮光罩 (XF50mmF2 R WR)
② 镜头遮光罩 (XF16mmF2.8 R WR)
③ 对焦环
④ 光圈环
⑤安装标记(焦距)
⑥镜头信号接点
⑦镜头前盖
⑧镜头后盖

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

① ②

安装遮光罩

Technical diagram showing mechanical components with numbered parts and directional arrows indicating motion or flow.

▶

Technical line drawing of a cylindrical mechanical component with a threaded end and a circular feature (no text or symbols)

XF16mmF2.8 R WR

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or flow.

▶

Cross-sectional diagram of a mechanical component with layered structure (no text or symbols)

光圈环

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF50mmF2 R WR/XF16mmF2.8 R WR

Exploded view diagram of a camera lens assembly with numbered parts for identification

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow

① ②

安裝遮光罩

Technical diagram showing mechanical components with numbered parts and directional arrows indicating motion or flow.

▶

Technical line drawing of a cylindrical mechanical component with a threaded end and a circular feature (no text or symbols)

XF16mmF2.8 R WR

Technical diagram showing mechanical assembly with numbered components and directional arrows

▶

Technical line drawing of a mechanical component with no visible text or symbols

光圈環

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF50mmF2 R WR/XF16mmF2.8 R WR

Exploded view diagram of a camera lens assembly with numbered parts for identification

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow

① ②

후드 부착

Technical diagram showing mechanical components with numbered parts and directional arrows indicating motion or flow.

Technical line drawing of a cylindrical mechanical component with a flanged end and a circular feature (no text or symbols)

XF16mmF2.8 R WR

Technical diagram showing mechanical assembly with numbered components and directional arrows

Technical line drawing of a mechanical component with no visible text or symbols

한글

조리개 링

Technical line drawing of a cylindrical mechanical component with a flanged end and a circular feature (no text or symbols)

Technical diagram showing mechanical components with numbered parts and directional arrows indicating motion or flow.

XF16mmF2.8 R WR

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram showing two labeled mechanical components with arrows indicating motion or assembly.

تركيب العدسة

Diagram of a mechanical or electrical component with numbered parts and directional arrows indicating motion or flow.

Diagram of a mechanical component with labeled parts and directional arrows indicating motion or rotation.

أgzاء العدسة

XF50mmF2 R WR/XF16mmF2.8 R WR

Exploded view diagram of a camera lens assembly with numbered parts for identification

Cross-sectional diagram of a mechanical component showing two views (⑦ and ⑧) with no visible text or symbols.

الإكسوارات المرفقة
