Brand	Klarstein
Model	Vinea
Product type	Extractor hood
Article numbers	10031681, 10031682
Power supply	220-240 V ~ 50/60 Hz
Annual energy consumption	37.4 kWh/year
Energy efficiency class	A
Airflow (min/max)	413.8 / 595.6 m³/h
Maximum airflow	620.6 m³/h
Noise level (min/max)	62 / 68 dB
Fluid dynamic efficiency	30.1
Fluid dynamic efficiency class	A
Lighting efficiency	27.7 Lux/W
Lighting efficiency class	B
Grease separation efficiency	70.1 %
Grease capture efficiency class	D
Control type	Mechanical buttons (On/Off, Speed +/-, Light)
Lighting	Bulb (rated power 3 W)
Installation	Recessed in a suspended cabinet or shelf
Grease filter	Cleanable monthly
Material	Stainless steel
Maintenance	Clean stainless steel surfaces with specific cleaner; hand-wash filter
Safety	Do not use with open flame; ensure sufficient ventilation with gas stove
Country of manufacture	Germany (manufacturer Chal-Tec GmbH)

Frequently Asked Questions - Vinea Klarstein

How to install the Klarstein Vinea extractor hood?

Installation must be done by a professional electrician. Follow the installation diagram: drill 4 holes of 5 mm and 1 hole of 160 mm in the bottom of the cabinet, attach the air outlet, then the hood with the supplied screws and seals.

How to clean the grease filters?

Remove the filter, clean it with water and a little dish soap, then let it air dry. Perform this operation every month to avoid fire hazards.

How to clean stainless steel surfaces?

Use a stainless steel cleaner and always wipe in the direction of the grain to avoid scratches. Avoid abrasives.

What to do if the light is on but the motor does not work?

Check that the air intake is not blocked. If the problem persists, the capacitor or motor may be defective. Contact a specialist.

What is the annual energy consumption of the hood?

The annual energy consumption is 37.4 kWh, which corresponds to energy class A.

Can I use the hood with a gas stove?

Yes, but ensure sufficient ventilation of the room. Do not direct the exhaust air into a duct already used for combustion gases.

How to adjust the hood speed?

Use the + and - buttons on the control panel to increase or decrease the speed. Choose a speed suitable for the amount of steam.

What to do if the hood vibrates?

Check if the rotor blade is damaged, if the motor is securely fastened, and if the housing is firmly attached. Replace parts if necessary.

How to turn off the hood?

Press the On/Off button to stop the motor. Also turn off the light if needed to save energy.

What to do if an abnormal smell comes from the motor?

This may indicate a motor defect. Have it replaced by a professional. Do not use the appliance until the problem is resolved.

USER MANUAL Vinea Klarstein

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 16

Installation Disagram 18

Control panel and Key Functions 19

Cleaning and Maintenance 20

Troubleshooting 21

Product Data Sheet 22

Notes on Environmental Protection 24

Disposal Considerations 24

Manufacturer & Importer (UK) 24

TECHNICAL DATA

Item number 10031681, 10031682
Power supply 220-240 V ~ 50/60 Hz

SAFETY INSTRUCTIONS

• Thank you for purchasing this cooker hood. Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place.
• The installation work must be carried out by a qualified electrician or competent person. Before you use the cooker hood, make sure that the voltage (V) and the frequency (Hz) indicated on the cooker hood are exactly the same as the voltage and the frequency in your home.
• The manufacturer and the agent will not bear any responsibility for the damage caused by inappropriate installation and usage.
  • Children under the age of 8 must not use the cooker hood.
• The appliance is not intended for commercial use, but only for household and similar environments.
• The cooker hood and its filter mesh should be cleaned regularly in order to keep it in good working order.
• Before cleaning, switch the power off at the main supply.
• Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
  • Prohibit putting the cooker hood by fire.
• If the appliance does not function normally, contact the manufacturer or a specialist company.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the range hood is used at the same time as appliances burning gas or other fuels, the room must be adequately ventilated.
• Do not flambé under the range hood. Accessible parts may become hot when used with cooking appliances.

Important hints on installation

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• Regulations concerning the discharge of air have to be fulfilled.

Important notes about the extraction mode

WARNING

Risk of poisoning from exhaust gases sucked back. Never operate the device in extraction mode simultaneously with an open fl ue appliance when there is not adequate airfl ow guaranteed.

Open fl ue combustion equipment (for example, gas, oil, wood or coal-fi red heaters, tankless water heaters, water heaters) pulls combustion air from the room and runs it through an exhaust pipe or chimney to the outside. In the extraction mode, indoor air is removed from the kitchen and the adjacent rooms - without sufficient air intake this creates a vacuum. Toxic gases from the chimney or extraction fl ue can thereby be sucked back into the living spaces.

• Always ensure that a sufficient supply of fresh air is guaranteed and that the air can circulate.
• An air supply / extractor box alone does not ensure compliance with the limit value.

Safe operation is only possible when the negative pressure in the room where the appliance is located does not exceed 4 Pa (0.04 mbar). This can be achieved when the air required for combustion can flow through openings that are not closable, for example in doors, windows, in conjunction with an air supply / extractor box or through other technical measures. In any case, consult a qualified chimney sweep who can assess the entire ventilation of your house and propose appropriate measures for adequate ventilation.

If the hood is used exclusively in the recirculation mode, unrestricted operation is possible.

Important note on disassembly of the device

• Disassembly is similar to installation/assembly in reverse order.
  • Take a second person to help you during disassembly to avoid injuries.

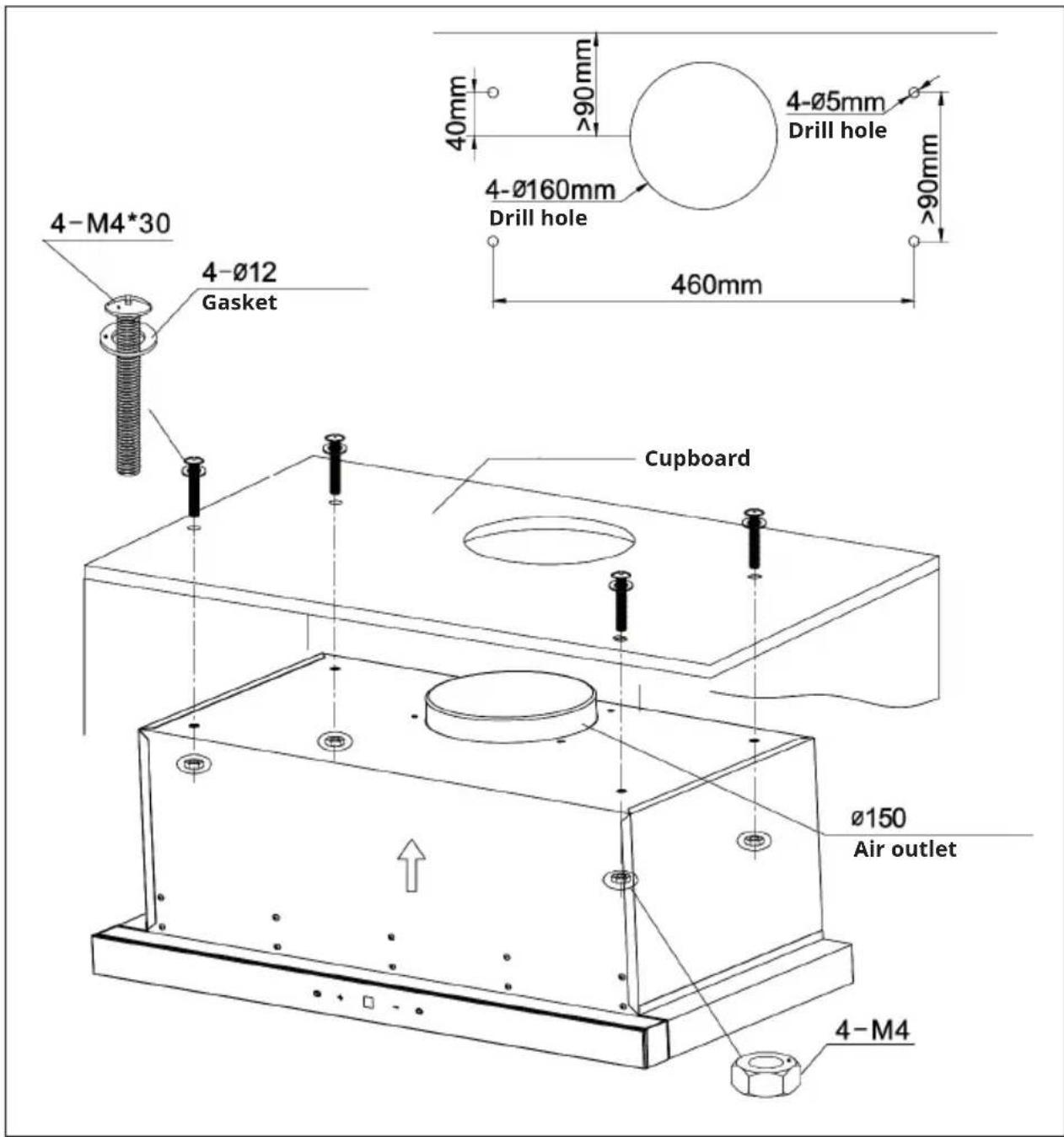

INSTALLATION DISAGRAM

4-M4*30 4-Ø12 Gasket Cupboard Ø150 Air outlet 4-M4 4-Ø160mm Drill hole 40mm ≥90mm 4-Ø5mm Drill hole ≥90mm 460mm

1. Drill 4 holes with a diameter of 5 mm and 1 hole with a diameter of 160 mm in the bottom of your wall cabinet or shelf.
2. Attach the air outlet to the top of the hood.
3. Remove the filter, align the hood with the holes, insert the screws and gaskets, and tighten the screws.
4. Put the filter back in place.

CONTROL PANEL AND KEY FUNCTIONS

	On/Off Press the key to switch on the motor.
	Speed Press the key to increase the speed.
	Speed Press the key to decrease the speed.
	Light Press the key to switch the light on and off.

CLEANING AND MAINTENANCE

Turn off the cooker hood before cleaning and maintenance and unplug the appliance from the wall outlet. The exterior surfaces are susceptible to scratches and stains. Therefore, do not use abrasive cleaners and wipe away any alkaline or acidic residue (lemon juice, vinegar) immediately after cleaning.

Stainless Steel Surfaces

The stainless steel must be cleaned regularly to ensure a long service life. Use stainless steel cleaner. Always wipe along the grain of the stainless steel to prevent scratching.

Control Panel

The control panel can be cleaned with a damp cloth and a mild dishwashing detergent. Before cleaning, make sure the cloth is clean and well wrung. Use a dry, soft cloth to remove excess moisture after cleaning.

Monthly Cleaning for Grease Filter

Clean the filter every month can prevent any risk of fire. The filter collects grease, smoke and dust, so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

TROUBLESHOOTING

Fault Possible Cause Solution
Light on, but motor does not work.	The leaf blocked. Get rid of the blocking.
	The capacitor damaged. Replace capacitor.
	The motor jammed bearing damaged.	Replace motor.
	The internal with of motor off or a bad smell from the motor.	Replace motor.
Light does not work, motor does not work.	Light damaged. Replace lights.
	Power cord looses. Connect the wires as per the electric diagram.
Shake of the body. The leaf	damaged and causes shaking.	Replace the leaf.
	The motor is not tightly hanged.	Lock the motor tightly.
	The body is not tightly hanged.	Fixed the body tightly.
Insufficient suction. The distance between the body and the gas top too long.		Readjust the distance.
		Too much ventilation from open doors or windows. Choose a new place and resemble the machine.

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number 10031681, 10031682
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	37,4 kWh/Year
Energy Efficiency class A
Fluid Dynamic Efficiency FDE	hood	30,1
Fluid Dynamic Efficiency class A
Lighting Efficiency LE	hood	27,7 Lux/W
Lighting Efficiency class B
Grease Filtering Efficiency GFE	hood	70,1 %
Grease Filtering Efficiency class D
air flow at minimum and maximum speed in normal use, intensive or boost excluded		413,8 / 595,6 m3/h
air flow at intensive or boost setting		- m3/h
airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use		62 / 68	dB
airborne acoustical A-weighted sound power emissions at intensive or boost setting		-	dB
power consumption in off mode	Po	0,4	W
power consumption in standby mode	Ps	-	W
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 66/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number 10031681, 10031682
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	37,4 kWh/Year
Time increase factor f 0,9
Fluid Dynamic Efficiency FDE	hood	30,1
Energy Efficiency Index EEI	hood	49,3
Measured air flow rate at best efficiency point	QBEP	295,7 m3/h
Measured air pressure at best efficiency point	PBEP	393 Pa
Maximum air flow Q	max	620,6 m3/h
Measured electric power input at best efficiency point	WBEP	107,2 W
Nominal power of the lighting system	WL	3	W
Average illumination of the lighting system on the cooking surface	Emiddle	83 Lux
Measured power consumption in standby mode	Po	-	W
Measured power consumption off mode	Ps	0,4 W
Sound power level L	WA	62/68	dB
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

NOTES ON ENVIRONMENTAL PROTECTION

• During cooking, make sure that there is sufficient air supply so that the cooker hood can operate efficiently and with low operating noise.
• Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary. The lower the fan speed, the less energy is consumed.
• If large amounts of steam are produced during cooking, select a higher fan speed in good time. If the cooking steam has already dispersed in the kitchen, the cooker hood must be operated longer.
• Switch off the cooker hood when you no longer need it.
• Switch off the lighting when you no longer need it.
• Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
• Always put the lid on when cooking to reduce cooking steam and condensation.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
