Product Type	2.0 Soundbar
Brand	Sharp
Model	HT-SB145
Dimensions (W x H x D)	Approx. 800 x 75 x 100 mm
Weight	Approx. 2.5 kg
Power supply	AC 100-240 V, 50/60 Hz
Power consumption	30 W (estimated)
Audio inputs	HDMI ARC, optical, auxiliary (3.5 mm), USB
Wireless connectivity	Bluetooth (range 6 m)
USB audio formats	MP3, WAV, FLAC
Max USB capacity	64 GB
Preset equalizer	Voice, Movie, Sports, Game, Night, Music, Custom
ARC function	Yes (HDMI 1.4 or higher)
Auto standby	After 15 minutes without signal (enable/disable)
Remote control	Yes (AAA batteries included)
Wall mount	Yes (kit included)
Care and cleaning	Unplug, use a soft dry cloth
Safety	Double insulation (Class II), child protection, do not expose to water
Repairability	Refer to approved service center (warranty void if opened)
Package contents	Soundbar, remote control, power cables, wall mount kit, documentation

Frequently Asked Questions - HT-SB145 SHARP

How do I connect the soundbar to my TV via HDMI ARC?

Use an HDMI cable version 1.4 or higher. Connect it to the HDMI ARC port on the soundbar and the HDMI ARC port on the TV. Make sure HDMI-CEC and ARC functions are enabled in the TV settings.

What if the soundbar does not turn on?

Check that the power cable is properly plugged in and the wall outlet works. Press the power button on the remote control or on the device. If the problem persists, try another outlet.

There is no sound, what to do?

Increase the volume using the remote control or the device. Check that the sound is not muted (press the Mute button). Ensure the input source is correctly selected. For HDMI ARC, check the TV audio output setting to PCM.

The remote control does not work, how to solve?

Reduce the distance (max 6 m) and point directly at the sensor. Check the batteries (polarities +/-) or replace them. Make sure no obstacle blocks the infrared signal.

How to pair a smartphone via Bluetooth?

Press and hold (3 seconds) the Source button on the device or the Bluetooth button on the remote. The LED blinks blue. Activate Bluetooth on your smartphone and select 'SHARP HT-SB145' from the list. Once connected, the LED becomes solid blue.

Why does the soundbar go into standby by itself?

By default, it goes into standby after 15 minutes without signal on Optical, Bluetooth, or Aux sources. To disable, press and hold the Mute button on the remote or device for 5 seconds: the LED blinks green to confirm deactivation.

How to play music via a USB flash drive?

Insert a USB flash drive (max 64 GB, FAT32 format) into the USB port. Press the Source button to select USB. Use the navigation buttons to choose a folder or track, then press Play. Only MP3, WAV, and FLAC files are supported.

A humming noise is heard, what to do?

Check that all cables are properly connected. Try connecting another audio source to isolate the problem. If the humming persists, use a different input on the soundbar.

How to perform a factory reset?

Press and hold the Volume - and Source buttons on the device for 5 seconds. The device goes into standby and returns to factory settings.

What to do if the sound is distorted or weak?

Check the equalizer (EQ) setting and adjust bass/treble if needed. Ensure the external source is not muted and the volume is sufficient. For digital connections, set the TV output to PCM.

USER MANUAL HT-SB145 SHARP

User manual

HT-SB145, HT-SB146

2.0 Soundbar

Product images are for illustration purposes only. Actual product may vary.

Trademarks:

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sharp Consumer Electronics is under license. Other trademarks and trade names are those of their respective owners.

Roku TV, Roku TV Ready, and the Roku TV Ready logo are trademarks of Roku, Inc.

This product is Roku TV Ready-supported in the United Kingdom. Countries are subject to change. For the most current list of countries in which this product is Roku TV Ready-supported, please email [e-mail]

ENGLISH

Important safety instructions

Please follow all safety instructions and warnings. Keep this manual for reference.

Consult user manual for safety, operation, and maintenance information.

Class II equipment: Double insulation, no need for electrical earth (ground) connection.

Alternating current (AC): Voltage marked is AC.

Indoor use only.

Energy efficiency marking with level VI.

Precautions

Damage

Inspect the product after unpacking; if damaged, do not use and consult your dealer.

The user should not attempt to repair or expose the internal parts; this action can be hazardous and will void your warranty. Contact only authorized service centers for repairs.

Power connection and accessibility

- Do not handle the power cord with wet hands. Do not force the plug into the outlet. Turn off and unplug the product when not in use. Keep the power plug accessible, without using extension cables.

Power source

- Use only AC 100-240V 50/60Hz outlets. Higher voltages can cause malfunction or fire.

Power cord protection

- Protect the power cord from damage; do not overload, stretch, or bend it. If damaged, it can result in fire or electric shock. Damaged cords must be replaced by the manufacturer or a qualified technician.

Fused moulded power plug (non-rewireable) - UK, Malta, Cyprus and Ireland only.

- The power lead includes a 3A Amp fuse. Replace only with a BS1362 approved fuse of the same rating.

Child safety

- Use basic safety precautions around children to prevent misuse of the product.

Location

- Place on a flat, stable surface without overhang. If wall mountable, refer to the wall-mounting instructions in this user manual.

Ventilation

- Do not block, cover or insert objects into the ventilation slots. Do not insert objects into the product's openings. Doing so may result in a safety risk and/or damage to the product. Ensure a minimum distance of 5 cm around the product for sufficient ventilation to avoid overheating.

Heat and operating temperature

- Do not place the product near heat sources or direct sunlight for prolonged periods.

Naked flames

- Keep open flames away from the product to prevent fire.

Water, moisture, and liquid entry

- Do not expose the product to liquids; keep away from rain, water, and objects filled with liquids to prevent fire or electric shock.

Storms and lightning

- Disconnect all cables during storms or lightning to prevent damage.

Maintenance

- Disconnect power cords from the product before cleaning and use a soft, dry cloth without chemicals or detergents. If using a vacuum cleaner, use the soft brush attachment.

Batteries

Installation

- Use only specified batteries; do not mix types or new with old. Use the correct polarity upon battery insertion.

Use and maintenance

- Keep batteries away from heat, such as near fire or in direct sunshine. Remove batteries if unused for over a month to prevent leaking. Replace leaking batteries inside the battery compartment.

Child safety

- Ensure battery compartment is secure. Keep batteries away from children's reach. Seek immediate medical help if swallowed.

Environmental conditions

- Keep batteries away from low pressure or high heat to avoid explosion or leakage.

Disposal

- Dispose of the battery pack according to the manual (see "Disposal: equipment and batteries"). Do not throw into fire, disassemble or recharge non-rechargeable batteries, as it may leak or explode.

Disposal: equipment and batteries

Information for users on collection and disposal of old equipment.

Symbol indicates product contains batteries per EU Directive 2023/1542/EU; cannot be disposed with household waste. Cd, Hg, or Pb shows battery contains cadmium, mercury, or lead.

This symbol means that the product is designed and manufactured so that it can be recycled and reused.

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

CE and UKCA statement:

• Hereby, Sharp Consumer Electronics Poland sp. z o.o. declares that this audio device is in compliance with the essential requirements and other relevant provisions of RED Directive 2014/53/EU and UK Radio Equipment Regulations 2017.
• The full CE text and UKCA declaration of conformity are available at sharpconsumer.com and then entering download section of your model and choosing "Declaration of Conformity".

What is included in the box:

• HT-SB145 / HT-SB146 2.0 Soundbar - Remote control (inc. batteries) - Power cables - Wall-mount kit - User documentation

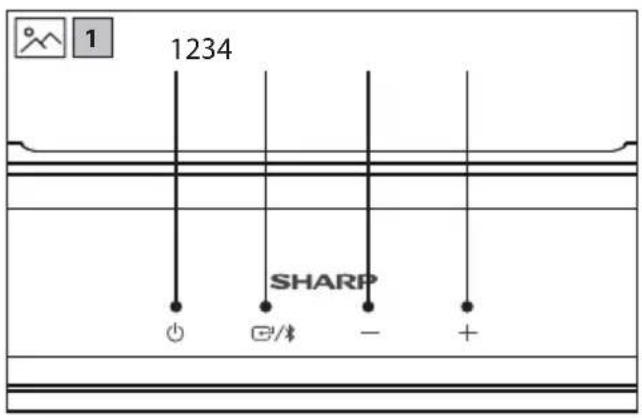

Controls

(Refer to 1 on page 2)

1. ⏻ - Switch the unit between ON and STANDBY.
2. Select the audio source (TV (HDMI), Bluetooth, Optical, Aux in or USB).
3. — Volume down.
4. +Volume up.

(Refer to 📌 2 on page 2).

1. ⏻ - Switch the unit between ON and STANDBY mode.
2. *Select Bluetooth mode. Press and hold to activate the pairing function in Bluetooth mode or disconnect the existing paired Bluetooth device.
3. ☐ – Press to select the audio source (TV (HDMI), Bluetooth, Optical, Aux in or USB).
4. +/− Increase/decrease the volume level.
5. Skip to previous/next track in Bluetooth or USB mode.
6. -Play/pause/resume playback in Bluetooth or USB mode.
7. ✕ – Mute or resume the sound.
8. BASS Adjust bass level. This only changes custom EQ settings.
9. TRE + / -Adjust treble level. This only changes custom EQ settings.
10. EQ – Press repeatedly to switch between EQ off, voice, movie, sport, game, night, music and custom equaliser modes.

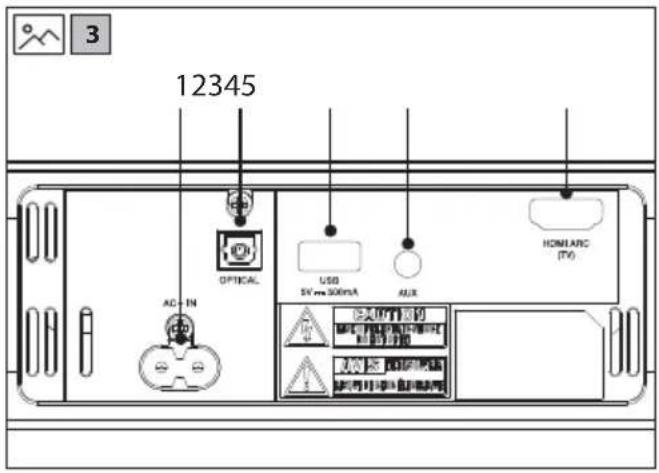

Inputs/outputs

(Refer to 3 on page 3).

1. AC IN Connect power cable.
2. OPTICAL

Optical input jack.

1. USB

Insert USB flash drive to play music.

1. AUX IN

Connect to an external audio device.

1. HDMI ARC (TV)

Connect to a TV via HDMI cable (HDMI version 1.4 or higher).

Initial set up

Remote control operation

The provided remote control allows the unit to be operated from a distance.

• Even if the remote control is operated within the effective range of 6m, operation may be impossible if there are any obstacles between the unit and the remote control.
• If the remote control is operated near other products which generate infrared rays, or if other remote control devices using infrared rays are used near the unit, it may operate incorrectly. Conversely, the other products may operate incorrectly.

Battery installation

1. To open the battery compartment, push your thumb down on to the battery compartment cover and slide it down.
2. Fit two AAA batteries observing polarity +/- as shown. When replacing the batteries, use only the same type of battery supplied.
3. Re-fit the battery cover and clip it in place.

First time installation

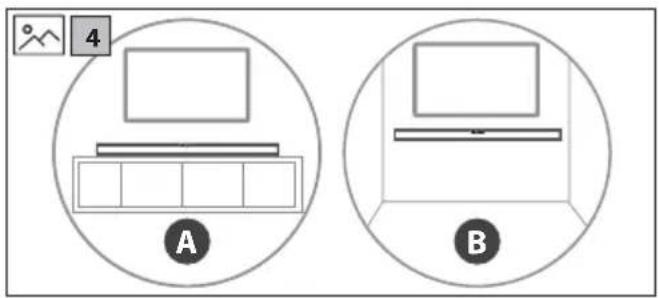

Placement and mounting

(Refer to 4 on page 3).

A: Normal placement

B: Wall mounting

Wall mounting

NOTES:

- Installation must be carried out by qualified personnel only. Incorrect assembly can result in severe personal injury and property damage (if you intend to install this product yourself, you must check for installations such as electrical wiring and plumbing that may be buried inside the wall). It is the installer's responsibility to verify that the wall will safely support the total load of the soundbar and wall brackets.

- Additional tools (not included) are required for the installation.

- Do not overtighten screws.

- Keep this instruction manual for future reference.

- Use an electronic stud finder to check the wall type before drilling and mounting.

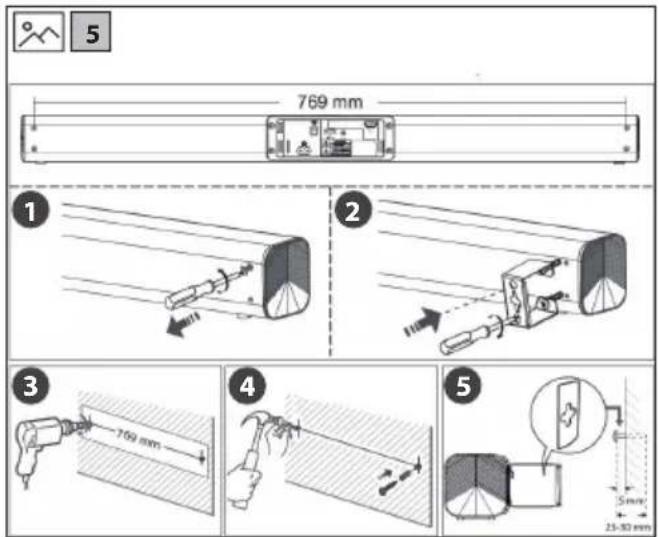

(Refer to 5 on page 3).

1. Remove the screws at the back of the unit.
2. Attach the wall mount brackets and screw the previously removed screws back in.
3. Drill 2 parallel holes into the wall (∅ 5.5-6mm each according to the wall type). The distance between the holes should be 769mm.
4. Firmly fix 1 plug into each hole in the wall. Screw in the supplied screw into the plug ensuring you leave a 5 mm gap between the screw head and the wall.
5. Align the mounting bracket holes over the screw heads, then slide the unit down to secure it in place.

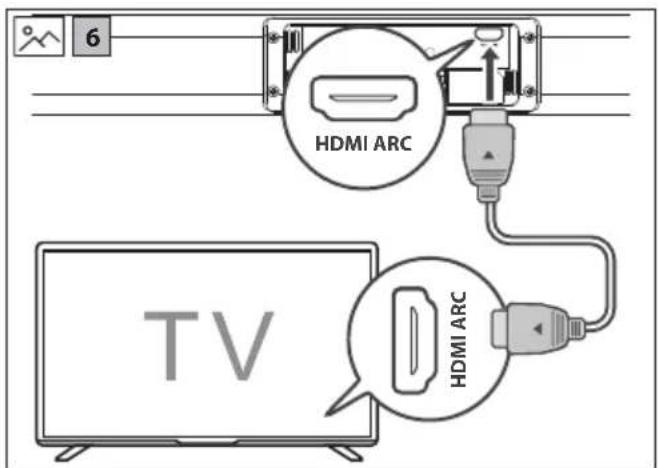

HDMI ARC

(Refer to 6 on page 3).

The ARC (Audio Return Channel) function allows you to send audio from your ARC-compliant TV to your unit through a single HDMI connection. To enjoy the ARC function, please ensure your TV is both HDMI-CEC and ARC compliant and set up accordingly. When correctly set up, you can

use your TV remote control to adjust the volume output (+/-) of the soundbar.

- Connect the HDMI cable (not included) from the unit's HDMI ARC (TV) socket to the HDMI (ARC) socket on your ARC-compliant TV.

TIPS:

- Your TV must support the HDMI-CEC and ARC function and this must be set to "ON" or "ACTIVE" in the TV settings menu. - The setting method of HDMI-CEC and ARC may differ depending on the TV. For details about ARC function, please refer to your TV manual.

- Only HDMI cables of version 1.4 or higher can support the ARC function.

Optical

(Refer to ↗ on page 3).

- Connect an OPTICAL cable (not included) to the TV's OPTICAL OUT socket and the OPTICAL socket on the unit.

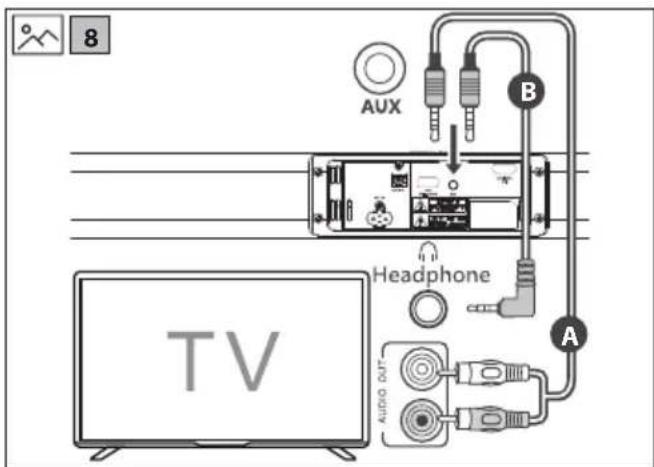

Aux in

(Refer to 8 on page 3).

A:

Use a RCA to 3.5mm audio cable (not included) to connect the TV's or external audio device's audio output sockets to the AUDIO IN socket on the unit.

B: Use a 3.5mm to 3.5mm audio cable (not included) to connect the TV's or external audio device's headphone socket to the AUDIO IN socket on the unit.

TIP:

- When you use the headphone output on the TV set, you will be able to adjust the volume level directly using the TV remote control.

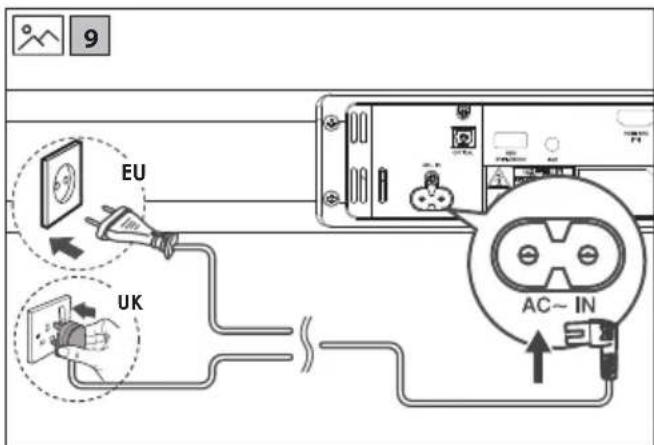

Connect to power

(Refer to 9 on page 3).

• Before connecting the power cable, ensure you have completed all other connections.
• Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the unit.
• Connect the power cable to the unit and then into a power socket.

Basic operation

Standby/ON

• When you first connect the unit to the power socket, the unit will be in STANDBY mode.
• Press ⏻ on the remote control or the unit to switch the unit ON or OFF.
• Disconnect the plug from the power wall socket if you want to switch the unit off completely.

Change source

- Short press 📊 to change between HDMI ARC (TV), OPTICAL, AUX IN, BLUETOOTH and USB. The unit's LED will light up as shown below to signal which source is selected.

SOURCE LED COLOUR
HDMI ARC (TV) Cyan
OPTICAL Yellow
BLUETOOTH Blue
AUX IN Green
USB Purple

Volume control

• Press the + buttons on the unit or on the remote control to adjust the volume.
• If you wish to turn the sound off, press the mute button on the remote control or press the volume down and volume up buttons on the unit at the same time. Press again or press the volume up/down buttons on the unit or on the remote control to resume normal listening.
• While adjusting the volume, the LED will flash quickly. When maximum or minimum volume levels are achieved, the flashing will stop.
• With HDMI CEC control, you can use your TV remote to increase/decrease the volume.

Equaliser

During playback, press the EQ button on the remote control to cycle through the preset equaliser modes. Each time you press the button, the unit's LED will blink a specific colour to indicate the selected mode, as shown below:

EQUALISER LED COLOUR
EQ OFF Off
VOICE Cyan
MOVIE Purple
SPORT Blue
GAME Yellow
NIGHT Red
MUSIC Green
CUSTOM White

Adjust Bass and treble

Press BASS+/- or TREBLE -/+ on the remote control to enter Custom EQ mode.

• The white LED will blink twice to indicate Custom EQ mode is active. The LED will then show the current value of Bass or Treble:

Custom EQ Level LED COLOUR
+3 Red - fast blink
+2 Red - medium blink
+1 Red - slow blink
0 White - Steady
-1 Green - slow blink
-2 Green - medium blink
-3 Green - fast blink

While the LED is displaying the current value (within 3 seconds), press the same button again to adjust the setting.

If no button is pressed within 3 seconds, the current value is saved.

• The white LED will blink twice (1.5 seconds total) to confirm the new value has been saved.
• The unit will return to normal operation.

Auto standby

By default, the unit will go into standby if no signal is detected for 15 minutes on Optical, Bluetooth and Audio In sources.

To turn auto-standby on or off, long press the power button on the unit or on the remote control for 5 seconds.

AUTO-STANDBY	LED COLOUR
OFF	Red – blinks 3 times
ON	Green – blinks 3 times

Roku TV Ready™ operation

For UK only.

If you have a Roku TV™ model, setup is easy. Just use a cable to connect your soundbar to the HDMI ARC port on your TV and follow the on-screen instructions.

√ Simple setup √ One remote √ Quick settings

Bluetooth operation

The first time you connect your Bluetooth device to this player, you need to pair your device to this player.

NOTE:

• Compatibility with all Bluetooth devices is not guaranteed.
• Any obstacle between this unit and a Bluetooth device can reduce the operational range.
• If the signal strength is weak, your unit may disconnect, but it will re-enter pairing mode automatically.
• Long press (3 seconds) the 📄/ ✗ button on the unit or the ✗ on the remote control to start the pairing process. The LED will turn blue and start blinking.
• Activate your Bluetooth device and select the search mode. "SHARP HT-SB145" or "SHARP HT-SB146" will appear on your Bluetooth device list.
• Select "SHARP HT-SB145" or "SHARP HT-SB146" from the list of devices. Once connected, the LED will turn solid blue.
• Begin playing music from the connected Bluetooth device.
• To pause or resume play, press the ▶/|| button on the remote control.
• To skip to the previous/next file, press the ◀◀/▶▶ buttons on the remote control.
• Some mobile device applications will allow you to press and hold ◀◀/▶▶ to skip parts of a track.

USB operation

1. Insert the USB device into the soundbar's USB socket.
2. Press the ⏻ button repeatedly on the soundbar or the remote control to select the USB source.
3. You can navigate different folders stored on the USB device. Press + / — to change the folder.
4. Press ▶ to play the selected track.
5. During playback:
6. To pause or resume play, press the ▶|| button on the remote control.
7. To skip to the previous/next file, press the / / buttons on the remote control. Press and hold / / fast rewind / fast forward a track.

TIPS:

• USB devices up to 64GB are supported.
• Only MP3/WAV/FLAC files can be played back.

The USB port is for playback or upgrading the software of the soundbar. It is not for charging purposes.

Troubleshooting

Perform a factory reset

To perform a factory reset, press and hold the ⏻ and the ⏻ on the unit for 5 seconds. When complete, the unit will go into standby.

No power

Ensure that the plug is properly connected.

Ensure that there is power at the AC outlet.

Press standby button on the remote control or unit to turn the unit ON.

No sound

For HDMI ARC to work, ensure you are using a version 1.4 or higher HDMI cable.

Increase the volume. Press + on the remote control or on the unit. Press 📊 on the remote control to ensure the unit is not muted. Press ⬇/✗ to select a different input source.

When connected to a digital source (HDMI or Optical), if there is no audio:

- Try setting the TV output to PCM or your TV may be set to variable audio output. Confirm that the audio output setting is set to FIXED or STANDARD, not VARIABLE. Consult your TV's user manual for more detailed information.

If using Bluetooth, ensure that the volume on your source device is turned up and that the device is not muted.

Remote control does not work

Before you press any playback control button, first select the correct source.

Reduce the distance between the remote control and the unit. Insert the battery with its polarities (+/-) aligned as indicated. Replace the battery.

Aim the remote control directly at the sensor on the front of the unit.

I hear buzzing or humming

Ensure all cables and wires are securely connected.

Connect a different source device to see if the buzzing persists. If it does not, the problem may be with the original device.

Connect your device to a different input on the unit.

I can't find the Bluetooth name of this unit on my Bluetooth device

Ensure the Bluetooth function is activated on your Bluetooth device. Re-pair the unit with your Bluetooth device.

This device is set to standby after 15 minutes of no source signal.

When the unit's external input signal level is too low, the unit will be turned off automatically in 15 minutes. Please increase the volume level of your external device. This feature is a requirement of ERPII and is designed to save energy when the unit is not in use.

BULGARIAN

√ Simple setup √ One remote √ Quick settings

Bluetooth operation

√ Simple setup √ One remote √ Quick settings

Bluetooth operation

√ Simple setup √ One remote √ Quick settings

Bluetooth operation

√ Simple setup √ One remote √ Quick settings

Bluetooth operation

√ Simple setup √ One remote √ Quick settings

√ Simple setup √ One remote √ Quick settings

Important safety instructions

√ Simple setup √ One remote √ Quick settings

Using Bluetooth

√ Simple setup √ One remote √ Quick settings

Using Bluetooth

√ Simple setup √ One remote √ Quick settings

Bluetooth function

√ Simple setup √ One remote √ Quick settings

Using the Bluetooth function

Before using the Bluetooth device with this Soundbar for the first time, you need to pair it with the Soundbar.

NOTE:

• We do not guarantee compatibility with all Bluetooth devices.
• Any obstacles between this unit and the Bluetooth device may reduce the operating range.
• If the signal strength is weak, your device may disconnect automatically, but it will re-enter pairing mode.
• Press and hold (3 seconds) the 📄/✘ button on the unit or the ✘ button on the remote control to start the pairing process. The LED will turn blue and start blinking.
• Activate the Bluetooth device and select the search mode. "SHARP HT-SB145" or "SHARP HT-SB146" will appear on the list of Bluetooth devices.
• Select "SHARP HT-SB145" or "SHARP HT-SB146" from the device list. After connecting, the LED will become solid blue.
• Start playing music from the connected Bluetooth device.
• To pause or resume playback, press the ▶/II button on the remote control.
• To skip to the previous/next file, press the buttons on the remote control.
• Some mobile device apps allow you to press and hold to skip parts of tracks.

USB Operation

Using Bluetooth

Bluetooth Operation

√ Simple setup √ One remote √ Quick settings

Bluetooth operation

√ Simple setup √ One remote √ Quick settings

Using Bluetooth

√ Simple setup √ One remote √ Quick settings

√ Simple setup √ One remote √ Quick settings

√ Simple setup √ One remote √ Quick settings

Bluetooth operation

√ Simple setup √ One remote √ Quick settings

Bluetooth operation

√ Simple setup √ One remote √ Quick settings

Bluetooth operation

When you first connect your Bluetooth device to this player, you must pair it.

NOTE:

√ Simple setup √ One remote √ Quick settings

Bluetooth operation

The first time you connect a Bluetooth device to this unit, you need to pair your device with this unit.

NOTE:

• Compatibility with all Bluetooth devices is not guaranteed.
• Any obstacle between this unit and the Bluetooth device may reduce the operating range.
• If the signal strength is weak, your unit may turn off, but it will automatically re-enter pairing mode.
• Press and hold (3 seconds) the 📊/✘ button on the unit or ✘ on the remote control to start the pairing process. The LED will turn blue and start blinking.
• Activate your Bluetooth device and select the search mode.

"SHARP HT-SB145" or "SHARP HT-SB146" will appear on your Bluetooth device list.

1. Select "SHARP HT-SB145" or "SHARP HT-SB146" from the device list. After connecting, the LED will become steady blue.
2. Start playing music from the connected Bluetooth device.
3. To pause or resume playback, press the ▶/II button on the remote control.
4. To skip to the previous/next file, press the buttons /▶▶ on the remote control.
5. Some applications on mobile devices will allow you to press and hold the | ◀◀/▶▶ button to skip parts of a track.

USB handling

1. Insert a USB device into the USB socket on the soundbar.
2. Press the 📋 button multiple times on the soundbar or remote control to select the USB source.
3. You can navigate through different folders stored on the USB device. Press + / to change folder.
4. Press ▶ to play the selected track.
5. During playback:
6. To pause or resume playback, press the ▶| button on the remote control. – To skip to the previous/next file, press the buttons / on the remote control. Press and hold / to fast rewind/forward the track.

TIPS:

√ Simple setup √ One remote √ Quick settings

Bluetooth function

√ Simple setup √ One remote √ Quick settings

Sharp Consumer Electronics Poland sp. z o.o.

Ostaszewo 57B, 87-148 Lysomice, Poland

Made in China

SAU/MAN/0209 V2

www.sharpconsumer.com

SHARP
