C-HCS85-12/2

DE Akku-Handkreissäge | Originalbetriebsanleitung.... 4
GB Cordless hand-held circular saw | Translation of the original operating instructions .... 18
FR Scie circulaire sans fil | Traduction du mode d'emploi original .... 29

1 2 19 18 7 9 8 17 16 15 14 13 12 11 10 20 21 22

2 23 25 12V 26 27 98

17 11 16 13 23 22

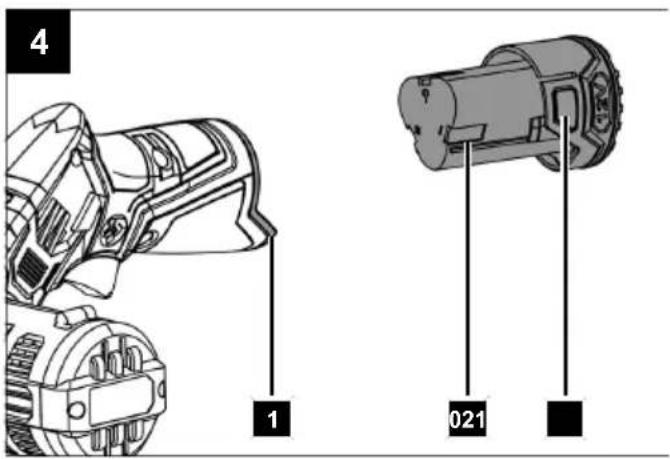

4 1 021

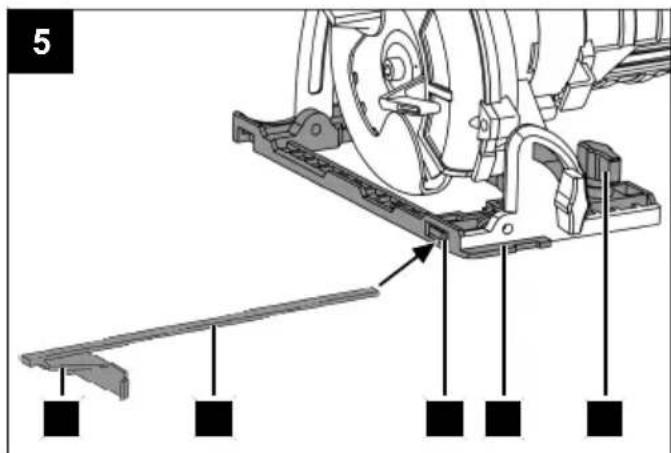

5

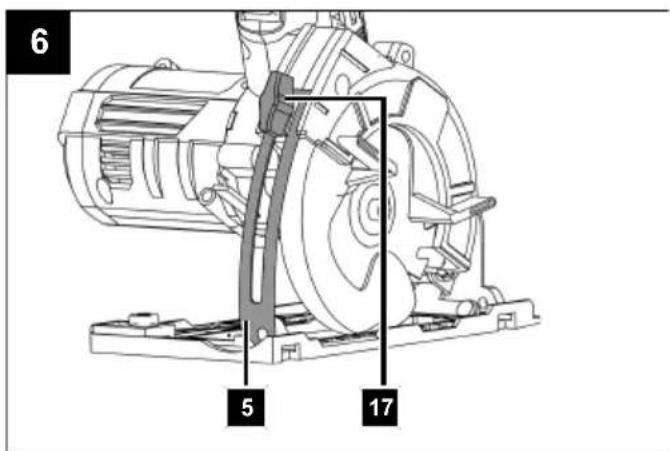

6 5 17

7 8 9

Inhaltsverzeichnis

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Garantiebedingungen

Revisionsdatum 26.11.2021

https://www.scheppach.com/de/service scheppach

1 Introduction ...... 18
2 Product description (Fig. 1) ...... 19
3 Scope of delivery (Fig. 1) 19
4 Proper use.... 19
5 Safety instructions.... 19
6 Technical data....23
7 Unpacking 24
8 Before commissioning.... 24
9 Operation 25
10 Cleaning and maintenance 27
11 Storage.... 27
12 Repair and ordering spare parts 27
13 Disposal and recycling 27
14 EU Declaration of Conformity.... 28

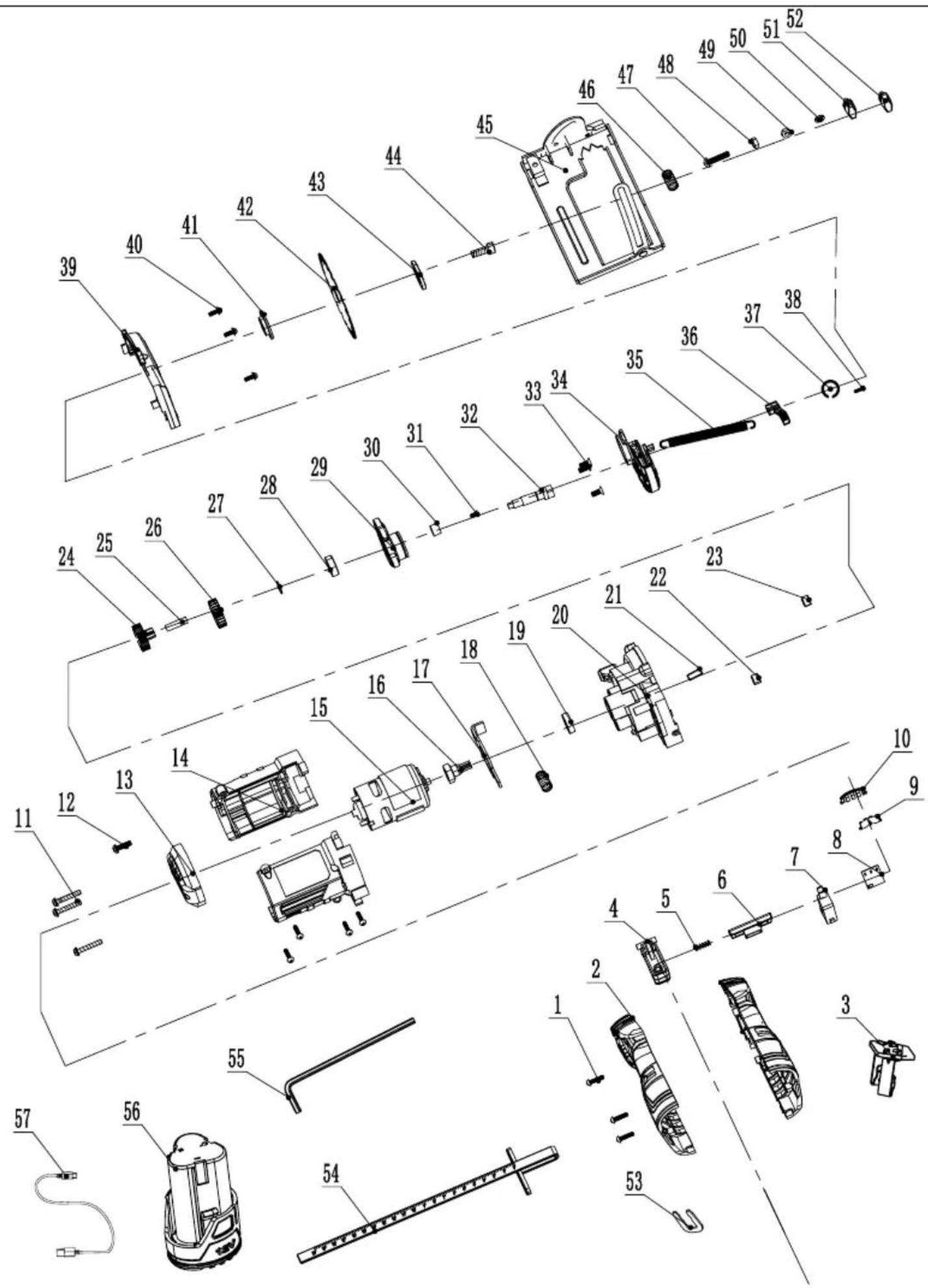

15 Exploded view 41

Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Attention! Failure to observe the safety signs and warning information affixed to the product and failure to observe the safety and operating manual can result in serious injury or even death.
	Before commissioning, read and observe the operating manual and safety instructions!
	Wear safety goggles.
	Wear hearing protection.
	If dust builds up, wear respiratory protection!
	Wear protective gloves!
	Attention! Danger of injury! Do not reach into saw blade while it is running!
	Do not throw the product into a fire.

	Do not throw the product into water.
	Do not expose the product to strong sunlight for a long time and do not place it on radiators (max. 45 °C).
	Charge status indicator
	Protection class II (double insulation).
T2A	Retainer
Lithium	Lithium-ion battery
	The product is only suitable for indoor operation.
	The product complies with the applicable European directives.

1 Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
  • Non-compliance with the operating manual
  • Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
• Improper use

Note:

The operating manual is part of this product.

It includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country.

Familiarise yourself with all operating and safety instructions before using the product. Only operate the product as described and for the specified areas of application.

Keep the operating manual in a good place and hand over all documents when passing the product on to third parties.

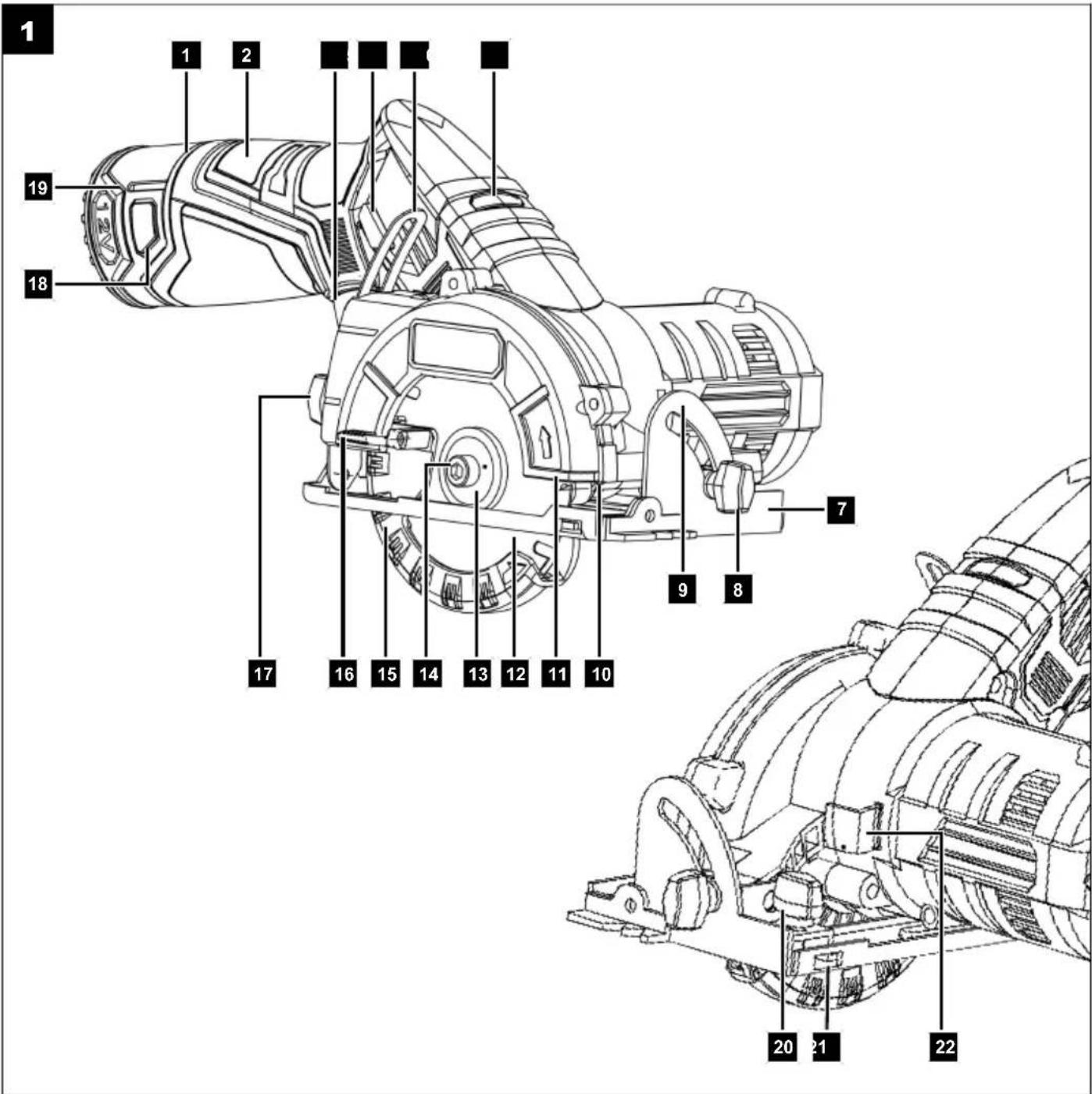

2 Product description (Fig. 1)

1. Battery mount

2. Handle

3. On/off switch

4. Switch lock

5. Cutting depth scale

6. Battery charge level

7. Base plate

8. Wing screw (cutting angle)

9. Cutting angle scale

10. LED work lamp

11. Fixed protective cover

12. Saw blade

13. Flange

14. Allen screw

15. Protective cover

16. Retracting lever (protective cover)

17. Wing screw (cutting depth)

18. Release button (battery)

19. Battery

20. Wing screw (parallel stop)

21. Parallel stop mount

22. Spindle locking

23. Allen key

24. Parallel stop

25. Scale (parallel stop)

26. LED ( battery charger)

27. Battery charger

28. Battery charger/battery mount

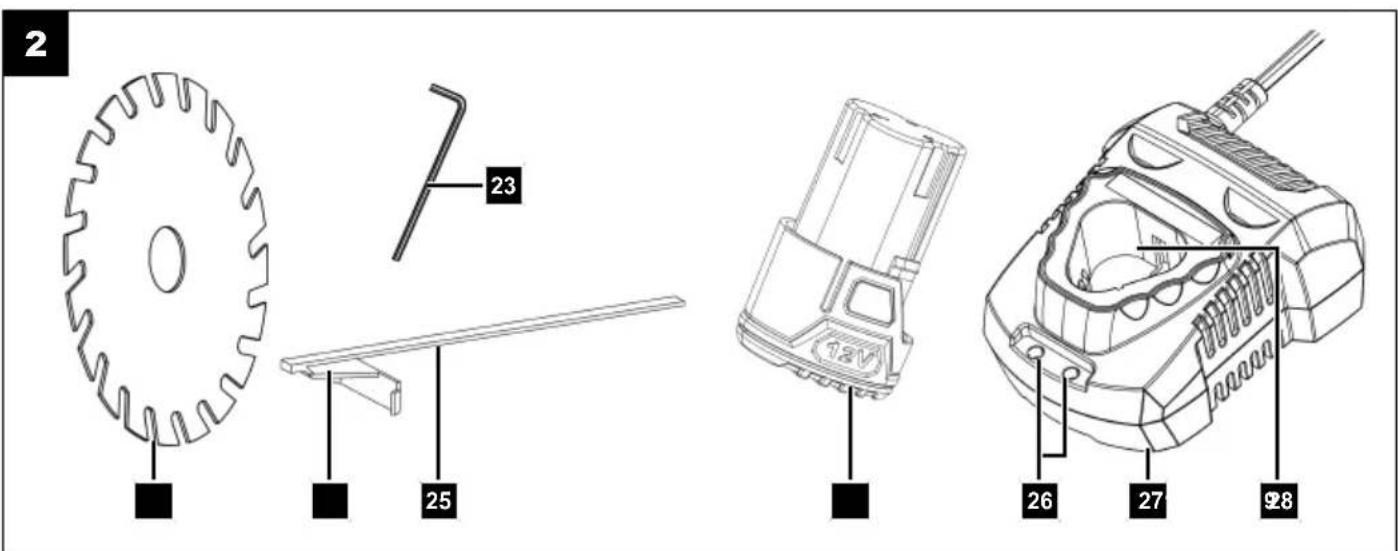

3 Scope of delivery (Fig. 1)

Item QuantityDesignation

1. 1 x Saw blade

2. 2 x Battery

3. 1 x Allen key

4. 1 x Parallel stop

5. 1 x Battery charger

1 x Cordless hand-held circular saw

1 x Operating manual

4 Proper use

The cordless hand-held circular saw is suitable for sawing in wood, plastic or light building materials (e.g. plasterboard). Sawing metal is not permitted.

The product may only be used in the intended manner. Any use beyond this is improper. The user, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product.

The product may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

Explanation of the signal words in the operating manual

DANGER

Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

ATTENTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.

5 Safety instructions

General power tool safety warnings

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such precautionary measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never attempt to service damaged batteries. Any type of battery maintenance shall be carried out only by the manufacturer or an authorised customer service centre.

Special safety instructions for battery-powered devices

ATTENTION

Observe the safety instructions and notes in the operating instructions of all compatible products you use.

- Make sure the device is switched off before inserting the battery. Inserting a battery into an electric tool that is switched on can cause accidents.

- Only charge your batteries indoors because the battery charger is only intended for this purpose. Danger due to electric shock.

• To reduce the risk of electric shock, unplug the battery charger from the wall socket before cleaning.

- Do not expose the battery to strong sunlight for a long time and do not place it on radiators. Heat damages the battery and there is a risk of explosion.

- Allow a heated battery to cool down before charging.

- Do not open the battery and avoid mechanical damage to the rechargeable battery. There is a risk of short-circuiting and vapours may escape that irritate the respiratory tract. Make sure you get fresh air and seek additional medical help.

- Do not use accessories that are not recommended by the manufacturer. This can lead to electric shock or fire.

Using and handling the cordless tool

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.

g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

h) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Additional safety instructions

- Before commissioning, ensure that the mains voltage matches with the operating voltage and the machine's power rating on the type plate.

Safety instructions for battery charger

ATTENTION

Observe the safety instructions and notes in the operating instructions of all compatible products you use.

- This product can be used by children from 8 years of age as well as by persons with reduced physical, sensory or mental capabilities or with a lack of experience or knowledge, if they are supervised or if they have been trained in the safe use of the product and understand the resultant hazards. Children may not play with the device. Cleaning and user maintenance must not be carried out by children unsupervised.

Safety instructions for all saws

Sawing process

DANGER

Do not place your hands in the sawing area or on the saw blade. Hold the additional handle or the motor housing with your second hand. If both hands hold the saw, they cannot be injured by the saw blade.

a) Do not reach beneath the workpiece. The protective cover cannot protect you from the saw blade beneath the workpiece.
b) Adjust the cutting depth to the thickness of the workpiece. Less than one full tooth height should be visible beneath the workpiece.
c) Never hold the workpiece that is to be sawn in the hand or over the leg. Secure the workpiece on a stable support. It is important to fasten the workpiece well, in order to minimise any risk of physical contact, jamming of the saw blade or loss of control.
d) When performing work during which the tool attachment can meet with concealed power lines or its own connection cable, hold the power tool by the insulated gripping surfaces. Contact with a live cable will also energise the metal parts of the electrical tool and will lead to an electric shock.
e) When performing a longitudinal cut always use a stop or a straight edge guide. This improves the cutting accuracy and reduces the possibility of the saw blade jamming.
f) Always use saw blades with correct size and shape (diamond versus round) of arbour holes. Saw blades that do not match the mounting hardware of the saw will run off-centre, causing loss of control.
g) Never use damaged or incorrect saw blade washers or screws. The saw blade washers and screws have been specially designed for your saw, for optimum performance and operational safety.

Additional instructions

a) Do not use grinding discs.
b) Make sure that a suitable saw blade for the material to be cut is selected.

c) Saw blades designed to cut wood and similar materials must comply with EN 847-1.
d) The saw may only be used for sawing wood, plastic and light building materials.
e) Only use saw blades with a speed marking equal to or higher than the specified speed of your product.
f) Only use saw blades with 165 mm diameter that match the inscriptions on the saw blade.
g) Avoid overheating the saw teeth.
h) When sawing plastic, avoid melting of the plastic. Use the correct saw blades for the material to be cut. Replace damaged or worn saw blades immediately. When the saw blade overheats, stop the machine. Allow the saw blade to cool down before using the machine again.
i) Adjust the cutting depth to the thickness of the workpiece. Less than one full tooth height should be visible beneath the workpiece.
i) Wear a dust mask.
k) Wear hearing protection and safety goggles during the entire operating period.

Further safety instructions for all saws

Kickback - causes and corresponding safety instructions

• Kickback is a sudden reaction to a hooked, jammed or incorrectly aligned saw blade, which leads to an uncontrolled rebounding of the saw, whereby it moves out of the workpiece in the direction of the operator.
• If the saw blade hooks or jams in the closing sawing gap, it is blocked and the motor power forces the saw back in the direction of the operator.
• If the saw blade skews or is incorrectly aligned in the saw cut, the teeth of the rear saw blade edge can hook into the wooden surface, which results in the saw blade moving out of the sawing gap and the saw jumping back in the direction of the operator.

Kickback is the result of incorrect use or misuse of the saw. It can be prevented by suitable precautionary measures, as described in the following.

a) Hold the saw firmly with both hands and bring your arms into a position in which you can absorb the kickback forces. Always stand to the side of the saw blade; never bring the saw blade in line with your body. During kickback, the circular saw can jump backwards, although the operator is able to control the kickback forces using suitable measures.
b) If the saw blade jams or you interrupt your work, switch off the saw and hold the saw calmly in the material, until the saw blade has come to a standstill. Never attempt to remove the saw from the workpiece or draw it backwards whilst the saw blade is moving, otherwise kickback can occur. Determine and remedy the cause of the saw blade jamming.
c) If you wish to restart a saw that is inserted in a workpiece, centre the saw blade in the sawing gap and check that the saw teeth are not hooked in the workpiece. If the saw blade is hooked in, it can move out of the workpiece or cause kick-back when the saw is restarted.

d) Support large panels to minimise the risk of saw blade pinching and kickback. Large panels tend to sag under their own weight. Panels must be supported on both sides, that is both close to the sawing gap and at the edge.
e) Do not use blunt or damaged saw blades. Saw blades with blunt or incorrectly aligned teeth cause increased friction, jamming of the saw blade and kick-back due to the sawing gap being too tight.
f) Before sawing, determine the cutting depth and cutting angle settings. If you change the settings during sawing, the saw blade can jam and result in kickback.
g) Apply particular caution when sawing in existing walls or other areas that are not visible. The plunging saw blade can jam in concealed objects during sawing and result in kickback.

Function of the lower protective cover

a) Check that the lower protective cover closes correctly before every use. Do not use the saw if the lower protective cover does not move freely or does not close immediately. Never clamp or bind the lower protective cover in the open position. If the saw should accidentally fall to the floor, the lower protective cover may be bent. Open the protective cover with the pull-back lever and make sure it moves freely and does not touch the saw blade or any other parts with all cutting angles and depths.
b) Check the condition and function of the spring for the lower protective cover. Have the saw maintained before use, if the lower protective cover and spring do not function properly. Damaged parts, sticky deposits or adhered chips cause the lower protective cover to function with a delay.
c) Only open the lower protective cover by hand for special cuts, such as "dip and angle cuts". Open the lower protective cover with the pull-back lever and release it as soon as the saw blade dips into the workpiece. For all other sawing operations, the lower protective cover should operate automatically.
d) Do not place the saw on the workbench or the floor without the lower protective cover covering the saw blade. An unprotected saw blade running on moves the saw against the cutting direction and saws anything in its path. Note the run-on time of the saw blade here.

Safety instructions for the use of saw blades

• Avoid uncontrolled release of the saw unit in the lower end position.
• Do not use damaged or deformed saw blades.
• Do not use saw blades with cracks. Separate cracked saw blades. Repairs are not permitted.
• Do not use saw blades made of high speed steel.
• Check the condition of the saw blades before using saws.
  • Make sure that a suitable saw blade for the material to be cut is selected.

- Only use saw blades recommended by the manufacturer. Saw blades designed to cut wood and similar materials must comply with EN 847-1.

- Only use saw blades for which the maximum permissible speed is not lower than the maximum spindle speed of the saw and which are suitable for the material to be cut.

- Observe the direction of rotation of the saw blade.

- Only use saw blades if you have mastered their use.

- Observe the maximum speed. The maximum speed specified on the saw blade may not be exceeded. If specified, observe the speed range.

- Clean dirt, grease, oil and water off of the clamping surfaces.

- Do not use any loose reducing rings or bushes for the reducing of holes on saw blades.

- Make sure that fixed reducer rings for securing the saw blade have the same diameter and have at least 1/3 of the cutting diameter.

- Make sure that fixed reducer rings are parallel to each other.

- Handle saw blade with caution. They are ideally stored in the originally package or special containers. Wear protective gloves in order to improve grip and to further reduce the risk of injury.

- Prior to use, make sure that the saw blade meets the technical requirements of this saw and is properly fastened.

- Only use the supplied saw blade for cutting wood, never for the processing of metals.

- Use only a saw blade with a diameter that matches the specifications on the saw.

- Use additional workpiece supports, if required for workpiece stability.

• Workpiece support extensions must always be secured and used during work.

- Replace table inlays when worn!

- Avoid overheating the saw teeth.

- When sawing plastic, avoid melting of the plastic. Use the correct saw blades for the material to be cut. Replace damaged or worn saw blades immediately. When the saw blade overheats, stop the machine. Allow the saw blade to cool down before using the machine again.

- Use only saw blades that are marked with an equal or higher rotational speed than the rotational speed specified on the electric tool.

• Always ensure that the saw is stable and secure.

Safe work

Tools may only be used by trained and experienced persons who are proficient in handling tools.

- The maximum speed specified on the insertion tool may not be exceeded. Where indicated, the speed range must be observed.

- Circular saw blades with cracks in the blade must be discarded (repair is not permitted).

- Tools with visible cracks must not be used.

- Tools must be cleaned regularly.

- Tool parts made of light alloys may only be cleaned, e.g. of resin, with solvents that do not impair the mechanical properties of these materials.

1. Tools and tool bodies must be clamped in such a way that they cannot come loose during operation.

2. Extending the key or tightening it with the help of hammer blows is not permitted.

3. The clamping surfaces must be cleaned of dirt, grease, oil and water.

4. Spare parts must comply with the specifications for original parts supplied by the manufacturer.

5. Maintenance work and modifications to circular saw blades should only be carried out by a competent person, i.e. a person with specialist training and experience who is familiar with the requirements for construction and design and who is familiar with the required safety levels.

Residual risks

The product has been built according to state-of-the-art and the recognised technical safety rules.

However, individual residual risks can arise during operation.

- Damage to hearing if the stipulated hearing protection is not worn.

- Residual risks can be minimised if the "Safety Instructions" and the "Intended Use" together with the operating manual as a whole are observed.

- Use the product in the way that is recommended in this operating manual. This is how to ensure that your product provides optimum performance.

• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.

WARNING

This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

6 Technical data

Nominal voltage 12V
Idle speed n_0	1450 rpm
Weight (without battery) approx. 1 kg
Max. cut depth
at 90° 26.5 mm
at 45° 17 mm
Saw blade
Dimensions	∅85 mm x ∅15 mm x 0.8 mm
Tooth thickness / cutting thickness	1.1 mm
Size of hole	∅15 mm
Number of teeth	20 teeth
Idle speed n max 10000 rpm
Battery charger
Input ←
Rated voltage 220–240 V~50-60 Hz
Rated power consumption	50 W
Fuse (internal) 2 A
Output →
Rated voltage 12V	——
Rated current 2.4 A
Protection class II (Double insulation)
Loading time:
2 Ah approx. 60 min
Battery (Li-lon)
Number of battery cells 3
Rated voltage max. 12 V	——
Capacity 2.0 Ah
Power 24 Wh
Charging process temperature	4 °C – 45 °C

Subject to technical changes!

Noise and vibration

WARNING

Noise can have serious effects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection for you and persons in the vicinity.

The noise and vibration values have been determined in accordance with EN 62841-1.

Noise data

Sound pressure level L_pA	77.1 dB
Measurement uncertainty K_pA	3 dB
Sound power level L_wA	88.1 dB
Measurement uncertainty K_wA	3 dB

Vibration parameters (hand/arm vibration)

Vibration a_h Sawing in wood
Handle	3.368 m/s ^2
Measurement uncertainty K	1.5 m/s ^2

The total vibration emission values specified and the device emissions values specified have been measured in accordance with a standardised test procedure and can be used for comparison of one electric tool with another.

The total noise emission values specified and the total vibration emission values specified can also be used for an initial estimation of the load.

WARNING

The noise emission values and vibration emission value can vary from the specified values during the actual use of the power tool, depending on the type and the manner in which the electric tool is used, and in particular the type of workpiece being processed.

Try to keep the stress as low as possible. For example: Limit working time. In doing so, all parts of the operating cycle must be taken into account (such as times in which the power tool is switched off or times in which it is switched on, but is not running under a load).

7 Unpacking

WARNING

The product and the packaging material are not children's toys!

Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

• Open the packaging and carefully remove the product.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport damage. Immediately report any damage to the transport company that delivered the Product. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
  • Familiarise yourself with the product by means of the operating manual before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.
• When ordering please provide our article number as well as type and year of manufacture for the product.

8 Before commissioning

CAUTION

Danger of injury!

Do not insert the battery until the battery-powered tool is ready for use.

8.1 Wall mounting of the charger (27) (Fig. 1)

WARNING

• Before wall mounting, make sure that there are no lines in the wall in the area of the drill holes that could be damaged.
• Lay the mains cable so that it does not obstruct you and no one can accidentally pull on it.
• Children must not play with the product, even if it is hanging on the wall.
• Mounting behind doors and their swinging range is not recommended, as there is a risk of tearing off or otherwise damaging the product.

WARNING

The product must never be operated on a combustible surface.

WARNING

Never attach the product to a wet surface.

WARNING

Ensure adequate ventilation.

* = not included in the scope of delivery!

The battery charger (27) has two holes on its back for wall mounting with two screws*. It can be hung on a wall, taking into account the safety instructions and the dimensions given.

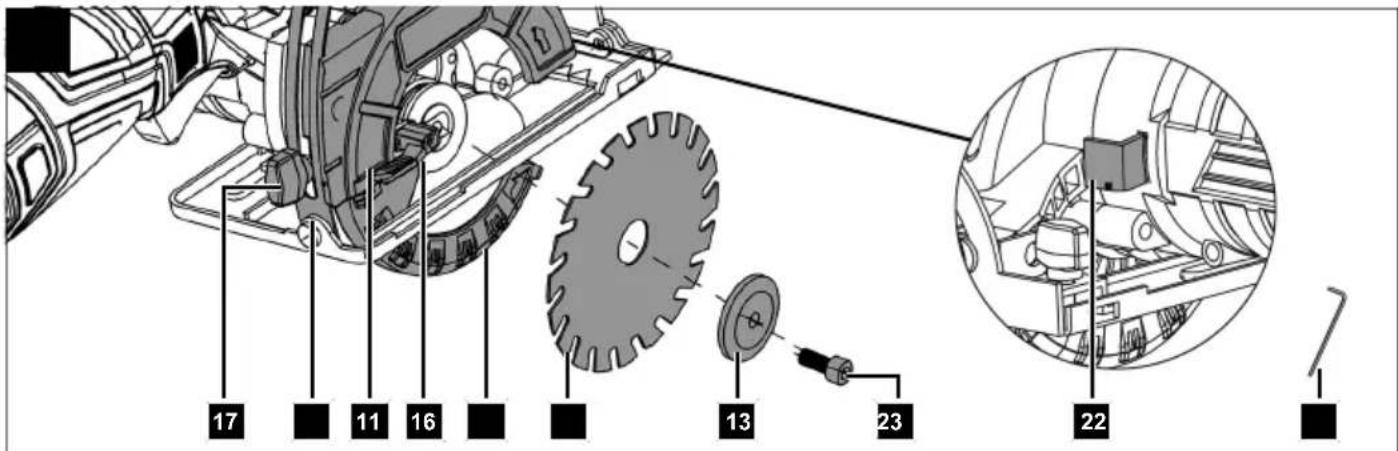

8.2 Fitting/replacing the saw blade (12) (Fig. 3)

WARNING

Tool attachments may be sharp and become hot during use. Always wear protective gloves when handling the tool attachments.

CAUTION

Keep your hands away from the tool attachment when the product is in operation.

ATTENTION

The saw blade is not pre-mounted!

1. Set the cutting depth scale (5) to 0 mm and lock the wing screw (17).

8.2.1 Fitting the saw blade (12)

CAUTION

An incorrectly installed saw chain leads to uncontrolled cutting behaviour by the product!

When fitting the saw chain, observe the prescribed running direction!

WARNING

Make sure that the saw blade is suitable for the speed of the tool.

1. Swing back the protective cover (15) with the retracting lever (16) and place the saw blade (12) from below into the fixed protective cover (11) and onto the spindle.
2. Place the flange (13) on the saw blade (12).
3. Press the spindle lock (22) and fix the saw blade (12) with the Allen screw (14). Use the Allen key (23).

8.2.2 Dismantling the saw blade (12)

1. Swing back the protective cover (15) with the retracting lever (16) and place the product on a level surface.
2. Press and hold the spindle lock (22).
3. Loosen the Allen screw (14) with the Allen key (23).
4. Remove the Allen screw (12) and the flange (13).
5. Lift the product, hold back the protective cover (15) and carefully remove the saw blade (12) downwards from the fixed protective cover (11).

8.3 Inserting/removing the battery (19) into/from the battery mount (1) (Fig. 4)

Inserting the battery

1. Push the battery (19) into the battery mount (1). The battery (19) clicks into place audibly.

Removing the battery

1. Press the unlock button (18) of the battery (19) and remove it from the battery mount (1).

8.4 Fitting the parallel stop (24) (Fig. 5)

1. Loosen the wing screw (20) for the parallel stop mount (21) and insert the parallel stop (24) into the parallel stop mount (21).
2. Set the desired cutting width using the scale (25) on the parallel stop (24) and the recess in the base plate (7).
3. Tighten the wing screw (20) for the parallel stop mount (21).

9 Operation

The cordless circular saw has an overload protection and a spindle lock.

Please refer to the following description for the function of the controls.

WARNING

Danger of injury!

Remove the battery from the power tool before carrying out any work on the power tool (e.g. maintenance, tool change, etc.) and when transporting and storing it. There is a risk of injury if the on/off switch is operated unintentionally.

ATTENTION

Make sure that the ambient temperature does not exceed 40^ C and does not fall below 4^ C during work.

9.1 Checking the battery charge status (Fig. 1)

The battery charge level (6) indicates the charge level of the battery (19).

The charge level of the battery (19) is indicated by the corresponding LED light lighting up.

1. Actuate the on/off switch (3).

LED on the battery Charging status

red-orange-green Battery full

red-orange Battery partially charged

red Battery empty

9.2 Depleted batteries

• A significantly shortened operating time despite charging indicates that the battery has been used up and needs to be replaced. Only use original replacement batteries.
• In any case, observe the applicable safety instructions as well as regulations and instructions on environmental protection (see "Disposal and recycling").

9.3 Charging the battery (19) (Fig. 1)

WARNING

Observe the following information to reduce hazards:

• Never leave batteries to charge unsupervised!
• Remove rechargeable batteries from the charger after charging.
• Do not over-charge batteries! Observe the maximum charging times. These charging times only apply to discharged batteries. Inserting a charged or partially charged battery multiple times leads to overloading and cell damage. Do not leave batteries in the battery charger for multiple days.
• Never use or charge batteries if you suspect that they were last charged more than 12 months ago. The probability is high that the battery is already dangerously damaged (deep discharge).

Charge the battery (19) at an ambient temperature of 4 °C to 45°C.

1. Push the battery (19) into the battery charger mount (28) as far as it will go.
2. Plug the mains plug into the socket. As soon as the charging process starts, the LED (26) lights up red.
3. LED (26) lights up green when charging is complete. The battery (19) is ready for use.

ATTENTION

- If the LED lights up green although the battery is discharged, the battery is either overheated or defective.

1. Pull the battery (19) out of the battery charger mount (28).
2. Wait at least 15 min until a new charging process. Therefore, pull the mains plug out of the outlet.

9.4 Function of the protective cover (15) (Fig. 1)

1. Pull the retracting lever (16) of the protective cover (15) as far as it will go.

Note:

The protective cover must not jam and must automatically spring back to its original position when the retracting lever is released.

Note:

If the function is faulty, do not operate the product and contact our Service Centre.

9.5 Overload switch-off

In the event of overloading, the motor will switch itself off. After a cool-down period (time varies) the motor can be switched back on again.

9.6 Setting the cutting depth (Fig. 6)

Note:

For a clean cut, select a cutting depth that is approx. 3 mm greater than the material thickness.

1. Loosen the wing screw (17).
2. Set the desired cutting depth on the cutting depth scale (5).
3. Retighten the wing screw (17).

9.7 Setting the cutting angle (Fig. 7)

You can set the cutting angle with the cutting angle scale (9).

1. Loosen the wing screw (8) for setting the cutting angle.
2. Use the cutting angle scale (9) to set the required angle.
3. Retighten the wing screw (8).

9.8 Switching the product on/off (Fig. 1)

ATTENTION

Before use, check the inserted tool to ensure all fastening parts are attached correctly.

Switching on

1. Press the switch-on interlock (4) on the handle (2) to the right or left.
2. To switch on the product, push the on/off switch (3).

Note:

After the product has started, you can release the switch-on interlock again.

Switching off

1. To switch it off, simply release the on/off switch (3).

9.8.1 LED work lamp (8) (Fig. 1)

This product is equipped with an LED work lamp to illuminate the immediate work area and improve visibility in poorly lit environments.

CAUTION

Do not look directly into the LED work lamp or the light source.

1. The LED work lamp (8) lights up automatically as soon as the product is switched on.

10 Cleaning and maintenance

WARNING

Have maintenance and repair tasks that are not described in this operating manual, carried out by a specialist workshop. Use only original spare parts.

WARNING

Improper maintenance or cleaning work can cause injuries!

WARNING

The product may start unexpectedly and cause injuries and burns during cleaning, repair and maintenance work.

• Switch the product off.
• Remove the battery.
• Allow the product to cool down.
• Remove the tool attachment.

10.1 Cleaning

1. Keep protective devices, air vents and the motor housing as free of dust and dirt as possible. Rub the product clean with a clean cloth* or blow it off with compressed air* at low pressure. We recommend that you clean the product directly after every use.
2. Ventilation openings must always be free.
3. Do not use any cleaning products or solvents; they could attack the plastic parts of the product. Make sure that no water can penetrate the product interior.
4. Wipe any dirt off the lens with a dry cloth. Be careful to avoid scratching the LED lamp as this can severely reduce the light intensity.

10.2 Maintenance

The product is maintenance-free.

11 Storage

Preparation for storage

1. Remove the battery from the product before prolonged storage (e.g. winter storage).
2. Clean and check the product for damage.
3. Store the battery in a partially charged state.
4. When stored, check the battery charge level every three months.

Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children.

The optimum storage temperature is between 5^ C and 30^ C.

Store the product in its original packaging.

Cover the product to protect it from dust or moisture.

Store the operating manual with the product.

12 Repair and ordering spare parts

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

ATTENTION

According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts.

Such work should be performed by a customer service centre or an authorised specialists. The same applies to accessory parts.

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

12.1 Ordering spare parts

Please provide the following information when ordering spare parts:

• Model designation
• Item number
• Type plate data

13 Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act (ElektroG)

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Used batteries or rechargeable batteries that are not installed permanently in the old device must be removed non-destructively before disposal! Their disposal is regulated by the battery act.
• Owners or users of electrical and electronic devices are legally obliged to return them after use.
• The end user is responsible for deleting their personal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.
• Waste electrical and electronic equipment can be handed in free of charge at the following places:

– Public disposal or collection points (e.g. municipal works yards)

- Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.

• Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.
  – Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

• If the manufacturer delivers a new electrical device to a private household, the manufacturer can arrange for the free collection of the old electrical device upon request from the end user. Please contact the manufacturer's customer service for this.
  • These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

Notes on lithium-ion batteries

Remove the battery before disposing of the device!

• Do not dispose of the battery in household waste, in a fire (risk of explosion) or in water. Damaged batteries can harm the environment and your health if toxic vapours or liquids escape.
• Defective or used batteries must be recycled in accordance with Directive 2023/1542/EC.
• Hand in the device and the battery charger at a recycling centre. The plastic and metal parts used can be separated by type and thus recycled.
• Dispose of batteries when discharged. We recommend covering the poles with an adhesive strip to protect against a short circuit. Do not open the battery.
• Dispose of batteries according to local regulations. Return batteries to a used battery collection point where they can be recycled in an environmentally friendly manner. Ask your local waste disposal company about this.

14 EU Declaration of Conformity

Translation of the original Declaration of Conformity

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

We declare under our sole responsibility that the product described here complies with the applicable directives and standards.

Brand: SCHEPPACH

Art. designation: Cordless hand-held circular saw - C-HCS85-12/2

Art. no. 5901820917/PLU 12019

EU directives:

2014/30/EU, 2006/42/EC, 2011/65/EU*, 2014/35/EU, (EU) 2023/1542**

* The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
** The object of the declaration described here meets the requirements of Regulation (EU) 2023/1542 of the European Parliament and of the Council of 12 July 2023 on batteries and waste batteries.

Applied standards:

EN 62841-1:2015/A11:2022; EN 62841-2-5:2014;

EN IEC 55014-1:2021; EN IEC 55014-2:2021;

EN 62841-1:2015/A11:2022 Annex K;

EN IEC 62133-2:2017;

EN 60335-1:2012/A15:2021;

EN 60335-2-29:2004/A11:2018;

EN 62233:2008; EN IEC 55014-1:2021;

EN IEC 55014-2:2021;

EN IEC 61000-3-2:2019/A1:2021;

EN 61000-3-3:2013/A2:2021

Documentation authorised representative:

Dawid Hudzik

Günzburger Str. 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

Sommaire

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Exploded view diagram of a mechanical assembly with numbered parts for identification

Garantie DE

Obvious defects must be reported within 8 days after receipt of the goods, otherwise the purchaser loses all claims due to such defects. We guarantee our machines, if handled correctly, for the duration of the statutory warranty period from handover in such a way that we will replace free of charge any machine part that demonstrably becomes unusable within this period as a result of material or manufacturing defects. For parts that we do not manufacture ourselves, we only provide a warranty to the extent that we are entitled to warranty claims against the upstream suppliers. The purchaser shall bear the costs of fitting the new parts. Claims for conversion and reduction and other claims for damages are excluded.

Garantie FR
