IMPORTANT SAFETY INSTRUCTIONS

WARNING WHEN USING AN ELECTRICAL DUST EXTRACTOR, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING: READ ALL INSTRUCTIONS BEFORE USING DUST EXTRACTOR. BEFORE USING THE DUST EXTRACTOR, READ THIS OPERATOR'S MANUAL, YOUR TOOL, BATTERY PACK AND CHARGER OPERATOR'S MANUALS, AND ALL LABELS ON THE DUST EXTRACTOR, BATTERY PACK, CHARGER AND TOOL. FAILURE TO FOLLOW THE WARNINGS AND INSTRUCTIONS MAY RESULT IN ELECTRICAL SHOCK, FIRE AND/OR SERIOUS INJURY.

WORK AREA SAFETY

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Dust extractors have motors and other parts that can produce sparks during normal use. Do not use within 30 feet of areas where explosive materials may be present (such as gasoline pumps and places where liquids like paint thinners, cleaners, solvents, etc. are stored).
• Do not use in the presence of explosive dust, liquids or vapors.
• Do not use where oxygen or anesthetics are used.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

ELECTRICAL SAFETY

• Do not pick up wet material. Do not use water to settle dust.
• Do not handle battery pack or dust extractor with wet hands.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

PERSONAL SAFETY

• STAY ALERT. Watch what you are doing and use common sense. Do not use dust extractor when you are tired, distracted or under the influence of drugs, alcohol or medication causing diminished control.
• The operation of a dust extractor can result in foreign objects being blown into eyes, which can result in eye damage. Always wear safety goggles or glasses with side shields when operating dust extractor.
• Wear a dust mask or use an OSHA compliant dust extraction solution when working in dusty situations. Dust particles can harm your lungs.

• Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
• Avoid accidental starting. Ensure the switch is in the off-position before inserting battery pack. Inserting battery pack in dust extractor that has the switch on invites accidents.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

USE AND CARE

• Do not use without dust box and/or filter in place.
• Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.
• Do not pick up anything that is burning or smoking such as cigarettes, matches, or hot ashes.
• Do not pick up soot, cement, plaster or drywall dust without filter in place. These are very fine particles that may affect the performance of the motor or be exhausted back into the air.
• This product is suitable for collection of silica dust when used in accordance with these instructions. To reduce the risk of health hazards from other vapors or dust, do not vacuum carcinogenic, toxic or hazardous materials such as asbestos, arsenic, barium, beryllium, lead, pesticides or other health endangered materials.
• Use special care when emptying heavily loaded tanks.
• To avoid spontaneous combustion, empty dust box after each use.
• Disconnect the battery pack from the tool before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything else that may reduce air flow.
• Maintain dust extractor. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the dust extractor's operation. If damaged, have the dust extractor repaired before use. Many accidents are caused by poorly maintained tools.

SERVICE

• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
• Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as indicated in the instructions for use and care.
• Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SPECIFIC SAFETY RULES FOR DUST EXTRACTORS

• Before using the dust extractor, read this operator's manual, your tool, battery pack and charger operator's manuals, and all labels on the dust extractor, battery pack, charger and tool.
• Never use dust extractor without dust box and HEPA filter in place. Never use water to clean dust box or HEPA filter.
• Wear ear protectors. Exposure to noise can cause hearing loss.
• Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

WARNING

To reduce the risk of injury, when working

in dusty situations, wear appropriate respiratory protection or use an OSHA compliant dust extraction solution.

• Always use common sense and be cautious when using tools. It is not possible to anticipate every situation that could result in a dangerous outcome. Do not use this tool if you do not understand these operating instructions or you feel the work is beyond your capability; contact Milwaukee Tool or a trained professional for additional information or training.
• Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a MILWAUKEE service facility for a replacement.

WARNING

Some dust created by power sanding, saw-

ing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paint
  • crystalline silica from bricks and cement and other masonry products, and
  • arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

READ AND

SAVE ALL

INSTRUCTIONS

FOR FUTURE USE

FOR HOUSEHOLD OR COMMERCIAL USE.

SYMBOLOGY

Operator's Manual

SPECIFICATIONS

Cat. No....2908-DE

For use only with 2908-20 M18 FUEL™ 5/8" SDS PLUS Rotary Hammer

Small Nozzle Max Diameter 5/8"

Large Nozzle Max Diameter 1-1/4"

Recommended Ambient

Operating Temperature....0°F to 125°F

Dust Box Cat. No 49-90-2140

HEPA Filter Cat. No....49-90-0910

FUNCTIONAL DESCRIPTION

Technical diagram of a mechanical assembly with numbered components for identification

Technical diagram of a mechanical device with numbered parts labeled 8, 9, and 10

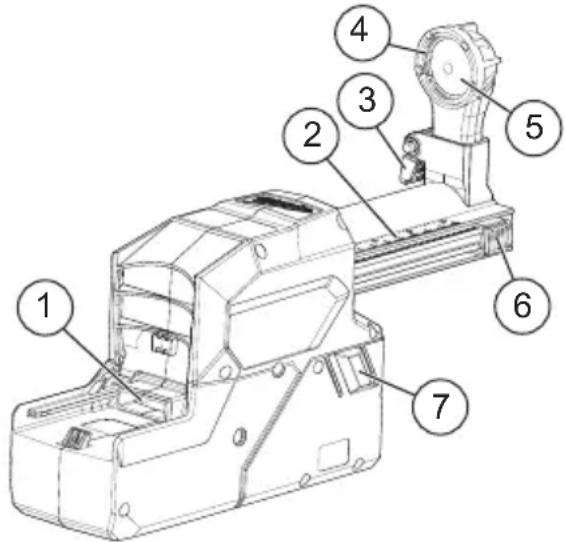

1. Dust extractor inlet
2. Depth gauge
3. Nozzle adjustment lever
4. Nozzle
5. Nozzle bit brush
6. Bit depth gauge button
7. Dust box latches
8. Hammer release button

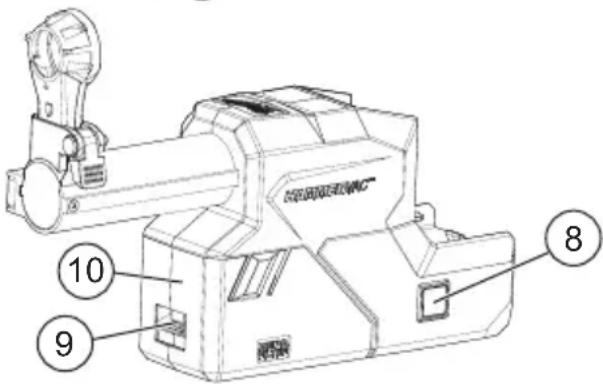

9. Filter cleaning lever
10. Dust box

ASSEMBLY

WARNING

Always remove battery pack before changing

or removing accessories. Only use accessories specifically recommended for this tool. Others may be hazardous.

Do not use tool without dust box and HEPA filter in place.

Removing/Installing the Dust Box and HEPA Filter

To remove the dust box:

1. WARNING! Remove battery to avoid starting the tool.
2. Squeeze the dust box latches.
3. Pull the dust box away from the HAMMERVAC ^TM .
4. Empty debris by holding away from the user's face and tapping dust box into a trash can, pail, or other reasonable container.
5. If necessary, pull the HEPA filter away from the dust box and tap clean. Do not clean with water or compressed air. After about 1500 holes or loss of suction, discard and replace HEPA filter (Cat. No. 49-90-0910).

To install the dust box:

1. Slide the dust box into the body of the HAMMERVAC™.

2. The dust box latches should snap into place.

NOTE: Do not operate the HAMMERVAC™ without the dust box and HEPA filter in place. Dust box cannot be installed without HEPA filter.

WARNING

To reduce the risk of injury, when working in dusty situations, wear appropriate respiratory protection or use an OSHA compliant dust extraction solution.

Keep filter clean. Efficiency of the HAMMERVAC ^™ is largely dependent on the filter. A dirty filter will reduce the air flow and overall efficiency of the system. Do not clean with water or compressed air. Remove from dust box and tap clean.

Installing/Removing Nozzle

Replace the nozzle:

• After drilling about 1500 holes,
- When the nozzle bit brush shows signs of wear,
- When suction is reduced,
- When dust escapes through the nozzle bit brush during use

To replace the Standard (Cat. No. 14-52-0105 and Large Cat. No. 14-52-0110) nozzles,

pull the nozzle adjustment lever up to the open position and pull out nozzle from the lower nozzle assembly. Slide the new nozzle into the lower nozzle assembly and push the nozzle adjustment lever down to the closed position.

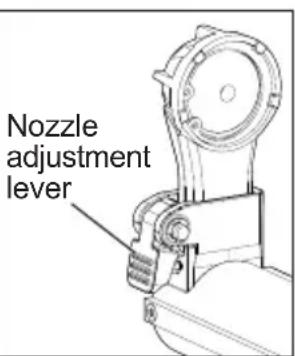

Nozzle adjustment lever

Attaching the HAMMERVAC™ to the Rotary Hammer

These HAMMERVAC ^™ Dust Extractors are for use with dedicated rotary hammers. Refer to the Specifications chart for compatible tools.

1. WARNING! Remove battery to avoid starting the tool.
2. Slide the body of the rotary hammer onto the dust extractor rails. The dust extractor will click into place when properly attached.

Installing/Removing the Bit

Slide the bit through the nozzle and then install into the tool according to the tool manufacturer's instructions. For best results, use a bit 6" in length or shorter.

Fitting the HAMMERVAC ^TM to the Tool and Bit

For proper suction and depth control, position the nozzle assembly so the bit is flush with the forward face of the nozzle:

1. Press and hold the tool and bit depth gauge button.
2. Push in the nozzle assembly until the bit is flush with the front face of the nozzle.
3. Release the tool and bit depth gauge button.

NOTE: Fully extend the HAMMERVAC™ before storing to preserve spring life.

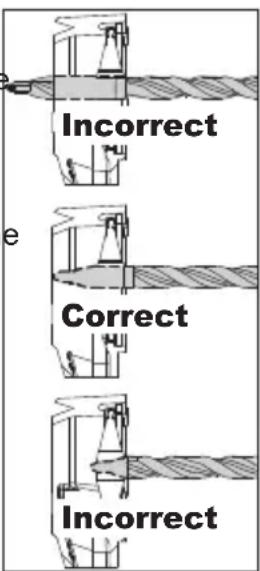

Incorrect Correct Incorrect

Setting the Drilling Depth

1. Fit the HAMMERVAC ^TM to the tool and bit.
2. Press and hold the depth gauge button and slide the depth gauge to the desired depth. The drilling depth is the last visible measurement shown when viewed from the top of the tool. To ensure the HAMMERVAC ^™ is properly set to the tool, bit, and desired depth, always drill a test hole.

Drill depth Depth gauge button

OPERATION

WARNING

To reduce the risk of fire and injury, do not

use to pick up flammable or combustible materials. Empty dust box completely before use.

To reduce the risk of injury, always wear proper eye protection marked to comply with ANSI Z87.1. When working in dusty situations, wear appropriate respiratory protection or use an OSHA compliant dust extraction solution.

Always remove battery pack before changing or removing accessories. Only use accessories specifically recommended for this tool. Others may be hazardous.

Proper Operation

1. WARNING! Remove battery to avoid starting the tool.
2. Empty the dust box.

NOTE: For optimal use to remove debris in the dust box, connect a hose to a vacuum and remove debris.

1. Fit the HAMMERVAC ^TM to the tool and bit.
2. Set the drill depth.
3. Install the battery pack.
4. Pull trigger to start HAMMERVAC ^TM .
5. Begin use according to tool manufacturer instructions.

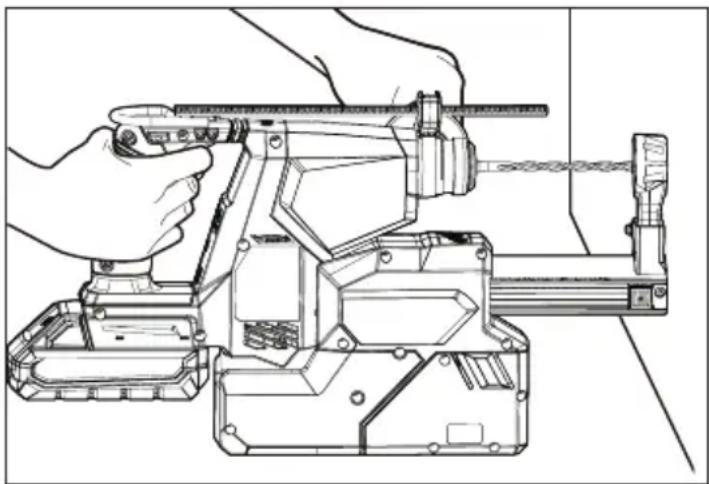

6. Always hold the tool securely using both handles to maintain control.

Technical line drawing of a robotic device with hands operating it (no text or symbols present)

1. Stop and empty dust box:

2. When suction decreases,

3. When dust begins to come through the nozzle bit brush,
4. When dust covers the filter in the visible dust box.

NOTE: Empty the dust box often. When suction decreases, press the filter cleaning lever 3-5 times to improve suction.

MAINTENANCE

WARNING

To reduce the risk of injury, always unplug

the charger and remove the battery pack from the charger or tool before performing any maintenance. Never disassemble the battery pack, charger, or tool, except as provided in these instructions. Contact a MILWAUKEE service facility for all other repairs.

Do not use tool without dust box and HEPA filter in place.

Maintaining Filter

Keep filter clean. Empty debris by holding away from the user's face and tapping dust box into a trash can, pail, or other reasonable container. Pull the HEPA filter away from the dust box and tap clean. Do not clean with water or compressed air. After about 1500 holes or loss of suction, discard and replace HEPA filter (Cat. No. 49-90-0910).

Maintaining Tool

Keep this tool, battery pack and charger in good repair by adopting a regular maintenance program. Inspect the tool for issues such as undue noise, misalignment or binding of moving parts, breakage of parts, or any other condition that may affect the tool operation. Return the tool, battery pack, and charger to a MILWAUKEE service facility for repair. Depending on use, periodically have an authorized service facility inspect and maintain the tool, battery, and charger to ensure proper performance.

If the tool does not start or operate at full power with a fully charged battery pack, clean the contacts on the battery pack. If the tool still does not work properly, return the tool, charger and battery pack, to a MILWAUKEE service facility for repairs.

WARNING

To reduce the risk of personal injury and

damage, never immerse a tool, battery pack or charger in liquid or allow a liquid to flow inside them.

Cleaning

Clean dust and debris from any vents. Keep tool clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean, since certain cleaning agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household detergents containing ammonia. Never use flammable or combustible solvents around tools.

Repairs

For repairs, return the tool, battery pack and charger to the nearest authorized service center.

ACCESSORIES

WARNING

Use only recommended accessories. Oth-

ers may be hazardous.

For a complete listing of accessories, go online to www.milwaukeetool.com or contact a distributor.

Contact Corporate After Sales Service Technical Support with technical, service/repair, or warranty questions.

Email: [e-mail]

Become a Heavy Duty Club Member at www.milwaukeetool.com to receive important notifications regarding your tool purchases.

SERVICE - CANADA

Milwaukee Tool (Canada) Ltd 1.877.948.2360

Monday-Friday, 7:00 AM - 4:30 PM CST

or visit www.milwaukeetool.ca

LIMITED WARRANTY USA & CANADA

This MILWAUKEE power tool* is warranted to the original purchaser from an authorized MILWAUKEE distributor only to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part on this power tool which, after examination, is determined by MILWAUKEE to be defective in material or workmanship for a period of five (5) years after date of purchase unless otherwise noted. Return of the power tool to a MILWAUKEE factory Service Center location or MILWAUKEE Authorized Service Station, freight prepaid and insured, is required. A copy of the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents.

Normal Wear: Many power tools need periodic parts replacement and service to achieve best performance. This warranty does not cover repair when normal use has exhausted the life of a part including, but not limited to, carriage gears, chucks, brushes, cords, saw shoes, blade clamps, o-rings, seals, bumpers, driver blades, pistons, strikers, lifters, and bumper cover washers.

*This warranty does not cover battery packs or all power tools. Refer to the separate and distinct warranties available for those products. The warranty period for the LED in the LED Work Light (49-24-0171) and the LED Upgrade Bulb (49-81-0090) is the lifetime of the product subject to the limitations above. If during normal use the LED or LED Upgrade Bulb fails, the part will be replaced free of charge.

Warranty Registration is not necessary to obtain the applicable warranty on a MILWAUKEE power tool product. The manufacturing date of the product will be used to determine the warranty period if no proof of purchase is provided at the time warranty service is requested. ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CONTRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES, WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WARRANTIES ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

This warranty applies to product sold in the U.S.A. and Canada only. Please consult the 'Service Center Search' in the Parts & Service section of MILWAUKEE's website www.milwaukeetool.com or call 1.800.SAWDUST (1.800.729.3878) to locate your nearest service facility for warranty and non-warranty service on a MILWAUKEE power tool.
